BJM Pumps XP-SK SERIES Instruction manual

Version 3-27-17
INSTALLATION, OPERATION & MAINTENANCE MANUAL
XP-SK SERIES - (PUMP END ONLY)
EXPLOSION PROOF SUBMERSIBLE
SHREDDER PUMPS
(CLASS 1, DIVISION 1, GROUPS C&D): FM APPROVED
Three Phase
208V, 230V, 460V & 575V
CAST IRON
THREE PHASE
XP-SK15C
XP-SK22C
XP-SK37C
XP-SK55C
XP-SK75C
XP-SK110C
XP-SK150C
The first half of this manual covers the PUMP END (also called wet end) and general
pump operation.
The second half of this manual covers the XP-SK Series motor.
*** See the EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation
& Maintenance on the EMQY Series submersible motors.
Read both sections of this manual carefully before installing, operating or servicing
these pump models. Observe all safety information. Failure to comply with instructions
may result in personal injury and/or property damage. Please retain these instructions.

TABLE OF CONTENTS
INTRODUCTION ............................................................................................................................................................ 4
SAFETY ......................................................................................................................................................................... 5
INSPECTION ................................................................................................................................................................. 5
PRE-INSTALLATION INSPECTION ......................................................................................................................... 6
PUMP INSTALLATION ............................................................................................................................................. 6
POSITIONING THE PUMP ....................................................................................................................................... 6
WIRING INSTRUCTIONS ......................................................................................................................................... 7
PUMP ROTATION .................................................................................................................................................... 7
PUMP OPERATION ....................................................................................................................................................... 8
STOPPING ................................................................................................................................................................ 9
TROUBLE SHOOTING .................................................................................................................................................. 9
PUMP WILL NOT RUN ............................................................................................................................................. 9
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY ................................................................................. 9
SERVICING YOUR SUBMERSIBLE PUMP.............................................................................................................. 9
MAINTAINING YOUR PUMP .................................................................................................................................... 9
CHANGING SEAL OIL ............................................................................................................................................ 10

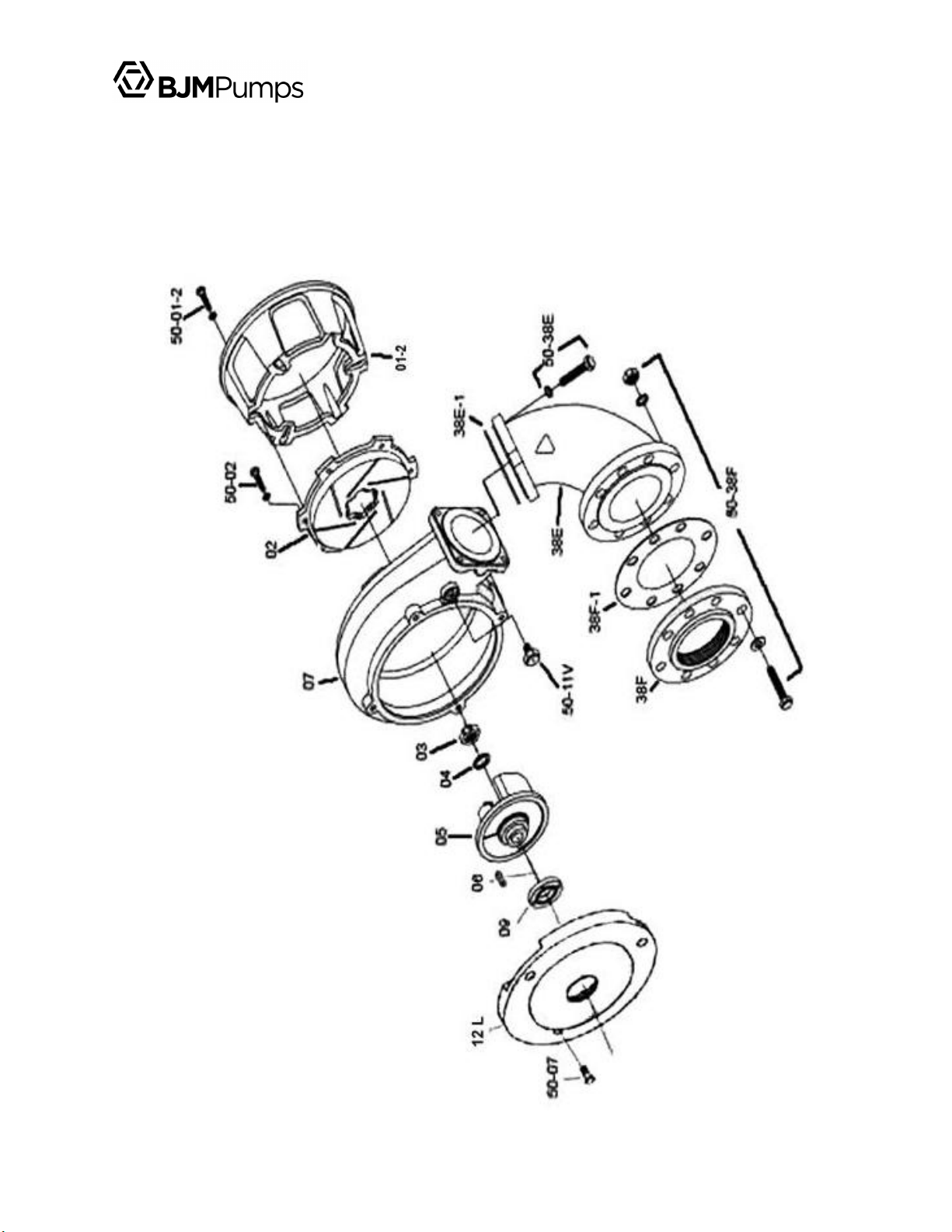

EXPLODED VIEW OF XP-SK15C (2HP) ..................................................................................................................... 11
BJM WET END ASSEMBLY FOR EIM FM MOTOR .................................................................................................... 11
EXPLODED VIEW OF XP-SK22C, XP-SK37C (3 & 5HP) ........................................................................................... 12
BJM WET END ASSEMBLY FOR EIM FM MOTOR .................................................................................................... 12
EXPLODED VIEW OF XP-SK55C, XP-SK75C ............................................................................................................ 13
BJM WET END ASSEMBLY FOR EIM FM MOTOR .................................................................................................... 13
EXPLODED VIEW OF XP-SK110C, XP-SK150C ........................................................................................................ 14
BJM WET END ASSEMBLY FOR EIM FM MOTOR .................................................................................................... 14
XP-SK SERIES PARTS LIST ....................................................................................................................................... 15

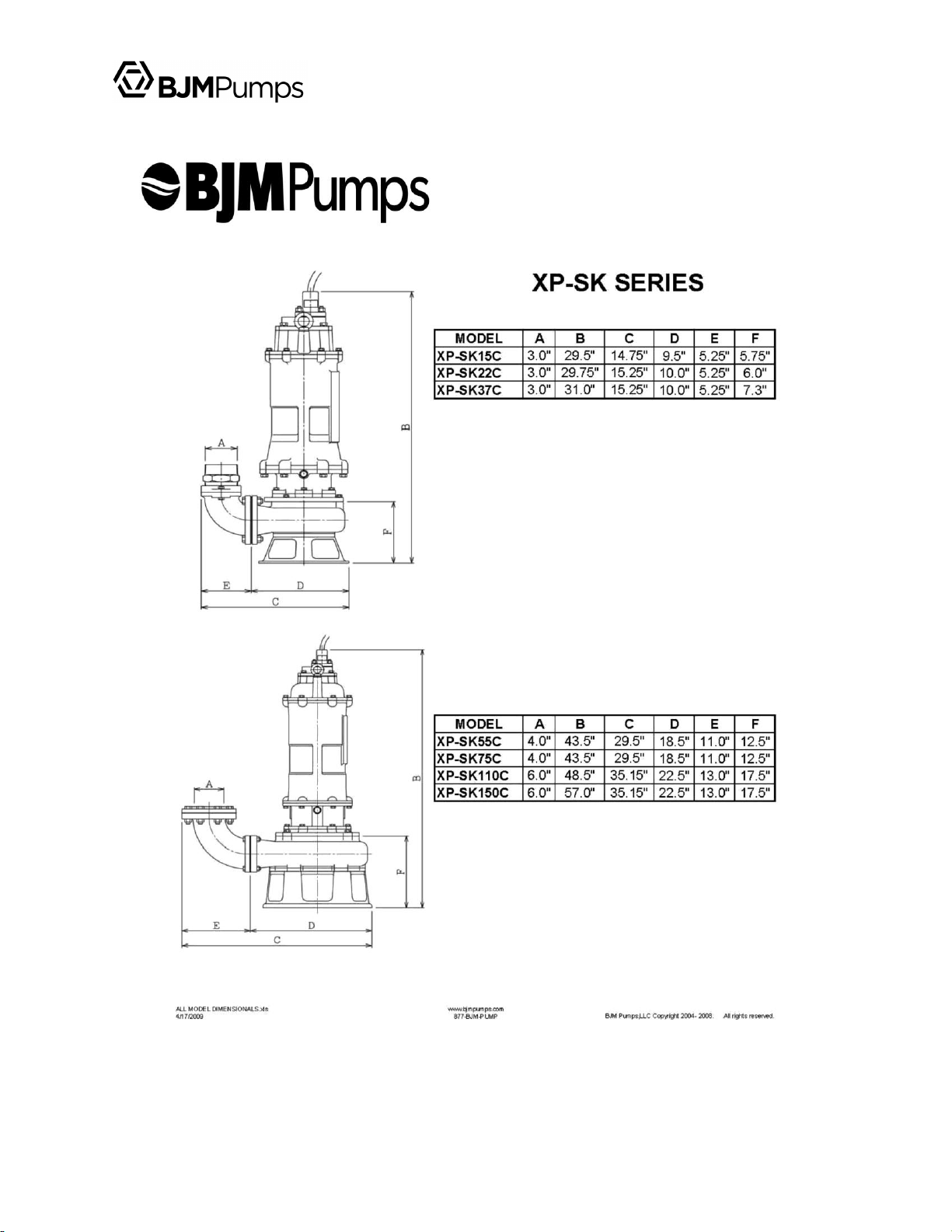

XP-SK DIMENSIONAL DRAWING .............................................................................................................................. 17
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH ........................................................................................ 18
WARRANTY AND LIMITATION OF LIABILITY ............................................................................................................ 21
START-UP REPORT FORM ........................................................................................................................................ 22
NOTES: ........................................................................................................................................................................ 25
EIM MANUAL FOR EMQY SUBMERSIBLE MOTORS……………………………………………………………………27

4
INTRODUCTION
This Installation, Operation and Maintenance manual located in the front half of this manual
only covers the pump end (wet end) of the XP-SK Series pumps.
Refer to EIM ELECTRIC CO., LTD Instruction Manual located in the second half of this manual
for Installation, Operation and Maintenance for the Explosion Proof Submersible Motors (EMQY
Series; FM Approved for Class I, Division 1, Group C & D).
This manual provides important information on safety and the proper inspection;
disassembly, assembly and testing of the BJM Pumps® SK Series Wet End attached to EIM
Electric Co., LTD. EMQY Series Explosion Proof Submersible Motors. This manual also
contains information to optimize performance and longevity of your BJM Pumps®
submersible pump end.
The submersible XP-SK Series pumps are designed to pump water with some solids.
The pump and motor housing are made of cast iron (the impeller and suction are
made of chrome iron in pumps with 2, 3 & 5 HP motors). Consult chemical
resistance chart for compatibility between pump materials and liquid before operating
pump.
If you have any questions regarding the inspection, disassembly, and assembly or testing
please contact your BJM Pumps® distributor, or Industrial Flow Solutions Operating, LLC.
Note: All service work on the FM Approved motor by EIM Electric Co., needs to be done by an
FM Approved repair facility.
Industrial Flow Solutions Operating, LLC
104 John W Murphy Drive
New Haven, CT 06513, USA
Phone: [phone]
Fax: [phone]
Information, including pump data sheets and performance curves, is also available on
our web site: www.flowsolutions.com
For assistance with your electric power source, please contact a certified electrician.
Please pay attention to the following alert notifications. They are used to notify
operators and maintenance personnel to pay special attention to procedures, to avoid
causing damage to the equipment, and to avoid situations that could be dangerous to
personnel.
Immediate hazards that WILL result in severe personal injury or
death. These instructions describe the procedure required and the injury which will
result from failure to follow the procedure.

5
Hazards or unsafe practices that COULD result in severe personal
injury or death. These instructions describe the procedure required, and the injury which
could result from failure to follow the procedure.
Hazards or unsafe practices which COULD result in personal injury
or product or property damage. These instructions describe the procedure required and
the possible damage which could result from failure to follow the procedure.
SAFETY
Pump installations are seldom identical. Each installation and application can vary due
to many different factors. It is the owner/service mechanics responsibility to repair,
service, and test to ensure that the pump integrity is not compromised according to this
manual.
Risk of electric shock – this pump has not been investigated for use
in swimming pool areas.
Before attempting to open or service the pump:
1) Familiarize yourself with this manual & the EIM ELECTRIC CO., LTD Instruction
Manual for Installation, Operation and Maintenance for the EMQY Series FM approved
submersible pump motor.
2) Disconnect the pump power cable to ensure that the pump will remain inoperative.
3) Allow the pump to cool if overheated.
After the pump has been installed, make sure that the pump and all
piping are secure before operation.
Do not lift the pump by the power cable piping or discharge hose.
Attach proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do
not suspend the pump by the power cable.
Pumps and related equipment must be installed and operated
according to all national, local and industry standards.
INSPECTION
Review all safety information before servicing pump.
The following are recommended installation practices/procedures for the pump. If there
are questions in regards to your specific application, contact your local BJM
Pumps® distributor or Industrial Flow Solution Operating, LLC.

6
Lifting:
Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of
the pump.
Do not lift the pump by the power cable or discharge hose/piping.
Proper lifting equipment (rope/chain) must be used.
PRE-INSTALLATION INSPECTION
1) Check the pump for damage that may have occurred during shipment.
2) Inspect the pump for any cracks, dents, damaged threads, etc.
3) Check power cord (and Seal Leak Detector cord, if installed) for any cuts or
damage.
4) Check for, and tighten any hardware that appears loose.
5) Carefully read all tags, decals and markings on the pump.
6) Important: Always verify that the pump nameplate amps, voltage, phase, and HP
ratings match your control panel and power supply.
Record the model numbers and serial numbers from the pumps and control panel on
the front of this instruction manual for future reference. Give it to the owner or affix it to
the control panel when finished with the installation.
If anything appears to be abnormal, contact your BJM Pumps® distributor or
Industrial Flow Solutions Operating, LLC. If damaged, the pump may need to be
repaired before use. Do not install or use the pump until appropriate action has been
taken.
PUMP INSTALLATION
The Shredder pumps (2 HP) are not designed to pump unscreened solids which could
contain matter such as bunched paper towels, feminine napkins, tampon applicators,
etc. This type of debris can clog the pump & prevent it from operating properly. The
BJM Pumps® Shredder Pumps (7 ½ HP and larger) are designed to handle
unscreened sewage.
POSITIONING THE PUMP
BJM Pumps® XP-SK Series pumps are designed to operate fully or partially
submerged. Avoid running the pump dry for extended periods of time. Refer to data
sheet for minimum submersion depth for your particular model. Data sheets can be
obtained online at www.flowsolutions.com or by calling Industrial Flow Solutions
Operating, LLC at 860-399-5937. For minimum submergence requirements, refer to
EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation and
Maintenance for the Explosion Proof Submersible Motors (EMQY Series; FM Approved
for Class I, Division 1, Group C & D).

7
Do not run pump dry.
Pump liquid should not exceed a maximum temperature of 104°F.
Never place the pump on loose or soft ground. The pump may sink, preventing
water from reaching the impeller. Place on a solid surface or suspend the pump
with a lifting rope/chain.
For maximum pumping capacity, use the proper size non-collapsible hose or rigid
piping. A check valve may be installed after the discharge to prevent back flow
when the pump is shut off (recommended if static head is 30’ or greater).
Take stand off of pump when using slide rail. Keep stand and reattach when
transporting or handling the pump.
WIRING INSTRUCTIONS
Electrical wiring and protection must be in accordance with the National Electrical Code
per NEC articles 500 through 503 for installation in Class I, Division 1, Group C & D
Hazardous Locations, and any other applicable state and local electrical requirements.
For motor specifications, motor technical data, design features, power supply, electrical
wiring, operation, inspecting & maintenance, replacing shaft seals, replacing cables,
replacing bearings and other parts, repairing, storing and troubleshooting the
submersible electric motor, refer to EIM ELECTRIC CO., LTD Instruction Manual for
Installation, Operation and Maintenance for the Explosion Proof Submersible Motors
(EMQY Series; FM Approved for Class I, Division 1, Group C & D).
Note: All service work on the FM approved motor by EIM Electric Co., needs to be done
by an FM Approved repair facility.

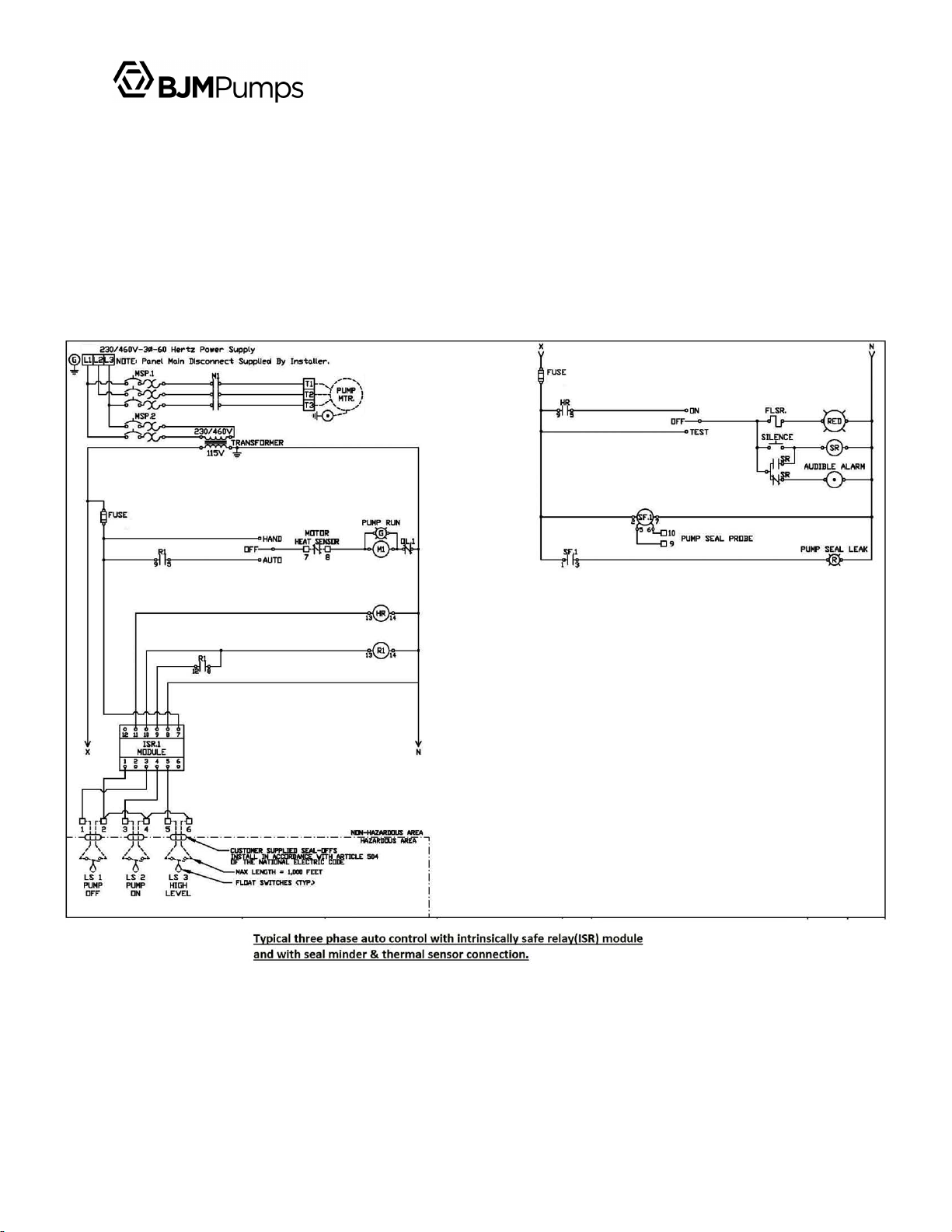

The XP-SK Series motors have a separate sensor cable for the motor thermal sensors
and Seal Minder®. See Seal Minder® - Thermal Motor Sensor Switch section in
this manual for proper connection method
PUMP ROTATION
DO NOT PLACE HANDS IN PUMP SUCTION WHILE CHECKING
MOTOR ROTATION. TO DO SO WILL CAUSE SEVERE PERSONAL INJURY.
Before installing a pump, check the pump rotation to insure that wiring has been
connected properly to power source, and that the green lead of power cord (See wiring
diagram), is connected to a valid ground, momentarily energize the pump, observing the
directions of kick back due to starting torque. Rotation is correct if kick back is in the
opposite direction of rotation arrow on the pump casing. If rotation is not correct,
switching of any two power leads other than ground will provide the proper rotation.

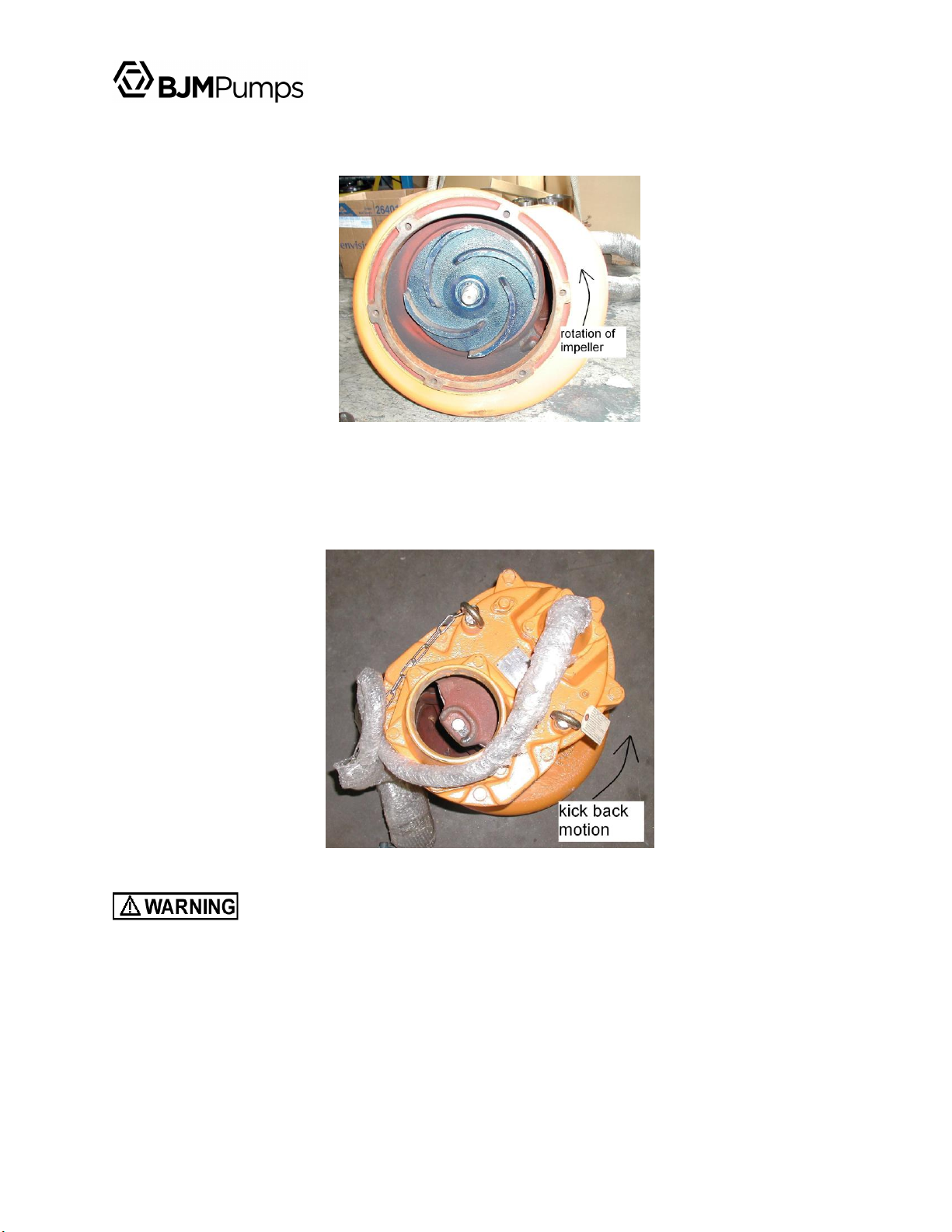

Two ways to check the correct pump rotation:

8
1. By looking at the impeller; the rotation of the impeller should be counter
clockwise as shown in the picture below.
2. By looking from the top of the pump. Since the impeller cannot be seen, the best
way to check the rotation is to check the kick back motion of the pump when the
pump just starts. The kick back motion of the pump should be counter clockwise
as shown in the picture below.
PUMP OPERATION
This pump is designed to handle dirty water that contains some
solids. Do not attempt to pump any liquids which may damage the pump or endanger
personnel as a result of pump failure.
Consult EIM ELELCTRIC Co., LTD. Instruction Manual for Installation, Operation
and Maintenance before connecting, operating or conducting maintenance on the
Explosion Proof Submersible Motor.

9
STOPPING
To stop the pump (manual and automatic mode) turn off the breaker, or turn the
electrical power source off (generator).
TROUBLE SHOOTING
Disconnect the electrical power source to the pump BEFORE
attempting any type of trouble shooting, service or repair.
PUMP WILL NOT RUN
Refer to EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation and
Maintenance for the Explosion Proof Submersible Motors (EMQY Series; FM Approved
for Class I, Division 1, Group C & D).
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY
1. Discharge line clogged, restricted or hose kinked. Check discharge hose/pipe.
2. Worn impeller and/or suction cover. Inspect and replace as necessary.
3. Pump overloaded due to liquid pumped being too thick.
4. Pumping air. Check liquid level and position of pump.
5. Excessive voltage drops due to long cables.
6. Pump running backwards, check rotation.
SERVICING YOUR SUBMERSIBLE PUMP
Pump should be disconnected from the electric power supply before proceeding to do
any service or maintenance.
Service on submersible electric motor should only be performed by a qualified
electrician. Refer to EIM ELECTRIC CO., LTD Instruction Manual for Installation,
Operation and Maintenance for the Explosion Proof Submersible Motors (EMQY Series;
FM Approved for Class I, Division 1, Group C & D).
MAINTAINING YOUR PUMP
Pump should be disconnected from the electric power supply before proceeding
to do any service or maintenance.
Pump should be inspected at regular intervals.
More frequent inspections are required if the pump is used in a harsh
environment.
Preventative maintenance should be performed to reduce the chance of
premature failure.
Worn impellers and lip seals should be replaced.

10
Cut or cracked power cords must be replaced. (Never operate a pump with a
cut, cracked or damaged power cord.)
Maintenance should always be done when taking a pump out of service before
storage.
The impeller to suction cover clearance should be adjusted to between 0.01” to
0.02” for optimal cutting of the shredder. Shim kits are available if adjustment is
required.
1) Clean pump of dirt and other build up.
2) Check condition of oil around the shaft seals.
3) Check hydraulic parts: check for wear.
4) Inspect power cable. Make sure that it is free of nicks or cuts.
CHANGING SEAL OIL
Refer to EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation and
Maintenance for the Explosion Proof Submersible Motors (EMQY Series; FM Approved
for Class I, Division 1, Group C & D).

11
EXPLODED VIEW OF XP-SK15C (2HP)
BJM WET END ASSEMBLY FOR EIM FM MOTOR

12
EXPLODED VIEW OF XP-SK22C, XP-SK37C (3 & 5HP)
BJM WET END ASSEMBLY FOR EIM FM MOTOR

13
EXPLODED VIEW OF XP-SK55C, XP-SK75C
BJM WET END ASSEMBLY FOR EIM FM MOTOR

14
EXPLODED VIEW OF XP-SK110C, XP-SK150C
BJM WET END ASSEMBLY FOR EIM FM MOTOR

15
XP-SK SERIES PARTS LIST
Pump Model XP-SK15C XP-SK22C XP-SK37C XP-SK55C XP-SK75C XP-SK110C XP-SK150C
Pos. No. Part Description Item # Item # Item # Item # Item # Item # Item #
01-2 Stand Only 202858 202850 202855 201998 201998 202000 202000
02 Suction Cover, Cast Iron - - - 202880 202880 202882 202882
02 Suction Cover, Hi-Chrome 202046 202047 202048 - - - -
03 Impeller Nut 202894 202894 202894 202897 202897 202897 202897
3Upper Ball Bearing (See EIM Manual) 200959 200959 200959 200968 200968 200968 200962
04 Impeller Washer 202907 202907 202907 204569 204571 202917 202917
05 Impeller, Heat Treated DI 204565 204566 204567 202136 202138 202945 202947
06 Impeller Key 202140 202140 202140 202146 202146 202146 202987
6Stator 208V (See EIM Manual) 200969 200971 200973 - - - -
6Stator 230V (See EIM Manual) 200969 200971 200973 200975 200977 200979 200981
6Stator 460V (See EIM Manual) 200969 200971 200973 200975 200977 200979 200981
6Stator 575V (See EIM Manual) 200970 200972 200974 200976 200978 200980 200982
07 Pump Housing 203008 203011 203014 203024 203024 203027 203027
7 & 8 Rotor/Shaft Assy. (See EIM Manual) 200983 200984 200985 200986 200987 200988 200989
12L Mating Plate / Oil Chamber Cover
09 Lip Seal Buna-N 203051 202234 202234 202238 202238 202238 202238
09 Lip Seal FKM (Optional) 202232 202235 202235 202241 202241 202241 202241
9Lower Ball Bearing (See EIM Manual) 200961 200961 200961 200494 200494 200495 200496
10 Mechanical Seal - Buna (See EIM Manual) 200332 200332 200332 200333 200333 200333 200334
10 Mechanical Seal - FKM** (See EIM Manual) 200338 200338 200338 200339 200339 200339 200340
38 Discharge Nipple 3" 202534 202534 202534 - - - -
38E Discharge Elbow 202558 202558 202558 3/833 202572 203187 3734C
38E-1 Gasket, Discharge Elbow Buna-N 203208 203208 203208 203210 203210 202663 202663
38E-1 Gasket, Discharge Elbow FKM(Optional) 203209 203209 203209 203211 203211 202664 202664
38F Discharge Flange 3" 202545 202545 202545 - - - -
38F Discharge Flange 4" - 202552 202552 202575 202575 - -
38F Discharge Flange 6" ANSI Slip Weld - - - - - 202548 202548
38F-1 Gasket, Discharge Flange Buna-N 202659 202659 202659 202661 202661 202663 202663
38F-1 Gasket, Discharge Flange FKM (Optional) 202660 202660 202660 202662 202662 202664 202664
50-01-2 Bolt for Strainer/Stand 203228 203228 203228 203236 203236 203279 203279
50-02 Bolt for Suction Cover 203228 203228 203228 203236 203236 203279 203279
See the EIM Electric Co., LTD I O & M Manual

16
50-07 Bolt for Mating Plate to Volute 203229 203229 203229 203236 203236 - -
50-11V Air Release Valve - - - 202707 202707 202707 202707
50-38E Bolt for Discharge Elbow 203255 203255 203255 203276 203276 203278 203278
50-38F Bolt for Discharge Flange 203289 203289 203253 203277 203277 203278 203278
49 Bell Mouth (See EIM Manual) Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy.
49-SN Stud & Nut (See EIM Manual) Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy.
50 Cable Bushing (See EIM Manual) Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy.
54 Cable (See EIM Manual) Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy.
55 Cable clamp (See EIM Manual) Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy.
55-B Bolt (See EIM Manual) Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy. Pwr Cable Assy.
200998 200998 200999 200999 - -
200998 200998 200999 200999 201000 201000 -
200998 200998 200998 200998 200998 200999 201001
200998 200998 200998 200998 200998 200999 201001
49 Bell Mouth (See EIM Manual) Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit
49-SN Stud & Nut (See EIM Manual) Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit
50 Cable Bushing (See EIM Manual) Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit
55-B Bolt (See EIM Manual) Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit
55 Cable clamp (See EIM Manual) Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit Pwr Cable Kit
200233 200233 200291 200291 - - -
200233 200233 200291 200291 200328 200328 -
200233 200233 200233 200233 200233 200291 200330
200233 200233 200233 200233 200233 200291 200330
2-R O-Ring (See EIM Manual) O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit
5-R1 O-Ring (See EIM Manual) O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit
5-R2 O-Ring (See EIM Manual) O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit
12U-R O-Ring (See EIM Manual) O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit
28-P O-Ring (See EIM Manual) O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit O-Ring Kit
200335 200335 200335 200336 200336 204167 200337
200341 200341 200341 200342 200342 204168 200343
Pwr Cable Kit 230V
Pwr Cable Kit 460V
Pwr Cable Kit 575V
O-Ring Kit-Buna N
O-Ring Kit-FKM (Optional)
Pwr Cable Kit 208V
Pwr Cable Assy.208V
Pwr Cable Assy.230V
Pwr Cable Assy.460V
Pwr Cable Assy.575V
***See pages 32-39 for parts position numbers***

17
XP-SK DIMENSIONAL DRAWING

18
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH
Seal Minder® :
Also known as a seal failure circuit (or moisture detection circuit) is designed to inform the
pump operator that there is moisture within the oil chamber. This early warning can allow the
operator to schedule repair & inspection on the pump. The Seal Minder® sensor probe is
inside the oil chamber. (The oil chamber houses the mechanical seals that are cooled &
lubricated by oil). The Seal Minder, when properly connected to a control panel, can help
indicate seal failure. The Seal Minder cord requires a seal fail circuit in control panel for
warning signal.
Along, with the Seal Minder, the XP-SK Series pumps also feature thermal temperature
sensor switches that are imbedded into the motor stator windings. Two switches are
imbedded into the stator windings and wired in series. The leads are connected to the pump
control panel through the sensor cable. If the windings would see a temperature above 300
degrees F, then the switch(s) would open and cut power to the pump. Once the temperature
dropped below 300 degrees F, the switch(s) would reset, and the pump would be returned to
a state of operation. This feature is designed to prevent damage to the stator winding and
allow for longer pump life.
The sensor cable consists of four leads, two are connected to the Seal Minder, and two are
connected to the thermal sensor switches located in the stator windings. These four leads run
to the pump control panel and connect to the proper connections points for seal alarm and
thermal cut off. The G2(Green) and K(Red) wires are for the Seal Minder connections and the
thermal sensors will be connected to the m(White) and N(Black) wires. The three phase
automatic wiring diagram shown earlier in the manual will give a guide to the connections in
the control panel. The manual for the control panel should be consulted for the exact
connections.
The sensor cable with Seal Minder and thermal sensor switch connections is standard on all
XP-SK Series pumps. The proper replacement part can be found parts list found in this
manual. BJM Pumps® can supply a control with the Seal Minder and Thermal sensor switch
option. Separate stand alone Seal Minder alarm panels are also available. Consult your BJM
Pumps® representative for part numbers and ordering details. BJM Pumps® requires the
Seal Minder and thermal sensor switches be used. Failure to connect or misuse of
these devices will void warranty.
Seal Minder® is a registered trademark of Industrial Flow Solutions Operating, LLC. All rights reserved.
© 2020 Industrial Flow Solutions Operating, LLC. All rights reserved.

19

20

21
Industrial Flow Solutions Operating, LLC
104 John W Murphy Drive
New Haven, CT 06513, USA
WARRANTY AND LIMITATION OF LIABILITY
Unless otherwise expressly authorized in writing, specifying a longer or shorter period, BJM
Pumps,LLC warrants for a period of eighteen (18) months from the date of shipment from the Point of
Shipment, or one (1) year from the date of installation, whichever occurs first, that all products or parts
thereof furnished by BJM Pumps,LLC under the brand name BJM Pumps, hereinafter referred to as the
“Product” are free from defects in materials and workmanship and conform to the applicable specification.
BJM Pumps,LLC’s liability for any breach of this warranty shall be limited solely to replacement or repair, at the
sole option of BJM Pumps,LLC, of any part or parts of the Product found to be defective during the
warranty period, provided the Product is properly installed and is being used as originally intended. Any
breach of this warranty must be reported to BJM Pumps,LLC or BJM Pumps,LLC’s authorized service
representative within the aforementioned warranty period, and defective Product or parts thereof must
be shipped to BJM Pumps,LLC or BJM Pumps,LLC’s authorized representative, transportation
charges prepaid. Any cost associated with removal or installation of a defective Product or part is
excluded.
IT IS EXPRESSLY AGREED THAT THIS SHALL BE THE SOLE AND EXCLUSIVE REMEDY OF
BJM PUMPS, LLC’S DISTRIBUTORS AND CUSTOMERS. UNDER NO CIRCUMSTANCES SHALL BJM
PUMPS, LLC BE LIABLE FOR ANY COSTS, LOSS, EXPENSE, DAMAGES, SPECIAL DAMAGES,
INCIDENTAL DAMAGES OR CONSEQUENTIAL DAMAGES ARISING DIRECTLY OR INDIRECTLY FROM
THE DESIGN, MANUFACTURE, SALE, USE OR REPAIR OF THE PRODUCT, WHETHER BASED
ON WARRANTY, CONTRACT, NEGLIGENCE, OR STRICT LIABILITY. IN NO EVENT WILL
LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT.
THE WARRANTY AND LIMITS OF LIABILITY CONTAINED HEREIN ARE IN LIEU OF ALL
OTHER WARRANTIES AND LIABILITIES, EXPRESSED OR IMPLIED. ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY
DISCLAIMED BY BJM PUMPS, LLC AND EXCLUDED FROM THIS WARRANTY.
BJM Pumps,LLC neither assumes, nor authorizes any person to assume for it, any other warranty obligation in
connection with the sale of the Product. This warranty shall not apply to any Product or parts of Product which
have (a) been repaired or altered outside of BJM Pumps,LLC’s facilities unless such repair was authorized in
advance by BJM Pumps,LLC or by its authorized representative; or (b) have been subject to
misuse, negligence or accident; or (c) have been used in a manner contrary to BJM Pumps,LLC’s instruction.
In any case of products not manufactured and sold under the BJM Pumps,LLC brand name, there is
no warranty from BJM Pumps,LLC; however BJM Pumps,LLC will extend any warranty received from
BJM Pumps,LLC’s supplier of such products.
