BJM Pumps J-F SERIES Instruction manual

Version 8/3/18
INSTALLATION, OPERATION & MAINTENANCE MANUAL
FAHRENHEIT®
J-F & JX-F SERIES
SIDE DISCHARGE
Electric Submersible Pumps
Single Phase
115V & 230V
UUCAST IRONUU
UUSINGLE PHASEUU
J400-F
J750-F
J1500-F
J1500H-F
U316 STAINLESS STEELU
UUSINGLE PHASEUU
JX400SS-F
JX750SS-F
JX1500SS-F
JX1500HSS-F
Read this manual carefully before installing, operating or servicing these pump models.
UUObserve all safety information.UU Failure to comply with instructions may result in
personal injury and/or property damage. Please retain these instructions.

TABLE OF CONTENTS
INTRODUCTION ........................................................................................................................................................................ 4
SAFETY...................................................................................................................................................................................... 5
INSPECTION.............................................................................................................................................................................. 6
PRE-INSTALLATION INSPECTION...................................................................................................................................... 6
LUBRICATION:...................................................................................................................................................................... 6
OIL FILL QUANTITY/TYPE.................................................................................................................................................... 7
PUMP INSTALLATION.......................................................................................................................................................... 7
POSITIONING THE PUMP.................................................................................................................................................... 8
PUMP ROTATION................................................................................................................................................................. 9
PUMP OPERATION............................................................................................................................................................. 10

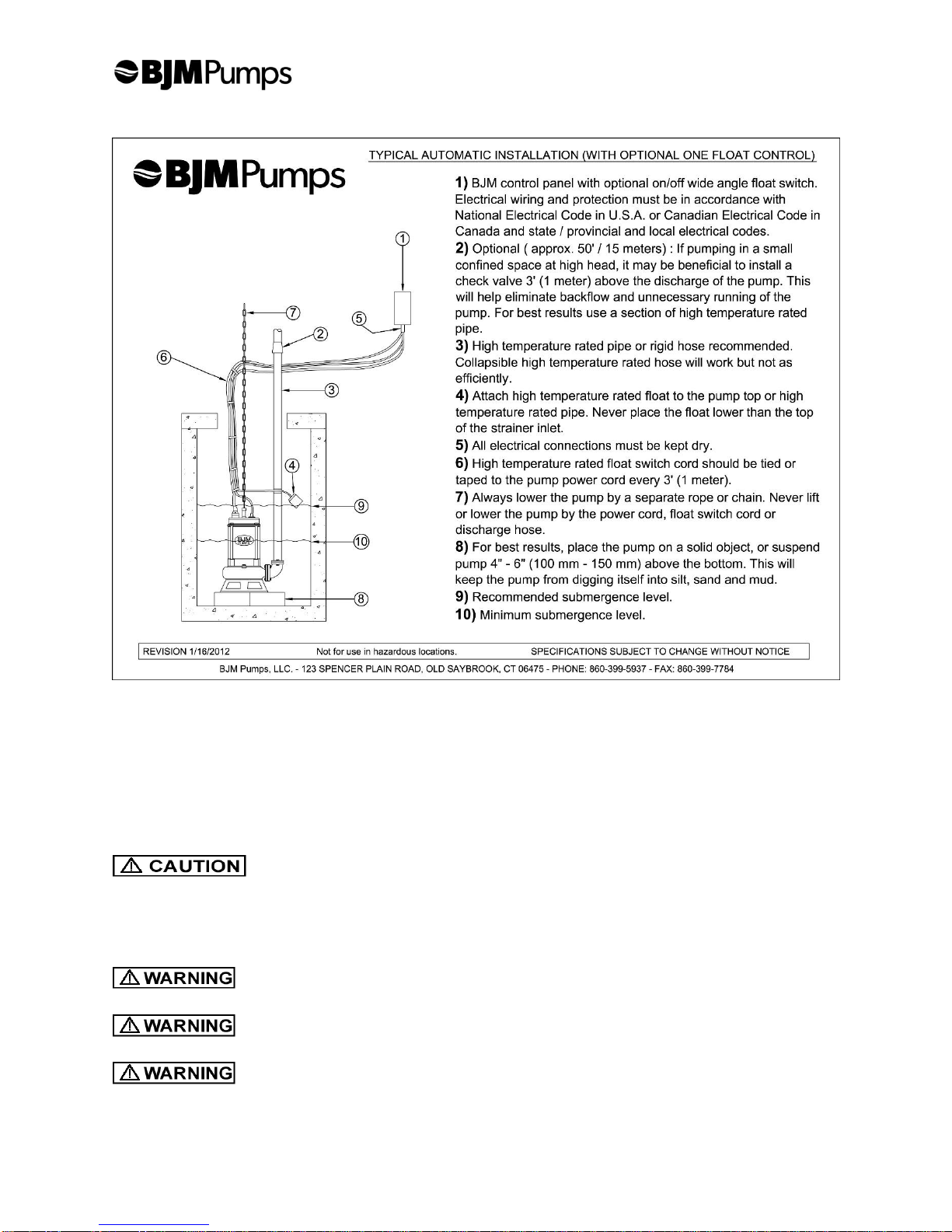

TYPICAL AUTOMATIC DEWATERING INSTALLATION......................................................................................................... 11
STOPPING .......................................................................................................................................................................... 11
CONTROL PANELS CONNECTION OPTIONS....................................................................................................................... 11

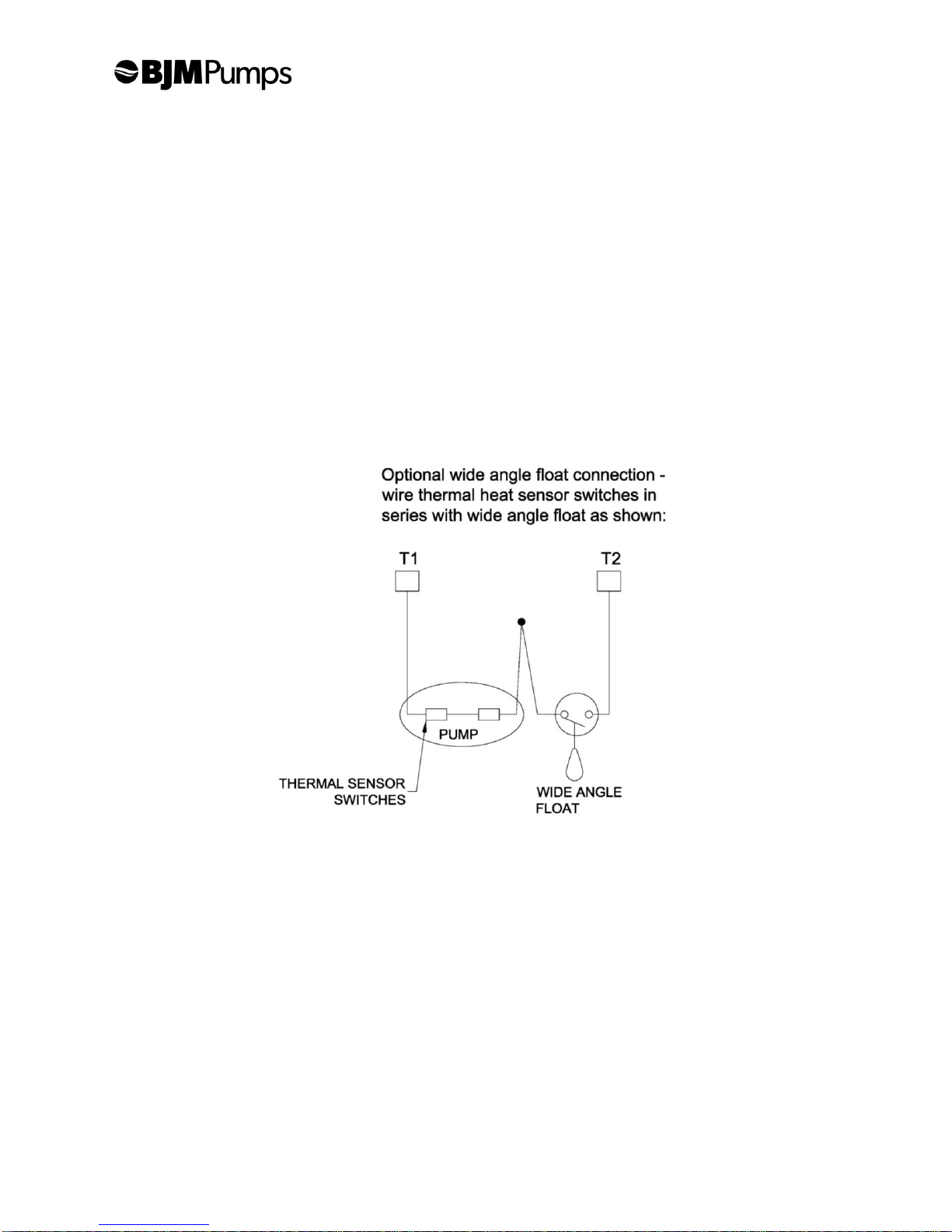

OPTIONAL FLOAT CONNECTION ..................................................................................................................................... 13
TROUBLE SHOOTING............................................................................................................................................................. 14
PUMP WILL NOT RUN........................................................................................................................................................ 14
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY ........................................................................................... 14
SERVICING YOUR SUBMERSIBLE PUMP ........................................................................................................................ 14
MAINTAINING YOUR PUMP............................................................................................................................................... 14
CHANGING SEAL OIL......................................................................................................................................................... 15

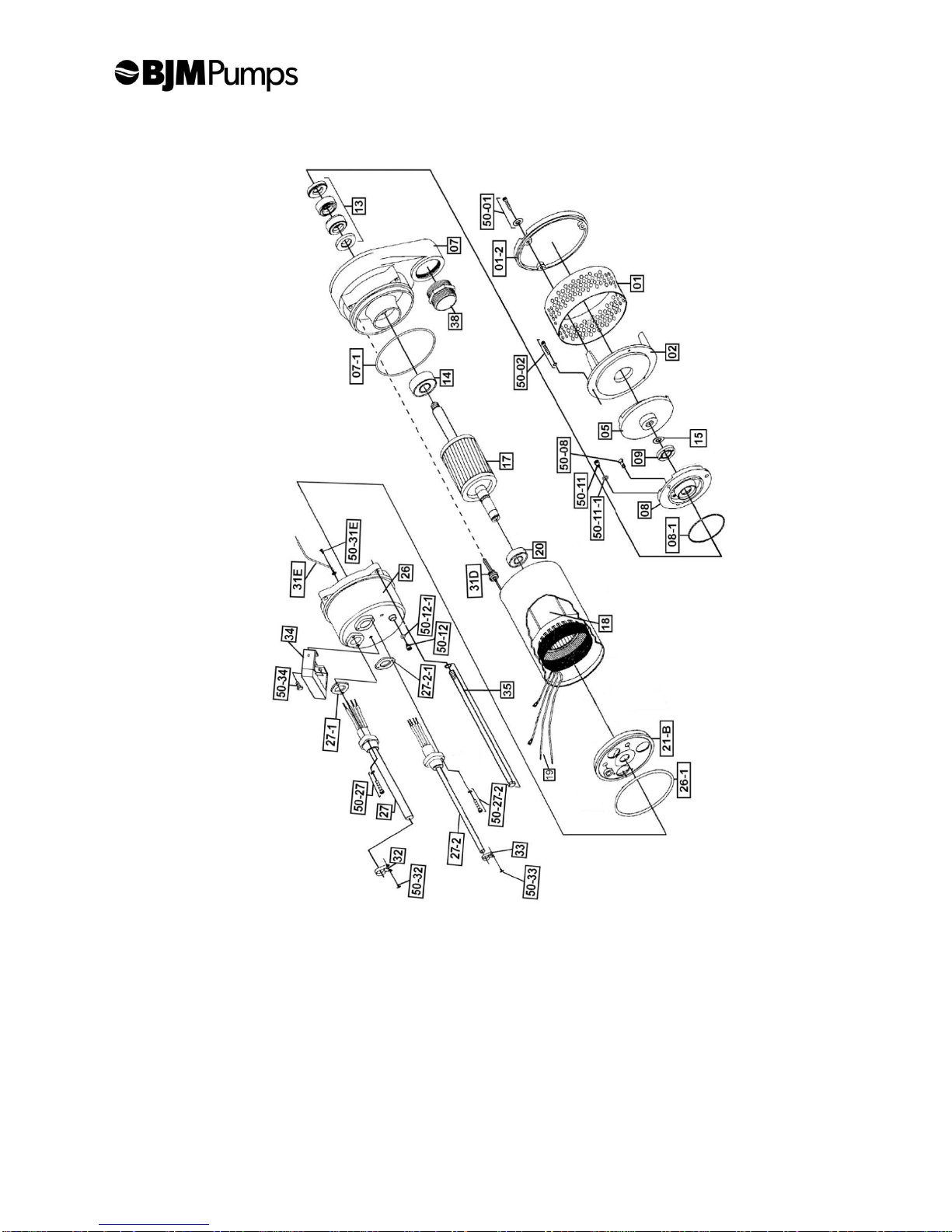

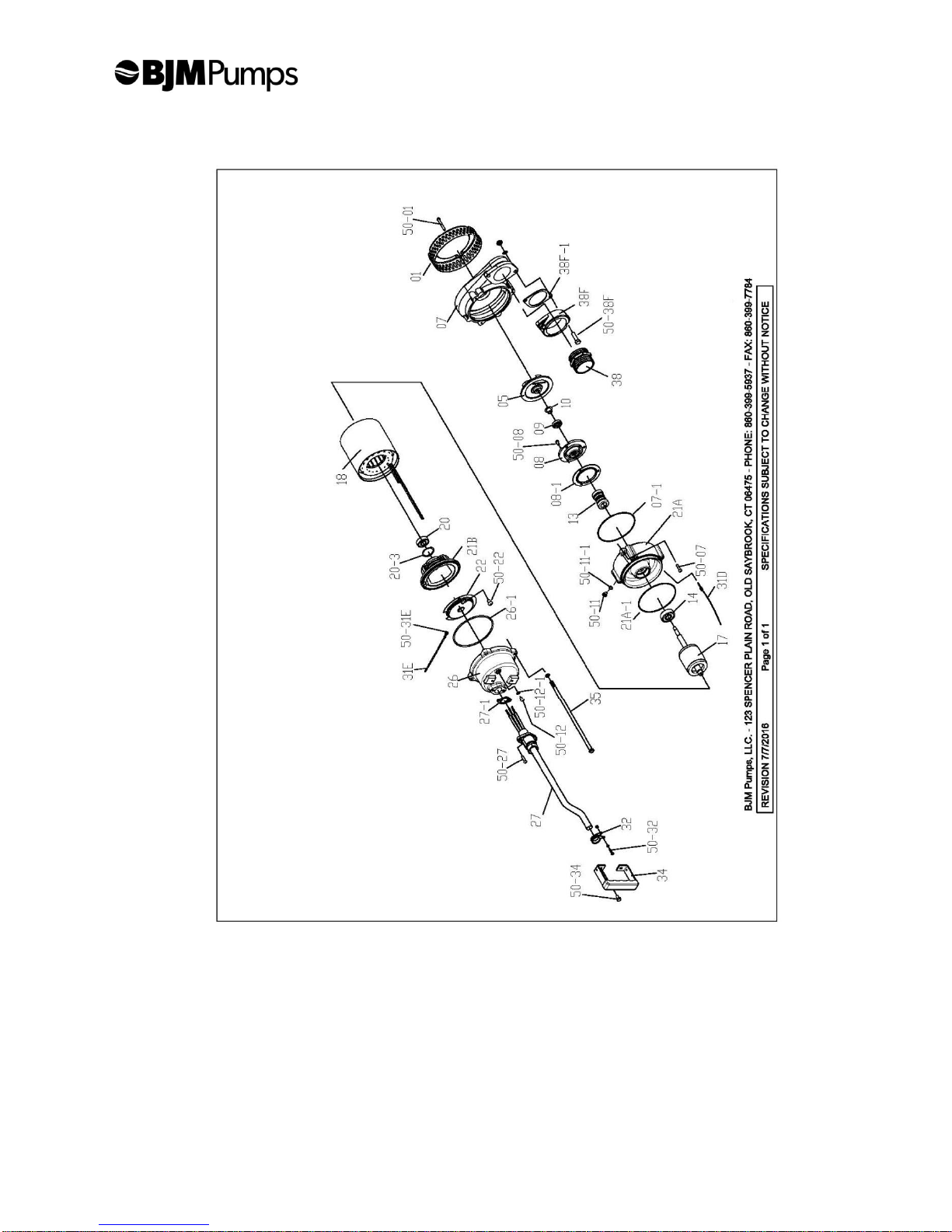

EXPLODED VIEW OF J400-F, JX400SS-F.............................................................................................................................. 16

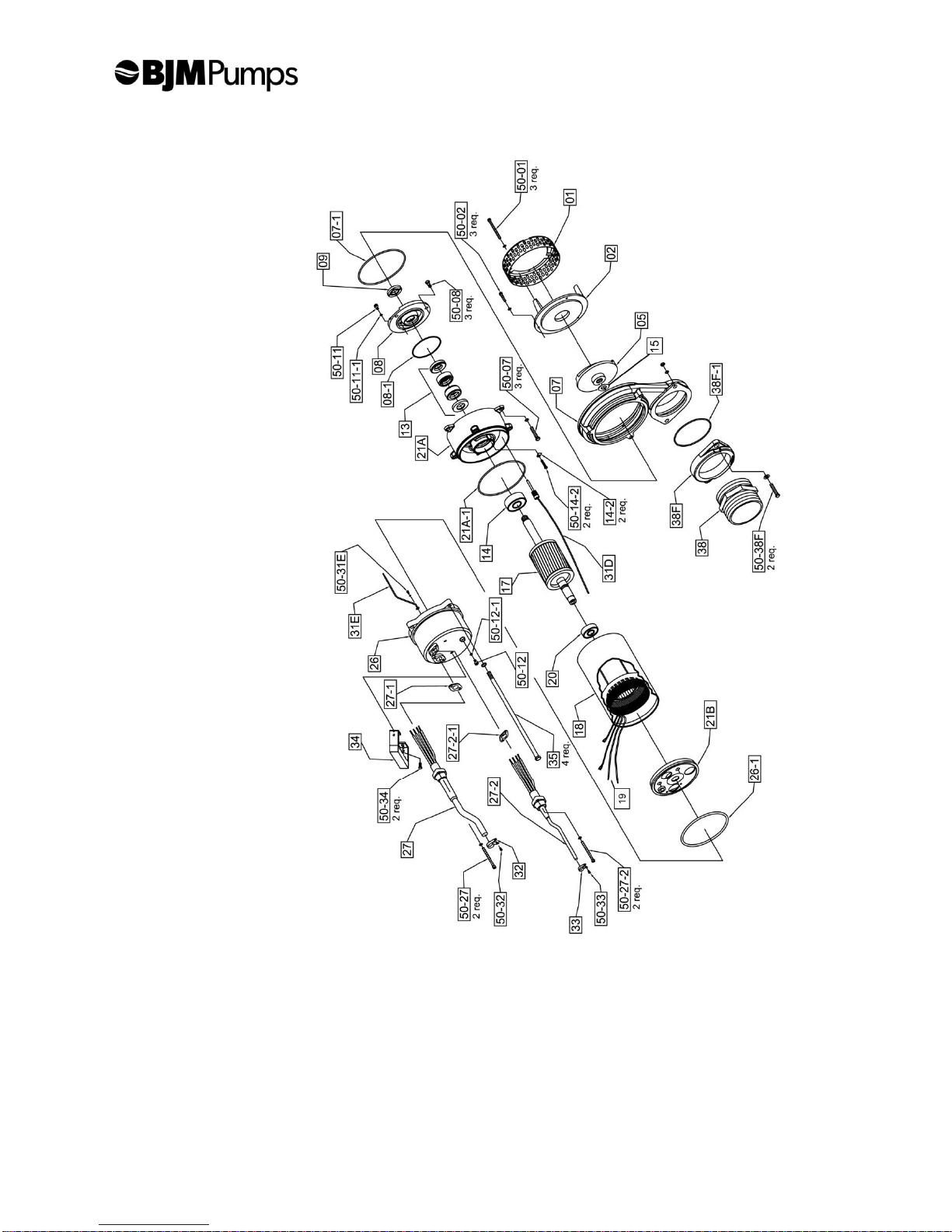

EXPLODED VIEW OF J750-F, J1500H-F & J1500HSS F........................................................................................................ 16
EXPLODED VIEW OF JX750SS-F, JX1500SS-F & JX1500HSS-F ......................................................................................... 18
J-F SERIES PARTS LIST......................................................................................................................................................... 19
JX-F SERIES PARTS LIST....................................................................................................................................................... 21
SINGLE PHASE WIRING DIAGRAM........................................................................................................................................ 22
115V & 230V........................................................................................................................................................................ 22
MODELS: J400-F & JX400-F............................................................................................................................................ 22
1150 & 230V........................................................................................................................................................................ 23
MODELS: J750-F, JX750SS-F, J1500-F, JX1500SS-F, J1500H-F, JX1500HSS-F.......................................................... 23
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH ...................................................................................................... 24
WARRANTY AND LIMITATION OF LIABILITY ........................................................................................................................ 25
START-UP REPORT FORM .................................................................................................................................................... 26
NOTES: .................................................................................................................................................................................... 29

4
INTRODUCTION
This Installation, Operation and Maintenance manual provides important information on safety
and the proper inspection, disassembly, reassembly and testing of the BJM Pumps®J-F & JX-
F Series submersible pump. This manual also contains information to optimize performance
and longevity of your BJM Pumps submersible pump. The F Series FAHRENHEIT® pumps
are engineered to pump water based liquids up to 200° Fahrenheit (93°C).
The submersible J-F Series pumps are designed to pump water and wastewater. The
JX-F Series pumps are designed to pump corrosive liquids in concentrations
chemically compatible with 316SS and FKM. The J-F & JX-F Series pumps are not
explosion proof. They are not designed to pump volatile or flammable liquids.
Note: Consult a chemical resistance chart for compatibility between pump materials
and liquid before operating pump. Consult BJM engineering if there is a question on
chemical compatibility.
If you have any questions regarding the inspection, disassembly, assembly or testing please
contact your BJM Pumps distributor, or BJM Pumps, LLC.
BJM Pumps, LLC
123 Spencer Plain Rd.
Old Saybrook, CT 06475, USA
Fax: [phone]
Phone: [phone]
Phone: [phone]
Information, including pump data sheets and performance curves, is also available on
our web site: HHUUwww.bjmpumps.comUU
For assistance with your electric power source, please contact a certified electrician.
Please pay attention to the following alert notifications. They are used to notify
operators and maintenance personnel to pay special attention to procedures, to avoid
causing damage to the equipment, and to avoid situations that could be dangerous to
personnel.
NOTE: Instructions to aid in installation, operation, and maintenance or which
clarify a procedure.
Immediate hazards that WILL result in severe personal injury or
death. These instructions describe the procedure required and the injury which will
result from failure to follow the procedure.
Hazards or unsafe practices that COULD result in severe personal
injury or death. These instructions describe the procedure required, and the injury which
could result from failure to follow the procedure.
Hazards or unsafe practices which COULD result in personal injury
or product or property damage. These instructions describe the procedure required and
the possible damage which could result from failure to follow the procedure.

5
SAFETY
Pump installations are seldom identical. Each installation and application can vary due
to many different factors. It is the owner/service mechanics responsibility to repair,
service, and test to ensure that the pump integrity is not compromised according to this
manual.
Risk of electric shock –this pump has not been investigated for use
in swimming pool areas.
Do not pump flammable or volatile liquids. UUDeath or serious
injury will result.
Before attempting to open or service the pump:
1) Familiarize yourself with this manual.
2) Unplug or disconnect the pump power cable to ensure that the pump will remain
inoperative.
3) Allow the pump to cool if overheated.
Do not operate the pump with a worn or damaged electric power
cable. Death or serious injury could occur.
Never attempt to alter the length or repair any power cable with a
splice. The pump motor and pump motor and cable must be completely waterproof.
Damage to the pump or personal injury may result from alterations.
After the pump has been installed, make sure that the pump and all
piping are secure before operation.
Do not lift the pump by the power cable piping or discharge hose.
Attach proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do
not suspend the pump by the power cable.
Obtain the services of a qualified electrician to troubleshoot, test
and/or service the electrical components of this pump.
Pumps and related equipment must be installed and operated
according to all national, local and industry standards.

6
INSPECTION
Review all safety information before servicing pump.
The following are recommended installation practices/procedures for the pump. If there
are questions in regards to your specific application, contact your local BJM Pumps
distributor or BJM Pumps, LLC.
PRE-INSTALLATION INSPECTION
1) Check the pump for damage that may have occurred during shipment.
2) Inspect the pump for any cracks, dents, damaged threads, etc.
3) Check power cable and sensor cable for any cuts or damage.
4) Check for, and tighten any hardware that appears loose.
5) Carefully read all tags, decals and markings on the pump.
If anything appears to be abnormal, contact your BJM Pumps distributor or BJM
Pumps, LLC. If damaged, the pump may need to be repaired before use. Do not install
or use the pump until appropriate action has been taken.
LUBRICATION:
No additional lubrication is necessary. The shaft seal and bearings are fully lubricated
from the factory. Seal oil should be checked once per year. See table on page 7.

7
OIL FILL QUANTITY/TYPE
Qty. oil in seal chamber
Models
U.S. fl. oz.
C.C.
Type of oil
J400-F
5.1
150
ISO 32 NSF Food Grade Mineral Oil
J750-F
9
265
ISO 32 NSF Food Grade Mineral Oil
J1500-F
9
265
ISO 32 NSF Food Grade Mineral Oil
Qty. oil in seal chamber
Models
U.S. fl. oz.
C.C.
U.S. fl. oz.
J1500H-F
9
265
ISO 32 NSF Food Grade Mineral Oil
Qty. oil in seal chamber
Models
U.S. fl. oz.
C.C.
Type of oil
JX400SS-F
5.1
150
ISO 32 NSF Food Grade Mineral Oil
JX750SS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
JX1500SS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
Qty. oil in seal chamber
Models
U.S. fl. oz.
C.C.
Type of oil
J1500HSS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
Note: The stator on this model is oil filled. This needs to be changed annually
when the seal oil is changed. With the power cable entry removed, fill the motor
chamber with oil to a level that insures the oil is covering the motor windings by
½”, and that will be above the upper bearing. Do not overfill, an air gap of 10-15%
must be maintained for heat expansion.
PUMP INSTALLATION
J-F & JX-F Series pumps have been evaluated for use with water or water based
solutions. Please contact the manufacturer for additional information.
Lifting:
Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of
the pump.
Do not lift the pump by the power cable or discharge hose/piping.
Proper lifting equipment (rope/chain) must be used.

8
POSITIONING THE PUMP
BJM Pumps, J-F & JX-F Series pumps are designed to operate fully submerged. Data
sheets can be obtained online at HHUUwww.bjmpumps.comUUHH or by calling BJM Pumps, LLC
at 860-399-5937.
Do not run pump dry.
Pump liquid should not exceed a maximum temperature of 200°F (93°C).
Never place the pump on loose or soft ground. The pump may sink, preventing
water from reaching the impeller. Place on a solid surface or suspend the pump
with a lifting rope/chain. The J-F & JX-F Series pumps are provided with a
suction strainer to prevent large solids from clogging the impeller. Any spherical
solids which pass through the strainer should pass through the pump.
For maximum pumping capacity, use the proper size non-collapsible hose or rigid
piping. A check valve may be installed after the discharge to prevent back flow
when the pump is shut off.

9
PUMP ROTATION
If wired properly to the control, the single phase BJM Pumps J-F and JX-F Series pump
should operate with the correct pumping rotation. Verification is recommended prior to
installing into the sump basin.

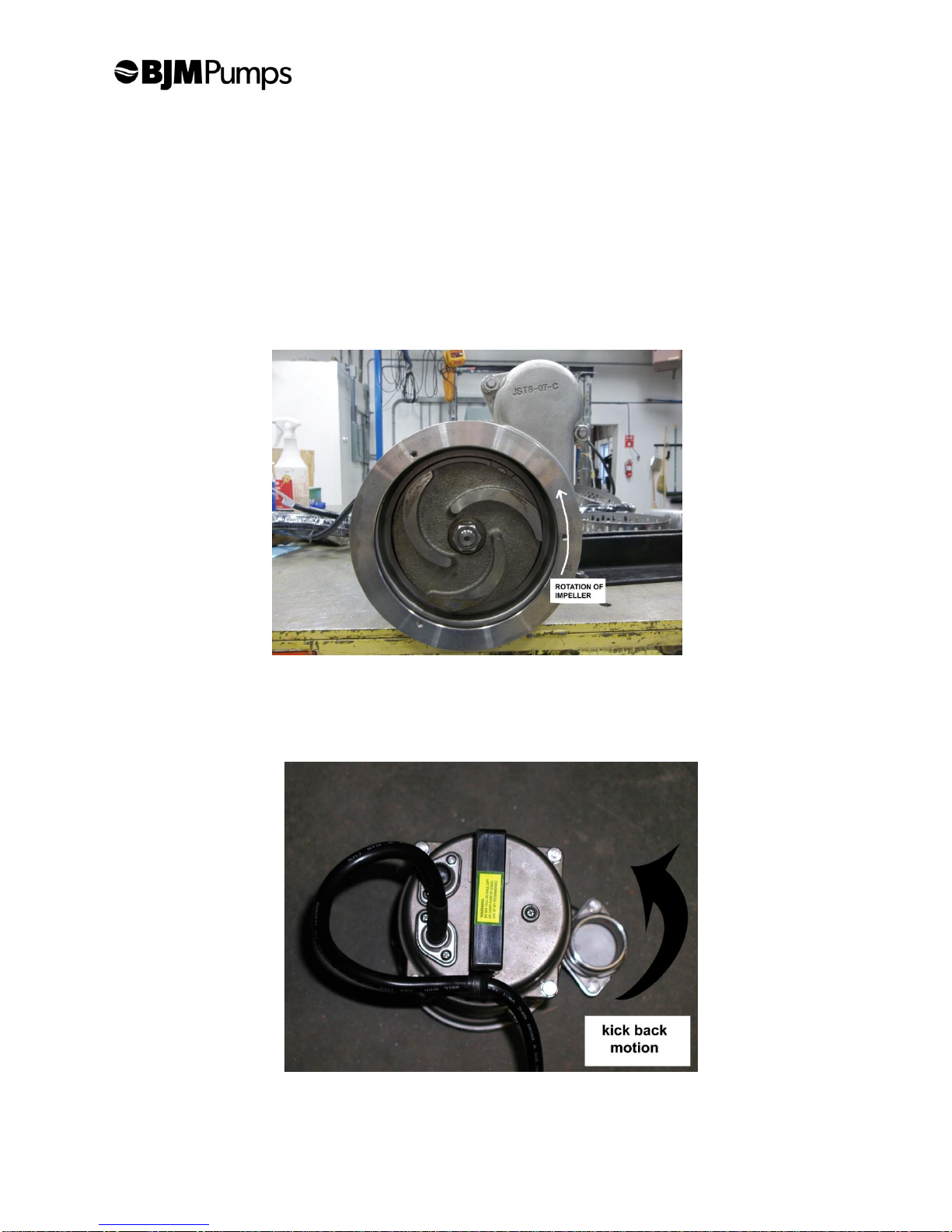

Two ways to check the correct pump rotation:
1. By looking at the impeller; the rotation of the impeller should be counter
clockwise as shown in the picture below.
2. By looking from the top of the pump. Since the impeller cannot be seen, the best
way to check the rotation is to check the kick back motion of the pump when the
pump just starts. The kick back motion of the pump should be counter clockwise
as shown in the picture below.

10
PUMP OPERATION
This pump is designed to handle dirty water that contains some
solids. It is not designed to pump volatile or flammable liquids. Do not attempt to pump
any liquids which may damage the pump or endanger personnel as a result of pump
failure. Do not operate this pump where explosive vapors or
flammable material exist. Death or Serious injury may result.
NOTE: Maximum recommended starts should not exceed 10 times per hour.
All J-F & JX-F models are provided with a 50’ (15m) power cable. NEVERUU splice the
power cable due to safety and warranty considerations. Always keep the lead end dry.
Note: The single phase 115V and 230V high temperature pumps are designed to be
connected directly to a proper pump control and cannot be directly plugged into a power
outlet.
Do not alter the length or repair any power cable with a splice. The
pump motor and cable must be completely waterproof. Damage to the pump or
personal injury may result from alterations.
The BJM Pumps, J-F and JX-F series pumps require a special control that contains the
starting components, thermal sensor and Seal Minder connections. These pumps
cannot be directly connected to a power source.

11
TYPICAL AUTOMATIC DEWATERING INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
STOPPING
To stop the pump (manual and automatic mode), turn the pump off at the control, turn
off the breaker, and/or turn the power source off (generator).
CONTROL PANELS CONNECTION OPTIONS
Use with approved motor control that matches motor input in full
load amperes. “UTILLISER UN DÉMARREAR APPROUVÉ CONVENANT AU
COURANT Á PLEINE CHARGE DU MOTEUR.”
BJM Pumps submersible pumps have been evaluated for use with water or water
based solutions. Please contact the manufacturer for additional information.
FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP
FROM ITS POWER SOURCE BEFORE HANDLING.
“Risk of electrical shock” Do not remove power supply cable and
strain relief or connect conduit directly to the pump
Installation and checking of electrical circuits and hardware should
be performed by a qualified licensed electrician.

12
Figure 1 Single Phase 400F-115 and 750F-115 Control
Figure 2 Single Phase 400F-230, 750F-230 and 1500F-230 Control

13
OPTIONAL FLOAT CONNECTION
BJM Pumps utilizes a control for all of the single phase “F” series pumps. The wiring
diagram included in this manual (and with the control) should be followed to properly
connect the pump power and sensor leads to the control, and the power supply to the
control. Care should be taken to make sure all of the connections are proper and that
the system is properly grounded. The control can be utilized as a portable control or as
a permanently mounted control enclosure. All Connections should be done to meet the
National Electric Code and all applicable local codes and ordinances.
The BJM Pumps control is supplied as a manual ON/OFF control. A wide angle float
can be wired in series with the thermal sensors to allow the pumps to operate in an
automatic mode. See the wiring diagram provided in this manual for proper connection.
A separate alarm control with float is available as an option from BJM Pumps.

14
TROUBLE SHOOTING
Disconnect the power source to the pump BEFORE attempting
any type of trouble shooting, service or repair.
PUMP WILL NOT RUN
1. Check power supply (fuses, breaker).
Reset power.
2. Blocked impeller. Remove strainer,
check and clean.
3. Defective cable or incorrect wiring.
4. Strainer clogged. Check and clean as
necessary.
5. Float switch tangled/obstructed.
Clean and free float switch from
obstruction.
6. Float switch defective. Replace float
switch.
7. Capacitor or start relay in control
failed.
8. Thermal Sensor switch is open/or
failed.
UU
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY
1. Discharge line clogged, restricted or
hose kinked. Check discharge
hose/pipe.
2. Worn impeller and/or suction cover.
Inspect and replace as necessary.
3. Pump overloaded due to liquid pumped
being too thick.
4. Pumping air. Check liquid level and
position of pump.
5. Excessive voltage drops due to long
cables.
6. Pump running backwards, check
rotation.
SERVICING YOUR SUBMERSIBLE PUMP
Pump should be disconnected from the electric power supply before proceeding to do
any service or maintenance.
The design of the “F” Series high temperature pump models is unique and
requires specific knowledge to perform the proper assembly. BJM Pumps
recommends that all electrical service work be performed at the factory or by a
factory trained and certified repair technician, to insure that the materials and
assembly methods meet BJM standards.
MAINTAINING YOUR PUMP
Pump should be disconnected from the electric power supply before proceeding to
do any service or maintenance.
Pump should be inspected at regular intervals (At least 2 times per year).
More frequent inspections are required if the pump is used in a harsh environment.
Preventative maintenance should be performed to reduce the chance of premature
failure.
Worn impellers and lip seals should be replaced.

15
Cut or cracked power cables must be replaced. (Never operate a pump with a cut,
cracked or damaged power cable.)
Seal oil should be checked once per year.
Maintenance should always be done when taking a pump out of service before
storage. 1) Clean pump of dirt and other build up.
2) Check condition of oil around the shaft seals.
3) Check hydraulic parts: check for wear.
4) Inspect power cable. Make sure that it is free of nicks or cuts.
CHANGING SEAL OIL
Changing the seal oil in the J-F & JX-F Series pumps is very easy.
1) Make sure that the pump is
deengergized and locked out for
service.
2) Lay the pump down on its side.
3) Remove the screws that hold the
bottom plate in place.
4) Remove bottom plate.
5) Remove screws holding the suction
cover.
6) Remove the suction cover.
7) Remove the impeller.
8) Remove the inspection screw for the oil
chamber (pos#50-08). Pour out a small
sample of the oil. If it is milky white, or
contains water, then the oil and
possible, the mechanical seal, should
be changed. If an oil change is needed:
9) Remove the screws that hold the oil
chamber cover in place & remove the
oil.
10)Replace the mechanical seal if
necessary.
11)Replace the oil.
12)Assemble the pump.
STATOR REPLACEMENT OR ELECTRICAL REPAIR
The BJM Pumps “F” Series designed pumps utilize unique construction methods and
materials. The inner connection of all wiring requires use of a BJM wire connection kit.
Included in this kit are specific instructions on how a qualified factory trained and
certified repair technician can perform this work properly. No other materials or methods
should be used on this product.

16
EXPLODED VIEW OF J400-F, JX400SS-F

17
EXPLODED VIEW OF J750-F, J1500H-F & J1500HSS F

18
EXPLODED VIEW OF JX750SS-F, JX1500SS-F & JX1500HSS-F

19
J-F SERIES PARTS LIST
Pump Model J400F J750F J1500F J1500HF
Pos. No. Part Description Item # Item # Item # Item #
01 Strainer with Bottom Plate 201964 - - -
01 Strainer - 201969 201969 201969
01-2 Bottom Plate - 202007 202007 202007
02 Suction Cover - 202026 202026 202026
05 Impeller 202055 202930 202062 202064
07 Pump Housing 202993 202163 202165 202163
07 -1 O-Ring (Kit Only) Kit Kit Kit Kit
08 Oil Chamber Cover 202207 202211 202211 202211
08 -1 O-Ring (Kit Only) Kit Kit Kit Kit
09 Lip Seal FKM 202230 202233 202233 202233
10 Shaft Sleeve 202258 - - -
13 Mechanical Seal FKM 202260 204240 204240 204240
14 Lower Ball Bearing 200493 200958 200958 200958
15 Impeller Shim Kit (Required) - 200481 200481 200480
17 Rotor w/ Shaft 115/230V, 1PH 202302 204060 204109 204109
18 Stator w/Casing,115V, 1PH (High-Temp) 201032 201036 - -
18 Stator w/Casing, 230V, 1PH (High-Temp) 201033 201037 201040 201040
19 Wire Connection Kit* 204204 204211 204211 204211
20 Upper Ball Bearing 200957 200967 200967 200967
21A Oil Chamber 202796 - - -
21A-1 O-Ring (Kit Only) Kit - - -
21B Motor Cover 202365 202368 202368 202368
22 Cover Plate Upper 202380 - - -
26 Pump Top Cover 203120 202433 202433 202433
26-1 O-Ring (Kit Only) Kit Kit Kit Kit
27 Power Cable w/ Gland-115V, 1PH (High-Temp) 204457 204454 - -
27 Power Cable w/ Gland-230V, 1PH (High-Temp) 204457 204456 204454 204454
27-1 O-Ring (Kit Only) Kit Kit Kit Kit
27-2 Seal Minder Cable (High-Temp) - 204455 204455 204455
27-2-1 O-Ring (Kit Only) - Kit Kit Kit
31D Seal Minder Probe 202409 202409 202409 202409
31E Ground Wire w/Ring Term. 203145 203145 203145 203145
32 Power Cord Line Clip / Strain Relief 203161 203161 203161 203161
33 Seal Minder Cable Line Clip - 203163 203163 203163
34 Handle 202517 202517 202517 202517
35 Holding Rods 202665 202666 202668 202668
38 Discharge Nipple 202531 202531 202534 202531
38F Discharge Flange 202562 - - -
38F-1 Gasket -Discharge Flange - FKM 203207 - - -
50-01 Bolt - Strainer/Stand 202694 203238 203238 203238
50-02 Screw - 203216 203216 203216
50-07 Bolt - Suction Cover 203216 - - -
50-08 Screw 203215 203219 203219 203219
50-11 Screw 203218 203218 203218 203218
50-11-1 O-Ring (Kit Only) Kit Kit Kit Kit
50-12 Screw 203218 203218 203218 203218
50-12-1 O-Ring (Kit Only) Kit Kit Kit Kit
50-22 Screw 202692 - - -
50-27 Screw 203216 203216 203216 203216
50-27-2 Screw for Seal Minder Cable - 203216 203216 203216
50-31E Screw 202692 202692 202692 202692
50-32 Screw 203214 203214 203214 203214
50-33 Screw - 203214 203214 203214
50-34 Screw 203219 203219 203219 203219
50-38F Bolt - Discharge Flange 203230 - - -
202626 202631 202631 202631
O-Ring Kit-FKM
* "F" Series High Temperature Pumps Only

20

21
JX-F SERIES PARTS LIST
Pump Model JX400SSF JX750SSF JX1500SSF JX1500HSSF
Pos. No. Part Description Item # Item # Item # Item #
01 Strainer with Bottom Plate 201965 201971 201971 201971
02 Suction Cover - 202027 202027 202028
05 Impeller 202056 202060 202063 202065
07 Pump Housing 202994 202164 202166 202164
07 -1 O-Ring (Kit Only) Kit Kit Kit Kit
08 Oil Chamber Cover 202208 202214 202214 202214
08 -1 O-Ring (Kit Only) Kit Kit Kit Kit
09 Lip Seal FKM 202230 202232 202232 202232
10 Shaft Sleeve 202258 - - -
13 Mechanical Seal FKM 202260 204240 204240 204240
14 Lower Ball Bearing 200493 200958 200958 200958
14-2 Lower Bearing Retainer Clip - 202279 202279 202279
15 Impeller Shim Kit (Required) - 200481 200480 200480
17 Rotor w/ Shaft 115/230V, 1PH 202303 204061 204109 204109
18 Stator w/Casing,115V, 1PH (High-Temp) 201034 201038 - -
18 Stator w/Casing, 230V, 1PH (High-Temp) 201035 201039 201041 201041
19 Wire Connection Kit* 204204 204211 204211 204211
20 Upper Ball Bearing 200957 200967 200967 200967
21A Oil Chamber 202992 202197 202197 202197
21A-1 O-Ring (Kit Only) Kit Kit Kit Kit
21B Motor Cover 202365 202368 202368 202368
22 Cover Plate Upper 202380 - - -
26 Pump Top Cover 203121 202434 202434 202434
26-1 O-Ring (Kit Only) Kit Kit Kit Kit
27 Power Cable w/ Gland-115V, 1PH (High-Temp) 202785 202783 - -
27 Power Cable w/ Gland-230V, 1PH (High-Temp) 202785 202784 202783 202783
27-1 O-Ring (Kit Only) Kit Kit Kit Kit
27-2 Seal Minder Cable (High-Temp) - 201743 201743 201743
27-2-1 O-Ring (Kit Only) - Kit Kit Kit
31D Seal Minder Probe 202409 202408 202408 202408
31E Ground Wire w/Ring Term. 203145 203145 203145 203145
32 Power Cord Line Clip / Strain Relief 203161 203161 203161 203161
33 Seal Minder Cable Line Clip - 203163 203163 203163
34 Handle 202517 202517 202517 202517
35 Holding Rods 202665 202682 202683 202683
38 Discharge Nipple 202532 202532 202535 202532
38F Discharge Flange 202563 202563 202546 202563
38F-1 O-Ring - Discharge Flange FKM 202723 202723 202724 202723
50-01 Bolt - Strainer/Stand 202694 203215 203215 203215
50-02 Bolt - Suction Cover - 203216 203216 203216
50-07 Screw 203216 203296 203296 203296
50-08 Screw 203215 203219 203219 203219
50-11 Screw 203218 203218 203218 203218
50-11-1 O-Ring (Kit Only) Kit Kit Kit Kit
50-12 Screw 203218 203218 203218 203218
50-12-1 O-Ring (Kit Only) Kit Kit Kit Kit
50-14-2 Srew - 203219 203219 203219
50-22 Screw 202692 - - -
50-23 Screw - 202700 202700 202700
50-27 Screw 202692 203295 203295 203295
50-27-2 Screw for Seal Minder Cable 203216 203295 203295 203295
50-31E Screw 202692 202692 202692 202692
50-32 Screw 203214 203214 203214 203214
50-33 Screw - 203214 203214 203214
50-34 Screw 203219 203219 203219 203219
50-38F Bolt - Discharge Flange 203230 - - -
202626 202630 202630 202630
O-Ring Kit-FKM
* "F" Series High Temperature Pumps Only
