ASSEMBLY INSTRUCTIONS
WALL SHELVES w/ POT RACK
*Note: 72", 84" & 96" wide Wall Shelves have a
qty of 2 Right Mounting Brackets & Flat Bars
HARDWARE INCLUDED
Item Item # Qty Description
F Bolt 8 M6-1.0 x 12mm Hex Cap Screw
***G Long Bolt 2M6-1.0 x 20mm Hex Cap Screw
HNut **8 M6-1.0 Lock Nut
I Screw **4 1/4"-14 x 1" Hex Head Sheet Metal Screw
PARTS INCLUDED
Item Item # Qty
A Shelf 1
BLeft Mounting Bracket 1
CRight Mounting Bracket *1
D Flat Bar *1
E Pot Hook 1 per 12" of Flat Bar
BKWS-1224-PR
BKWS-1230-PR
BKWS-1236-PR
BKWS-1248-PR
BKWS-1260-PR
BKWS-1272-PR
BKWS-1284-PR
BKWS-1296-PR
BKWS-1624-PR
BKWS-1630-PR
BKWS-1636-PR
BKWS-1648-PR
BKWS-1660-PR
BKWS-1672-PR
BKWS-1684-PR
BKWS-1696-PR
BKWSE-1224-PR
BKWSE-1230-PR
BKWSE-1236-PR
BKWSE-1248-PR
BKWSE-1260-PR
BKWSE-1272-PR
BKWSE-1284-PR
BKWSE-1296-PR
BKWSE-1624-PR
BKWSE-1630-PR
BKWSE-1636-PR
BKWSE-1648-PR
BKWSE-1660-PR
BKWSE-1672-PR
BKWSE-1684-PR
BKWSE-1696-PR
BKWS6-1436-PR
BKWS6-1448-PR
BKWS6-1460-PR
BKWS6-1472-PR
BKWS6-1496-PR
**Note: 72", 84" & 96" wide Wall Shelves have a qty of 6 Screws & 10 Nuts
Please make sure wall is structurally sound before installing Wall Shelf
Tools Required: Sockets or wrenches: 3/8" or 10mm
#2 Phillips bit for installing Screws

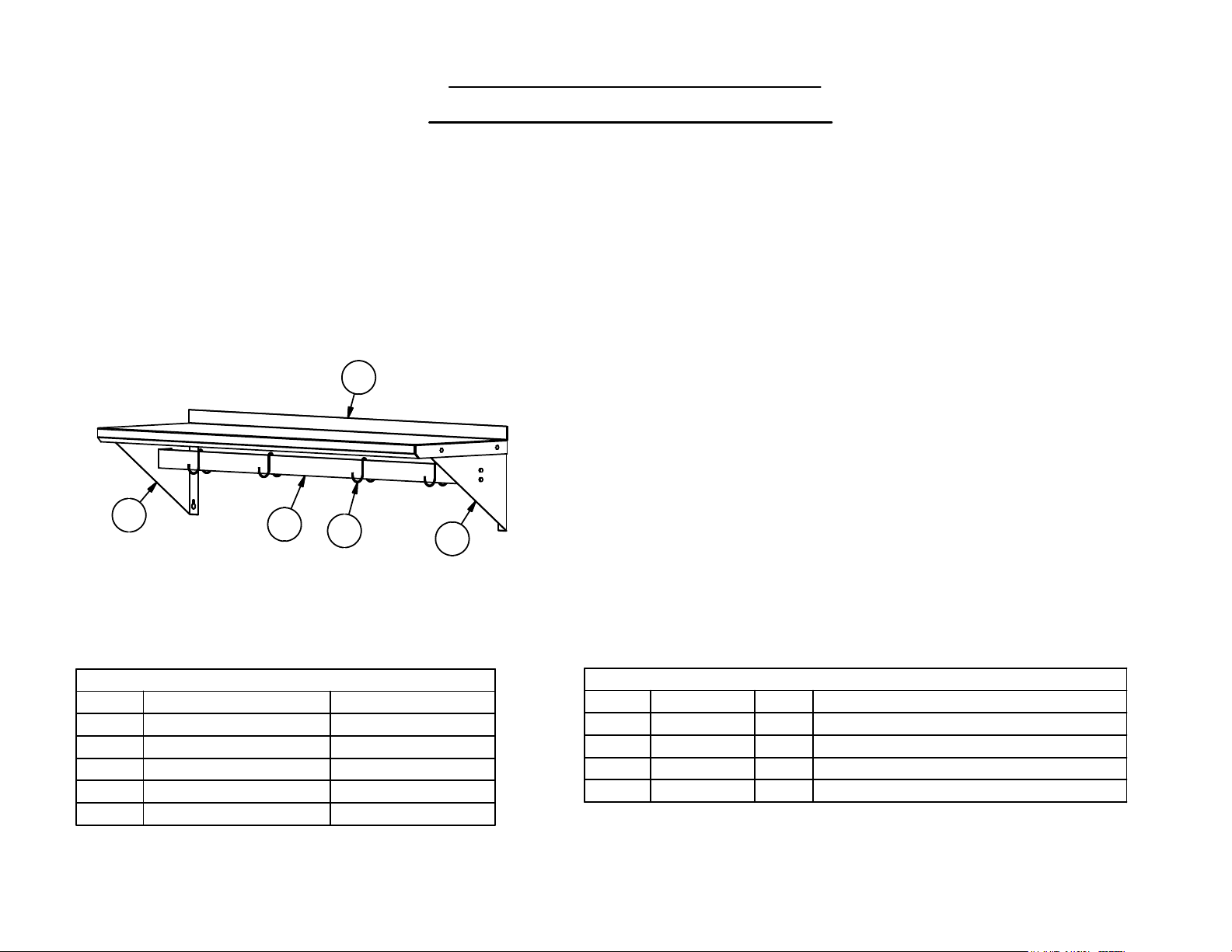

A
B
C
DE
***Note: Item G only included w/ 72", 84" & 96" wide Wall Shelves

1. Confirm all parts/hardware are included
2. A) Turn Shelf upside down on a clean surface to avoid scratching. Attach the Left & Right Mounting Brackets to the Shelf using the Nuts & Bolts provided.
B) Attach the Flat Bar to the Left & Right Mounting Brackets using the Nuts & Bolts provided. Once all the Nuts & Bolts are properly tightened,
the Wall Shelf is ready to be attached to the wall.
Note: For 72", 84" & 96" Wall Shelves, the 2nd Right Mounting Bracket will be installed after the Wall Shelf is attached to the wall and will not
attach to the Shelf. Also, the Flat Bars will be attached to the 2nd Right Mounting Bracket using the Nuts & Long Bolts provided.
3. A) Attach the Wall Shelf to the wall using the Screws provided. B) Hang Pot Hooks on Flat Bar. Note: If possible, mount Wall Shelf to wall studs.
A) B)
A) B)
F
H
D
H
F
I
E
