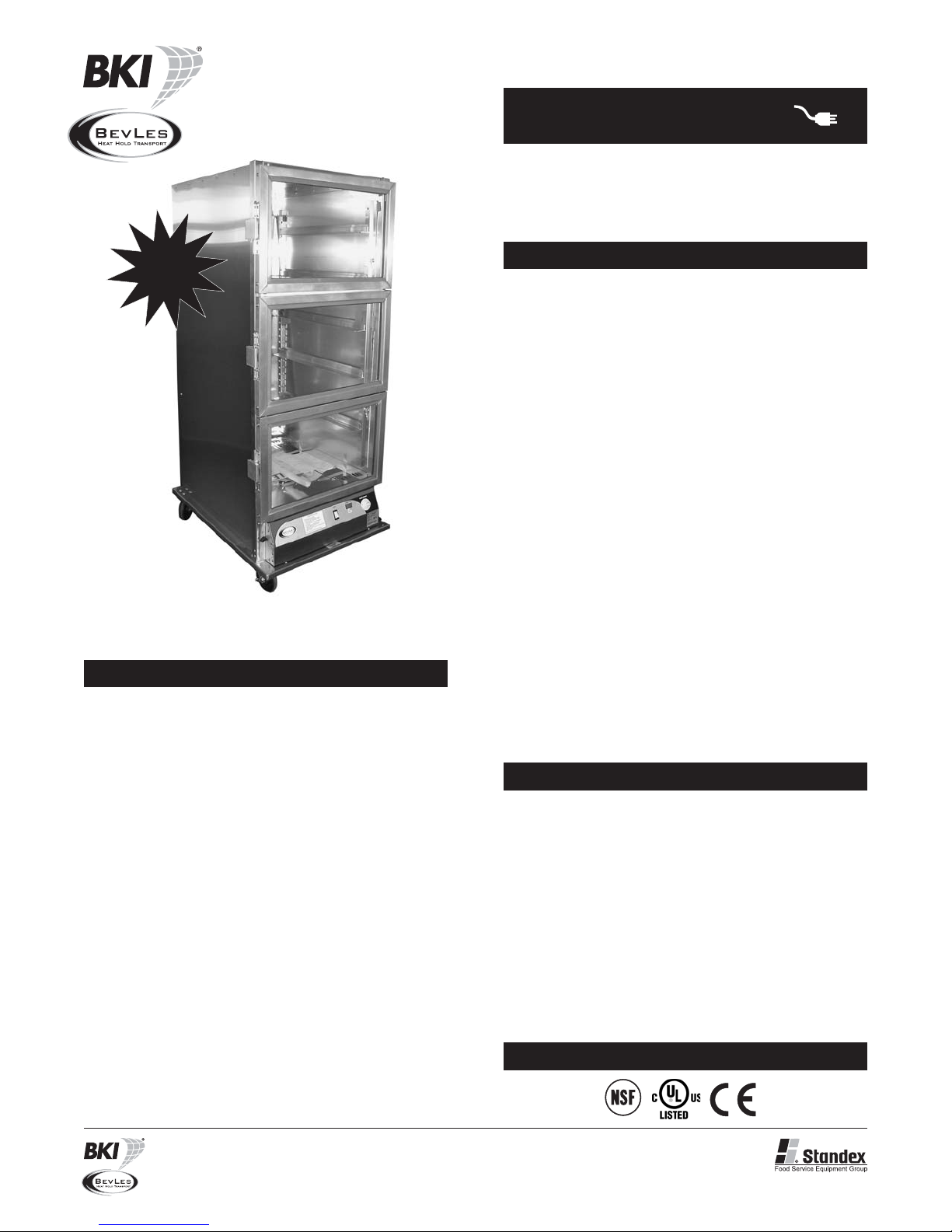

BKI Extra Deep Proofing Cabinet Universal Pan Sizes... User manual

Model PICA70-32-AED
with standard, reversible doors
SPECIFICATIONS
STANDARD FEATURES
OPTIONS & ACCESSORIES
CERTIFICATIONS
The Extra Deep Proofing Cabinet is all aluminum construction.
Universal extruded pan supports accommodate a wide variety of
pans and screens while (3) reversible, see-through polycarbonate
doors with heavy-duty hinges feature positive closing latches and
full perimeter gaskets.
User-friendly, bottom mounted controls feature independent heat
and humidity adjustment. Temperatures range from 60° to 125°F
(16° to 52°C) while the water reservoir holds up to 5 quarts (4.7
liters).
Elements are sandwiched between two, grooved castings to
prevent element burnout while providing added safety for the
operator.
All Extra Deep proofing cabinets have a drain with operator-
controlled valve for excess moisture collection below the cabinet
base into a standard 18"x26" bun pan — pan not included.
Heavy-duty swivel-type casters with 5" (127mm) rubber wheels,
two with locks, provided.
2-Year parts and 1-year labor warranty standard (limited).
qAll aluminum construction
Reversible doors
Extruded pan supports
Three (3) transparent, polycarbonate doors with heavy-duty
hinges, positive closing latch and perimeter gasket
Removable heating module with separate controls for heat and
humidity
Maintains uniform temperature and humidity throughout
cabinet
Elements are sandwiched between two, grooved castings to
prevent element burnout from water spills and the possibility
of injury from accidental contact with exposed heating
element, drain and overspill tube
Temperature adjustable from 60° to 125°F (16° to 52°C)
Self-draining feature collects excess moisture into a standard
18"x26" bun pan (not included) below the base of the cabinet
Completely removable interior components for quick and easy
cleaning
Heavy-duty plate-type casters with 5" (127mm) hard neoprene
wheels, front two with breaks
120V, 15A, 1PH, 50/60 HZ
220/240V, 6.5A, 1PH, 50/60 HZ
Limited 2-year parts , 1-year labor warranty
q
q
q
q
q
q
q
q
q
q
q
q
q
qPerimeter bumper
Corner bumper
Heavy-duty, plate-type swivel casters
Left-hand hinged doors
Full, transparent, polycarbonate door
Solid, full, or Dutch doors
Additional extruded universal pan supports
6" Stainless steel legs with adjustable feet
Drip trough
q
q
q
q
q
q
q
q
qModel PICA70-32-AED Non-Insulated
ELECTRIC PROOFING CABINETS
®
Job ____________ Item # ___________
BKI North America
2812 Grandview Drive • Simpsonville, SC 29680-0400 USA
Phone: [phone] • 800.972.6887 • fax: [phone]
www.BKIdeas.com
BKI Europe
Theale Technology Centre
Station Road • Theale • Reading • West Berkshire • RG74AA
Telephone: [phone] • fax: [phone]
EXTRA DEEP
PROOFING CABINET
UNIVERSAL PAN SIZES
EXTRA
DEPTH

SHIPPING INFORMATION
POWER SUPPLY
Model
Model
PICA70-32-AED
PICA70-32-AED
PICA70-32-AED
280
1.56
1.56
1
1
13
6.5
50/60
50/60
120
220/240
60 32 40 81127 1.7 813 1016 2057
Shipping Weight Carton Size Carton Dimensions
Lbs Cubic Feet Inches
Width Depth Height
Inches Inches
Kilos
KW
Cubic Meters
Voltage
mm
Phase Amps HZ
mm mm
MINIMUM CLEARANCES
Right
Left
Rear
0
0
0
0
0
0
Inches mm
FRONT VIEW SIDE VIEW
TOP VIEW
ALL DIMENSIONS NOMINAL
71 1/2"
(1816mm)
39 1/4"
(997mm)
29"
(736mm)
TSW: 02/08
