Rackmount Remote Power Manager

1
FCC AND IC RFI STATEMENTS/CE NOTICE
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
EUROPEAN UNION DECLARATION OF CONFORMITY
This equipment complies with the requirements of the European EMC Directive
89/336/EEC.

2
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

3
NOM STATEMENT
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

4
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
TRADEMARKS USED IN THIS MANUAL
BLACK BOX and the Double Diamond logo are registered trademarks of BB
Technologies, Inc.
ProComm is a registered trademark of DATASTORM TECHNOLOGIES, INC.™
Crosstalk is a registered trademark of Digital Communications Associates, Inc.
VT100 is a trademark of Digital Equipment Corporation.
AT is a registered trademark of International Business Machines Corporation.
Netscape Navigator is a registered trademark of Netscape Communications
Corporation.
JavaScript is a registered trademark of Sun Microsystems, Inc.
Telnet is a trademark of Telnet Communications, Inc.
UNIX is a registered trademark of UNIX System Laboratories, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.

5
WARNINGS AND CAUTIONS
WARNINGS AND CAUTIONS
Secure Racking
If secure racked units are installed in a closed or multi-unit rack
assembly, they may require further evaluation by certification agencies.
Consider the following items:
1. The ambient temperature within the rack may be greater than the
room ambient temperature. Installation should be such that the
amount of airflow required for safe operation is not compromised.
The maximum temperature for the equipment in this environment is
122°F (50°C).
2. Install the unit so that it doesn’t become unstable from uneven
loading.
Input Supply
Check nameplate ratings to ensure that there is no overloading of
supply circuits that could have an effect on overcurrent protection and
supply wiring.
Grounding
Maintain reliable grounding of this equipment. Give particular attention
to supply connections when connecting to power strips, rather than
direct connections to the branch circuit.
Shock Hazard
Do not attempt to repair or service this device yourself. Internal
components must be serviced by authorized personnel only.
Disconnect Power
If any of the following events occurs, immediately disconnect the unit
from the outlet and contact Black Box at 724-746-5500.
1. The power cord is frayed or damaged.
2. Liquid has been spilled into the device or the device has been
exposed to rain or water.

6
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.2 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Power Cable (and Cable Keeper) Connection . . . . . . . . . . . . . . . . . . . 13
3.2 Connection to Switched Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 COM/RS-232 Port Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Connecting the Network Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 System Mode and User Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Communicating with the Rackmount Remote Power Manager. . . . . . 17
4.2.1 Accessing the Web Browser Interface . . . . . . . . . . . . . . . . . . . . 17
4.2.2 Accessing the Text Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3 Configuration Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3.1 General Parameters Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3.2 Plug Parameters Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3.3 Serial Parameters Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3.4 Network Parameters Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.3.5 Telnet Parameters Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.3.6 Web Server Parameters Menus. . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.3.7 Save Parameters Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.3.8 Switch Panel Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.3.9 Log Out Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.4 Saving Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.1 Operation via the Web Browser Interface . . . . . . . . . . . . . . . . . . . . . . . 39
5.1.1 The Plug Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.1.2 Invoking Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

7
CONTENTS
Chapter Page
5.2 Operation via the Text Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.2.1 The Plug Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.2.2 Switching and Reboot Commands. . . . . . . . . . . . . . . . . . . . . . . 42
5.2.3 Applying Commands to Several Plugs . . . . . . . . . . . . . . . . . . . . 44
5.3 Logging Out of Command Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.4 Automated Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.5 Manual Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6. Saving and Restoring Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . 47
6.1 Sending Parameters to a File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.2 Restoring Saved Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.3 Uploading Saved Parameters to Other Power Managers . . . . . . . . . . . 48
7. Upgrading the Power Manager’s Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Appendix: Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
A.1 Calling Black Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
A.2 Shipping and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
1. Specifications
User Controls: (1) Default button, (1) Master I/O switch
Connectors: PS580A: (1) RJ-45 10BASE-T, (1) DB9 male COM/RS-232 (DTE),
(4) NEMA 5-15R outlets, (1) IEC-320-C14 inlet;
PS581A: (1) RJ-45 10BASE-T, (1) DB9 male COM/RS-232 (DTE), (4) IEC-320-C13
outlets, (1) IEC-320-C14 inlet
Indicators: Rear panel: (6) LEDs: (1) ACT, (1) RDY, (4) Plug indicators
(1 through 4)
Temperature Tolerance: Operating: 32 to 122°F (0 to 50°C)
Humidity Tolerance: Relative: 10 to 90%, noncondensing
Power: PS580A: AC Input: (1) 100- to 120-VAC, 50- to 60-Hz IEC-320-C14 inlet,
15 amps maximum;
AC Outputs: (4) 100- to 120-VAC, 50- to 60-Hz NEMA 5-15R outlets;
PS581A: AC Inputs: (1) 208- to 240-VAC, 50- to 60-Hz IEC-320-C14 inlet,
10 amps maximum;
AC Outputs: (4) 208- to 240-VAC IEC-320-C13 outlets
Size: 1.75"H (1U) x 19"W x 4.5"D (4.4 x 48.3 x 11.3 cm)
Weight: 6 lb. (2.7 kg)

9
CHAPTER 2: Overview
2. Overview
Electronic equipment sometimes “locks up,” requiring a service call just to flip the
power switch to perform a simple reboot. The Rackmount Remote Power Manager
lets you perform this function from anywhere. Simply point your browser to the
power manager’s IP address, enter the secure password, and you’re just a click away
from remote power on, off, or reboot.
In addition to Web browser access, the Rackmount Remote Power Manager can
also communicate over any TCP/IP network using standard Telnet™, or out-of-
band using an external modem and basic VT100™ type terminal emulation.
To ensure security, Web browser access requires an assigned user name and
password. Passwords transmitted via a Web browser use basic 64-bit encryption
techniques for secure access to your equipment.
The Rackmount Remote Power Manager provides two levels of operational
passwords: the system administrator level (it allows access to all configuration and
switching functions) and the user level (it allows access only to assigned plugs and
can’t be used to change the power manager’s configuration).
In addition to password security features, the power manager also includes an
address-specific IP security mask that can be used to prevent unauthorized network
access to the power manager’s command mode.
The power manager can be configured over the network, via modem, or locally via
its COM port. Easy-to-use commands let you assign a location name, set system
parameters, and view plug status. Outlets can be switched on, off, or booted using
plug numbers or names.
Two models are available. The Rackmount Remote Power Manager (PS580A) has
four switched 100- to 120-VAC power outlets. The PS581A has four switched 208- to
240-VAC power outlets.

10
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
2.1 What’s Included
Your package should include the following items. If anything is missing or
damaged, please contact Black Box Technical Support.
• (1) Rackmount Remote Power Manager
• (1) AC power cord
• This user’s manual
2.2 Hardware Description
2.2.1 R EAR
P ANEL
The Rackmount Remote Power Manager (PS580A) is pictured in Figure 2-1. The
PS581A has four 208- to 240-VAC IEC-320-C13 AC oulets instead of four 100- to
120-VAC, 50- to 60-Hz NEMA 5-15R AC outlets. Back-panel connectors, indicators,
and switches are described in Table 2-1. The numbers in the figures correspond to
the numbers in the table.

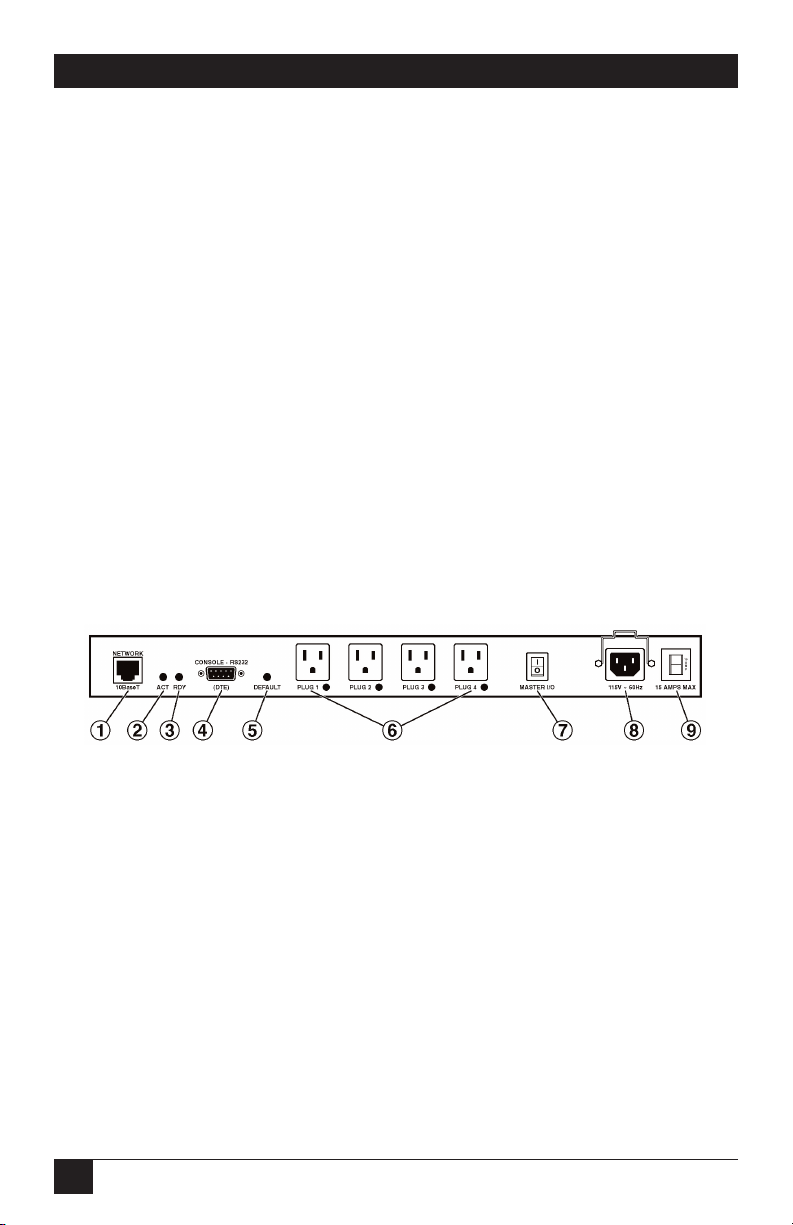

Figure 2-1. Rackmount Remote Power Manager (PS580A).

11
CHAPTER 2: Overview
Table 2-1. Back-panel components.
Component Description
Network port An RJ-45 Ethernet port for connection to your
TCP/IP network. The default IP address is
192.168.168.168. For more information, refer to
Section 4.3.4.
ACT LED Flashes to indicate activity at the network port.
RDY LED Flashes continuously when the power manager
is ready to receive commands.
COM/RS-232 port This DB9, COM/RS-232 (DTE) serial port
connects to a local terminal or external modem,
as described in Section 3.3.
Default button This button resets the unit to default parameters
or manually toggles all plugs on or off.
Default parameters: With the master I/O switch
(master power switch) set to the Off position,
press and hold the default button, then set the
master I/O switch to the On position and release
the default button. All menu-defined parameters
will reset to default values.
Manual plug toggle: Press the default button and
and hold it down for three seconds. All power
outlets will be toggled on or off.
Switched plugs and plug Four 100- to 120-VAC, NEMA 5-15R or 208- to
indicators 240-VAC IEC-320-C13 AC oulets that can be
switched on, off, or rebooted in response to user
commands. The outlets have indicator lights and
support 15 or 10 amps total load.
❶
❷
❸
❹
❺
❻

12
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
Table 2-1 (continued). Back-panel components.
Component Description
Master I/O switch This switch applies power to the power manager.
The switch must be “On” for the power manager
to function. This switch is not used to set the
on/off status of the switched outlets.
Power inlet An IEC-320 AC inlet (with attached cable
keeper) that supplies AC power for the power
manager’s command functions and the switched
plugs.
Circuit breaker A 15-amp or 10-amp circuit breaker supplies
power to the outlets.
NOTE
If desired, the Default button’s manual plug control capabilities can also
be disabled as described in Section 4.3.1.
2.2.2 F
RONT P ANEL
The Rackmount Remote Power Manager’s front panel has two indicators. Located
from left to right are LEDs for Power On and Sys Rdy (flashes when the system is
ready).
❼
❽
❾

13
CHAPTER 3: Installation
3. Installation
3.1 Power Cable (and Cable Keeper) Connection
The Rackmount Remote Power Manager includes a cable keeper, which is
designed to prevent the power supply cable from being accidentally disconnected
from the power manager. The Rackmount Remote Power Manager (PS580A or
PS581A) uses a pivoting, clip-style cable keeper.
NOTE
The power manager’s master power switch must be on in order for the
unit to operate.
CAUTION
• Before attempting to install the power manager, review the warnings
and cautions listed on page 5.
• This device should be operated only with the type of power source
indicated on the instrument nameplate. If you are not sure of the type
of power service available, contact your local power company.
• Maintain reliable grounding of the power manager. Pay particular
attention to supply connections when connecting to power strips,
rather than directly to the branch circuit.
To install the power cables to the PS580A or PS581A, follow these steps:
1. First, make sure that the power manager’s power cable is disconnected from
the power supply.
2. Next, swing the pivoting cable keeper out of the way.
3. The Rackmount Remote Power Manager has one AC power input. Connect
the power cable (included) to the power inlet, then swing the cable keeper
back, making sure that it snaps into place on the power manager, and make
certain that the cable is secure.
4. Connect the cable to an appropriate power inlet. Each power manager
supports up to 15 amps (PS580A) or 10 amps (PS581A) maximum.
Once the power supply is connected to the PS580A or PS581A, set the master
power switch to the on position. The Power On LED will light, and the Sys Rdy
LED will flash. This indicates that the system is ready.

14
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
3.2 Connection to Switched Outlets
Connect the power cord from each switched device to a switched AC outlet on the
power manager. When power is applied to the power manager, the switched AC
outlets will be switched on. The power manager includes a power bus. The PS580A
bus supports a total of 15 amps; the PS581A bus supports a total of 10 amps.
3.3 COM/RS-232 Port Connection
The COM/RS-232 port is a male, DB9 connector, wired in a DTE configuration. In
the default state, the COM/RS-232 port is configured for 9600 bps, eight data bits,
one stop bit, and no parity. The COM/RS-232 port can be connected to either an
external modem or a local PC, but not to both items at the same time. Figure 3-1
shows the COM/RS-232 port interface.
Figure 3-1. COM/RS-232 port interface.
The Rackmount Remote Power Manager can be controlled via a TCP/IP network,
controlled by a local PC that communicates with the unit via cable, or controlled
via an external modem. To switch plugs or select parameters, commands are issued
to the power manager either via the network or via the COM/RS-232 port.
NOTE
It’s optional to connect both the network and console ports.
The COM/RS-232 port can be connected to either a local PC or an
external modem.
• Network port: Connect your 10BASE-T or 100BASE-T network interface to the
Rackmount Remote Power Manager’s network port. For more information,
refer to Section 3.4.

15
CHAPTER 3: Installation
• Local PC: Use the supplied null-modem cable to connect your PCs COM/
RS-232 port to the power manager’s COM/RS-232 port. Make sure that the
serial port mode is set to console as described in Section 4.3.3.
• External modem: Use a standard AT®to modem cable to connect your
external modem to the power manager’s COM/RS-232 port. Make sure that
the modem is initialized at the same default parameters as the console port.
Make certain that the serial port mode is set to modem as described in Section
4.3.3.
NOTE
When the power manager is shipped from the factory, RS-232 port
parameters are set as follows: 9600 bps, 8 data bits, one stop bit, no
parity. The power manager allows these parameters to be easily
redefined: see Section 4.3.3 for details.
3.4 Connecting the Network Cable
The network port is an RJ-45 Ethernet jack for connection to a TCP/IP network.
Connect your 10BASE-T cable to the network port. The power manager includes a
default IP address (192.168.168.168) and a default subnet mask (255.255.255.0).
When installing the power manager in a working network environment, we
recommend that you define network parameters as described in Section 4.3.4.
NOTE
The Rackmount Remote Power Manager features a half-duplex,
10BASE-T interface. If you’re connecting a router switch to the
Rackmount Remote Power Manager, note the following: When
connecting to a 100BASE-T interface, most router switches will
autosense to determine if the device is 100BASE-T or 10BASE-T and
then configure the network interface accordingly. If your router switch
does not autosense, the manager’s network interface port must be
manually set to half-duplex, 10BASE-T.

16
RACKMOUNT REMOTE POWER MANAGER USER’S MANUAL
4. Configuration
4.1 System Mode and User Mode
To restrict access to sensitive command functions, the Rackmount Remote Power
Manager features two operating modes: system mode and user mode.
• System mode allows access to all configuration menus, switching functions,
and status screens. The system mode status screens show on/off conditions for
all switched outlets and list all currently defined system parameters.
• User mode allows access to switching and reboot commands but does not allow
access to configuration functions. Users may only issue commands to, or view
status of, the plugs that are specifically allowed by their password.
The power manager displays a password prompt when the unit is contacted via the
network port or the COM/RS-232 port. The password entered at this prompt
determines whether the unit will start up in system mode or user mode. If the
system password is entered, the system mode will be active. If a plug password is
entered, the user mode will be active. The system password is defined via the
General Parameters menus (Section 4.3.1), and the plug passwords are defined via
the Plug Parameters menus (Section 4.3.2).
NOTES
• If you want to restrict access to configuration menus, you must define
the system password.
• If the system password is not defined, the power manager will always
start up in system mode, allowing unprotected access to configuration
and switching functions.
• If the system password is not defined, the password prompt will not
be displayed when you access the power manager via the text
interface. The prompt will always be displayed when the power
manager is contacted via the Web browser interface.
• When the power manager is contacted via the network, the password
prompt will also include a field for the user name. If you have not
defined a user name, leave this field blank, and only the password is
required to gain access to the power manager. The user name prompt
is not displayed when the power manager is contacted via the text
interface.

17
4.2 Communicating with the Rackmount Remote Power Manager
To configure the power manager or invoke command functions, you must first
connect to the power manager and access command mode. The power manager
offers two separate command interfaces: the Web browser interface and the text
interface. The Web browser interface allows you to contact the power manager via
a TCP/IP network by using a standard JavaScript®enabled Web browser (such as
Internet Explorer or Netscape Navigator®). The text interface consists of a series of
ASCII text menus, which you can access via a TCP/IP network, local PC, or
modem.
The power manager also offers three different methods for accessing command
mode: via a network, via a local PC, or via an external modem.
NOTE
Configuration functions are only available when you have logged into
the power manager’s command mode using the system password.
4.2.1 A CCESSING THE W EB B ROWSER I NTERFACE
To use the Web browser interface, the power manager must be connected to a
TCP/IP network. Also, your PC must be equipped with a JavaScript enabled Web
browser (such as Internet Explorer or Netscape Navigator).
1. Start your JavaScript enabled Web browser.
2. Type the power manager’s IP address (default = http://192.168.168.168)
into the Web browser’s address bar, then press Enter.
3. The power manager will display a prompt that asks for your name and
password.
a. User name: If you have not previously defined a user name, then this field
should be left blank. A user name is only required when one has been
defined via the General Parameters menu.
b. Password: Type in your system password or plug password, then click on
OK.
NOTE
Plug passwords do not permit access to configuration functions.
c. If the system password has not been defined, simply click on the OK button
without typing in a name or password.
CHAPTER 4: Configuration
