Black Box KV9104A User manual

CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
DECEMBER 2005
KV9104A
KV9108A
KV9116A
4-, 8-, and 16-Port ServSwitch
EC Series PS/2 and USB KVM Switch

1
FCC AND IC RFI STATEMENTS
FEDERAL COMMUNICATIONS COMMISSION
and INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
Class B Digital Device. This equipment has been tested and found to comply with
the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. This equipment generates,
uses, and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. If this equipment does cause harmful interference to radio or
telephone reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
To meet FCC requirements, shielded cables and power cords are required to
connect this device to a personal computer or other Class B certified device.
This digital apparatus does not exceed the Class B limits for radio noise emission from digital
apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de classe B prescrites dans le Règlement sur le brouillage
radioélectrique publié par Industrie Canada.

2
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

3
NOM STATEMENT
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

4
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
TRADEMARKS USED IN THIS MANUAL
BLACK BOX and the Double Diamond logo are registered trademarks, and
ServSwitch is a trademark of BB Technologies, Inc.
PS/2 is a registered trademark of International Business Machines Corporation.
IntelliMouse, Microsoft, Windows, and Windows NT are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
UL is a registered trademark of Underwriters’ Laboratories, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.

5
CONTENTS
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Cables That You’ll Need to Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.5 Typical Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 ServSwitch Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.1 Connecting the Console, Keyboard, and Mouse . . . . . . . . . . . . . . 12
3.2.2 Powering On the ServSwitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2.3 Connecting the Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Powering Up the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Selecting Computers Using Front-Panel Buttons . . . . . . . . . . . . . . . . . . 15
4.2.1 Port Selector Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.2 K/M Reset Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.3 AutoScan Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.4 LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Selecting Computers Using On-Screen Display (OSD) . . . . . . . . . . . . . 16
4.4 Selecting Computers Using Keyboard Hotkey Commands . . . . . . . . . . 20
5. Cascade Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.2 Change Configuration while Running . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Appendix. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
A.1 Problems/Possible Causes/Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
A.2 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
A.3 Shipping and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
1. Specifications
Resolution: 1920 x 1440
Supported Operating Systems: Windows®98/Me/2000/XP and Windows NT®
Hotkeys: Yes
User Controls: KV9104A: (4) port selection buttons;
KV9108A, KV9116A: (8) port selection buttons
Connectors: All: (1) barrel connector for power, (1) 8-pin mini-DIN
(reserved for future use);
KV9104A: Computer end: (4) HD15 female;
Console end: Keyboard: (1) 6-pin mini-DIN female,
Mouse: (1) 6-pin mini-DIN female,
Monitor: (1) HD15 female;
KV9108A: Computer end: (8) HD15 female;
Console end: Keyboard: (1) 6-pin mini-DIN female,
Mouse: (1) 6-pin mini-DIN female,
Monitor: (1) HD15 female;
KV9116A: Computer end: (16) HD15 female;
Console end: Keyboard: (1) 6-pin mini-DIN female,
Mouse: (1) 6-pin mini-DIN female,
Monitor: (1) HD15 female
Indicators: KV9104A: (8) Port LEDs;
KV9108A: (16) Port LEDs;
KV9116A: (32) Port LEDs
Temperature Tolerance: Operating: 32 to 104°F (0 to 40°C);
Storage: -4 to +140°F (-20 to +60°C)
Relative Humidity: Up to 80%, noncondensing
Power: 9-VDC, 600-mA adapter
Size: KV9104A: 1.75"H (1U) x 8.6"W x 5.1"D(4.6 x 22 x 13 cm);
KV9108A, KV9116A: 1.75"H (1U) x 17.3"W x 7"D (4.6 x 43.8 x 18 cm)
Weight: KV9104A: 2.2 lb. (1 kg);
KV9108A: 4.8 lb. (2.2 kg);
KV9116A: 5.7 lb. (2.6 kg)

7
2. Overview
2.1 Introduction
The 4-, 8-, or 16-Port ServSwitch™ allows you to control up to 4, 8, or 16 PS/2®and
USB server computers from a single PS/2 console (PS/2 keyboard, PS/2 mouse,
and monitor). Supported mice include Microsoft®IntelliMouse®and other mice.
The ServSwitch offers an efficient way to manage multiple computers in server
rooms where space is at a premium. On Screen Display (OSD) features computer
naming, computer selection, status indication, AutoScan, and more. Up to 136
servers can be easily managed by cascading multiple KVM switches. The switch has
one HD15 connector for each computer connection.
Use front-panel buttons, the on-screen display (OSD) interface, or hotkeys to
switch the KVM control. The front panel also includes port LEDs. The LED will
light with the corresponding active port when manually switching between the
computers. Navigate through the OSD menus using function keys (see Section 4.3
for details). Using a hotkey command sequence (see Section 4.4), you can switch
the KVM control. The ServSwitch beeps to confirm that it’s in hotkey mode.
The AutoScan function allows you to automatically scan and monitor all
computers, one by one, that are connected to the ServSwitch. And the ServSwitch
works with most common Windows®operating systems.
The ServSwitch supports video resolutions of up to 1920 x 1440.
CHAPTER 2: Overview

8
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
2.2 Components
2.2.1 F RONT P ANEL

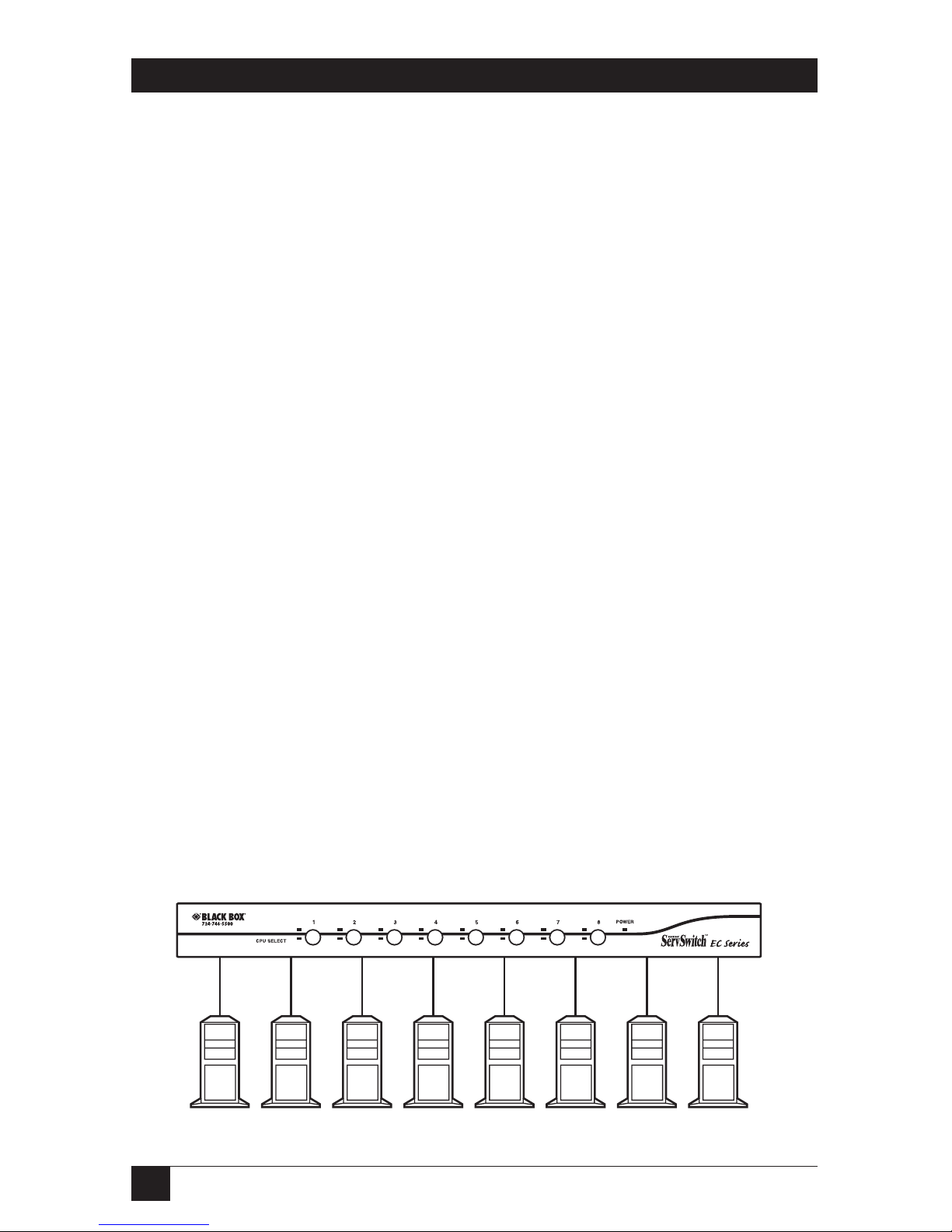

Figure 2-1 shows the 8-Port ServSwitch front view. Table 2-1 describes the
components numbered in the illustration.
Figure 2-1. The 8-Port ServSwitch front-panel views.
Table 2-1. Front-panel components.
Component Description
Port Selection buttons and LEDs Press a button between 1–4 (for 4-port
model), 1–8 (for 8-port model), or 1–8
or A–H (for 16-port model) to select a
port.
The ServSwitch has two LEDs per port
button. One LED lights red when the
corresponding port is selected. It
flashes red when the port is running in
either AutoScan or manual scan mode.
The other LED lights green when the
port connects to a computer that’s
powered on.
KVM Reset buttons Press buttons 1–2 simultaneously to
reset the ServSwitch to its default
settings.
AutoScan buttons Press buttons 7–8 simultaneously to
start AutoScan. (On the 4-port
ServSwitch, press buttons 3–4.)
❶
❶❷

9
CHAPTER 2: Overview
Table 2-1 (continued). Front-panel components.
Component Description
Power LED This LED lights when ServSwitch power
is on.
2.2.2 R EAR P ANEL
Figure 2-2 shows the 8-Port ServSwitch rear view. Table 2-2 describes the
components numbered in the illustration.
Figure 2-2. The ServSwitch back-panel views.
Table 2-2. Rear-panel components.
Component Description
8-pin mini-DIN connector Reserved for future use.
Barrel connector 9-VDC, 600-mA power connector.
6-pin mini DIN connector Links to PS/2 console’s mouse.
6-pin mini-DIN connector Links to PS/2 console’s keyboard.
HD15 connector Links to PS/2 console’s monitor.
HD15 connectors Links to PS/2 or USB server’s keyboard, mouse,
and monitor HD15 ports.
❼❽ ❻
❼
❻
❽
❷
❸
❹
❺
❸❹❺

10
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
2.3 What’s Included
The package should contain the following items. If anything is missing or
damaged, please contact Black Box.
• (1) 4-, 8-, or 16-Port ServSwitch EC Series PS/2 and USB KVM Switch
• (2) brackets
• (1) set of foot pads
• (1) power supply
• This user’s manual
2.4 Cables That You’ll Need to Supply
ServSwitch 3-in-1 Cable (EHN70001-0006, EHN70001-0010, EHN9000P-0015, or
EHN9000P-0030): These cables connect to PCs that have an HD15 VGA connector
for a monitor as well as 6-pin mini-DIN connectors for a keyboard and a mouse.
The cables are available in 6-, 10-, 15-, and 30-foot (1.8-, 3-, 4.5-, and 9.1-m)
versions.
ServSwitch 2-in-1 Cable (EHN9000U-0006, EHN9000U-10, or EHN9000U-15):
These cables connect to PCs that have HD15 monitor and USB keyboard and
mouse connectors. The cables are available in 6-, 10-, and 15-foot (1.8-, 3-, and
4.5-m) versions.
2.5 Typical Applications
The 8-Port ServSwitch can be used to enable one PS/2 keyboard, mouse, and
monitor to manage eight PS/2 and USB computers directly connected to the
ServSwitch as shown in Figure 2-3.
Figure 2-3. Single KVM switch configuration.
PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8

11
CHAPTER 2: Overview
Another application cascades multiple 8-Port ServSwitch units. Depending on how
many ServSwitch units and what models you use, you can manage up to 136 PS/2
and USB computers from a single PS/2 keyboard, mouse, and monitor. See Figure
2-4.
Figure 2-4. Cascaded ServSwitch configuration.
NOTES
1. Throughout this manual, the master is the KVM switch that connects
directly to a PS/2 keyboard, mouse, and monitor. The slave is a KVM
switch that has its console port connected to the master’s PC x port
(where x refers to a computer numbered 1–8). A slave exists only in
a cascaded configuration.
2. For detailed descriptions and restrictions for a cascaded
configuration, see Chapter 5.
PC1
PC2
PC7PC8
PC8
PC1
PC1
PC7PC8

12
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
3. Installation
3.1 ServSwitch Placement
The 4-, 8-, and 16-Port ServSwitch units are 1U high and are designed to fit in on a
desktop or in a standard equipment rack. Consider the following when deciding
where to place the KVM switch:
• How long are the cables attached to your keyboard, mouse, and monitor?
• How far are the computers from the console?
• How long are the cables you use to connect your computers to the ServSwitch?
CAUTION
Do not place cables near machines that create electrical noise such as
fluorescent lighting, air conditioning equipment, etc.
3.2 Hardware Installation
This section provides instructions for the basic hardware setup of a single
ServSwitch.
CAUTION
Before you begin, make sure that power to all the devices that you will
be connecting is turned off.
To prevent damage caused by ground potential differences, make sure
that all devices are properly grounded. If you don’t follow these
instructions, your computers and/or the ServSwitch could be damaged.
3.2.1 C ONNECTING THE C ONSOLE , K EYBOARD , AND M OUSE
1. Power off all computers.
2. Connect your PS/2 keyboard and PS/2 mouse directly to the PS/2 console
keyboard and mouse ports (labeled with keyboard and mouse symbols) on
the back of the ServSwitch. See Figure 3-1.

13
CHAPTER 3: Installation
Figure 3-1. Console keyboard, mouse, and monitor connections.
3. Connect the HD15 VGA male connector from your monitor to the console
VGA port on the back of the ServSwitch. See Figure 3-1.
3.2.2 P
OWERING O N THE S ERV S WITCH
Connect the 9-VDC, 600-mA power adapter’s barrel connector to the power jack
on the rear of the switch. Then plug the power adapter cable into an available
power outlet.
3.2.3 C ONNECTING THE C OMPUTERS
1. Connect the ServSwitch 3-in-1 cable PS/2 (EHN70001-0006, EHN70001-0010,
EHN9000P-0015, or EHN9000P-0030) or 2-in-1 USB cable (EHN9000U-0006,
EHN9000U-10, or EHN9000U-15) to the computer’s 6-pin mini-DIN or USB
keyboard and mouse ports, and the computer’s HD15 monitor port.
2. Connect the other end of the 3-in-1 or 2-in-1 cable to the ServSwitch unit’s
HD15 connector.
Figure 3-2. PS/2 computer connections.
8-Port ServSwitch
EC Series PS/2 and
USB KVM Switch
(KV9108A)
Keyboard
Monitor
Mouse
PS/2
computer
3-in-1 cable
HD15 keyboard,
mouse, and
monitor connection

14
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
Figure 3-3. USB computer connections.
3. Repeat steps 1 and 2 for all computers that you want to connect to the
ServSwitch.
NOTE
To connect the computers in a cascaded configuration, see Chapter 5.
4. Power on all computers that are attached to the ServSwitch.
PS/2 ServSwitch
HD15 port
USB computer
HD15 monitor
port
USB computer
keyboard/mouse
port

15
CHAPTER 4: Operation
4. Operation
4.1 Powering Up the System
Once all cables have been connected and all computers have been powered on,
the ServSwitch emulates mouse and keyboard signals on each port, allowing your
computer to boot normally. The ServSwitch is now ready for use. You can
configure the ServSwitch in three ways: by pressing the front-panel button directly,
by activating the On-Screen Display (OSD) window, or by typing hotkey
commands.
4.2 Selecting Computers Using Front-Panel Buttons
4.2.1 P ORT S ELECTOR B UTTONS
You can instantly select any computer by pressing the port selector buttons on the
front panel. The corresponding integral LED will light when the port is selected.
NOTE
For the 16-port model, 1–8 represent the lower eight ports and A–H
represent the higher eight ports. Port 1 and A share the same button, as
do Port 2 and B, etc. If Port 1 is already selected, press its button to
select port A. If Port 1 is not selected, press and hold button 1 for two
seconds to select Port A.
4.2.2 K/M R
ESET B UTTONS
K/M Reset solves most problems caused by replacing a keyboard, mouse, or device,
or by changing configurations. Press both buttons 1 and 2 on the front panel for
two seconds to reconfigure the whole system without powering off either the
ServSwitch or any computer.
4.2.3 A UTO S CAN B UTTONS
The ServSwitch can scan ports automatically. To start AutoScan for the 8- and
16-port ServSwitch models, press both buttons 7 and 8 on the front panel for two
seconds. To start AutoScan for the 4-port ServSwitch, press both buttons 3 and 4
instead.

16
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
4.2.4 LED S
The ServSwitch has LEDs next to the front-panel buttons. The LEDs light red when
the corresponding port is selected. The LED flashes red when the port is running
in either AutoScan or manual scan mode. The LEDs light green when the port
connects to a computer that’s powered on.
4.3 Selecting Computers Using On-Screen Display (OSD)
The ServSwitch can operate via an on-screen display (OSD). To use this option,
press the Ctrl key twice within two seconds to see the hotkey menu (an OSD
option) if it is enabled. Press the Left-Ctrl key three times within two seconds, and
a ServSwitch menu screen appears showing a list of the computers with
corresponding port numbers, names, and statuses. See Figure 4-1.
Figure 4-1. OSD screen.
Note also that the short form Hotkey menu can be turned on as an OSD function.
Just press the F4 key, then select More, then Hotkey menu. See Table 4-1 for
Hotkey commands.
Port channel
address
Highlighted by
arrow keys
Press Enter to go to
the slave screen
FINANCIAL-1F (the
highlighted
information) shown in
Figure 4-2.
Security
enabled port
Currently selected
channel address
To a 16-port slave
To an 8-port slave
Eye mark enabled

17
CHAPTER 4: Operation
Figure 4-2. OSD slave screen.
In Figure 4-1, the color of a device name is green if it has power and is ready for
operation, or the color is white if it has no power. The OSD menu updates the
color when the device’s power is activated. For 16-port models, press the PageUp
and PageDown keys to view eight other computers.
Press the up-arrow, down-arrow, 1–8, or A–H keys (depending on the ServSwitch
model) to highlight a computer, then press the Enter key to select it. Or, press Esc
to exit OSD and remove the OSD menu from the display. The status window then
returns to the display and indicates the currently selected computer or operating
status.
A triangle mark to the right of a name (see Figure 4-1) indicates the port is
cascaded to a slave; the number at the left of the triangle mark shows the number
of ports the slave has. Pressing the Enter key brings you one level down and
another screen (Figure 4-2) pops up listing the names of the computers on that
slave. The name of the slave will be shown at the upper right corner of the OSD
menu.
An eye mark to the right of a name (see Figure 4-2) indicates that computer is
selected and monitored in Scan mode. In the OSD, this mark can be switched on
or off by pressing function key F2.
Press the Esc key to exit OSD and to return to the port/PC screen that you were
previously connected to.
Master port name
(group name)
User input
port names
Eye mark
selected
White as
power off
Green as
power on

18
4- , 8-, AND 16-PORT SERVSWITCH EC SERIES PS/2 AND USB KVM SWITCH
The Function and Escape keys work as follows:
Function key F1 allows you to edit a computer or slave’s name entry with up to 14
characters. First highlight a port, then press F1 and type the name. Valid characters
are A–Z, 0–9, and the dash character. If you type lowercase letters, they will be
converted to uppercase ones. Press the Backspace key to delete a letter one at a
time. Non-volatile memory stores all name entries until you change them, even if
the unit is powered down.
Function key F2 allows you to switch a computer’s eye mark on or off. First, use the
up-arrow and down-arrow keys to highlight a computer, then press F2 to switch its
eye mark on or off. If Scan Type (described on the next page) is Ready PC, only
the power-on and eye-mark selected computers will be displayed sequentially in
Scan mode.
Function key F3 enables you to lock a computer to prevent unauthorized access.
To lock a computer, highlight it and then press F3. Now, for the new password,
type in up to four characters (A–Z, 0–9) and press the Enter key. A security-
enabled computer is marked with a lock symbol following its port number. To
permanently disable the security function from a locked computer, highlight it,
press F3 and then type in the password.
If you want to access the locked computer temporarily, simply highlight it and
press the Enter key, then the OSD will ask you for the password. After typing in the
correct password, you are allowed to use the computer. This computer is
automatically re-locked once you switch to another port. During Scan mode, the
OSD skips the password-protected computers.
NOTE
If you forget the password, the only way to permanently erase all the
passwords for the KV9108A or KV9116A is to press and hold the front
panel buttons 1 and 2, then press and hold 7 and 8. Release 7 and 8,
then release 1 and 2. For the KV9104A, press 3 and 4 instead of 7 and 8.
Function key F4 enables more functions, including AutoScan, Manual Scan, Scan
Type, Scan Rate, Keyboard Speed, Hotkey Menu, CH Display, and Position. A new
screen pops up displaying these functions as described on the next two pages. Most
of them are marked with a triangle, indicating there are options to choose from.
Use the up-arrow or down-arrow key to select the functions, and then press the
Enter key. Available options will be shown in the middle of the screen. Again, use
the up-arrow or down-arrow keys to view each option, and then press the Enter key
to select it.
Press the Esc key to exit the OSD at any time and return to the port/PC screen that
you were previously connected to.
