Black Hawk Automotive BH6025 Service manual

Model Number Capacity
BH6025 2 ½Ton
BH6034 3 Ton
Heavy Duty
Hydraulic Service Jacks
Operating Instructions & Parts Manual
- Before using this product, read this manual and follow all its Safety Rules and Operating Instructions
SFA Companies ©2004
10939 N. PomonaAve. Kansas City, MO 64153
816-891-6390
[email protected]
MadeinPRC

Warranty P2
Save These Instructions P3
Product Description P3
Specifications P3
Safety Instructions P4
Assembly P4
Operation P4
Maintenance P5
Troubleshooting P5
Replacement Parts P6
2
TABLE OF CONTENTS
ONE YEAR LIMITED WARRANTY
Foraperiodofone (1) year from date of purchase, SFA Companies will repairorreplace,atits option, without charge,
any of its products which fails due to a defect in material or workmanship, or which fails to conform to any implied
warrantynotexcludedhereby.
Performanceof anyobligationunder thiswarrantymay beobtainedby returningthe warranted product,freight prepaid,
toSFA Companies Warranty Service Department, 10939 N. PomonaAve.,Kansas City,MO64153.
Except where such limitations and exclusions are specifically prohibited by applicable law:
(1)THE CONSUMER'SSOLEANDEXCLUSIVE REMEDYSHALL BETHE REPAIROR REPLACEMENTOF DEFEC-
TIVEPRODUCTSAS DESCRIBEDABOVE.
(2) SFA COMPANIES SHALL NOT BE LIABLE FORANY CONSEQUENTIAL OR INCIDENTAL DAMAGE OR LOSS
WHATSOEVER.
(3)THEDURATION OFANYANDALL EXPRESSEDANDIMPLIEDWARRANTIES, INCLUDING WITHOUTLIMITA-
TION,ANYWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULAR PURPOSE,ISLIMITEDTOA
PERIOD OF ONE (1) YEAR FROM DATE OF PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to
you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitationorexclusion may not apply to you. Thiswarrantygivesyou specific legal rights, and youmayalsohave other
rights which vary from state to state.

Figure1 - Model BH6025Components
SAVE THESE INSTRUCTIONS
Foryoursafety,read, understand, and follow the information provided withandon this jack. The owner andoperator
ofthisequipment shall have an understanding ofthisjackand safe operating procedures before attemptingtouse.
The owner and operator shall be aware that use and repair of this product may require special skills and knowledge.
Instructions and safety information shall be conveyed in the operator's native language before use of this jack is
authorized. If any doubt exists as to the safe and proper use of this jack, remove from service immediately.
Inspect before each use. Do not use if there are broken, bent, cracked, or damaged parts (including labels).Any
jack that appears damaged in any way, operates abnormally or is missing parts, shall be removed from service
immediately. If the jack has been or suspected to have been subjected to a shock load (a load dropped suddenly,
unexpectedly upon it), immediately discontinue use until jack has been checked by a Blackhawk authorized service
center.Itisrecommendedthatanannualinspection be done by qualified personnel. Labels and Operator's Manuals
areavailable frommanufacturer.
PRODUCT DESCRIPTION
Blackhawk Hydraulic Service Jacks are designed to lift, not sustain, rated capacity loads. They are designed to be
usedinconjunction with jack stands. Intended use: To lift onewheelor one axle ofavehicle for the purposeofservice
and/or repair of vehicle components. After lifting, loads must be immediately supported by appropriately rated jack
stands. Check with vehicle owner's manual for proper lift points. Always refer to the Product Label and Operator's
Manual to establish rated capacity.
3
SPECIFICATIONS
2 1/2 Ton
5 1/2"
Model Capacity Jack Size ( L X W X H ) Min.Height Max. Height
25 3/8" x 13 1/8" x 6 1/2" 5 1/2" 19 1/2"BH6025
27 1/2" x 13 3/8" x 6 3/8" 19"
BH6034 3Ton
Saddle
Handle
Foot Pedal
Caster
Lifting Arm
Oil Filler Plug
( on reservoir )
Handle
Fork
Handle
Saddle
Lifting Arm
Oil Filler Plug
( on reservoir )
Caster
Figure2 - Model BH6034Components
Release Valve Release Valve

4
SAFETY INSTRUCTIONS (refer to Figure 1 for location of components)
BEFORE USE
1. Verify that the product and the application are compatible, if in doubt callBlackhawk Automotive Technical
Service(816) 891-6390.
2. Read the operator's manual completely and familiarize yourself thoroughly with the product, its components and
recognize the potential hazards associated with its use before using this product.
3. Assemble handle, then secure it in the handle fork with the provided bolt. Open the release valve by turning the
handlecounterclockwise(nomorethan2full turns).
4. With saddle fully lowered, locate and remove the oil filler plug. Pump the handle 6 to 8 full strokes. Ensure the oil
level is within ~ 3/16" from the inner cylinder as viewed from the oil filler plug. Reinstall the oil filler plug. Close
release valve by turning the handle clockwise until firm resistance is felt.
5. Check to ensure that jack rolls freely, that the pump and release valve operates smoothly, raises and lowers the
unloadedsaddle throughout the advertisedlift range before puttingintoservice.
6. Replace worn or damaged parts and assemblies with Blackhawk Replacement Parts only. (See Replacement
Parts Section). Lubricate as instructed in Maintenance Section.
• Study, understand, and follow all instructions
providedwithand on this device beforeuse.
• Do not exceed rated capacity.
• Lift only on areas of the vehicle as specified by the
vehiclemanufacturer.
• Do not use adapters or accessories that are not
providedinitially.
• This is a lifting device only.After lifting, immedi-
atelytransferthe load to appropriately rated vehicle
stands.
•Never work on,under, or around aloadsupported
by this device.
• Use only on hard, level surfaces capable of sus-
taining rated capacity loads.
• Do not move or dolly loads with this device.
• Do not modify this device.
• Failure to heed these markings may result in
personalinjuryand/or property damage.
ASSEMBLY
Little, if any, assembly is required of these jacks. Always secure the handle into the handle fork by means of the bolt
andlockwasher provided. Tighten securely topreventaccidental removal of handle while inuse.Familiarize yourself
with the illustrations in the operator's manual. Know your jack and how it operates before attempting to use.
OPERATION
Lifting
1.Placevehicleinparkgear, with emergency brake on and wheels securely chocked to prevent inadvertentvehicle
movement.
2. Locate and close release valve by turning handle clockwise, firmly. Center jack saddle under lift point.
3. Verify lift point, then use handle pump to contact lift point. To lift, pump handle until load reaches desired height.
4. Transfer the load immediately to appropriately rated jack stands.
Lowering
1. Raise load high enough to clear the jack stands, then carefully remove jack stands (always used in pairs).
Toavoid crushing and relatedinjuries:
NEVERworkon, under or around aloadsupported
only by a jack. ALWAYS use adequately rated jack
stands. Immediately transfer the load to adequately
rated jack stands.
!WARNING
!WARNING

5
2. Slowly turn the handle counterclockwise, but no more than 1/2 turn.
If the load fails to lower:
a. Use another jack to raise the vehicle high enough to reinstall jack stands.
b. Remove the malfunctioning jack and then the stands.
c. Using the functioning jack, lower the load by turning the operating handle counterclockwise, but no more than
MAINTENANCE
Important: Use only a good grade hydraulic jack oil.Avoid mixing different types of fluid andNever use brake fluid,
turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause failure of the jack and the potential for
suddenand immediate lossofload. We recommendHein-WernerHW93291 hydraulic oilorequivalent.
Adding oil
1. With saddle fully lowered set jack in its upright, level position. Locate and remove oil filler plug.
2. Fill with oil until ~3/16" above the inner cylinder as seen from the oil filler plug hole. Reinstall the oil filler plug.
Changing oil
For best performance and longest life, replace the complete fluid supply at least once per year.
1. With saddle fully lowered, remove the oil filler plug.
2. Lay the jack on its side and drain the fluid into a suitable container.
Note: Dispose of hydraulic fluid in accordance with local regulations.
3. Fill with oil until ~3/16" above the inner cylinder as seen from the oil filler plug hole. Reinstall the oil filler plug.
Lubrication
A coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and assure that wheels,
castersand pump assemblies movefreely.
Cleaning
Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily
cloth.
Note: Neveruse sandpaper orabrasivematerial on these surfaces!
Storage
When not in use, store the jack with saddle fully lowered.
• Leer, comprender, y seguir las instrucciónes
antes de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridaddeben estar comunicado enlenguadel
operadorantes del uso.
• No seguir estas indicaciónes puede causar daños
personalesomateriales.
!ADVERTENCIA Be sure all tools and personnel are clear before
lowering load. Only attachments and/or adapters
supplied by the manufacturer shall be used. Lift
only on areas of the vehicle as specified by the
vehiclemanufacturer.
! Safety Messages !
1/2 turn.

6
REPLACEMENT PARTS
Available Parts: Please refer to the Parts drawing when ordering parts. Not all components of the jack are
replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
When ordering parts, give Model number, serial number and description on page 7 & 8. Call or write for current
pricing: SFA Companies 10939 N. PomonaAve. Kansas City, MO 64153, U.S.A. Tel:[phone]
Fax:[phone] E-Mail:[email protected]
PossibleCauses Corrective Action
Jack will not lift load
Jack bleeds off after lift
Will not lift to full extension
• Release valve not tightly closed
• Fluid level low
• Fluid level low
• Air trapped in system
• Release valve not tightly closed
• Hydraulic unit malfunction
• Ensure release valve tightly closed
• Ensure release valve tightly closed
• ContactBlackhawk Tech. Service
•Ensure properfluid level
•Ensure properfluid level
• With ram fully retracted, remove oil filler
plug to let pressurized air escape,
reinstall oil filler plug
Poor lift performance
Jackwillnot lower after unloading •Reservoiroverfilled
•Linkagesbinding •Drain fluid to properlevel
•Clean and lubricate movingparts
TROUBLESHOOTING
Symptom

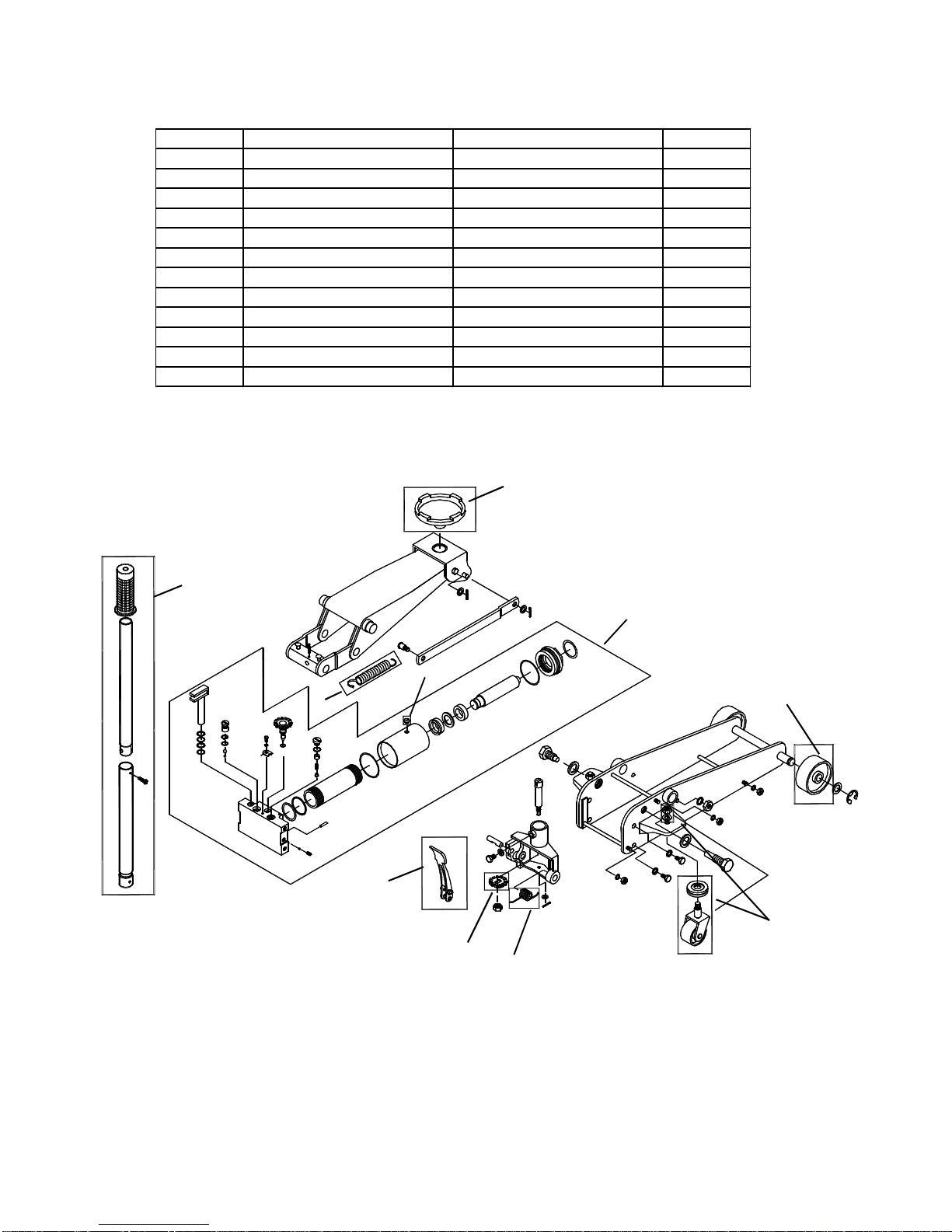

Figure3 - Replacement PartsIllustrationfor Model BH6025
ModelBH6025
7
1
5
2
3
4
6
7
8
9
10
Item # Part # Description Qty.
1F361-30030-0000 Oil Filler Plug 1
2G489-40003-1000 Release Valve Gear 1
3G489-10002-0421 Lift Arm Return Spring 1
4G95L-12000-0000 Saddle 1
5G48900-0006 Rear Caster Assembly 2
6G48900-0005 Front Wheel Assembly 2
7G48900-0004 Handle Assembly 1
8G48900-0007 Hydraulic Unit 1
9G489-20008-0410 Handle Fork Return Spring 1
10 G48900-0003 Handle Fork Assembly 1
-G48900-0002 Repair Kit -
-BH6025-L0 Label(s) (not shown) -
-BH6025-M0 Manual 1

4
1
2
3
5
6
7
8
9
ModelBH6034
10
8

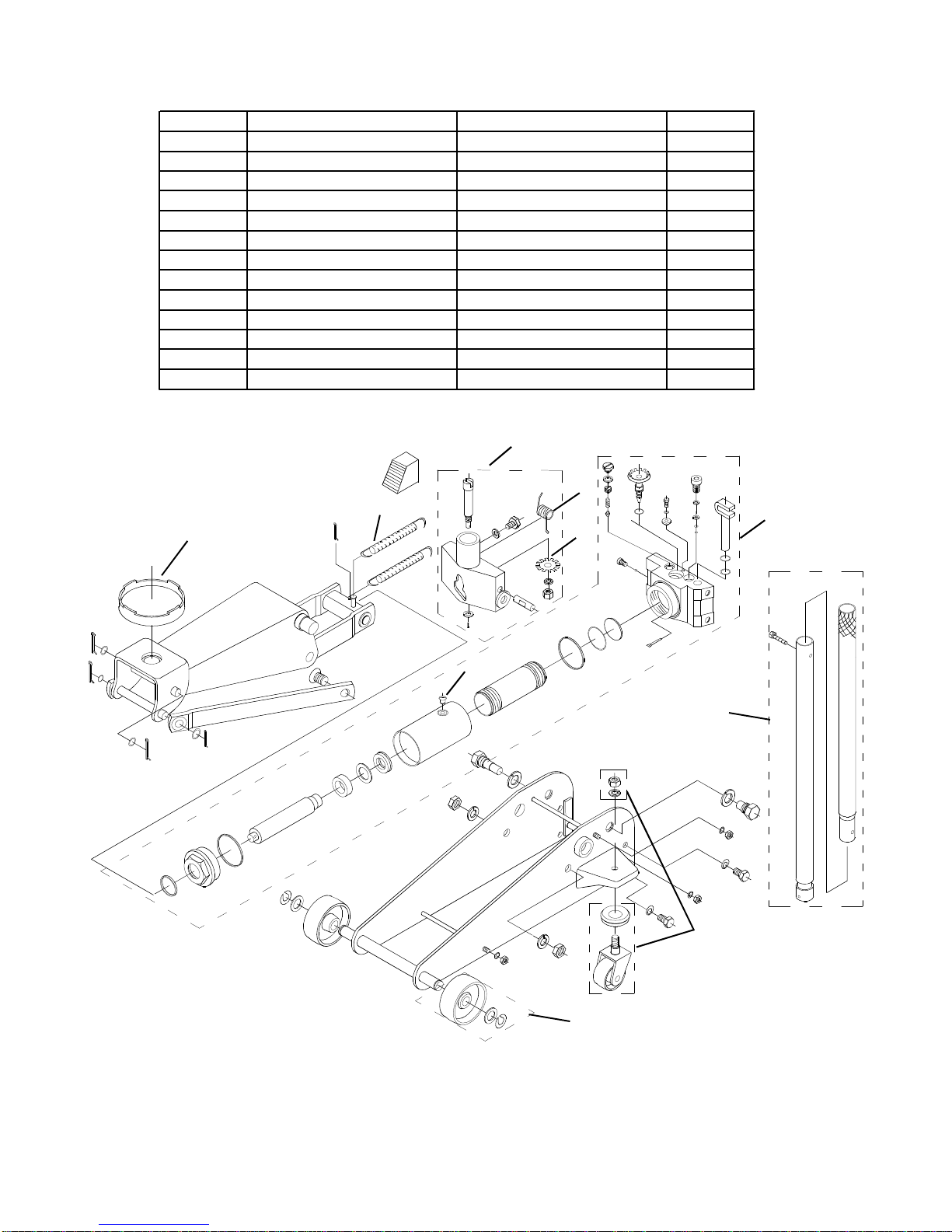

Figure4 - Replacement PartsIllustrationfor Model BH6034
Item # Part # Description Qty.
1590-5-0010-0000 Oil Filler Plug 1
2G93-1-0800-2000 Release Valve Gear 1
3G93-1-0000-3000 Lift Arm Return Spring 1
4G93-P-0100-0000 Saddle 1
5G931-05000-000 Rear Caster Assembly 2
6G931-00005-000 Front Wheel 2
7G89-0-9003-7K03 Handle Assembly 1
8G93-P-0000-1000 Foot Pedal 1
9G49-3-0200-000 Complete Hydraulic Unit 1
10 G93-1-0000-3000 Handle Fork Return Spring 1
-BH6034-L0 Label(s)(not shown) 1
-BH6025-M0 Manual 1
