Black Hawk Automotive BH6011 Instructions for use

Model Capacity
BH6050 (Manual) 5 Ton
BH6051 (Air/Manual) 5 Ton
BH6010 (Manual) 10 Ton
BH6011 (Air/Manual) 10 Ton
Long Chassis Hydraulic Service Jacks
Operating Instructions & Parts Manual
Blackhawk Automotive is a Licensed Trade Mark Made by SFA Companies, Kansas City, MO
BH6050-M0_082018
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
[email protected]
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
!ADVERTENCIA
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
!WARNING
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. ALWAYS use adequately rated
jack stands.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
WARNING: Cancer and Reproductive Harm.
AVERTISSEMENT: Cancer et dommages au système reproducteu
r.
ADVERTENCIA: Cáncer y daño reproductivo.
www.P65Warnings.ca.gov

2
Figure 1 - Typical Service Jack Nomenclature (BH6051 shown)
Handle Position Lock
Release Valve
(Handle Knob)
Saddle
Foot Pedal
Oil Filler Plug/screw
(below cover plate,
on Reservoir )
Handle
Front Wheel
Rear Caster
Lift Control Valve
Handle Sleeve
Grease Fitting
SPECIFICATIONS
Model Capacity Jack Size ( L x W x H) Min.
Height
Max.
Height
Ram
Extend
Saddle
Dia.
BH6050/ BH6051 5 Ton 57 3/4" x 17" x 7 5/8" 7" 27" 5" 6 1/2"
BH6010/ BH6011 10 Ton 54 3/4" x 20" x 12 3/4" 7" 27" 6 1/2" 7 3/8"
SAFETY and GENERAL INFORMATION
Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack
before using. The owner and operator of this equipment shall have an understanding of this jack and safe operating
procedures before attempting to use. The owner and operator shall be aware that use and repair of this product
may require special skills and knowledge. Instructions and safety information shall be conveyed in the operator's
native language before use of this jack is authorized. If any doubt exists as to the safe and proper use of this jack,
remove from service immediately.
Inspect before each use. Do not use if broken, bent, cracked or damaged parts are noted. Any jack that appears
damaged in any way, or operates abnormally shall be removed from service immediately. If the jack has been or
suspected to have been subjected to a shock load (a load dropped suddenly, unexpectedly upon it), immediately
discontinue use until jack has been checked by a factory authorized service center (contact distributor or manufacturer
for list of authorized service centers). It is recommended that an annual inspection be done by qualied personnel.
Labels and Operator's Manuals are available from manufacturer.
PRODUCT DESCRIPTION
Blackhawk Automotive Long Chassis Hydraulic Service Jacks are designed to lift, but not support, one end of a
vehicle. Immediately after lifting, loads must be supported by a pair of appropriately rated jack stands. Air actuated
function available for Models BH6051 & BH6011. Air actuated units require at least 7.8 CFM @ 110 - 175 PSI. A
minimum of 150 PSI air pressure is required to raise rated capacity load.
NEVER use hydraulic jack as stand-alone device. After lifting, immediately support the lifted vehicle with
a pair of appropriately rated jack stands.
!

3

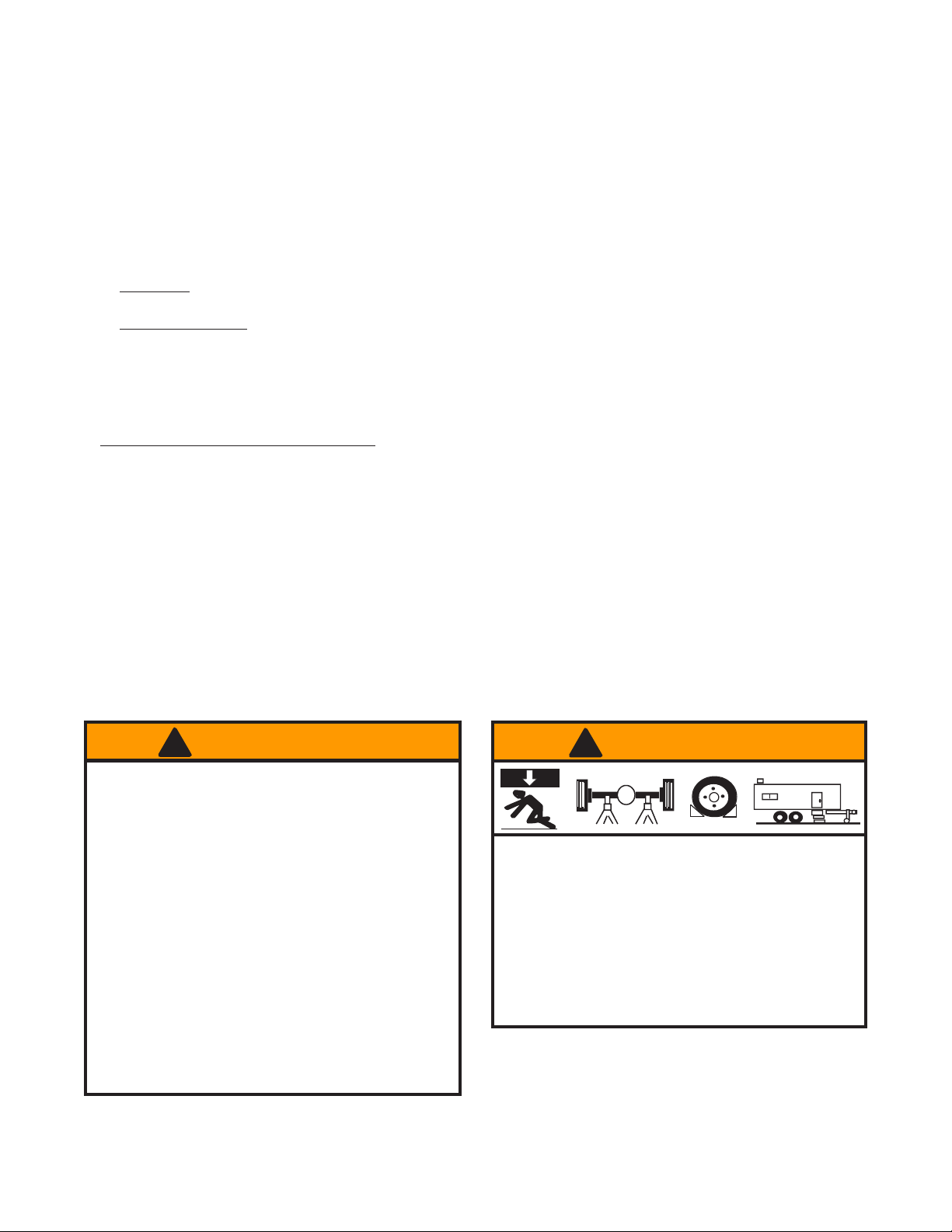

PREPARATION
Assembly
Always secure the handle into the handle sleeve by means of the bolt lock washer and nut provided. Tighten securely
to prevent accidental removal of handle while in use.
Before Use
1. Verify that the product and application are compatible, if in doubt call Technical Service [phone].
2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards associated with its use.
3. To familiarize yourself with basic operation, turn the release valve (handle knob):
a. Clockwise until rm resistance is felt to further turning. This is the ‘CLOSED’ release valve position used to
raise the saddle.
b. Counter-clockwise, but no more than 1 turn from the closed position. This is the ‘OPEN’ release valve
position used to lower the saddle.
4. With saddle fully lowered, locate and remove cover plate, then remove the oil ller plug/screw. Pump 6 to 8 full
strokes. This will help release any pressurized air which may be trapped within the reservoir. Check oil level. Proper
oil level will vary from just covering the ram cylinder to 3/16” above it as seen from the oil ller hole. Reinstall the
oil ller plug/screw.
5. For air option models BH6051 & BH6011, Pour a teaspoon of good quality, air tool lubricant into the air supply inlet
of the lift control valve. Connect to air supply and operate for 3 seconds to evenly distribute lubricant.
Note: These models are equipped with the popular 1/4" NPT air coupler. When installing a different air coupler of
your choice, ensure that thread tape or compound is used when servicing connections. To ensure dependable,
trouble free operation an inline air dryer and oiler is recommended.
6. Ensure that jack rolls freely. Raise and lower the unloaded saddle throughout the lifting range before putting into
service to ensure the pump operates smoothly. Replace worn or damaged parts and assemblies with Blackhawk
authorized replacement parts only.
Bleeding / Venting Trapped Air
With the release valve in the OPEN position (3b.) and with saddle fully lowered, locate and remove the oil ller plug/
screw. Pump 6 to 8 full strokes. This will help release any pressurized air which may be trapped within the reservoir.
Reinstall the oil ller plug/screw.
!WARNING
• Study, understand, and follow all printed
materials provided with/on this product before use.
• Do not exceed rated capacity.
• Use only on hard, level surface.
• This is a lifting device only!
• Immediately after lifting, support the load with
a pair of appropriately rated jack stands.
• Lift only on areas of the vehicle as specied by
the vehicle manufacturer.
• Never wire, clamp or otherwise disable the lift
control valve to function by other than operator's
hand.
• Do not move or dolly the vehicle while on the jack.
• No alterations shall be made to this product.
• Failure to heed these markings may result in
personal injury and/or property damage.
To avoid crushing and related injuries:
• Never work on, under or around a load supported
only by hydraulic jack.
• Always use adequately rated jack stands.
• Chock each unlifted tire in both directions.
• Do not use this device to lift, level, lower, support nor
move a house, mobile home, travel trailer, camper or
any building structure.
• Be alert and sober when using this product. Do not
operate under the inuence of drugs or alcohol.
!WARNING
X

4
!
OPERATION
Lifting
Only attachments and/or adapters supplied by the manufacturer shall be used. Lift only on area of the
 vehicleasspeciedbythevehiclemanufacturer.
Note: The jack is equipped with handle position lock. To adjust the handle, release lock device by pulling the lever
up, then back until lever is locked into place.
1. Follow the vehicle manufacturer’s recommended guidelines for lifting. Engage the emergency brake and chock
each unlifted wheel in both directions to prevent inadvertent vehicle movement.
2. Locate and close the release valve by turning the release valve knob clockwise until rm resistance is felt.
3. Refer to the vehicle manufacturer owner’s manual to locate approved lifting points on the vehicle. Center jack
saddle under lift point.
4. Verify lift point, then pump handle or foot pedal to contact lift point. To lift, pump handle or squeeze lift control valve
(models BH6051 & BH6011) until load reaches desired height. Never use foot pedal to raise load.
5. Transfer the load immediately to appropriately rated jack stands.
NEVER use hydraulic jack as a stand alone device! ALWAYS transfer the lifted load IMMEDIATELY to a
pair of appropriately rated jack stands. Use one pair of jack stands per vehicle. Rated capacity is per
pair only! Do not exceed rated capacity.
Lowering
Be sure all tools and personnel are clear before lowering load. Slowly open the release valve! The more
you turn the release valve knob counter-clockwise, the faster the load will come down. Maintain control
of the rate of speed at which the load lowers at all times!
1. Raise load high enough to clear the jack stands.
2. Remove jack stands carefully (always used in pairs).
3. Slowly turn the release valve knob counter-clockwise, but no more than 1 full turn. If the load fails to lower:
a. Use another jack to raise the vehicle high enough to reinstall jack stands.
b. Remove the malfunctioning jack and then the jack stands.
c. Use the functioning jack to lower the vehicle .
4. After removing jack from under the vehicle, push saddle down to reduce ram exposure to rust and contamination.
MAINTENANCE
Important: Use only good grade hydraulic jack oil. Avoid mixing different types of uid and Never use brake uid,
turbine oil, transmission uid, motor oil or glycerin. Improper uid can cause failure of the jack and the potential for
sudden and immediate loss of load. We recommend Hein-Werner HW93291 or equivalent.
Adding oil
1. With saddle fully lowered set jack in its upright, level position. Locate and remove oil ller plug/screw.
2. Fill with oil until ~3/16" above the inner cylinder as seen from the oil ller hole. Reinstall the oil ller plug/screw.
Changing oil
For best performance, replace the complete uid supply at least once per year.
1. With saddle fully lowered, remove the oil ller plug/screw.
2. Lay the jack on its side and drain the uid into a suitable container.
Note: Dispose of hydraulic uid in accordance with local regulations.
3. Fill with oil until ~3/16" above the inner cylinder as seen from the oil ller hole. Reinstall the oil ller plug/screw.
Lubrication
A periodic coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and assure that
wheels, casters and pump assemblies move freely. To help ensure trouble free operation, an inline air dryer and
oiler is recommended.
!
!

5
TROUBLESHOOTING
Symptom Possible Causes Corrective Action
Jack will not lift load • Release valve not tightly closed
• Overload condition
• Air pressure inadequate
• Ensure release valve tightly closed
• Remedy overload condition
•Ensure adequate air pressure
Jack will lift, but not maintain
pressure
•Release valve not tightly closed
•Overload condition
• Hydraulic unit malfunction
•Ensure release valve tightly closed
•Remedy overload condition
• Discontinue use, contact
Blackhawk Technical Service
Jack will not lower after unloading • Reservoir overlled
• Linkages binding
• Drain uid to proper level
• Clean and lubricate moving parts
Poor lift performance • Fluid level low
•Air trapped in system
• Ensure proper uid level
•With ram fully retracted, remove oil
ller plug/screw to let pressurized
air escape. Reinstall oil ller plug/
screw
Will not lift to full extension • Fluid level low • Ensure proper uid level
Cleaning
Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.
Note: Never use sandpaper or abrasive material on these surfaces!
Storage
When not in use, store the jack with saddle fully lowered.
ONE YEAR LIMITED WARRANTY
For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option,
without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This
limited warranty is a consumer's exclusive remedy.
Performance of any obligation under this warranty may be obtained by returning the warranted product,
freight prepaid, to SFA Companies Warranty Service Department, 10939 N. Pomona Ave., Kansas City, MO 64153.
Except where such limitations and exclusions are specically prohibited by applicable law, (1) THE
CONSUMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE
PRODUCTS AS DESCRIBED ABOVE. (2) SFA Companies SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER. (3) ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO ONE YEAR, OTHERWISE THE REPAIR, REPLACEMENT OR REFUND AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER,
AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. (4) ANY MODIFICATION,
ALTERATION, ABUSE, UNAUTHORIZED SERVICE OR ORNAMENTAL DESIGN VOIDS THIS WARRANTY AND
IS NOT COVERED BY THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you may also
have other rights, which vary from state to state.

6

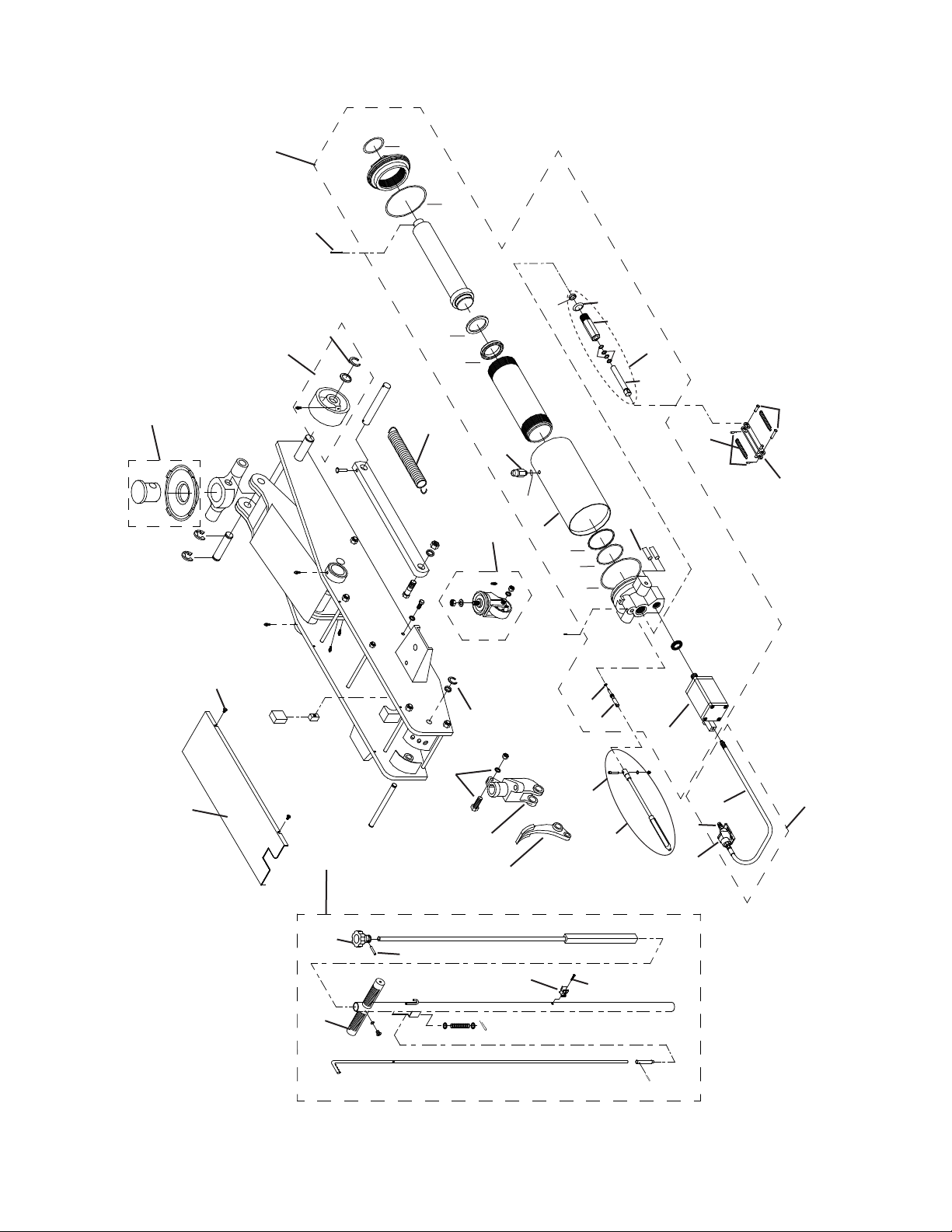

Figure 2 - Replacement Parts Illustration for Model BH6050 & BH6051.
3
ABC
DE
A
F
G
I
I
H
H
2
1
4
56
7
8
9
10
11
12
13
14
15 16
18
17
19
20
21
22
23
24
25
26
27
28
29
30
32
33
34
35
(for
22051C)
36
37
31
JK
L
REPLACEMENT PARTS
(refer to page 6 thru 8)
Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence. When ordering parts, give Model number, serial number and parts description.
Call or write for current pricing: SFA Companies, 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:(816)891-
6390 Fax:[phone] E-Mail: [email protected]

7
Figure 3 - Replacement Parts Illustration for Model BH6011 & BH6010.
3
38
ABC
D
EA
F
G
I
H
2
1
4
56
7
8
9
10
11
12
14
15
16
18
17
19
20
21
22
23
24
39 25
26
27
28
29
30
32
33
34
35
(for
22101C)
36
37
31 13
K

8
Replacement Parts List:
Item Part# for BH6050 Part# for BH6051 Part# for BH6011 Part# for BH6010 Description Qty
1 G251-20008-000 G251-20008-000 Filter 2
2 G250-20002-000 G100-40003-000 Reservoir 1
3 G62S-03300-200 G62S-03301-000 Filler Plug 1
4 5901-00071-000 5901-00071-000 O-ring, D7.1x2.65 1
5 G250-20004-000 G251-20004-000 Release Valve 1
6 B300-14002-000 B300-14002-000 Washer 1
7 G651-31002-000 G651-31002-000 Pump Cylinder 1
8 G651-31001-000 G651-31001-000 Pump Piston 1
9 G100-90049-K01 G100-90049-K01 Universal Joint 1
10 5405-12036-000 5405-12039-000 Pin 2
11 5405-02028-000 5405-02028-000 Retaining Pin 2
12 G250-50000-000 G100-70000-000 Piston Link 1
13 G251-00004-000 G100-00015-000 (Qty. 2) Return Spring, Pedal 1
14 5110-06016-000 5402-05025-000 Screw 1
15 G251-00009-000 G251-00009-000 Foot Pedal 1
16 G251-00010-000 G251-00010-000 Handle Fork 1
17 5304-00018-000 5304-00018-000 Snap Ring 2
18 G251-00003-000 G100-00014-000 (Qty. 1) Return Spring 2
19 5304-00028-000 5305-00024-000 Snap Ring 2
20 G25X-00001-000 G100-90049-K02 Saddle 1
21 5110-06010-000 5111-55022-000 Screw, Phillips 4
22 G25X-00003-000 G100-00016-000 Cover 1
23 G251-40001-000 G251-40001-000 Knob 1
24 5402-04028-000 5402-04028-000 Spring Pin 1
25 5105-05012-000 5110-05025-000 Screw 1
26 G250-02000-000 G250-90000-000 G100-90009-K06 G100-90009-K05 Hyd Power Unit 1
27
N/A
A240-02100-000
N/A
A240-02100-000 Air Hose 1
28 G240-01000-000 G240-01000-000 Air Motor 1
29 A240-02200-000 A240-02200-000 Lift Control Valve 1
30 A190-01000-000 A190-01000-000 Hose Assembly 1
31 A20060-0016 A20060-0016 Quick coupler, Male 1
32 G25X-90009-K03 G100-90009-K01 Handle Assembly 1
33 G250-90004-K01 G100-90004-K02 Front Wheel Assembly 2
34 G25X-90009-K02 G661-90038-K03 Caster Assembly 2
35 G250-90009-K03 G250-90009-K03 Bolt Assembly 1
36 G651-31000-000 G651-31000-000 Pump Assembly 1
37 G251-00007-000 G251-00007-000 Handle Grip 2
38 N/A N/A A070-40009-000 Hose clip 1
39 5110-04012-000 Screw, Phillips 1
- G2506S-091 G1006S-126 Seal Kit for Hyd Unit 1
-N/A G250-90009-K04 N/A G250-90009-K04 Seal Kit for Air Motor 1
- G831-03210-000 G831-03210-000 Piston for Air Motor 1
