Titan Lifts SJ-35 Instruction manual
INSTALLATION, OPERATION,
& MAINTENANCE MANUAL
MODEL:
SJ-35
3,500LB SLIDING BRIDGE JACK
FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE MACHINE WILL FUNCTION
CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE. FAILURE TO FOLLOW
THESE INSTRUCTIONS AND SAFETY WARNINGS MAY RESULT IN PERSONAL INJURY
OR PROPERTY DAMAGE. USE OF SAFETY JACK STANDS ARE RECOMMENDED - SOLD
SEPARATELY. KEEP THIS MANUAL IN A SAFE DRY PLACE FOR FUTURE REFERENCE.
®
PO Box 7069 Greenwood, IN 46142
1.888.908-4826 FAX (317) 215.2770
www.titanlifts.com
TITAN MARKETING, LLC
®
To Our Valued Customers:
Thank you for purchasing a Titan Lifts®product. We hope this high quality equipment provides you with years of
dependable service.
It is unfortunate that rare situations may occur with the products you purchase from Titan Lifts®. We value your
business as well as the trust you have and need to maintain your relationship with us. Titan Lifts®carries liability
coverage that may protect our customers if a situation does occur. However, as in all accidents there must be
proof of liability for a claim to be made. Our insurance company requires the following procedures be observed in
order to consider a claim:
A. The claimant must contact the Titan Lifts®distributor immediately with the facts of the situation.
B. If any equipment is damaged, including vehicles or shop equipment, Titan Lifts®must be given the
opportunity to send an impartial representative to the site for proper assessment of the situation.
C. The Vehicle cannot be moved until either an impartial representative has reviewed the accident or clear
and precise pictures are taken that reect all the pertinent information for an impartial representative to be able
to access the information from a distance. Titan Lifts®or its representatives must approve the pictures before
anything can be moved.
D. If any potential liability is determined on behalf of Titan Lifts®, two estimates must be submitted for
damages to be reimbursed.
It is imperative that the claimant complies with these procedures, because without proper assessment of the
situation a claim will be denied.
ARBITRATION NOTICE
The installation or use of this equipment shall constitute an acknowledgement that the user agrees to resolve any
and all disputes or claims of any kind whatsoever, which relate in any way to the equipment, by way of binding
arbitration, not litigation. No suit or legal action may be led in any state or federal court. Any arbitration shall be
governed by the Federal Arbitration Act, and administered by the American Mediation Association, Indianapolis
Indiana. The maximum amount that an arbitrator may award and all damages shall not exceed the retail value of
this equipment.
WARRANTY NOTICE
This equipment must be assembled and used in the manner according to the documentation provided to be
covered by warranty.
Damaged or missing components must be reported within 72 hours of receipt to your freight carrier and to the
distributor. Claims must be led to cover cost.
If you have any questions or if we can be of any further assistance, please don’t hesitate to contact a Titan Lifts®
representative at 1-888-908-4826. Thank you for the opportunity to continue to serve your lift equipment needs.
CONTENTS
INSTRUCTIONS ............................................................................................................1
UNPACKING AND SET-UP .............................................................................................................. 1
OPERATION & MAINTENANCE......................................................................................1
SAFETY PRECAUTIONS ................................................................................................1
PARTS DIAGRAM ..........................................................................................................2
PARTS LIST ..................................................................................................................3
1
INSTRUCTIONS
OPERATION & MAINTENANCE
SAFETY PRECAUTIONS
WARNING: READ ENTIRE MANUAL AND COMPLY WITH ALL SAFETY AND SERVICE
PRECAUTIONS. DEATH, PERSONAL INJURY AND / OR PROPERTY DAMAGE MAY OCCUR IF
INSTRUCTIONS ARE NOT FOLLOWED CAREFULLY.
UNPACKING AND SET-UP
1. Carefully unpack the lift making sure that all of the parts have been included.
2. Make sure to use the lift on a clean, smooth solid surface.
3. Place the lift saddles rmly positioned on the frame, solid surface, or manufacturers recommended
lifting points prior to lifting.
1. All moving parts have been lubricated at the factory and should be re-lubricated before the rst use
and at least once every six months to prevent damage.
2. Do not use this product if worn or damaged. Examine lift for structural cracks, bends, or other signs of
damage prior to each use to ensure safe proper working condition.
3. Keep the lift clean, dry, and well maintained to extend longevity of the product.
4. When not in use, the lift must be stored in the lowest position, in a dry location.
5. Use this as a secondary lift with a balanced load that is rmly positioned and secured at all times.
IMPORTANT: THIS LIFT IS DESIGNED TO BE USED IN CONJUNCTION WITH A 4-POST
AUTOMOTIVE LIFT. IT IS INTENDED FOR TEMPORARILY LIFTING AND LOWERING A VEHICLE. IT IS NOT
FOR STORAGE OR FOR TRANSPORTING LOADS. DO NOT LEAVE A VEHICLE ON THE LIFT FOR AN
EXTENDED PERIOD OF TIME. DAMAGE TO THE JACK OR OTHER PROPERTY MAY RESULT.
1. Load should not exceed rated capacity for this lift – 3,500lb
2. Only trained people should operate the lift.
3. Indoor use recommended.
4. Do not move the lift while loaded.
5. Keep hands, tools, and other extremities from any moving parts.
6. Maintain a safe working environment. The work area should be clean, dry, clutter free and sufciently
lit.
7. Wear proper safety attire. Do not wear loose tting clothing while operating lift, long hair and sleeves
should be secured.
8. Keep children and bystanders away from work area. Do not let children operate or play on lift.
9. Do not use if under the inuence of drugs or alcohol. Operator must be alert at all times when using
heavy lift equipment.
10. Never operate the lift with someone on it.
11. Use this lift only for the work it is intended. Do not use this product for an application for which it was
not designated. Misuse can lead to personal injury and/or property damage.
Set the safety bar (27) in the appropriate position to prevent lift from lowering. Lower the lift against
the safety bar prior to performing work.
12. Place safety jack stands (not included) under the vehicle to prevent the vehicle from falling in case the
jack should lower unexpectedly.
WARNING: NEVER GO UNDER A RAISED VEHICLE UNLESS THERE ARE SAFETY JACK STANDS
IN PLACE.
WARNING: VEHICLE WHEELS MUST BE CHOCKED & PARKING BRAKE SET PRIOR TO USING
THIS LIFT.
2

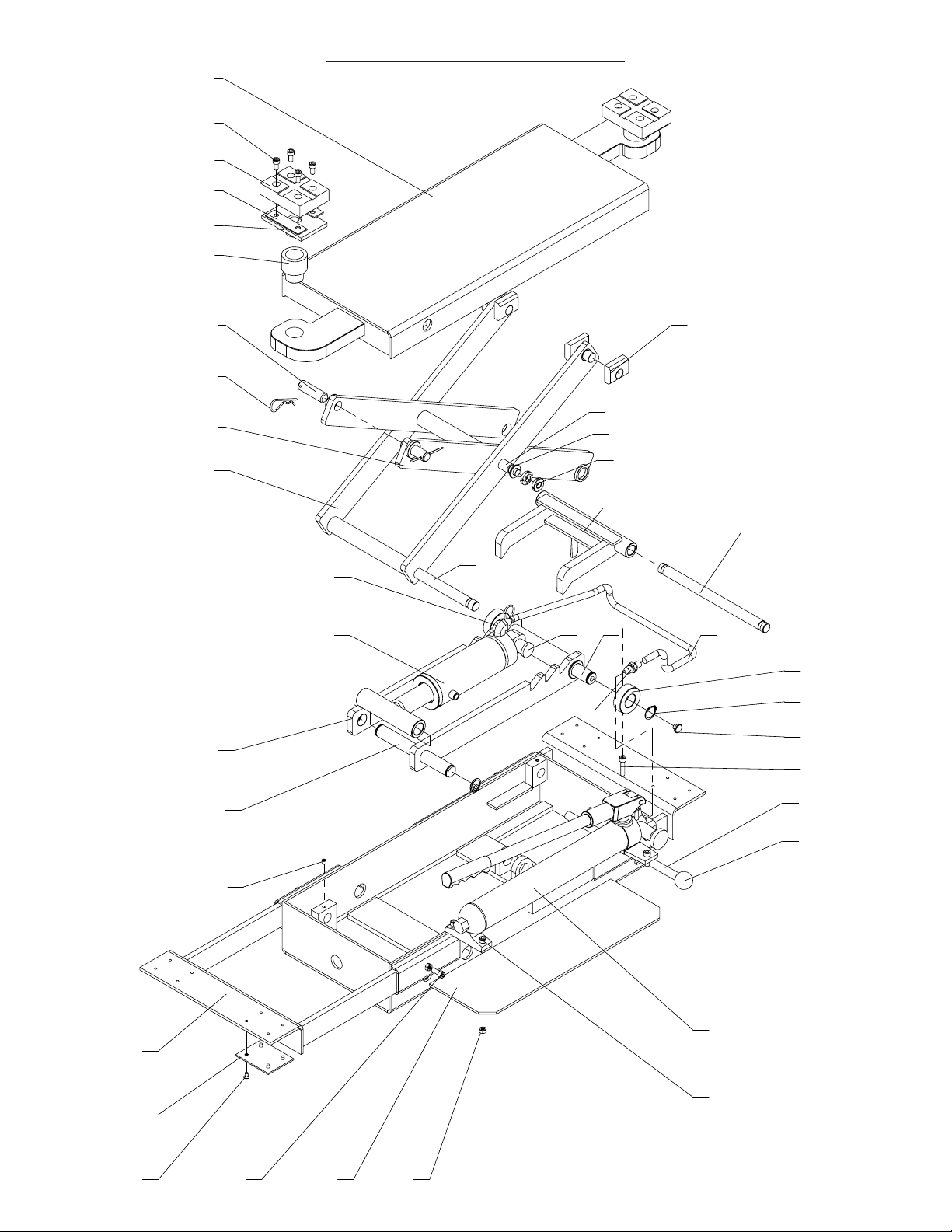

PARTS DIAGRAM
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16
17
18
20
19
21
22
23
24
26
27
28 2930 31
32
33
34
35
36
37
38
39
40
25
3
PARTS LIST
PART # CODE DESCRIPTION QTY
1 TT-4111-02-00 UPPER PANEL 1
2GB70.1-2000 M8×12 INNER SOCKET HEAD CAP SCREW 8
3 QYS-300-10-03-02 STOP SLIDER 2
4 QYS-300-10-03-01 MOLD INSERT 4
5 QYS-300-10-02 SUPPORT PLATE 2
6 TPF4-400-03 SHORT ADAPTER 2
6.1 TPF4-400-03 LONG ADAPTER 2
7 TT-4111-00-01 PANEL SHAFT 4
8 DPF4-3.2-700-03 BAYONET LOCK 3
9 TT-4111-05-00 INNER KNIFE ARM 1
10 TT-4111-04-00 OUTTER KNIFE ARM 1
11 TT-4111-00-02 SLIDING BLOCK 4
12 TT-4111-00-03 MEDIAL AXIS 1
13 GB97.2-1985 D14 FLAT WASHER 2
14 GB812-1988 M14X1.5-N ROUND NUT 4
15 TT-4111-07-00 SAFETY TEETH 1
16 TT-4111-00-04 SHAFT 1
17 TT-4111-00-10 SAFETY SHAFT 1
18 TT-4111-00-06 CYLINDER SHAFT 1
19 TT-4111-00-07 SAFETY SHAFT 1
20 TT-4111-00-09 ROLLER 2
21 GB894.1-1986 D25 EXTERNAL CIRCLIP 4
22 TT-4111-00-08 RETAINING RING 2
23 TT-4111-00-05 SHAFT 1
24 TT-4111-03-00 SAFETY RACK 1
25 GB78-2000 M8X10 HEXAGON SOCKET SET SCREW WITH CONE POINT 4
26 TT-4111-06-00 DRAWER 2
27 TT-4111-00-12 NYLON BLOCK 4
28 GB819-2000 M6X10 CROSS RECESSED COUNTERSUNK HEAD SCREW 16
29 TT-4111-01-00 BOTTOM FRAME 1
30 GB70.1-2000 M8X20 HEX CYLINDER SCREW 4
31 GB/6170-2000 M8 HEX NUT 4
32 GB70.1-2000 M8X25 HEX NUT 4
33 BAKELITE BALL 1
34 TT-4111-00-11 MANUAL LEVER 1
35 GB70.1-2000 M8X35 HEX CYLINDER SCREW 1
36 TT-4111-MP HYDRAULIC MANUAL PUMP 1
37 TT-4111-CY CYLINDER ASSEMBLY 1
38 TT-4122-800-04 RIGHT ANGLE INSIDE AND OUTSIDE FITTING 1
39 TT-4111-00-13 HYDRAULIC HOSE 1
40 QYS-500-08 RIGHT-ANGLE CONNECTOR 1
EQUIPMENT MODEL:
TYPE OF POWER UNIT:
DATE OF PURCHASE:
PLACE PURCHASED:
NAME:
STREET:
CITY, STATE, ZIP:
PHONE:
EMAIL:
SERIAL NUMBER:
SERIAL NUMBER:
WARRANTY REGISTRATION
OPT OUT OF PROMOTIONS
In order to utilize the warranty on this Titan Lifts product, you must register your product with us. The
simplest way to do this is to visit TITANLIFTS.COM/WARRANTIES and submit your information online. If you
prefer to send your information through the mail, please ll out the form below and send this page to us at :
Titan Lifts
PO Box 7069
Greenwood, IN 46142
In order to receive your warranty, return this card
or visit TITANLIFTS.COM/WARRANTIES within 30 days.
P.O. Box 7069 • Greenwood, IN 46142 • Ph. 888-908-4826 • Fx. 317-215-2770 • www.titanlifts.com
LIMITED WARRANTY
The Titan 2 Post lifts, 4 Post lifts and Bridge Jacks are backed by a standard 1-year replacement parts warranty and a 5-year
structural warranty from the date of purchase, to the original purchaser only. The 1-year replacement parts warranty covers power
units, hydraulic cylinders, and all other assembly components such as, but not limited to: turn plates, slip plates, cables, chains,
valves, switches etc. This does not cover normal wear items such as, but not limited to: rubber lifting pads and nylon slide blocks.
Titan Elite model lifts have been discontinued but still qualify under the same terms as shown above.
Titan SL-6600 Scissor Lifts and PREMIER Series 2 Post Lifts are backed by a 2-year replacement parts warranty and a 5-year
structural warranty from the date of purchase, to the original purchaser only. The 2-year replacement parts warranty covers power
units, hydraulic cylinders, and all other assembly components such as, but not limited to: valves, switches, capacitors etc. This does
not cover normal wear items such as, but not limited to: rubber lifting pads, nylon slide blocks and rubber arm pads.
Titan MRL-6000 Scissor lifts are backed by a standard 1-year replacement parts warranty and a 5-year structural warranty from
the date of purchase, to the original purchaser only. The 1-year replacement parts warranty covers power units, hydraulic cylinders,
and all other assembly components such as, but not limited to: valves, switches, capacitors etc. This does not cover normal wear
items such as but not limited to rubber lifting pads.
Titan ROT-4500 Rotisseries are backed by a standard 1-year replacement parts warranty from the date of purchase, to the original
purchaser only. The 1-year replacement parts warranty covers components such as, but not limited to: hydraulic cylinders, caster
assemblies, bearings etc. This does not cover normal wear items such as, but not limited to, mounting adapters.
Titan Standard Duty and Heavy Duty motorcycle lifts are backed by a standard 1-year replacement parts warranty from the date of
purchase, to the original purchaser only. The 1-year replacement parts warranty covers power units, hydraulic cylinders, pneumatic
cylinders, and all other assembly components such as, but not limited to: cables, caster wheels, valves, switches, wheel vises etc.
This does not cover normal wear items such as, but not limited to: rubber wheel vise pads.
Titan Light Duty motorcycle lifts are warrantied for replacement parts only to the original purchaser for a period of 90 days from
the date of purchase. This 90 day replacement parts warranty covers items such as, but not limited to: hydraulic cylinder, casters,
pedal assemblies, wheel vises etc. This does not cover normal wear items such as, but not limited to: rubber wheel vise pads.
Titan Bulldog Moto Cradle Wheel Chock is warrantied for replacement parts, only to the original purchaser, for a period of 2-years
from the date of purchase.
XL Tool by Titan Wheel Service Machines and Helper Arm Assemblies are backed by a standard 1-year replacement parts
warranty from the date of purchase, to the original purchaser only. The 1-year replacement parts warranty covers internal boards,
motors, pneumatic cylinders, and all other assembly components such as, but not limited to: cabinet, switches, valves, ttings etc.
This does not cover normal wear items such as but not limited to: rubber pads, jaw protectors, air hoses, quick nut assemblies.
Titan shop equipment products and accessories are warrantied for replacement parts only to the original purchaser for a period of
90 days from the date of purchase. This 90 day replacement parts warranty covers products such as but not limited to: EZ -Mover
Jacks, Mini Jacks, tie down products, wheel service accessories, Bulldog Moto Cradle Wheel Chock accessories, dollies, stands,
Multi-purpose Jacks, etc.
Titan TJ1T, FJ2T, and FJ3T are warrantied for replacement parts only to the original purchaser for a period of 1 year from the date
of purchase.
For all warranty considerations, Titan Marketing, LLC will supply replacement parts only during the warranty period. The original
purchaser is responsible for all shipping, handling, and any labor charges incurred. Hydraulic/Pneumatic cylinders may qualify
for exchange under warranty if reported within the rst 30 days from date of sale. After the rst 30 days from date of sale, a seal
kit and installation instructions will be sent for cylinder repairs. All defective parts must be returned to Titan for inspection and
examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed
above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to
defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance.
Titan Marketing, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect,
or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied. Damage caused by rain,
excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT
EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A TITAN
MARKETING LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY.
NOTES
NOTES
WARNING
The warnings, precautions and instructions in this manual cannot
cover all possible conditions and situations that may occur. The
operator must understand that the operator must supply common
sense and examine caution factors when using this product to
determine safety in all circumstances being used.
®
PO Box 7069 Greenwood, IN 46142
1.888.908-4826 FAX (317) 215.2770
www.titanlifts.com
TITAN MARKETING, LLC
Copyright © 2018 by Titan Marketing, LLC. All rights reserved. No portion of this manual or any artwork contained herein may be
reproduced in any shape or form without the express consent of Titan Marketing, LLC. Diagrams within this manual may not be
drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools
required for assembly and service may not be included.
Patent No.: US 8,104,588 B2
CA 2,729,670 4/16/18
Table of contents
