Black Horce Model Sedona Owner's manual

SPECIFICATION


Wingspan : 1,800 mm 70.87 in.


Length : 1,470 mm 57.87 in.


Weight : 2.6 kg 5.72 Lbs.


Radio : 04 channels.


Servo : 04 -5 servos.


Engine : 46 - 55 2 stroke.
Instruction Manual book
MadeinVietnam.

SEDONA - ITEM CODE: BH68.Instruction Manual
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manualthoroughlybeforestartingassemblyofyourSEDONA.Usethepartslistingbelowtoidentify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesigned tohelpthenewpilotonhis waytosuccessfulR/Cflight.Theywill alsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoidscratching your new airplane, donot
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craftandto protect the table. Keepacouple of
jars or bowls handy to hold the small parts af-
ter you open the bag.
Pleasetrial fit alltheparts.Makesure youhave
the correct parts and that they fit and are
alignedproperlybeforegluing!Thiswillassure
properassembly. SEDONAARFishand made
from natural materials, every plane is unique
andminor adjustments may have tobe made.
However, you should find the fit superior and
assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing:paintthinner,C/Aglueaccelerator,C/Aglue
debonderand acetone.Donotletthese chemi-
cals come in contact with the colors on the
covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevatorhalves.
SUGGESTION.
NOTE.

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
3
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglow plugclipmustbe securelyattached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Donotstand in line withtheside of the propel-
ler.
+ Make engine adjustments from behind the
propeller only. Do not reach around the spin-
ningpropeller.
SAFETY PRECAUTION.
REPLACEMENT LARGE PARTS
A. Wing panel.
B. Fuselage.
C. Horizon stabilizer.
E. Aluminium wing dihedral brace.
D. Vertical stabilizer
REPLACEMENT SMALL PARTS

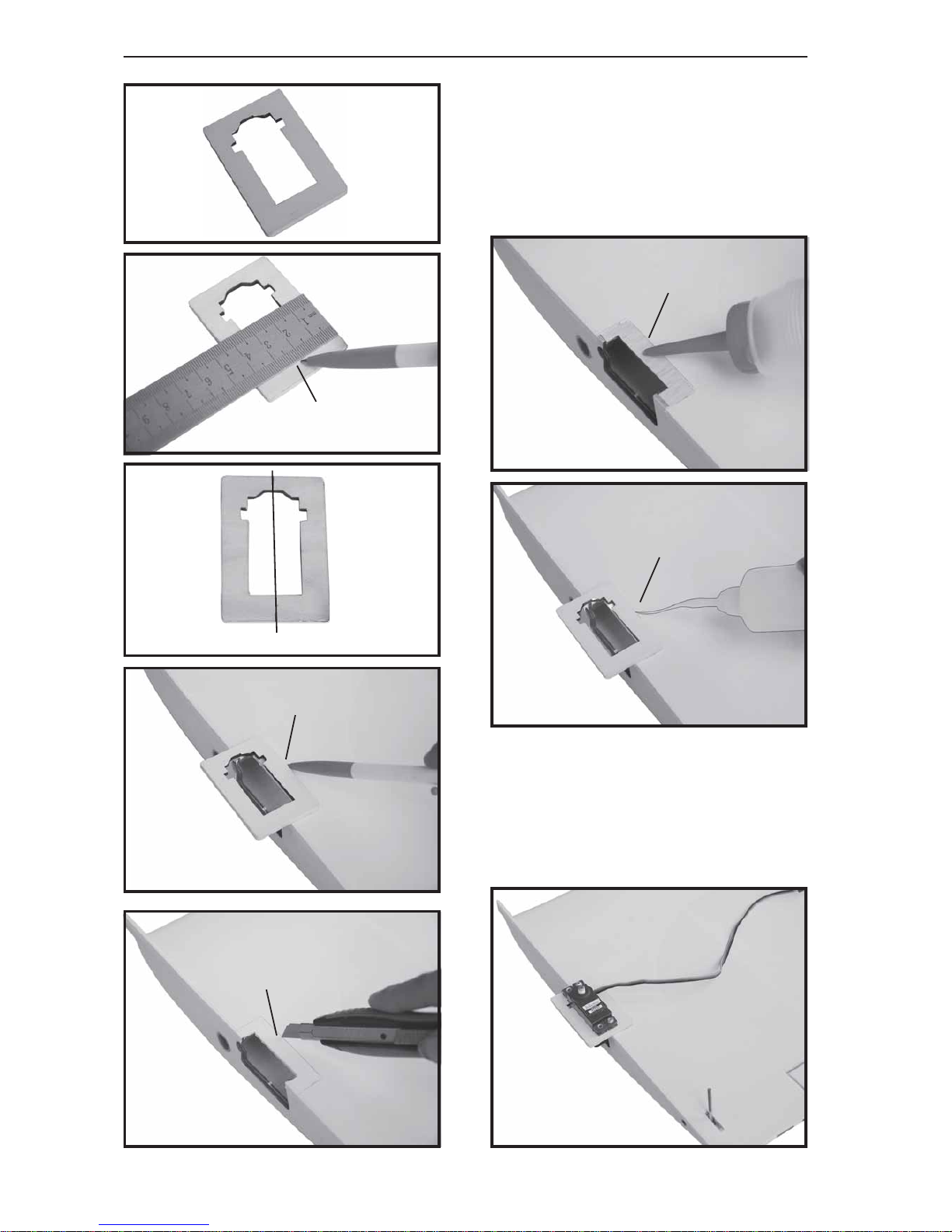

INSTALLING THE AILERON SERVOS.
Bottom side.
 1) Install the rubber grommets and brass
eyelets onto the aileron servo.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
2) Place the mount onto the wing haft,
aligning the cut out in the mount with the cut-
out in the wing. The two notches in the mount
should face the leading edge of the wing.
 3) While holding the servo mount firmly in
place, trace around it using a pen.
4) Remove the mount, and using a model-
ing knife, carefully remove the covering from
inside the outline you drew.
Removecovering.
Servomount.
A. A.
B.
D. C.
E. F.
F. Decal sheet.

SEDONA - ITEM CODE: BH68.Instruction Manual
4
5) Using Kwik Bond 5 Minute Epoxy, glue
the servo mount into place. Remove any ex-
cess epoxy using a paper towel and rubbing
alcohol. Use pieces of masking tape to hold
the tray in place until the epoxy fully cures.
Markpoint
Center line
6)Usingamodeling knife, carefully remove
the covering from servo mount.
 7) Install the aileron servo into the servo
mount, withtheoutputshafttowards the lead-
ing edge of the wing, using the wood screws
provided with your radio system. Drill 1/16”
pilotholes through the mount before installing
the screws. This will prevent the wood from
splitting.
Remove covering
Bottom side. Bottom side.
Markpoint
Bottom side.
Epoxyglue
Bottom side.
C/Aglue
Bottom side.

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
5
 2) Testfitthedihedralbraceintoeach wing
half. The brace should slide in easily. If not,
use 220 grit sandpaper with a sanding block
and sand down the edges and ends of the
brace until it fits properly.
WINGASSEMBLY.
 1) Location the aluminium wing dihedral
brace.
Markline.
Removecovering.
Epoxyglue.
 3) Apply masking tape at the wing join to
hold the wing halves together securely.
Maskingtape.
Aluminium.
Bottom side.

SEDONA - ITEM CODE: BH68.Instruction Manual
6
Maskingtape.
INSTALLING THE AILERON LINKAGE.
Nilon control claps
M2
1) Thread one nylon adjustable control
hornontoeach aileron torque rod. Thread the
horns on until they are flush with the ends of
the torque rods.
2) ThreadoneM2atleast5/16”onto each
of the two 1.7mm x 100mm threaded wires.
3) Withtheaileron servo centered, install
theservoarm onto the servo. The armshould
beinstalled soitisparallelwith thetrailingedge
of the wing.
Bend and cut after
Snapkeeper

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
7

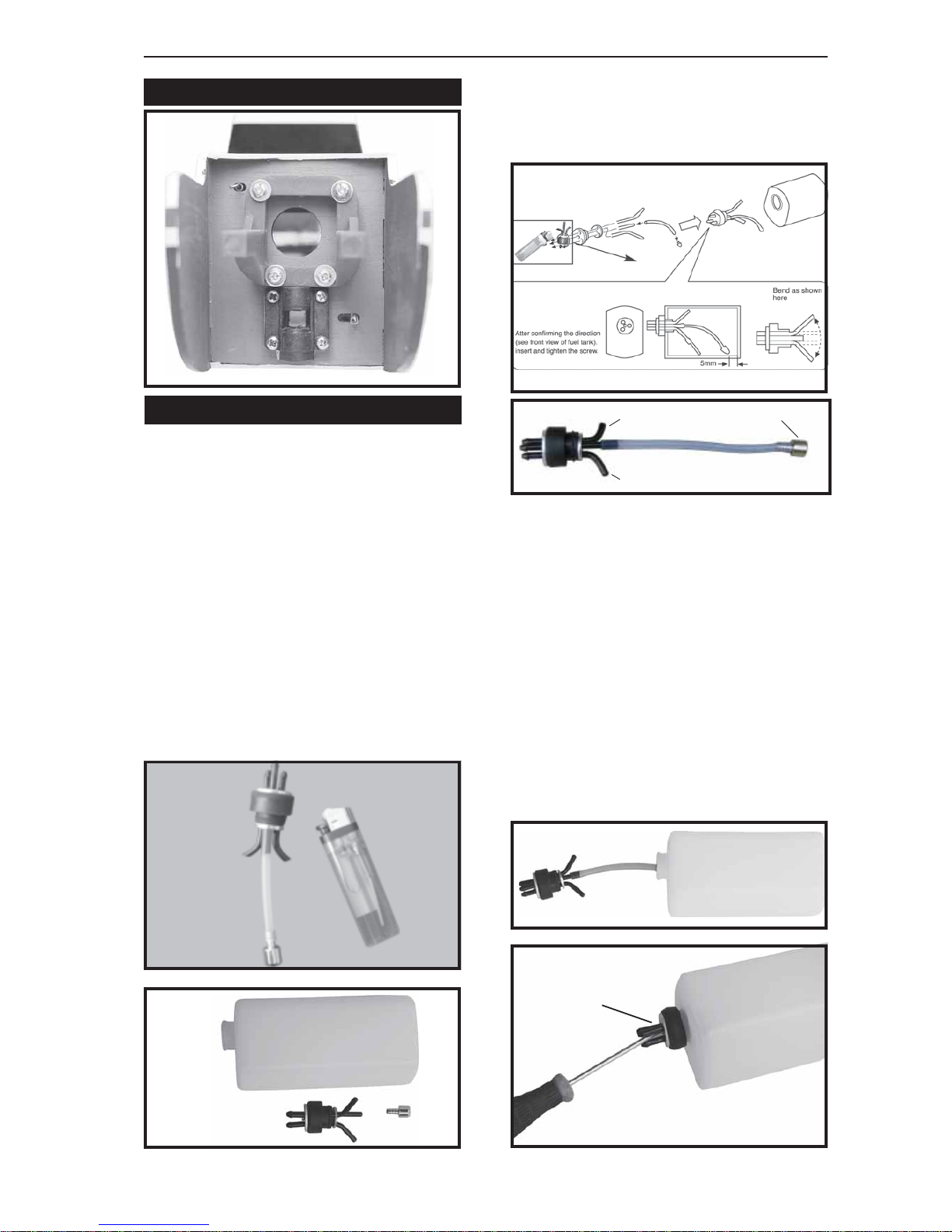

INSTALLING THE ENGINE MOUNT.
INSTALLING THE STOPPER ASSEMBLY
 1) The stopper has been pre-assembled
at the factory.
 2) Using a modeling knife, cut one length
ofsiliconfuel line (the lengthofsilicon fuel line
iscalculatedby how theweightedclunkshould
restabout8mm away from the rearofthe tank
andmovefreelyinside the tank). Connect one
end of the line to the weighted clunk and the
otherendto the nylon pickuptube in the stop-
per.
 3) Carefully bendthesecondnylon tube up
ata45degreeangle (using a cigarette lighter).
This tube will be the vent tube to the muffler.
 4) Carefully bendthethirdnylon tube down
ata45degreeangle (using a cigarette lighter).
This tubewillbeventtubetothe fueling valve.
FUEL TANK.
When the stopper assembly is installed
in the tank, the top of the vent tube should
rest just below the top surface of the tank.
It should not touch the top of the tank.
Vent tube
Fuelfill tube
Fuel pick- up tube
 6) When satisfied with the alignment of
thestopper assembly tightenthe3mmx 20mm
machine screw until the rubber stopper ex-
pandsandsealsthetankopening.Do not over
tighten the assembly as this could cause the
tank to split.
 7) Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.
 5) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodelingknife. Ifflashing is present, make
sure none of it falls into the tank.
Secure

SEDONA - ITEM CODE: BH68.Instruction Manual
8
Do not secure the tank into place perma-
nently until after balancing the airplane.
You may need to remove the tank to mount
the battery in the fuel tank compartment.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
 9) To secure the fuel tank in place, apply a
bead of silicon sealer to the forward area of
thetank,whereitexitsthefuselagebehindthe
enginemounting boxandtotherear ofthetank
at the forward bulkhead.
 8) Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,thefrontofthetankshouldjustabout
touch the back of the firewall.
Fueltank
Locate the long piece of wire used for the
throttlepushrod.Oneendofthewirehasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armof theenginewhenthe engineisfittedonto
theenginemount. Fit the engineto the engine
mount using the screws provided.
INSTALLING THE ENGINE.
Markpoint

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
9
Drill a
hole 2mm.
Secure

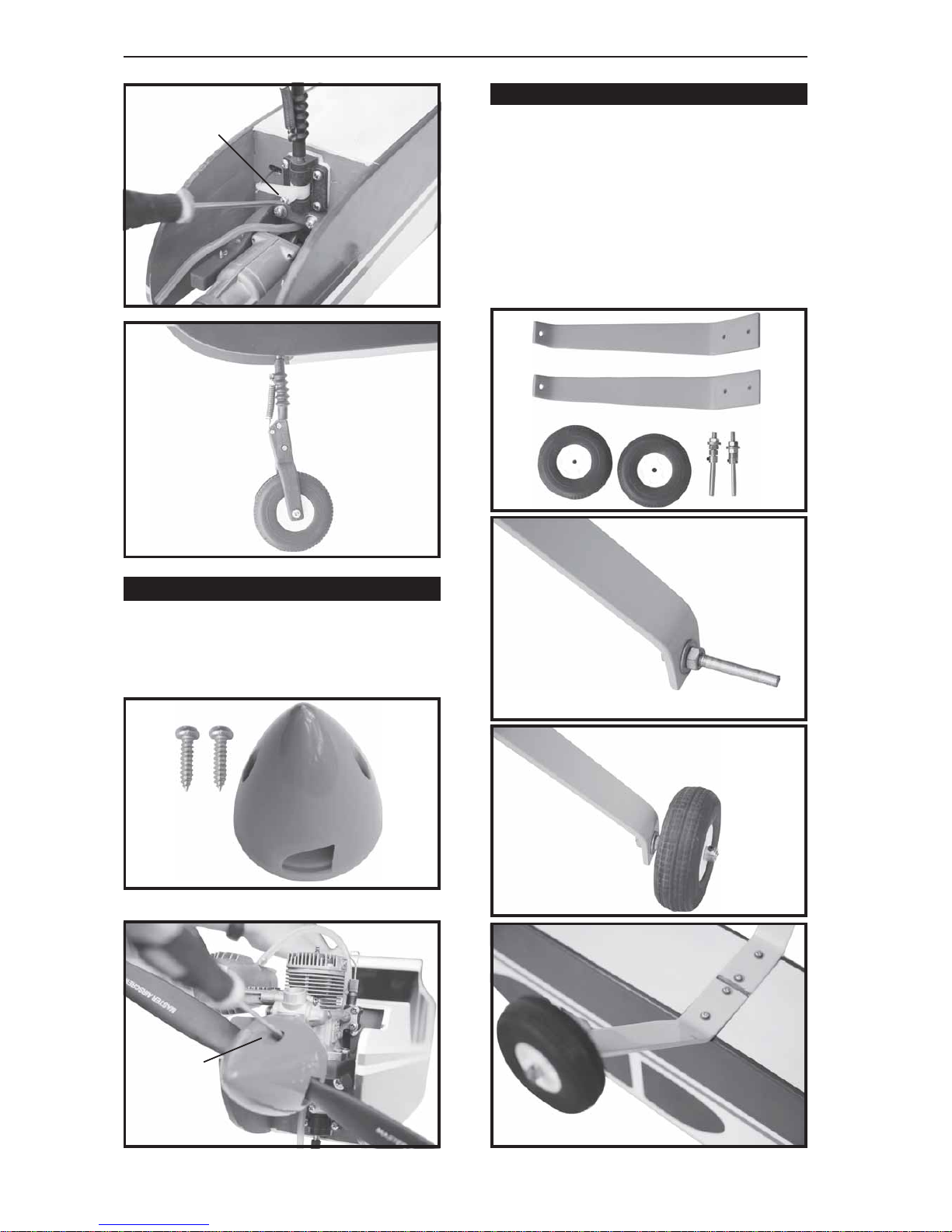

NOSE GEAR INSTALLATION.
3 x 20mm
Adjust the nose gear steering arm until the
arm is parallel with the fire wall.
Installing steering arm as follow
Steering arm
Steering arm.
4 x 30mm

SEDONA - ITEM CODE: BH68.Instruction Manual
10
Secure
INSTALLING THE SPINNER.
Installthespinnerbackplate,propellerand
spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.
3 x 12mm
Secure
INSTALLING THE MAINLANDING GEAR.
3. Using the hardware provided, mount
the main landing gear to the fuselage.
1. The blind nuts are already mounted
inside the fuselage.
2. The holes in the landing gear should
be to accept the mounting bolts.

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
11
See pictures below:
Servoarm
Connector.

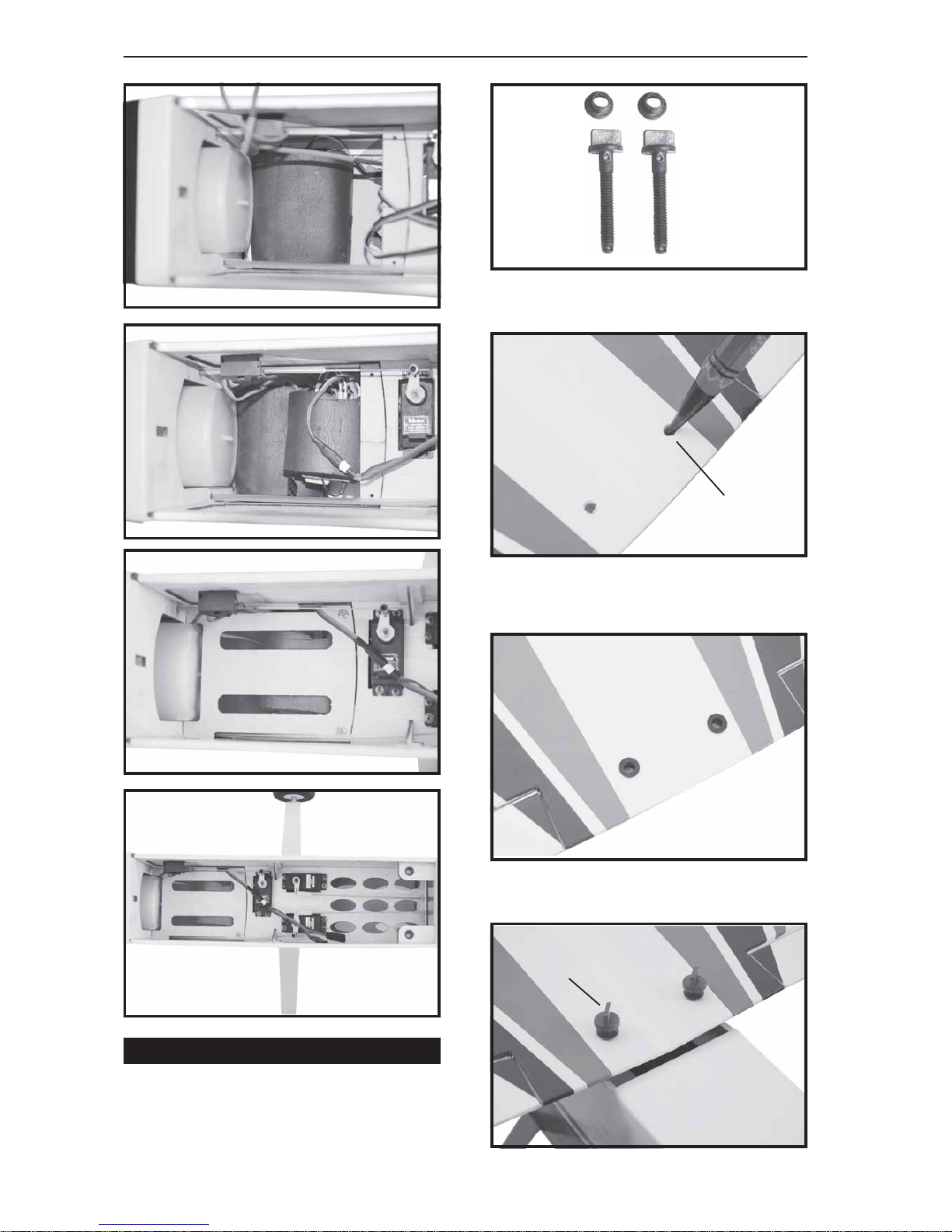

INSTALLING THE THROTTLE PUSHROD.
 Install one adjustable metal connector
through the third hole out from the center of
one servo arm, enlarge the hole in the servo
arm using a 2mm drill bit to accommodate the
servo connector. Remove the excess mate-
rial from the arm.
After installing the adjustable metal con-
nector apply a small drop of thin C/A to
the bottom nut. This will prevent the con-
nector from loosening during flight.
Secure
Cut
ELEVATOR SERVO INSTALLATION.
HORIZONTALSTABILIZER.

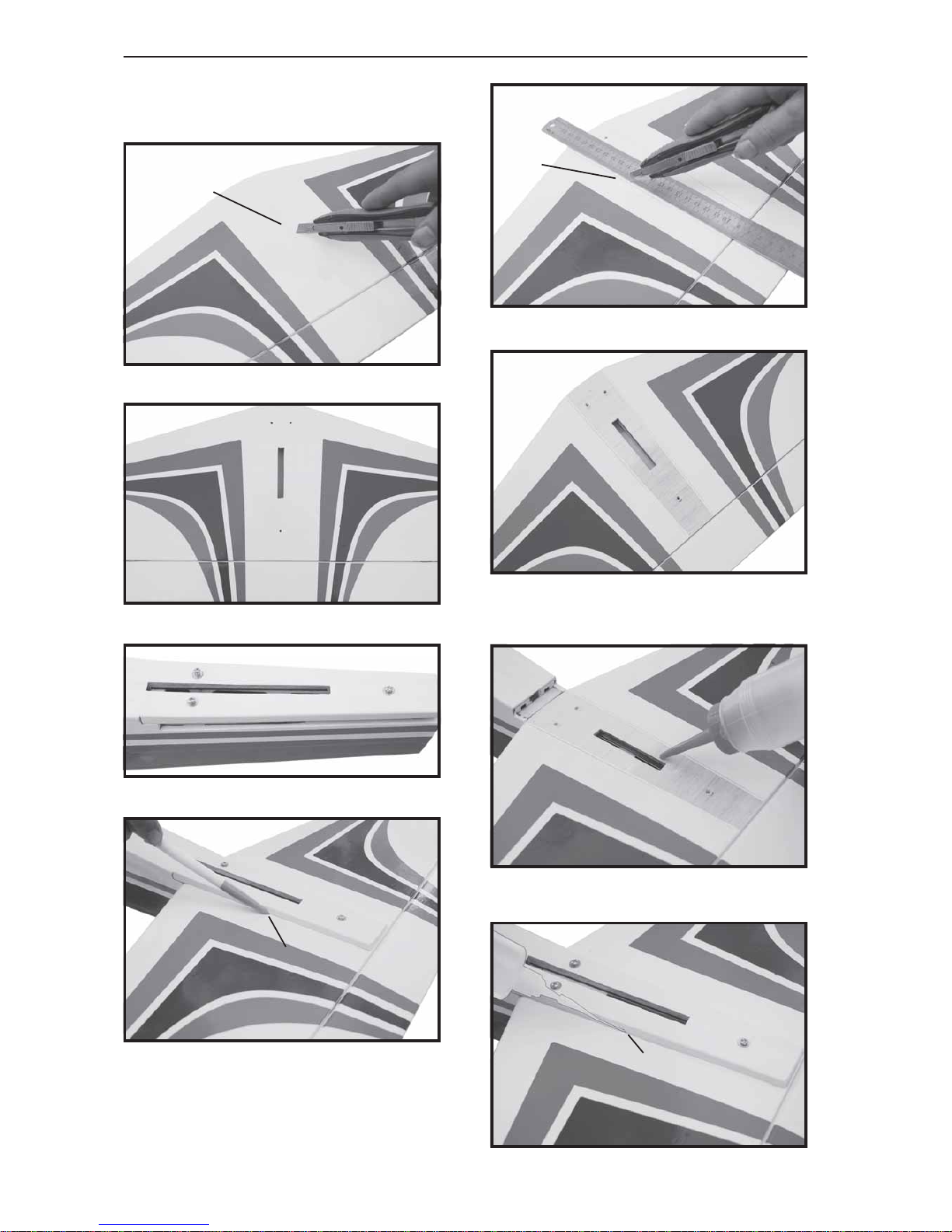

 Using a ruler and a pen, locate the
centerlineofthehorizontalstabilizer,atthetrail-
ingedge,andplaceamark.Useatraingleand
extend this mark, from back to front, across
the top of the stabilizer.Also extend this mark
downthe back of the trailingedge of the stabi-
lizer.
See pictures below:
Center line
Throttleservo
Throttle pushrod

SEDONA - ITEM CODE: BH68.Instruction Manual
12
Tracing a line with your finger and using a
modeling knife, carefully remove the covering
as picture below.
Removecovering
Markline
When cutting through the covering to re-
move it, cut with only enough pressure to
only cut through the covering itself. Cut-
ting into the balsa structure may weaken
it.
Removecovering
Epoxyglue
C/Aglue.

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
13

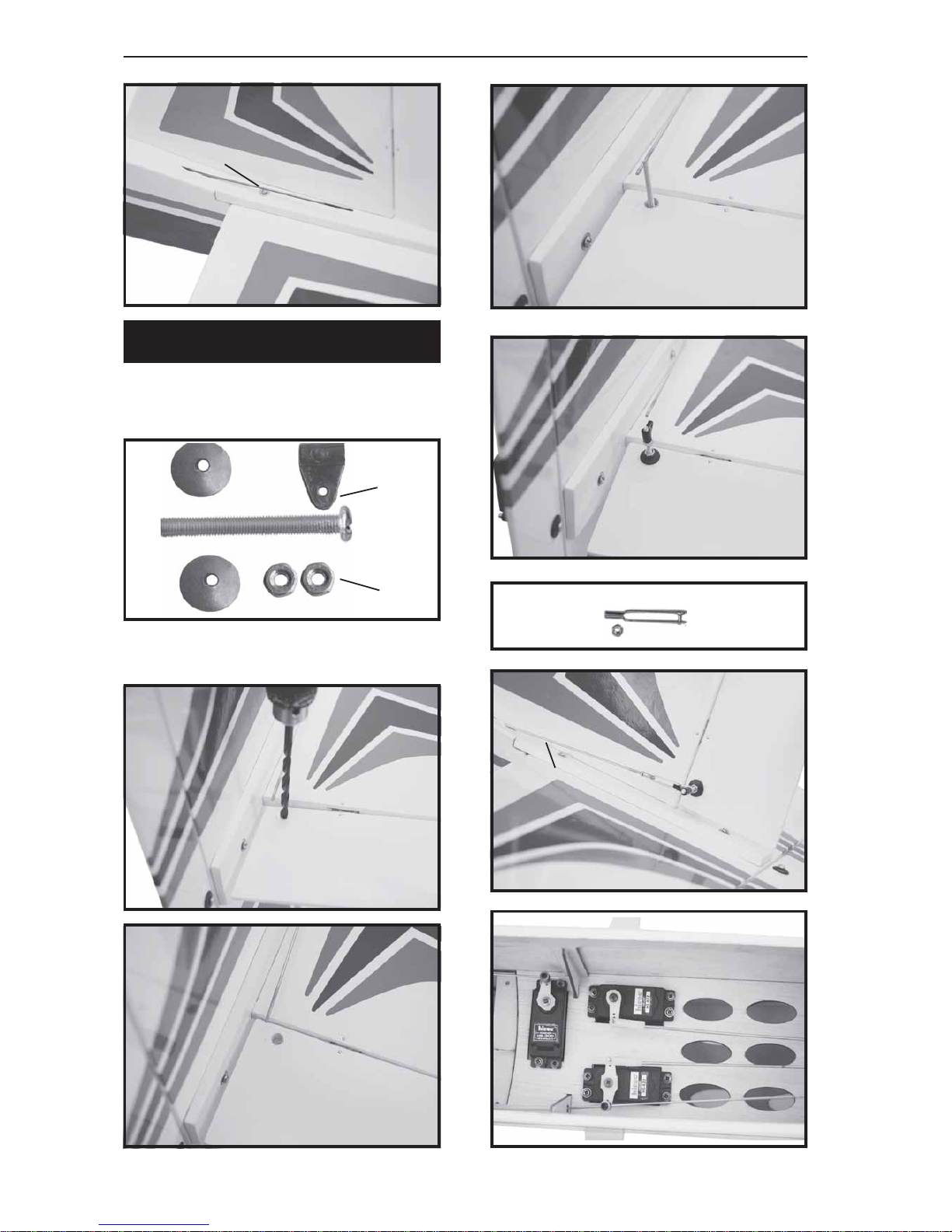

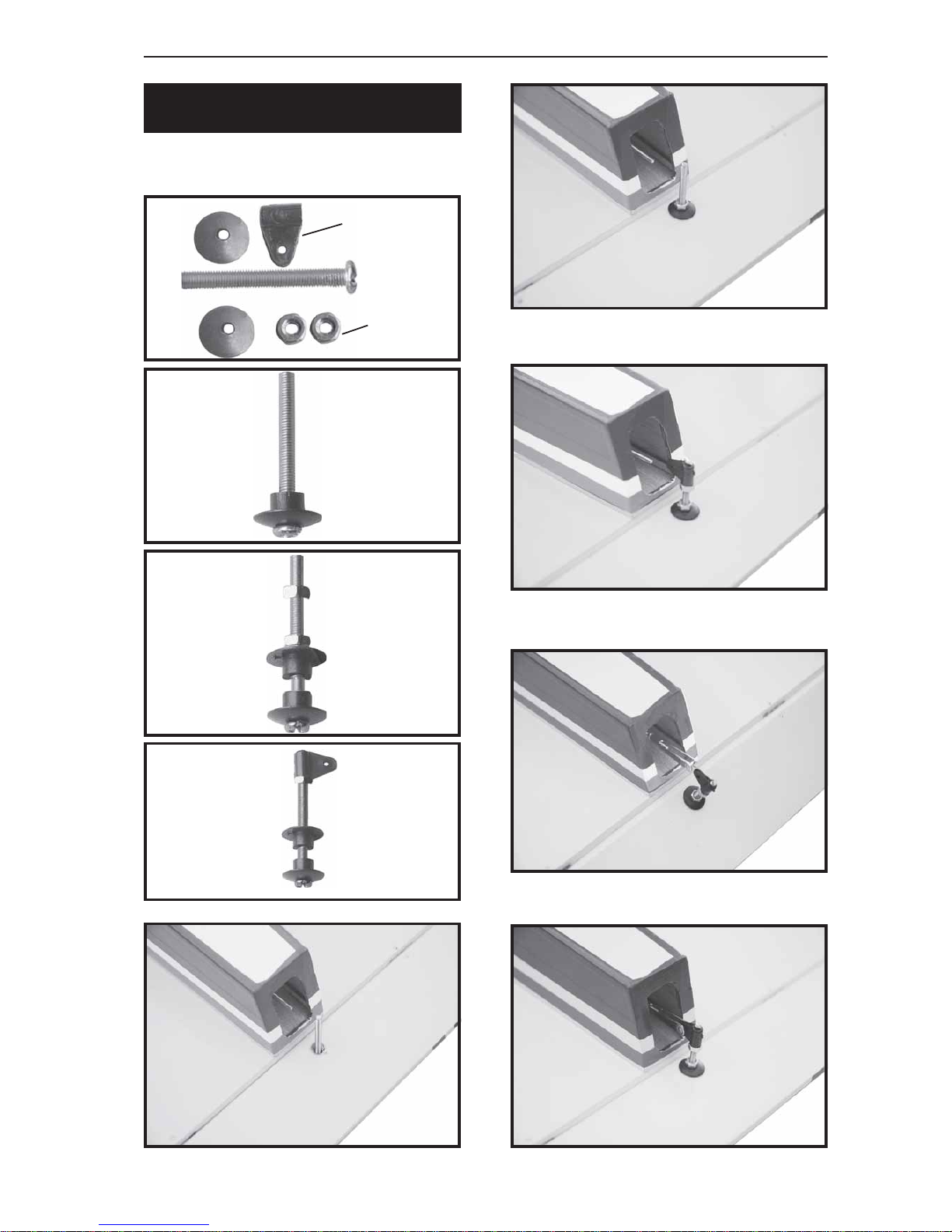

Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
ELEVATOR CONTROL HORN AND -
ELEVATOR PUSHROD INSTALLATION.
Elevator control horn.
Nilon control
clasp
M3lock nut.
3 x 35mm

SEDONA - ITEM CODE: BH68.Instruction Manual
14
VERTICAL INSTALLATION.
Rudder servo install as same as method of
elevator servo. See picture below:
Elevator pushrod
Elevator servo
Topelevator
Remove covering

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
15
Removecovering.
When you are sure that everything is
alignedcorrectly, mix upagenerousamountof
Flash30MinuteEpoxy. Applyathinlayertothe
mounting slot in the top of the fuselage and to
the sides and bottom of the vertical stabilizer
mountingarea. Applyepoxy to the bottom and
top edges of the filler block and to the lower
hinge also. Set the stabilizer in place and re-
align. Double check all of your measurements
once more before the epoxy cures. Hold the
stabilizer in place with T-pins or masking tape
and remove any excess epoxy using a paper
towel and rubbing alcohol. Allow the epoxy to
fully cure before proceeding.
90º Vertical
Stabilizer.
Horizontal
Stabilizer.
Epoxyglue
Rudder control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
RUDDER CONTROL HORN INSTALLA-
TION.
Slide the vertical stabilizer back in place. Us-
ingatriangle, check to ensurethat the vertical
stabilizeris aligned 900to the horizontalstabi-
lizer.
When cutting through the covering to re-
moveit, cut with only enough pressure to only
cutthroughthe covering itself. Cuttingintothe
balsa structure may weaken it.
Remove covering
Markline
C/Aglue

SEDONA - ITEM CODE: BH68.Instruction Manual
16
Drillahole ofthemountingruddercontrol horn
on to the rudder with 6mm diameter.
Rudderpushrod
Nilon control
clasp
M3lock nut.
3 x 35mm
Rudderpushrod
Rudder control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
RUDDER CONTROL HORN INSTALLA-
TION.
M2lock nut.
M2

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
17
Secure
Cut
 1. Cutouttheswitchholeusingamodeling
knife. Use a 2mm drill bit and drill out the two
mounting holes through the fuselage side.

2. Secure the switch in place using the
two machine screws provided with the radio
system.
INSTALLING THE SWITCH.
switch
 1. Plug the servo leads and the switch
leadintothe receiver. You may want to plug
anaileron extensioninto the receiver to make
plugging in the aileron servo lead easier
when you are installing the wing . Plug the
battery pack lead into the switch.

2. Wrap the receiver and battery pack in
the protective foam to protect them from vi-
bration.Usea rubber band ormasking tape to
hold the foam in place.

3. Position the battery pack and receiver
behindthefueltank.Use twotiewrapsto hold
the battery and receiver securely in place as
picture below.
Donot permanently secure the receiver and
battery until after balancing the model.

4. Usinga2mmdrill bit, drill aholethrough
the side of the fuselage, near the receiver, for
the antenna to exit.
INSTALLING THE RECEIVERANDBATTERY.
Elevator servo
Elevatorpushrod
Nosegearpushrod
Rudder pushrod
Throttle servo
Throttlepushrod

SEDONA - ITEM CODE: BH68.Instruction Manual
18
Battery
Receiver
See picture wing attach to fuselage.
Installing the fuselage hatch as same as pic-
ture below.
WINGATTACHMENT.
Wing bolt.
Wing bolt plate
Insert and secure
Top side
Markpoint
Top side

SEDONA - ITEM CODE:BH68. INSTRUCTION MANUAL
19
 3. Turn the airplane upside down. Place
your fingers on the masking tape and care-
fully lift the plane .

1) It is critical that your airplane be bal-
anced correctly. Improper balance will cause
your plane to lose control and crash.
THE CENTER OF GRAVITY IS LOCATED
80mmBACKFROMTHELEADINGEDGEOF
THEWING.

2) Mount the wing to the fuselage. Using a
couple of pieces of masking tape, place them
on the top side of the wing 80 mm back from
the leading edge, at the fuselage sides.
BALANCING.
Accurately mark the balance point on the
top of the wing on both sides of the fuselage.
The balance point is located 80mm back from
the leading edge. This is the balance point at
whichyourmodel should balance foryourfirst
flights. Later, you may wish to experiment by
shifting the balance up to 10mm forward or
backtochangetheflyingcharacteristics.Mov-
ing the balance forward may improve the
smoothnessand arrow-liketracking,but itmay
thenrequiremore speed for take off andmake
it more difficult to slow down for landing. Mov-
ingthe balanceaftmakesthemodelmoreagile
with a lighter and snappier ”feel”. In any case,
please start at the location we recommend .
With the wing attached to the fuselage, all
parts of the model installed ( ready to fly), and
empty fuel tanks, hold the model at the
marked balance point with the stabilizer level.
Lift the model. If the tail drops when you
lift,the model is “tail heavy” and youmust add
weigh*tothe nose.Ifthenosedrops, it is“nose
heavy” and you must add weight* to the tail to
balance.
*Ifpossible, first attemptto balance the model
by changing the position of the receiver bat-
tery and receiver. If you are unable to obtain
good balance by doing so, then it will be nec-
essary to add weight to the nose or tail to
achieve the proper balance point.

1. Wehighlyrecommend setting upaplane
using the control throws listed.
 2. The control throws should be meas-
ured at the widest point of each control sur-
face.
 3. Check to be sure the control surfaces
move in the correct directions.
CONTROL THROWS.
Ailerons : 15mm up 15mm down
Elevator : 10mm up 10mm down
Rudder : 15mm right 15mm left
Aileron Control
10
10
15
15
15
15

SEDONA - ITEM CODE: BH68.Instruction Manual
20
 1. Completelychargeyour transmitter and
receiver batteries before your first day of fly-
ing.
 2. Check every bolt and every glue joint in
your plane to ensure that everything is tight
and well bonded.
 3. Double check the balance of the
airplane.
 4. Check the control surface.
 5. Check the receiver antenna . It should
be fully extended and not coiled up inside the
fuselage.
 6. Properly balance the propeller.
PRE-FLIGHT CHECK.
We wish you many safe and enjoy-
able flights with your SEDONA.
