Black Stone RANGETOP COMBO User manual

North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com
RANGETOP
COMBO
Parts & Assembly
MODEL 

Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Rangetop Combo | Parts & Assembly

PARTS & ASSEMBLY

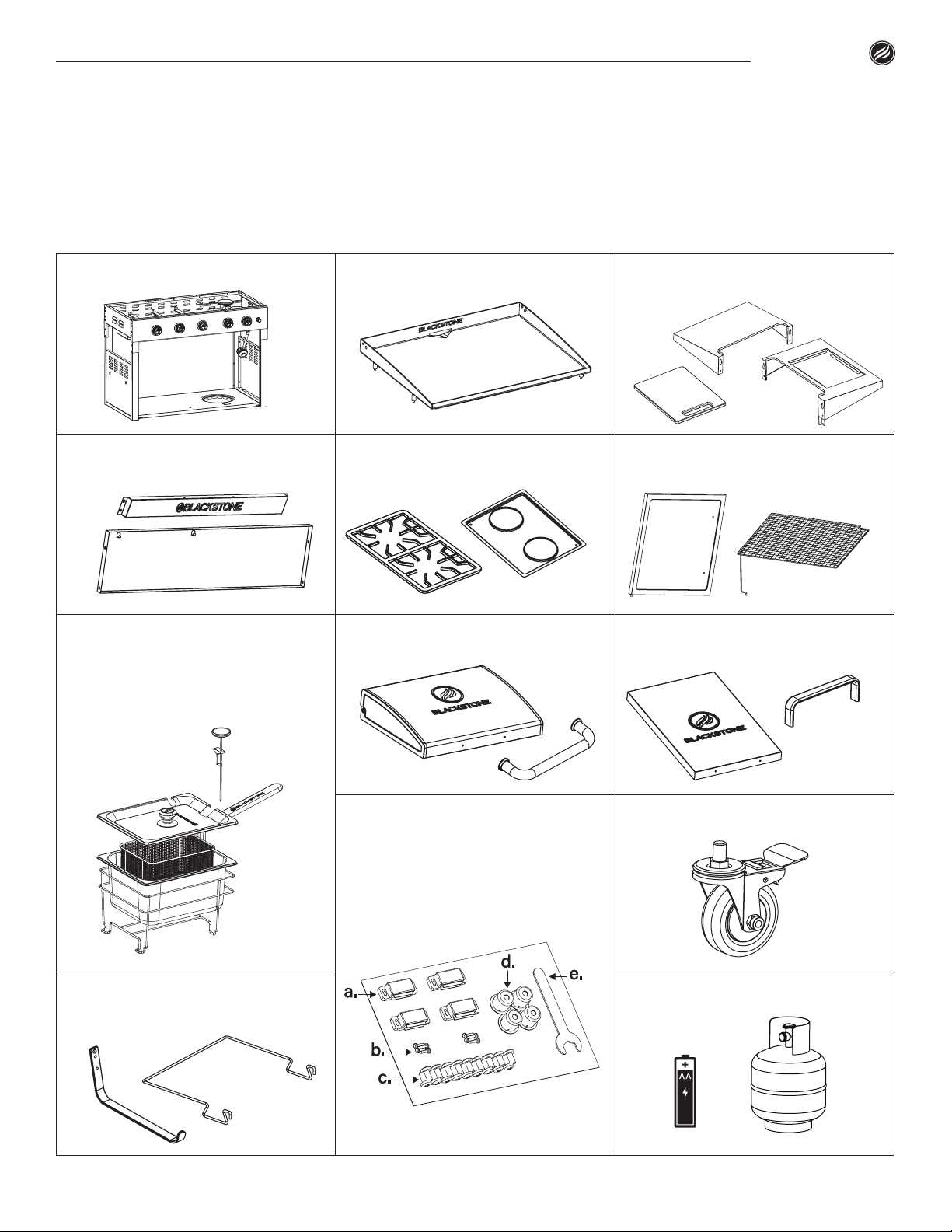

ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle top (1 piece) 03. Side shelves (2 pieces)
& Cutting board (1 piece)
04. Faceplate (1 pieces)
& Back panel (1 piece) 05. Grate (1 piece) & Drip pan (1 piece) 06. Cabinet doors (2 pieces) & Inside shelf (1 piece)
07. Fryer cage (1 piece) &
Fryer bin (1 piece) &
Fryer basket (1 piece) &
Fryer lid (1 piece) &
Fryer thermometer (1 piece)
08. Griddle hood (1 piece) & Large
handles (3 pieces) 09. Hard cover (1 piece) & Hard cover handle (1 piece)
10. Hardware Pack (1 piece)
a. Door magnet (4 pieces)
b. ST3 screws (8 pieces)
c. M6X12 bolt (18 piecs)
d. Tube cap (4 pieces)
e. Wrench (1 piece)
11. Wheels (4 pieces)
12. Paper towel holder (1 piece) &
Garbage bag holder (1 piece) NOT INCLUDED - 20lb LP Gas Tank & AA Battery
Rangetop Combo | Parts & Assembly
01

ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench

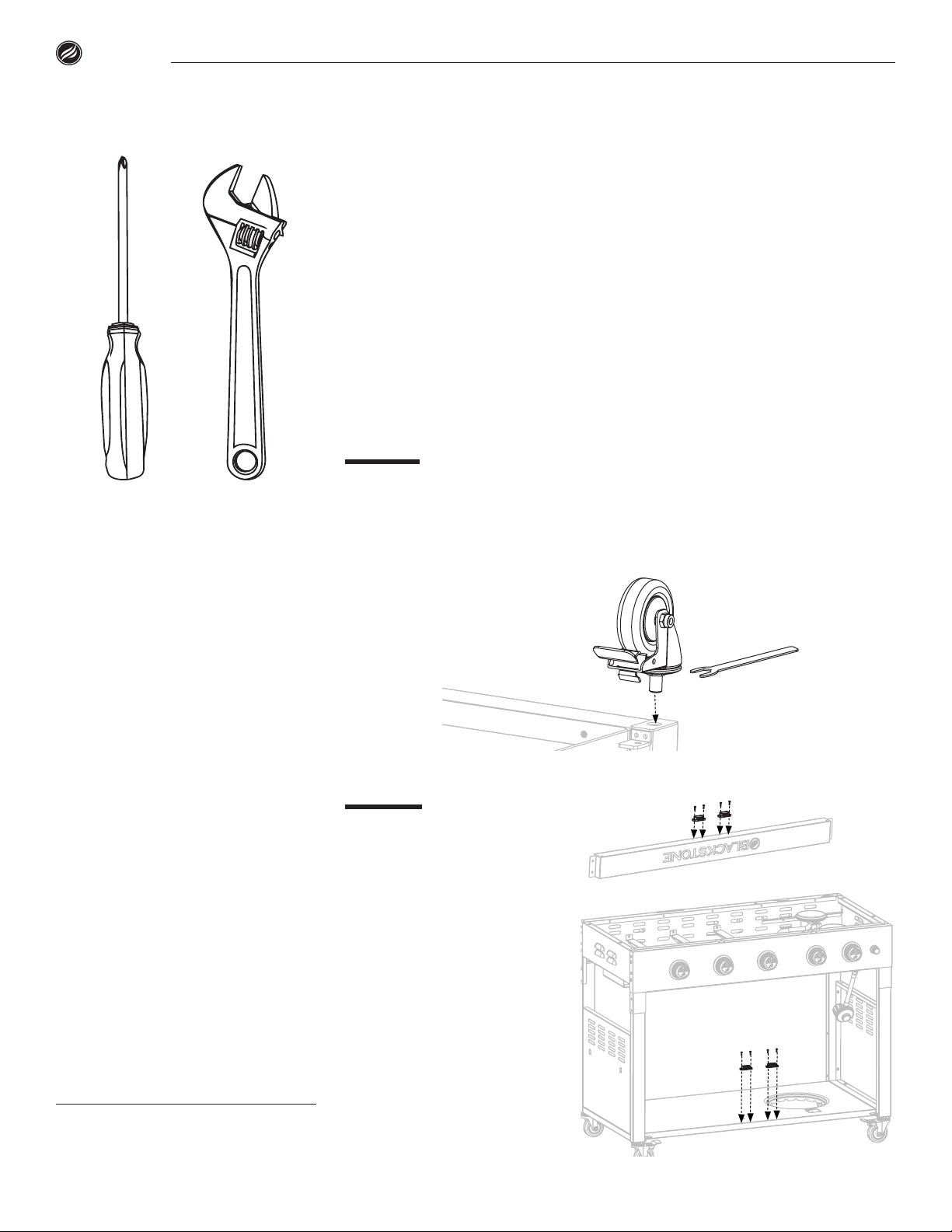

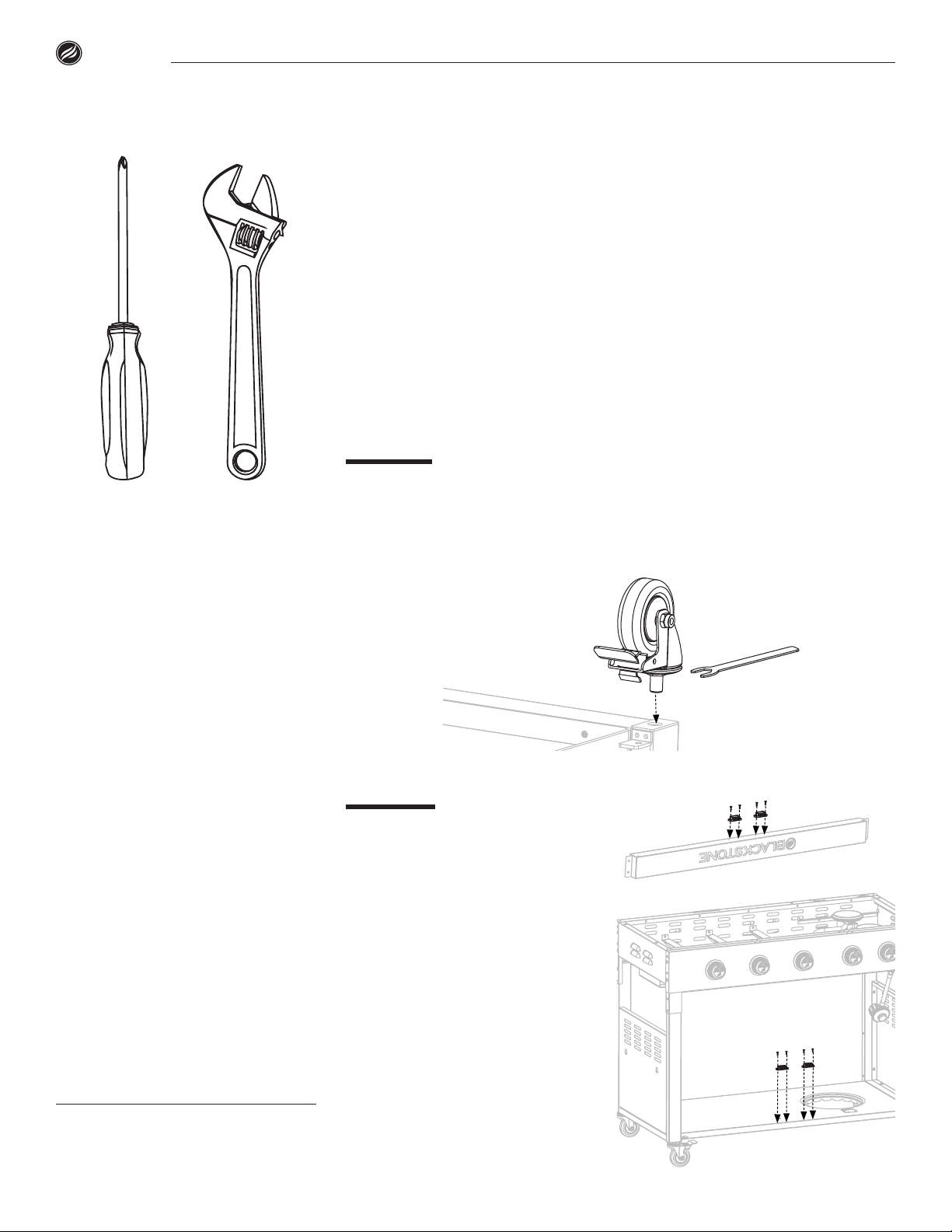

STEP 01
Remove the griddle body from the packaging and lay it upside down on a
smooth, at surface with the help of another person. Attach the four swivel
wheels by activating the wheel lock and then threading them into the base.
Secure the wheels by tightening them with an adjustable wrench.
STEP 02
With the help of another
person, place the griddle on
its wheels. Using a screw-
driver, attach the two door
magents to the base of the
griddle body with four (4)
ST3 screws. Be sure the
magnetic side is facing the
front of the griddle body.
With a screwdriver, attach
the two (2) upper door
magnets to the bottom of the
faceplate with four (4) ST3
screws. Be sure the magnetic
side is facing toward the
Blackstone cutout.
Rangetop Combo | Parts & Assembly
02

!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.

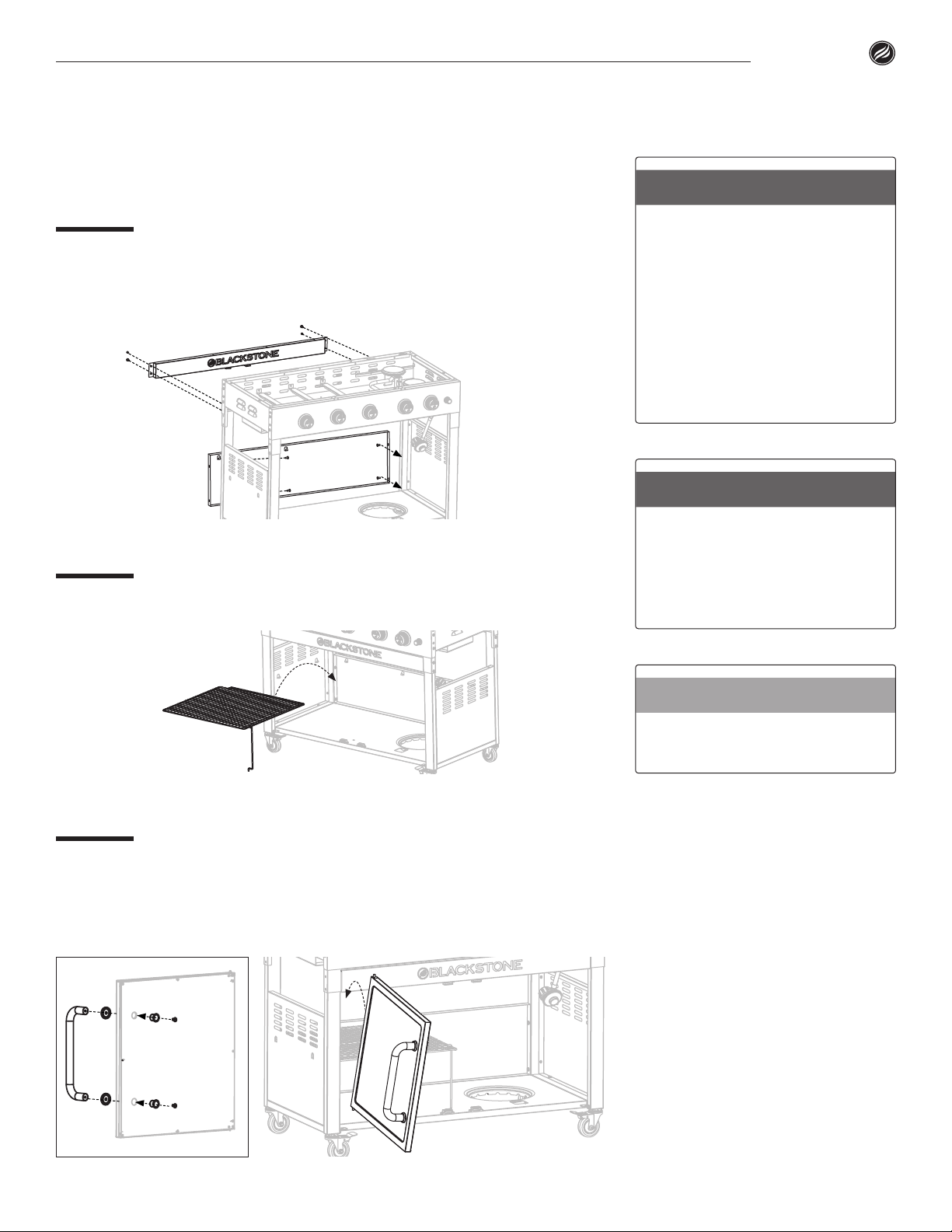

STEP 03
With four (4) M6X12 screws install the faceplate from the rear directly below
the adjustment knobs with the magnetic surface down. Then, install the back
panel with four (4) M6X12 screws. Be sure the hooks are on the le side.
STEP 04
Place the inside shelf onto the four built-in hooks.
STEP 05
Using one (1) large handle, two handle sleeves, two handle bezels, and two (2)
M6X16 screws assemble both cabinet doors as shown. Place the cabinet door
in place starting with the bottom post and then the top. Repeat this step with
the second cabinet door.
Rangetop Combo | Parts & Assembly
03

STEP 06
With two (2) M6X12 screws attach the paper towel holder onto the right side
shelf. Attach the right side shelf with four (4) M6X12 screws to the griddle
body. Place the garbage bag holder onto the griddle frame by aligning the rods
into the holes in the top of the right side panel as shown.
STEP 07
With four (4) M6X12 screws install the le side shelf onto the griddle body.
STEP 08
Using one (1) handle, a handle bezel, and two (2) M6X16 screws, attach the
handle to the griddle hood. Also, using two (2) M4 screws attach the cover
handle to the hard cover.
Rangetop Combo | Parts & Assembly
04

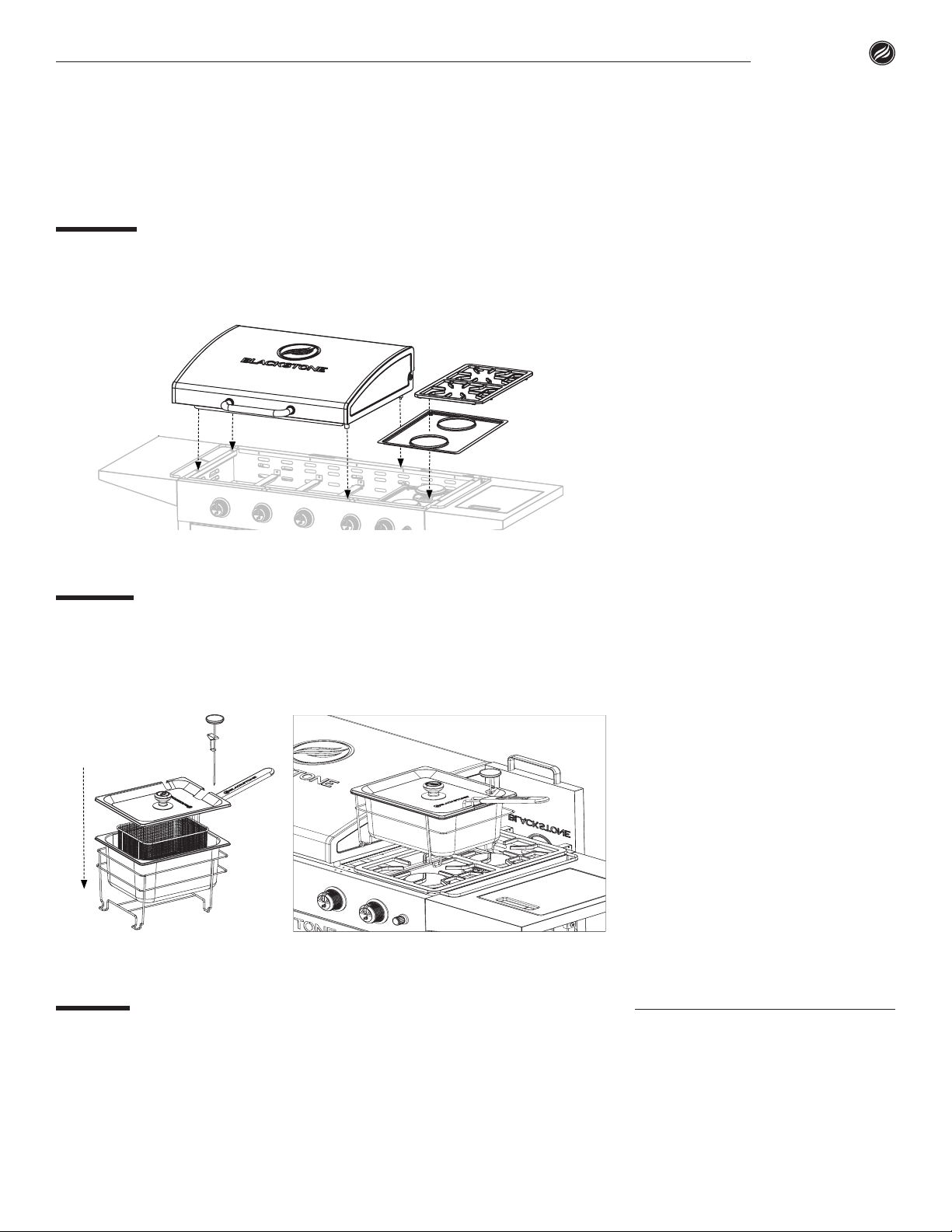

STEP 09
Place the hood and griddle top on to the body. Be sure the pins are fully seated
in the holes. Then place the drip pan and grate over the range burner.
STEP 10
Assemble the fryer bin into the fryer cage. Then place the basket into the
fryer bin, put the lid on the bin, and slide the thermometer into the slot and
clip it to the side of the bin. Use the hardcover to protect the range when not
in use.
STEP 11
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone Rangetop Combo!
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
[e-mail]
Rangetop Combo | Parts & Assembly
05
