OWNER’S MANUAL

IMPORTANT:

This instruction manual contains important informa-

tion necessary for the proper assembly and safe use of

the appliance.

Read and follow all warnings and instructions before

assembling and using the appliance.

Follow all warnings and instructions when using

the appliance.

Keep this manual for future reference.

Installer/Assembler: Leave these instructions with the consumer.

For the latest version of this manual,

scan this code or visit

BlackstoneProducts.com/support

MODEL:  v01

SERVE & STORE

PREP CART

TABLE OF CONTENTS

ASSEMBLY GUIDE.......................................................... 



ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 

ASSEMBLY GUIDE

ExPLODED VIEw

18

1

25

13

7

19

4

16

10

22

2

14

8

20

5

17

11

23

3

15

9

21

6

12

24



ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

| OWNER’S MANUALASSEMBLY GUIDEMODEL: 

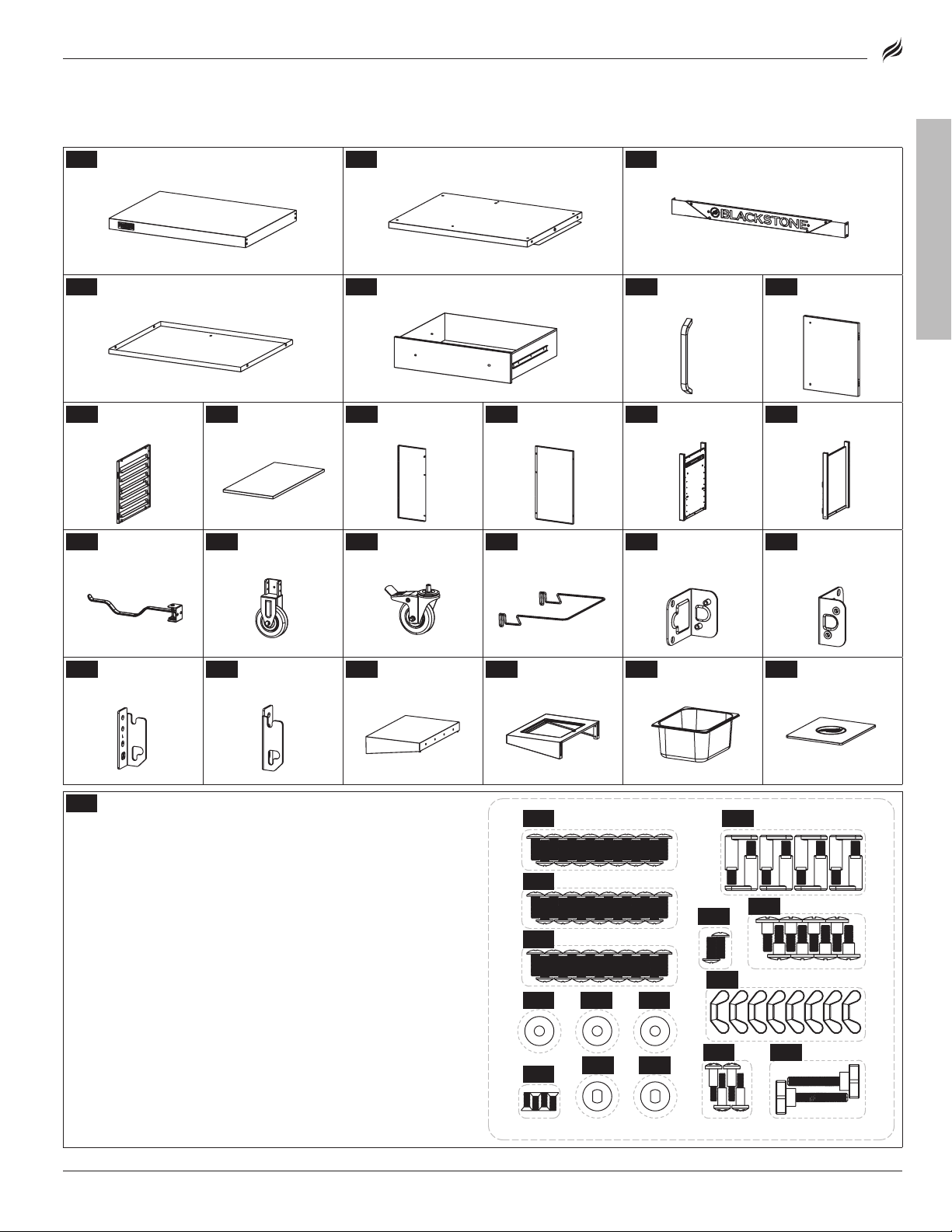

1 Table top (1 piece) 2 Cart base (1 piece) 3 Logo panel (1 piece)

4 Horizontal partition (1 piece) 5 Drawer (1 piece) 6 Handles

(2 pieces)

7 Door (1 piece)

8 Vertical partition

(1 piece)

9 Inner shelf

(1 piece)

10 Left rear panel

(1 piece)

11 Right rear panel

(1 piece)

12 Left side panel

(1 piece)

13 Right side panel

(1 piece)

14 Paper towel

holder (1 piece)

15 Fixed wheels

(2 pieces)

16 Caster wheels

(2 pieces)

17 Garbage bag

holder (1 piece)

18 Left garbage

bag holder bracket

(1 piece)

19 Right garbage

bag holder bracket

(1 piece)

20 Side shelf

bracket (L) (2 pieces)

21 Side shelf

bracket (R) (2 pieces)

22 Right side shelf

(1 piece)

23 Left side shelf

(1 piece)

24 Prep basin

(1 piece)

25 Basin lid

(1 piece)

26 Hardware pack (1 piece)

a.M6x15 bolts

(15 pieces) (15 pieces) (15 pieces)

b.Shelf hooks (8 pieces)

c.Spare parts (2 pieces)

d.M6x12 step bolts (8 pieces)

e.Washers

(4 pieces) (4 pieces) (4 pieces)

f. Wing nuts (8 pieces)

g.M4x10 countersunk bolts (4 pieces)

h.Slotted washers (4 pieces) (4 pieces)

i. M4x10 step bolts (4 pieces)

j. Thumb screws (2 pieces)

PARTS LIST

26a 26b

26c 26d

26a

26e

26g 26h 26h 26i 26j

26e 26e

26f



ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE

ASSEMBLY INSTRUCTIONS

Find a large, clean area to assemble your appliance.

Remove all packing material before assembling.

CAUTION

Sharp edges. Wear gloves while assembling.

TOOLS NEEDED:

Phillips head screwdriver &

Adjustable wrench

TOOL NEEDED:

Phillips head screwdriver

TOOL NEEDED:

Adjustable wrench

NOT INCLUDED:

LPG cylinder

Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)

LPG cylinder must include collar toLPG cylinder must include collar to

protect LPG cylinder valve.protect LPG cylinder valve.

NOT INCLUDED:

17" griddle base

NOT INCLUDED:

22" griddle base

NOT INCLUDED:

AA battery

NOT INCLUDED:

LPG cylinder

Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)

MODEL: 

STEP 01 Use two (2) M6x15 bolts to attach the left rear panel to the

left side panel.

STEP 02 Use two (2) M6x15 bolts to attach the right rear panel to the

right side panel.

STEP 03 Use two (2) thumb screws to attach the cart base to the left

and right side panels.

Note: DO NOT fully tighten these thumb screws yet.

STEP 04 Use four (4) M6x15 bolts to secure the cart base to the left

and right side panels.

Note: Tighten the thumb screws.



ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

| OWNER’S MANUALASSEMBLY GUIDEMODEL: 

STEP 05 Use two (2) M6x15 bolts to attach the vertical partition to the

cart base.

STEP 06 Use four (4) M6x15 bolts to attach the horizontal partition to

the left and right side panels.

Use two (2) M6x15 bolts to attach the horizontal partition to the

vertical partition.

STEP 07 Set the cart assembly upside down.

Use three (3) M6x15 bolts to attach the rear panels to the vertical

partition.

STEP 08 Use two (2) M6x15 bolts to attach the fixed wheels to the

right side panel.

Screw the two (2) caster wheels to left side panel. (Ensure that the

wheels are locked.)

PPush to lockush to lock



ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 

STEP 09 Set the cart on its feet.

Use eight (8) M6x15 bolts to attach two (2) side shelf brackets (L) and

two (2) side shelf brackets (R) to the table top and side panels.

Use four (4) M6x15 bolts to secure the side shelf brackets to the

side panels.

STEP 10 Use four (4) M6x15 bolts to attach the left garbage bag holder

bracket and the logo panel to the cart assembly.

Use two (2) M6x15 bolts to attach the right garbage bag holder to the

right side panel.

STEP 11 Use two (2) M6x15 bolts and two (2) washers to attach one

(1) handle to the drawer face.

STEP 12 Pull out the two (2) drawer sliding tracks from the side

panels. Insert the drawer rails into the cart tracks.

(Note: to remove the drawer, depress the levers on the drawer rails.)

L

R

L

R



ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

| OWNER’S MANUALASSEMBLY GUIDEMODEL: 

STEP 13 Use two (2) M6x15 bolts and two (2) washers to attach one

(1) handle to the door.

STEP 14 Use four (4) M4x10 sunkhead bolts to attach the door

assembly to the right side panel hinges.

STEP 15 Use four (4) M4x10 step bolts to attach the garbage bag

holder to the garbage bag holder brackets.

(Lift and turn down the garbage bag holder when not in use.)

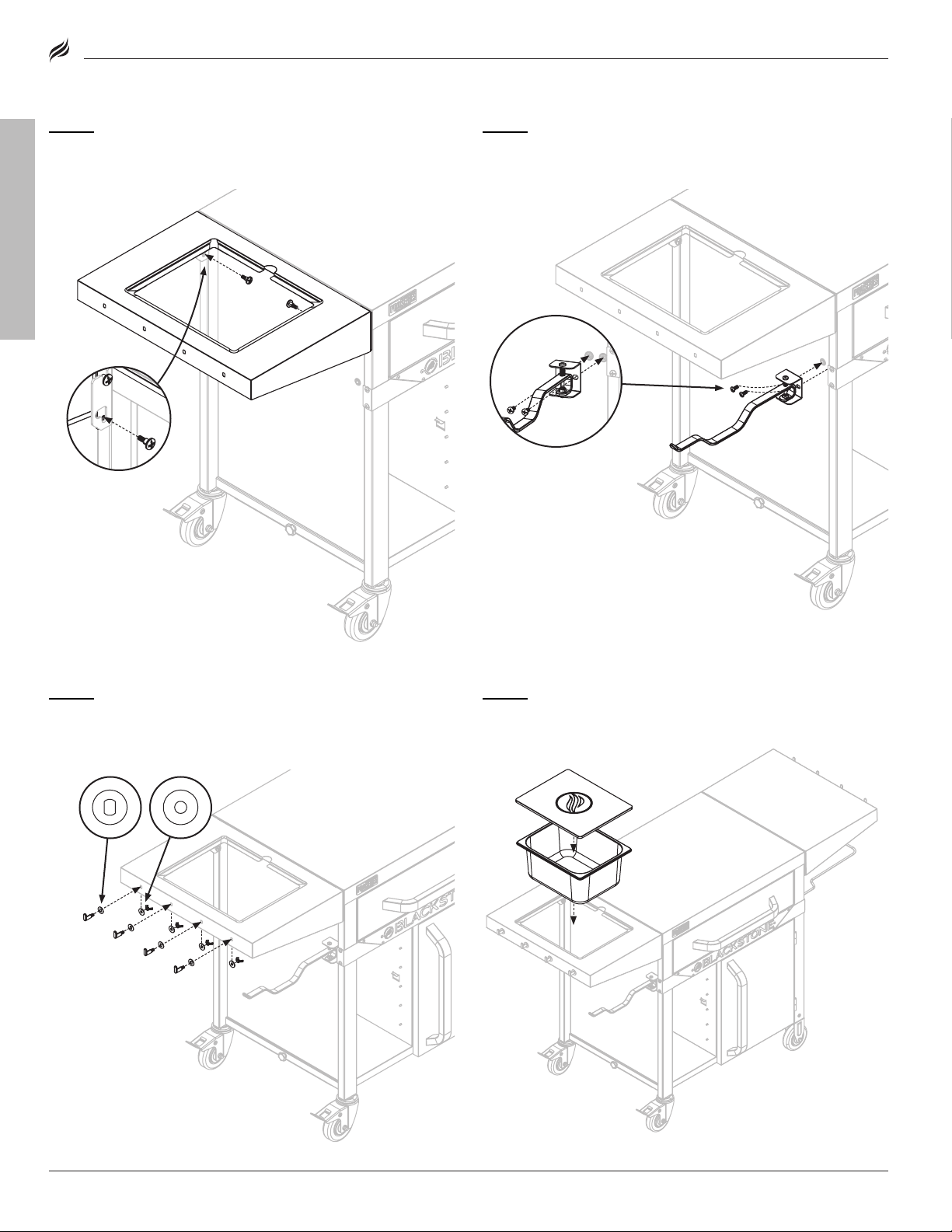

STEP 16 Screw two (2) M6x12 step bolts into the upper holes of the
