POWERING ON
What does the green light mean?
Flashing
Solid
A ashing connectivity light indicates that your
G7 is storing data. It is not currently connected to
the network and will send
data when the light is solid.
A solid connectivity light indicates that G7 is
actively transmitting data and is connected to
the Blackline Safety Network.
Press and hold the power
button for two seconds.
CHARGING
Micro USB cable
Removable charging clip
Charging port
1. Insert the micro USB cable into the removable
charging clip
2. Slide the charging clip onto the charging port
at the bottom of your G7
3. A solid red light at the bottom of the device
conrms your G7 is charging
MENU
To use G7’s menu:
1. Press OK once to wake up G7’s screen
2. Press OK again to enter the main menu
3. Use the up and down arrow keys to
navigate to the selection you would like
4. Press OK to select a menu item
5. Repeat as necessary
OK button Up and down buttons
SOS ALERT
If you are in need of assistance, you can pull down
the red latch to signal for help.
This feature must be enabled by your safety
supervisor. They can contact Blackline Customer Care
for setup assistance.
What is an SOS alert?
Power button
Charging light
Cartridge (standard,
single-gas or multi-gas)
Microphone
(G7c only)
OK button
Up button
LCD screen
Speaker
Latch pull
Latch push button
Down button
Operational and low urgency
Connectivity light
High urgency notication
LiveResponse
Top lights
OK
HARDWARE DETAILS

G7 GETTING STARTED GUIDE
©2023 BLACKLINE SAFETY CORP
Rev. 11
G7 GETTING STARTED GUIDE | 2
2023-05-09
GAS DETECTION
Some G7 devices are equipped with a Single or
Multi-gas cartridge capable of detecting gases in your
environment.
If you have a Standard cartridge, you can ignore the
GAS DETECTION section of the guide.
Quad-gas
(2-5 gases)
Single-gas
(1 gas)
Standard
(no gas)

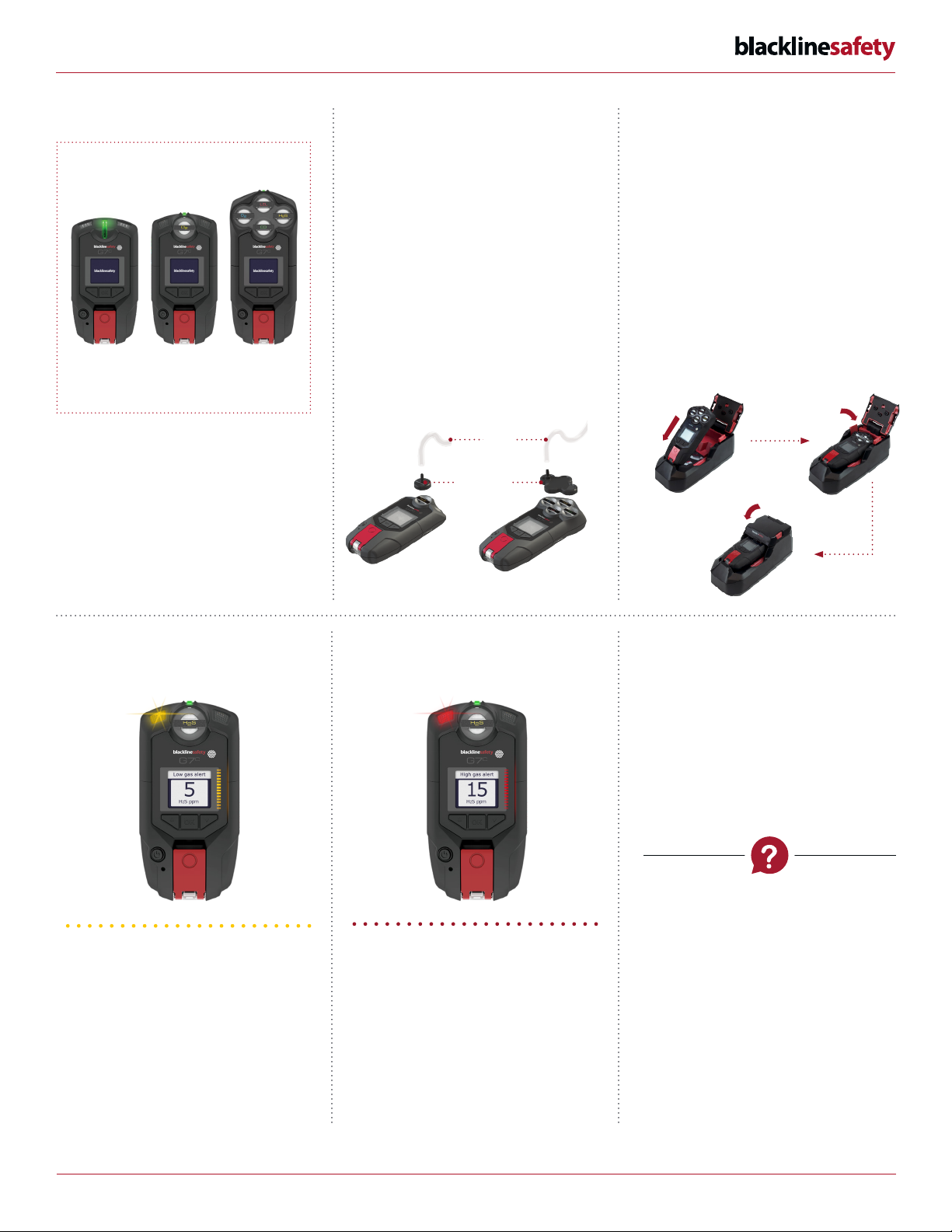

Which cartridge do I have?
G7 Dock
Bump tests and calibrations can also be completed
with G7 Dock, where this process is automated for
you.
To bump test or calibrate with Dock:
1. Place G7 in Dock at a 30 degree angle
2. Lower the top of G7 into Dock,
pressing until you hear a click
3. Close G7 Dock’s lid
4. Select bump test or calibration from
the Dock menu on G7
5. Allow G7 Dock to run and remove G7 when the
screen prompts you
Low warning alarm for gas
If a sensor detects a low concentration
gas level.
UL (under limit)
If a sensor’s baseline shifts and is unable
to obtain an accurate gas reading.
Sensor error
If a sensor stops working for any reason.
Calibration and bump test
If a sensor is due for a calibration or
bump test.
High alert for gas
If a sensor detects gas levels above the maximum
gas concentration.
STEL (short term exposure limit)
If a sensor detects you have reached the short-term
exposure limit congured.
TWA (time weighted average)
If you have reached the average gas amount of
repeated exposure in an eight-hour period.
OL (over limit)
If excessive amounts of gas are detected and
sensors can’t provide an accurate gas reading.
Visit support.blacklinesafety.com for technical
support and access to the following materials.
Technical User Guide
Video training tutorials
Datasheets
Certications
Accessory products
Please contact us for warranty activation, technical
support, advance replacement and account setup
assistance.
North America (24 hours)
Toll Free: 1-877-869-7212 |suppor[email protected]
Europe/United Kingdom (8am-5pm GMT)
[phone] | [email protected]
International (24 hours)
[phone] |[e-mail]
YELLOW WARNING ALARM RED ALERT LEARN MORE
CUSTOMER CARE
How to manually bump or calibrate:
1. Attach calibration cap to one end
of the tubing
2. Attach the other end of the tubing to a xed
ow regulator on your calibration
gas cylinder
3. Attach the calibration cap to the cartridge
4. Press OK to access the main menu
5. Using the up and down arrows,
navigate to gas options
6. Select OK to enter the gas options menu
7. Use the OK button to select bump test
or calibration
8. Follow the instructions on G7’s screen to
complete the calibration or bump test
Multi-gas G7
Single-gas G7
Tubing
Calibration
cap
