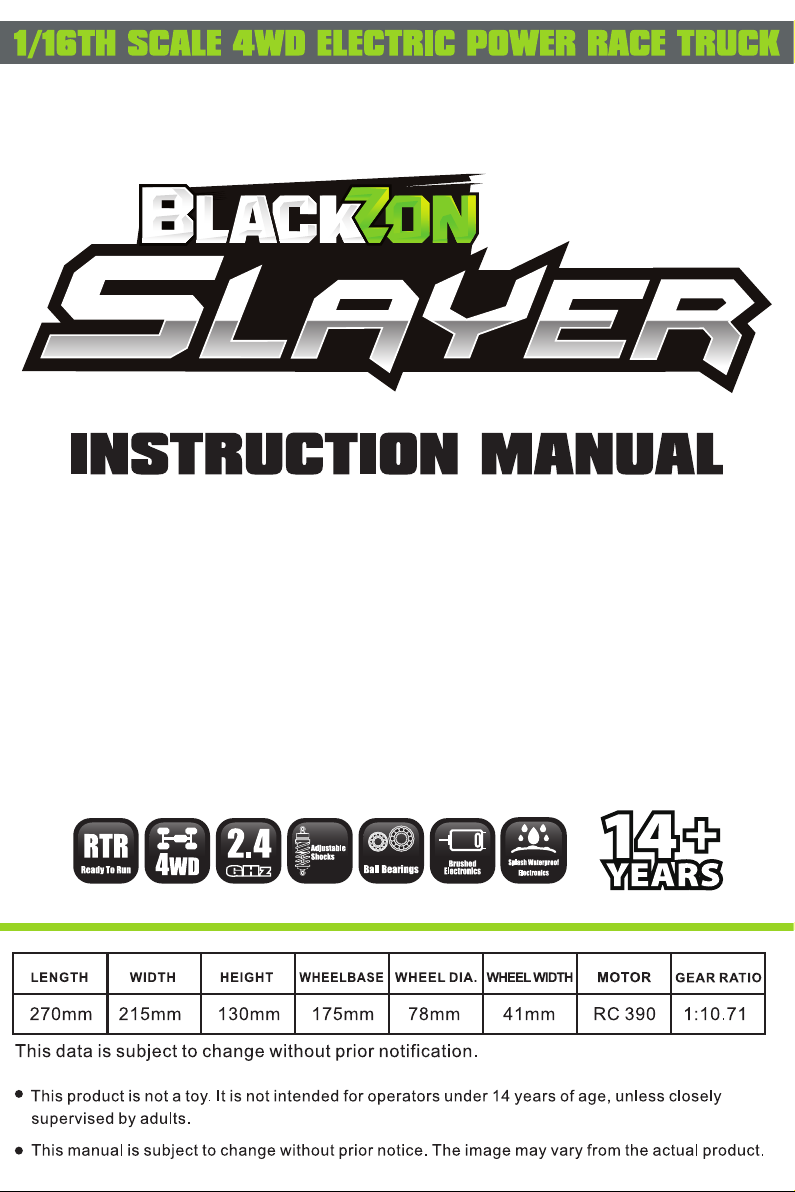

Blackzon Slayer User manual

1) Please read and understand the manual before using, assembling and/or disassembling.
2) This product is not a toy but an authentic model, which is not intended for operators under
14 years of age.
3) Children less than aged 14 must not operate this product unless they are closely supervised
by an adult.
4) Fully charge the battery pack before use. Be sure to disconnect and remove the batteries
from both the transmitter and the car when not in use.
5)Do not attempt to run the product by low battery power. Fully charge the battery pack before
use. Stop running immediately the slow running speed is observed. Failure to do such will
drain the battery pack.
!
1.This manual is subject to change without prior notification.
2.This product is NOT a toy, and not intended for users under 14 years of age, unless closely
supervised by an adult.
3.The specifications and images in the manual may vary from the actual product.
4.Operate this vehicle with due care, and be always a good driver attentive to others.
5.Under no circumstances SHOULD the user operate the vehicle in crowds of people.
Serious injury could result.
6.Never operate the vehicle on public streets. This could cause traffic accidents, personal
injury and/or property damage. This vehicle is ONLY be driven on the open track which is
for RC cars.
7.Do NOT handle this vehicle to chase pets or other animals.
8.The receiver, steering servo and other electronics installed in this vehicle are merely splash
water-resistant. Do not immerse this vehicle into water.
9.Regular check on the transmitter (radio controller) power is very important. Remove the
batteries from the transmitter (radio controller) when not in use. Replace with the fresh
batteries if necessary. Do NEVER run this vehicle by low power from transmitter.
10.When this vehicle becomes stuck, do NOT force on throttle. Failure to do so will cause an
abrupt damage to the motor and/or the ESC (Electronic Speed Controller) Check and clean
the obstacles before running again.
11.Before running this vehicle, check if the battery wirings and plugs are loose.
12.Any malfunction incurred by contrived upgrading and modification will void warranty.
13.Be careful not to touch any moving parts when servicing this vehicle.
14.To prevent excessive r.p.m. from damaging the motor, and/or the drivetrain components,
we suggest reducing the throttle while in the air during jumps.
15.Never attempt to re-assemble motor, ESC, and receiver as these have been precisely
calibrated at factory.
16.Always apply the factory optional/tooling parts to this vehicle.
17.To upgrade this vehicle requires the user to upgrade the entire radio/driving system
(such as motor, ESC, receiver and so forth.) They should be strictly matched.
18.To run this vehicle, turn on the transmitter (radio controller)first and then the receiver.
19.To stop running this vehicle, turn off the receiver first, and then the transmitter.
20.Erect the receiver antenna (if it comes with this vehicle) for best receiving performance.
Never cut the receiver antenna (if it comes with this vehicle). Otherwise, it could lose
control of the vehicle.
1
Cautions
General Saftey Information

Please run the vehicle in a slow speed when you are not a skilled operator. Once you become
conformable driving the vehicle, perform driving practice on the tracks. Keep practicing until
you feel comfortable with the
steering, throttle and brake at
low speeds. Once you are
feeling comfortable, try
operating the vehicle on
another track. When you have
mastered the basics, you will
be able to drive the vehicle at
higher speeds in a more
controlled fashion.
2

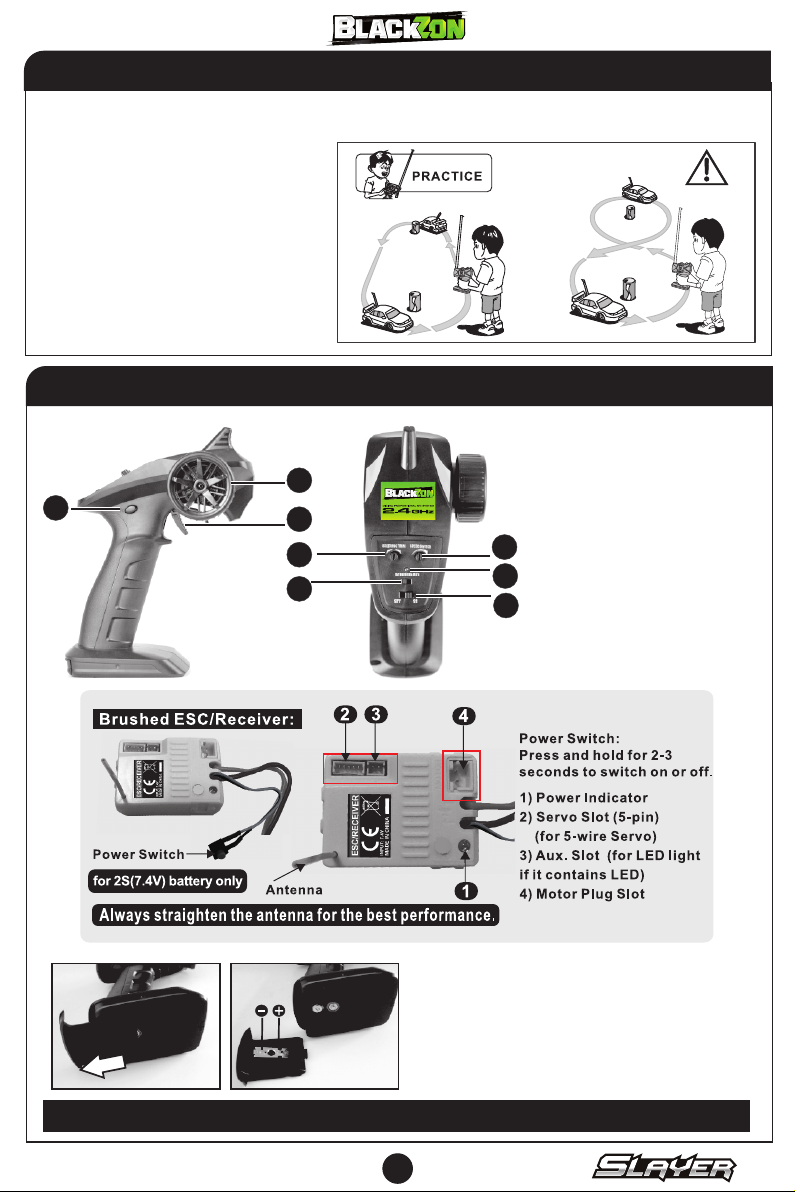

Slide and remove the battery cover from
the transmitter, install two AA size batteries
(1.5V,each), and replace the battery cover.
Do not revert the polities when installation.
Always use batteries of same brand, and
remove batteries when not in use. Make
sure battery power is sufficient before use.
1
2
4
7
6
8
3
5
1) Steering Wheel
2) Trigger
3) Steering Trim
4) Speed Switch
5) Steering Reverse Switch
6) Power Indicator
7) Power ON/OFF
8) AUX. Button
(This button is disabled
for this car)
Practice Required
2.4GHz Transmitter Introduction
Please replace with new batteries for transmitter if the LED blinks slowly.

3

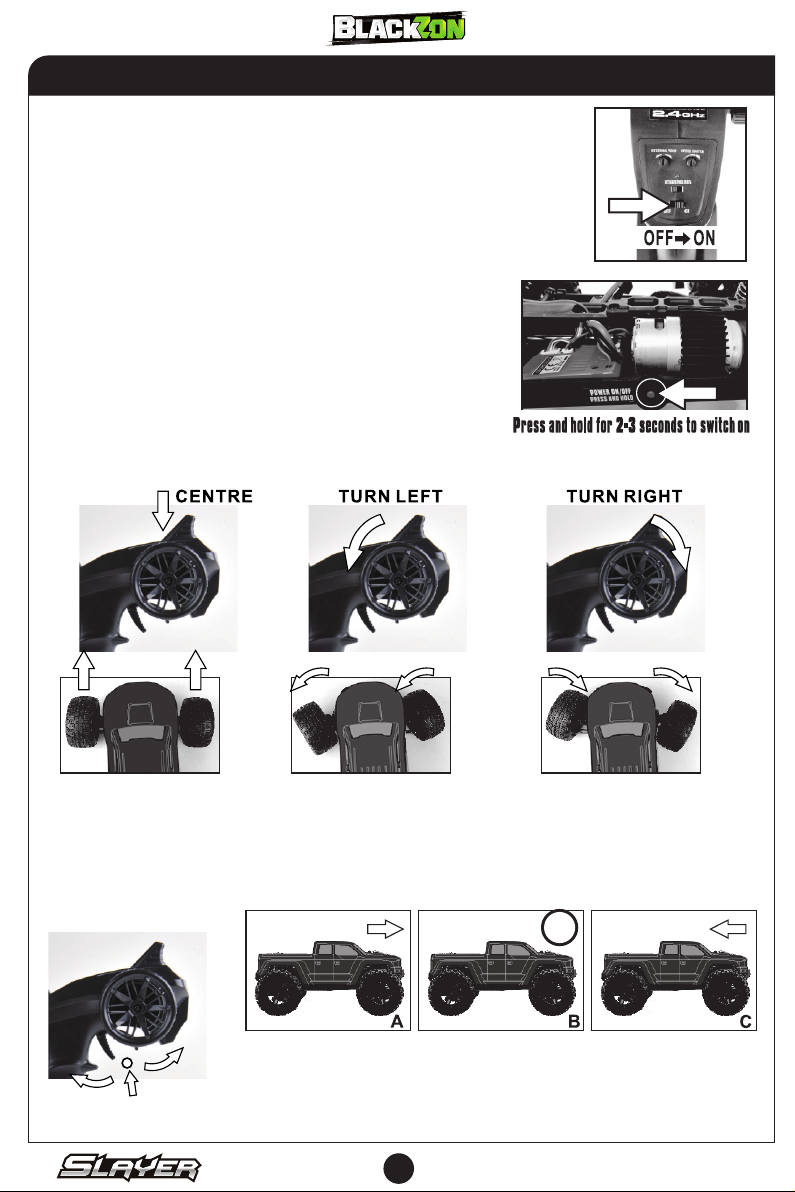

3) Checking the Steering Performance by turning the Steering Wheel:
4) Throttle Control:
A) With the steering wheel centered, the vehicle runs in a straight line.
Slight adjustment by flipping the steering wheel is occasionally needed. It largely depends
on the terrains that you drive.
B) Turn the steering wheel to the left, and the car turns left.
C) Turn the steering wheel to the right, and the car turns right.
Pull the trigger to accelerate , release it to slow the speed,
and push to brake. Pull it to the Centre Position and push it
again to go reverse.
PULL IT
BACK CENTRE
PUSH IT
FORWARD
1) Switch on the Transmitter:
Slide the Power Switch to “ON” position.
2) Switch on the ESC/Receiver:
Make sure the transmitter is of enough battery power. Please replace
with the new batteries for transmitter if the LED on transmitter blinks
slowly.
FORWARD
STOP
REVERSE
Press and hold the ESC/Receiver Power Switch for
2-3 seconds to turn on the car. It will be for a few seconds
before LEDs (on Transmitter and the ESC/Receiver)
stop blinking and become solid on, which indicates that
the car is bound with the transmitter.
Binding operation may fail in low battery power.
Please stop and charge the battery pack once the car
jerks, jogs or moves so slowly. Under the circumstance
of flat battery power, the car may have steering but not
the throttling. In case the car runs harshly noisily, stop
to check if there is something clogged in the drive train.
Starting Running

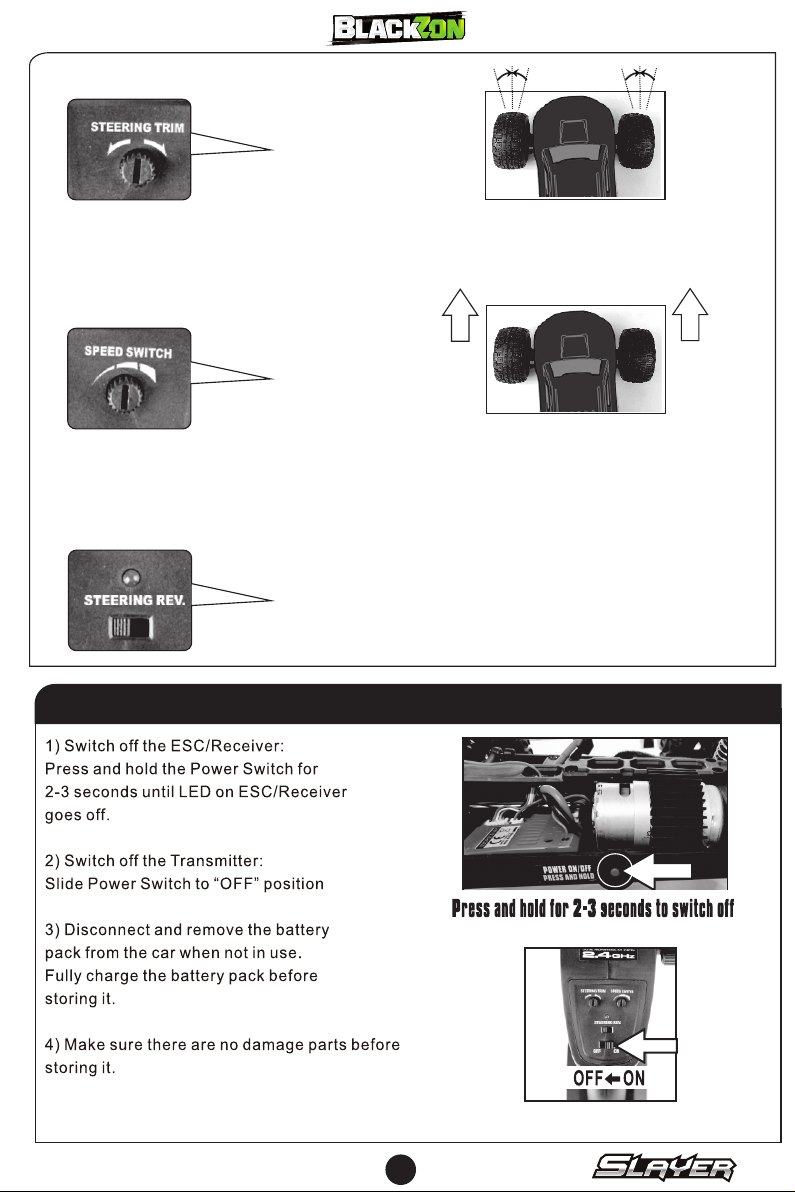

5) Steering Trim Knob:
It is used to set the steering neutral point on front wheels. If the front wheels on the vehicle
veer in one direction while the steering wheel is centered, turn this knob in the opposite
direction until the vehicle drives straight.
4
6) Speed Switc
7) Steering Reverse Switch:
If the vehicle turns right when you steer
left, flip “Steering Reverse” switch.
If the vehicle turns left when you steer
right, flip “Steering Reverse” switch.
STEERING TRIM
SPEED SWITCH
STEERING
REVERSE
The Speed Switch is actually the throttle limiter. Turning down the knob all the way will
reduce the maximum speed down to 40% of normal speed. Turning up the knob will increase
max speed up to 100%.
h Knob:
Stopping Running

5
Use ONLY the specified charger (provided in the box) to charge the battery pack.
Note: The balance USB charger is provided in the box.
!
WARNING!
-Do not charge the battery pack unattended.
-Do not use the damaged and leaky batteries and charger.
-Children are not allowed to charge the battery without closely supervised by adults.
Precautions:
-Be sure to always disconnect the battery pack and
remove it from the vehicle when not in use.
-Please fully charge the battery before each use.
-Do not leave the battery pack uncharged for long
periods of time.
-Do not completely drain the battery while running
the vehicle. Do not charge the battery under any
wet or damp conditions. Only charge in dry conditions.
During charging, the red LED is on solid, which monitors the charging process.
The red LED will go off after the battery pack has been fully charged.
Charging Duration: Li-ion Battery Pack 7.4V, 800 mAh (Approx. 2-2.5 hours),
Li-Po Battery Pack 7.4V,1000mAh (Approx. 2.5 hours)
Tip: Smart phone AC POWER adaptors (5V,2A ) can be applied to cut down charging period.
The red LED flashes, which indicates:
1) USB charging cable is connected with the battery pack but not being plugged on the charging slot.
2) Non-rechargeable battery pack is connected
3) Not able to charge as the battery pack is over-discharged.
4) USB cable is in an unstable connection.
Battery Image may vary
from your battery. Smart phone AC Power adaptor
(not Included)
Connected
Charging Battery Pack

6
We strongly recommend that you check and maintain the vehicle after use.
Please read and understand the list below which will facilitate you.
-Disconnect and remove the batteries from the car and the radio controller when not in use.
-Do not leave the rechargeable battery pack uncharged for a long time.
-Check if there is any obvious damage after each use.
-If the vehicle runs noisily, check if there is any broken or slipped gear and pinion, and check
if there is a clogged drive train.
-Check if the wheels are well tightened after use.
-Check if there are any loose screws in the chassis.
-Check if there are not frayed, damaged, loosened wires and connectors.
-Check if the steering servo is in good order. It may wear out over time and require replacement.
-Check if there are no objects getting twisted in the drive train. Clean them if necessary.
-Check the motor and motor wires after use. Never attempt to re-assemble the motor.
-Clean the car body and chassis with a soft lint-free cloth.
-Store the vehicle in a clean, cool and dry place out of children's reach.
A.The vehicle does not work at all:
1) Check to ensure that radio controller and car are switched on.
2) Check if there are damaged parts/wires/connectors, repair or replace if necessary.
3) Car battery is flat. Charge the battery pack.
B.The vehicle runs slowly:
1) Car battery is flat. Charge the battery pack.
2) Check if the vehicle is properly geared and no dirty or stripped gears are found, and make
sure the reliable gear mesh for motor pinion and the spur gear.
3) Check if there is something troubling to the moving parts , and clean them immediately.
C. The throttle works but not the steering:
1) Check if the servo feels jammed, and try centering it gently if it is the case.
2) Check if the servo link is loose or the servo breaks. Repair or replace if possible.
D. It steers, but throttle is uncontrollable:
1) Check if there are damaged parts in the overall drive train.
2) Check the battery power both for radio controller and the car.
E. The vehicle runs noisily:
1) Check gear mesh between spur gear and motor pinion.
2) Check if there are stripped and/or dirty gears.
3) Check if there are some parts getting damaged in the overall drive train.
F. The vehicle is found one direction's steering travel is not same to the other.
Please tune the Steering Trim until Steering Center Point is fixed.
G. Not able to charge the batteries:
Check if either the charger or the batteries is damaged, or batteries are over-discharged.
Maintenance
Troubleshooting

7
1 2 3
4 5 6

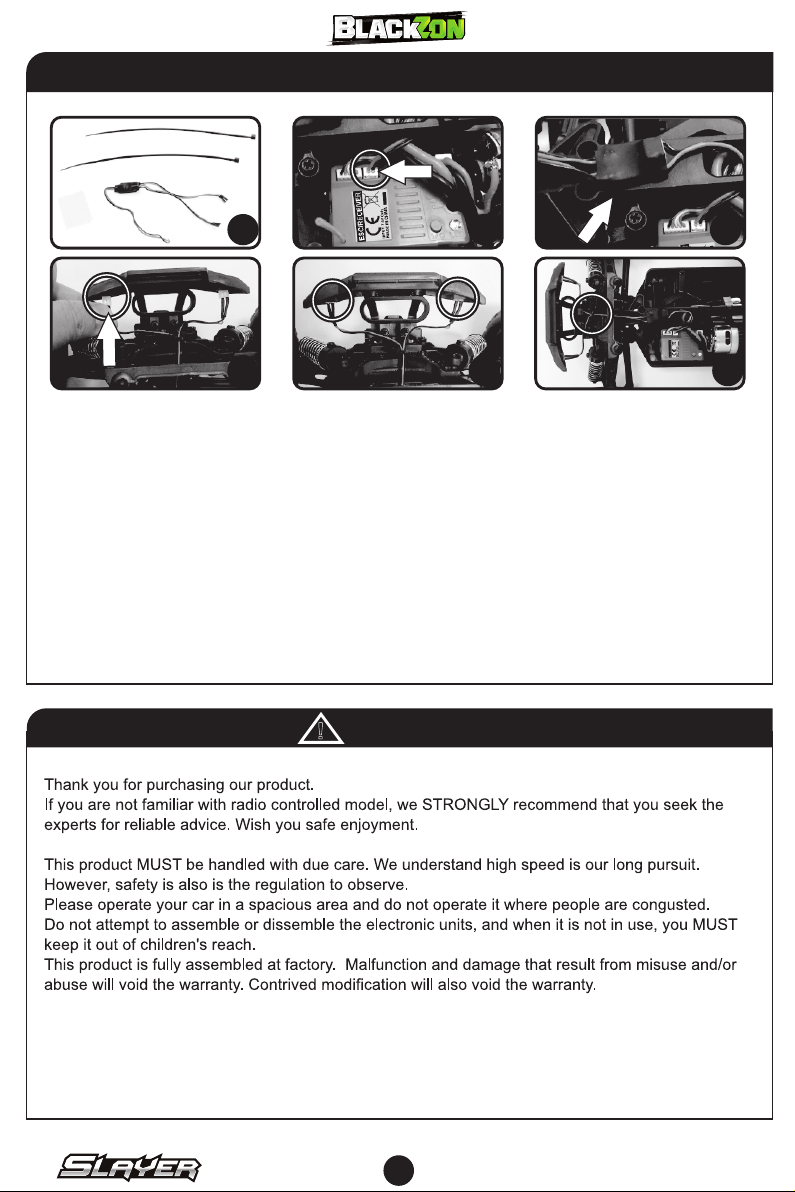

1) The headlight, which is provided as a gift in the box, is not installed on the car.
2) Please take out the headlight, the zip ties, and the adhesive tape from the box.
(See Photo 1)
3) Please plug the headlight plug into the slot on the ESC/Receiver. (See Photo 2).
Note: Do not force while plugging or unplugging.
4) Please apply the adhesive tape to the headlight board and stick it on the upper deck
as shown in Photo 3.
5) Gently insert the headlights into the slots on the back of the front bumper. Make sure they
are in place.(See Photo 4 and Photo 5)
6) Please keep the wires in order and bind them up with the aid of the zip ties. (See Photo 6)
Headlight Installation
!
Cautions

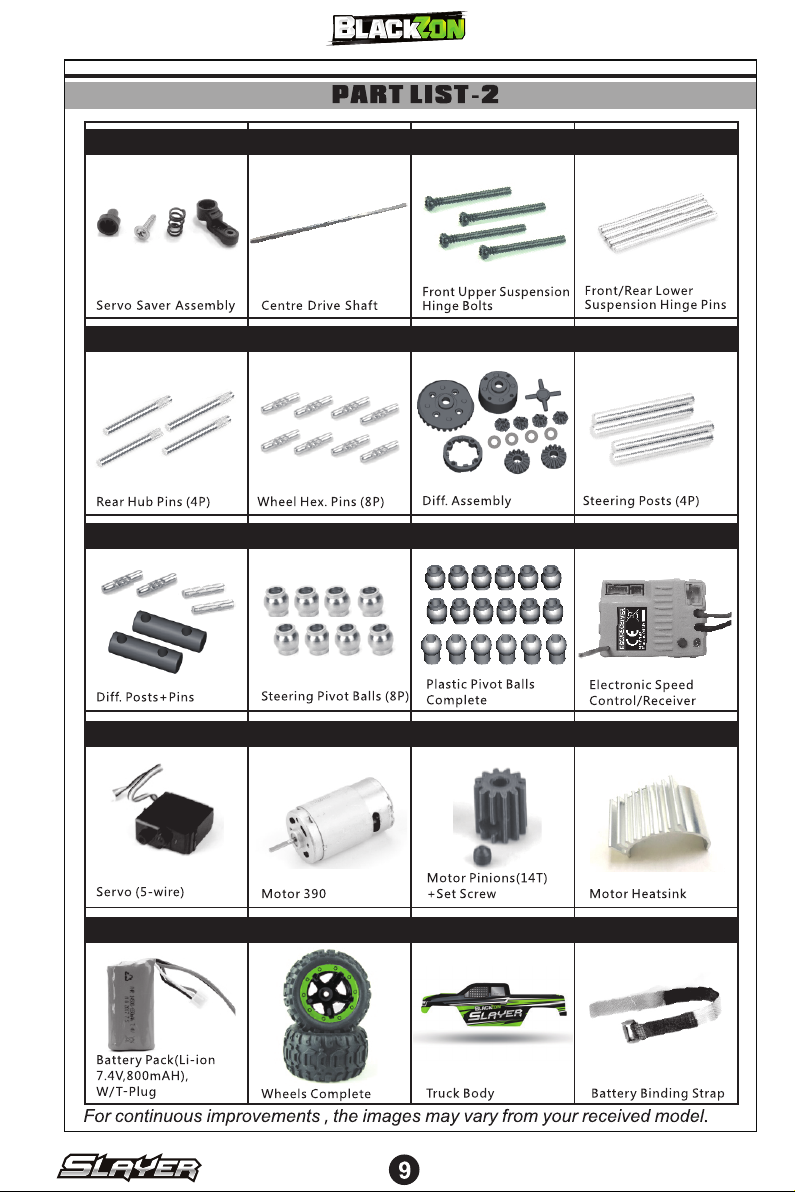

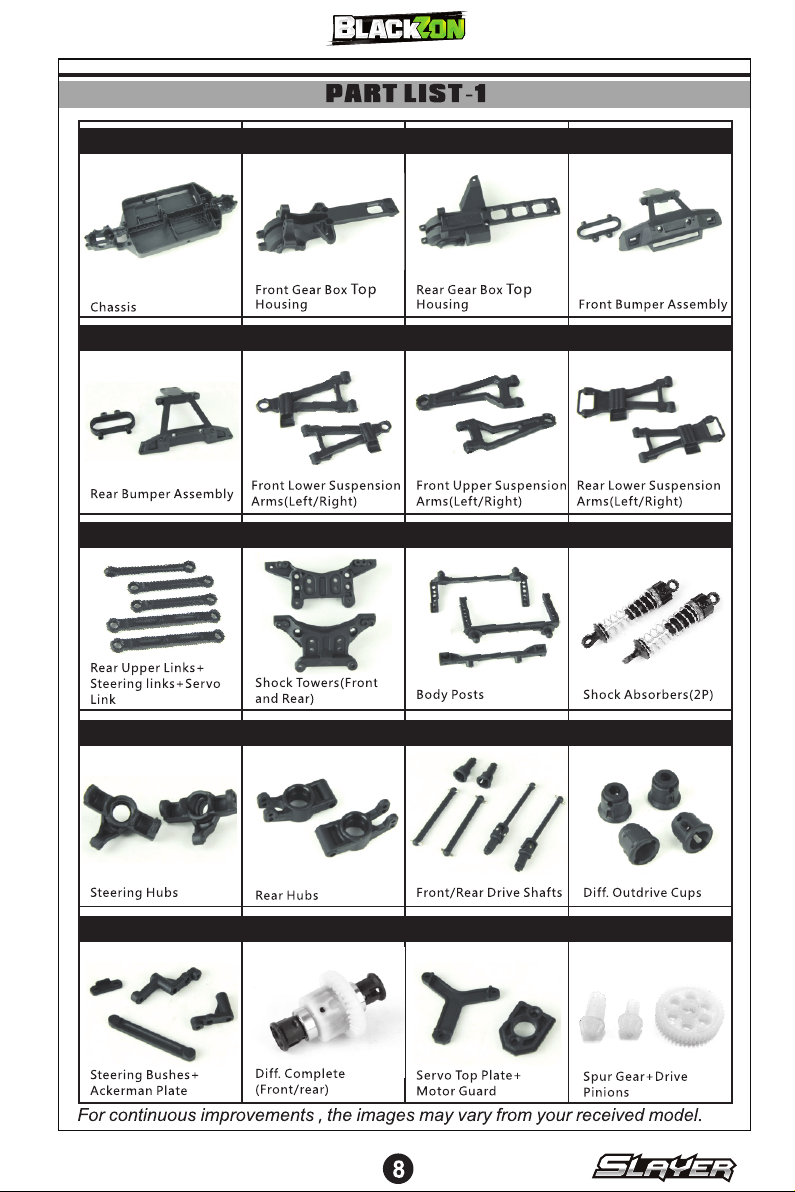

540001 540002 540003
540020540019540018540017
540016540015540014540013
540012540011540010540009
540008540007540006540005
540004

(black/green)
540031
540040540039540038540037
540036540035540034
540032
540033
540030540029
540028540027540026540025
540024540023540022540021

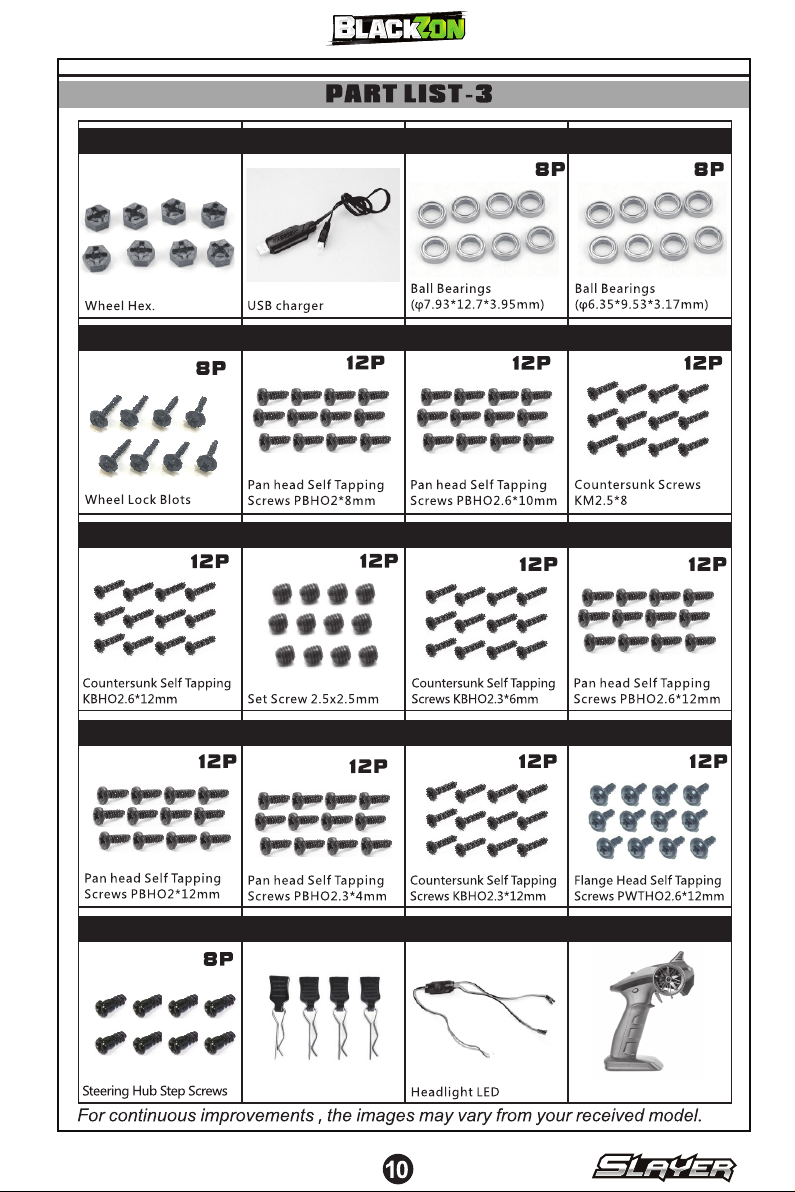

540041
540059540058
540057540056540055540054
540053540052540051540050
540049540048540047540046
540061
540045540044540043
540060
2.4GHz Radio
Body Clips (4pcs)

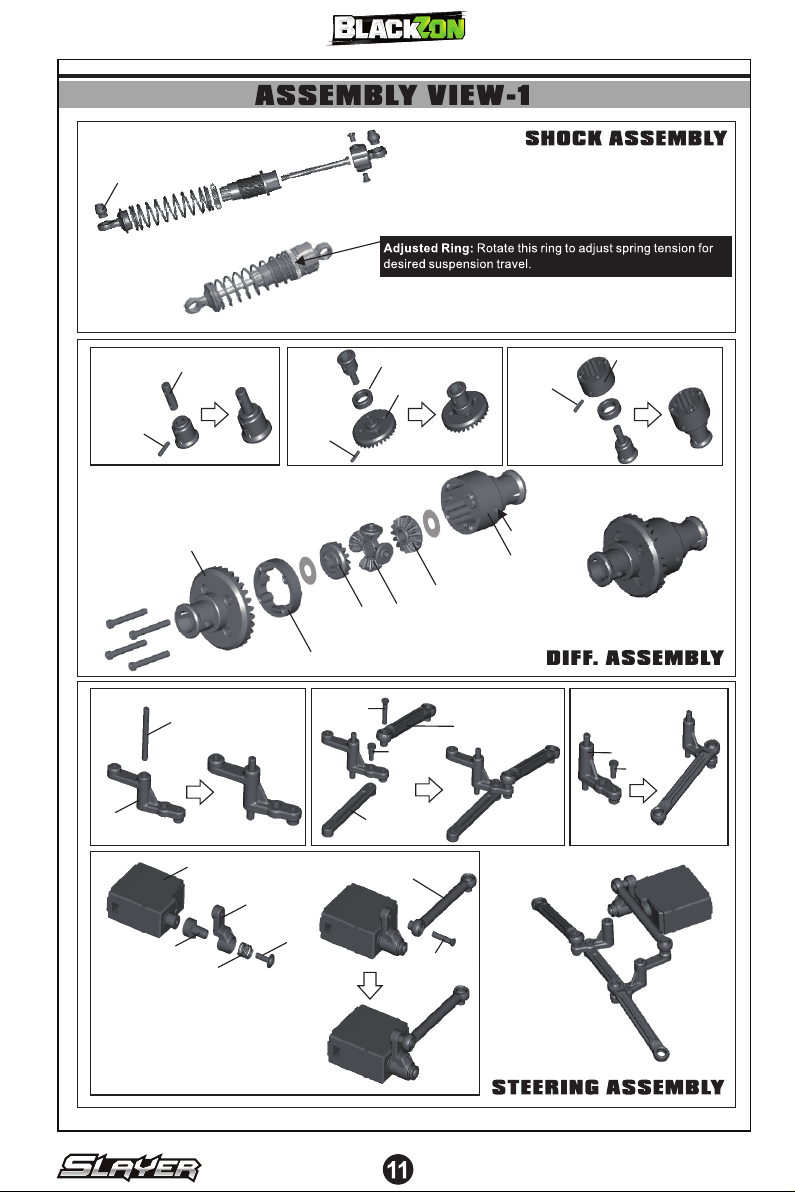

540031
540012
540029
540029
540029
540027
540044
540029
540027
540027
540027
540027 540027
540027
540027

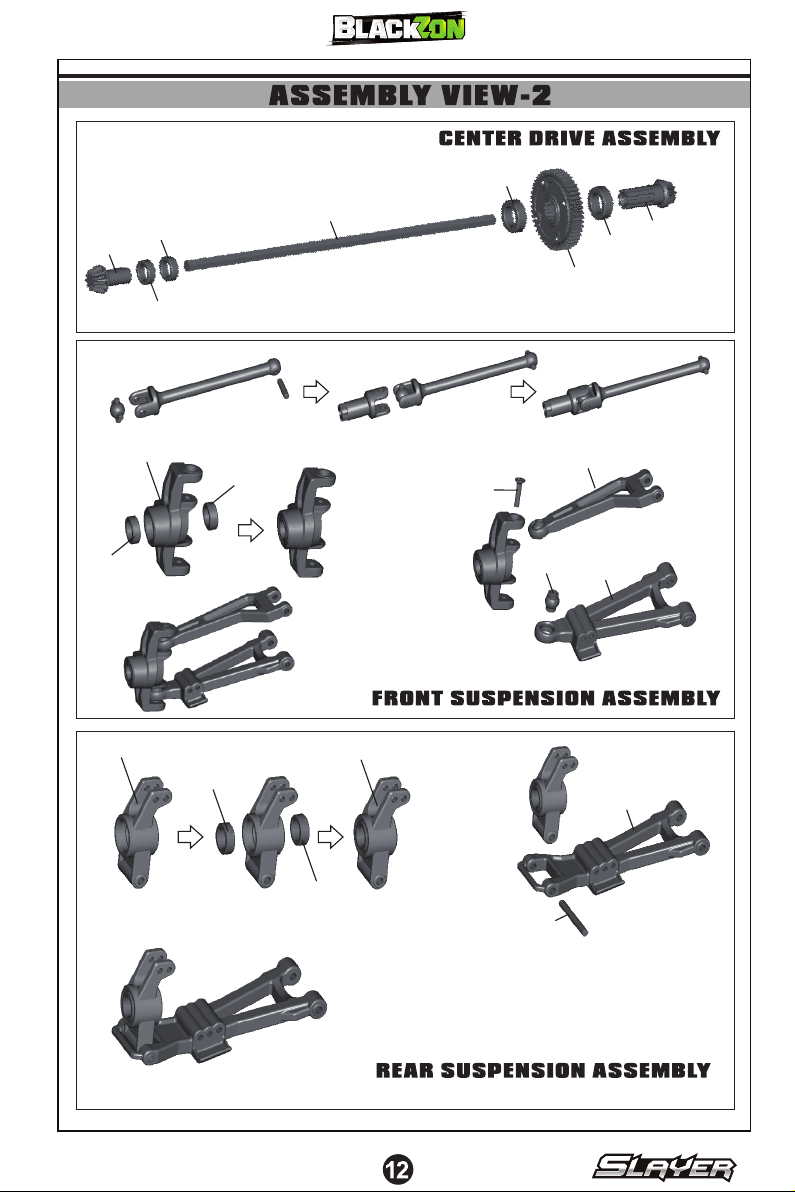

540051
540018
540028
540017 540017
540017
540009
540056
540058
540058
540033
540021
540201
540021
540021
540009
540056

540020
540020
540020
540022
540045
540045
540044
540044
540045
540045
540045
540045

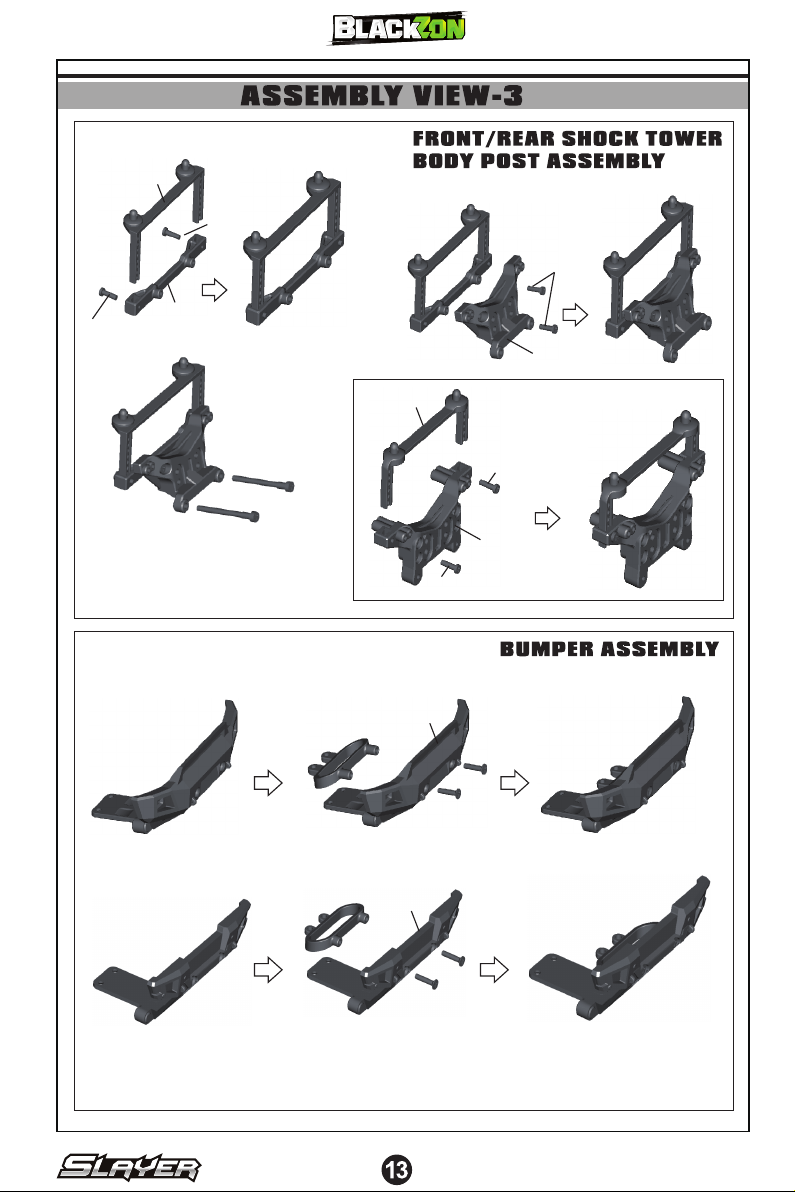

540013
540015
540007
540007
540031
540050
540014 540014
540008
540025

540011
540011
540047
540047
540010
540010
540047
540047
540011

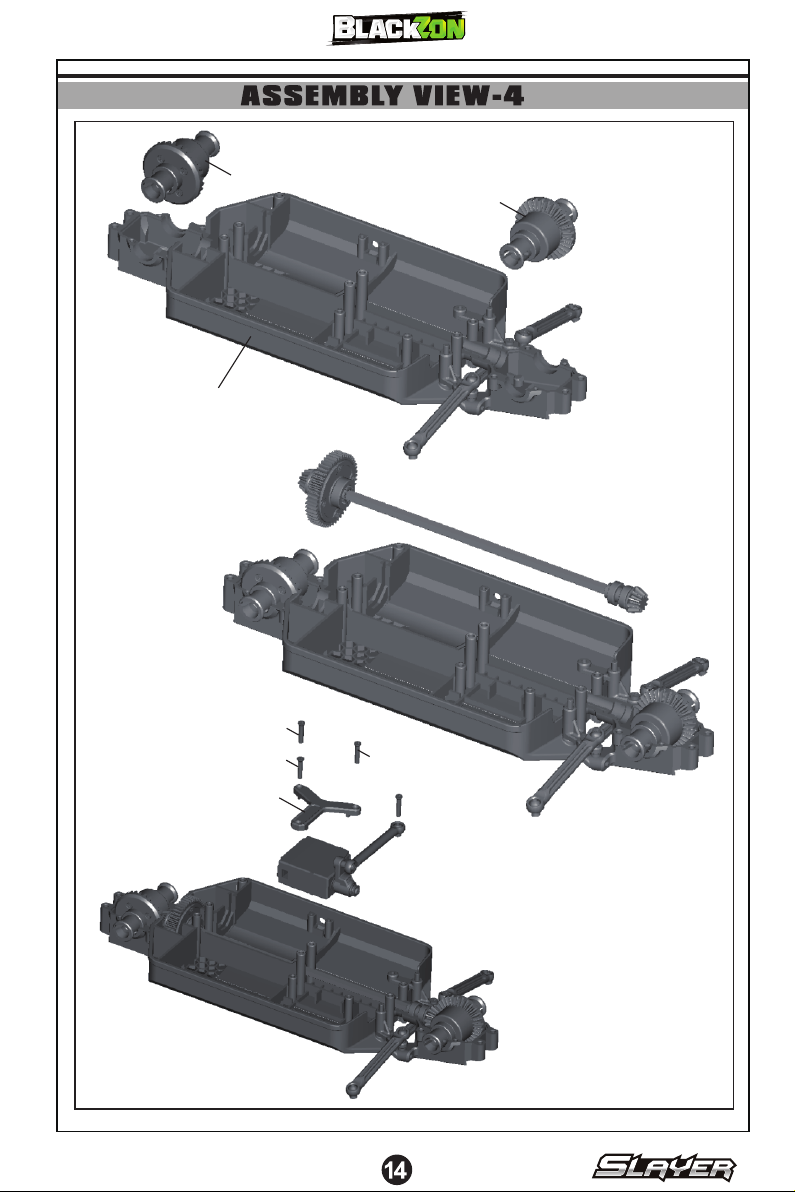

540023
540023
540048
540048
540048
540048
540048
540004
540004
540005 540005

540018
540018
540001
540019 540056
540048
540048 540048

540003
540002
540048
540048
540048
540048

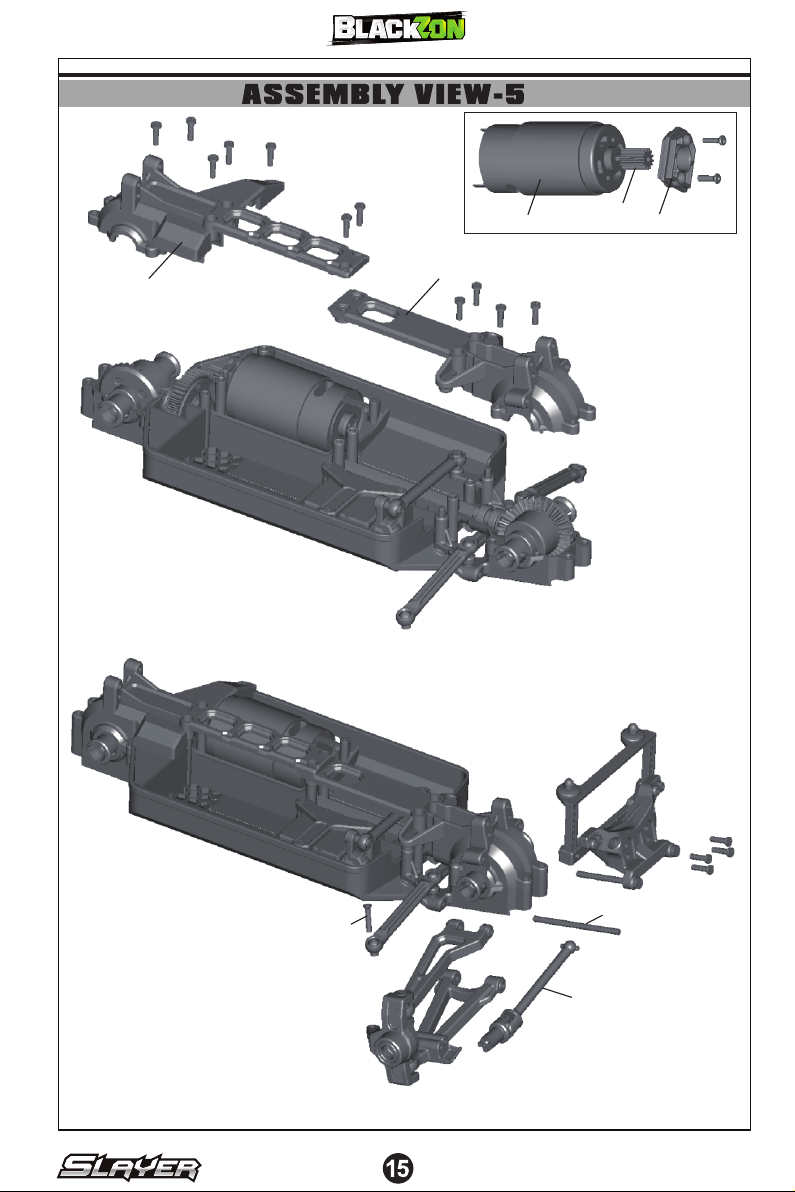

540019
540035
540034
540048
540056
540015
540024

540009 540009
540009
540031
540031
540056
540029
540024
540024

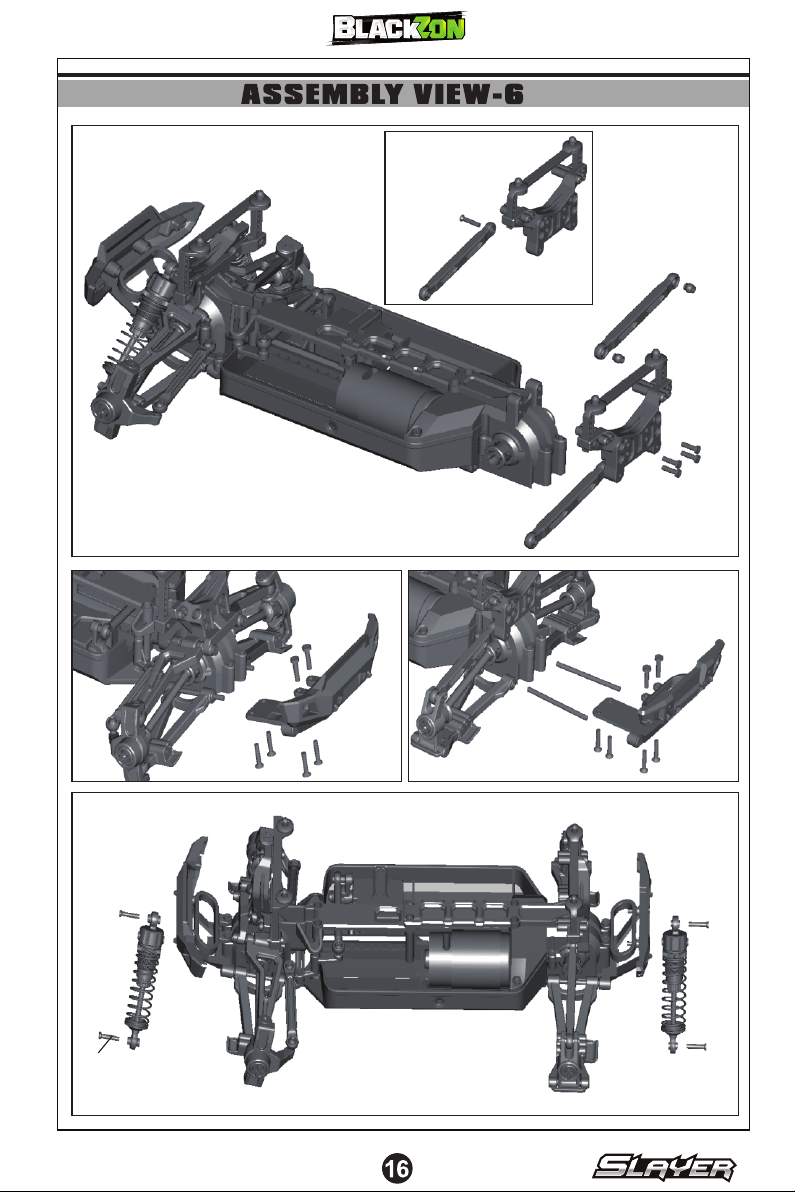

540052
540052
540052
540052
540053
540053
540056
540056
540056
540056

540041
540038
540046
540059
540059
540059
540059

The radio equipment type in this product transmits within the frequency range 2.4 to 2.485 GHz with a
maximum power of 20dBm and is in compliance with EU Directive 2014/53/EU. The full text of the
Declaration of Conformity is available at http://ce.blackzon.com/
Die Fernsteuerung in diesem Produkt überträgt in dem Frequenzbereich 2.4 to 2.485 GHz mit einer
maximalen Stärke von 20dBm und sie ist in Übereinstimmung mit der EU Richtlinie 2014/53/EU. Der volle
Text und die Erklärungen zur Konformität finden Sie unter http://ce.blackzon.com/
Cet appareil transmet dans la gamme de fréquence de 2.4 to 2.485 GHz avec une puissance de 20dBm et
est conforme à la Directive UE 2014/53 / UE. Le texte intégral de la Déclaration de conformité est
disponible sur http://ce.blackzon.com/
El tipo de equipo de radio en este producto transmite en el rango de frecuencia de 2.4 to 2.485 GHz con
una potencia máxima de 20dBm y cumple con la Directiva de la UE 2014/53/UE. El texto completo de la
Declaración de conformidad está disponible en http://ce.blackzon.com/
Do not dispose of electrical components in household waste. Please use local waste disposal centre.
Entsorgen Sie auf keinen Fall elektronische Komponenten im Hausmüll. Bitte nutzen Sie dazu örtliche
Entsorgungseinrichtungen.
Ne pas jeter les composants électriques dans les ordures ménagères. Utilisez le centre d’élimination des
déchets local.
No deseche los componentes eléctricos en la basura doméstica. Utilice el centro local de eliminación de
residuos.
FCC Compliance:
This device transmits within the range 2.4 to 2.485 GHz and has been tested to comply with the limits for a
Part 15 Class B device of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. Any change or modification to the device not expressly
approved by the manufacturer may void the user’s authority to operate the equipment. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired operation.
Canada Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-003. (Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.) This equipment complies with the FCC/IC radiation
exposure limits set forth for FCC and Industry Canada portable transmitting devices operation in an
uncontrolled environment. The equipment should only be used or installed at locations where there is
normally at least a 20cm separation between the antenna and all persons. This transmitter must not be
co-located or operated in conjunction with any other antenna or transmitter.
Legal Information
90 Day Component Guarantee
This product is covered by a 90 day component guarantee from date of purchase. If any part of the product fails as a
result of faulty manufacture during this period then we will repair or replace that part at our discretion.
We do not operate a new for old guarantee once the product has been used.
Please note this product is not a toy and it is recommended that children 14 and under are supervised by an adult. It
is the responsibility of the parent or guardian to ensure minors are given appropriate guidance and supervision.
If you suspect there is a problem with the product, for whatever reason, it is the user’s responsibility to investigate
and take steps to rectify the problem before further damage occurs.
Not Covered By Guarantee
This is a sophisticated, high performance model and should be treated with care and respect. Every effort has been
made to make this product as strong and durable as possible, however due to the nature of this product, it is still
possible to break or damage parts through crashing or extreme use. Components damaged as a result of crash
damage, improper use, lack of maintenance or abuse are not covered by the guarantee.
How to Claim Against your Guarantee
For guarantee claims please first contact your supplying retailer. Do not return the product to your distributor without
their prior approval. You may not need to return the product in full, only the damaged component along with a copy of
your purchase receipt. In many cases it is faster and more cost effective for the user to fit the replacement part(s) to
the product & therefore we reserve the right to supply parts only in these instances.
Any returned component that is inspected by your distributor and found to have an invalid guarantee claim may be
subject to an inspection and handling fee before it can be returned. Any repairs required as a result of neglect or
misuse will be charged before any work is carried out on the product. If you decide not to have any work carried out
the distributor reserves the right to charge a handling and a shipping fee.
Please attach your proof of purchase in the manual as you may need it again in the future.

HPI RACING A/S
Jegindoevej 21
8800 Viborg, Denmark
Tel: [phone]
WWW.BLACKZON.COM
