BSD-Racing BS213T User manual

www.bsdracing.com
BSD-RACING
1/10 4WD ELECTRIC-POWERED
BRUSHLESS / BRUSHED BUGGY
BS213T / BS213R
Length: 430mm
Width: 260mm
Heigth: 140mm
ESC: 1/10 Brushed ESC
Motor: RC550
Battery: 1800mAh Ni-MH Battery
FEATURES:
BS213T
ESC: 45A ESC
Motor: KV3421
Battery: 7.4V 3200mAh Li-po Battery
BS213R
Length: 390mm
Width: 276mm
Heigth: 150mm
ESC: 1/10 Brushed ESC
Motor: 550
Battery: 7.2V 1800mAh Ni-MH Battery
FEATURES:
BS214T
ESC: 45A ESC
Motor: 540 KV3421
Battery: 7.4V 3200mAh Li-po Battery
BS214R
1/10 4WD ELECTRIC-POWERED
BRUSHLESS / BRUSHED TRUCK
BS214T / BS214R
Instruction Manual

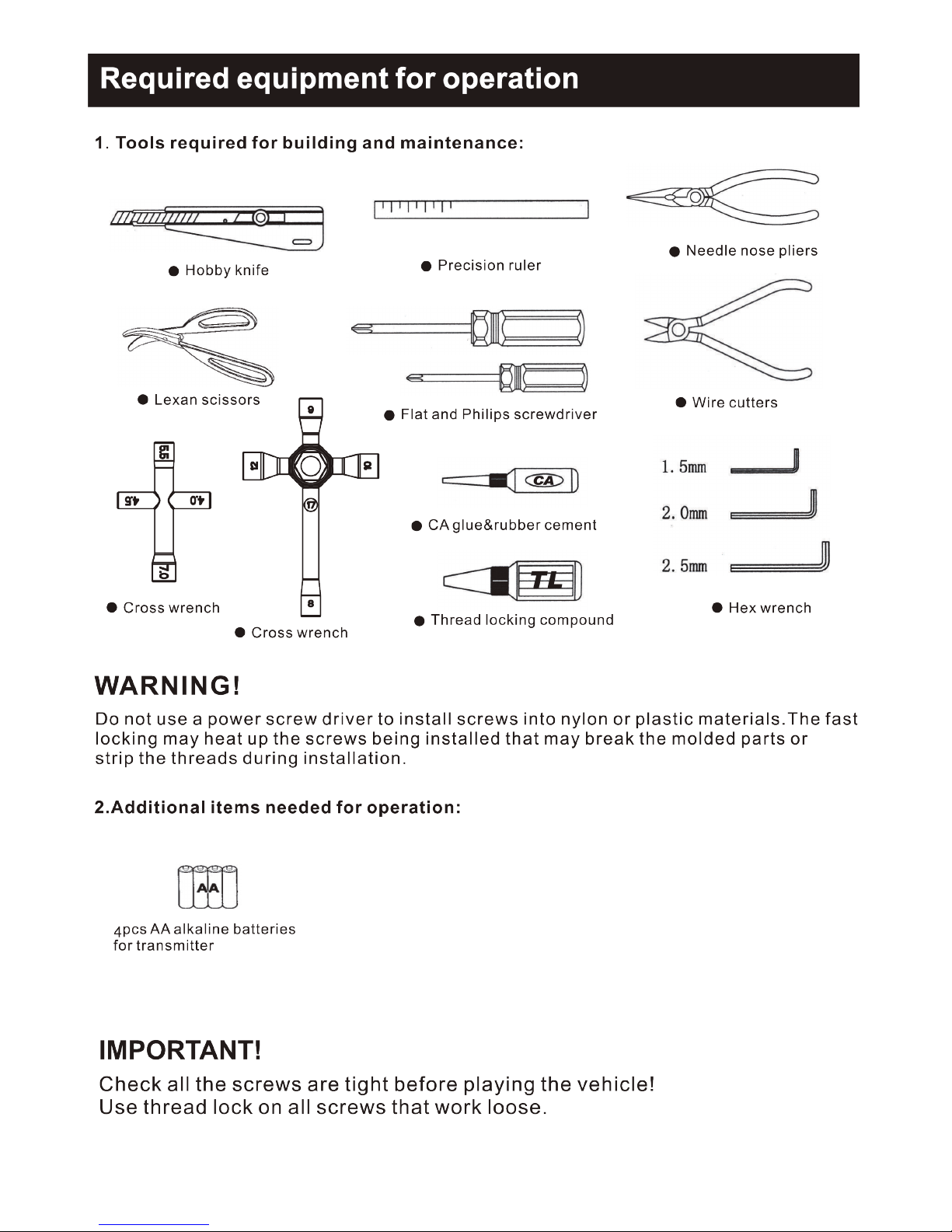

1

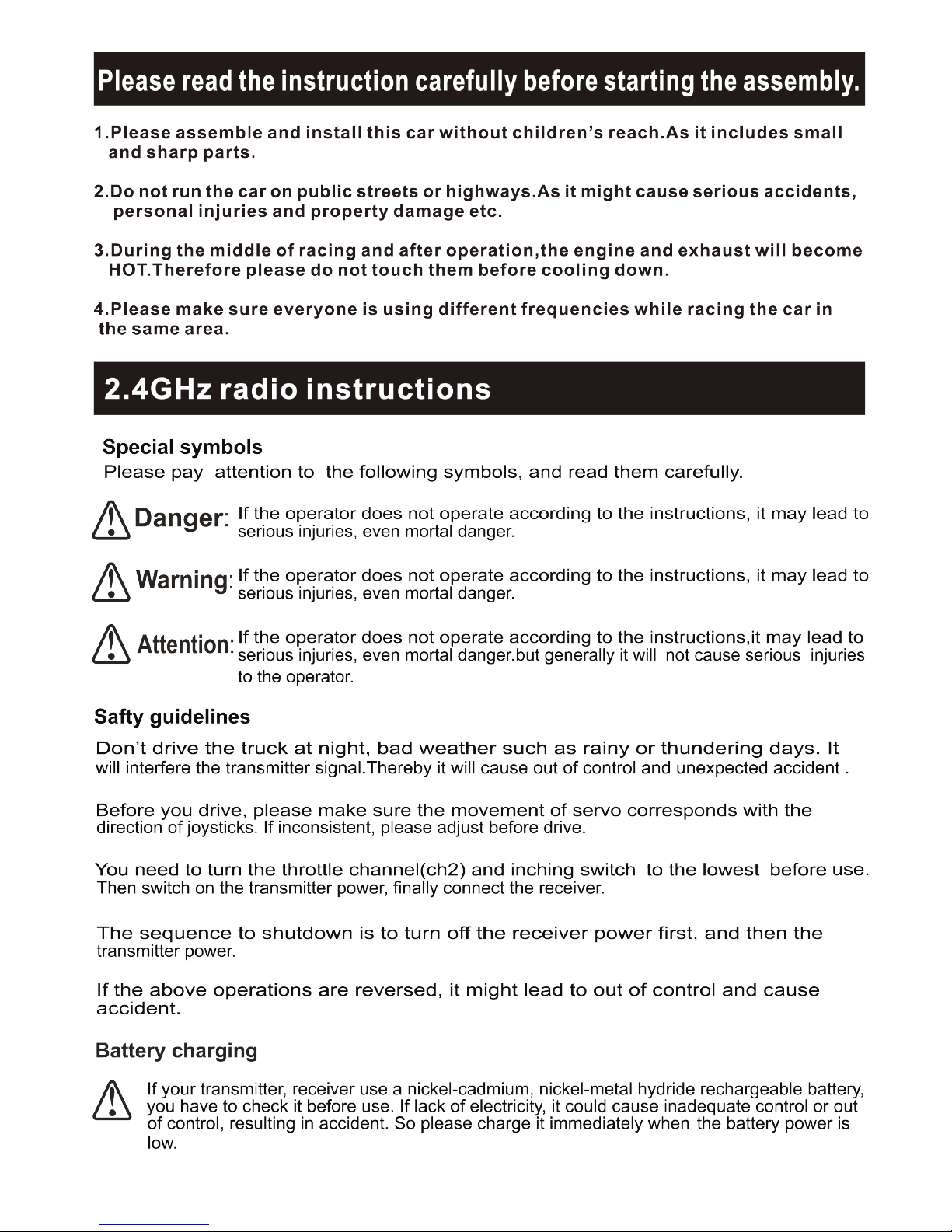

2

200mm
162mm
SERVO DIRECTION:

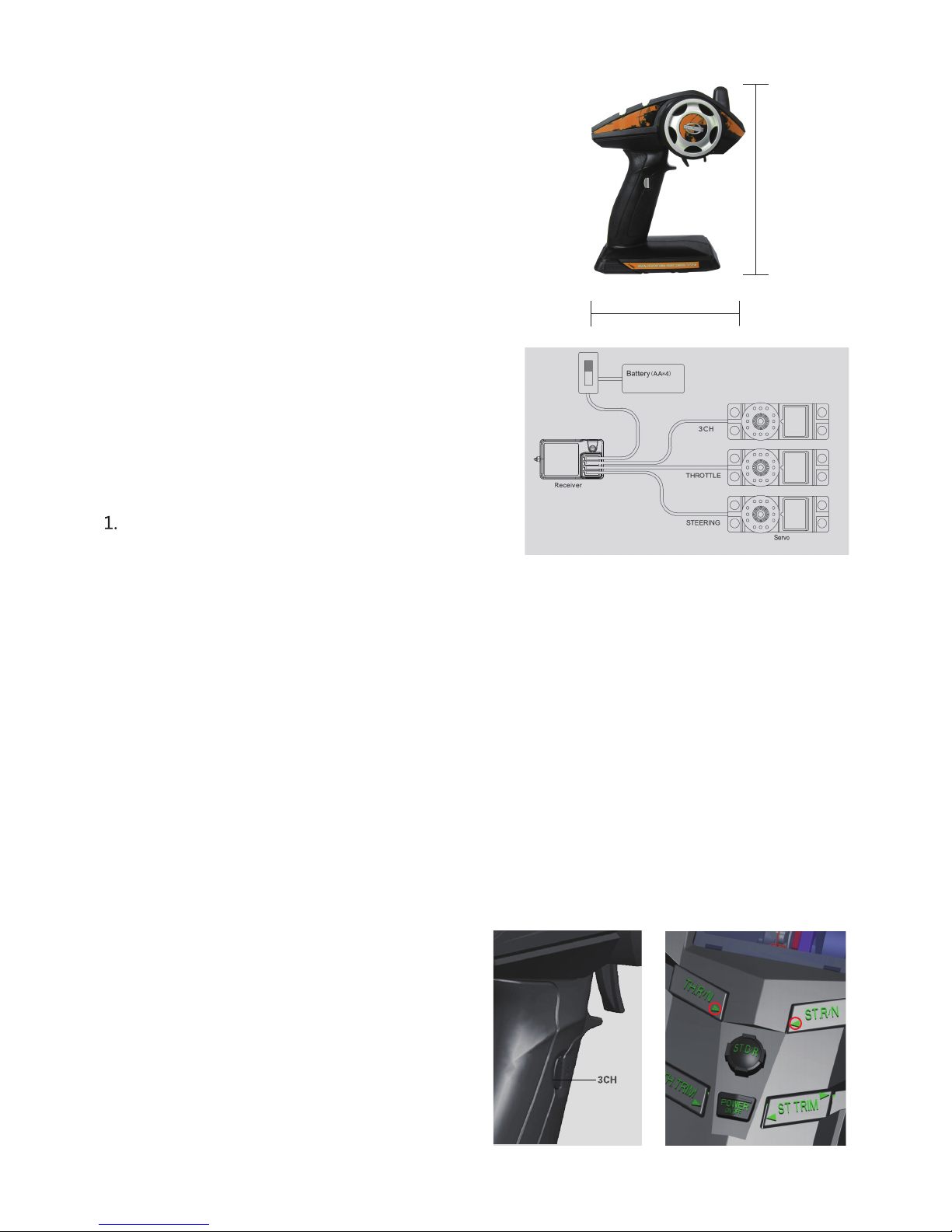

TRANSMITTER SPECIFICATIONS
NOTE:
BINDING PROCESS:
TR TYPE: MADGEAR-TRV1
Channel: 3CH
Frequency: 2.4GHz
Use DC: (4.0V-8.6V); ≤110mA
N.W.: 320g
RX TYPE: MADGEAR-RXV1
Channel: 3CH
Frequency: 2.4GHz
DC: (4.0V-8.6V); ≤20mA
N.W.: 8g
R/F Power: ＜20dBm; Sensititity: 1024
Modulation: 2-FSK; Frequency Signal: FHSS
Specifications: One Set(200*165*105mm)
Install the batteries in correct polarity.
2. Using 4*AA batteres.
Reverse the throttle servo direction
by pressing the TH R/N button for 2
seconds until the beeper beeps once.
Reverse the steering servo direction
by pressing the ST R/N button for 2
seconds until the beeper beeps once.
1. Turn on the transmitter, press and hold the CH3 button, the LED on the transmitter should
flash in blue color, beeper should sounds B-B-B. Release the CH3 button. The transmitter
is ready for the binding process.
2. Connect power to the receiver, the receiver LED should flash slowly in green color.
3. Place the receiver near the transmitter and press and hold the BIND button on the receiver
until the receiver LED flashes rapidly for several times then flash slowly again. This
indicates the binding process is completed successfully. Release the BIND button.
4. Turn off and turn on the transmitter, the receiver's LED should stay solid in green color.
This indicates the transmitter and receiver are bonded.
3

NOTE:

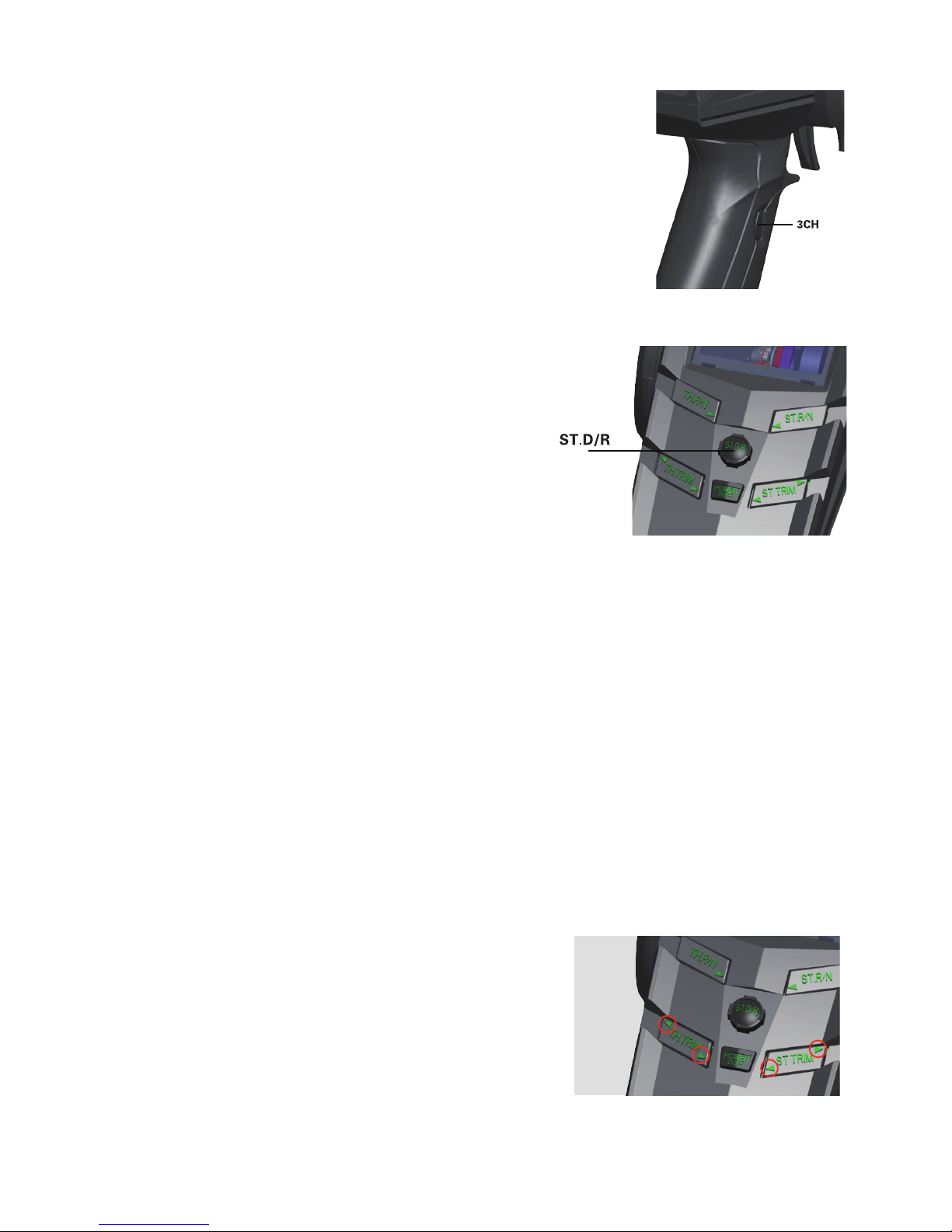

AUX CHANNEL(3CH)
STEERING DUAL RATES ADJUSTMENT
(ST.D/R)
FAIL SAFE SETUP(S/F)
TH.TRIM AND ST.TRIM ADJUSTMENT
Press the CH3 button once, servo turns 90 degrees,
press again, servo turns back 90 degrees.
During the binding process, the CH3 button functions as
a bind button and does not provide channel 3 functionality.
Adjust the dual rate for steering by turning
the ST D/R knob.
The fail safe function set the throttle to the lowest position automatically when the radio
signal is weak or lost.
1. Receiver should memorize the setting once it is setup.
2. For electrical powered model, the F/S functions is setup by default.
3. For gas powered model, put the throttle trigger at the brake position, press and hold the
F/S button on the receiver until the LED flashes rapidly in green color for several times,
then turns solid. release the F/S button. the F/S setup is completed.
4. Redo the F/S setup after each binding process.
Caution: Verify the F/S setup before operation.
Adjust the throttle trim with the TH TRIM button,
adjust the steering trim with the ST TRIM button.
Caution: after each binding process, need to
manually adjust the TH TRIM to the lowest
position.
4

5

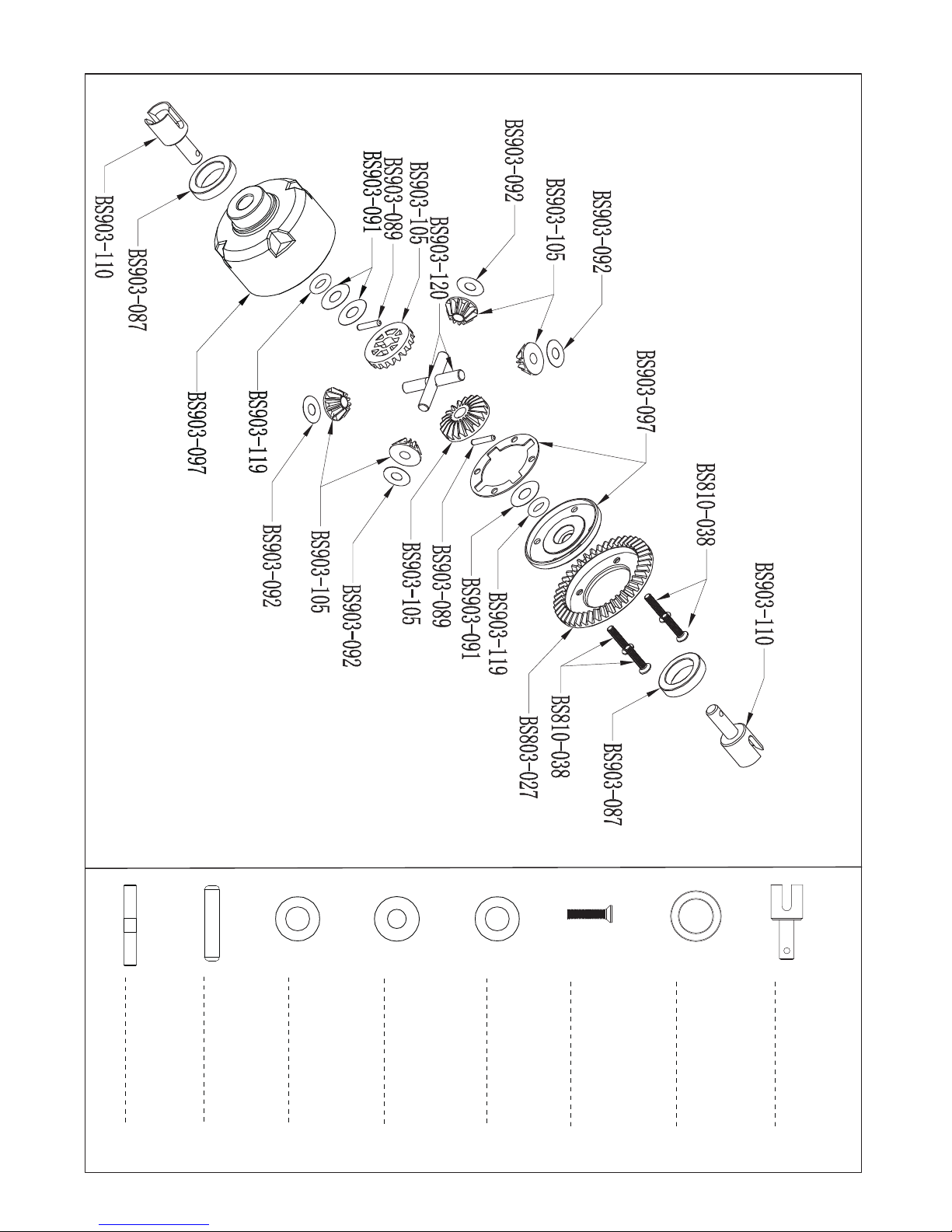

BS903-110 Joint B
1
BS903-087 Ball Bearing(12*18*4)
BS810-038 B head hex fine pitch screws HM2.5*12
BS903-119 O ring 5*9*2 BS903-091 Washer A(5.2*10*0.2) BS903-092 Washer B(4.2*8*0.2)
BS903-089 Pin(2*9.8) BS903-120 Diff Gear Shaft (4*26.2)
2
12
12
12
12
12
6
BS803-026 Diff Gear box unit

6
BS903-110 Joint B
1
BS903-087 Ball Bearing(12*18*4)
BS810-038 B head hex fine pitch screws HM2.5*12
BS903-119 O ring 5*9*2 BS903-091 Washer A(5.2*10*0.2) BS903-092 Washer B(4.2*8*0.2)
BS903-089 Pin(2*9.8) BS903-120 Diff Gear Shaft (4*26.2)
2
12
12
12
12
12
6
BS903-104 Diff Gear box unit

7
BS213-014 Steering System Unit
BS213-029C Spur Gear Unit (steel) BS903-091 Washer A
(5.2*10*0.2)
12
BS903-086 Ball Bearing
5*10*4
2
BS810-047 E Clip
12
BS903-089 Pin 2*9.8
12
BS213-038 Gear shaft
1
BS903-066 Flat Cross
Screw(TPF3*8)
12
BS903-083 Joint D
1
BS205-043 Ball head screw
4.8*12.3
6
BS903-122 Copper bush
5.1*8*2.5
12
BS205-048 Spacer bush
3.05*3.7
12
BS903-079 B-Head Cross
Screw(BM3*10)
12
BS213-039 Steering Axis
(5*20.9)
2
BS213-026
BS213-039
BS213-040A

8

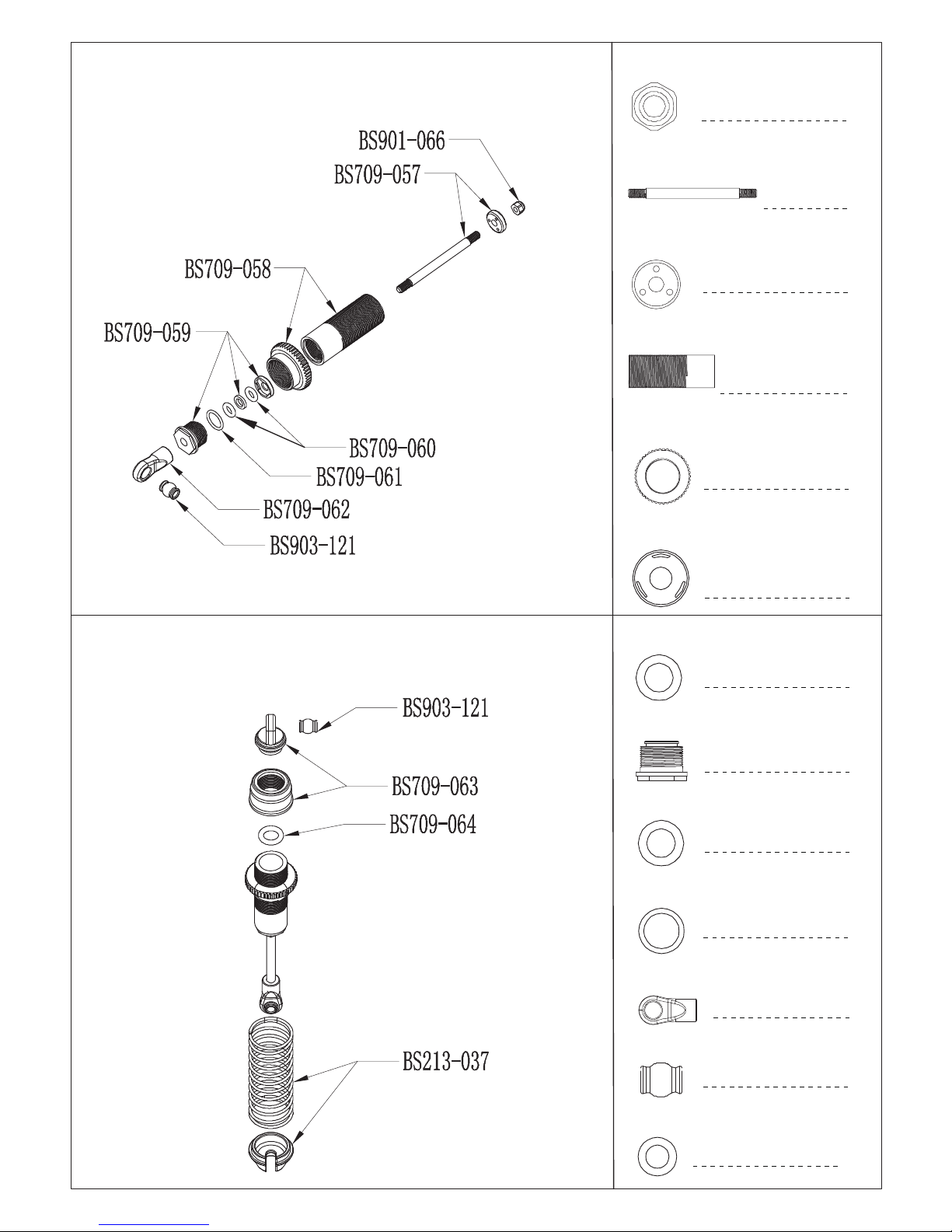

BS213-001 Shock Unit
BS213-001 Shock Unit
BS901-066 M3 locknut
5
BS709-057 Shock central shaft
2
BS709-057 Shock piston
BS709-058 Shock Cylinders
2
2
BS709-058 Adjusting ring
2
BS709-059 Shock gland
4
BS709-059 Spacer bush
3.6*5.9*1
4
BS709-060 O Ring
6.5*3.5*1.5
12
BS709-061 O Ring
5*8*1.5
12
BS709-062 Shock Ball end
6
BS903-121 Shock ball head
12
BS709-064 O Ring
6*10*2
12
BS709-059 Shock Low
Cylinders
4

9
BS903-091 Washer A
BS213-029B Spur Gear Unit(Zinc Alloy) (5.2*10*0.2)
12
BS903-086 Ball Bearing
5*10*4
2
BS810-047 E clip
12
BS903-089 Pin 2*9.8
12
BS213-038 Gear shaft
1
BS903-066 Flat Cross
Screw(TPF3*8)
12
BS903-083 Joint D
1
BS213-026
BS213-039
BS213-040A

18
BS213-002 Upper Susp. Arm Unit
2pcs
BS213-003 Front Transverse Drive
Shaft w/axle 2pcs BS213-005 Rear Axle 2pcs
BS213-011 C Hubs Unit L
BS213-004 Rear Transverse
Drive Shaft 2pcs
BS213-006 Rim Hub With Pin
4pcs
BS213-007 Lower Susp. Arm Unit
2pcs BS213-008 Fr.Brace BS213-009 Rear Brace BS213-010 Diff. Gearbox Bulkhead-
Upper/Lower
BS213-012 C Hubs Unit R BS213-013 Fr.Upper Desk BS213-014 Steering System Unit BS213-015 Servo Unit
BS213-016 Steering Link 4pcs BS213-017 Chassis BS213-018 Battery Cover BS213-020 Wire Mount
BS213-019 Main Upper Desk
BS213-021 Drive Shaft Unit BS213-022 Esc Case BS213-023 Motor Mount BS213-024 Gear Box Case
BS213-028 Rr. Upper Desk BS213-032 Body Mount 2pcs
BS213-031 Front Chassis
BS213-030 Ball Head Screw
12pcs
BS213-001 Shock Unit 2pcs

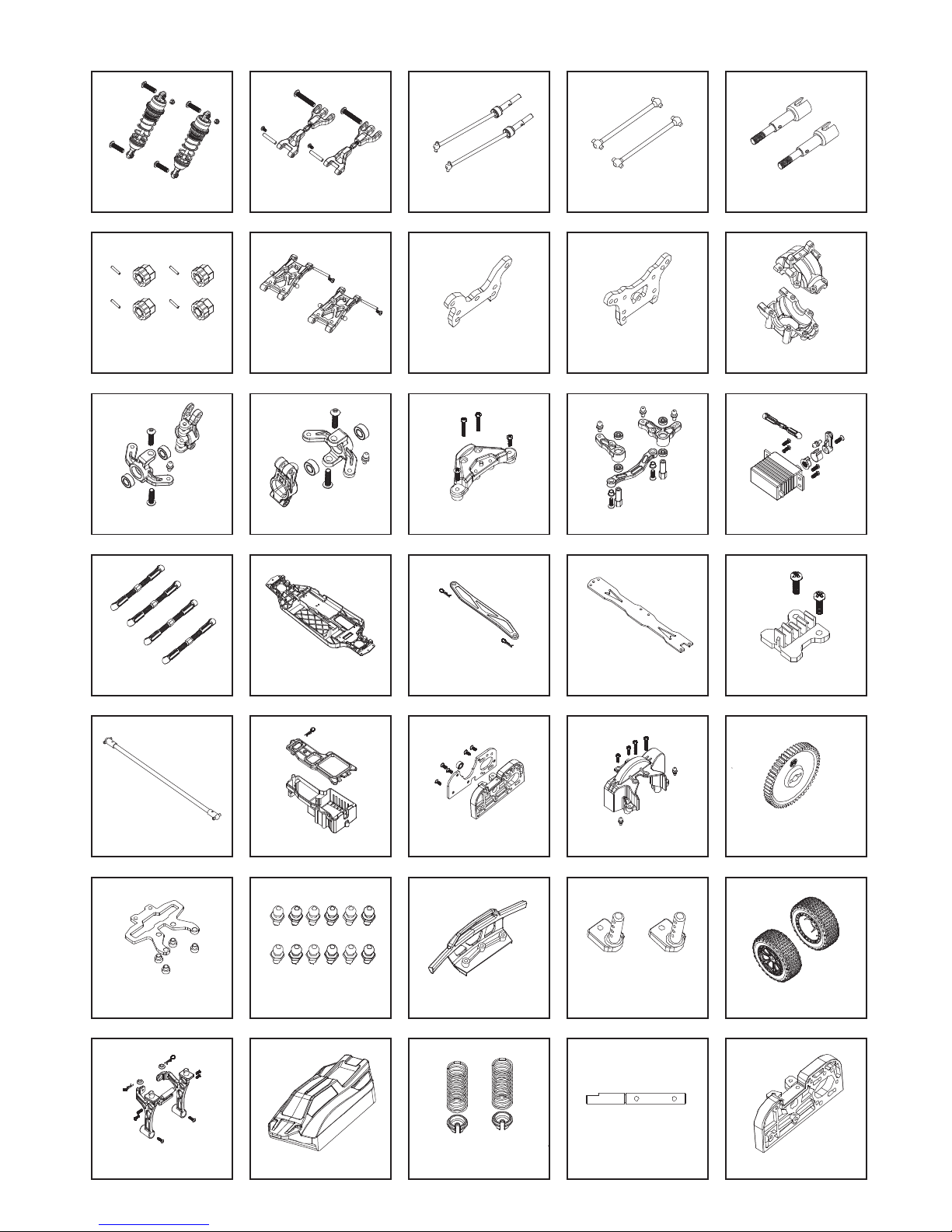

BS213T& BS213R COMMON PARTS
BS213-026 Spur Gear 55T
BS213-033 Front Tires Unit
2pcs
BS213-034 Tail Wing Mount Unit BS213-036 Body(red)
BS213-036C Body(yellow)
BS213-037 Shock under cover/
spring 2pcsBS213-038 Gear Shaft BS213-039 Motor Support

19
BS213-040 Motor Mount BS213-041 Steering Support BS213-042 Steering Axis BS903-119 Diff O Ring 5*9*2
12pcs
BS709-060 O Ring 6.5*3.5*1.5
12pcs
BS709-062 Shock Ball End
6pcs
BS709-063 Shock Top Cover
2pcs
BS709-061 O Ring 5*8*1.5
12pcs
BS709-064 O Ring 10*6*2
12pcs
BS709-057 Shock Center Shaft/
Piston 2pcs
BS709-058 Shock Cylinders/
Adjusting ring 2pcs
BS709-059 Shock Low Cylinders/
Washers 4pcs
BS903-120 Diff Gear Shaft
6pcs
BS903-121 Shock ball head
12pcs
BS903-122 Steering Copper bush
12pcs
BS205-048 Bush 12pcs
BS205-043 Ball Head Screw
6pcs
BS903-086 Ball Bearing
(5*10*4) 2pcs
B7014W3kg Waterproof
Servo
BS903-067 (TPF3*10) Flat Cross
Screw 12pcs
BS903-070 (ISO3*10) Flat Cross
Screw 12pcs
BS903-066 (TPF3*8)Flat Cross
Screw 12pcs
BS903-083 Diff. Outdrive
D/set Screw
BS903-089 Pin(2*9.5) 12pcs BS709-002 Rr Tires Unit 2pcsB7080 2.4G Radio B7081 2.4G Receiver
BS213T& BS213R COMMON PARTS
BS709-026 Tail Wing
BS902-051 B-Head Cross Screw
(BT3*10) 12pcs
BS903-079 B-Head Cross Screw
(BM3*10) 12pcs
BS903-075 B-Head Cross Screw
(BT3*16) 12pcs
BS704-022 B-Head Cross Screw
(BM3*14) 12pcs
BS903-074 B-Head Cross Screw
(BT3*14) 12pcs
BS903-014 Ball Bearing
(φ6*φ12*4) 2pcs
BS501-067 B head hex fine pitch
screws HM4*22 12 pcs
BS501-056 B head hex fine pitch
screws HM4*12 12 pcs
BS903-093 Nylon locknut
(M4*4) 4pcs
BS301-024 PWB2.5*5.7*5.5
Screw 12pcsBS205-007 Pin 3*45 5pcs

20
BS701-007R 540 Brushless
Motor KV3421 BS701-047 45A Brushless
Waterproof Esc
BS903-117 Master Gear Unit
(steel)
BS213TPARTS
BS213R PARTS
BS213-025 Gear Shaft Unit
(zinc alloy)
BS701-008 Motor Heat Sink
BS701-036D 7.2V 1800MAH
Battery
BS701-007 550 Motor
BS213-025A Gear Shaft unit
(steel) BS213-027 Motor Gear 20T
(metal)
BS213-029A Spur Gear Unit
(steel) BS803-026 Diff. Gear Box
Unit(steel)
BS803-028 7.4V 3200 mAh
Battery (T head)
B7003W 1/10 Brushed Waterproof
Esc( Tamiya head)BS701-035 Charger for 7.2V Ni-MH
Battery
BS213-029 Spur Gear Unit
(zinc alloy)
BS213-035 Motor Gear 20T
(plastic) BS903-104 Diff. Gear Box Unit
(zinc alloy) BS903-116 Master Gear Unit
(Zinc Alloy)

21
BS213-002 Upper Susp. Arm Unit
2pcs
BS213-003 Front Transverse Drive
Shaft w/axle 2pcs BS213-005 Rear Axle 2pcs
BS213-011 C Hubs Unit L
BS213-004 Rear Transverse
Drive Shaft 2pcs
BS213-006 Rim Hub With Pin
4pcs
BS213-007 Lower Susp. Arm Unit
2pcs BS213-008 Fr.Brace BS213-009 Rear Brace BS213-010 Diff. Gearbox Bulkhead-
Upper/Lower
BS213-012 C Hubs Unit R BS213-013 Fr.Upper Desk BS213-014 Steering System Unit BS213-015 Servo Unit
BS213-016 Steering Link 4pcs BS213-017 Chassis BS213-018 Battery Cover BS213-020 Wire Mount
BS213-019 Main Upper Desk
BS213-021 Drive Shaft Unit BS213-022 Esc Case BS213-023 Motor Mount BS213-024 Gear Box Case
BS213-028 Rr. Upper Desk
BS214-001 Bumper Unit
BS213-031 Front Chassis
BS213-030 Ball Head Screw
12pcs
BS213-001 Shock Unit 2pcs
BS214T& BS214R COMMON PARTS
BS213-026 Spur Gear 55T
BS213-037 Shock under cover/
spring 2pcsBS213-038 Gear Shaft
BS213-039 Motor SupportBS213-040 Motor Mount BS213-041 Steering Support BS213-042 Steering Axis

22
BS205-043 Ball Head Screw
6pcs
BS903-086Ball Bearing
(5*10*4)2pcs
B7014W 3kg Waterproof
Servo
BS903-067 (TPF3*10) Flat Cross
Screw 12pcs
BS903-070 (ISO3*10) Flat Cross
Screw 12pcs
BS903-066 (TPF3*8)Flat Cross
Screw 12pcs BS903-083Diff. Outdrive
D/set Screw
BS903-089 Pin(2*9.5) 12pcs B70802.4G Radio B70812.4G Receiver
BS214T & BS214R COMMON PARTS
BS902-051B-Head Cross Screw
(BT3*10)12pcs
BS903-079B-Head Cross Screw
(BM3*10)12pcs
BS903-075B-Head Cross Screw
(BT3*16)12pcs
BS704-022B-Head Cross Screw
(BT3*14)12pcs
BS903-074B-Head Cross Screw
(BT3*14)12pcs
BS903-014Ball Bearing
(φ6*φ12*4) 2pcs
BS214-002 Body Mount 2pcs
BS214-003 Body(orange)
BS214-003C Body(yellow)
BS214-009 Tire Unit 2pcs
BS501-067B head hexfine pitch
screws HM4*2212 pcs
BS501-056B head hexfine pitch
screws HM4*1212 pcs
BS903-093 Nylon Self-lock
Nut(M4*4) 6PCS
BS301-024PWB2.5*5.7*5.5
Screw12pcs BS205-007Pin 3*45 5pcs
BS903-119 Diff O Ring
5*9*2 12pcs BS903-120 Diff Gear Shaft
6pcs BS903-121 Shock ball head
12pcs
BS709-057 Shock Center Shaft/
Piston 2pcs
BS709-058 Shock Cylinders/
Adjusting ring 2pcs
BS709-059 Shock low Cylinders/
Washer 4pcs
BS903-122 Steering Copper bush
12pcs
BS709-060 O Ring
6.5*3.5*1.5 12pcs
BS709-061 O Ring
5*8*1.5 12pcs
BS709-064 O Ring
10*6*2 12pcs
BS709-062Shock Ball end
6pcs
BS709-063 Shock Top Cover
2pcs BS205-048 Spacer Bush 12pcs

BS903-104 Diff. Gear BoxUnit
23
BS701-007R 540 Brushless
Motor KV3421
BS701-047 45A Brushless
Waterproof Esc
BS903-117 Master Gear Unit
(steel)
BS214TPARTS
BS214R PARTS
BS213-025 Gear Shaft Unit
(zinc alloy)
BS701-008 Motor Heat Sink
BS701-036 7.2V 1800MAH
Battery
BS701-007 550 Motor
BS213-025A Gear Shaft unit
(steel)
BS213-027 Motor Gear 20T
(metal)
BS213-029A Spur Gear Unit
(steel) BS803-026 Diff. Gear Box Unit
(steel)
BS803-028 7.4V 3200 mAh
Battery (T head)
B7003W 1/10 Brushed Waterproof
Esc( Tamiya head)
BS213-029 Spur Gear Unit
(zinc alloy)
BS213-035 Motor Gear 20T
(plastic) BS903-116 Master Gear Unit
(Zinc Alloy)
BS701-035 Charger for 7.2V Ni-MH
Battery
