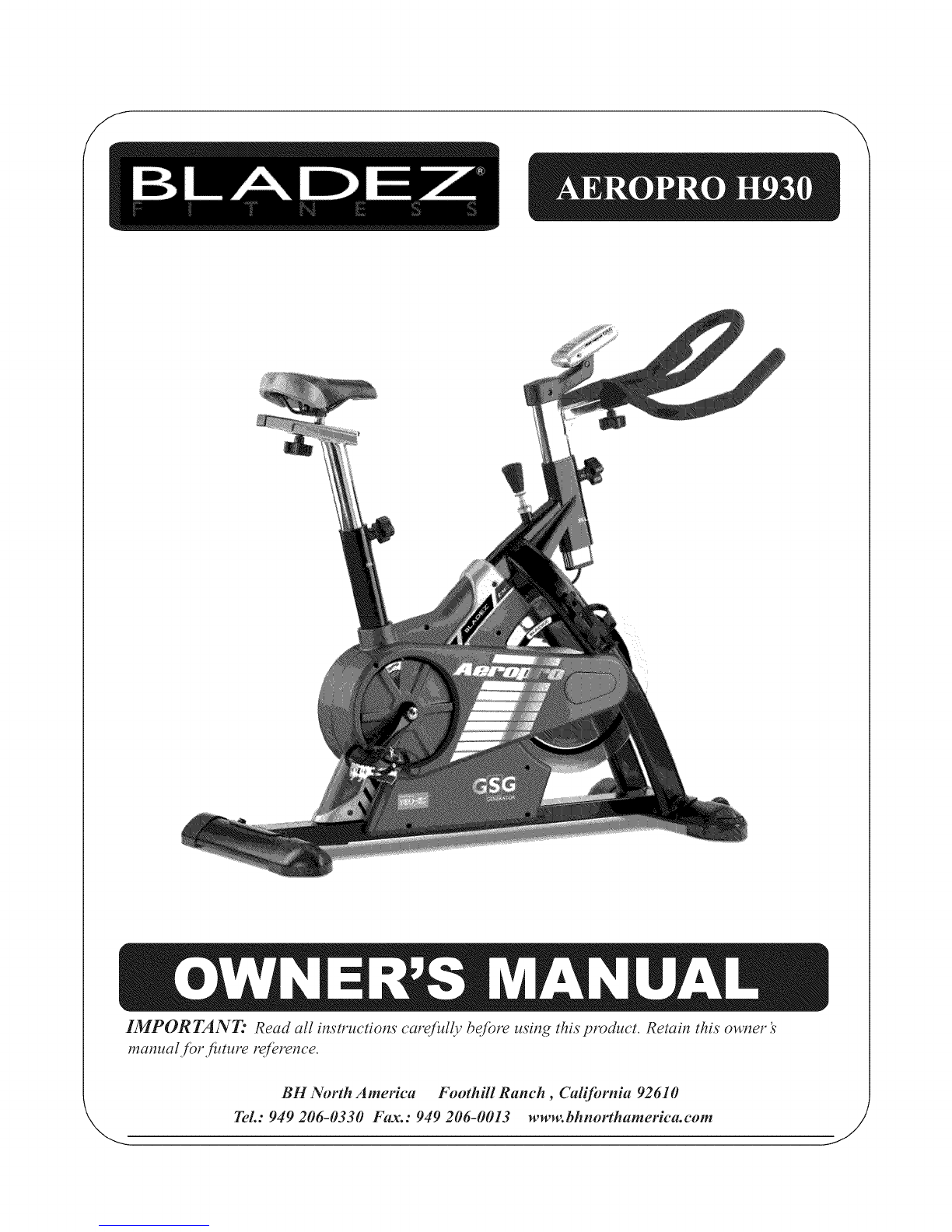

BLADEZ AEROPRO H930 User manual

IMPORTANT." Read all il_structiol_s care/idly be[bre usil_g this product Retail_ this owl_er ;s_
mamlal jbr jimlre re/'erel_c'e.
BH North America Foothill Ranch, Calif!)rnia 92610
TeL: [phone] Fax.: [phone] www.bhnorthamerica.com
\ J

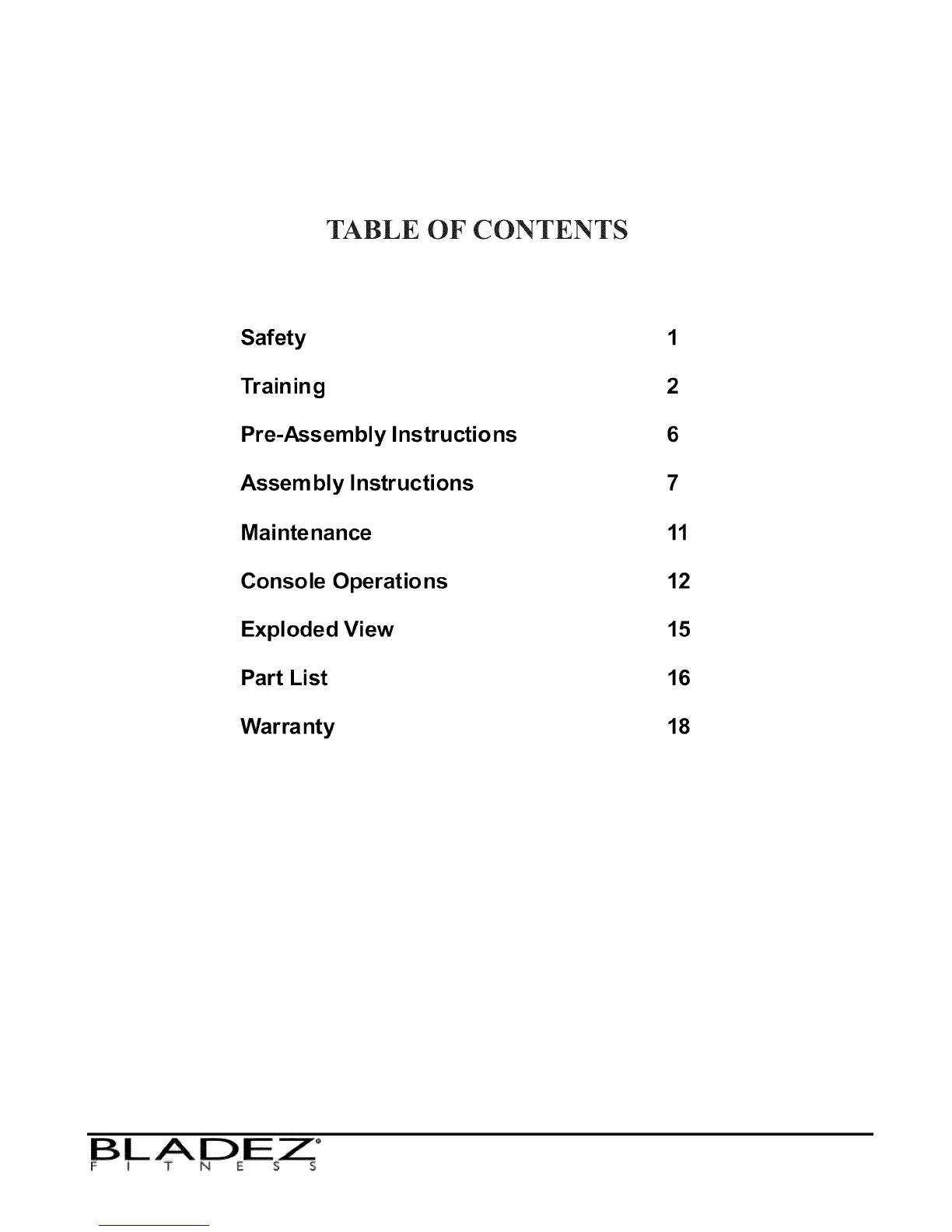

TABLE OF CONTENTS
Safety
Training
Pre-A.ssembly Instructions
Assem bly Instructions
Maintenance
Console Operations
Exploded View
Part List
Warranty
2
6
7
11
12
15
16
18
BLADEZ °

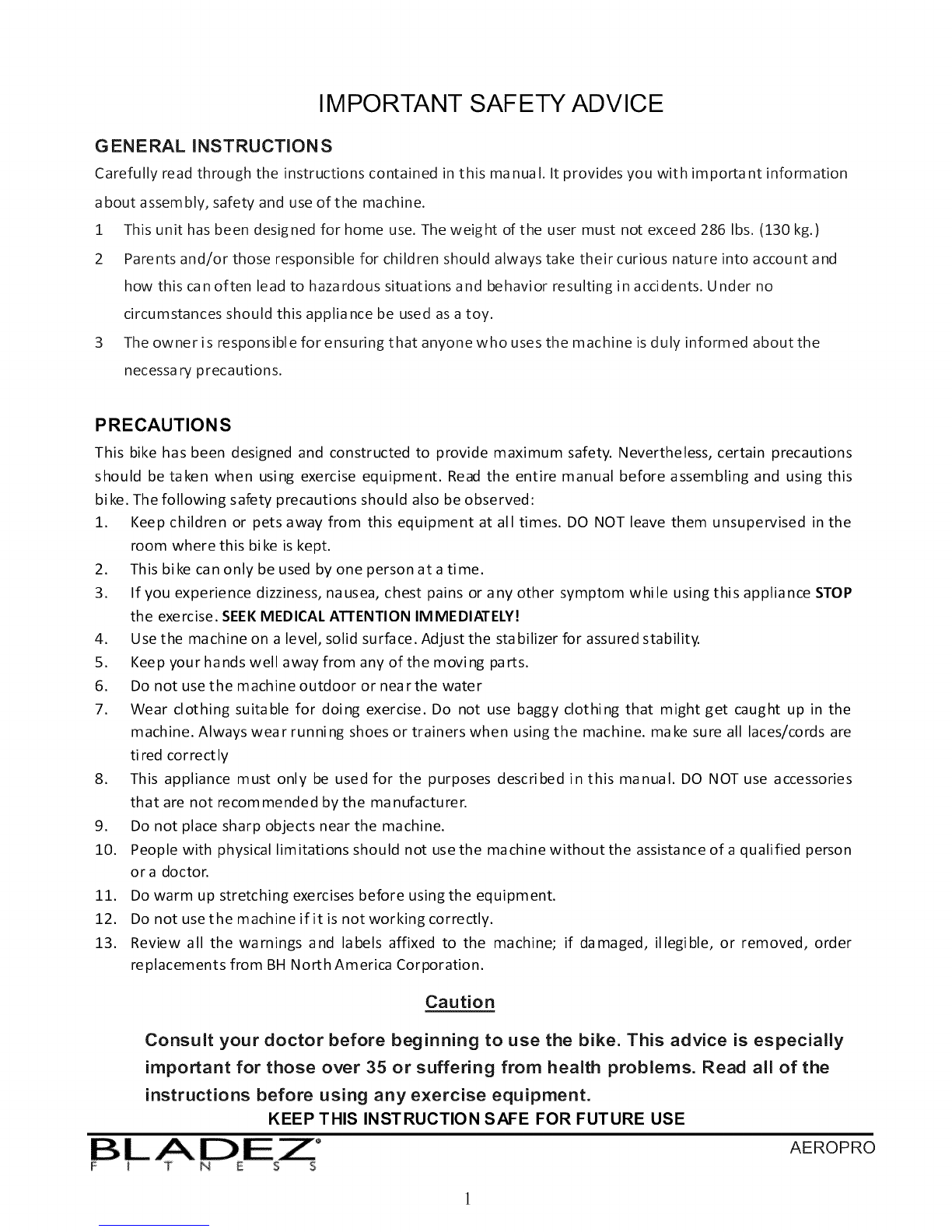

IMPORTANT SAFETY ADVICE
GENERAL INSTRUCTIONS
Carefully read through the instructions contained in this manual. It provides you with important information
about assembly, safety and use of the machine.
1 This unit has been designed for home use. The weight of the user must not exceed 286 Ibs. (130 kg.)
2 Parents and/or those responsible for children should always take their curious nature into account and
how this can often lead to haza rdous situations and behavior resulting in accidents. U nder no
circumstances should this appliance be used as a toy.
3 The owner is responsible for ensuring that anyone who uses the machine is duly informed about the
necessary precautions.
PRECAUTION S
This bike has been designed and constructed to provide maximum safety. Nevertheless, certain precautions
should be taken when using exercise equipment. Read the entire manual before assembling and using this
bike. The following safety precautions should also be observed:
1. Keep children or pets away from this equipment at all times. DO NOT leave them unsupervised in the
room where this bike is kept.
2. This bike can only be used by one person at a time.
3. If you experience dizziness, nausea, chest pains or any other symptom while using this appliance STOP
the exercise. SEEK MEDICAL ATTENTION IMMEDIATELY!
4. Use the machine on alevel, solid surface. Adjust the stabilizer for assured stability,
5. Keep your hands well away from any of the moving parts.
6. Do not use the machine outdoor or near the water
7. Wear clothing suitable for doing exercise. Do not use baggy clothing that might get caught up in the
machine. Always wear running shoes or trainers when using the machine, make sure all laces/cords are
ti red correctly
8. This appliance must only be used for the purposes described in this manual. DO NOT use accessories
that are not recommended by the manufacturer.
9. Do not place sharp objects near the machine.
10. People with physical limitations should not use the machine without the assistance of a qualified person
or a doctor.
11. Do warm up stretching exercises before using the equipment.
12. Do not use the machine if it is not working correctly.
13. Review all the warnings and labels affixed to the machine; if damaged, illegible, or removed, order
replacements from BH North America Corporation.
Caution
Consult your doctor before beginning to use the bike. This advice is especially
important for those over 35 or suffering from health problems. Read all of the
instructions before using any exercise equipment.
KEEP THIS INSTRUCTION SAFE FOR FUTURE USE
BLADEZ ° AEROPRO
F _ T N E S S

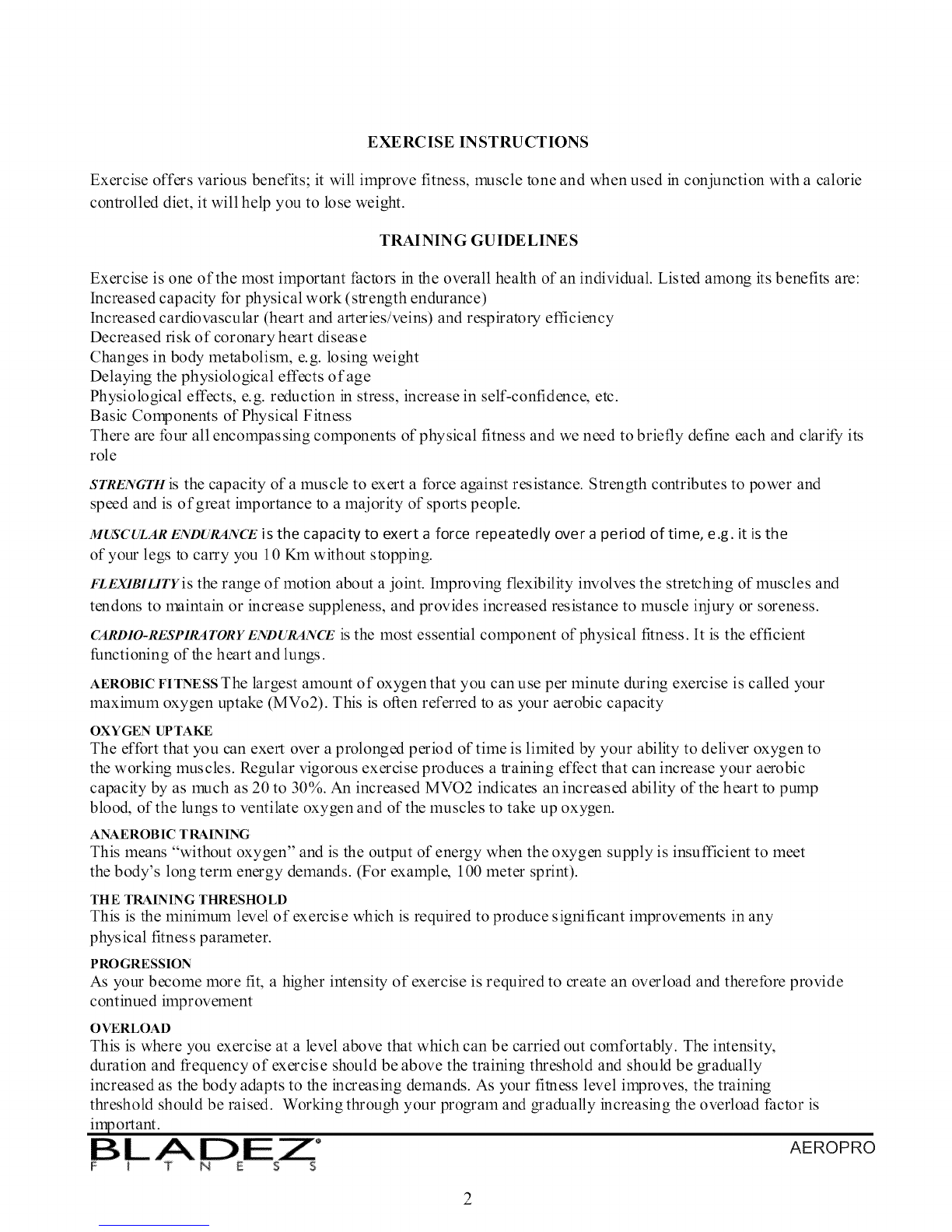

EXERCISE INSTRUCTIONS
Exercise offers various benefits; it will improve fitness, muscle tone and when used in conjunction with a calorie
controlled diet, it will help you to lose weight.
TRAI NIN G GU IDE LINE S
Exercise is one of the most important t'actors in the overall health of an individual. Listed among its benefits are:
Increased capacity for physical work (strength endurance)
Increased cardiovascular (heart and arteries/veins) and respiratory efficiency
Decreased risk of coronary heart disease
Changes in body metabolism, e.g. losing weight
Delaying the physiological effects of age
Physiological effects, e.g. reduction in stress, increase in self-confidence, etc.
Basic Components of Physical Fitness
There are four all encompassing components of physical fitness and we need to briefly define each and clarify its
role
STRENGTI1 is the capacity of a muscle to exert a force against resistance. Strength contributes to power and
speed and is of great importance to a majority of sports people.
MUSCULARENDURANCEis the capacity to exert a force repeatedly over a period of time, e.g. it is the
of your legs to carry you 10 Km without stopping.
FLlzXIBILITYis the range of motion about a joint, hnproving flexibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and provides increased resistance to muscle injury or soreness.
CARDIO-RESPIRATORY ENDURANCE is the most essential component of physical fitness. It is the efficient
functioning of the heart and lungs.
AEROBIC FITNESS The largest amount of oxygen that you can use per minute during exercise is called your
maximum oxygen uptake (MVo2). This is often referred to as your aerobic capacity
OXYGEN UPTAKE
The effort that you can exert over a prolonged period of time is limited by your ability to deliver oxygen to
the working muscles. Regular vigorous exercise produces a training effect that can increase your aerobic
capacity by as much as 20 to 30%. An increased MVO2 indicates an increased ability of the heart to pump
blood, of the lungs to ventilate oxygen and of the muscles to take up oxygen.
ANAEROB IC T RAINING
This means "without oxygen" and is the output of energy when the oxygen supply is insufficient to meet
the body's long term energy demands. (For example, 100 meter sprint).
THE TRAINING THRESHO LD
This is the minimum level of exercise which is required to produce significant improvements in any
physical fitness parameter.
PROGRESSION
As your become more fit, ahigher intensity of exercise is required to create an overload and therefore provide
continued improvement
OVERLOAD
This is where you exercise at a level above that which can be carried out comfortably. The intensity,
duration and frequency of exercise should be above the training threshold and should be gradually
increased as the body adapts to the increasing demands. As your fitness level improves, the training
threshold should be raised. Working through your program and gradually increasing the overload factor is
_ortant.
BI ADEZ ° AEROPRO
F_TNES S

TRAINING GUIDELINES (eont'd)
Sp eeifics
Different forms of exercise produce different results. The type of exercise that is carried out is specific both to
the muscle groups being used and to the energy source involved.
There is little transfer of the effects of exercise, i.e. from strength training to cardiovascular fitness. That is why
it is important to have an exercise program tailored to your specific needs.
Reversibility
If you stop exercising or do not do your program often enough, you will lose the benefits you have gained.
Regular workouts are the key to success.
Warm Up
Every exerciseprogram should start with a warm up where the body is prepared for the effort to come. It should
be gentle and preferably use the muscles to be involved later.
Stretching should be included in both your warm up and cool down, and should be performed after 3-5 minutes
of low intensity aerobic activity or callisthenic type exercise.
Warm Down or Cool Down
This involves a gradual decrease in the intensity of the exercise session. Following exercise, a large supply of
blood remains in the working muscles. If it is not returned promptly to the central circulation, pooling of blood
may occur in the muscles.
Heart Rate
As you exercise, the rate at which your heart beat increases. This is often used as a measure of taherequired
intensity of exercise. You need to exercise hard enough to condition your circulatory system, and increase your
pulse rate, but not enough to strain your heart.
Your initial level of fitness is important in developing an exercise program for you. If you are starting off you
can get a good training effect with a heart rate of 110-120 beats per minute (BPM). If you are more fit, you will
need a higher threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your maximum.
If you find this is too easy, you may want to increase it, but it is better to lean on the conservative side.
As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age, your heart, like other
muscles, loses some of its efficiency. Some of its natural loss is won back as fitness improves. The following
table is a guide to those who are "starting fitness".
Age Target heart Rate 25 ............... 35 40 ..........................45 50 ..........55....... 60 65.........................
10 Second Count 23 22 22 21 20 19 19 18 18
Beats per Minute
Pulse Count
138 132 132 126 120 114 114 108 108
The pulse count (on your wrist or carotid artery in the neck, taken with two index fingers) is done for ten
seconds, taken a few seconds after you stop exercising. This is for two reasons: (a) 10 seconds is long enough for
accuracy, (b) the pulse count is to approximate your BPM rate at the time you are exercising. Since heart rate
slows as ou recover, a loner count isn't as accurate.
BI ADEZ ° AEROPRO
F_TNESS

TRAINING GUIDELINES (cont'd)
The target is not a magic number, but a general guide. If you're above average fitness, you may work
quite comfortably a little above that suggested for your age group.
The following table is a guide to those who are keeping fit. Here we are working at about 80% of
maximu m.
Age 25 30 35 40 45 50 55 60 65
Target heart Rate
l0 Second Count 26 26 25 24 23 22 22 21 20
Beats per Minute 156 156 150 144 138 132 132 126 120
Don't push yourself too hard to reach the figures on this table. It can be very uncomfortable if you
overdo it. Let it happen naturally as you work through your program. Remember, the target is a guide,
not a rule, a little above or below is just fine.
Two final comments:(1 ) don't be concemed with day to day variations in your pulse rate, being under
pressure or not enough sleep can affect it;(2) your pulse rate is a guide, don't become a slave to it.
Muscle Soreness
For the first week or so, this may be the only indication you have that you are on an exercise program.
This, of course, does depend on your overall fitness level. A confirmation that you are on the correct
program is a very slight soreness in most major muscle groups. This is quite normal and will disappear
in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced or you have
increased your program too rapidly.
If you experience PAIN during or after exercise, your body is telling your something. Stop exercising
and COllsult your doctor.
What to Wear
Wear clothing that will not restrict your movement in any way while exercising. Clothes should be
light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you
normally would while exercising, gives you no advantage. The extra weight you lose is body fluid and
will be replaced with the next glass of water you drink. It is advisable to wear a pair of gym or running
shoes or "sneakers".
Breathing during Exercise
Do not hold your breath while exercising. Breathe normally as much as possible. Remember, breathing
involves the intake and distribution of oxygen, which feeds the working muscles.
Rest periods
Once you start your exercise program, you should continue through to the end. Do not break off
halfway through and then restart at the same place later on without going through the warm-up stage
again. The rest period required between strength trainin exercises ma var _Oln person to person.
BI ADEZ ° AEROPRO
F_TNESS

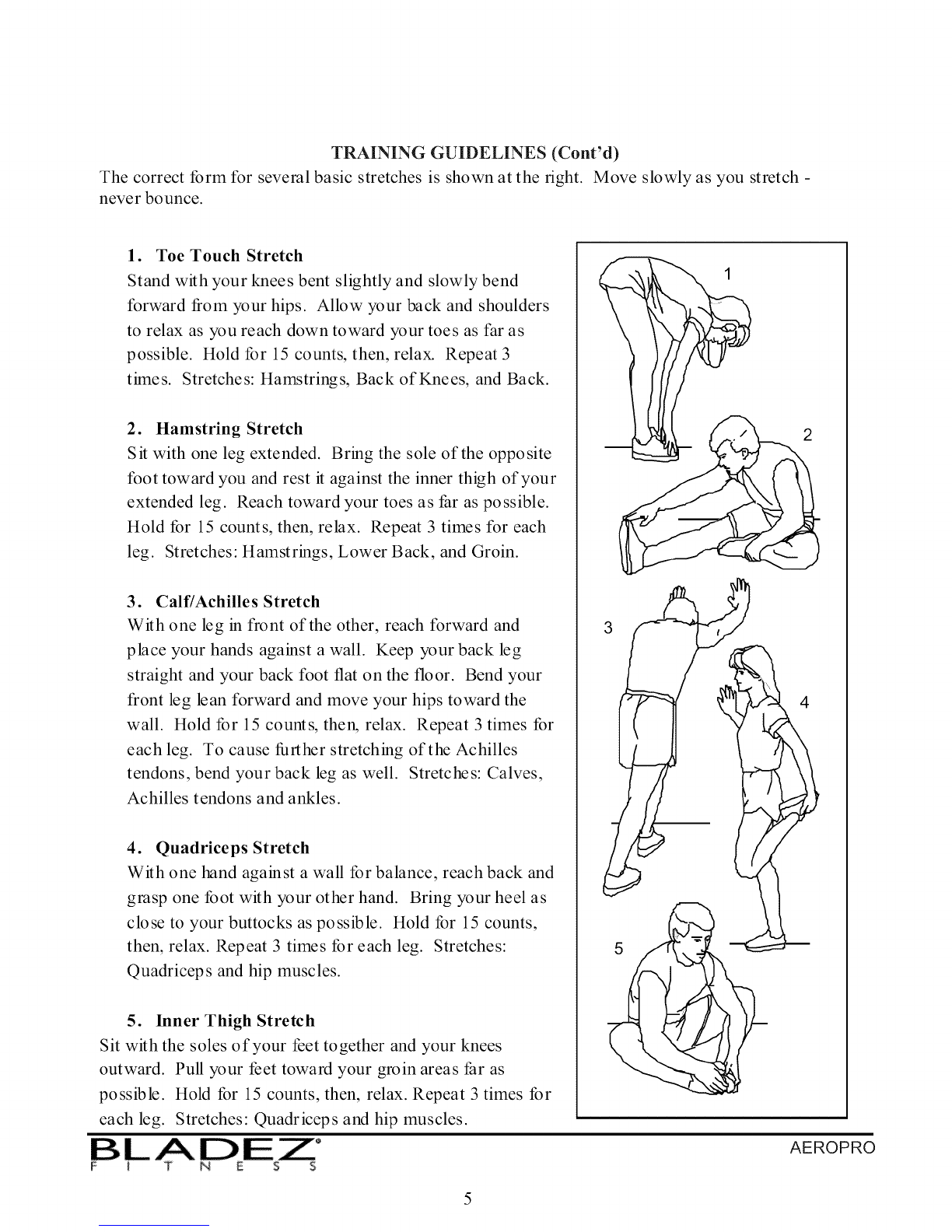

TRAINING GUIDELINES (Cont'd)
The correct form for several basic stretches is shown at the right. Move slowly as you stretch -
never bounce.
1. Toe Touch Stretch
Stand with your lcnee s bent slightly and slowly bend
forward from your hips. Allow your back and shoulders
to relax as you reach down toward your toes as far as
possible. Hold for 15 counts, then, relax. Repeat 3
times. Stretches: HaMstrings, Back of Knees, and Back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite
foot toward you and rest it against the inner thigh of your
extended leg. Reach toward your toes as far as possible.
Hold for 15 counts, then, relax. Repeat 3 times for each
leg. Stretches: Hamstrings, Lower Back, and Groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and
place your hands against a wall. Keep your back leg
straight and your back foot flat on the floor. Bend your
front leg lean forward and move your hips toward the
wall. Hold for 15 counts, then, relax. Repeat 3 times for
each leg. To cause further stretching of the Achilles
tendons, bend your back leg as well. Stretches: Calves,
Achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as
close to your buttocks as possible. Hold for 15 counts,
then, relax. Repeat 3 times for each leg. Stretches:
Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees
outward. Pull your feet toward your groin areas far as
possible. Hold for 15 counts, then, relax. Repeat 3 times for
each leg. Stretches: Quadriceps and hip muscles.
BI ADEZ °
_ T N E S S
2
4
AEROPRO

PRE-ASSEMBLY
The assistance of asecond person is recommended when assembling this unit
Take the unit out of its box and make sure all of the pieces are there (fig. 1)
Fig.1
5
4\,
\
6 50L 50R
28 122 124
157 158 2 85 159
1 Monitor
74 Main Body
4 Handlebar
6 Flat washer
122 Rear Stabilizer
50L Left pedal
157 Slotted Head bolt M10
2 Philips Head Machine Screw
3
5
28
124
50R
158
85
159
Handlebar Stem
Handlebar knob
Front Stabilizer
Seat
Right pedal
Flat washer M10
Bottle Holder
AC Adaptor
BLADEZ °
F _ T N E $ $ AEROPRO
6

A,
ASSEMBLY iNSTRUCTION
Sta bilizer Assembly
1. Position the machine's rear on the Rear Stabilizer (122) as shown in figure 2. Tighten
securely using bolts (157)and Flat washers (158).
2. Position the front Stabilizer (28)with the wheels facing forward as shown in figure 2
paying attention to the red dots. Secure with the bolts (157) and Flat washers (158)
Fig. 2 : Stabilizer Assembly
f-\
/
B. Pedals Assembly
Mounting the pedals incorrectly could damage the threads on either the pedals and/or the
crank. Therefore, the assembly instructions for the pedals must be followed to the letter.
Right and Left refer to the position that the user adopts when sitting on the seat to do the
exercises.
The Right-hand pedal, marked with the letter (50R), screws onto the right-hand crank, also
marked with an (R), in a clockwise direction. Tighten securely (Fig. 3).
The Lelt-hand pedal, marked with the letter (50L), screws onto the left-hand crank, also
marked with a letter (L), in a counter-clockwise direction. Tighten securely.
BLADEZ °
F _ T N E S $ AEROPRO

ASSEMBLY mNSTRUCTIONS {cont'd}
74
124
127
Figure 3
Left Pedal
Tightening X
Direction
C. Seat Assembly
Right Pedal
Tightening
Direction
Loosen knob (129)and slide the seat bracket (127) onto the horizontal seat tube (3).
Tighten knob (129). Attach the seat (124) onto the seat bracket (127) and tighten the nuts
on the seat securely.
Seat Height Adjustment: loosen the seat post adjustment knob (83) slightly by turning it
counterclockwise a turn or two. Move the seat up/down to a desired height and tighten
the knob in the clockwise direction
Seat Horizontal Adjustment: loosen the knob (129); move the seat to a position
D. Installing the Monitor
Remove the computer stem covers (7 &
8). Remove 4 screws (2) from the base
of the monitor (1) then connect the
terminal (14) to the terminal on the
monitor. Slide the monitor onto the
holding bracket and secure with the 4
screws removed earlier (fig. 8). Attach
the post covers (7 & 8) and tighten
screws (1 0) as in figure (9)
comfortable for doing exercise and then tighten the knob (129)
1
14 !
2:
7
i0
3
Fig. 8 Fig. 9
BLADEZ °
F _ TN E S $
3
AEROPRO

ASSEMBLY INSTRUCTIONS (cont'd)

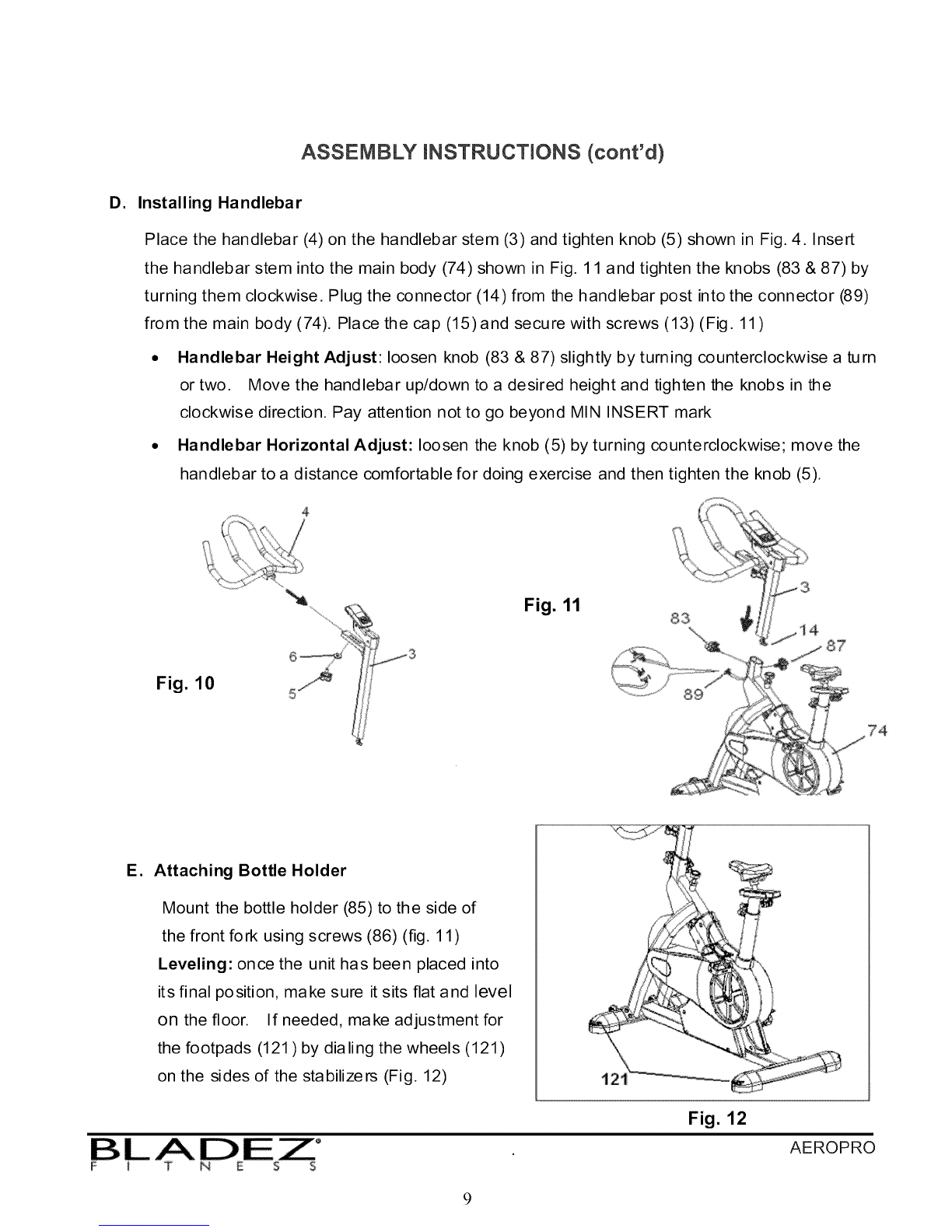

D. Installing Handlebar
Place the handlebar (4) on the handlebar stem (3) and tighten knob (5) shown in Fig. 4. Insert
the handlebar stem into the main body (74) shown in Fig. 11 and tighten the knobs (83 & 87) by
turning them clockwise. Plug the connector (14) from the handlebar post into the connector (89)
from the main body (74). Place the cap (15) and secure with screws (13) (Fig. 11 )
• Handlebar Height Adjust: loosen knob (83 & 87) slightly by turning counterclockwise a turn
or two. Move the handlebar up/down to a desired height and tighten the knobs in the
clockwise direction. Pay attention not to go beyond MIN INSERT mark
• Handlebar Horizontal Adjust: loosen the knob (5) by turning counterclockwise; move the
handlebar to a distance comfortable for doing exercise and then tighten the knob (5).
4
Fig. 10
Fig. 11
87
74
E. Attaching Bottle Holder
Mount the bottle holder (85) to the side of
the front fork using screws (86) (fig. 11)
Leveling: once the unit has been placed into
its final position, make sure it sits flat and level
on the floor. If needed, make adjustment for
the footpads (121) by dialing the wheels (121)
on the sides of the stabilizers (Fig. 12)
BLADEZ °
F _ T N E S $
\
121
Fig. 12
AEROPRO

ASSEMBLY iNSTRUCTiONS (cont'd)
Connecting Power: Mate the AC adaptor jack (c) into the plug toward the rear of the main body
(h) and the AC adaptor to a 110V wall outlet (fig. 13) to charge the backup battery.
Fig.13
Moving &Storage: the unit is equipped with wheels on the front stabilizer to make it easier to
move. Lift the rear of the unit up to put weight on the wheels then push to move (fig. 14). Store the
bike in a cool, dry place not subject to changes in temperature.
Maintenance: it is necessary to clean the handlebar, seat and frame after each exercise session
with a disinfectant spray.
Fig.14
25
BH RESERVES THE RIGHT TO MODIFY THE SPECIFICATIONS OF ITS PRODUCTS
WITHOUT PRIOR NOTICE
BLADEZ ° AEROPRO
10

MAINTENANCE INSTRUCTIONS
CLEANING
WARNING: Always unplug your elliptical prior to cleaning or servicing your unit, in order to avoid
electrical hazard or shock.
Care has been taken to assure that your machine has been properly adjusted and lubricated at the
factory. It is not recommended that the user attempt service on the internal components.
Instead, seek service from an authorized service center. However, from time to time, the outer
surfaces may appear dull or dirty. Follow the instructiolls below will restore and preserve the
original finish.
Cleaning metal surfaces may be accomplished by using a soft cotton or terry cloth rag with a
light application of car wax. Do not use aerosol spray or pump bottles as they may deposit
harmful substance on the console surface.
Over time, the console surface may collect dust or finger prints. The use of harsh chemicals will
destroy the protective coating and cause a static build up that will damage the components. This
surface may be cleaned with specially prepared chemicals found in most computer supply stores.
It is strongly recommended that you purchase such a cleaning compound.
BLADEZ ° AEROPRO
F_TNESS
ii

CONSOLE OPERATION
The console comes with 6 buttons: R(Recovery test), M(Mode), _IL (Up or Increase), _ (Reset),
t_lb (Sta rt/Stop), y(Down or Decrease).
Button Functions
MODE:
In idle mode, pressing Mode button will enter program selection.
In program, Mode button is used to confirm the selection or switch the display
UP/DOWN Scrolls: _b,Y
Scroll through programs before the workout or change resistance level during the workout.
Start/Stop:
This key is to start or to stop the exercise. If no speed signal is detected in 4 seconds, "P" is flashing
in the upper left corner. Pressing Start or pedaling above 30 rpm, all functions will resume. In idle
mode, pressing Start/Stop button to workout manually.
Re cove ry Test:
At the end of the exercise, pressing this button to test the fitness level. For a valid reading, user
must maintain pulse input during the 60 second recovery countdown test.
RESET:
Pressing Reset button will revert to the previous display. Pressing and holding for 2 seconds will
reset all functions.
Operations
Start pedaling above 30 rpm, the console will power on and flashes all elements of the LCD
momentarily.
Auto power On/Off: if there is no activity or no speed signal detected for 90 seconds, the console
automatically turns off
Programming Functions
In programming mode, a selection of MANUAL, PROGRAM, USER, H.R.C is flashing.
Use _IL_ to highlight the desired program press MODE to select
Manual Mode:
At anytime, press Start/Stop to begin exercising without entering any information. Resistance can
be changed during the workout. Alternately, press Mode to set goal (Time, Distance, Calories, and
Pulse). The parameters to be set will be flashing. Press_,_" keys to set value then press
MODE to accept. Press Start to begin the exercise.
BLADEZ ° AEROPRO
F _ T N E S S
12

CONSOLE OPERATION (cont'd)
WATT Dependent Mode
This is available in Manual Mode only. This could also be viewed as Speed dependent mode. The
resistance level will automatically adjust to match the preset WATTS value taking speed into account.
If speed is too slow, resistance would increase to maintain the WATTS value and vice versa.
Program P1 -P12:
These are the pre-program profiles. To exercise using a program, press the Up/Down arrows to
highlight P1 - P12 on the console. As you scroll through the programs, the program number (P1, P2,
etc.) is displayed for 1 second and a profile of the program will follow. To select, stop at a program
(profile) and press MODE (to cancel or go back, press RESET once). TIME, DISTANCE, CALORIES
& HEART RATE are available for setting. Use _,_" keys to set value and press MODE to accept.
When finished, press Start to begin the workout. Once the program started, the first segment of the
profile will blink. Resistance level can be adjusted and this adjustment will affect the entire profile.
User:
This is a userdesigned workout. There are 16 segments to be designed fordifferent levels or they
all could be left at the default level (lowest). To design User program, press the Up/Down arrows to
highlight USER on the console. Press Mode to enter programming mode and immediately 1st
segment of the profile is blinking waiting for changes. Use AL_ rto change the level of the blinking
segment. Move to the next segment by pressing Mode. When finished, press Start/Stop to begin
the program.
H.R.C.
H.R.C. program is short for Heart Rate Controlled program. As suggested, the exercise is mainly
driven by the instantaneous heart rate measured from the userbythe machine. There are 4 heart
rate programs available under this mode: 55%, 75%, 90% and THR. Information such as: Age, Time
Distance & Calories must be entered before the start of the exercise. Use A_'to scroll through
the selection. The target heart rate will be displayed for each preset program. Press MODE to
select a program. In THR program, user has the option to preset the heart rate value. User must
wear a wireless heart rate belt for this program to work. When finished, press Start/Stop to begin the
exercise.
BLADEZ ° AEROPRO
F _ T N E S S
13

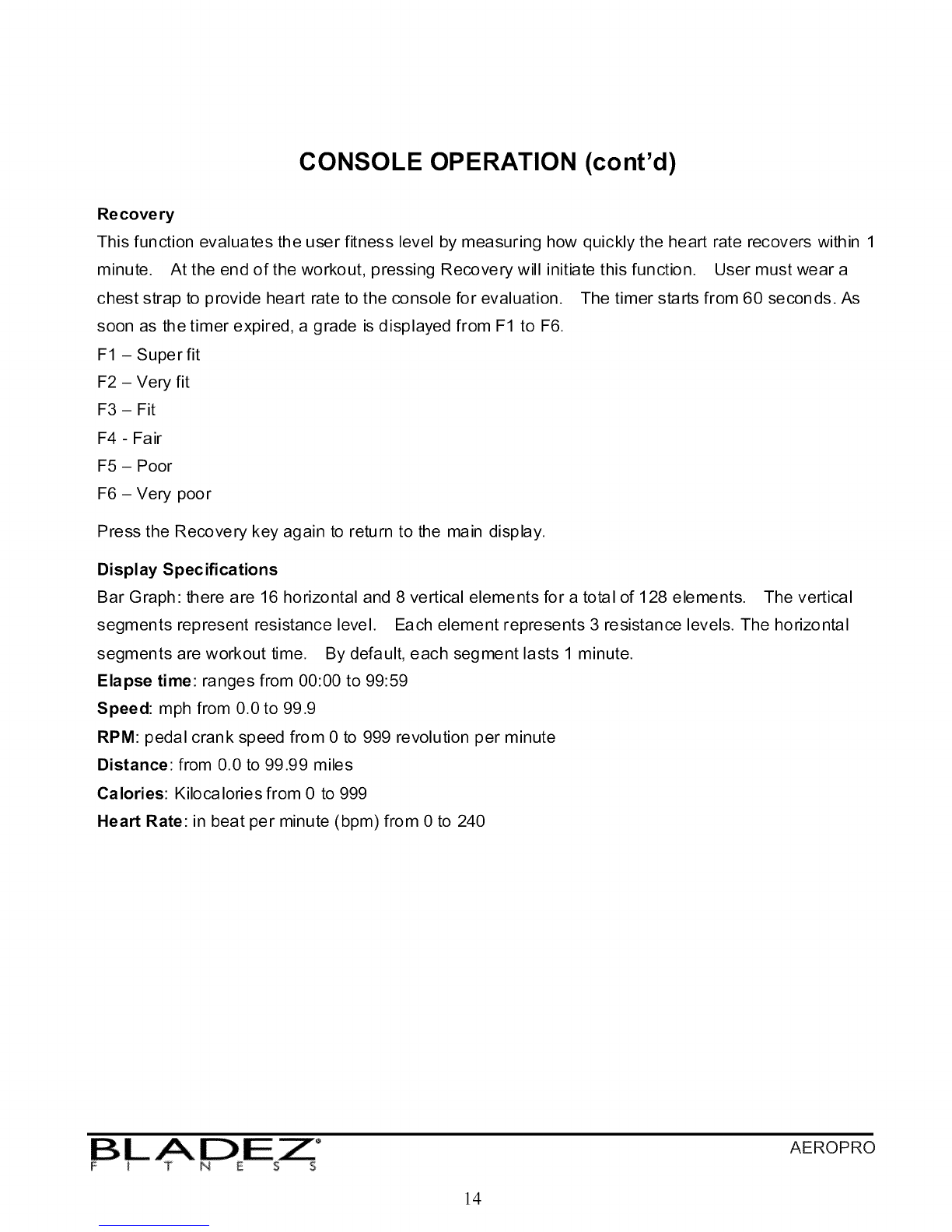

CONSOLE OPERATION (cont'd)
Re cove ry
This function evaluates the user fitness level by measuring how quickly the heart rate recovers within 1
minute. At the end of the workout, pressing Recovery will initiate this function. User must wear a
chest strap to provide heart rate to the console for evaluation. The timer starts from 60 seconds. As
soon as the timer expired, a grade is displayed from F1 to F6.
F1 - Super fit
F2 - Very fit
F3 - Fit
F4 - Fair
F5 - Poor
F6 - Very poor
Press the Recovery key again to return to the main display.
Display Specifications
Bar Graph: there are 16 horizontal and 8 vertical elements for a total of 128 elements. The vertical
segments represent resistance level. Each element represents 3 resistance levels. The horizontal
segments are workout time. By default, each segment lasts 1 minute.
Elapse time: ranges from 00:00 to 99:59
Speed: mph from 0.0 to 99.9
RPM: pedal crank speed from 0 to 999 revolution per minute
Distance: from 0.0 to 99.99 miles
Calories: Kilocalories from 0 to 999
Heart Rate: in beat per minute (bpm) from 0 to 240
BLADEZ ° AEROPRO
F _ T N E S S
14

m
0
-0
;;0
0i/
EXPLODED VIEW DRAWING
%
/
\ J \
\\
\<
hhh
f ---\

NO.
H930001
H930002
H930003
H930004
H930005
H930006
H930007
H930008
H930009
H930010
H930011
H930012
H930013
H930014
H930015
H930016
H930017
H930018
H930019
H930020
H930021
H930022
H930023
H930024
H930025
H930026
H930027
H930028
H930029
H930050
H930051
H930052
H930053
H930054
H930055
H930056
H930057
H930058
H930059
Description
1SET computer
4PCS screw for fixing computer
1PCS handlebar post
1PCS handlebar
1PCS knob for handlebar
1PCS flatwasher
1PCS handlebar post cover (left)
1PCS handlebar post cover (right)
1PCS end cap
4PCS screw
1PCS stopper
1PCS screw
3PCS screw
1PCS cable upper
1PCS end cap
2PCS screw
4PCS screw
1PCS battery box upper
1PCS battery
1PCS batterbox lower
2PCS screw
1PCS battery box holder
2PCS frontstabilizer cap
2PCS screw
2PCS transportationwheel
2PCS flatwasher
2PCS nylon nut
1SET frontstabilizer
2PCS screw
1PCS pedal
1PCS screw
3PCS crank arm (left)
1PCS crank arm (right)
1PCS chaincover (left)
1PCS chaincover (right)
1SET side cover
4PCS screw
1PCS screw
1PCS screw

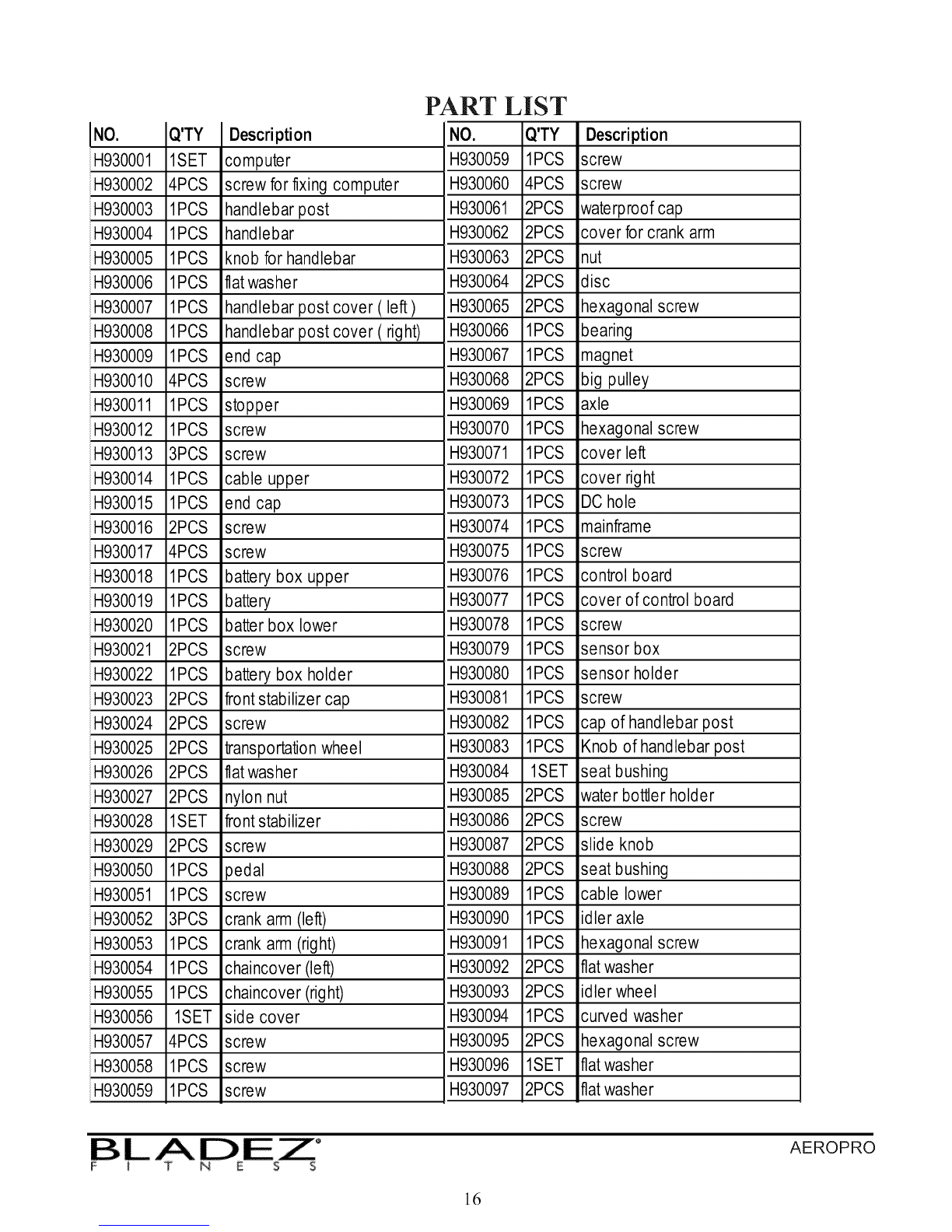

PART LIST
NO. Q'TY
H930059 1PCS
1-19300604PCS
1-19300612PCS
1-19300622PCS
1-19300632PCS
1-19300642PCS
1-19300652PCS
H930066 1PCS
H930067 1PCS
1-19300682PCS
H930069 1PCS
H930070 1PCS
H930071 1PCS
H930072 1PCS
H930073 1PCS
H930074 1PCS
H930075 1PCS
1-19300761PCS
H930077 1PCS
H930078 1PCS
H930079 1PCS
1-19300801PCS
H930081 1PCS
1-19300821PCS
1-19300831PCS
1-1930084 1SET
1-19300852PCS
1-19300862PCS
1-19300872PCS
1-19300882PCS
H930089 1PCS
1-19300901PCS
H930091 1PCS
1-19300922PCS
1-19300932PCS
H930094 1PCS
1-19300952PCS
1-19300961SET
1-19300972PCS
Description
screw
screw
waterproof cap
cover for crank arm
nut
disc
hexagonal screw
bearing
magnet
big pulley
axle
hexagonal screw
cover left
cover right
DC hole
mainframe
screw
control board
cover of control board
screw
sensor box
sensor holder
screw
cap of handlebar post
Knob of handlebar post
seat bushing
water bottler holder
screw
slide knob
seat bushing
cable lower
idler axle
hexagonal screw
flatwasher
idler wheel
curved washer
hexagonal screw
flatwasher
flatwasher
BLADEZ"
F _ T N E S $ AEROPRO
16

PART LIST
NO. Q'TY
H930098 1PCS
H930099 1PCS
H930100 1PCS
H930101 1PCS
H930112 4PCS
H930113 3PCS
H930114 1PCS
H930115 2PCS
H930116 2PCS
H930117 1PCS
H930118 1PCS
H930119 1PCS
H930120 1PCS
H930121 1PCS
H930122 1PCS
H930123 6PCS
H930124 2PCS
H930125 2PCS
H930126 1PCS
H930127 1PCS
H930128 1PCS
H930129 8PCS
H930130 8PCS
H930131 1PCS
H930132 1PCS
H930133 1PCS
H930134 1PCS
H930135 1PCS
H930136 1PCS
H930137 1PCS
H930138 6PCS
H930139 1PCS
H930140 1PCS
H930141 3PCS
H930142 2PCS
H930143 1PCS
H930144 2PCS
H930145 1PCS
H930146 1PCS
Description
nylon nut
hexagonal screw
holder of spring
spring
gear box set H9301
hexagonal screw H9301
spring washer H9301
flatwasher H9301
flatwasher H9301
bushing H9301
adjustor of flywheel H9301
screw for fixing gear box H9301
hexagonal screw H9301
adjusting cap
rear stabilizer
screw
saddle
cap
screw
seat slider
flatwasher
knob of seat post
seat post
knob of brake
nut
fixing tubing
spring
spring of brake
screw
bushing
U-shape socket
screw
platic bushing
bushing
nylon nut
flatwasher
flatwasher
pole of brake
screw
NO.
H930147
H930148
H930149
H930150
51
52
53
54
55
56
57
58
59
H930160
H930161
H930162
H930163
H930164
H930165
H930166
H930167
H930168
H930169
H930170
H930171
H930172
H930173
H930174
H930175
H930176
H930177
H930178
H930179
Q'TY
1PCS
1PCS
1PCS
1PCS
1PCS
2PCS
2PCS
1PCS
1PCS
1PCS
8PCS
8PCS
1PCS
1SET
2PCS
1PCS
1PCS
1PCS
1PCS
2PCS
4PCS
3PCS
4PCS
4PCS
1PCS
1PCS
2PCS
2PCS
1PCS
2PCS
1PCS
1PCS
1PCS
Description
screw
holder of brake set
brake set
driving belt
screw
bushing
bearing
flywheel
bracket of two way bearing
flywheel axle
screw
flatwasher
AC adaptor
driving belt
bearing
NGPflywheel
bearing
bushing
flywheel axle
magnetof NGPsystem
holder
coil
nut
hexagonal nut
hexagonal nut
hexagonal nut
chain
bushing
idle wheel
flatwasher
idler axle
flatwasher
hexagonal screw
BLADEZ °
F _ TNES $ AEROPRO
17

WARRANTY
LIMITED ONE (1)YEAR PARTS AND LABOR
For ONE (1) YEAR from date of purchase, by original consumer purchaser, BH North America will
repair or replace, at its option, free of charge parts and/or labor which are defective as a result of
material or workmanship with the exception of any cosmetic component which will be covered for
NINETY (90) days from the date of purchase. Any component that is a customer point of assembly
will only be replaced; labor is not covered.
LIFETIME: FRAME
BH Fitness warrants the Frame against defects in workmanship and materials for lifetime from the
date of original purchase, so long as it remains in the possession of the original owner.
COMMERCIAL OR RENTAL USE
If a Bladez product is used for commercial or rental purposes the warranty is void.
THIS WARRANTY DOES NOT COVER
• Pre-delivery set-up
• Components that require replacement due to dirt or lack of regular maintenance
• Expendable items which become worn during normal use.
• Repairs necessary because of operator abuse or negligence or the failure to operate and
maintain the equipment according to the instructions contained in the Owner's Manual.
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]; Toll Free: 866-325-2339; Fax: [phone]
Email: fitness@ bhnortha me rica.com
Web: www.b hno rthamerica.co m
Mon- Fri 8am-5pm PST
This warranty applies only while this product is in use in Canada.
This warranty is in addition to any statutory warranty and does not exclude or limit legal rights you
may have but shall run concurrently with applicable provincial legislation. Furthermore, some
provinces do NOT allow limitation on how long an implied warranty will last so the above limitations
may not apply.
BLADEZ ° AEROPRO
F _ T N E S S
18
