BLADEZ KZ1 User manual

OWNER’S MANUAL
CAUTION: Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied as they
relate to the equipment.
IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s
manual for future reference.
BIKE KZ1
BH North America Foothill Ranch, California 92610

TABLE OF CONTENTS
Assembly Instructions…………………........5
Maintenance…………………………............9
Troubleshooting……..………………………10
Exploded View ………....................................11
Parts List ………………….............................12
Safety…….............................………….…......1
Warranty……..………………………............13
Pre-Assembly Instructions…….....................3

IMPORTANT SAFETY ADVICE
PRECAUTIONS
This bike has been designed and constructed to provide maximum safety. Nevertheless,
certain precautions should be taken when using exercise equipment. Read the whole manual
before assembling and using the bike. The following safety precautions should also be
observed:
1. Keep children or pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where this bike is kept.
2. It can only be used by one person at a time.
3. If you experience dizziness, nausea, chest pains or any other symptom while using this
appliance STOP the exercise. SEEK MEDICAL ATTENTION IMMEDIATELY!
4. Use the unit on a place mat or level and solid surface.
5. Keep your hands well away from any of the moving parts.
6. Wear clothing suitable for doing exercise. Do not use baggy clothing that might get caught
up in the bike. Always wear running shoes or trainers when using the machine.
7. This appliance must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by the manufacturer.
8. Do not place sharp objects near the machine.
9. Disabled people should not use the machine without the assistance of a qualified person or
a doctor.
10.Do warm up stretching exercises before using the equipment.
11. Do not use the bike if it is not working correctly.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE
1
12.Review all the warnings affixed to the machine and replace the labels if damaged, illegible,
13.Functional and visual inspections of the equipment shall be made after assembly is complete.
14.Don’t exceed the MAX mark when you’re adjusting the handlebar post or seat post.
or removed. You can obtain the labels from BH North America Corp.

IMPORTANT SAFETY ADVICE
15. Spinning pedals can cause injury.
16. Before using the bike, thoroughly inspect the bike for proper assembly.
17. A perimeter distance of 3 feet / 1meter is required before operating the unit.
18. User must adjust the seat and handlebars to the user’s height requirements.
19. Do not ride the bike in a standing position.
20. The bike should only be used for the home. Not meant for commercial use.
21. Before every use please examine brake pads for signs of wear.
Brake pads are susceptible to damage and should be replaced over time.
22. This bike is not suitable for therapeutic use. Consult a physician prior to starting an exercise
Caution: Consult your doctor before beginning to use the bike. This advice is especially
important for those over 35 or suffering from health problems. Read all of the instructions
before using any exercise equipment.
Please be sure the adjustment knob is locked tight and seat and handlebars are secure.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com
Toll Free: [phone]
Mon - Fri 8am - 5pm PST
FOR WARRANTY REPAIR
PLEASE DO NOT TAKE YOUR BIKE
BACK TO THE RETAIL STORES!
CONTACT BLADEZ FITNESS FIRST
2
program.
23. This bike should only be used after a thorough review of the operation manual and the
labels.warning

GENERAL INSTRUCTIONS
Carefully read through the instructions contained in this manual. It provides you with important
information about assembly, safety and use of the machine.
1. This unit has been designed for home use. The weight of the user must not exceed 255 lbs.
(116 kg.)
2. Keep your hands well away from any of the moving parts.
3. Parents and/or those responsible for children should always take their curious nature into
account and how this can often lead to hazardous situations and behavior resulting in
accidents. Under no circumstances should this appliance be used as a toy.
4. The owner is responsible for ensuring that anyone who uses the machine is duly informed
about the necessary precautions.
5. Your unit can only be used by one person at a time.
6. Use suitable clothing and footwear. Make sure all laces/cords are tied correctly.
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com
Toll Free: [phone]
Mon - Fri 8am - 5pm PST
1 PC
S6
1 PC
Note: Use these tools only for this exercise bike.
PRE-ASSEMBLY INSTRUCTIONS
FOR WARRANTY REPAIR
PLEASE DO NOT TAKE YOUR BIKE
BACK TO THE RETAIL STORES!
CONTACT BLADEZ FITNESS FIRST
3
PRE-ASSEMBLY

ASSEMBLY
4

ASSEMBLY INSTRUCTIONS
STEP 1
Attach the front stabilizer (2) to the main frame (1) and secure with carriage bolts
(43), washers (44), and dome nuts (45).
STEP 2
Attach the rear stabilizer (3) to the main frame (1) and secure with carriage bolts
(43), washers (44), and dome nuts (45).
5

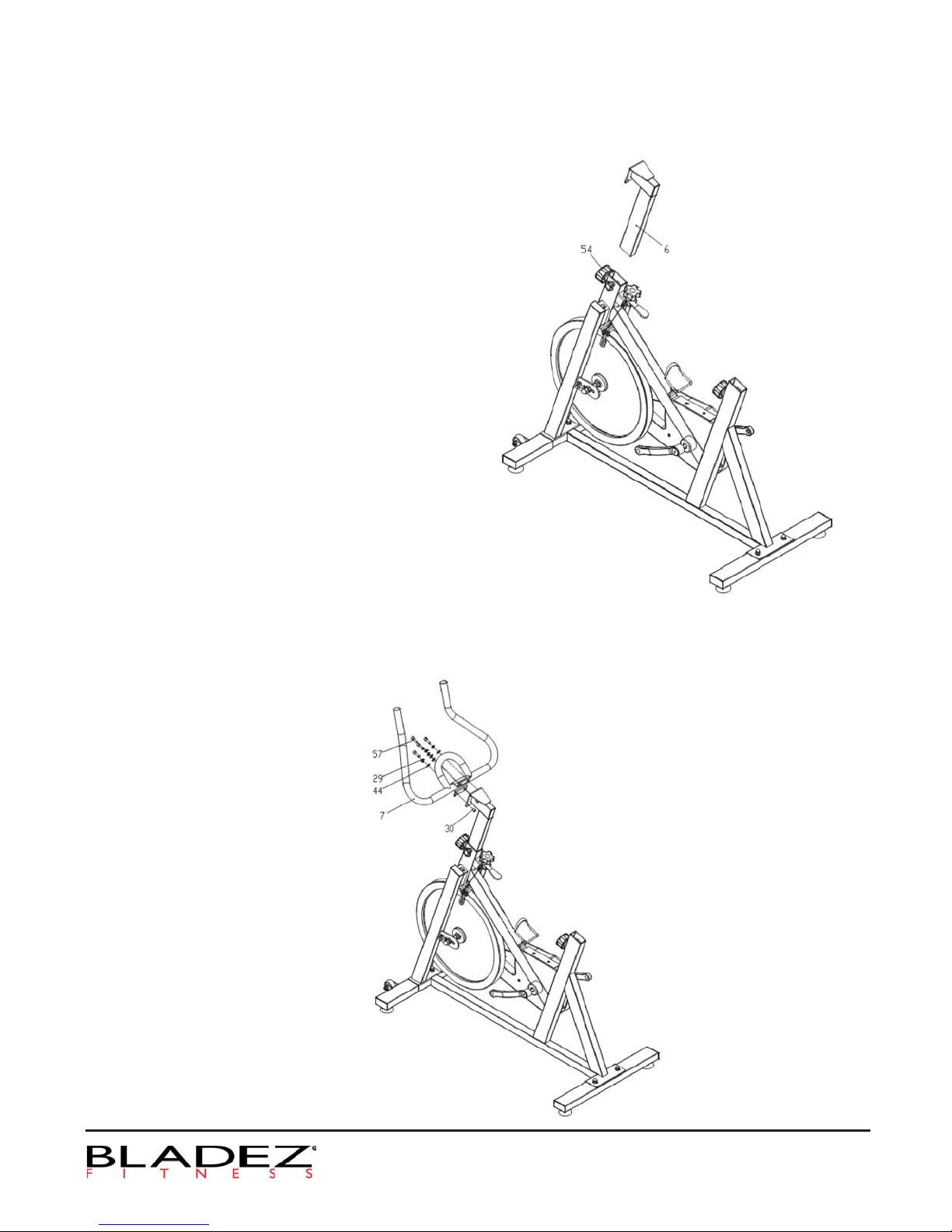

STEP 3.
Slide the handlebar post (6) into the main
frame (1) and tighten the adjustable plastic
knob (54) to secure.
STEP 4
Attach the handlebar (7) to the main frame (1) and secure it with bolts (57),
washers (29).
ASSEMBLY INSTRUCTIONS
6

ASSEMBLY INSTRUCTIONS
STEP 5.
Slide the seat post (4) into the main
frame (1) and secure it with the
adjustable plastic knob (54).
STEP 6
Attach the seat (36) to the
seat bar (5). Slide the seat
bar (5) into the seat post (4)
and tighten the adjustable
plastic knob (54) to secure
7

ASSEMBLY INSTRUCTIONS
8

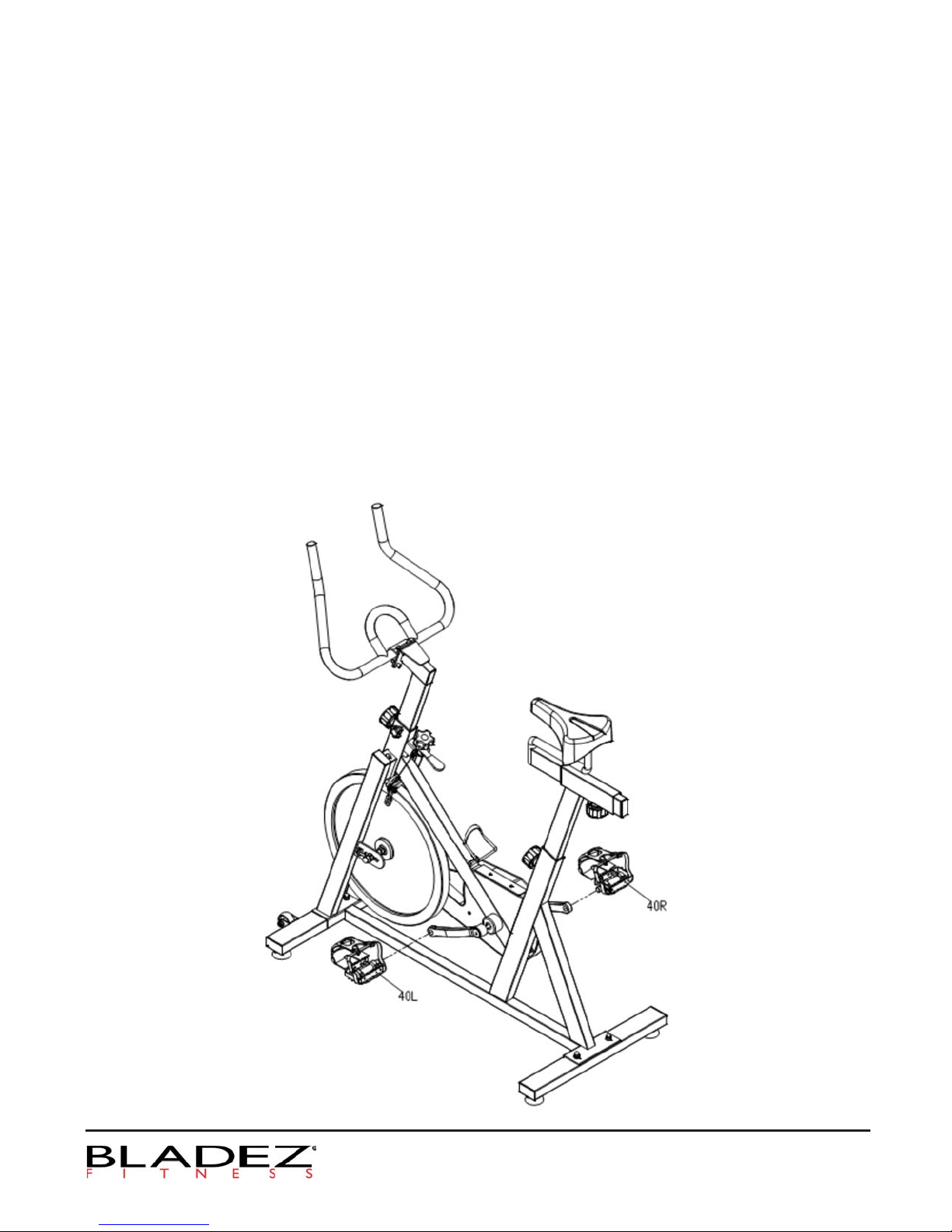

STEP 7.
Left or right, manually thread the pedal (40) onto the crank arm toward
the front of the bike at first until tight. Then, tighten further with wrench.
The right-hand pedal, marked with the letter (R),screws onto the right-hand crank, also
marked with an (R), should be tightened in a clockwise direction (toward the front).
The left-hand pedal, marked with the letter (L),screws onto the left-hand crank, also
marked with an (L), in a counter clockwise direction (toward the front).
Failure to follow the directions can result in damage to either the crank or the pedal threads.

MAINTENANCE INSTRUCTIONS
CLEANING
9
Care has been taken to assure that your bike has been properly adjusted and lubricated at the
factory. It is not recommended that the user attempt service on the internal components instead
seek service from an authorized service center. However, from time-to-time the outer surfaces
may appear dull or dirty. Following the instructions listed below will restore and preserve the
original finish. Cleaning metal surfaces may be accomplished by using a soft cotton or terry
cloth rag with a light application of car wax. Do not use aerosol sprays or pump bottles as they
may deposit wax on the console surface. The use of harsh chemicals will destroy the protective
coating and cause a static build up that will damage the components. This surface may. be
cleaned with specially prepared chemicals found in most computer supply stores especially
made for anti- static surfaces. It is strongly recommended that you clean with such a cleaning
compound.

TROUBLE SHOOTING
10
RESISTANCE ADJUSTMENT:
Pedaling resistance is controlled by the tension (adjustable) plastic knob. Properly adjusting the seat
will help reducing the risk of injury and ensure maximum exercise efficiency and comfort. The most
appropriate position while using this bike is while one pedal in the downward position, the other leg
is slightly bent at the knee. To adjust the seat height, simply turn the adjustable knob loose; then pull
the knob to move the seat up or down to the desired height.
HOW TO LEVEL THE BIKE:
There are a total of 4 footpads under the rear and front stabilizer. Adjust these pads when the bike is
not level with the floor.
HANDLEBAR ADJUSTMENT:
The handlebar could also be adjusted to different heights.
Please adjust the seat height first then adjust the proper height of the handlebar.
CHAIN ADJUSTMENT:
The chain on your bike has been pre-adjusted and should not require immediate attention.
Continuous use of the bike may cause the chain to stretch or become loose prompting the need for
chain adjustments. If so, simply loosen the bolts on both side of the flywheel and pull forward until
the chain becomes tight and, secure the bolts
INSPECTION INSTRUCTIONS
1.The safely level of the equipment can only be maintained
if it is regularly examined for damage and/or wear and tear.
2. Care must be taken when lifting or moving the equipment so
as not to cause injury. To move the bike, lift the bike by the
rear stabilizer until the weight is transferred completely to the
front rollers and then move. Alternately, stand in front; press
the
3. The brake pad is most susceptible to wear. Before
exercising inspect braking system for functionality.
4. Please check if all warning labels are in good condition
and legible. Order new labels if necessary
handlebar downward to raise the rear up until the weight
transferred to the front rollers and then move

EXPLODED VIEW
11

PARTS LIST
12
No. D escrip tion Size Qty No. Descri pt ion S ize Qty
1 Main frame 1 37 Crank Shaft 1
2 Front stabilizer 1 38 Spacer for crank 1
3 Rear stabilizer 1 39 Crank 1
4 Seat post 1 40 Pedal 1
5 Seat post 1 41 Adjustable foot 4
6 Front post 1 42 Adjustable nut 5
7 Handlebar 1 43 Carriage bolt M8x40 4
8 Nut M12x1 2 44 Washer Φ8 8
9 Chain adjust screw M6 2 45 Nut M8 4
10 Nylon nut M6 3 46 Nylon nut M10 2
11 Hex nut M12x1 5 47 Washer Ø10 2
12 Washer Φ12 3 48 Moving wheel 2
13 Bearing 6001 2 49 Hex bolt M10x45 2
14 Protection cover 1 50 End cap 60x30 4
15 Break 1 51 Tension knob M8x55
16 Caliper brake M6x75 1 52 Emergency brake
17 Brake pad 2 53 Nylon nut M8 1
18 Freewheel 1 54 Adjustable knob M16x1.5 3
19 Flywheel 1 55 Knob M8x12 1
20 Axle 1 56 Washer Ø6 1
21 Bushing Φ17xφ12x6 1 57 Inner hex bolt M8x20 4
22 Bushing Ø14xø12x19 1 58 Bottle holder 1
23 Screw St4.2x20 4 59 Inner hex bolt M5x12 2
24 Chain cover 1 60
25 Chain 1 61 Bushing 60x30x1.5x19
03
26 End cap for crank 2 62 End cap 50x25x1.5 2
27 Hex bolt M8x20 2 63 End cap 53x23x1.5 2
28 Sprocket 1
29 Spring washer 4
30 Caps for screw 4
32 Screw St4.2x10 2
33 Inner chain cover 1
34 Screw St4.2x12 4
35 Special fixer 2
36 Saddle 1

13
WARRANTY
LIMITED ONE (1) YEAR PARTS AND LABOR
For ONE (1) YEAR from date of purchase, by original consumer purchaser, BH North America will
repair or replace, at its option, free of charge parts and /or labor which are defective as a result of
material or workmanship with the exception of any cosmetic component which will be covered for
NINETY (90) days from the date of purchase. Any component that is a customer point of assembly
will only be replaced; labor is not covered.
COMMERCIAL OR RENT AL USE
If a Bladez product is used for commercial or rental purposes the warranty is void.
THIS WARRANT Y DOES NOT COVER
·Pre-delivery set-up
·Components that require replacement due to dirt or lack of regular maintenance
·Expendable items which become worn during normal use.
·Repairs necessary because of operator abuse or negligence or the failure to operate
and maintain the equipment according to the instructions contained in the Owner’s
Manual.
BH North America Corporation
20155 Ellipse
Foot hill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.bhnorthamerica.com
Mon - Fri 8am - 5pm PST
This warranty applies only while this product is in use in the U.S.A.
This warranty is in addition to any statutory warranty and does not exclude or limit legal rights you
may have but shall run concurrently with applicable state legislation. Furthermore, some states do
NOT allow limitation on how long an implied warranty will last so the above limitations may not
apply.
FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE
YOUR MACHINE BACK TO THE RETAIL STORES.
CONTACT BLADEZ FITNESS FIRST!
