BLADEZ Countdown User manual

OWNER’S MANUAL
CAUTION: Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied as they
relate to the equipment.
IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s
manual for future reference.
Countdown Bike
BH North America Foothill Ranch, California 92610

TABLE OF CONTENTS
Assembly Instructions…………………........5
Maintenance…………………………............9
Troubleshooting……..………………………10
Exploded View ………....................................11
Parts List ………………….............................12
Safety……………….…...................................1
Warranty……..………………………............13
Hardware Package Contents………..............3
Pre-Assembly……...........................................4

IMPORTANT SAFETY ADVICE
PRECAUTIONS
This bike has been designed and constructed to provide maximum safety. Nevertheless,
certain precautions should be taken when using exercise equipment. Read the whole manual
before assembling and using the bike. The following safety precautions should also be
observed:
1. Keep children or pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where this bike is kept.
2. It can only be used by one person at a time.
3. If you experience dizziness, nausea, chest pains or any other symptom while using this
appliance STOP the exercise. SEEK MEDICAL ATTENTION IMMEDIATELY!
4. Use the unit on a mat placed level, solid surface. Adjust the stabilizer for assure stability.
5. Keep your hands well away from any of the moving parts.
6. Wear clothing suitable for doing exercise. Do not use baggy clothing that might get caught
up in the bike. Always wear running shoes or trainers when using the machine.
7. This appliance must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by the manufacturer.
8. Do not place sharp objects near the machine.
9. Disabled people should not use the machine without the assistance of a qualified person or
a doctor.
10.Do warm up stretching exercises before using the equipment.
11. Do not use the bike if it is not working correctly.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE
1
12.The bike’s spinning parts may cause serious injuries if caution is not used.
13.
The exercise bike should only be used after a thorough review of the operation manual
and it’s warning label.

IMPORTANT SAFETY ADVICE
14. A perimeter distance of 3 feet / 1meter is required before operating the unit.
15. User must adjust the seat and handlebars to the user’s height requirement.
16. Do not ride the bike in a standing position.
17. The bike should only be for the home use (Consumer Use Only) - Not meant for
18. Before every use please examine brake pads for signs of wear. Brake pads are
susceptible to damage and should be replaced over time.
19. This bike is not suitable for therapeutic use.
CAUTION: Consult your doctor before beginning an exercise program use bike.
This advice is especially important for those over 35 or suffering from health problems.
Read all of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com
Toll Free: [phone]
Mon - Fri 8am - 5pm PST
FOR WARRANTY REPAIR
PLEASE DO NOT TAKE
BIKE BACK TO THE RETAIL STORE!
CONTACT BLADEZ FITNESS FIRST
YOUR
2
commercial use. Functional and visual inspections of this equipment shall be
Please be sure the adjustment knob is locked tightDo not exceed MAX mark.
and seat and handlebars are secure.
performed after assembly is completed.

GENERAL INSTRUCTIONS
Carefully read through the instructions contained in this manual. It provides you with important
information about assembly, safety and use of the machine.
1. This unit has been designed for home use. The weight of the user must not exceed 255 lbs.
(116 kg.)
2. Keep your hands well away from any of the moving parts.
3. Parents and/or those responsible for children should always take their curious nature into
account and how this can often lead to hazardous situations and behavior resulting in
accidents. Under no circumstances should this appliance be used as a toy.
4. The owner is responsible for ensuring that anyone who uses the machine is duly informed
about the necessary precautions.
5. Your unit can only be used by one person at a time.
6. Use suitable clothing and footwear. Make sure all laces/cords are tied correctly.
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com
Toll Free: [phone]
Mon - Fri 8am - 5pm PST
FOR WARRANTY REPAIR
PLEASE DO NOT TAKE
YOUR BIKE BACK TO RETAIL STORE
CONTACT BLADEZ FITNESS FIRST
S6
1 PC 1 PC
HARDWARE PACKAGE / TOOLS
Note: Use the tools only for this exercise bike.
PRE-ASSEMBLY INSTRUCTIONS
3

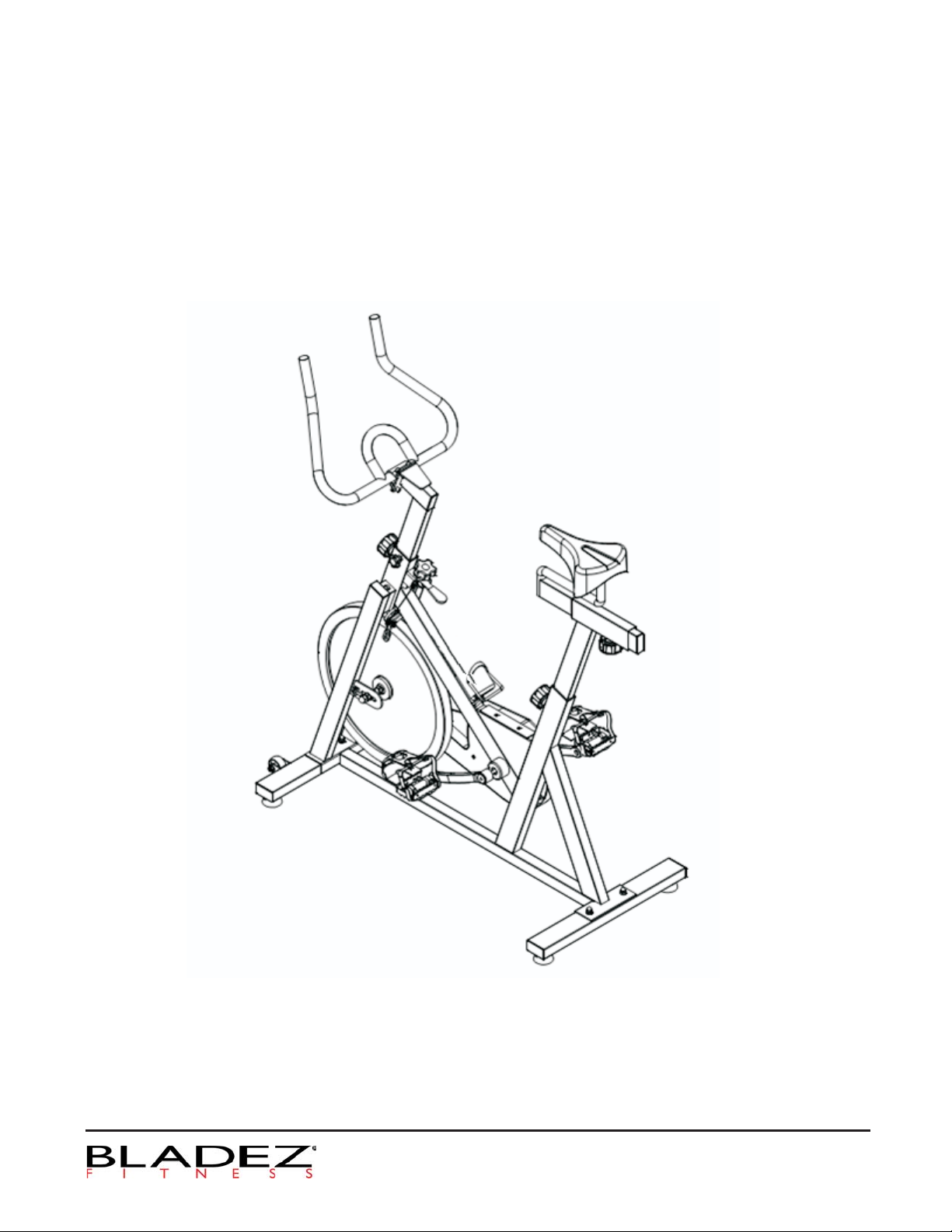

ASSEMBLY
4
If you are missing parts or require information on how to
operate this product please call 1-949-206-0330

ASSEMBLY INSTRUCTIONS
STEP 1

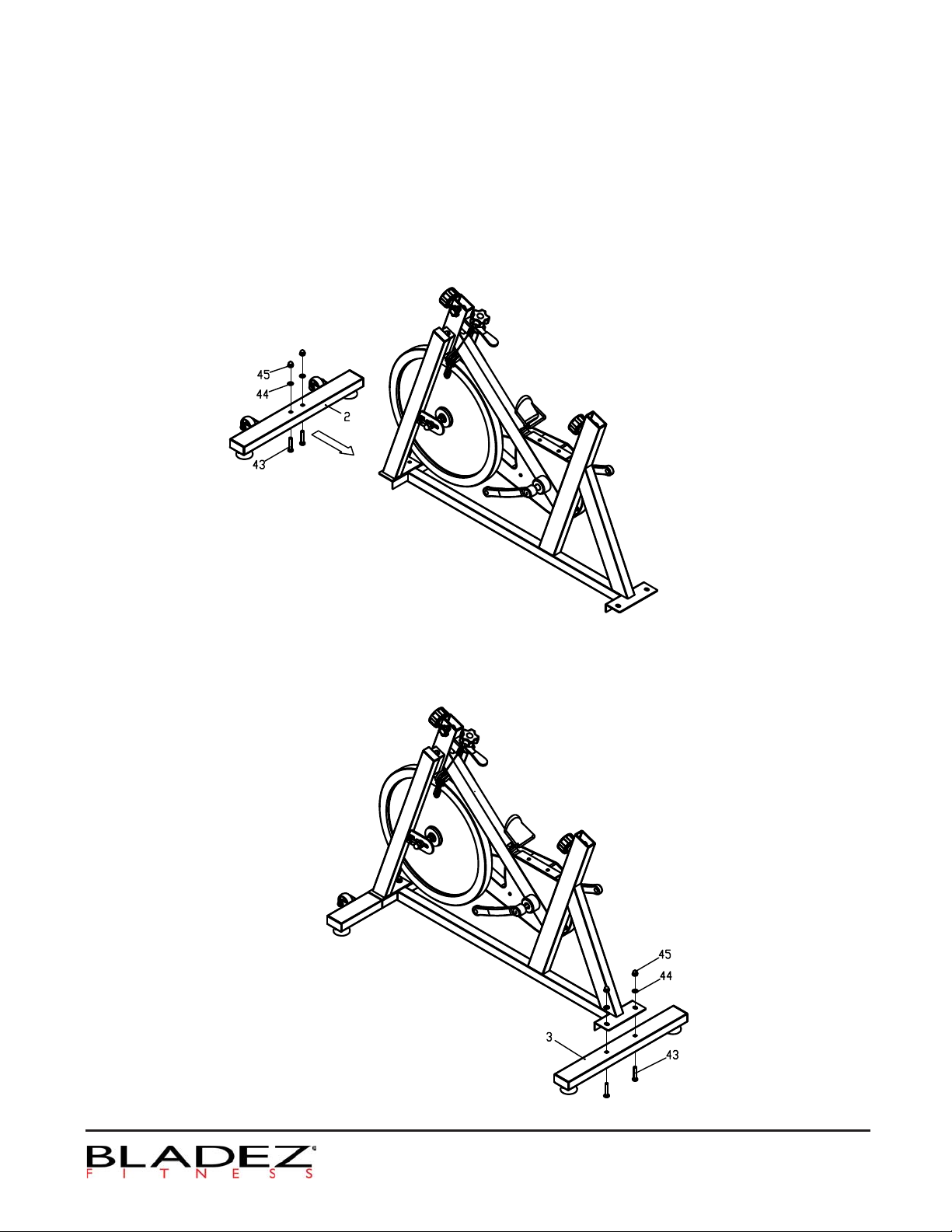

Secure front stabilizer (2) to main frame (1) and attach it with carriage bolts
(43), washers (44), and dome nuts (45).
STEP 2
Secure rear stabilizer (3) to main frame (1) and attach it with carriage bolts
(43), washers (44), and dome nuts (45).
5

ASSEMBLY INSTRUCTIONS (cont’d)
STEP 3.
Slide the handlebar post (6) into the main frame (1) and
tighten the plastic adjustable knob (54) to secure
STEP 4
Attach the handlebar (7) to the main frame (1) and
attach it with bolts (57), washers (29).
6

STEP 5.

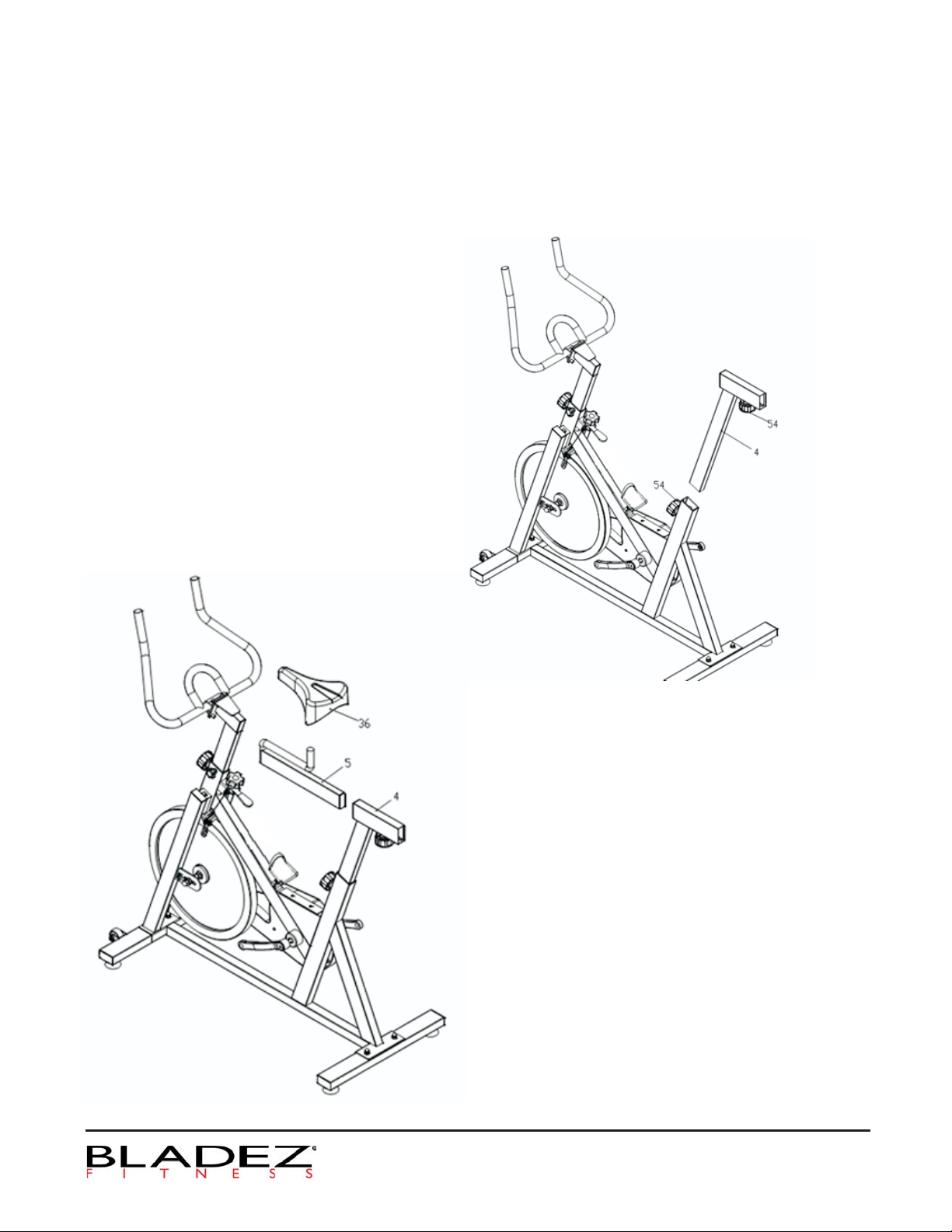

Slide the seat post (4) into the main frame (1)
and attach it with the plastic adjustable knob
(54).
STEP 6
Securely attach the seat (36) to the seat bar
(5). Slide the seat bar (5) into the seat post (4)
and tighten the plastic adjustable knob (54) to
secure
7
ASSEMBLY INSTRUCTIONS (cont’d)

STEP 7.
The right-hand pedal, marked with the letter (R),screws onto the right-hand crank, also
marked with an (R), in a clockwise direction till tight.
The left-hand pedal, marked with the letter (L),screws onto the left-hand crank, also
marked with an (L), in a counter clockwise direction till tight.
Failure to follow the directions can result in damage to either the crank or the pedal threads.
8
ASSEMBLY INSTRUCTIONS (cont’d)
Tightening
Direction
Tightening
Direction

MAINTENANCE INSTRUCTIONS
CLEANING
9
Care has been taken to assure that your bike has been properly adjusted and
lubricated at the factory. It is not recommended that the user attempt service on
the internal components. Instead, seek service from an authorized service center.
However, from time to time, the outer surfaces may appear dull or dirty. Follow
the instructions below will restore and preserve the original finish.
Cleaning metal surfaces may be accomplished by using a soft cotton or terry cloth
rag with a light application of car wax. Do not use aerosol spray or pump bottles
as they may deposit harmful substance on the console surface.
Over time, the console surface may collect dust or finger prints. The use of harsh
chemicals will destroy the protective coating and cause a static build up that will
damage the components. This surface may be cleaned with specially prepared
chemicals found in most computer supply stores. It is strongly recommended that
you purchase such a cleaning compound.

TROUBLESHOOTING
10
RESISTANCE ADJUSTMENT:
Pedaling resistance is controlled by the tension knob. Properly adjusting the seat will help reduce
the risk of injury and ensure maximum exercise efficiency and comfort. The appropriate position
while using this bike is when one pedal is in the bottom position, the other leg is slightly bent at the
knee. To adjust the seat height simply turn the adjustable knob loose, then pull the knob to move the
seat up or down to the desired height (there are different seat height positions for adjustment).
To adjust the seat position turn the adjustable knob loose then pull the knob to move the seat
forward or backward to the right position.
HANDLEBAR ADJUSTMENT:
There are different handlebar heights that can be adjusted.
Please adjust the seat height first then adjust the proper height of handle bar to match the seat.
CHAIN ADJUSTMENT:
The chain on has been pre-adjusted and should not require immediate attention. Continuous use of
the bike may cause the chain to stretch or become loose prompting the need for chain adjustments.
If so, simply loosen the bolts on both side of flywheel and pull forward until the chain becomes tight.
HOW TO LEVEL THE BIKE:
There are 4 knobs under the rear and front stabilizers. Adjust the knobs to achieve level and stability
for the bike.

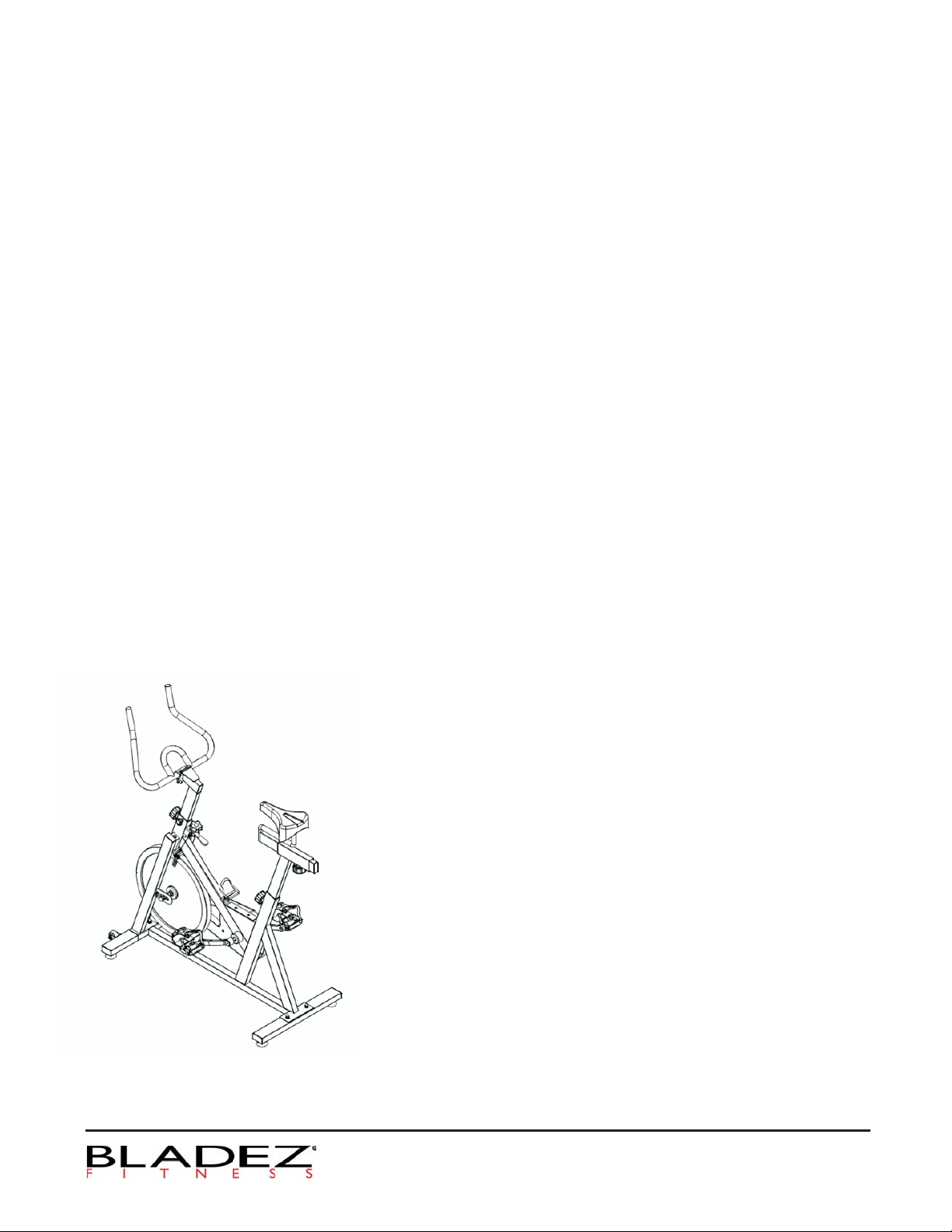

MAINTENANCE INSTRUCTION
1. The safely level of the equipment can only be maintained if it
is regularly examined for damage and/or wear and tear.
2.
3. The brake pad is most susceptible to wear. Before
Exercising inspect braking system for functionality.
Care must be taken when lifting or moving the equipment so
as not to cause injury. To move the bike, lift the bike by the
rear stabilizer until the weight is transferred completely to the
front rollers and then move. Alternately, stand in front; press
the handlebar downward to raise the rear up until the weight
transferred to the front rollers and then move

PARTS LIST
KEY NO. DESCRIPTION SIZE QTY KEY NO. DESCRIPTION SIZE QTY
1MAIN FRAME 1 37 BB PARTS 1
2FRONT
STABILIZER
3REAR STABILIZER 1
39 CRANK 1
4SEATPOST 1
40 PEDALS 2
5SEATBAR 1
41 ADJUSTABLE FOOT 4
6FRONTPOST 1
42 ADJUSTABLE NUT 5
7HANDLEBAR 1
43 CARRIAGE BOLT M8X40 4
8NUT M12X1 2
44 WASHER Φ8 8
9CHAIN
ADJUSTABLE
SCREW M6 2
45 NUT M8 4
10 NYLON NUT M6 3
46 NYLON NUT M10 2
11 HEX NUT M12X1 5
47 WASHER Ø10 2
12 WASHER Φ12 3
48 MOVING WHEEL 2
13 BEARING 6001 2
49 HEX BOLT M10X45 2
14
PROTECTION
COVER 1
50 END CAP M60X30 4
15 BRAKE 1
51 TENSION KNOB M8X55
16 CALIPER BRAKE M6X75 1
52 EMERGENCY BRAKE
17 BRAKE PAD 2
53 NYLON NUT M8
1
18 FREEWHEEL 1
54 ADJUSTABLE KNOB M16X1.5 3
19 FLYWHEEL 1
55 KNOB M8X12 1
20 AXLE 1
56 WASHER Ø6 1
21 BUSHING Φ17XΦ12 1
57 INNER HEX BOLT M8X20 4
22 BUSHING Ø14XØ12 1
58 BOTTLE HOLDER 1
23 SCREW ST4.2X20 4
59 INNER HEX BOLT M5X12 2
24 CHAIN COVER 1
25 CHAIN 1
61 BUSHING M60X30X1.5X19 3
26
END CAP FOR
CRANK 2
27 HEX BOLT M8X20 2
28 SPROCKET 1
29 SPRING WASHER 4
30 CAPS FOR
SCREW 4
32 SCREW ST4.2X10 2
33 INNER CHAIN
COVER 1
34 SCREW ST4.2X12 4
35 SPECIAL FIXER 2
36 SEAT 1
11
1
1
62 END CAP M50X20X1.5 2
63 END CAP M53X23X1.5 2
1

EXPLODED VIEW
12

13
WARRANTY
LIMITED ONE (1) YEAR PARTS AND LABOR
For ONE (1) year from date of purchase, by original consumer purchaser, BH North America will
repair or replace, at its option, free of charge parts and /or labor which are defective as a result of
material or workmanship with the exception of any cosmetic component which will be covered for
NINETY (90) days from the date of purchase. Any component that is a customer point of assembly
will only be replaced; labor is not covered.
COMMERCIAL OR RENTAL USE
If a Bladez product is used for commercial or rental purposes the warranty is void.
THIS WARRANTY DOES NOT COVER
·Pre-delivery set-up
·Components that require replacement due to dirt or lack of regular maintenance
·Expendable items which become worn during normal use.
·Repairs necessary because of operator abuse or negligence or the failure to operate and
maintain the equipment according to the instructions contained in the Owner’s Manual.
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.bhnorthamerica.com
Toll Free: 866-325-2339
Mon - Fri 8am - 5pm PST
This warranty applies only while this product is in use in the U.S.A. and Canada.
This warranty is in addition to any statutory warranty and does not exclude or limit legal rights you
may have but shall run concurrently with applicable provincial legislation. Furthermore, some
provinces do NOT allow limitation on how long an implied warranty will last so the above limitations
may not apply.
FOR WARRANTY REPAIR PLEASE DO NOT TAKE
THE BIKE BACK TO THE RETAIL STORE
CONTACT BLADEZ FITNESS FIRST

Guide de l'utilisateur
Countdown Cardiovélo
BH North America Foothill Ranch, California 92610
PRUDENCE : Un exercice fatigant, comme on le fait ordinairement sur un cardiovélo, ne doit
être entrepris sans d’abord consulter un médecin. Aucune prétention à l’égard de la santé
n’est énoncée ou sous-entendue à l’égard de l’appareil.
IMPORTANT: Veuillez lire les directives attentivement avant d’utiliser le produit. Conservez
le guide pour le consulter plus tard.

TABLE DES MATIÈRES
Directives pour assembler……………………………….....5
Entretien……………………………......................................9
Dépannage……..……………………………………………10
Dessin éclaté …………...........................................................11
Liste des pièces …………………….......................................12
Sécurité……………………….……….…….........................1
Garantie……..…………………………................................13
Contenu de l'emballage de la quincaillerie…………..........3
Préassemblage……………………........................................4

1
IMPORTANT CONSEILS DE SÉCURITÉ
MESURES DE PRÉCAUTION
Ce cardiovélo a été conçu et construit de manière à offrir une sécurité maximale.
Néanmoins, des mesures de précaution doivent être prises lorsqu’on s’en sert pour
s’entraîner. Lisez le présent guide en entier avant d’assembler et d’utiliser le cardiovélo.
Les mesures de précaution ci-dessous doivent être observées :
1. Tenir les enfants et les animaux éloignés de cet appareil en tout temps. NE
PAS les laisser sans surveillance dans la pièce où se trouver le vélo.
2. Une seule personne peut l’utiliser à la fois.
3. Si vous éprouvez des étourdissements, des nausées, des douleurs à la
poitrine ou tout autre symptôme durant votre entraînement, CESSEZ les
exercices. CONSULTEZ IMMÉDIATEMENT UN MÉDECIN !
4. Utilisez le cardiovélo sur un tapis placé sur une surface solide et à niveau.
Réglez le stabilisateur pour assurer la stabilité.
5. Tenir les mains très éloignées des pièces en mouvement.
6. Portez des vêtements qui conviennent aux exercices. Ne portez pas de
vêtements amples qui pourraient s’accrocher dans le vélo. Portez toujours
des chaussures de course ou d’entraîneurs lorsque vous faites du cardiovélo.
7. Cet appareil ne doit servir qu’aux fins décrites dans le présent guide.
N’UTILISEZ aucun accessoire non recommandé par le fabricant.
8. Ne placez aucun objet pointu près du vélo.
9. Les personnes handicapées ne doivent pas utiliser ce vélo sans la présence
d’une personne compétente ou d’un médecin.
10. Faites des exercices de réchauffement avant d’utiliser le vélo.
11. N’utilisez pas le cardiovélo s’il ne fonctionne pas correctement.
VEUILLEZ CONSERVER CES DIRECTIVES POUR LES
CONSULTER PLUS TARD

2
IMPORTANT CONSEILS DE SÉCURITÉ (suite)
12. La rotation des pédales peut causer des blessures.
13. Avant d’utiliser le cardiovélo, assurez-vous soigneusement qu’il a été correctement
assemblé.
14. Une distance d’un perimètre de 1 mètre/3 pieds est nécessaire pour le fonctionnement
du vélo.
15. L’utilisateur doit régler le siège et le guidon à sa taille. Ne pas dépasser la marque de max.
16. Ne conduisez pas le cardiovélo en position debout.
17. Le cardiovélo ne doit servir qu’à la maison. Il n’est pas fabriqué pour l’utilisation commerciale.
18. Avant chaque utilisation, veuillez examiner les coussinets des freins pour des signes
d’usure. Les coussinets des freins sont susceptibles aux dommages et doivent être
remplacés avec le temps.
19. Ce cardiovélo ne convient pas à une utilisation thérapeutique.
VEUILLEZ CONSERVER CE GUIDE POUR LE
CONSULTER PLUS TARD
POUR LES RÉPARATIONS GARANTIES,
VEUILLEZ NE PAS RAPPORTER VOTRE
CARDIOVÉLO À MAGASIN DE DÉTAIL!
CONTACTEZ D’ABORD BLADEZ FITNESS
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Téléphone : 949 206-0330
Télécocpieur : 949 206-0013
Courriel : [email protected]
Site Web: www.bhnorthamerica.com
Sans frais : 866 325-2339
Du lundi au vendredi, de 8 à 17 heures, HP
Assurez-vous que le bouton de réglage soit bien serré et que le siège et le guidon soient
solidement réglés.
L’inspection ponctionnelle et visuelle de l’equipment est a eppectuee apres
complet.
l’assemblage

1 PC
S6
1 PC
CONTENU DE L'EMBALLAGE DE LA QUINCAILLERIE/DES OUTILS
Note : N'utilisez ces outils pour que l'assemblage de ce cardiovélo.
3
DIRECTIVES PRÉ-ASSEMBLAGE
Lisez attentivement toutes les directives contenues dans ce Guide. Elles vous communiquent
d’importantes informations sur l’assemblage, la sécurité et l’usage de l’appareil.
1. Cet appareil a été conçu pour des exercices à domicile uniquement. Le poids de
l’utilisateur ne doit pas être supérieur à 255 lb (116 kg).
2. Tenez les mains éloignées de toutes les pièces mobiles.
3. Les parent et/ou personnes responsables d’enfants doivent se rappeler que les enfants
sont curieux de nature et que cela pourrait susciter un comportement susceptible de
provoquer des accidents. Cet appareil ne doit jamais être utilisé comme un jouet.
4. Le propriétaire est tenu de s’assurer que quiconque utilise l’appareil soit dûment renseigné
à l’égard de toutes les mesures de précautions nécessaires.
5. Une seule personne peut utiliser l’appareil à la fois.
6. Veuillez toujours porter des vêtements et des chaussures convenables. Assurez-vous tous
les lacets soient lacés comme il faut.
POUR LES RÉPARATIONS GARANTIES,
VEUILLEZ NE PAS RAPPORTER VOTRE
CARDIOVÉLO À MAGASIN DE DÉTAIL!
CONTACTEZ D’ABORD BLADEZ FITNESS
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Téléphone : 949 206-0330
Télécocpieur : 949 206-0013
Courriel : [e-mail]
Site Web: www.bhnorthamerica.com
Sans frais : 866 325-2339
Du lundi au vendredi, de8à17heures,HP
