BLADEZ R400 User manual

OWNER’S MANUAL
R400
FOR SERVICE PLEASE CONTACT BLADEZ FITNESS
TOLL FREE: 866-325-2339
Important: Read all instructions carefully before using this product. Retain this owner’s manual for future reference.
Bladez Fitness | 20155 Ellipse, Foothill Ranch, California 92610 | p.949.206.0330 | f.949.206.0013 | www.BladezFitness.com

TABLE OF CONTENTS
Title Page
Introduction 03
Safety Information 04
Exercise Instruction 05
Training Guidelines 06
Suggested Stretches 10
Assembly Instructions 12

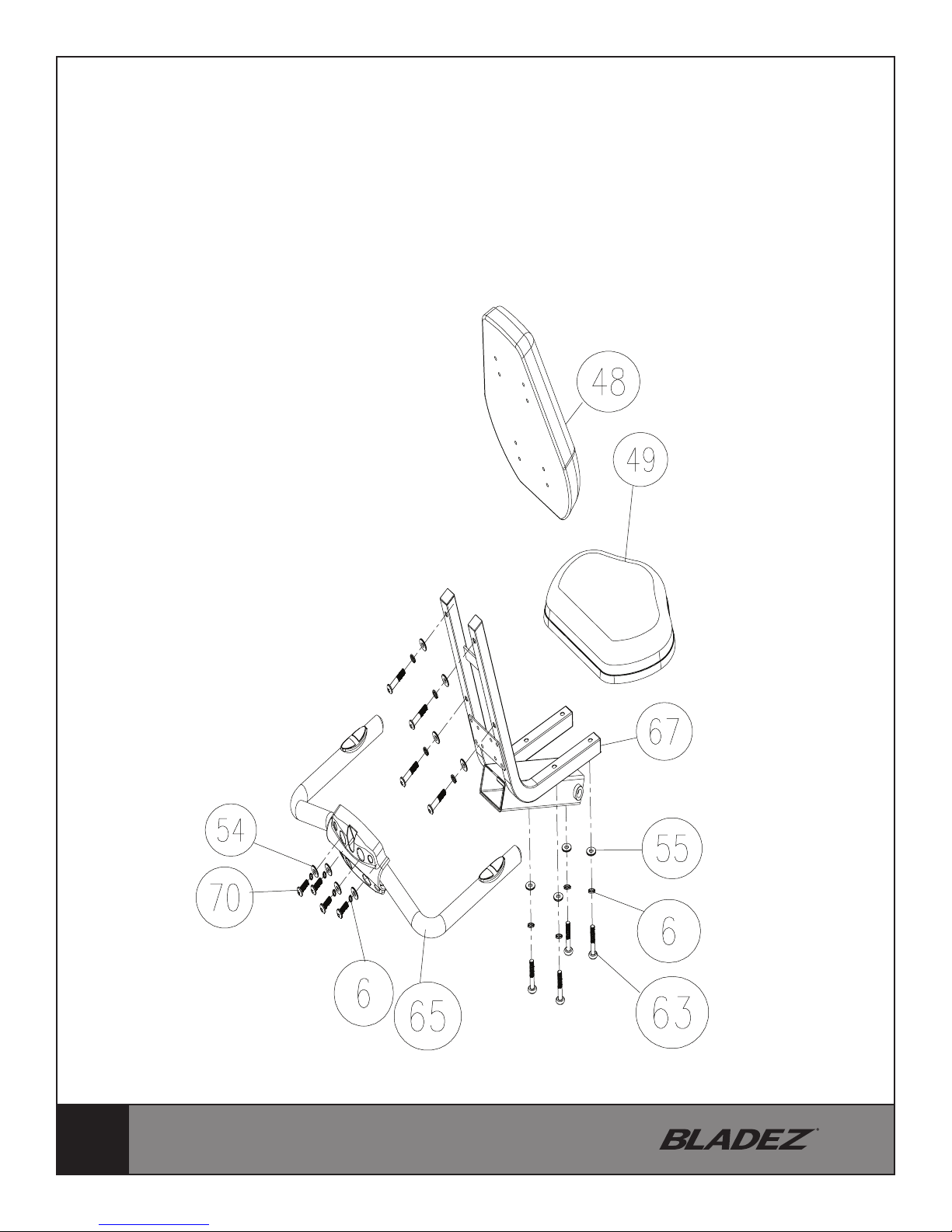

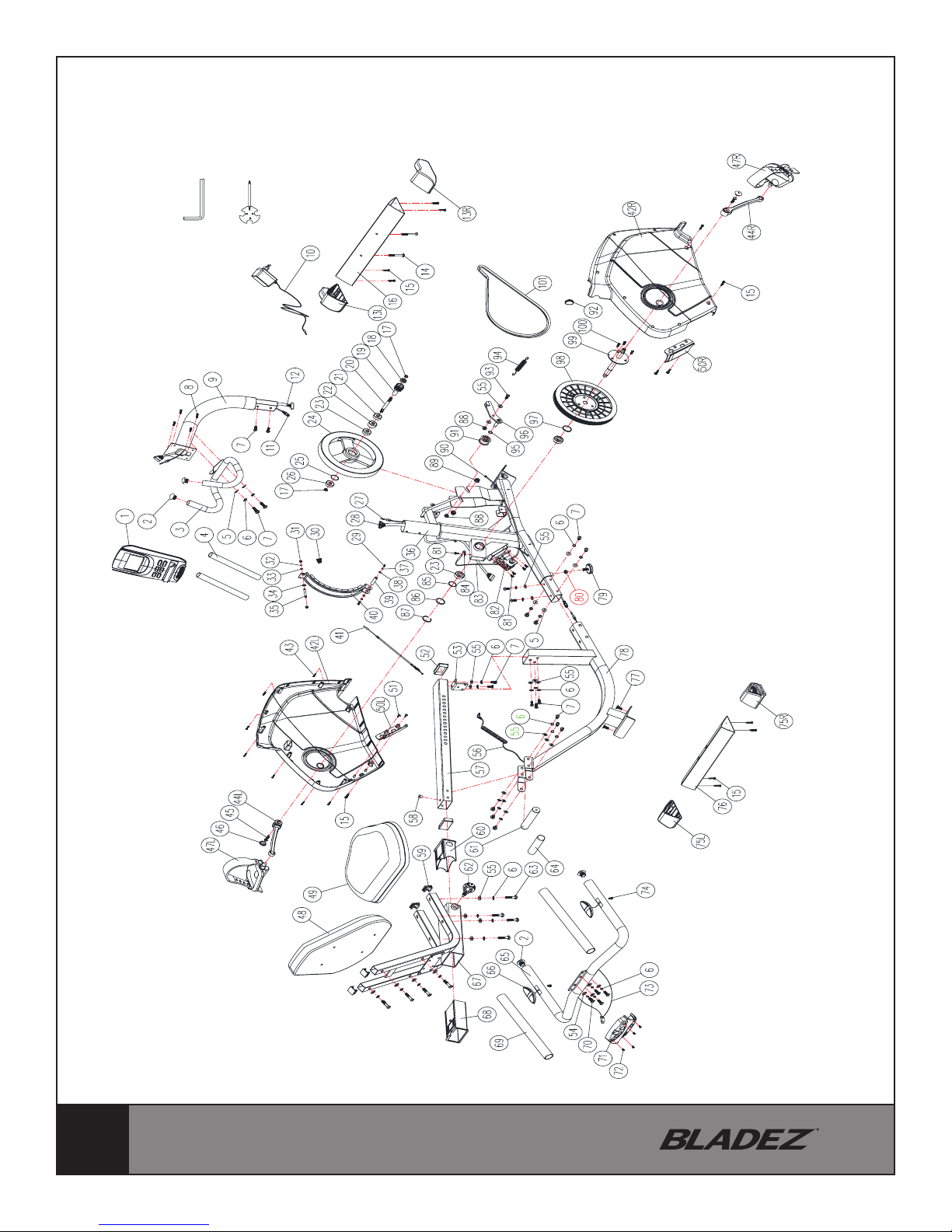

Exploded View Drawing 20
Parts List 21
Console Operations 23
Maintenance and Cleaning 35
Warranty 36

3
Introduction
Congratulations on your purchase of Bladez Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers around the world have come to expect from
Bladez Fitness.
If you have any questions, concerns or product issues please call our Customer Service
Team at 1-866-325-2339 or email us at [e-mail].
Carefully read through the instructions contained in this manual. ey provide you
with important information about assembly, safety, tness and use of the machine.
Please read ALL the safety information contained on the following page.
Note: Please check all packaging material carefully, the power adaptor is included with
your machine and can be easily overlooked. It is located in the packing material and
usually in a white box.

4

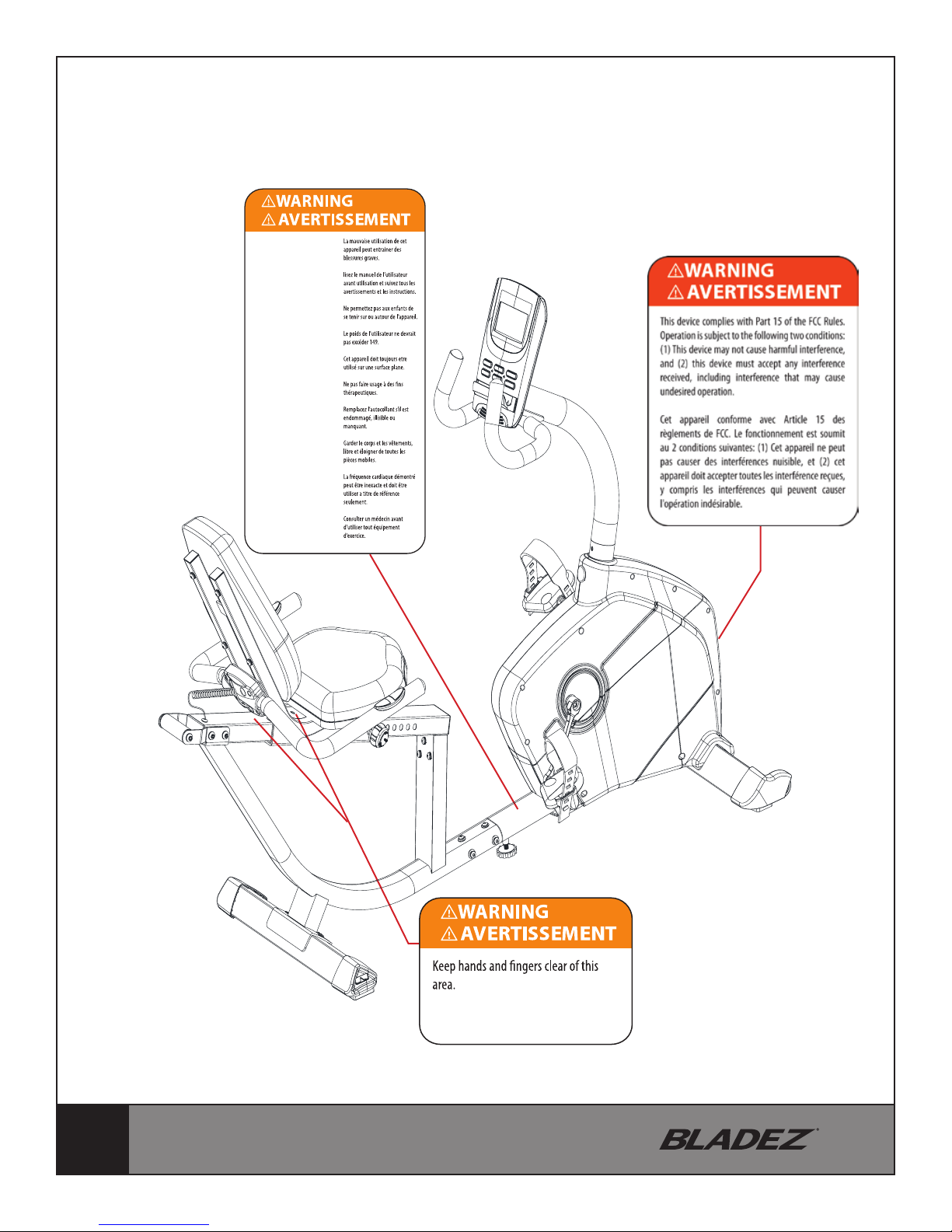

SAFETY INFORMATION
PRECAUTIONS
is equipment has been designed and constructed to provide maximum safety.
Nevertheless, certain precautions should be taken when using exercise equipment.
Read the whole manual before assembling and using the machine. Please observe the
following safety precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised in the
room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this machine STOP
exercising and SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get caught in the machine.
Always wear athletic shoes when using the machine and tie the laces securely.
6. is machine must only be used for the purposes described in this manual. DO NOT use accessories that
are not recommended by Bladez Fitness. Read manual prior to use and follow all warnings and instructions.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without the assistance of
a qualied person or doctor. Misuse of this machine may result in serious injury.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Keep a perimeter of 3 feet (1 meter) around the machine before operating the equipment.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. Replace warning labels if damaged, illegible or removed.
17. is machine was designed for a maximum user weight of 330 lbs (150 kgs)
18. e machine can only be used by one person at a time.
19.
Caution: Consult your doctor before beginning to use the machine or any exercise program. Read all
of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

5
Use of the machine oers various benets; it can improve tness, muscle tone and when
used in conjunction with a calorie controlled diet, it can help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to
undergo a complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your
doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose
clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Get on the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your
workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.
EXERCISE INSTRUCTION
NOTE: is equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. ese limits are designed to provide a reasonable
protection against harmful interference in a residential installation. is equipment generates, uses and
can radiate radio frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio or television reception. is can be determined by turning the
equipment o and on. e user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocation the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help

6
TRAINING GUIDELINES
Exercise is one of the most important factors in the overall health of an individual.
Listed among its benets are:
•Increasedcapacityforphysicalwork(strengthendurance)
•Increasedcardiovascular(heartandarteries/veins)andrespiratoryeciency
•Decreasedriskofcoronaryheartdisease
•Changesinbodymetabolism,e.g.losingweight
•Delayingthephysiologicaleectsofage
•Reductioninstress,increaseinself-condence,etc.
ere are several components of physical tness and each is dened below.
STRENGTH
e capacity of a muscle to exert a force against resistance. Strength contributes to power and speed.
MUSCULAR ENDURANCE
e capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of
your legs to carry you 10 km without stopping.
FLEXIBILITY
e range of motion of your joints. Improving exibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or
soreness.
CARDIO-RESPIRATORY ENDURANCE
emostessentialcomponentofphysicaltness.Itistheecientfunctioningoftheheartand
lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic
energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic
or energy-generating process. Many types of exercise are aerobic, and by denition are performed at
moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING
Is an exercise intense enough to trigger anaerobic metabolism. is means “without oxygen” and
istheoutputofenergywhentheoxygensupplyisinsucienttomeetthebody’slongtermenergy
demands. (For example, a 100 meter sprint.)

7
OXYGEN UPTAKE
e eort that you can exert over a prolonged period of time is limited by your ability to deliver
oxygen to the working muscles. Regular vigorous exercise produces a training eect that can increase
your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability
of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
THE TRAINING THRESHOLD
is is the minimum level of exercise which is required to produce signicant improvements in any
physical tness parameter.
OVERLOAD
is is where you exercise above your comfort level. e intensity, duration and frequency of exercise
should be above the training threshold and should be gradually increased as the body adapts to the
increasing demands. As your tness level improves, the training threshold should rise. Working
through your program and gradually increasing the overload factor is important.
PROGRESSION
As you become more t, a higher intensity of exercise is required to create an overload and therefore
provide continued improvement.
SPECIFICS
Dierent forms of exercise produce dierent results. e type of exercise that is carried out is specic
to the muscle groups being used and to the energy source involved. ere is little transfer of the
eects of exercise, i.e. from strength training to cardiovascular tness. at is why it is important to
have an exercise program tailored to your specic needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benets you have
gained. Regular workouts are the key to success.
WARM-UP
Every exercise program should start with a warm-up where the body is prepared for the eort to
come. It should be gentle and preferably use the muscles group to be involved later. Stretching
should be included in both your warm-up and cool down, and should be performed after 3-5
minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR COOL DOWN
is involves a gradual decrease in the intensity of the exercise session. Following exercise, a large
supply of blood remains in the working muscles. If it is not returned promptly to the central
circulation, pooling of blood may occur in the muscles.

8
HEART RATE
As you exercise, your heart beat increases. is is often used as a measure of the required intensity of
an exercise. You need to exercise hard enough to condition your circulatory system, and increase your
pulse rate, but not enough to strain your heart.
Your initial level of tness is important when developing an exercise program for you. When starting,
you can get a good training eect with a heart rate of 110-120 beats per minute (BPM). If you are
more t, you will need a higher threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your
maximum. If you nd this is too easy, you may want to increase it, but it is better to lean on the
conservative side.
As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age, your
heart,likeothermuscles,losessomeofitseciency.Someofitsnaturallossiswonbackastness
improves. e following table is a guide to those who are “starting tness.”
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Beats per Minute 138 132 132 126 120 114 114 108 108
PULSE COUNT
e pulse count (on your wrist or carotid artery in the neck, taken with two index ngers) is done
for ten seconds, taken a few seconds after you stop exercising. is is for two reasons: (a) 10 seconds
is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are
exercising.Sinceheartrateslowsasyourecover,alongercountisn’tasaccurate.
etargetisnotamagicnumber,butageneralguide.Ifyou’reaboveaveragewithyourtness,you
may work comfortably a little above that suggested for your age group. e following table is a guide.
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Beats per Minute 156 156 150 144 138 132 132 126 120
Don’tpushyourselftoohardtoreachtheguresonthistable.Itcanbeveryuncomfortableifyou
over exercise. Let it happen naturally as you work through your program. Remember, the target is a
guide, not a rule, a little above or below is just ne.
Twonalcomments:(1)don’tbeconcernedwithdaytodayvariationsinyourpulserate,being
underpressureornotenoughsleepcanaectit;(2)yourpulserateisaguide,don’tbecomeaslave
to it.

9
MUSCLE SORENESS
For the rst week or so, muscle soreness may be the only indication you have that you are on an
exercise program. is, of course, does depend on your overall tness level. A conrmation that you
are on the correct program is a very slight soreness in most major muscle groups. is is quite normal
and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you have
increased your program too rapidly.
If you experience PAIN during or after exercise, your body is telling you something. Stop exercising
and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should be
light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you
normally would gives you no advantage. e extra weight you lose is body uid and will be replaced
with the next glass of water you drink. Always wear athletic shoes.
BREATHING DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible. Remember,
breathing involves the intake and distribution of oxygen, which feeds the working muscles.
REST PERIODS
Once you start your exercise program, you should continue through to the end. Do not break o
halfway through and then restart at the same place later on without going through the warm-up stage
again. e rest period required between exercises may vary from person to person.

10
Head Rolls
Rotate your head to the right for one count while feeling the stretch
up the left side of your neck. Next, rotate your head back for one
count, stretching your chin to the ceiling. Rotate your head to the
left for one count, and nally, drop your head to your chest for one
count.
Shoulder Lifts
Lift your left shoulder up toward your ear for one count. en lift
your right shoulder up for one count as you lower your left shoulder.
Side Stretches
Open your arms to the side and continue lifting them until they are
over your head. Reach your left arm as far upward as you can for one
count. Feel the stretch up your left side. Repeat this action with your
right arm.
Quadriceps Stretch
With one hand against a wall for balance, reach behind you and pull
your left foot up. Bring your heel as close to your buttocks as possible.
Hold for 15 counts and repeat with right foot up.
SUGGESTED STRETCHES

11
Inner igh Stretch
Sit with the soles of your feet together with your knees pointing
outward. Pull your feet as close into your groin as possible. Gently
push your knees towards the oor. Hold for 15 counts.
Toe Touches
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach down as far
as you can and hold for 15 counts.
Hamstring Stretches
Sit with your right leg extended. Rest the soles of your left foot
against your right inner thigh. Stretch toward your toes as far as
possible. Hold for 15 counts. Relax and then repeat with left leg
extended.
Calf/Achilles Stretches
Lean against a wall with your right leg in front of the left and your
arms forward. Keep your left leg straight and the right foot on the
oor; then bend the right leg and lean forward by moving your hip
toward the wall. Hold, then repeat on the other side for 15 counts.
SUGGESTED STRETCHES

12
ASSEMBLY INSTRUCTIONS AND
WARNING LABELS
Gardez vos mains et doigts éloignés de
cet endroit
Misuse of this machine may
result in serious injury.
Read user’s manual prior to use
and follow all warnings and
instructions.
Do not allow children on or
around machine.
User weight must not exceed
330 lbs/150 kgs.
This products should always be
used on a level surface.
This product is not intended for
therapeutic use.
Replace label if damaged,
illegible or removed.
Keep body and clothing free
and clear of all moving parts.
The heart rate displayed may
be inaccurate and should be
used for reference only.
Consult a physician prior to
using any exercise equipment.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

13
STEP 1
1.) Attach the Rear Stabilizer (76) onto
the Seat Support Tube (78) with the
2xM8 Allen bolt (77), then tighten and
secure fully.
Note: You can adjust the Rear End Cap to
keep the Magnetic Bike stable.
STEP 2
1.) Attach the Front Stabilizer (16) onto
the Main Frame (36) with the 2xM8
Allen bolt (14), tighten and securely.

14
STEP 3
1.) Attach the Backrest (48) onto the Seat post (67) and secure it with 4×M8 Allen Bolts (63), 4×M8
Spring washers (6) and 4×M8 Flat washers (55).
2.) Attach the Saddle (49) onto the seat post and secure it with 4×M8 Allen Bolts (63), 4×M8 Spring
washers (6) and 4×M8 Flat washers (55).
3.) Attach the handle bar (65) onto the back of the seat post (67) and secure it with 4×M8 Allen Bolts
(70), 4×M8 Spring washers (6) and 4×M8 Flat washers (54).

15
STEP 4
1. ) Place the Sliding Beam (57) into the Seat Post (67), secure it with Quick Release Knob
(62).
2. ) Place the Lower hand pulse cable (56) through the rear hole of the Sliding Beam (57).
Insert the plug of the Lower hand pulse cable (56) into the back hole of the Seat Post
(67).
3. ) Attach the sliding beam (57) onto the Seat Tube (78) and secure it with Connecting
Plate (53), 9×M8 Allen bot (7), 9×M8 Spring Washer (6) and 9×M8 Flat washer (55).

16
STEP 5
1. ) Connect the Lower hand pulse cable (56) with Middle hand pulse cable (27).
2. ) Attach the Seat support tube (78) onto the main frame (36) and secure it with 6×M8
Allen Bolts (7), 6×M8 Spring washers (6) and 6×M8 Curved washers (5).
3. ) Adjust the position of seat pad front and back.
4. ) Turn the knob to get the comfortable back pad position.

17
STEP 6
1) Pre-assemble the 2×M8 Allen Bolt (7) on the handlebar post clockwise. You must tighten the screws
down to t the Handle Bar Post (9) into the Main Frame (36).
2) Connect the Upper hand pulse cable (11) with Middle hand pulse cable (27).
3) Connect the Upper computer cable (12) with Lower computer cable (28).
4) Insert the Handlebar post (9) into the Main Frame (36), loosen the 2×M8 Allen Bolt (7) in a counter
clockwise direction, this will secure the post. Attach the plastic cover (92) onto the Main Frame (36).

18
STEP 7
1) Attach the pedal (47L+R) onto the left and right crank arms
2) Connect the upper computer cable (12) and Upper hand pulse cable (11) with the appropriate cables on
the back of the computer (1).
3) Attach the Computer (1) onto the Handlebar post (9) and secure it with 4 screws (8).
4) Attach the Handlebar (3) onto the handle bar post (9) and secure it with 2×M8 Allen
Bolt (7), 2×M8 Spring washer (6) and 2×M8 Curved washer (5).

19
MOVING THE MACHINE
To move the machine to a new location, tilt the bike forward and roll the machine on the transport wheels.

20
EXPLODED VIEW DRAWING
Item.102
Item.103
