Blankom SSI 108 User manual

Professional Headend Solutions
Operating instructions
Contents
1. Safety and operating instructions ...................................................................2
2. Device variants ................................................................................................2
3. General ............................................................................................................2
4. Front view ............. ...........................................................................................3
5. Functional description......................................................................................3
6. Adjustments ................ ....................................................................................3
6.1 Adjustment with the Headend Controller ..................................................3
6.2 Adjustment with the PC/ laptop.................................................................3
6.3 Adjustment with SNMP..............................................................................4
7. Meaning of the LED‘s ......................................................................................4
7.1 LED‘s at the stream port ...........................................................................4
7.2 Status LED‘s ......... ....................................................................................4
8. Programming by web server ...........................................................................5
8.1 Main menu ..............................................................................................5
8.2 Loading the program list ......... .................................................................6
8.3 CA menu ........................................................................................................7
8.4 Multi-decryption menu...............................................................................7
8.5 Multi-decryption selection .........................................................................8
8.6 Multi-decryption test ..................................................................................9
8.7 Multi-decryption test information...............................................................9
8.8 Extended settings of the stream channels 1...16 ...................................10
8.9 Extended settings ................................................................................... 10
8.10 Factory settings .....................................................................................11
8.11 Status of the device ..............................................................................11
8.12 Software overview .................................................................................12
9. Manual menu control at the Headend Controller .........................................13
10. Trap messages ............................................................................................13
11. Block diagram ............................................................................................14
12. Head end bus structure ...............................................................................14
13. Application example.....................................................................................15
14. Technical data ..... ........................................................................................15
15. Glossary .............................. ........................................................................ 16
16. Bibliography ........ ........................................................................................17
17. Document history ........................................................................................17
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring

2
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
1. Safety and operating instructions
When assembling, starting-up and adjusting the modules, it is necessary to consider the system specic references in the
manual instruction!
The modules may only be installed and started up by authorized technical personnel!
When assembling the modules into the receiving points, the adherence of the EMC regulations is to be secured!
The assembly and wiring have to be done without voltage!
All active modules may only be operated with the Headend Controller HCB x00 or Bus Extender BEB x00!
The main voltage and the operating voltage of the modules working by DC have to be in complience to the operating para-
meters described in the technical data.
With all work the defaults of the DIN EN 50083 have to be considered! Especially the safetyrelevant execution of the
DIN EN 60728-11 [6] is necessary!
2. Device variants
SSI 108 9740.01 DVB-S/-S2 →2 x CI → IP & ASI monitoring
Minimum software requirements for HCB x00:
9650.03: version 2.34*
9650.04/.05: version 3.25*
9652.01: version 3.25*
9653.01: version 3.27*
9653.02: version 3.28*
*) Updates: www.blankom.de
3. General
The TWIN SAT Streamer SSI 108 is a module of the head end system B-LINE, which is conceived as a complete system for middle
sized networks. The SSI 108 demodulates DVB-S/-S2 signals (8PSK, QPSK) into 2 transport streams, which are sended out over IP.
A Common Interface slot enables the use of CA-Modules for the reception of scrambled SAT signals/ programs. Additionally the pro-
cessed transport streams with the descrambled services are available on the ASI output, and the max. 16 IP transport streams too.
All the components are programmed via a central control unit and will function independently thereafter. The status of the modules
are displayed via LED’s (see chapter 7.2 “Status LED‘s “).

3
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
The manual instructions of the Headend Controller HCB x00 and the Bus Extender BEB x00 have to be considered!
4. Front view
5. Functional description
The SAT-IF input signal is fed to the DVB-S/ -S2 front end, where the selection of a transponder and its QPSK or 8PSK demodulation
are done. The data stream is routed by a switching matrix either to the Common Interface or directly to the IP module. A respective
CA module with smart card, which is supported by the device, has to be used for descrambling.*Multi service decryption is possible
if there are not any restrictions by the CAM itself or by the service provider. The decryption of MPEG-4 services is supported. With
this module its possible to choose elementary streams of a service for decryption. So the ressources of the respective CAM/ smart
card combination can be used optimally. The SI and PSI tables affected (i.e. the PAT, PMT, SDT, EIT) are automatically corrected. 16
of all programs contained in both transport streams can be selected and transmitted via IP. This is supported by different protocols.
Address and port selection are not restricted, but should be orientated itselfs according recommendations of IANA. The module
alows the output of one single program transport stream (SPTS) per IP connection, but also the output of one of both multi program
transport streams (MPTS), that can be decrypted. For monitoring there is an ASI output to check one of the 16 stream channels.
A permanent 12 V voltage for LNC supply is available at the SAT inputs.
* The design of the Common interface of this module is done according to DVB standards. Because of the dependencies in interaction of the DVB si-
gnals, CA modules and smart cards we can not assure a general functional capability for all application possibilities. Please contact our service
department for further assistance!
6. Adjustments
6.1 Adjustment with the Headend Controller
· Adjustment of the addresses at the Bus Extender BEB x00 and at the modules
· Activation of the programming mode on each module by selecting the line (BEB x00) and the module position (01... 15) at the
Headend Controller (HCB x00)
→ yellow LED illuminates until the beginning of the parameter adjustment
· Adjustment of the SSI 108 parameters (see chapter 9) →green LED is switched on
· After the programming the SSI 108 will be automatically switched into the operating mode
→ yellow LED ashes shortly/ green LED is switched on
6.2 Adjustment with the PC/ laptop
· Prerequisite for the remote programming is an “online-connection” according the IP standard and an ethernet connection at the
PC/ laptop
· Adjustment of the line/ position addresses at the Bus Extender BEB x00 as well as at the modules
· At the Headend Controller HCB x00 input IP address (default: 192.168.2.80)
· For “direct connection” between a PC and HCB x00 use crossover cable (RJ 45)
· For connection over a HUB use a normal straight throught patch cable
· Start-up HTML browser and put in IP address as target address
· If connected correctly the web interface will be opened on the pc and a blue LED (LINK) at the HCB x00 will be lit up.
· All adjustments of the modules are specied on the web interface.
ASI
OUT
STREAM
PORT
LAN/WAN
PIN 1 COMMON INTERFACE
TWINSAT-STREAMER
DVB-S/-S2 (QPSK/8PSK) CI IP & ASI
Type: Part N.:SSI 108 9740.01
o
SAT-IFIN 950...2150 MHz
INPUT LEVEL 53...93 dBµV
STREAM PORT 100/ 1000 Base-T
STREAM PROTOCOL UDP,RTP
ASI/ TS-MODE burst/ 188
SUPPLY CURRENT 1.0A
SAT-IF input
coupler “Input“
SAT-IF input
coupler “Output“
Operating voltage/
control bus
LED “STANDBY“ (red)
LED “READY 1“ (green)
LED “READY 2“ (green)
LED “ADDR.“ (yellow)
Address selector
ASI-TS output
Stream port
TWIN SAT-STREAMER
DVB-S/-S2 (QPSK/8PSK) CI IP & ASI
Type: SSI 108 Part No.: 9740.01
SAT-IF IN 950...2150 MHz
INPUT LEVEL 53...93 dBµV
STREAM PORT 100/1000 Base-T
STREAM PROTOCOL UDP, RTP
ASI/TS-MODE burst/188
SUPPLY CURRENT 1.0 A

4
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
6.3 Adjustment with SNMP
· Prerequisite for the SNMP functionality is the use of HCB x00 with enabled SNMP software option CKB 100.
· Supported is SNMP version 1.0 [7].
· Automatic creation of the MIB based on the current head end conguration by the HCB x00.
· Software is required for setting and reading out the parameters and to receive traps from an SNMP management.
· Further Notes on the SNMP functionality of BLANKOM modules are listed in the SNMP manual.
7. Meaning of the LED‘s
7.1 LED‘s at the stream port
Meaning (Colour) Status Meaning of display
GbE connect LED
(green)
permanently on cable connection with GbE
off no cable connection with GbE
Data LED (yellow) permanently on port active
ashing data being exchanged
7.2 Status LED‘s
Designation (Colour) Status Meaning of display
STANDBY (red) permanently on module is in standby
ashing module faulty (hardware error)
READY 1/ 2 (green) permanently on module working properly
ashing error warnings, depending on signal:
- tuner 1/ 2 not synchronized (e.g. there is no input signal)
- error of decryption
- stream channel to the receiver is broken
ADDR. (yellow) illuminated/ ashing remote control connection/ data being exchanged

5
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
8. Programming by web server*
8.1 Main menu
Name of device, item number, address in head end
Description Name of programme (max. 30 characters)
Input channel
SAT-IF adjustment range: 950 ... 2150 MHz
Symbol rate adjustment range: 1000 ... 45000 kSps
Standard selection: Auto, DVB-S, DVB-S2
Status displays whether SYNChronization or
noSYNChronization with input and the
format of transmission
Common Interface
TS-Source slot 1 always input channel 1 assigned,
slot 2 - selection: input channel 1 or 2
CA-Module displays the type of the CA module per
slot
CA-Menu see menu 2
Multidecryption see menu 3
IP-Network
Ethernet input of IP address, subnet mask and
gateway, display of the MAC address
Program settings
Program listing see menu 1
IP-Output per stream channel (1 ... 16) :
- selection: On/ Off (of the channel)
- displays the name
- input of the destination IP
- input of the destination port
- displays the status of connection
- routing to the menu 7 (extended set-
tings)
ASI-Output
Data source selection: stream channel 1... 16, TS1,TS2
Operating status selection: On, Off, Reset
SNMP-Trap
message On/ Off, if SNMP option in HCB x00 is
enabled, otherwise “locked“ is displayed
Factory settings see menu 9
Routing to the appropriate adjustment menu:
Extended settings see menu 8
Software overview see menu 11
Status see menu 10
* For further details see the HCB manual

6
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
8.2 Loading the program list (menu 1)
This menu contains a list of all services available in the data stream. In the matrix there is a selection of the services per stream chan-
nel. Settings are adopted or changed by clicking the “Transmit” button.

7
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
8.3 CA menu (menu 2)
Name of device, item number, address in head end
On these pages all menus implemented in the CA module are
offered. The available menus are selected individually or are
invoked one-by-one to do necessary settings or to get all infor-
mations about the CA module.
8.4 Multi-decryption menu (menu 3)
When calling this menu the selection of the services of the adjusted transponder, which were selected for decryption and whose de-
cryption was successfully, appears. Indicated are the program name with the number of the decoded PID‘s, the decryption settings
and the status of the program. “Stored“ means, that the service was successfull decrypted and saved in the CA-service-list. Using
the check box “Clear entries“ and the ”Transmit/ Back“ button the entire selection will be deleted and no services are decrypted after-
wards. By using the “Selection“ button and the appropriate selection of the services in the multi-decryption selection menu (menu 4)
the list of the services to decrypt can be changed.
Using the “Testing selection“ button calls the test menu (menu 5), in which the decryption state of all programs in the CA-service-list
will be tested again and possible occurring errors will be listed.

8
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
8.5 Multi-decryption selection (menu 4)
In this menu all services of the adjusted transponder and their CA status are listed. The services are selectable for decryption. For
each of this selected services one can determine, what streams or PID‘s are to be decrypted. That‘s important because the maximum
number of the decryptable PID‘s is limited and this limit has a different size per CA module.
In the selection boxes “MPEG 1/ 2 Audio Streams“ respective “Subtitling Streams“ all, no or individual streams are selectable. If one
wants to select more than one stream, but not all , the selection eld ”all“ in the box is to be selected and in the column “PID-Drop
list“ all PID‘s have to be entered, that shall not be decrypted.*
In the column “PID-Drop list“ all PID‘s are listed, that shall not be decrypted. The PID‘s can be given in decimal or hexadecimal format
and have to be separated by a semicolon. The maximum number of PID‘s is 10.**
Individual CA modules have to be initialized once again before the CA services will be sent to the module. To do so the option “Reset
CA-Modul“ can be activated.
*“Other Audio Streams“ includes all AC3-, DTS- and AAC-Streams. „Private Streams“ selects all streams which are not captured by the other selection
elds.
** Particularly Pid‘s can be given here, which are active only at times and no authorisation for decryption is available for them.

9
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
8.6 Multi-decryption test (menu 5)
First all services, which are saved in the CA-service-list, will be tested for the current decryption status.
After the end of the test the multi-decryption menu (menu 3) appears, where in the “Status“-column the test result of the respective
service is stated by using the “Info“ button, the relevant information page of the test (menu 6) is displayed.
By clicking of the “Transmit/ Back“ button all settings are transmitted. The “Selection“ button routes back to menu 4 to correct input
values, e.g. too much PID‘s were selected.
8.7 Multi-decryption test information (menu 6)
Name of device, item number, address in head end
On this page informations about the test result of the selected
service are displayed. First the nal result of the test with service
ID and CA information is listed, than for each requested PID the
type, the CA information and the test result.

10
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
8.8 Extended settings of the stream channels 1 ... 16 (menu 7)
Name of device, item number, address in head end
Stream channel x displays the channel, that will be adjusted
Operating status selection: On/ Off
Destination IP input of the destination IP number
Destination Port input of the destination port
In selecting the destination port please
note a distance of 5, if FEC modes were
activated.
conguration
Transmit protocol selection: RTP, UDP
FEC-Mode L selection: Off, 1 ... 20
FEC-Mode D selection: Off, 4 ... 20
Set stream data
rate to selection: User dened, TS-Data rate,
Service data rate
User dened
data rate input of the data rate in kbps (only if “Set
stream data rate to user dened“, adjust-
ment range: 0..65535)
Change TS-Identi-
cation selection: On/ Off
TS-ID input of the TS-ID**
Network-ID input of the network ID**
EIT-Mode selection: EIT completly*, present/ follo-
wing
Use conguration for
all stream channels if box is clicked, all conguration settings
are adopted for the other 15 stream chan-
nels
Service settings
TS-Source selection: input channel 1 or 2
Streaming Mode selection: SPTS (one program),
MPTS (all programs)
Service ID adjustment range: 0..65535***
Program name service name (max. 30 characters)
Stream channel routing to the next stream channel, that
should be adjusted
* only selectable if “Change TS-Identication Off“
** input only if “Change TS-Identcation On“ is selected
*** input only if “Streaming mode SPTS“ is selected
The manual conguration of service settings is necessary only if the requested service is not available in the program list. Normally
all settings of the service are adopted when the service is selected in the list.
The selection “Service data rate“ of the stream data rate is creating a VBR data stream. This mode should be selected only for appro-
priate target devices, because it will affect PCR accuracy. If there are doubts about it, selection of “TS data rate“ or “User dened“ data
rate is strongly recommended.
8.9 Extended settings (menu 8)
Name of device, item number, address in head end
CA-Conguration datas per slot
SDT/PMT-Proc. selection: On/ Off
Mode
CA-PMT-Update selection: CA-PMT-Entry, CA-PMT-Listing
Use of Date & Time selection: On/ Off
Some CA modules request ressource “Date & Time“ while being initialised. Otherwise this setting should remain deactivated. In the
eld “CAM Handling“ for special CAMs (as SKY V13 or V14) a selection is to make, so that the appropriate CAMs initialize correctly.
The smart card activation mode should only be turned on when a new smart card will be enabled or an expired smart card will be re-
activated. Thus, the monitoring functions, necessary for the proper operation of the device, will be disabled in order to ensure trouble-
free data exchange to enable the card. Depending on the provider, this process may take some time. It should be noted that in this

11
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
mode only one service per module is decrypted, the multi-decryption functionality is thus suspended. It is to select this service for
decrypting, which includes the activation data (determined by the provider). After successful activation of the card the mode is to
disable it in order to ensure the readiness for operating of the device in its entirety (especially the multi-decryption functionality).
8.10 Factory settings (menu 9)
When this menu item is requested, at rst a security query
whether it really set all parameters to the factory default settings
pops up.
Afrming the query, all settings stored in the EEPROM will be
deleted and replaced by the default settings. The module will
go back to these default values. In particular all network settings
(IP address, subnet mask, gateway and destination IP per chan-
nel) are set on address 0.0.0.0 . Once the setting process is
over, there will be an automatic return to the main menu. It takes
about one minute.
8.11 Status of the device (menu 10)
Name of device, item number, address in head end
Input channel displays datas for channel 1 and 2
Status displays whether SYNChronization or
noSYNChronization with input and the
format of transmission
Set values displays adjusted SAT IF and symbol rate
RF-Input level displays in dBµV
BER/ PER bit error rate (DVB-S)/
packet error rate (DVB-S2)
Common Interface displays per slot
Decoder status displays available messages
IP-Output displays status and data rate per stream
channel
An error indicator in the “Status“ column
has generally indicate a too low data rate
choosen.
Data rate Stream-Port (receive)
The value indicates the network load on
the IP port that the CPU has to process.
Lie permanently on more than 64 Kbps, a
review of the network is recommended.
Data rate Stream-Port (sent)
displays output data rate
Information
System status displays available messages
Temperature displays external temperature of the de-
vice
Temperature displays internal temperature of the de-
internally vice
Device number display of the device number
Device index display of the device index (hardware)

12
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE

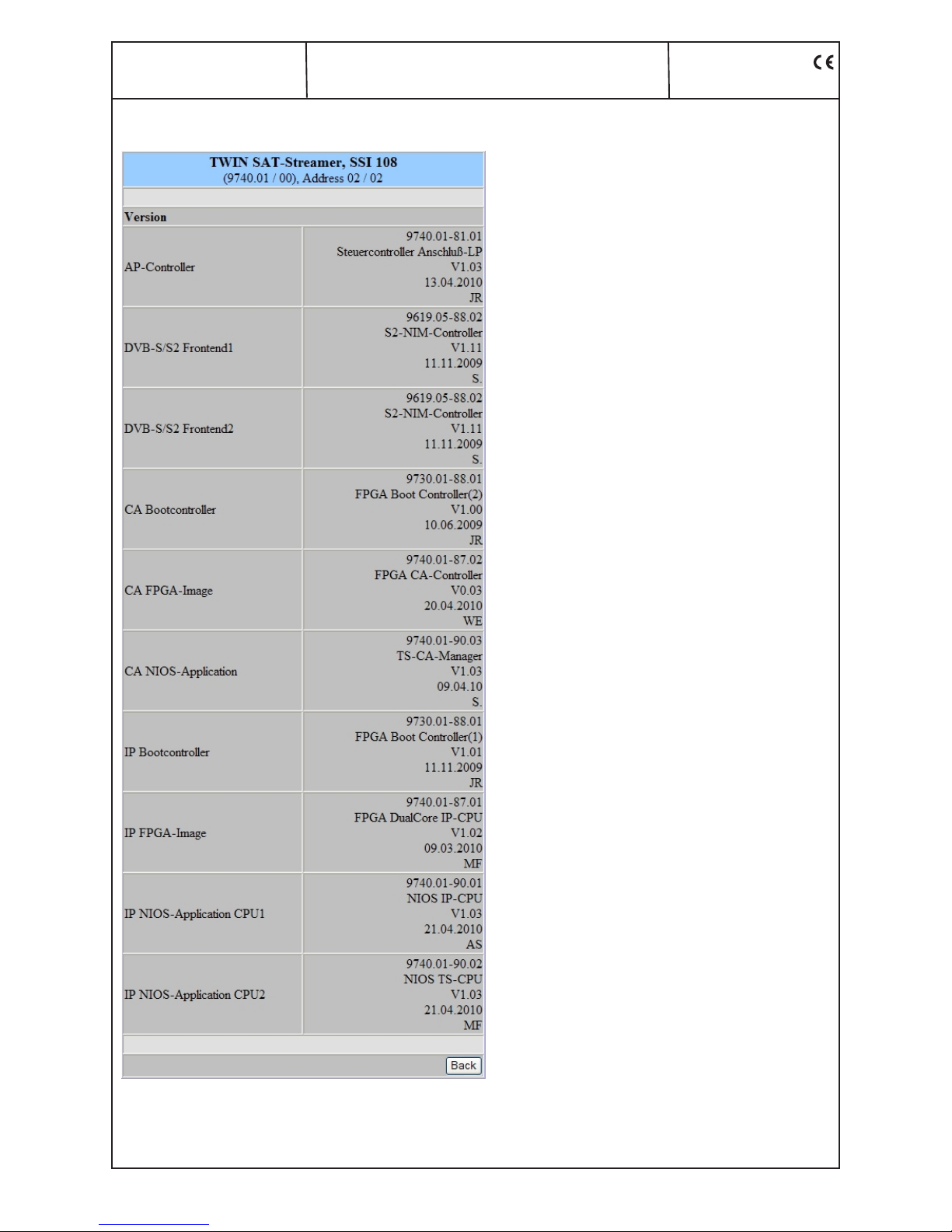

8.12 Software overview (menu 11)
Name of device, item number, address in head end
Software versions
Displays the software versions for the controllers as follows:
- Controller of terminals board
- Controller DVB-S/ S2 frontend 1
- Controller DVB-S/ S2 frontend 2
- CA-Bootcontroller
- FPGA CA-Controller
- TS-CA-Manager
- IP-Bootcontroller
- FPGA IP-Controller
- IP-CPU
- TS-CPU

13
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
9. Manual menu control at the Headend Controller (HCB x00)
The values in the blocks settings are the default values. After pushing the button “default“ settings on the main page, all settings
stored in the EEPROM are erased and reset to default values. The device is set to these values again (see also chapter 8.10).
10. Trap messages
Item Message Message Type Explanation
01 Input sync INFORMATION input synchronized
02 Input not sync WARNING input not synchronized
03 IIC error CRITICAL IIC bus or hardware error
SSI 108 start
Edit or end
Power Status On
ASI output
Data source ASI TS1
Tuner/ CA settings
Channel settings
CA2 settings
skip channel 1 or
channel 2
Streamportconguration
SSI 108 end
Ethernet settings
Ethernet IP address 0.0.0.0
Ethernet subnet mask 0.0.0.0
Ethernet gateway 0.0.0.0
Table settings
Operating status Off
Destination IP 0.0.0.0
Destination Port 0
Transmit protocol UDP
FEC-Mode L Off
FEC-Mode D Off
Stream data rate TS data rate
User dened data rate 0 kbps
TS source input channel 1
Streaming mode MPTS (all programmes)
Service ID 0
Service name empty
EIT mode EIT completly
Change TS identikation Off
TS ID 0
Network ID 0
SAT IF input
Frequency 1236 MHz
QPSK symbol rate 27500 kSps
Standard auto
Channel name xxxx
TS source CA2 input channel 2
SDT/ PMT processing On
CA PMT update CA PMT entry
back channel 1 ...
channel 16
Conguration/servicesettings

14
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
Item Message Message Type Explanation
04 System reset WARNING reset by internal error
05 Internal controller reset WARNING error when accessing internal controller
06 Power fail CRITICAL power supply error
07 Communication CA-Controller lost WARNING error when accessing CA controller
08 Communication IP-Controller lost WARNING error when accessing IP controller
09 IP-Streamer fail WARNING error in IP streamer
10 IP-Streamer ok INFORMATION IP streamer working properly
11 Decoding of service ... fail WARNING error on descrambling of service...
12 Decoding of service ... ok INFORMATION descrambling of service ... ok
11. Block diagram
12. Head end bus structure
.
DVB-S/ -S2
front end 1
SAT IF
950...
2150 MHz
IP
(RJ 45)
16 channels
TS 1
Power supply
&
control
TS controller
with
table processing
selection
IP-TS
transmitter
CI 1
ASI
(BNC)
CAM
DVB-S/ -S2
front end 2
CI 2
ASI
IP control
TS 2
HCB x00
Headend
Controller
BEB x00
Bus Extender
Module
signal processing
unit
HCB x00
Module
ADDR. 15
BEB x00
ADDR. 01
BEB x00
ADDR. 02
BEB x00
ADDR. 15
Module
ADDR. 01
Module
ADDR. 01
Module
ADDR. 01
Module
ADDR. 15
Module
ADDR. 15
The number of the possible module connections (00 ... 15) to a
BEB x00 depends on the total power consumption of this line!

15
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
13. Application example
14. Technical data
21
DVB-S/S2 DVB-S/S2
IP
21
DVB-S/S2 DVB-S/S2
IP
21
DVB-S/S2 DVB-S/S2
IP
21
DVB-S/S2 DVB-S/S2
IP
IP24
IP12
IP18
IP6
IP17
IP5 IP11
IP23
IP10
IP22IP16
IP4
IP3
IP15
IP9
IP21
IP2
IP14
IP8
IP20
IP1
IP13
IP7
IP19
SFPSFP
SFPSFP
IPSWITCH
SFP
Application server
.....
IPSWITCH
SFP
IPSWITCH
SFP
IPSWITCH
SFP
HCB 200
SSI 108 SSI 108 SSI 108 SSI 108
SATIFIN
Layer3/ IGMP Switch
Layer3/ IGMP Switch Layer3/ IGMP Switch Layer3/ IGMP Switch Layer3/ IGMP Switch
SAT IF input
Frequency range 950 … 2150 MHz
Frequency step 1 MHz
AFC range ± 3 MHz (SR < 10 MSps)
± 5 MHz (SR ≥ 10 MSps)
AGC level range 53 … 93 dBμV
Connector F socket
Impedance 75 Ω
DVB-S demodulator (QPSK)
Symbol rate 1 … 45 MSps
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Roll-off 35 %
Signal processing EN 300 421 (DVB-S) [1]
DVB-S2 demodulator (QPSK, 8PSK)
Symbol rate QPSK 5 … 36 MSps
8PSK 5 ... 30 MSps
Code rate QPSK 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4,
4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Roll-off 35 %
Signal processing EN 302 307 (DVB-S2) [2]
ASI output
Data rate 270 Mbps
Polarity normal
Mode burst
TS data rate according symbol rate and
coding
TS mode 188 Bytes
Output voltage 800 mVpp ± 10 %
Connector BNC socket
Impedance 75 Ω
Signal processing EN 50083-9 [3]
Decryption interface
Common Interface PCMCIA-Slot according
EN 50221 [4]
Operating voltage 5 V
Multi-Service decryption 24 services max.
IP output
Network connection (LAN/ WAN) Ethernet, 10/ 100/ 1000 Base-T
Plug connection RJ 45
Protocols UDP, RTP, ARP
Additional error correction pro-MPEG Code of practise 3
rev. 2 [8]
Encapsulation according ETSI TS 102034 [5]
Operating parameters
Voltage/ current (w/o CAM) 12 V (± 0.2 V)/ 1 A
Residual ripple of
supply voltage ≤ 10 mVpp
Environmental conditions
Temperature range -10 ... +55 °C
Temperature range for
data keeping 5 ... 45 °C
Relative humidity ≤ 80 % (non condensing)
Method of mounting vertical
Location of mounting splash-proof and
drip-proof
Miscellaneous
Dimensions (l x w x h)
without 19”-adapter 50 x 276 x 148 mm
with 19”-adapter 50 x 301 x 148 mm
Weight 1,350 g
Delivery content
1 x bus connector
2 x F connecting cable 140 mm

16
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
15. Glossary
8PSK 8Phase Shift Keying
AAC Advanced Audio Coding
AC3 Adaptive Transform Coder 3 (multi channel audio system of company Dolby)
AP Anschlussplatte (front terminal board)
ARP Address Resolution Protocol
ASI Asynchronous Serial Interface
BER Bit Error Rate
CA Conditional Access
CAM Conditional Access Module
CATV Cable Television
CI Common Interface
CCIR Comité Consultatif International des Radiocommunications
DTS Digital Theater Systems (multi channel audio system of company with the
same name)
DVB Digital Video Broadcasting (-C Cable, -S Satellite, -S2 Satellite 2, -T Terrestrial)
EIT Event Information Table
FEC Forward Error Correction
FPGA Field Programmable Gate Array
GbE Gigabit-Ethernet
HTML Hypertext Markup Language
HTTP Hypertext Transfer Protocol
IANA Internet Assigned Numbers Authority
ID Identier
IF Intermediate Frequency
IIC Inter-Integrated Circuit (I²C-Bus, data bus within device)
IP Internet Protocol
LED Light Emitting Diode
MC Microcontroller
MIB Management Information Base
MPEG Moving Picture Experts Group
MPTS Multi Program Transport Stream
QAM Quadrature Amplitude Modulation
QPSK Quadrature Phase Shift Keying
PAT Program Association Table
PCR Program Clock Reference
PER Packet Error Rate
PID Packet Identier
PMT Program Map Table
PLL Phase-locked loop
RTP Realtime Transport Protocol
SDT Service Description Table
SMATV Satellite Master Antenna Television
SNMP Simple Network Management Protocol
SPI Serial Peripheral Interface
SPTS Single Program Transport Stream
TS Transport Stream
TV Television
UDP User Datagram Protocol
VBR variable bit rate

17
SSI 108
Part No: 9740.01
TWIN SAT-Streamer
DVB-S/-S2 → 2 x CI → IP & ASI monitoring
B
LINE
16. Bibliography
[1] EN 300 421: Digital Video Broadcasting (DVB): Framing structure, channel coding and modulation for 11/12 GHz satellite
services
[2] EN 302 307: Digital Video Broadcasting (DVB): Second generation framing structure, channel coding and modulation
systems for Broadcasting, Interactive Services, News Gathering and other broadband satellite applications
[3] EN 50083-9: Cabled distribution systems for television, sound and interactive multimedia signals, part 9: Interfaces
for CATV/SMATV head ends and similar professional equipment for DVB/MPEG-2 transport streams
[4] EN 50221: Common interface specication for conditional access and other digital video broadcasting decoder applicati-
ons; German version EN 50221:1997 + Corrigendum:2000
[5] ETSI TS 102034: Digital Video Broadcasting (DVB); Transport of MPEG-2 TS Based DVB Services over IP Based Networks,
Ver. 1.4.1, 2009-08-04
[6] EN 60728-11: Cable networks for television signals, sound signals and interactive services Part 11: Safety
(IEC 60728-11:2005); German version EN 60728-11:2005
[7] RFC 1157 Request for Comments (RFC): RFC Database URL: http://www.rfc-editor.org/rfc.html
[8] ETSI TS 102034: Digital Video Broadcasting (DVB); Transport of MPEG-2 TS Based DVB Services over IP Based Networks,
Ver. 1.4.1, 2009-08-04
17. Document history
Version Date Modication Author
1.00 03.11.2009 Basic document Häußer
1.01 01.02.2010 Revision Häußer
1.02 30.04.2010 Revision/adaptation Häußer
1.03 08.10.2010 Revision chapter 8.8 & 8.9 Häußer
1.04 30.09.2001 Revision chapter 8.11 Häußer
1.05 29.06.2012 Revision chapter 8.9 Häußer
1.06 06.08.2015 new company, revision chapter 8.9 Häußer
Options available upon request! Subjects to changes due to technical progress.
BLANKOM systems GmbH
Hermann-Petersilge-Straße 1 • 07422 Bad Blankenburg •Germany •Phone [phone] •Fax [phone]

18
Declaration of Conformity
Manufacturer: BLANKOM systems GmbH
Hermann – Petersilge – Straße 1
07422 Bad Blankenburg
Germany
Product Name: TWIN SAT Streamer
Type Name: SSI 108
Type No: 9740.01
BLANKOM systems GmbH conrms that the mentioned product meets the guideline(s) of the
Council for the approximation of legislation of the member states.
Electromagnetic compatibility (2004/ 108/ EC)
The following standards are met: DIN EN 50083-2: 2007-04 (EN 50083-2:2006-06)
Low voltage guideline (2006/ 95/ EC)
The following standards are met: DIN EN 60950-1: 2006-04 (EN 60950-1:2006-11)
Information technology equipment -Safety-
Restriction of hazardous substances (2011/ 65/ EC)
The following standards are met: DIN EN 50581: 2013-02 (EN 50581:2012)
Bad Blankenburg, Germany, 2015-08-06
Wolfgang Schlüter
(Managing Director)
