BlastKing KXDII Series User manual

blastking.com
Owner’s Manual
KXDIITPC / KXDIITPS
II
series

2
All other BlastKing® products purchased in the USA are protected under the regular
manufacturer’s one year warranty. This warranty is intended to protect customers from any
and all manufacturer defects from one year of purchase. The product will be replaced or
repaired at the manufacturer’s discretion upon receipt of the warranted unit along with a
dated proof of purchase from an authorized dealer or distributor. This warranty becomes
null and void under situations including but not limited to misusage, normal wear and tear,
shipping damage and abuse. For international purchases, please contact your local dealer
or sales associate for further warranty information.
FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For manufacture warranty please register this product online at
http://blastking.com/product-registration/
Please write the serial number for future reference
Purchased at:
Date of purchase:

3
blastking.com
IMPORTANT SAFETY PRECAUTIONS AND EXPLANATION OF SYMBOLS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE AMPLIFIER
COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not use this
apparatus near water.
6. Clean only with a dry cloth.
7. Allow a minimum of 6" (152 mm) clearance behind cabinet for convection cooling. Keep anything that might
restrict airflow from the rear of the enclosure (i.e. draperies, fabric, etc.). Do not block any ventilation opening. This
product contains an internal power amplifier that produces heat.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers) that produce heat.
9. Do not defeat the safety purpose of the grounding-type plug on the three-pronged “Edison” style power cable. The
grounding plug has two blades and a grounding prong. The third prong is provided for your safety. If the provided plug
does not fit your outlet, consult an electrician for the replacement of the obsolete outlet. Do not cut off the grounding
plug or use an adapter that breaks the grounding circuit. This apparatus must be properly grounded for your safety.
10. Protect the power cord from being walked on or pinched, particularly plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. The appliance coupler is the AC mains disconnect and should remain readily operable after installation.
12. Use only attachments/accessories specified by Blastking, USA.
13. Use only with hardware, brackets, and components sold with the apparatus or by Blastking, USA.
14. Unplug the apparatus during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
16. Before placing, installing, rigging or suspending any loudspeaker product, inspect all hardware, suspension,
cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load
rated component could significantly reduce the strength of the installation and should be immediately corrected. Use
only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected
overloading. Never exceed the rating of the hardware or equipment.
17. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment
installation.
18. The appliance shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous” voltage within the product’s enclosure that may be
of sufficient magnitude to constitute a risk of shock to humans.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in this manual.
WARNING!

4
Introduction
Designed and engineered to provide power and precision sound, the New KXDII Series will make you stand out from the
crowd and take your performance to the next level.
With a sleek new look and the technology integrated, the KXDII Series is the ideal choice for all sound
reinforcement applications.
Installation
Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets,
transducers, brackets and associated equipment for damage.
Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation or
placement. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only
hardware which is rated for the loading conditions of the installation and any possible short-term,unexpected overloading.
Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer regarding physical
equipment installation. Ensure that all local, state and national regulations regarding the safety and operation of loudspeakers
and related equipment are understood and adhered to.
Maintenance
These speakers are high quality units made especially according to the products’ specification.
Overpowering the unit or overheating it because of improper system arrangement could harm the unit.
For longest possible operating life, and to avoid warranty issues, it is recommended that there is at least a few inches of
space around an active speaker.
Please avoid exposing the speaker to moisture or extreme cold conditions. Do not put the speaker anywhere near water
sources as it can damage the unit or cause a short circuit.
Manufacturer takes no responsibility for improper repair, replacement, or any other services conducted by unqualified
technicians.

5
blastking.com
Engineered in USA
~100-240V 50/60Hz
T10AL 250V
SERIAL NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE TOP OR BOTTOM COVERS.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
KXDIITPC
1 2 3 4
5
6
7
8
9
10
11 12
13
14 15
13
1
2
3
Rear panel features
DSP modes
Switch through DSP modes to modify according to your needs
Power indicator
This will illuminate when the unit is on
Signal indicator
This will illuminate when signal is on
Limit indicator
This will illuminate just before clip and/or
distortion
5Volume control for input 1
8Volume control for input 2
6Mic/Line switch for input 1
Press in for mic, and out for line
9Mic/Line switch for input 2
Press in for mic, and out for line
7Mic/Line input for input 1
Use with XLR or ¼” male
10 Mic/Line input for input 2
Use with XLR or ¼” male
11 Mix/Input switch for output
Press in for input 2, and out for mixer
12 XLR connection for Ouput
Use with XLR female only
14 Power supply switch
on/off
15 Power supply input
Use with included power cord
4Front LED switch
Press in for LED on, and out for LED off

6
II
18A
Engineered in USA
SERIAL NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE TOP OR BOTTOM COVERS.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
~100-240V 50/60Hz
T10AL 250V
KXDIITPS
1
2 3
4 5
6
7
8
9
10
11
12 13
13
1
2
3
Rear panel features
Power supply input
Use with included power cord
Front LED switch
Press in for LED on, and out for LED off
Left input
Use with XLR or 1/4” male
Right input
Use with XLR or 1/4” male
5Right thru
Signal out, right
8Phase switch
Reverses the phase of the subwoofer output
with respect to the signal input
6Volume control
Master volume control
9Limit indicator
This will illuminate just before clip and/or
distortion
7Low pass control
Adjusts frequency
10 Signal indicator
This will illuminate when signal is on
11 Power indicator
This will illuminate when the unit is on
12 Power supply switch
on/off
4Left thru
Signal out, left

7
blastking.com
Technical Information
Model KXDIITPC KXDIITPS
Type: Active Speaker Tower 18” Active Subwoofer
Frequency response (-3 dB): 65Hz-20KHz 45Hz-100Hz
Frequency range (-10dB): 55Hz-20KHz 33Hz-130Hz
Maximum SPL peak: 138dB 137dB
Power handling: 800 Watts 1200 Watts
Low frequency transducer: 4x8” 18”
High frequency driver: 1.75” -
Crossover frequency: 2.2KHz -
Power amplifier type: Class D Bi-Amp Class D
DSP processor: Intergrated with
5-modes
-
Includes side handles for easy transport
12 Fly points for rigging the loudspeaker
Input connectors: XLR or 1/4”Jack XLR or 1/4”Jack
Output connectors: XLR XLR
Power consumption: 160 Watts 290 Watts
Power supply: 110-240V 50/60Hz
Enclosure: Plywood
Grille: Steel
Physical Specifications
Product
Height: 44.09”/ 1120 mm 22.24”/ 565 mm
Width (front): 10.23”/ 260 mm 20.47”/ 520 mm
Width (rear): 10.23”/ 260 mm 20.47”/ 520 mm
Depth: 12.99”/ 330 mm 23.62”/ 600 mm
Weight: 67.2 Lbs / 30.5 Kg 77.1 Lbs / 35 Kg
Package
Height 47.44”/ 1205 mm 25.19”/ 640 mm
Width: 12.99”/ 330 mm 23.22”/ 590 mm
Depth: 15.55”/ 395 mm 26.57”/ 675 mm
Weight: 71.6 Lbs / 32.5 Kg 81.5 Lbs / 37 Kg

8
KXDIITPC Dimensions
Room Acoustics KXDIITPC
Horizontal coverage angle: 82°
Vertical coverage angle: 88°
Top
27.95”
710 mm
17”
432 mm
17.51”
445 mm
20.47”
520 mm
23.62”
600 mm
22.24”
565 mm
KXDIITPS Dimensions

9
blastking.com

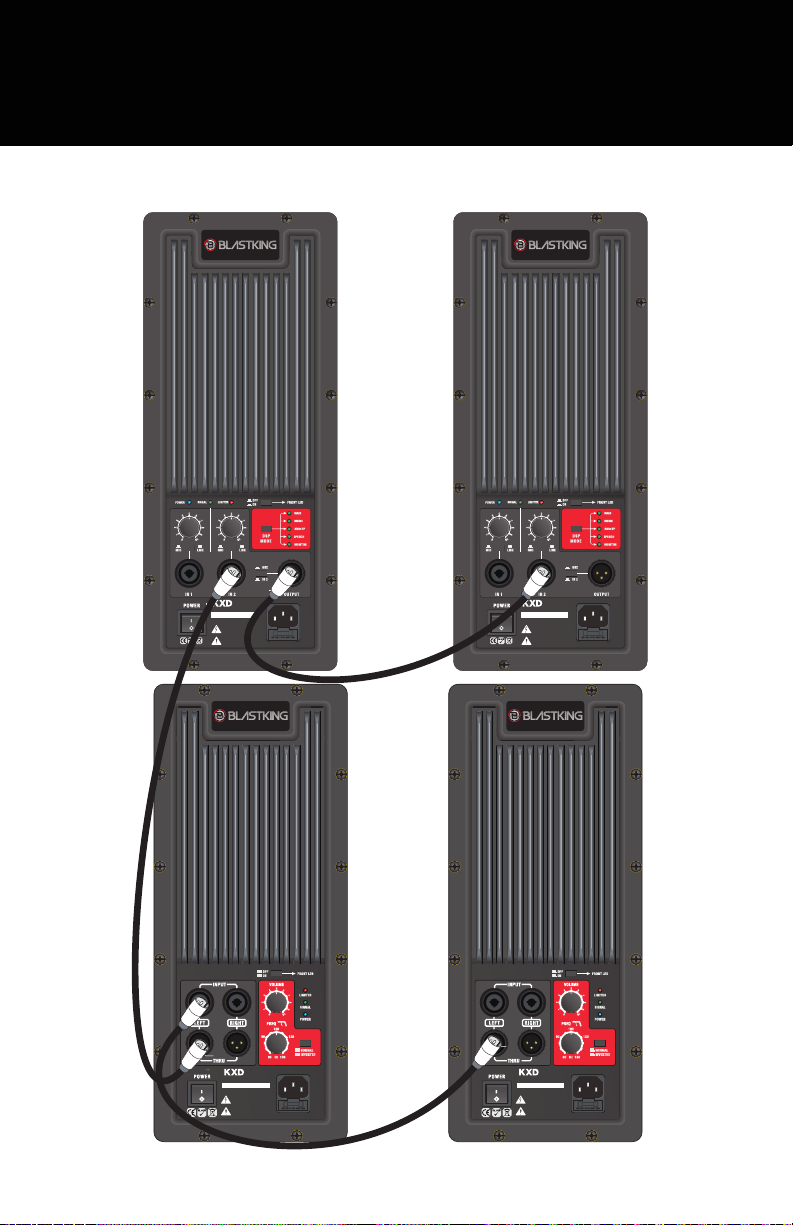

KXDIITP Wiring Diagram
Engineered in USA
II
TPC ~100-240V 50/60Hz
T10AL 250V
SERIAL NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE TOP OR BOTTOM COVERS.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
Engineered in USA
II
TPC ~100-240V 50/60Hz
T10AL 250V
SERIAL NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE TOP OR BOTTOM COVERS.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
II
TPS
Engineered in USA
SERIAL NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE TOP OR BOTTOM COVERS.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
~100-240V 50/60Hz
T10AL 250V
II
TPS
Engineered in USA
SERIAL NUMBER
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE TOP OR BOTTOM COVERS.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
~100-240V 50/60Hz
T10AL 250V
L
DO
I
OF FIRE
100-240
O I

10
Tower of Power
4000 Watts of Pure Power
KXDIITP
ACTIVE SPEAKER TOWER SYSTEM
Package includes
(2) KXDIITPC - Active Speaker Tower
(2) KXDIITPS - 18” Active Subwoofer
Side and back brackets
II
series

11
