Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
1
Section 1
1.1 Warnings and Symbols
1.2 Statutory Safety Considerations
1.3 Primary Safety Considerations
1.4 Safety – Selecting Personnel and Their Qualifications
1.5 Safety – Consideration Under Normal Operating Conditions
1.6 Electrical Safety
1.7 Maintenance Mode

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
2
1.1 Warnings and Symbols
This Instruction Manual uses the following symbols to draw your attention to certain
information. Please note that these symbols may or may not be used on the
machine.
Symbols Used:
Warning of a potential danger to life and limb. Always comply with the
instructions and act with extra care in these cases. Along with these
instructions, you should be familiar with and comply with statutory
OSHA, local government, and site safety and accident
prevention regulations.
Information, directions, and cautions to help prevent injury to persons or
damage to property.
Warning of dangerous voltages or potentially dangerous voltages
Suggestions regarding Lock Out/Tag Out (LO/TO) conditions for this
equipment are also referred to as the “Maintenance Mode”. Many
industrial and commercial facilities have developed their own conditions
and rules for LO/TO with which the operator may be required to comply.
It is the responsibility of the owner/operator of this equipment to develop
a LO/TO procedure that will provide the intended element of safety. One
LO/TO system will not work in all situations. Management must give
consideration to personnel training levels.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
3
1.1 Warnings and Symbols (cont’d)
Information requiring advice or input from Blastrac.
Details of important information in this Instruction Manual.
Indication of necessary regular or scheduled checks pertaining to
safety, maintenance, and/or operation efficiency.
Troubleshooting tips and suggestions
Special information concerning the economic use of the machine
1.2 Statutory Safety Considerations
In addition to these Manual instructions and cautions, all
statutory and other binding (law) accident prevention regulations
such as OSHA, state and/or local entity articles should be a part
of operator training. This type of obligation may govern, i.e.
handling of hazardous materials or wearing personal safety
equipment. Some of these are listed in the remainder of this
Section 1.2 “Statutory Safety Considerations”.
Safety shoes are required. Observe all applicable local, state and
federal safety regulations. Wear OSHA-approved foot protection.
Eye protection is required. Observe all applicable local, state and
federal safety regulations. Wear OSHA-approved safety glasses
with side shields.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
4
1.2 Statutory Safety Considerations (cont’d)
Wear respirator while operating equipment. Avoid air contaminants
including concrete dust. Grinding and cutting concrete produces
airborne crystalline silica. Exposure to airborne crystalline silica can
lead to severe repertory distress, silicosis and even death. Observe all
applicable local, state and federal safety regulations. Wear OSHA
approved respirator when operating this equipment.
Obtain Material Safety Data Sheets (MSDS) for all work surface
materials. This includes primers, all coatings, adhesives, tile materials,
etc. Do not attempt to remove material without MSDS information.
Consult MSDS for hazards information. Keep these MSDS with the
machine.
Wear ear protection when operating equipment. Noise levels of
operating equipment may exceed 85 db (A). Observe all applicable local,
state, and federal safety regulations. Wear OSHA-approved hearing
protection.
Dangerous voltages power this equipment. Operation can be safe if
rules and good practices are observed.
1. It should be standard practice that if damage to an electrical element of the
machine occurs i.e. control panel, cable, etc the repair must be immediate
and factory replacement parts must be used.
2. Particular attention must be given to laws pertaining to equipment
grounding. The following is an excerpt from OSHA 29CFR 1926.404(b)(1)(iii)
and should be considered a minimum guideline for inspection/repair policy for
the owner/operator.
This same verbiage is also present in the National Electric Code.
The employer shall establish and implement an ensured equipment
grounding conductor program on construction sites covering all cord
sets, receptacles which are not a part of the building or structure, and
equipment connected by cord and plug which are available for use or
used by employees. This program
shall comply with the following minimum requirements:
(A) A written description of the program, including the specific
procedures adopted by the employer, shall be available at the jobsite for
inspection and copying by the Assistant Secretary and any affected
employee.
(B) The employer shall designate one or more competent persons . . . . .
The balance of this article may be found at www.osha.gov

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
5
1.3 Primary Safety Considerations
USE COMMON SENSE and BE AWARE!
NEVER leave the machine while it is running. Do not remove hands
from the handle until the machine has come to a complete stop. Turn
power off and place the machine into the “Maintenance Mode”. See
Section 1.5 “Safety – Under Normal Operating Conditions”.
Before starting any work with or on the machine, all authorized
personnel must read and understand the Instruction Manual. AFTER
work has started is TOO LATE. This applies in particular to those
persons who only work on the machine occasionally, i.e. setting-up,
maintenance, changing filters, etc.
The Instruction Manual must be supplemented by management
developed rules, including supervisory and personnel levels with
notifying duties, taking special operational features into account, i.e.
regarding work organization, operational sequences, personnel used,
training, etc. Always keep the Instruction Manual in good condition
and with the machine.
Only personnel trained in this manner should operate this equipment.
Alterations, extensions and conversions of the Blastrac® equipment
requires the approval of Blastrac! This applies in particular to the
installation and settings of safety devices,
cabling and welding work on any supporting parts. Use ONLY
Blastrac® replacement parts!
If changes affecting safety occur to the machine or its operational
behavior, shut the machine off immediately. Determine the cause of
the fault and correct it immediately!
DO NOT attempt to operate the machine until it has been repaired.
Under no circumstances should anyone ever operate these machines
while under the influence of drugs, alcohol, or any medication.
Personnel must not have unprotected long hair, loose clothing or
jewelry, including rings. There is a risk of injury i.e. through hair,
fingers, arms or clothing getting stuck or being pulled into the
machine.
Emphasis should be provided and checks conducted at regular
intervals to ensure personnel are safety conscious and aware of all
the risks and cautions in this Instruction Manual as well as operational
information.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
6
1.3 Primary Safety Considerations (cont’d)
The periodic checks and inspections listed in this Manual should be
performed thoroughly and on time. This will help ensure that the
Blastrac® equipment will continue to operate efficiently, economically
and safely. Failure to perform these checks and inspections will
potentially foster inefficient and unsafe equipment.
Never use the machine unless all safety devices and equipment
affecting safety, e.g. guards, detachable safety equipment, emergency
switches and dust collector is in place and working!
1.4 Selecting Personnel and Their Qualifications
Stipulate to the machine operators their responsibility and authorize
them to refuse instructions from third parties that contravene safety
regulations! Personnel in training or under instruction may only
operate the machine under the supervision of an experienced person!
Both supervisory and operating personnel should be familiar with the
location and proper use of fire suppression and extinguishing
equipment on site.
Before starting any work with or on the machine, all authorized
personnel must read and understand the Instruction Manual. AFTER
work has started is TOO LATE. This applies in particular to those
persons who only work on the machine occasionally, i.e. setting-up,
maintenance, changing filters, etc.
The Instruction Manual must be supplemented by management
developed rules, including supervisory and personnel levels with
notifying duties, taking special operational features into account, i.e.
regarding work organization, operational sequences, personnel used,
training, etc. Always keep the Instruction Manual in good condition
and with the machine. Only properly trained personnel should be
allowed to operate this equipment.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
7
1.5 Safety – Considerations Under Normal Operation
Work on electrical parts of the machine must be preformed by a
qualified electrician or
by experienced persons under the supervision of a qualified
electrician.
ALWAYS INFORM OPERATING PERSONNEL before starting any
special work or maintenance work! When work is carried out that
affects the machine's operations or settings and/or the settings of the
safety devices, complete compliance with this instruction manual is
necessary! This is an important part of the Lock Out/Tag Out
procedure mentioned below.
LOCK OUT/TAG OUT or “Maintenance Mode” of a machine.
The machine must be in a “safe” mode when troubleshooting,
adjusting or maintaining the equipment. The machine state is "safe” to
work on when it is unable to endanger anyone, i.e. no stored energy
that might be released is present. Examples would include:
•Electrically the Main switch is disconnected, locked out and
tagged out.
•Mechanically the machine and all parts of it are secure i.e. lids
cannot fall, wheels cannot roll, etc.
•Any other “stored energy”, such as a spring under tension has
been neutralized.
Before switching the machine ON, ensure no one can be endangered
when the machine starts up!
Check to ensure that the machine power switch is in the off position
before attempting to plug the machine into the main power source!
Make sure that the power plug and receptacle are compatible and that
they fit securely together. If they do not securely fit together, do not
operate the machine!
The machine MUST be connected to an approved dust collector such
as a Blastrac® 4-54DC99, 6-54DC99 or 8-54DC99 when in operation.
NEVER turn off or disconnect the dust collector when the machine is
running!
Always empty the dust container of the dust collector properly.
Comply with waste disposal regulations. If you are unsure of current
regulations contact your local authority. Always dispose of materials
and supplies safely to protect the environment.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
8
1.5 Safety – Considerations Under Normal Operation (cont’d)
AVOID DANGEROUS SITUATIONS
•Survey the work area before starting the machine for hidden
obstructions and uneven cracks or joints.
•Do not expose the machine to rain.
•Do not use the machine in standing water conditions.
•Keep work area well lit.
•Do not allow the machine to cross over the edge of the
concrete slab or work surface.
•When working on uneven surfaces, pay attention not to cross
over embedded floor anchors, ledges, or heaved slab joints as
this may lead to machine damage, personal injury, or both.
Check the system thoroughly after each transport and at least once a
day for external damage and defects. As defects or problems are
found qualified personnel MUST correct them immediately.
In the event of an emergency, the operator should execute an
Emergency Stop! A Lock Out/Tag Out or “Maintenance Mode” is
necessary in the event of an emergency!
How to Execute an Emergency Stop:
9Operate the Emergency Stop Pushbutton located on the control panel of
the scarifier by pressing down on the e-stop button. This will remove all
power from the machine.
9Operate the mechanical lift knob on the scarifier. This will remove the
scarifier drum from the work surface.
9Switch the dust collector to the off position.
9Wait until all drives come to a complete stop!
9Disconnect the main power plugs or lock out the main disconnect switches
of both machines to ensure that no power is being fed to the scarifier or
the dust collector.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
9
1.6Electrical Safety
When extending the main cable, use only extension cables that
are dimensioned in accordance with the machine's total output
and with current regulations.
DO NOT ABUSE THE POWER CORD! Never pull the machine by
the cord! Never allow the cord to be run over by a forklift truck
or any other vehicle! Connect the power cord to the power
source and power cable extensions with approved plugs only
and with the machine power switch turned off.
To protect against unnecessary damage, ensure that no
vehicles, such as forklift trucks, can drive over the electrical
cable or the dust hose!
Electrical components must be checked on an ongoing basis.
Electrical cables, enclosures, and safety devices should be
inspected prior to every shift, EVERY day. Always inspect after
transport. A thorough check of the internal terminations should
be accomplished every 3 months.
If defects are found or suspected, contact a qualified electrician
or your Blastrac representative. Defects such as loose
connections or scorched cables must be corrected immediately.
Ensure reliability of voltmeters used for troubleshooting.

Operating Instructions BMP-E165
Section 1 - Safety Precautions April 2006
© Blastrac April 2006
10
1.7 Maintenance Mode
Prior to inspecting BMP-E165 components and attached components, verify that
the machine is placed in Maintenance Mode as described below.
Maintenance Mode
Maintenance mode is defined as the state or condition of the BMP-E165, which
minimizes mechanical and electrical hazards.
The BMP-E165 should be put into Maintenance Mode prior to making
adjustments or attempting any maintenance. The steps for placing the BMP-
E165 in maintenance mode are listed below.
1. Move the BMP-E165 to level ground.
2. Press Off Button located in control panel.
3. Verify all moving parts have stopped.
4. Secure the BMP-E165 against movement due to gravity.
5. Utilize Lock-Out/Tag-Out procedures to verify machine will not be
inadvertently energized during maintenance.

Operating Instructions BMP-E165
Section 2 – Technical Data April 2006
©Blastrac April 2006
11
Section 2
2.1 Machine Specifications
2.2 Motor Specifications
2.3 Applications and Proper Use
2.4 Power Requirements for Electric Machine

Operating Instructions BMP-E165
Section 2 – Technical Data April 2006
©Blastrac April 2006
12
2.1 Machine Specifications
Manufacturer: Blastrac®, 13201 North Santa Fe, Oklahoma City, OK 73114
Equipment / Code Word: Blastrac Scarifier
Machine Contents upon Delivery: Scarifier (BMP-E165)
Manual (1x)
Dust Collector (option)
Dust Container (option)
Machine Type: BMP = Model
E = Motor type
165 = Working width in millimeters
Machine Dimensions
Length 29.5”
Width 15.5”
Height 36 1/4”
Weight (with drum) 76 lbs.
Working Width: 10”
Drive: Manual
2.2 Motor Specifications
Electric Power: 1.5hp, 115V, 60 HZ, 15 A
2.3 Applications and Proper Use
All proper applications of these machines have been listed in Section 3.1 “Description
of Machine“.
This machine has been designed for the scarifying of horizontal
concrete, asphalt, and steel surfaces ONLY. All other applications are
deemed to be of incorrect use! Blastrac shall not be liable for any
damage resulting from incorrect use. The user is solely responsible for
any risk.

Operating Instructions BMP-E165
Section 2 – Technical Data April 2006
©Blastrac April 2006
13
2.4 Applications and Proper Use (cont’d)
A dust collector system MUST be used with this scarifier. The
minimum requirement of the dust collector is 200 CFM with primary
filter efficiency of 99.9% @ 0.5 Microns
2.5 Power Requirements for Electric Machine
If the machine is to be operated with a generator, the generator must
be connected in accordance with the National Electric Code (NEC).
Particular attention must be given to the equipment grounding
conductor in the system. See Section 1.2, Page 4 “Dangerous voltages
power this equipment. Etc” for explicit information. Only by doing this
are you ensured that all safety devices will function properly and
exclude the possibility of injury of personnel or of damage to electrical
components.

Operating Instructions BMP-E165
Section 3 - General Information April 2006
©Blastrac April 2006
14
Section 3
3.1 Description of Machine
3.2 Electrical Control Operating Elements
3.3 Mechanical Operating Elements
3.4 Scarifier Drum Details
3.5 Scarifier Cutter Details

Operating Instructions BMP-E165
Section 3 - General Information April 2006
©Blastrac April 2006
15
3.1 Description of Machine
Blastrac BMP-E165 scarifiers are available with a 115 V electric motor.
BMP-E165 scarifiers with a working width of 7 inches are sturdy and powerful
machines that can be used only on horizontal surfaces.
The depth setting adjustment handle of the machine assures that the subsurface
is protected. Fitted with the appropriate scarifier cutters, the BMP-E165 scarifiers
can be used for various applications, for example:
•Scarifying concrete
•Cleaning only on horizontal surfaces
•Removing coatings and adhesives
•De-rusting metal surfaces, e.g. ship decks and tanks
•Grinding-away
•De-scaling
•Preparing surfaces for new coatings
The depth setting adjustment handle enables the efficiency of the appropriate
scarifier cutters to be maximized according to the material being removed.

Operating Instructions BMP-E165
Section 3 - General Information April 2006
©Blastrac April 2006
16

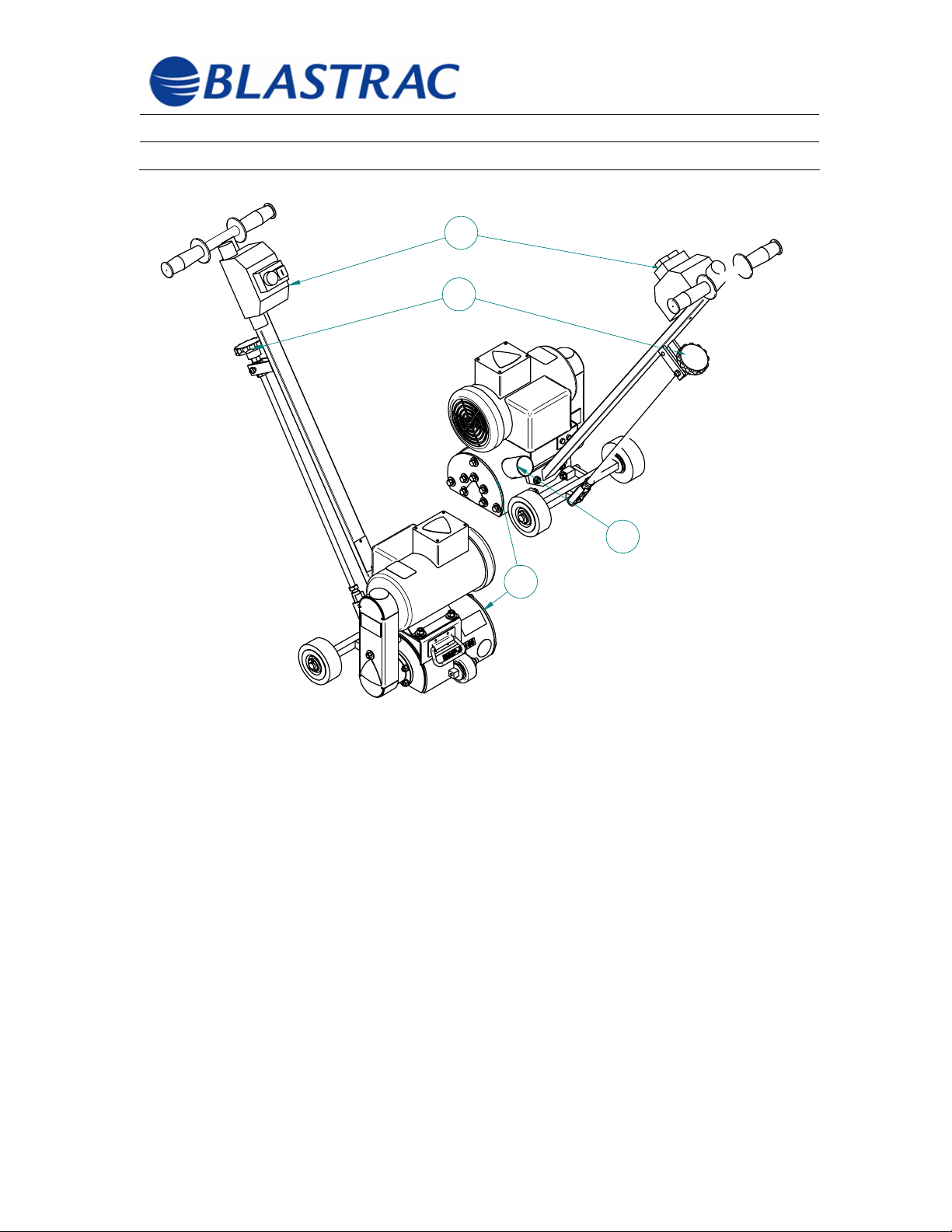

1
2
3
4
Fig. 3.1
1) Control panel
2) Dust Collector Connection
3) Depth Setting Adjustment Wheel
4) Machine Housing

Operating Instructions BMP-E165
Section 3 - General Information April 2006
©Blastrac April 2006
17
3.2 Electric Control Operating Elements
The electrical switchbox shown in Figure 3.2 for the BMP-E165 has a black On
button and a Red E-Stop/Off button.
1) On Button
2) E-Stop/Off Button
1
2
Fig. 3.2
On Button: This button is provided to turn the machine on. Before switching the
machine on, tip the machine back slightly to lift the scarifier drum off of the work
surface in order to prevent the motor from starting or coasting under a full load.
E-Stop/Off Button: This button is provided to turn the machine off. Prior to
turning the machine off tip the machine back slightly to lift scarifier drum off of the
work surface in order to prevent excessive wear to cutters when no actual work is
being accomplished.

Operating Instructions BMP-E165
Section 3 - General Information April 2006
©Blastrac April 2006
18
3.3 Mechanical Operating Elements
Depth Setting Adjustment:
Turn the depth setting adjustment wheel or hand wheel to set the scarifier depth
so that the individual scarifier cutters bite correctly (scratch) and the desired
surface profile is obtained. The depth setting adjustment enables the scarifier
cutters to be set as deep as required on the surface to be treated.
The scarifier depth should only be set “deep” enough so that the scarifier cutters
are thrown up without obstruction through centrifugal force and can turn freely on
their individual shaft. If the depth setting has been set correctly, the scarifier will
run smoothly and evenly.
3.4 Scarifier Drum Details
The scarifier drum is the heart of the scarifier. The scarifier drum has a very
simple structure. The individual scarifier cutters slide onto their individual shaft
with spacer washers as shown in the enclosed assembly plan. The washers
ensure that there is sufficient clearance between the scarifier cutters.
The enclosed component-mounting diagram takes into account a required lateral
play of approximately 1-3mm for the scarifier cutters.

Operating Instructions BMP-E165
Section 3 - General Information April 2006
©Blastrac April 2006
19
3.4 Scarifier Drum Details (cont’d)
1
2
3
4
5
1 Drum
2 Shaft
3 Shaft Retainer
4 Screw
5 Lockwasher
