Blastrac BMP-320 User manual

Operating Manual
BMP-320

Technical data
Safety instructions
General
Transport
Initial operation
Operation
Maintenance
Electrical systems
Fault diagnosis
Spare parts
Design and specifications are subject to
change without notice - September 1999
Blastrac BV
Utrechthaven 12
3433 PN Nieuwegein
THE NETHERLANDS
T +31(0)30 - 601 88 66
F +31(0)30 - 601 83 33
E [email protected]
I www.surfacepreparation.com
Nieuwegein

BMP-320 Operating Manual
Technical data
Contents Chapter 1
1.1 Rating
1.2 Unit specifications
1.3 Operative range and correct usage
1.4 Stand-by power supply

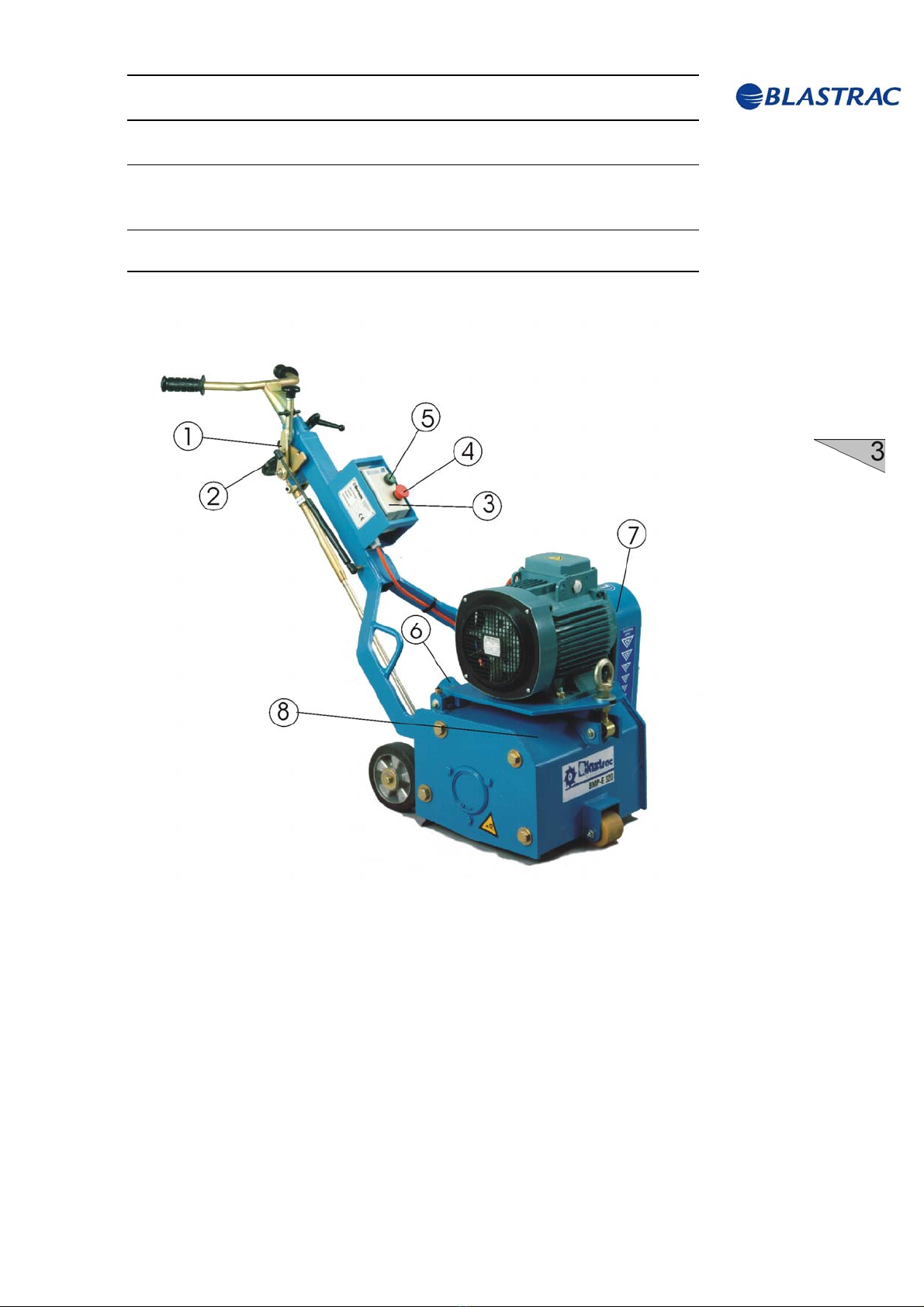

1.5 Machine type designation
1.6 Advice for operators of the scarifier
1

Operating Manual BMP-320
Technical data
1.1 Rating
Unit / Designation: Blastrac Scarifier
Machine type: BMP-E320
BMP-B320
Manufacturer: BLASTRAC
Utrechthaven 12
NL-3433PN Nieuwegein
THE NETHERLANDS
1.2 Unit specifications
Technical data
Scarifier BMP-E320 BMP-B320
Power consumption 5,5 kW 5,9 kW (8,0 PS)
Connected loads 400 V 50 Hz 16A
for CEE-plug 5-pol
Fuse protection
16A
Combustion engine
4 cycle (Fuel)
Scarifier holder width 320 mm 320 mm
Working width 320 mm 320 mm
Scarifying output up to 100 m²/h up to 100 m²/h
Dust hose connection 75 mm Ø 75 mm Ø
Recommended Filter unit 317 DCP 317 DCP
Noise Level LpA 90,7 dB LpA 90,7 dB
Vibration Level 7,21 ms² 7,21 ms²
2

BMP-320 Operating Manual
Technical data
Dimensions:
BMP-E320 BMP-B320
Length 1450 mm 1450 mm
Width 580 mm 580 mm
Height 1100 mm 1100 mm
Weight 170 kg 165 kg
1.3 Operative range and correct usage
The scarifier BMP-320 is exclusively designed to
clean horizontal surfaces. The machine may not be
used for other purposes. The manufacturer will not
be liable for damage resulting from such incorrect
usage. In these cases the user assumes all risks.
1.4 Stand-by power supply (Generator)
If the scarifier BMP-320 is operated using a
generator, this generator must be operated in
accordance with the current VDE directives (this
applies to the protective earth conductor in
particular) in order to ensure that all safety devices
are functioning and to eliminate possible damage to
electrical components.
3

Operating Manual BMP-320
Technical data
1.5 Machine type designation
1.6 Advice for operators of the scarifier
When you use the scarifier BMP-320 it is possible to
exceed the allowed scale of sound level of 85 db(A). If
the scale of sound level reaches 85 db(A) or more, the
operators and the persons who work in the
surroundings must wear noise protection.
4

BMP-320 Operating Manual
Safety instructions
Contents Chapter 2
2.1 Warnings and symbols
2.2 Organisational measures
2.3 Personnel selection and qualification
2.4 Safety precautions applicable to some operating sequences
2.5 Special work within the scope of use if the equipment and
maintenance activities as well as repairs during operation
2.6 Definition of the Safety off position
2.7 Particular dangerous aspects of the equipment
2.8 Electrical engineering regulations
1

Operating Manual BMP-320
Safety instructions
2.1 Warnings and symbols
The following denominations and symbols are used in the Operating
Instructions to highlight areas of particular importance:
Symbol of operational safety.
In these Operating Instructions this symbol will be
shown next to all safety precautions that are to be
taken in order to ensure prevention to life and injury.
Follow these instructions and take special care in
these circumstances. In addition to these
instructions, the general safety precautions and
accident prevention guidelines are also to be
followed.
Particular details regarding the economical use of
the equipment.
Information, instructions and restrictions with regard
to possible risks to persons or to extensive material
damages.
2

BMP-320 Operating Manual
Safety instructions
Warning against dangerous voltages.
Indications relating to protective devices in electrical
appliances.
Indications where consultation with the manufacturer
is required
Instructions relating to periodical checks.
Reference to important instructions contained in the
Operating Instructions.
3

Operating Manual BMP-320
Safety instructions
2.2 Organisational measures
The Operating Instructions are to be kept near the location where
the machine is located and must be within reach at all times!
In addition to the Operating Instructions general and legal regulations
regarding accident prevention and environmental protection must be
complied with and indicated!
Such duties may for example relate to the handling of hazardous
substances or to the provision and wearing of personal protection
equipment as well as compliance with traffic regulations.
The Operating Instructions must be supplemented by instructions
including the duty to supervise and report relating to particular
working practices, for example work organisation, work procedures
and personnel allocation.
Personnel entrusted with working with the machine must have read
the Operating Instructions before starting work, in particular the
Safety Instructions chapter. To read these instructions during work
is too late. This particularly applies to incidental activities such as
setting up the equipment, carrying out maintenance work or training
staff to work with the machine.
From time to time the working practices of the staff are to be checked
regarding awareness of safety and hazards.
Personnel must tie back long hair and not wear loose clothing or
jewellery including rings. There is a risk of injury through getting stuck
or being drawn into moving machinery.
Use personnel protection equipment if necessary or required by
regulations! Take notice of all safety and hazard notices on the
machine!
All safety and hazard notices at or on the machine must be kept
complete and legible!
4

BMP-320 Operating Manual
Safety instructions
If safety-critical changes occur to the machine or its working
method, the machine must be shut down immediately! The cause of
the fault must be established immediately!
Changes, add-ons or conversions to the machine which might impair
safety must not be undertaken without the manufacturer’s
permission!
This applies in particular to the fitting and adjustment of safety
devices as well as to welding on load-bearing parts.
Spare parts must comply with the technical requirements specified by
the manufacturer. This is always guaranteed if original spare parts
are used.
Intervals for recurring checks and inspections specified in these
Operating Instructions must be complied with!
To perform maintenance work correctly it is imperative to be equipped
with the proper tools for the task in question.
The location and the operation of fire extinguishers must be made
known on each building site!!
Take note of the facilities for reporting and fighting fires!
2.3 Personnel selection and qualification
Fundamental duties :
Work on the machine may only be undertaken by reliable personnel.
Only trained personnel may be deployed. Note the statutory
minimum age! Specify clearly the responsibilities of personnel for
operation, setting up, servicing and maintenance work!
Make sure that only authorised personnel operate or work on the
machine!
5

Operating Manual BMP-320
Safety instructions
Define responsibilities of the machine operator also regarding to
traffic safety regulations and empower him to decline instructions
from third parties which are not complying with the safety
requirements!
Personnel being trained or made acquainted with the equipment may
only be deployed on the machine under constant supervision of an
experienced person!
Work on electrical equipment or operating materials may only be
undertaken by a skilled electrician or by trained persons under
the guidance and supervision of a skilled electrician as well as
in accordance with the electrical engineering regulations.
2.4 Safety precautions applicable to some operating
sequences
Ban any method of working that impairs safety!
Some measures have to be taken in order to operate the machine in
safe and operative conditions!
Only operate the machine when all safety devices and related
safety equipment, e.g. detachable safety devices, emergency
stops and suction devices are present and operational!
Check the machine visually for any damage and defects at least
once a day!
In the event of operational malfunctions the machine must be shut
down immediately and secured!
Secure the work area around the machine in public areas
providing a safety distance of at least 2 m from the machine.
6

BMP-320 Operating Manual
Safety instructions
Faults must be immediately rectified!
Carry out the switch on and off operations and pay attention to control
display according to the operation manual!
Before switching on the machine make sure that no-one can be
endangered when the machine starts up!
Do not switch off or remove the exhaust and ventilation devices when
the machine is running!
All persons in the proximity of the machine, when it is working,
must wear ear protectors, safety glasses with lateral protection,
noise protection as well as safety shoes. The operator is obliged to
wear close-fitting protective clothing.
Use only extension cable for extending the main cable that are
sized and marked in accordance with the overall power
consumption of the machine and the valid VDE guidelines.
2.5 Special work within the scope of use of the equipment and
maintenance activities as well as repairs during operation
Mechanical servicing work:
Put the machine in the Safety off position as described in chapter
2.6 for any servicing work on the machine.
Please follow any special safety instructions in the various chapters
on servicing the machine.
See chapter 7.1 - 7.9.
Adjustment, servicing and inspection work and time limits
specified in these Operating Instructions as well as any information
on the replacement of parts and equipment must be undertaken
and/or complied with!
These activities may only be undertaken by qualified personnel.
7

Operating Manual BMP-320
Safety instructions
The operator has to be informed about all kind of maintenance
works before starting the process!
At all works that are related to normal operation, conversion of tools
adjustment of the machine and its safety devices as well as before
inspection , maintenance and repair all ON and OFF functions have
to be carried out according the operation manual and advises for
maintenance and repair.
If the equipment is switched off in order to do maintenance , repair or
adjustment it has to be secured against unintended restart.
Switch OFF and disconnect it from the power supply and secure
the main switch with a padlock.
See Chapter 2.6 Safety off position for specific details.
Always dispose the contends of the dust bin of the dust collector
used before loading it on van or truck. Observe the waste disposal
regulations, in uncertain situation ask your next policy level.
Do not use any aggressive cleaning materials!
Use lint-free cleaning cloths!
Always tighten any screw connections that are undone during
servicing and maintenance work!
If safety devices need to be taken off or dismantled during service
and repair, these safety devices must be reinstalled and inspected
immediately after completion of the servicing and repair work.
Make sure that process materials and replaced parts are
disposed of safety and in an environmentally-friendly manner!
Work on electrical equipment or operating materials may only be
undertaken by a skilled electrician or by trained persons under
the guidance and supervision of a skilled electrician as well as
in accordance with the electrical engineering regulations.
Make sure that electrical components used for replacement purposes
comply with the original parts and are correctly adjusted if necessary.
8

BMP-320 Operating Manual
Safety instructions
2.6 Definition of the Safety off position
Definition:
The machine is in a safe condition when it cannot generate any
hazard.
Putting the equipment in the Safety off position means:
;Manipulate the quick lift (Upper Position).
;Switch off the machine.
;Switch off the dust collector.
;Wait for standstill of all drives.
;Pull out mains plug.
;Secure against unintended restart
2.7 Particular dangerous aspects of the equipment
Any machine, if it is not used according the regulations, may be
hazardous for operating, setting-up and service personnel. The
operating authority is responsible for compliance with the
safety regulations during operation and maintenance of safety
devices supplied with the machine as well as the provision of
appropriate additional safety devices!
9

Operating Manual BMP-320
Safety instructions
2.8 Electrical engineering regulations
Work on electrical equipment or operating materials may only be
undertaken by a skilled electrician or by trained persons under the
guidance and supervision of a skilled electrician as well as in
accordance with the electrical engineering regulations.
Use only extension cable for extending the main cable that are sized
and marked in accordance with the overall power consumption of the
machine and the valid VDE guidelines.
The electrical equipment for the plant must be inspected regularly.
Defects such as loose connections or scorched cables must be
rectified immediately. Call a skilled electrician or our Customer
Services.
A second person must be at side in order to unplug or to control the
emergency stops if maintenance or repair requires working on live
parts.
The work area must be blocked off using a red and white safety
chain and a danger sign. Use a tool that is insulated against
voltages.
Only start work once you are familiar with the electrical engineering
regulations that apply to your area.
Only use voltage seekers that comply with the regulations when
troubleshooting. From time to time check voltage seekers to ensure
that they are operationally efficient.
10

BMP-320 Operating Manual
General
Contents Chapter 3
3.1 Care and maintenance
3.2 Scope of supply
3.3 Description
3.4 Control box
3.5 Operating elements
3.6 The scarifying drum
3.7 The scarifying flailes
1

Operating Manual BMP-320
General
3.1 Care and maintenance
Special attendance and regular maintenance of the machine are
imperative for functioning and safety.
3.2 Scope of supply
Scope of supply of the machine:
;Scarifier (BMP-320)
;Filter unit 317DCP (Option)
;Dust hose (Option)
;Operating manual 2 x
2

BMP-320 Operating Manual
General
3.3 Description of the machine
Fig. 3.1
1 Quick lift lever 5 „ON“ switch
2 Handwheel working depth adjustment 6 Dust collector connection
3 Control box 7 Belt cover
4 Emergency touch switch 8 Machine housing
3

Operating Manual BMP-320
General
The Blastrac scarifier of the range of BMP-320 will be supplied,
dependent on your request, with an electrical motor 400 V or with a
internal combustion engine.
The scarifiers BMP-320, with a working width of 320 mm, are rugged
machines can be set in on any surface. The BMP-320 can reach an
output of 100 m² per hour dependent on the surface: concret, steel,
stone, wood or asphalt. You can adjust the working depth
progressively and so precise that the surface will be treated with care.
The scarifiers BMP-320 are very versatile and with the appropriate
flailes they can be set in for example for the following works:
•To roughen concrete
•To clean any surface
•To scarify coatings
•To corrugate concrete surfaces
•To derust metal surfaces, e.g. ship's decks and Tanks
•To descale
The coefficient of performance of the flailes can be fully used through
the progressively deep adjustment and the surface will be treated with
care.
A specially designed dust collection system ensures nearly dust-free
operation of the machine and clean air at the workspace. Blastrac
uses specially designed dust collection systems which guarantee a
high cleaning level.
3.4 Control box
The control box is equipped with a push button "ON", and a
emergency shutdown switch.
On Switch
The ON push button is located on the control box (Fig. 3.1, Item.5).
Before switching on the machine the scarifier must be lifted with quick
lift lever in order to prevent a start or rather a run out of the motor
under full load.
4
