BLAUBERG Ventilatoren SGR-3/1 User manual
www.blaubergventilatoren.de
Sensor speed switch
SGR-3/1
DESCRIPTION
The sensor speed switch SGR-3/1 is designed for speed switching in multi-speed ventilation units
and domestic fans. The speed switch has a sensor panel with three buttons for speed control.
TECHNICAL DATA
Supply voltage 110-240 V, 50-60 Hz
Maximum connected load current 1 A
Cable cross section from 0.35 mm2to 1 mm2
Temperature range from -10 °C up to +45 °C
Humidity range from 5 % up to 80 % (no condensate)
Service life 100 000 switching operations
Ingress Protection Rating IP30
Weight 138 g
MOUNTING
WARNING!
Make sure that the switch is not damaged. Do not operate a damaged switch! Do not install a switch on an uneven surface!
Do not apply excessive forces to avoid the product deformation.
Do not expose the unit to severe temperature uctuations.
A sudden change in temperature (e.g. when installing the unit indoors soon after bringing it in from the outdoor cold) may cause
condensation of humidity and malfunction of the unit. After transport store the unit in a warm room at least 2 hours before using it.

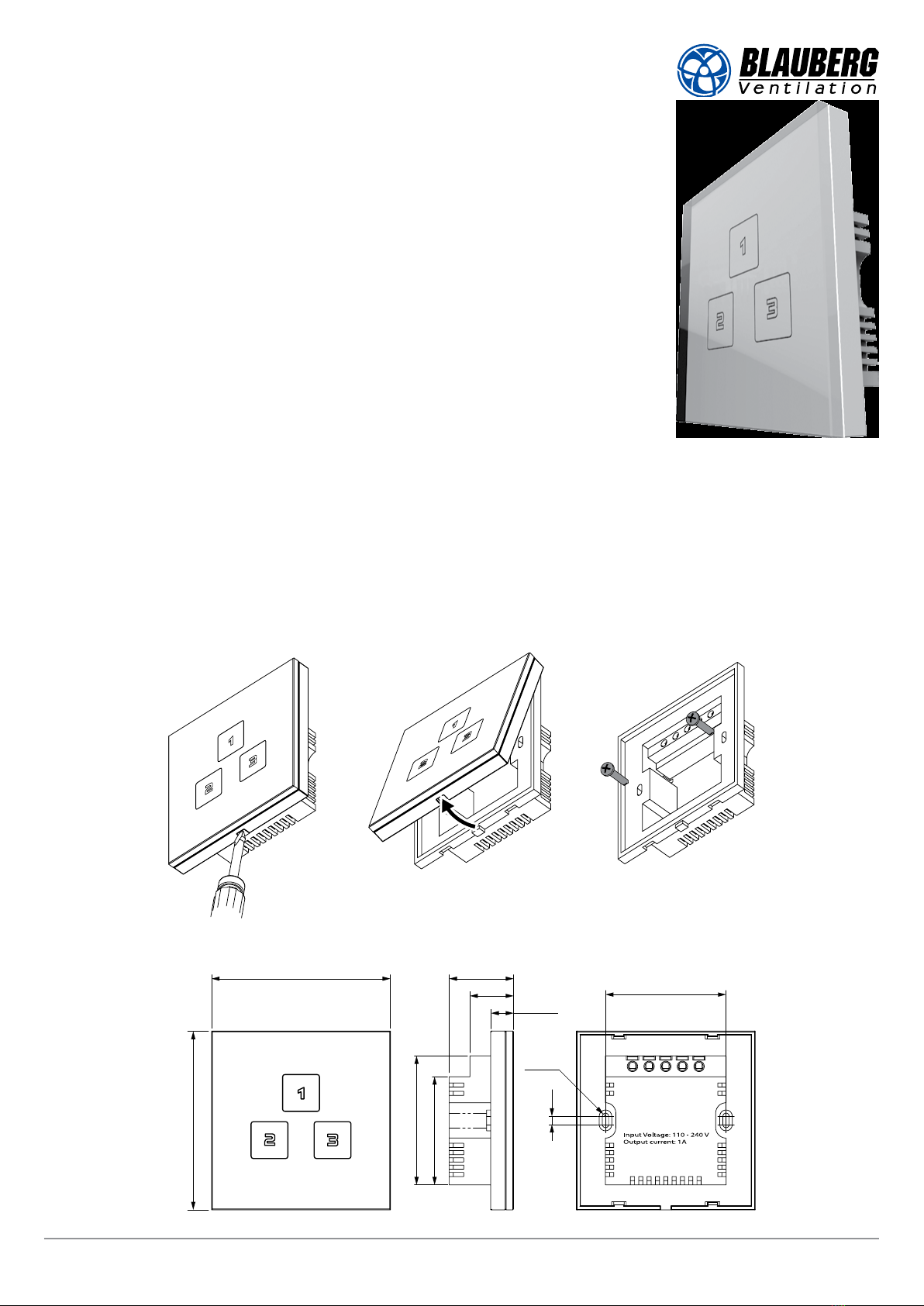

Mounting sequence of the sensor speed switch:
• Unfasten gently the front panel latches of the switch.
• Remove the front panel.
• Route the cable in the wall to the panel mounting place.
• Attach the back panel to the wall through the fastening openings.
• Install the front panel on the latches.
OVERALL AND CONNECTING DIMENSIONS, mm
86
62
4
52
86 31
21
R1,5
11
58
OUTOUT OUTOUT IN
LL1L2L3L4
B92EN-03
ELECTRIC CONNECTIONS
WARNING!
All the operations with the products are allowed after power supply cuto.
All mounting, addition, modication and maintenance operation for electric equipment must be performed by qualied electricians with
a work permit for electric operations.
Connect the switch to ventilation units and domestic fans in compliance with the wiring diagram below.
OUTOUT OUTOUT IN
LL1L2L3L4
M1
110 - 240 V, 50-60 Hz
2
3
High
Low
Middle
1
WARRANTY
Warranty period is 12 months since the sales date.
The Supplier bears no responsibility for any damages of the product incurred by violation of the transportation rules, product misuse,
unauthorized modification or repair.
is duly recognized as serviceable.
Approval mark Manufacturing date ________________________________________________
Sold
(name and stamp of the trade company) _______________________________________________________________________________
_________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________
Date of sale _____________________________
THE SENSOR SPEED SWITCH SGR3/1
CONTROL
• To activate the required speed of the connected ventilation equipment, touch the
button with a respective speed marking.
— 1 speed;
— 2 speed;
— 3 speed;
• For speed switching, touch a button with respective speed indication.
• To turn the product o touch the respective current fan speed button again.
The respective current speed button.
