BLAUBERG Ventilatoren MCD 60/0.3 User manual

User’s Manual
MCD 60/0.3

1. Functions
2. Package
3. Specifications
4. Operating conditions
5. Safety requirements
6. Description and structure
7. Installation
8. Connecting to supply network
9. Configuring and set-up
10. Storage precautions
12. Manufacturer's warranty
13. Acceptance certificate p
14. Warranty card
CONTENTS p. 3
p. 4
p. 4
p. 4
p. 4
p. 5
p. 6
p. 7
p. 9
p. 11
p. 11
p. 12
p. 12
2MCD 60/0.3

The device is multifunctional fan control unit (further MCD 60/0.3).
MCD 60/0.3 is used to operate mode of fans located in accommodation space (kitchen,
bathroom, bedroom...).
MCD 60/0.3 includes automatic control function based on use of moisture sensor
(hygrostat), lighting sensor (photo switch), moving sensor, timer and hand control of inner
and outer switch.
Also MCD 60/0.3 provides cyclic turning the power on and off. Using switches you can set
any function mode fit to situation.
For example, in the toilet you can use lighting sensor and timer. So the fan will turn on
when somebody comes in and will keep working for 10 (for example) minutes.
Functions
3
MCD 60/0.3

The ambient air must include no explosive and corrosive impurities.
Using MCD 60/0.3 out of temperature range and in the rooms with aggressive impurities in
the air.
MCD 60/0.3 installing must be carried by an electrician specialist according to
existing regulations.
Safety
requirements
CAUTION
NOT ALLOWED
!
MCD 60/0.3 scheme is under voltage. Install only when voltage is off.
CAUTION
!
Package includes:
- control unit 1pc;
- user's manual 1 pc;
- package box 1pc.
Voltage 220-240 V, 50 Hz
Maximum capacity 60 W
Loading type inductive, active
Protection power IP34
Dimensions, less than 151x46x27 mm
Environment temperature 0 °C ... +40 °C
Adjust range of moisture threshold 40-100 %.
Package
Specifications
Operating
conditions
4MCD 60/0.3

To reach the best design and effect MCD 60/0.3 should be installed right under the fan (pic. 1)
MCD 60/0.3 front panel includes:
moving sensor (option)
lighting sensor
MCD 60/0.3 function modes are indicated by:
red LED the fan is on;
red LED moving sensor actuation (option);
yellow LED lighting sensor actuation;
green LED moisture sensor actuation (option).
Description
and structure
5
MCD 60/0.3
1

MCD 60/0.3 installation requires:
- to take off MCD 60/0.3 front panel;
- to choose MCD 60/0.3 installation position and to outline it with the pencil (pic. 3);
- to make holes for dowels;
- to screw screws into the dowels;
- to mount MCD 60/0.3 back panel on screws and to move it upwards;
- to fix it;
- to connect MCD 60/0.3 to supply network (read about connecting to supply network)
- to make its configuring and set-up (read about configuring and set-up);
- to mount MCD 60/0.3 front panel and fix it.
CAUTION
!!
MCD 60/0.3 mounting holes' design requires MCD 60/0.3 to be moved upwards during the
installing
Installation
0

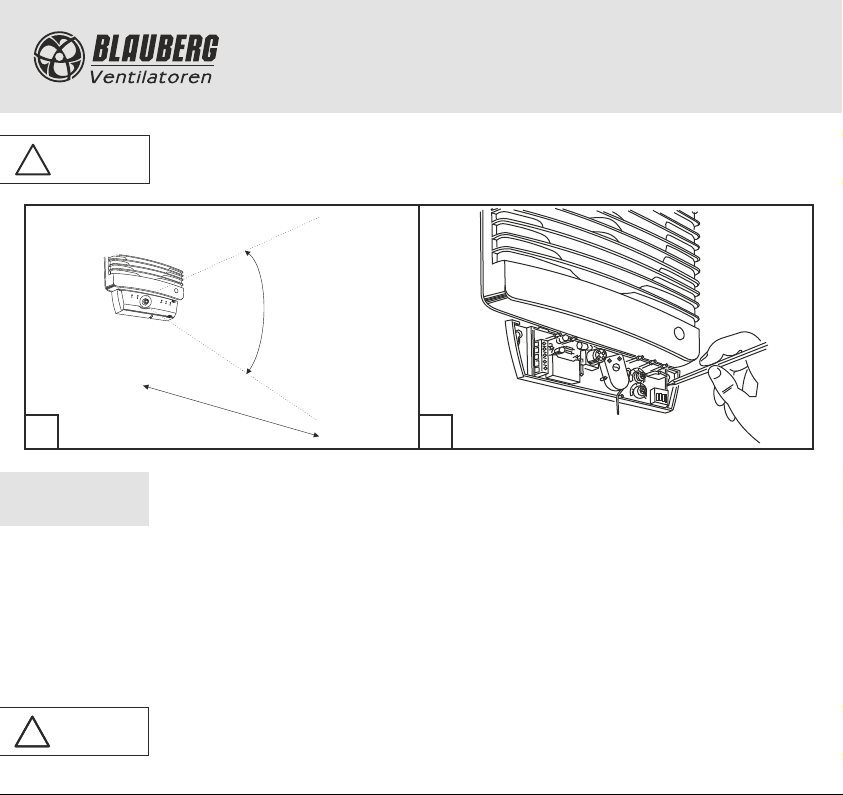

Moving sensor operative range is 5 m and viewing angle is 130 (pic. 2).
CAUTION
!
MCD 60/0.3
6
3
О
130
5 м
2

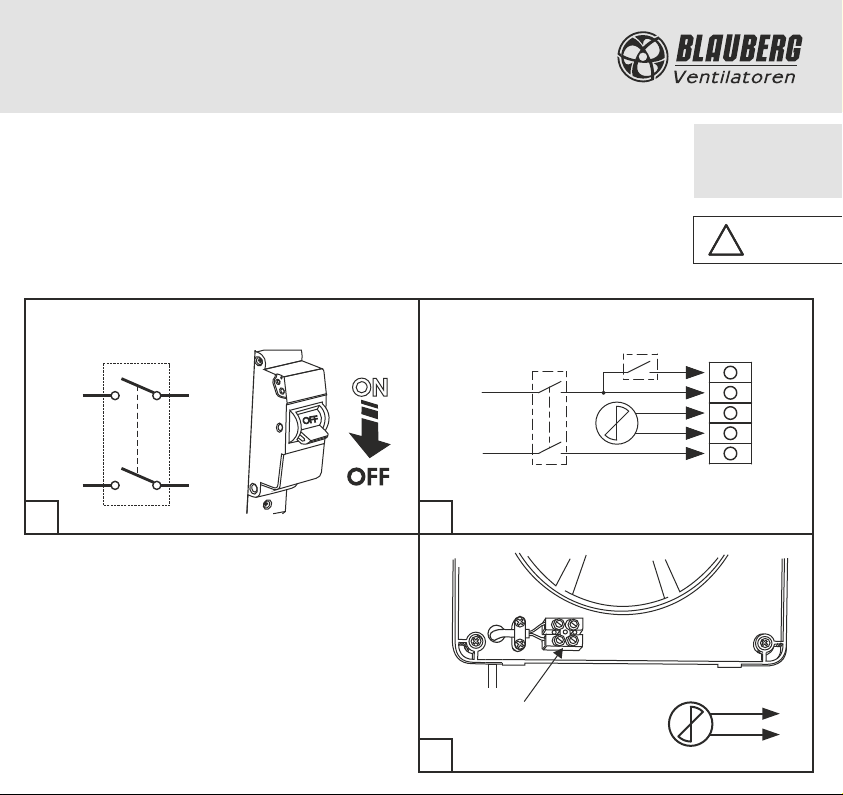

1. Connecting to supply network must be provided with the switch with the clearance between
the contact not less than 3 mm mounted into the fixed wiring.
Explore connecting scheme (pic. 5).
Install only when the power is off (pic. 4).
Installation should be done carefully to keep electronics safe.
2. Connect supply wire to outer automatic switch.MCD 60/0.3
Connecting to
supply network
S1
Scheme markings
CAUTION
!!
Scheme markings:
B - fan (pic. 6);
S1 - automatic switch (pic. 4);
S2 - outer switch (pic. 7);
X - input terminal block (pic. 6).
Scheme marking
В
fan's input
terminal block
Recommended wire marking:
L - brown
N - blue
6
45
220-240 V
L
N
S1
B
X
S2
LT
L
M
M
N
MCD 60/0.3 7

4. Connect MCD 60/0.3 input terminal block (pic. 8) according to connection scheme (pic. 5).
CAUTION
!!
Fan's connecting depends on its model.
We recommend you to explore its passport before connecting.
3. Open the fan. Connect supply wire to the input terminal block. Close the fan.
Scheme marking
8
9
7
Outer switch
Function
modes switch
Input terminal block X
On
Off
S2
1 2 3 4
RP2
RP1
5. Configure for your purposes (read MCD 60/0.3
about configuring and set-up).
6. Put on the front panel and fix it.
7. Turn on by setting the switch into ON MCD 60/0.3
position (pic. 9).
If everything is done correctly, the fan starts working
in the set mode.
If the fan fails to work, please carry out its
diagnostics using this manual.
8MCD 60/0.3

1 2 3 4

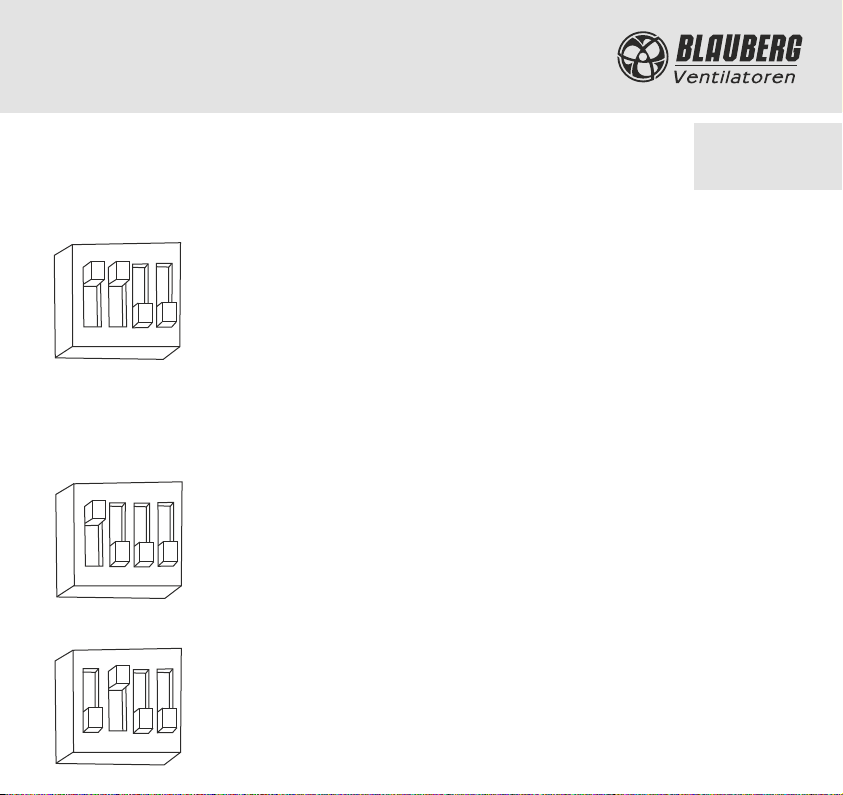

1.1 Hygrostat (option)
The fan turns on when moisture level is exceeded. Moisture level is set with RP1
regulator (pic. 8) according to table 2. Green LED indicates moisture level
exceeding and turns the fan on. After moisture level drops, the fan will be working
for the time set with RP2 regulator according to table 1. The mode is activated by
setting switches 1 and 2 into ON position.
1 2 3 4
1.2 Photo switch
Turning the fan on and off depending on illumination (two modes are available):
The fan is turned on in 5 seconds after the light in the room turns OFF. Fan's
working time is set with the RP2 regulator according to the table 1. Operating
threshold is set with RP1 regulator. Yellow LED indicates illumination threshold
exceeding. The mode is activated by setting switch 1 into ON position.
Photo switch (dark)
ON
ON
Configuring
and set-up
To configure settings:MCD 60/0.3
1. Choose one of the five modes using the switch (pic. 8).
Function modes' details.
Photo switch (light)
The fan is turned on in 10 seconds after the light in the room turns ON. After the
light turns off, the fan keeps working for the time set with the RP2 regulator
according to the table 1. Operating threshold is set with RP1 regulator. Yellow LED
indicates illumination threshold exceeding. If the light stays turned on over 60
minutes, the fan turns off. The mode is activated by setting switch 2 into On
position.
1 2 3 4
ON
9
MCD 60/0.3

1 2 3 4
1.3 Outer signal control
The fan is turned on in 3 seconds with the inner or outer switch. After being
turned on it keeps working for the time set with RP2 regulator. The mode is
activated y setting switch 3 into On position and can be combined with hygrostat
and photo switch modes.
1.4 Moving sensor (option)
The fan is turned on after detecting movement of rather big object (for example
human) in the sensor's operating range. Sensor's operating range is limited with
5 m distance and 130º viewing angle. After the movement ends the fan keeps
working for the time set with RP2 regulator according to the table 1. The mode is
activated by setting switches 3 and 4 into On position.
1 2 3 4
ON
ON

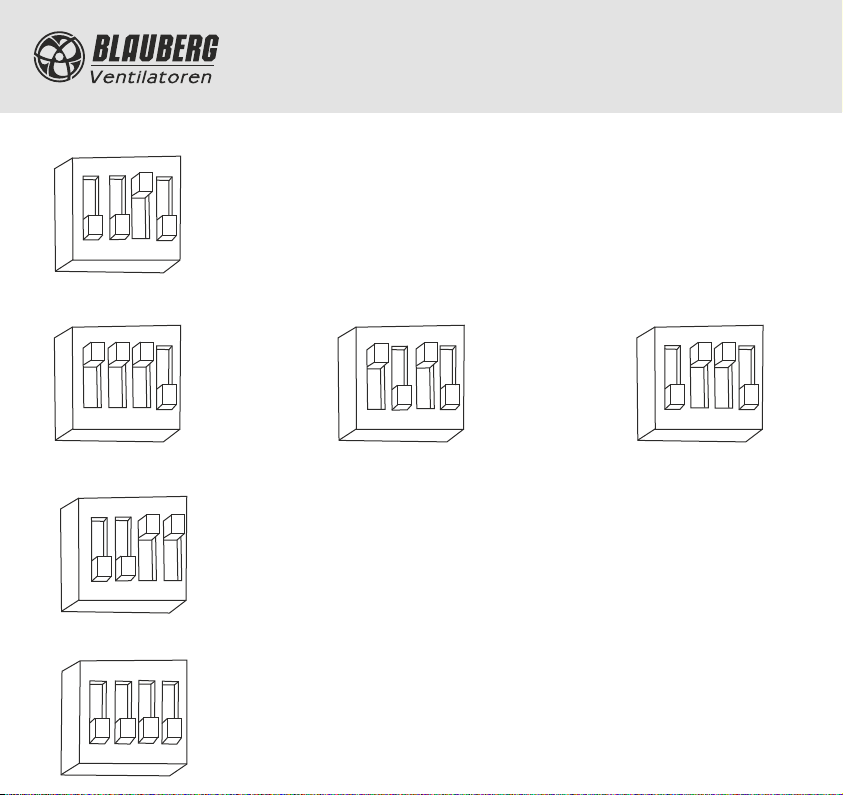

1.5 Cyclic
The fan is turned on periodically. It keeps working for the time set with RP2
switch and stays still for the time set with RP1 switch according to the table 1.
The mode is activated by setting switches 1, 2, 3 and 4 into Off position.
ON
1 2 3 4
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
Combining with
hygrostat mode
Combining with
photo switch mode (dark)
Combining with
photo switch mode (light)
10 MCD 60/0.3

Keep MCD 60/0.3 in manufacturer's package in ventilated room under the temperature
+5 ºC - +40 ºC and air humidity not over 60 % (under the temperature +20 ºC).
The presence of acids, alkalis and other corrosive impurities in the air is not allowed.
Manufacturer guaranties normal work of MCD 60/0.3 for 12 months from being bought in retail
network if all the rules of transporting, keeping, mounting and using were followed.
The warranty doesn't cover devices with mechanical damage features.
With no sign of buying date, warranty period counts from the date of manufacture.
If MCD 60/0.3 work fails during warranty period and it's manufacturer's fault, the customer has
the right to change MCD 60/0.3 at the Manufacturer's.
Storage
precautions
Manufacturer's
warranty

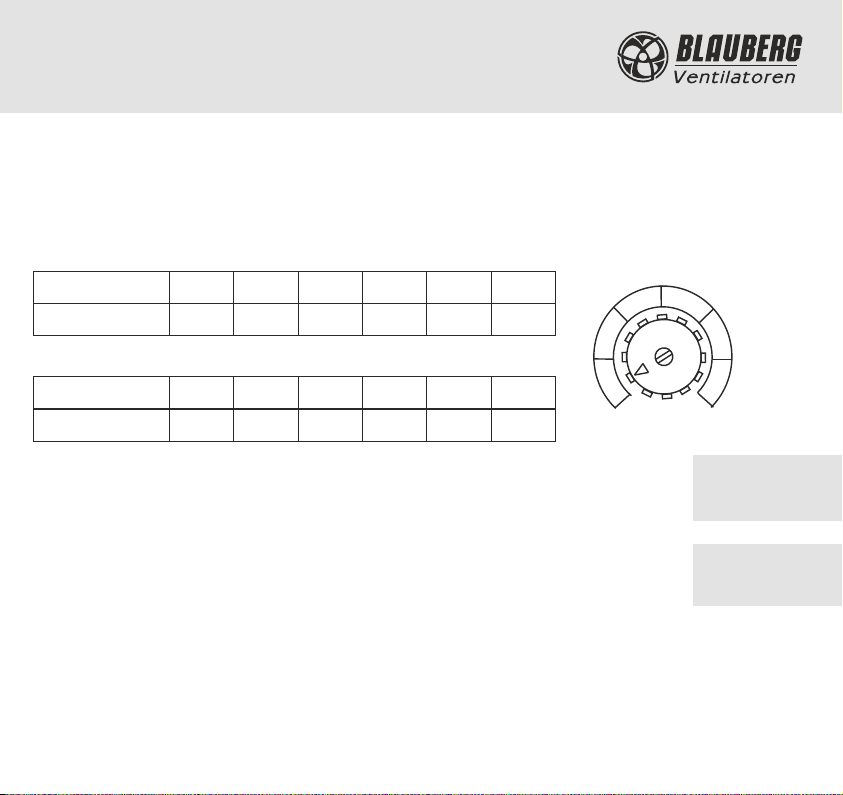

Table 1. Time settings
123456
Time
Moisture
5 sec.
40...50 %
5 min. 10 min. 15 min. 20 min. 30 min.
50...60 % 60...70 % 70...80 % 80...90 % 90...100 %
Position
123456
Table 2. Moisture settings (option)
2. Carry set-up with the help of potentiometers RP1 and MCD 60/0.3
RP2.
1
2
34
5
6
By turning potentiometer's handle you configure parameters from the mode description.
Setting handle on one of the six segments you can choose a value of needed parameter
according to the table 1, 2.
Position
11
MCD 60/0.3

Acceptance
certificate
Fan control unit MCD 60/0.3
Is compliant with the technical specifications and is recognized as serviceable.
Inspector's stamp Date of manufacture
Seller
Name of the shop, seller's stamp
Selling date
B24EN-03
Warranty
card
MANUFACTURER isn't responsible for the damage appeared after MCD 60/0.3
misuse or in the result of rude mechanical invasion.
MCD 60/0.3 owner must follow the manual.
CAUTION
!
MCD 60/0.3
