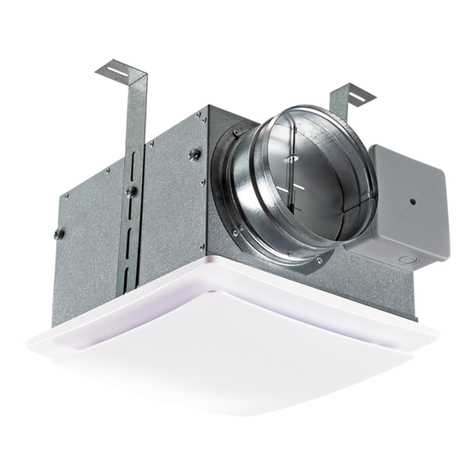

BLAUBERG Ventilatoren Box-D Series User manual

Box-D
EXHAUST
CENTRIFUGAL FAN
OPERATION MANUAL
EN

2
www.blaubergventilatoren.de
Box-D
CONTENTS
Introduction 3
General 3
Safety rules 3
Transportation and storage rules 3
Manufacturer's warranty 3
Design 4
Delivery set 4
Technical data 5
Mounting and operation guidelines 5
Mounting sequence 6
Connection to power mains 7
Technical maintenance 8
Troubleshooting and fault handling 9
Acceptance certicate 10
Connection certicate 10
Warranty card 10

www.blaubergventilatoren.de
3
Box-D
BLAUBERG Ventilatoren GmbH is happy to oer your attention the
exhaust centrifugal fan Box-D.
INTRODUCTION
The present operation manual contains a technical description, technical
data sheets, operation and mounting guidelines, safety precautions and
warnings for safe and correct operation of the fan.
Read carefully and understand the operation manual, especially the safety
requirements, before the appliance mounting and start up.
Keep the operation manual available as long as you use the appliance.
GENERAL
The exhaust centrifugal fan Box-D is designed for exhaust ventilation of
various premises, heated in winter.
The fans are not a ready to use product but a component part of a
ventilation network. The fans are designed for ceiling mounting and for
connection to Ø 100 or 200 mm air ducts, depending on the model.
The fans are allowed for operation only after nal mounting that includes
installation of protecting devices in compliance with DIN EN ISO 13875 (DIN
EN ISO 12100) as well as other construction safety equipment.
Design of the fans is regularly improved, so some models can slightly
dier from those ones described in this operation manual.
SAFETY RULES
All operations related to the appliance electrical connections, servicing and
repair works are allowed only after the appliance disconnection from power
mains.
The unit is rated as a Class I electrical appliance.
All mounting and servicing operations are allowed by duly qualied
personnel.
Please follow the safety regulations and working instructions (DIN EN 50
110, IEC 364).
Make sure the impeller and the casing are not damaged before connecting
the appliance to power mains. The casing internals must be free of any
foreign objects which can damage the impeller blades or the motor.
The appliance maintenance and repair are allowed only after power cut-o
and full stop of the rotating parts.
Misuse of the appliance or any unauthorized modication are not allowed.
The appliance is designed for connection to power mains in compliance
with the "Technical Data" section.
The appliance is rated for permanent operation.
Take steps to prevent ingress of smoke, carbon monoxide and other
combustion products into the room through open chimney ues or other
re-protection devices. Sucient air supply must be provided for proper
combustion and exhaust of gases through the chimney or fuel burning
equipment to prevent back drafting. The maximum permitted pressure
dierence per living appliances is 4 Pa.
The transported air must not contain any dust or other solid impurities, as
well as sticky substances and brous materials.
The appliance is not rated for operation in a ammable or explosive
medium.
Full the operation manual requirements to ensure a trouble-free and long
service life of the appliance.
TRANSPORTATION AND STORAGE RULES
Transportation of the appliance is allowed by any vehicle provided the
appliance is transported in the original package and is protected against
weather and mechanical damages.
Use hoist machinery for handling and transportation to prevent
possible mechanical damages of the appliance. Full the requirements for
transportation of the specied cargo type during cargo-handling operations.
Store the appliance in a dry and cool place in the original packing.
The storage environment must not be subjected to any aggressive and/
or chemical evaporations, admixtures, foreign objects that may provoke
corrosion and damage connection tightness.
Store the appliance in an environment with minimized risk of mechanical
damages, temperature and humidity uctuations.
Do not expose the appliance to the temperatures below +5 °C and above
+40 °C .
Connection of the appliance to power supply is allowed after the
appliance has been kept indoor for minimum two hours.
MANUFACTURER'S WARRANTY
The appliance complies with the requirements according to the EU norms
and directives, to the relevant EU-Low Voltage Equipment Directives, EU-
Directives on Electromagnetic Compatibility.
We hereby declare that the appliance complies with the essential protection
requirements of Electromagnetic Council Directive 2004/108/EC, 89/336/EEC
and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive
93/68/EEC on the approximation of the laws of the Member States relating
to electromagnetic compatibility, which relate to electrical appliances used
in set voltage classes.
The manufacturer hereby warrants normal operation of the appliance
over the period of two years from the retail sale date provided observance
of the installation and operation regulations. In case of a failure due to a
manufacturing fault during the warranty period the consumer has the right
to exchange it.
The replacement is oered by the Seller.
In case of no conrmation of the sale date, the warranty period is calculated
from the manufacturing date.
The MANUFACTURER is not responsible for any damage resulting from any
misuse of or gross mechanical interference with the appliance.
The MANUFACTURER is not responsible for the damages resulted due to
the use of third party equipment or to third party equipment.
WARNING
Do not dispose in domestic waste.
The appliance contains in part ma-
terials that can be recycled and in part
substances that should not end up as domestic
waste.
Dispose of the appliance once it has reached the
end of its working life according to the regulations
valid in your country.
WARNING
The appliance is not allowed for use by
children and persons with reduced phys-
ical, mental or sensory capacities, without proper
practical experience or expertise, unless they are
controlled or instructed on the product operation
by the person(s) responsible for their safety.
Supervise the children and do not let them play
with the product.
!

4
www.blaubergventilatoren.de
Box-D
DELIVERY SET
fan - 1 item;
mounting bracket for a side mounting - 1 item;
mounting bracket for a suspended mounting - 2 items;
dowel and screw - 2 items;
operation manual - 1 item;
packing box - 1 item.
DESIGN
Fig. 1. Box-D fan design
Casing
Mounting bracket
Mounting bracket
Fan cover
Grille Filter
Terminal box
Front panel
Air backdraft damper
Centrifugal impeller
The fan casing is made of galvanized steel. The front panel and the grille
are made of ABS plastic and are equipped with a replaceable protective lter.
The lter protects the motor, the impeller and the air duct from ingress of
contaminants.
The fan has a spring-loaded damper for back drafting prevention. The
connecting spigot is equipped with a rubber seal.
The fan is xed using the mounting brackets from the delivery set.
The fan is equipped with a single-phase motor with an external rotor and
an impeller with backward curved blades. The motor is equipped with ball
bearings for longer service life and an integrated thermal protection with
automatic restart. Box-D…L models are equipped with a low-powered motor.
Smooth or step fan speed control is performed with a thyristor or
autotransformer speed controller (available upon separate order).
ATTENTION
Make sure the appliance has no visible transport damages while accepting the goods. Check the ordered and the delivered goods
for compliance.

www.blaubergventilatoren.de
5
Box-D
Fig. 2. Overall dimensions
TECHNICAL DATA
Table 1. Technical data
Table 2. Overall dimensions
MOUNTING AND OPERATION GUIDELINES
The fan is mounted between the load-bearing ceiling and the false ceiling
using the mounting brackets from the delivery set, Fig. 3. The distance from the
mounting point of the mounting brackets to the false ceiling is 165-390 mm.
The exible air duct of the matching diameter is xed on the fan spigot with
a clamp.
The air motion direction in the system must match the pointer on the fan
casing.
The fan installation place must ensure sucient and quick access for servicing
and repair operations.
The fan must be reliably grounded.
Shut o power supply prior to starting the fan mounting.
WARNING
Before starting mounting:
read carefully the operation manual;
check the fan for possible transport damages;
Follow the safety regulations during the fan start-up and operation;
Model Dimensions [mm] Weight [kg]
ØD B H L
Box-D 100 L 100 240 160 305 3.4
Box-D 100 100 240 160 305 3.4
Box-D 125 L 125 240 160 305 3.4
Box-D 125 125 240 160 305 3.4
Box-D 150 149 355 180 419 6.5
Parameters Box-D 100 L Box-D 100 Box-D 125 L Box-D 125 Box-D 150
Voltage, 50-60 Hz [V] 1~ 230
50 Hz
1~ 230
60 Hz
1~ 230
50 Hz
1~ 230
60 Hz
1~ 230
50 Hz
1~ 230
60 Hz
1~ 230
50 Hz
1~ 230
60 Hz
1~ 230
50 Hz
1~ 230
60 Hz
Power [W] 56 58 61 79 56 58 61 81 112 136
Current [A] 0.34 0.35 0.26 0.35 0.34 0.35 0.26 0.36 0.5 0.6
Max. air ow [m3/h] 190 205 240 250 225 240 310 320 485 531
RPM 2300 2570 2500 2730 2300 2570 2500 2740 2465 2550
Sound pressure level at 3 m distance
[dB(A)] 42 43 47 48 43 44 48 49 52 53
Max. transported air temperature [°C] -25 +45 -25 +50 -25 +45 -25 +50 -25 +50
Ingress Protection Rating IP X4 IP X4 IP X4 IP X4 IP X4

6
www.blaubergventilatoren.de
Box-D
MOUNTING SEQUENCE
Mounting sequence for the suspended mounting:
1. Cut o power supply.
QF
2. Disassemble the fan:
- Take o the front panel and the lter.
- Remove the screw and take o the grille.
3. Mark and drill the holes on the mounting surface for the dowels to x
the ceiling brackets.
280 mm
4. Screw the mounting brackets to the ceiling.
5. Screw the fan to the mounting brackets using 2 screws.
6. Connect the air duct to the fan and x it with a clamp. Assemble the fan
in the reverse order.
Fig. 3 Mounting options

www.blaubergventilatoren.de
7
Box-D
Mounting sequence for the side mounting:
1. Cut o power supply.
QF
2. Disassemble the fan:
- Take o the front panel and the lter.
- Remove the screw and take o the grille.
- Screw the bracket for the side mounting to the fan.
3. Screw the fan to the side surface.
4. Connect the air duct to the fan and x it with a clamp. Assemble the fan
in the reverse order.
The fan is rated for connection to single-phase alternating current power
mains 230 V / 50-60 Hz.
The recommended rated automatic switch trip current is 0.6 A.
The electric connections must be performed with insulated, durable
and heat-resistant wires with a matching cross section, in any case not
below 0.5 mm2. When selecting conductors take into account the maximum
permissible wire heating temperature, depending on the type of wire, its
insulation, length and laying method, either open installation, cable channel
installation or in-wall wiring.
The wiring diagram of the fan is shown in Fig. 4. The fan is powered
through the external terminal box.
Cut power supply to the fan o by turning the automatic electric switch
QF to OFF position. Take steps to prevent activation of the automatic switch
prior to nishing mounting.
CONNECTION TO POWER MAINS
!
WARNING
Read the operation manual prior to any electric installations. Connection of the fan to power mains is allowed by a qualied
electrician only.
The rated electrical parameters of the fan are stated on the rating plate. No modications of internal connections are
allowed and will result in void warranty.
Connect the fan only to power mains with valid electric standards.
Follow the respective electric standards, safety rules (DIN VDE 0100), TAB der EVUs. The house cabling system must be
equipped with an automatic switch at the external input. Connect the fan to power mains through the automatic switch. The
contact gap on all poles at least 3 mm (VDE 0700 T1 7.12.2 / EN 60335-1).
The automatic switch trip current must be in compliance with the fan current consumption, refer Table 1. Ensure prompt
access to the automatic switch installation place.
N
PE
L1
2
3
4
L
X1
QF
~ 230 V / 50-60 Hz
Х1 - terminal block;
QF - automatic electric switch (not included into delivery set);
L- live;
PE - protective earthing;
N- zero.
N
Fig. 4. Wiring diagramm

8
www.blaubergventilatoren.de
Box-D
Connection to power mains is as follows:
1. Remove the screw and take o the terminal box cover.
2. Remove 2 screws of the cable clamp and take it o.
3. Install the electric lead-in into the casing of the terminal box and
route the electric cable through it. Connect the wires to the terminal box in
accordance with the wiring diagram, Fig. 4. Fix the cable with the cable clamp
and the electric lead-in.
4. Re-install the terminal box cover and x it with the screw.
5. Turn the fan on by turning the automatic switch QF to ON position.
TECHNICAL MAINTENANCE
Disconnect the fan from power mains prior to any operations related
to servicing and repair works. Make sure the rotating parts have come to a
full stop. The fan technical maintenance consists in the periodic cleaning of
the fan surfaces. The lter should be replaced as needed but at least once a
month. The impeller requires thorough cleaning once in 6 months.
Cleaning procedure:
1. Cut o power supply to the fan;
2. Disassemble the fan:
- Take o the front panel and the lter.
- Remove the screw and take o the grille.
3. Clean the front panel and the grille using the detergent solution. The
lter should be cleaned or replaced.
4. Remove 4 screws and take the fan cover o.
5. Clean the impeller blades with a dry soft brush or compressed air. While
cleaning the fan be careful not to displace the impeller counter weights. Clean
the fan casing with a wet cloth.
6. Assemble the fan in the reverse order after cleaning.
QF
WARNING
Cut power supply to the appliance o by turning the automatic electric switch QF to OFF position
prior to any maintenance operations.
Take steps to prevent activation of the automatic switch prior to nishing maintenance.

www.blaubergventilatoren.de
9
Box-D
TROUBLESHOOTING
Fault Possible reason Remedy
The fan does not
operate
No power supply or connection error. Make sure of correct power supply, otherwise troubleshoot the
connection error.
Jammed motor, soiled impeller blades. Remove the motor jam, clean the impeller blades.
Automatic switch
tripping Short circuit in power grid. Turn the fan o and contact the seller for troubleshooting.
Noise, vibration
The impeller is soiled. Clean the impeller.
The screw connection is loose. Tighten the fastening screws.
No exible anti-vibration connectors are installed. Install the exible anti-vibration connectors.
Table 3. Error list and troubleshooting

10
www.blaubergventilatoren.de
Box-D
Exhaust centrifugal fan
is recognizes as serviceable.
The product complies with the requirements according to the EU norms and directives, to the relevant EU-Low Voltage Equipment Directives, EU-
Directives on Electromagnetic Compatibility.
We hereby declare that the product complies with the essential protection requirements of Electromagnetic Council Directive 2004/108/EC, 89/336/EEC
and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
This certicate is issued following test carried out on samples of the product referred to above.
Approval mark Manufacturing date ____________________
Company:
Name:
Date Signature
Exhaust centrifugal fan
is connected to power mains in compliance with this operation manual requirements by the professional:
SELLER
SALES DATE
REPRESENTATIVE IN EU
BLAUBERG Ventilatoren GmbH
Aidenbachstr. 52a,
D-81379 Munich, Germany
ACCEPTANCE CERTIFICATE
CONNECTION CERTIFICATE
WARANTY CARD
Box-D 100 L
Box-D 100
Box-D 125 L
Box-D 125
Box-D 150
Box-D 100 L
Box-D 100
Box-D 125 L
Box-D 125
Box-D 150
Box-D 100 L
Box-D 100
Box-D 125 L
Box-D 125
Box-D 150

www.blaubergventilatoren.de
11
Box-D
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
NOTES

www.blaubergventilatoren.de
Box-D / v.3(2) / EN
