BLAUBERG Ventilatoren KOMFORT ERV D 100 User manual

Heat and energy recovery air Handling unit
USER‘S MANUAL
EN
KOMFORT ERV D 100
KOMFORT ERV D 200
KOMFORT ERV D 300
KOMFORT ERV D 450

KoMFort erv d
2
www.blaubergventilatoren.de
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the KOMFORT ERV D
unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 4
Technical data.................................................................................................................................................................................. 5
Design and operating principle ........................................................................................................................................... 7
Mounting and set-up.................................................................................................................................................................. 9
Connection to power mains .................................................................................................................................................. 10
Technical maintenance.............................................................................................................................................................. 11
Troubleshooting............................................................................................................................................................................. 12
Storage and transportation regulations.......................................................................................................................... 12
Certificate of acceptance.......................................................................................................................................................... 14
Seller information.......................................................................................................................................................................... 14
Installation certificate.................................................................................................................................................................. 14
Warranty card................................................................................................................................................................................... 14
CONTENTS

www.blaubergventilatoren.de
KoMFort erv d
3
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
SAFETY REQUIREMENTS
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Cleaning and user maintenance shall not be made by children without supervision.
Children shall not play with the appliance.

KoMFort erv d
4
www.blaubergventilatoren.de
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.
Ensure that the unit is switched off from the supply mains before removing the guard.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.

www.blaubergventilatoren.de
KoMFort erv d
5
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED
ACCESS BY UNATTENDED CHILDREN.
DELIVERY SET
DESIGNATION KEY
NAME NUMBER
Air handling unit 1 pc.
User’s manual 1 pc.
Controller 1 pc.
Packing box 1 pc.
The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility
and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream
of intake air.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens, and other spaces with
high humidity.
Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises.
The unit is a component part and is not designed for stand-alone operation. It is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
KOMFORT ERV D100 LS3
Controller
S3: CDP-3/5 speed controller
S4: SGR-3/1 sensor control panel
Modication
L: left-handed
R: right-handed
Rated air ow [m3/h]
100/200/300/450
Mounting features
Suspended, horizontal spigot orientation
Series
KOMFORT ERV: energy recovery air handling unit

KoMFort erv d
6
www.blaubergventilatoren.de
TECHNICAL DATA
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to
60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing.
In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above
the dew point temperature of the transported air.
The unit should be operated continuously, and in cases where ventilation is not necessary, reduce the air flow of the fans to a minimum
(20%). This will ensure a favorable indoor climate and reduce the amount of condensation inside the unit, which can damage electronic
components. Never use the unit for dehumidification, for example, of new buildings.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
IP22 for the unit connected to the air ducts
IP44 for the unit motors
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
Parameter KOMFORT ERV D
100
KOMFORT ERV D
200
KOMFORT ERV D
300
KOMFORT ERV D
450
Unit supply voltage, 50 Hz [V] 1~ 230
Maximum unit power [W] 76 141 193 354
Maximum unit current [A] 0.33 0.63 0.84 1.54
Maximum flow rate [m3/h] 160 280 340 500
RPM [min-1]2750 2840 2720 2870
Sound pressure level at 3 m distance [dBA] 47 49 52 57
Transported air temperature [°С] -15...+40
Casing material Painted steel
Insulation Foamed rubber, 5 and 10 mm
Extract filter G4
Supply filters G4 + F8 (PM2.5 93 %)
Connected air duct diameter [mm] 100 100 150 150
Heat recovery efficiency [%] 75-7 72-87 66-87 71-87
Humidity recovery efficiency [%] 32-47 27-47 22-47 23-40
Heat exchanger type Cross-flow enthalpy
Weight [kg] 17 24 27 39
SEC class D D E E

www.blaubergventilatoren.de
KoMFort erv d
7
H1
H
A1
A
B1
ØD
B
L
L
A B
A
B
Model Dimensions [mm]
Ø D A A1 B B1 H H1 L
KOMFORT ERV D 100 100 734 600 481 571 204 223 300
KOMFORT ERV D 200 100 987 854 704 793 222 241 480
KOMFORT ERV D 300 150 987 854 704 793 227 246 480
KOMFORT ERV D 450 150 1157 1024 754 843 277 296 488

KoMFort erv d
8
www.blaubergventilatoren.de
DESIGN AND OPERATING PRINCIPLE

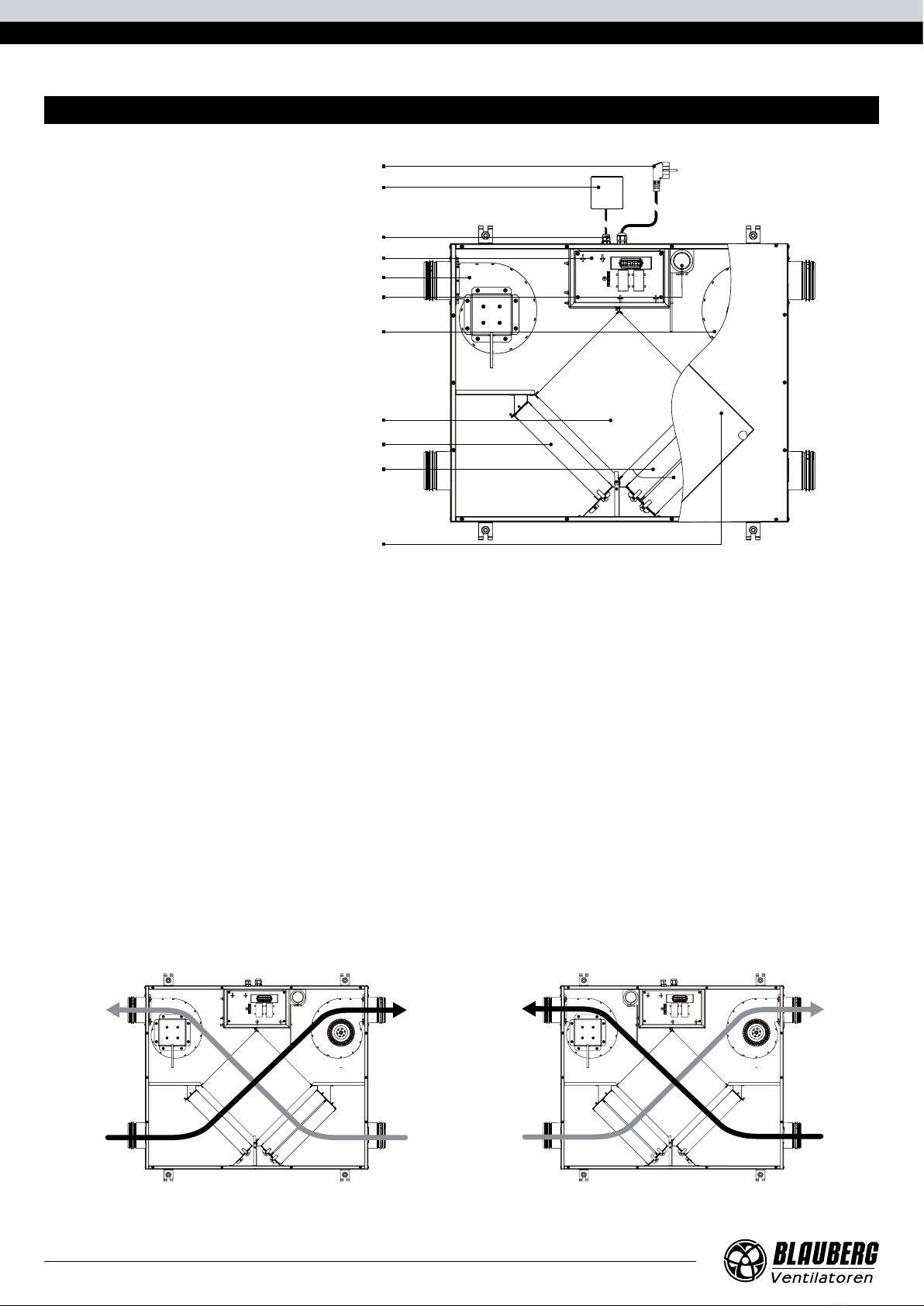

Supply fan
Extract fan
Extract air lter
Control unit
Thermostat for heat exchanger freeze protection
Cable glands
Cross-ow heat exchanger
Supply air lter
Controller
Power cord with a plug
Inspection hatch for lter and heat
exchanger maintenance
Left-handed modication
The service side of the unit is equipped with a detachable inspection hatch on manual bolts for filter and heat exchanger cleaning and
replacement operations. The plate enthalpy cross-flow heat exchanger is made of polymerized cellulose.
The control unit is positioned inside the unit casing . The power cable and grounding cables are connected to the control unit via the
cable gland located at the side of the unit. The unit is equipped with a controller and a power cord with a Euro Plug XP.
Warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat
exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the
supply filter. Then the air flows through the heat exchanger and is directed to the room with the supply fan.
Supply air is heated in the heat exchanger by transferring the heat energy of warm and humid extract air to the cold fresh air.
The air flows are fully separated while flowing through the heat exchanger. Heat recovery minimizes heat losses, which reduces the
cost of space heating in the cold season. The enthalpy heat exchanger provides both heat and humidity recovery.
In warm seasons the heat exchanger operates to cool down and dehumidify the supply air. In cold seasons the heat exchanger
operates to warm up supply air and humidify it. Water vapour from the humid extract air is condensed and absorbed by the heat
exchanger plates. The recovered humidity and heat are transferred to the supply air flow. The air streams are fully separated within the
heat exchanger and the microbes and smells are isolated.
LEFT-HANDED AND RIGHT-HANDED MODIFICATIONS
The figure below shows the arrangement of spigots for left- and right-handed modifications. Choosing the right arrangement can
improve the ease of installation, shorten the length of the ducts and reduce the number of air duct bends (elbows)
R
EXTRACT AIR
SUPPLY AIR
INTAKE AIR
EXHAUST AIR
INTAKE AIR
SUPPLY AIR
EXHAUST AIR
EXTRACT AIR
Left-handed modification Right-handed modification

www.blaubergventilatoren.de
KoMFort erv d
9
The provide heat exchanger freeze protection during the cold season, the unit is equipped with a thermostat that is installed in the
exhaust air duct downstream of the heat exchanger. The Defrosting mode is activated when the exhaust air temperature is +3 ˚С.
After temperature increase the unit returns to the previous operation mode.
In the Defrosting mode the supply fan is turned off and the heat exchanger is warmed up with warm extract air flow.
To set the thermostat threshold value, turn the control knob to the desired position.
The recommended thermostat operating temperature is +3 °C (factory setting).
EXTRACT AIR
SUPPLY AIR
INTAKE AIR
EXHAUST AIR
INTAKE AIR
SUPPLY AIR
EXHAUST AIR
EXTRACT AIR
Left-handed modification Right-handed modification

KoMFort erv d
10
www.blaubergventilatoren.de
MOUNTING AND SETUP

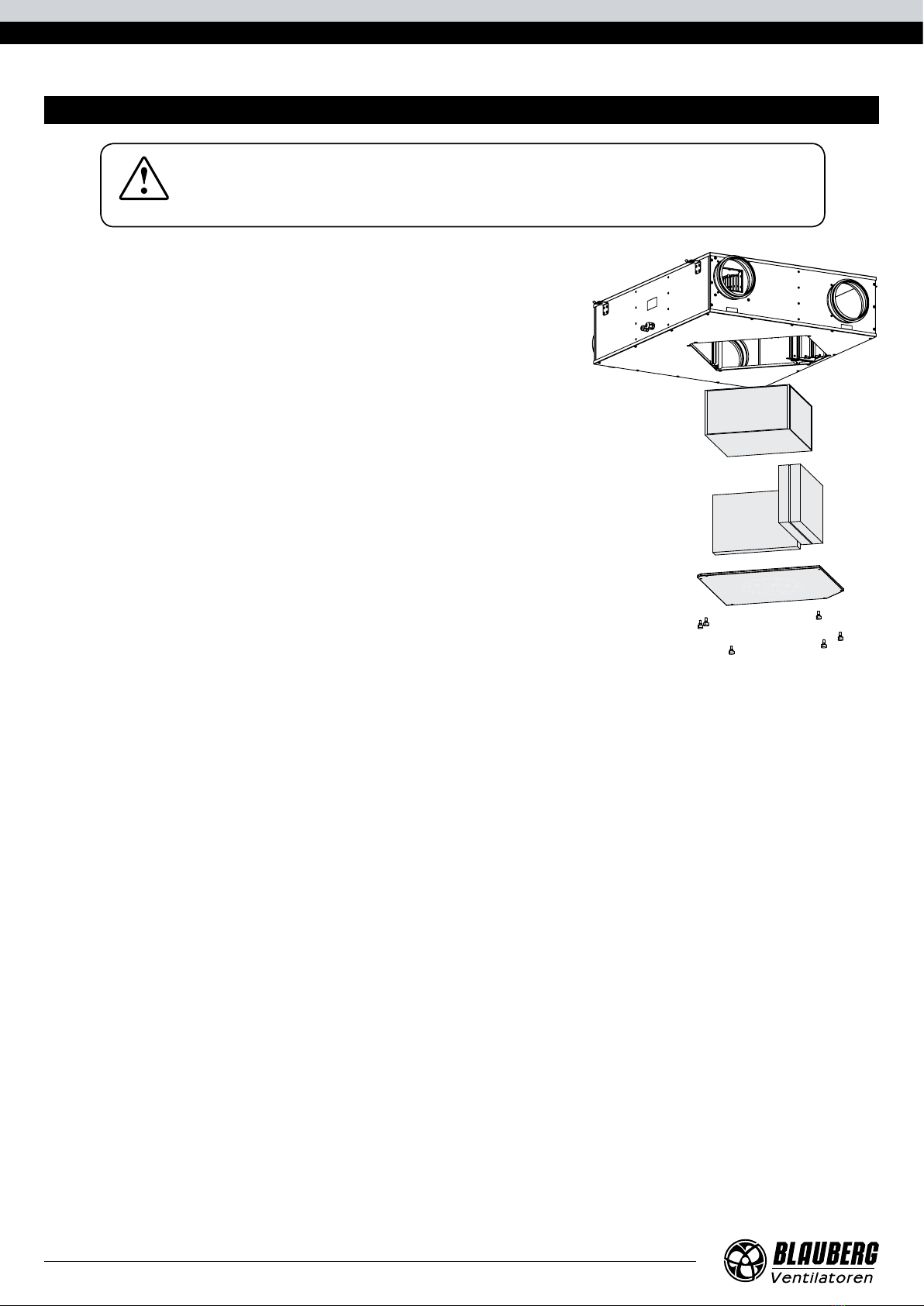

READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT.
WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT
MAINTENANCE AND REPAIR.
The unit is designed for suspended ceiling mounting with anchor threaded rods, nuts and anti-vibration rubber.
Fasteners for fan mounting are not included in the delivery set and should be ordered separately.
While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical data
section. Fasteners for unit mounting should be selected by a qualified specialist! Before mounting make sure the casing does not
contain any foreign objects (e.g. foil, paper).
The minimum distance between the unit and the ceiling should be at least 20 mm.
To attain the best performance of the unit and to minimise turbulence-induced air pressure losses, connect the straight air duct section
to the spigots on both sides of the unit while mounting.
Minimum straight air duct length:
• equal to 1 air duct diameter on the intake side
• equal to 3 air duct diameters on outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects.
To prevent uncontrollable access to the fan, the spigots may be covered with a protecting grille or other protecting device with mesh
width not more than 12.5 mm.
Washer
Nut
Threaded rod
Vibration absorbing rubber
min 20 mm

www.blaubergventilatoren.de
KoMFort erv d
11
CONNECTION TO POWER MAINS
POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
• The unit is rated for connection to 1~230 V/50 Hz according to the wiring diagram.
• The connection must be made using insulated conductors (cables, wires).
• The actual wire cross section selection must be based on the maximum load current, maximum conductor temperature depending
on the wire type, insulation, length and installation method.
• The external power input must be equipped with an automatic circuit breaker QF built into the stationary wiring to open the circuit
in the event of overload or short-circuit.
• The position of the external automatic circuit breaker must ensure free access for quick power-off of the unit.
• The trip current of the automatic circuit breaker must exceed the maximum current consumption of the unit (refer to the “Technical
data” section or to the unit label).
• It is recommended to select the nominal current of the circuit breaker from the standard series, following the maximum current of
the connected unit.
• The circuit breaker is not included in the delivery set and can be ordered separately.
Units with an S3 control panel
(KOMFORT ERV D 100/200/300/450)
Units with an S4 control panel
(KOMFORT ERV D 100/200/300)
LNPEC1C1C2C2 TSL123
L N PE T C1 C1 C2 C2 SL 1 2 3
123456789101112
LNPE
230 VAC
X1
C
LM
HQF
LNPEC1C1C2C2 TSL123
L N PE T C1 C1 C2 C2 SL 1 2 3
123456789101112
LNPE
230 VAC
C
LM
HQF
Power
cord
plug
Speed
controller
Power
cord
plug
Speed
controller
Wiring diagram
LNPEC1C1C2C2 TSL123
L N PE T C1 C1 C2 C2 SL 1 2 3
123456789101112
LNPE
X1
L
L1L2
L3 QF
N
LNPEC1C1C2C2 TSL123
L N PE T C1 C1 C2 C2 SL 1 2 3
123456789101112
LNPE
230 VAC
230 VAC
L
L1L2
L3 QF
N
LNPEC1C1C2C2 TSL123
L N PE T C1 C1 C2 C2 SL 1 2 3
123456789101112
LNPE
X1
L
L1
L2
L3 QF
LNPEC1C1C2C2 TSL123
L N PE T C1 C1 C2 C2 SL 1 2 3
123456789101112
LNPE
1
L
L1
L2
L3 QF
230 VAC230 VAC
Power
cord
plug
Speed
controller
Control panel without a neutral conductor Control panel with a neutral conductor

KoMFort erv d
12
www.blaubergventilatoren.de
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE
OPERATIONS!
MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE
PROTECTION
TECHNICAL MAINTENANCE
The unit must undergo technical maintenance 3 to 4 times a year.
They include general cleaning of the unit and the following operations:
1. Filter maintenance (3-4 times per year).
Dirty filters increase air resistance in the system and reduce supply air volume.
Replace the filters when they get dirty but not less than 3-4 times per year.
To replace the filters, remove the inspection hatch located on the service panel and
remove the dirty filters, then install the new filters and the inspection hatch in the
reverse order. For new filters, contact the Seller.
2. Heat exchanger maintenance (once a year).
Some dust may accumulate on the heat exchanger block even in case of regular
maintenance of the filters. To maintain high heat exchange efficiency, periodical dry
cleaning is recommended. Use a vacuum cleaner with a narrow nozzle.
3. Fan maintenance (once a year).
Even in case of regular maintenance of the filters, some dust may accumulate inside
the fans and reduce the fan performance and supply air flow.
Clean the fans with a soft brush or cloth.
Do not use water, aggressive solvents, or sharp objects as they may damage the
impeller.
4. Technical maintenance of air duct system (every 5 years).
Even regular fulfilling of all the prescribed above maintenance operations may not completely prevent dirt accumulation in the air
ducts which reduces the unit capacity.
Duct maintenance means regular cleaning or replacement.
5. Control unit maintenance (if necessary).
The control unit is positioned inside the unit casing.
For accessing the control unit remove the fixing screws on the service panel and remove it.

www.blaubergventilatoren.de
KoMFort erv d
13
TROUBLESHOOTING
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 °C to + 40 °C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.
Problem Possible reasons Troubleshooting
The fan(s) do(es) not get
started. No power supply. Make sure the power supply line is connected correctly, otherwise troubleshoot a connection error.
Low air flow.
Filters, fans or the heat exchanger
are soiled.
Clean or replace the filters. Clean the fans and the heat
exchanger.
The ventilation system is soiled or
damaged.
Clean the ventilation system components.
Replace the damaged components.
Noise, vibration.
The fan impeller is soiled. Clean the impellers.
The fan or casing screw connection
is loose.
Tighten the screw connection of the fan or the casing
against stop.

KoMFort erv d
14
www.blaubergventilatoren.de
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.

www.blaubergventilatoren.de
KoMFort erv d
15
CERTIFICATE OF ACCEPTANCE
Unit Type Heat and energy recovery air handling unit
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The _____________________________________ unit is installed pursuant to the requirements stated
in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Heat and energy recovery air handling unit
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

www.blaubergventilatoren.de
B147-1EN-02
