USER’S MANUAL
Calm dMEV DC 100
AXIAL FAN
EN

2
EN
CONTENTS
Delivery set............................................................................................................................................................................................................................................. 6
Brief description .................................................................................................................................................................................................................................. 6
Operating guidelines ....................................................................................................................................................................................................................... 6
designation key ................................................................................................................................................................................................................................... 7
Installation and set-up..................................................................................................................................................................................................................... 7
Fan options............................................................................................................................................................................................................................................. 8
Fan operation setup.......................................................................................................................................................................................................................... 8
Technical maintenance................................................................................................................................................................................................................... 11
Storage and transportation regulations............................................................................................................................................................................... 11
Manufacturer’s warranty................................................................................................................................................................................................................ 12

3
EN
READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS.
COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG
SERVICE LIFE OF THE UNIT.
KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO RE-
READ THE INFORMATION ON THE PRODUCT SERVICING.
This user’s manual is the primary operating document intended for technical, maintenance and operations staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
Calm dMEV DC 100 unit and all its modifications. Technical and maintenance staff must have proper theoretical knowledge
and practical training specific to ventilation systems as well as the necessary skills to carry out the work in accordance with
labour safety and construction regulations and standards applicable in the respective territory.
The information provided in the present document is true as at the document preparation. Due to the continuous product
development the company reserves the right to update the technical specifications, design or delivery package of its
products.
No part of the present publication may be reproduced, uploaded or saved in reference-providing information systems or
translated into other languages in any form whatsoever without the Company’s prior written consent.
BLAUBERG VENTILATOREN GmbH is happy to oer you a new innovation product, the Calm dMEV DC 100 fan.
The solid team of high-qualied professionals with many years of working experience, technological innovations
in design and production, high-quality components and materials from the top worldwide producers have
become the precondition for the best fans in theirs class.
Blauberg fans are the combination of innovations, energy-ecient and low-noise operation.

4
EN
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND
TROUBLE-FREE OPERATION OF THE UNIT.
Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair
operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are allowed
for installation and maintenance. The present user’s manual should be carefully read
before beginning works.
• Single-phase power mains must comply with the acting local electrical norms and standards.
• Fixed electrical wiring must be equipped with an automatic circuit breaker.
• The unit must be connected to power mains through a QF automatic circuit breaker integrated
into the fixed wiring system. The gap between the circuit breaker contacts on all poles must be
not less than 3 mm. Check the unit for any visible damages of the impeller and the casing before
starting installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
• While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in the motor jam and noisy operation. Misuse of the unit and any unauthorised modifications are
not allowed.
• Take steps to prevent ingress of smoke, carbon monoxide, and other combustion products into
the room through open chimney flues or other fire-protection devices. Sufficient air supply must
be provided for proper combustion and exhaust of gases through the chimney of fuel burning
equipment to prevent back drafting. Transported air must not contain any dust or other solid

5
EN
impurities, sticky substances, or fibrous materials.
• Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
• Do not close or block the intake or extract vents in order to ensure the efficient air flow.
• Do not sit on the unit and do not put objects on it.
• The unit is allowed to be used by children aged from 8 years old and above and persons with
reduced physical, sensory, or mental capabilities or no experience and knowledge provided that
they have been given supervision or instruction regarding safe use of the unit and understand
the risks involved.
• Do not allow children to play with the unit.
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED MUNICIPAL WASTE.

6
EN
DELIVERY SET
Fan — 1 pc.
Screws and dowels — 4 pcs.
Plastic screwdriver (for all models with a timer) — 1 pc.
User’s manual — 1 pc.
Packing box — 1 pc.
BRIEF DESCRIPTION
The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter.
The fan is designed for connection to ø100 mm air ducts.
The fan is equipped with a two-speed motor.
This fan model includes a back valve that prevents air back drafting when the fan is off.
OPERATING GUIDELINES
The fan is rated for connection to single-phase AC 220...240 V/50 Hz power mains.
Air flow direction in the system must correspond to the direction arrow on the fan casing.
Hazardous parts access and water ingress protection rating is IP34.
The fan is rated for operation at the ambient temperature ranging from +1 °C up to +45 °C.
The unit is rated as a Class II electrical appliance.

7
EN
DESIGNATION KEY
Calm dMEV DC 100 X Х
Voltage
_ : 220-240 V/50 Hz
SELV – safety extra low voltage of 12 V/50 Hz
Extra options:
S — pull cord switch
Т — turn-off delay timer
Н — humidity sensor and turn-off delay timer
Outlet duct diameter [mm]
DC – direct current electric motor
INSTALLATION AND SET-UP
The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of
matching diameter.

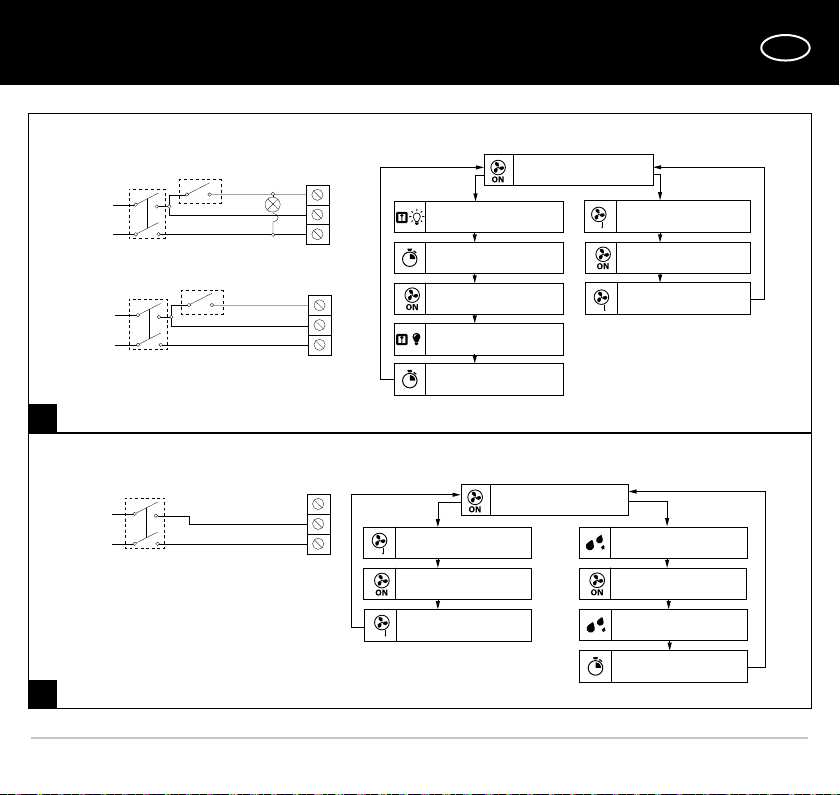

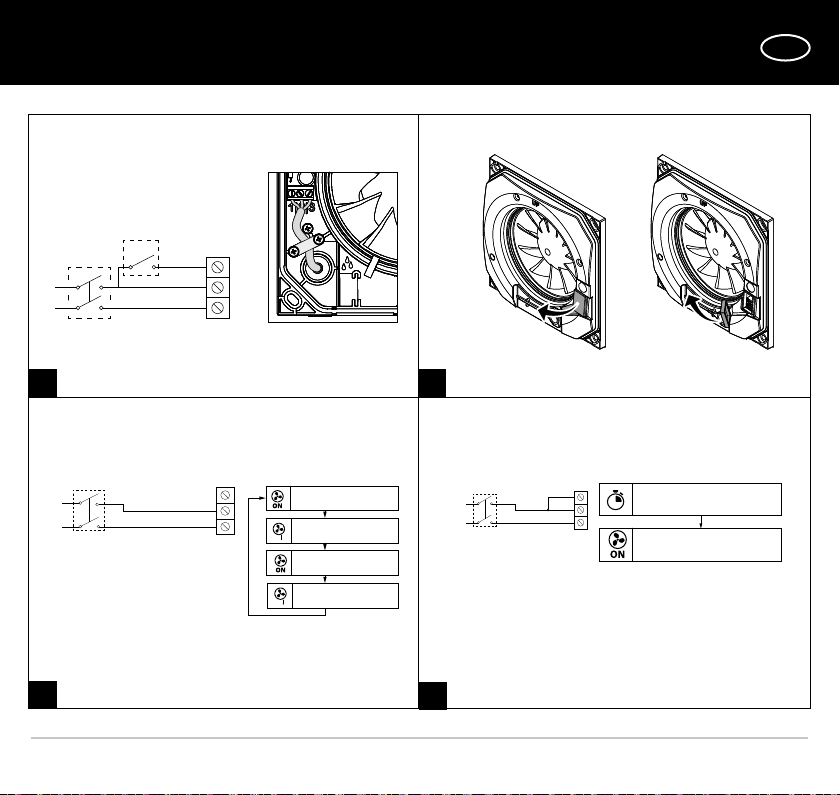

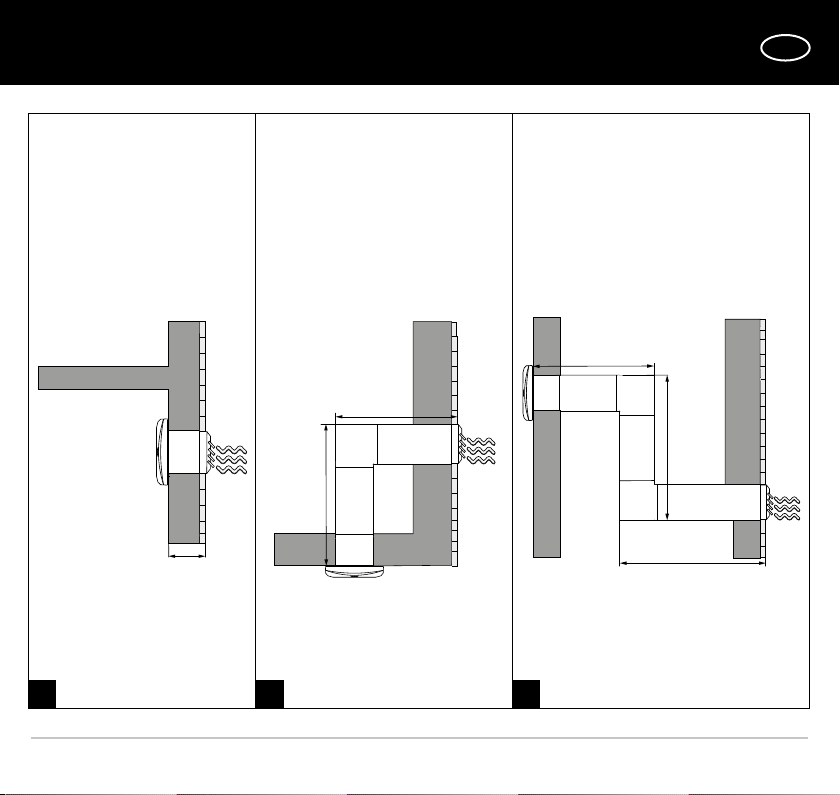

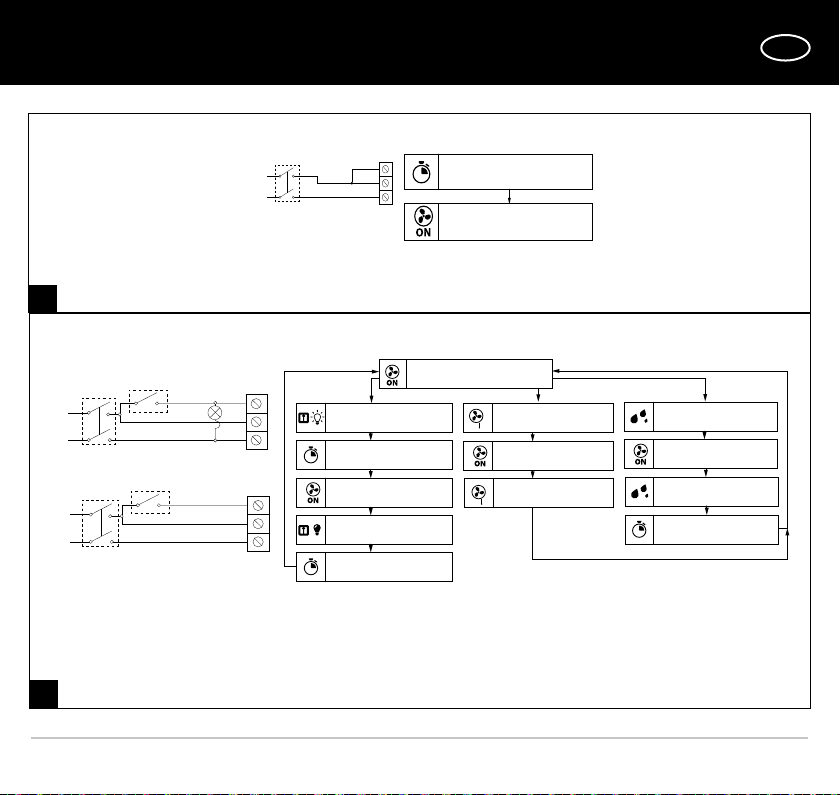

Provide the following types of installation: Diagram 1 (Fig. 5); Diagram 2 (Fig. 6); Diagram 3 (Fig. 7).

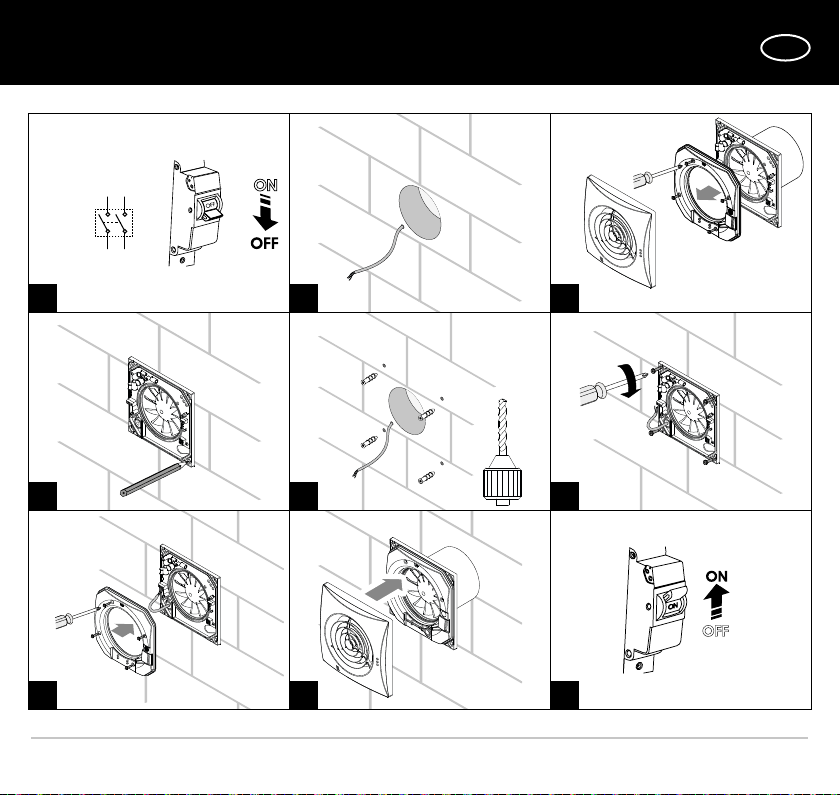

Fan installation sequence:
Step 1. Cut off power supply and make sure electricity has been turned off (Fig. 8).
Step 2. Lead the power cable to the ventilation hole (Fig. 9).
Step 3. Remove the front panel from the fan. Then remove the circuit board cover (Fig. 10).
Step 4. Mark and drill holes for mounting the fan and then install the fan (Fig. 11-14).
Step 5. Connect the fan to the electric mains according to the connections diagram (Fig. 17).
Step 6. Cover the casing with a front panel (Fig. 14) and a decorative panel (Fig. 15).
Step 7. Supply power voltage to the fan (Fig. 16).
Terminal designations on wiring diagrams
L— phase
N— 0
S — external switch
QF — circuit breaker

8
EN
FAN OPTIONS
Calm dMEV DC 100 (S) Т fans are equipped with a turn-off delay timer. The unit operates at the set constant speed.
VT models are equipped with a cord-operated switch.
The fan switches to the intensive mode upon control voltage application to input terminal LT by an external switch (e.g.
indoor light switch). Upon control voltage removal the fan continues to operate in the intensive mode for the period of time
set by means of a DIP switch.
Calm dMEV DC 100 SELV fan is rated for connection to safe 12 V/50 Hz power mains.
Calm dMEV DC 100 (S) H fans are equipped with a turn-off and turn-on delay timer when the humidity level is exceeded.
The fan switches to the intensive mode upon control voltage application to input terminal LT by an external switch (e.g.
indoor light switch). Upon control voltage removal the fan continues to operate in the intensive mode for the period of time
set by means of a DIP switch. The S (H) models are equipped with a cord-operated switch.
DO NOT USE A METAL SCREWDRIVER, KNIFE, ETC. FOR ADJUSTMENT
OPERATIONS NOT TO DAMAGE THE CIRCUIT BOARD.
FAN OPERATION SETUP
THE TIMER CIRCUIT IS LIVE.
MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY.
The fan is set up by changing the DIP switch position.
To access the DIP switch take off the face panel and remove the rubber plug (Fig. 18).
The fan is supplied with a special plastic screwdriver to toggle the DIP switch without damaging its components.

9
EN
Speed setting (Trickle)
Speed 1 Speed 2 Speed 3 Speed 4
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
0 l/s 6 l/s 8 l/s 13 l/s
Intensive mode (Boost)
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
15 l/s max
Turn-o delay timer
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
2 minutes 5 minutes 15 minutes 30 minutes
Humidity mode
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
by threshold intellectual*
* — This mode provides for changing the humidity threshold and fan speed selection in automatic mode, independently choosing the
optimal threshold for the room in which the fan is located. The choice of the fan operation algorithm is determined by analysing the statistical
data of the humidity level in the room.

10
EN
Humidity threshold
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
60 % 70 % 80 % 90 %
Selecting the installation diagram – Jumper 1 (J1)
Diagram 1 Diagram 2 Diagram 3
See Fig. 5-7
Turn-on delay timer – Jumper 2(J2)
0 s 60 s
1 2 3 4 5 6 7 8
Jumper 1
Jumper 2
1. 2.

11
EN
TECHNICAL MAINTENANCE
The fan maintenance periodicity is at least once per 6 months.
Maintenance steps:
• Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 15).
• Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 16).

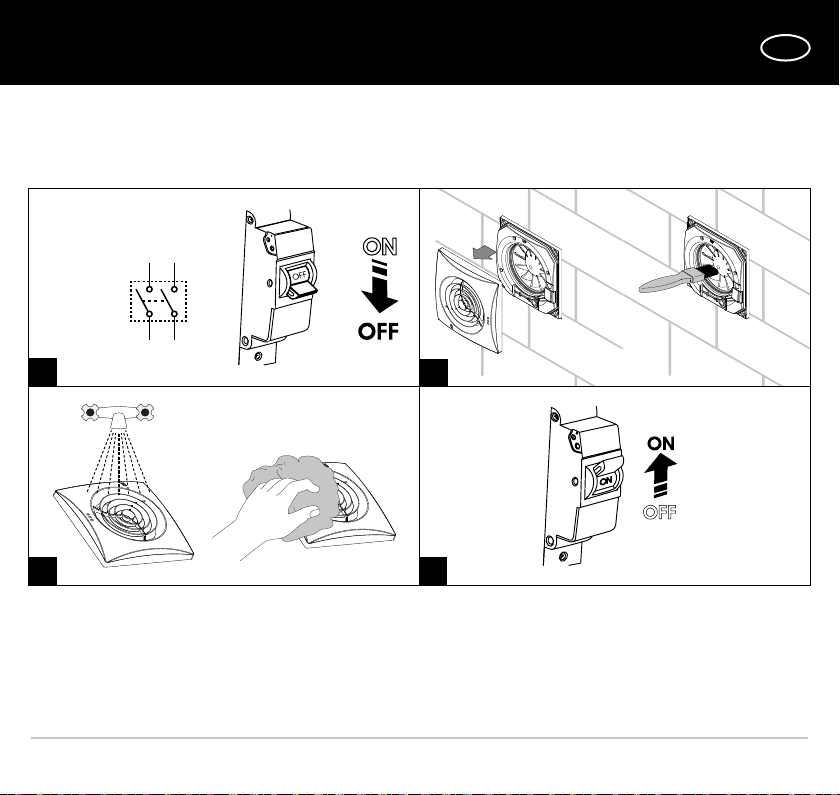

• Clean the front panel under running water (Fig. 17).
• Wipe the fan surfaces dry.
• Cover the fan with the front panel.
• Connect power supply to the fan (Fig. 18).
WARNING! Do not allow water or liquid come into contact with electric components!
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 °C to +40 °C.
• Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation, and
sealing deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation
and mechanical damage. The unit can be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures allow the unit to warm up at room temperature for
at least 3-4 hours.
STORAGE AND TRANSPORTATION REGULATIONS

12
EN
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility.
We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low
Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on
samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 60 months after the retail sale date provided the user's
observance of the transportation, storage, installation, and operation regulations.
Should any malfunctions occur in the course of the unit operation through the Manufacturer's fault during the guaranteed
period of operation, the user is entitled to get all the faults eliminated by the manufacturer by means of warranty repair at
the factory free of charge. The warranty repair includes work specific to elimination of faults in the unit operation to ensure
its intended use by the user within the guaranteed period of operation.
The faults are eliminated by means of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the
payment paperwork certifying the purchase.
The unit model must comply with the one stated in the user’s manual.
Contact the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with
missing component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's
manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components
caused by the user.
MANUFACTURER’S WARRANTY

13
EN
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USERS’WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE
UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

14
EN
158
ø99
108
81
136
3.
4.

15
EN
5. 6. 7.
0,3 m
1 m
1 m
90°
1 m
1 m
1 m
90°
(Top view)
Diagram 1 Diagram 2 Diagram 3

16
EN
QF
L N
8. 9. 10.
11. 12. 13.
14. 15. 16.

17
EN
1
2
3
SQF
L
N
17. 18.
19. 20.
Operation at Trickle speed
Fan runs at Boost speed
Pull cord switch to ON
Pull cord switch to OFF
1
2
QF
3
L
N
1
2
QF
3
L
N
Fan runs at Boost speed
Turn-on delay timer activation*
*— See the turn-on delay timer wiring diagram on page 10.
Calm dMEV DC 100 T, ST Calm dMEV DC 100 T, ST

18
EN
21.
22.
Operation at Trickle speed
1
2
QF
3
L
N
S
or
1
2
QF
3
L
N
S
S switch to ON
Turn-on delay
timer activation
S switch to ON
Turn-off delay
timer activation
Pull cord switch to ON
Fan runs at Boost speed
Pull cord switch to OFF
Fan runs at Boost speed
Calm dMEV DC 100 T, ST
Calm dMEV DC 100 H, SH
Работа на Trickle скорости
Fan runs at Boost speed
Pull cord switch to ON
Pull cord switch to OFF
Humidity exceeds
set point
Fan runs at Boost speed
Humidity is below
set point
Turn-off delay
timer activation
1
2
QF
3
L
N

19
EN
23.
24.
Работа на Trickle скорости
Fan runs at Boost speed
S switch to ON
Turn-on delay
timer activation
S switch to ON
Turn-off delay
timer activation
Pull cord switch to ON
Fan runs at Boost speed
Pull cord switch to OFF
Humidity exceeds
set point
Fan runs at Boost speed
Humidity is below
set point
Turn-off delay
timer activation
1
2
QF
3
L
N
S
or
1
2
QF
3
L
N
S
1
2
QF
3
L
N
Fan runs at Boost speed
*— See the turn-on delay timer wiring diagram on page 10.
Turn-on delay timer activation*
Calm dMEV DC 100 H, SH
Calm dMEV DC 100 H, SH

20
EN
QF
L N
25. 26.
27. 28.
