BLAUBERG Ventilatoren KSV1 100 (DUO) User manual

USER’S MANUAL

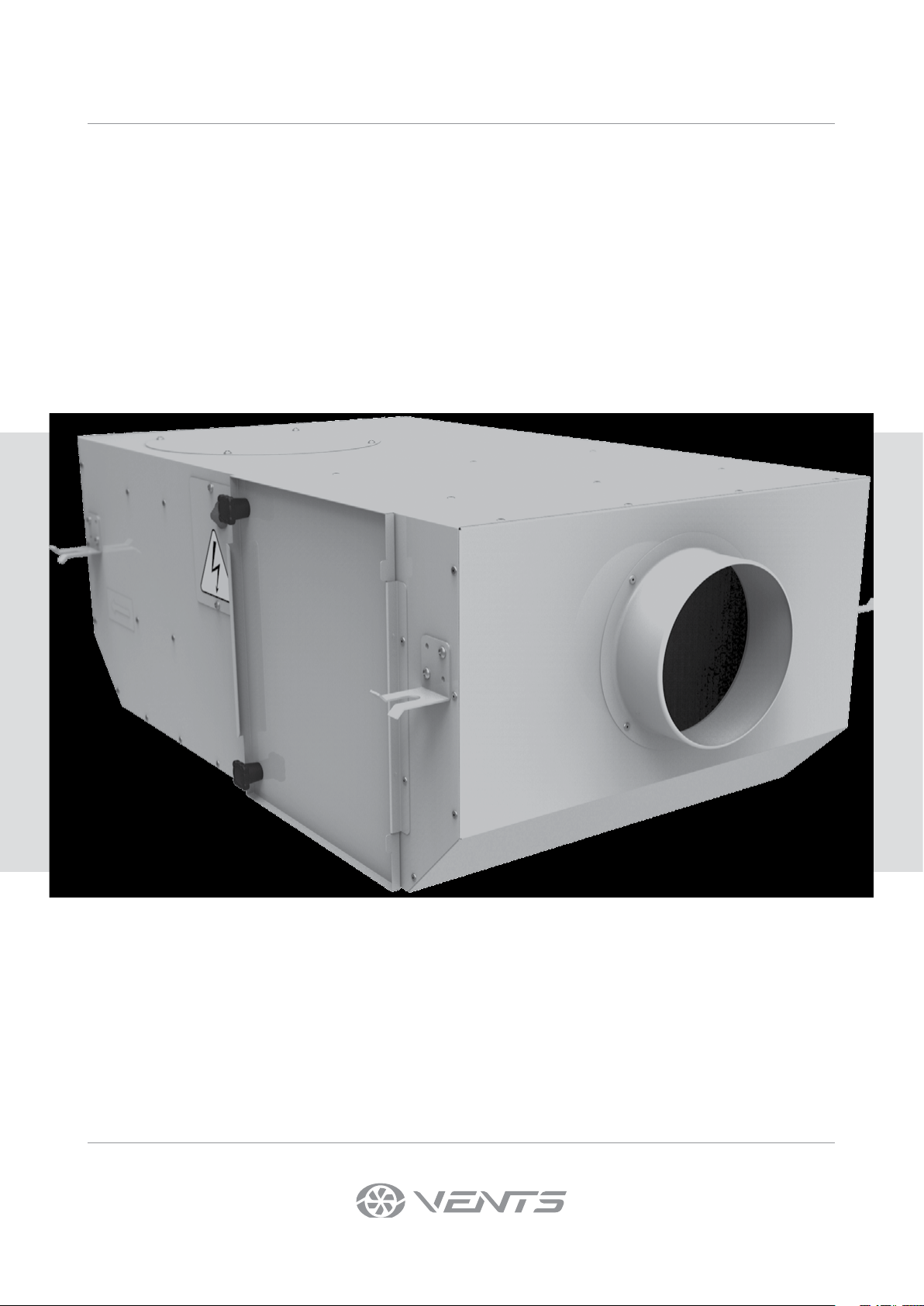

Centrifugal inline fan
KSV1 100 (DUO)
KSV1 150 (DUO)
KSV1 150 (DUO) Q
KSV1 200 (DUO)
KSV 100 (DUO)
KSV 150 (DUO)
KSV 150 (DUO) Q
KSV 200 (DUO)
KSV 100 (DUO) ES
KSV 150 (DUO) ES
KSV 150 (DUO) Q ES
KSV 200 (DUO) ES

2
KSV(1)
www.ventilation-system.com
SAFETY REQUIREMENTS
• Please read the user’s manual carefully prior to installing and operating the unit.
• All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and operating the unit.
• The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety
information.
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
• After a careful reading of the manual, keep it for the entire service life of the unit.
• While transferring the unit control, the user’s manual must be turned over to the receiving operator.
UNIT INSTALLATION AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from power mains prior
to any installation operations. • The unit must be grounded!
• Do not lay the power cable of the unit in
close proximity to heating equipment.
• While installing the unit, follow the safety
regulations specific to the use of electric
tools.
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the KSV(1) unit and all
its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 4
Technical data.................................................................................................................................................................................. 5
Unit design and operating principle................................................................................................................................. 8
Installation and set-up................................................................................................................................................................ 9
Connection to power mains .................................................................................................................................................. 10
Control ................................................................................................................................................................................................. 10
Technical maintenance.............................................................................................................................................................. 11
Troubleshooting............................................................................................................................................................................. 12
Storage and transportation regulations.......................................................................................................................... 12
Manufacturer’s warranty........................................................................................................................................................... 13
Certificate of acceptance.......................................................................................................................................................... 14
Seller information.......................................................................................................................................................................... 14
Installation certificate.................................................................................................................................................................. 14
Warranty card................................................................................................................................................................................... 14
CONTENTS

3
www.ventilation-system.com
• Do not change the power cable length
at your own discretion. Do not bend the
power cable. Avoid damaging the power
cable. Do not put any foreign objects on the
power cable.
• Unpack the unit with care.
• Do not use damaged equipment or cables
when connecting the unit to power mains.
• Do not operate the unit outside the
temperature range stated in the user’s
manual. Do not operate the unit in
aggressive or explosive environments.
• Do not touch the unit controls with wet
hands. Do not carry out the installation and
maintenance operations with wet hands.
• Do not wash the unit with water. Protect
the electric parts of the unit against ingress
of water.
• Do not allow children to operate the unit. • Disconnect the unit from power mains prior
to any technical maintenance.
• Do not store any explosive or highly
flammable substances in close proximity to
the unit.
• When the unit generates unusual sounds,
odour, or emits smoke, disconnect it from
power supply and contact the Seller.
• Do not open the unit during operation. • Do not direct the air flow produced by the
unit towards open flame or ignition sources.
• Do not block the air duct when the unit is
switched on.
• In case of continuous operation of the unit,
periodically check the security of mounting.
• Do not sit on the unit and avoid placing
foreign objects on it. • Use the unit only for its intended purpose.
• The unit should be protected from heat and
direct sunlight.
• Do not install the unit in close proximity to
open flame sources.
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.

4
KSV(1)
www.ventilation-system.com
The Centrifugal inline fan is designed for supply and exhaust ventilation of domestic, public and industrial premises with high requirements
to the noise level and with limited space for mounting.
The unit is rated for continuous operation.
The unit is a component part and is not designed for stand-alone operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED
ACCESS BY UNATTENDED CHILDREN.
Designation example: KSV 150 DUO Q G4/F8 R1
Series
KSV — centrifugal fan with filters
KSV1 — centrifugal fan without filters
Spigot connecting diameter [mm]
100; 150; 200
Electric motor
DUO — double-speed motor
Q — low noise and low-powered motor
Filter
ES — electrostatic filter
G4; G4/F8; G4/F8/Сarbon; G4/H13; G4/H13/Carbon
Connection
R — power cord with a C14 connector
R1 — power cord with an electric plug
NAME NUMBER
Fan 1 pc.
User’s manual 1 pc.
Packing box 1 pc.
DELIVERY SET
DESIGNATION KEY
PURPOSE

5
www.ventilation-system.com
KSV DUO OVERALL DIMENSIONS mm
Model D L H B L1 B1 L2 B2 KK1
KSV 100 (DUO) 100 705 250 415 805 508 650 458 31 177
KSV 150 (DUO) Q 150 705 250 415 805 508 650 458 31 177
KSV 150 (DUO) 150 735 300 440 835 533 680 483 47 173
KSV 200 (DUO) 200 735 300 605 835 698 680 648 35 267
KSV1 DUO OVERALL DIMENSIONS mm
Model D L H B L1 B1 L2 B2 KK1
KSV1 100 (DUO) 100 415 250 335 515 428 360 378 70 97
KSV1 150 (DUO) Q 150 415 250 335 515 428 360 378 70 97
KSV1 150 (DUO) 150 450 300 395 550 488 395 438 70 127
KSV1 200 (DUO) 200 450 300 395 550 488 395 438 70 127
KSV DUO ES OVERALL DIMENSIONS mm
Model D L H  LI B1 L2 B2 KK1
KSV 100 (DUO) ES 100 755 250 458 855 551 700 502 10 219
KSV 150 (DUO) Q ES 150 755 250 458 855 551 700 502 10 219
KSV 150 (DUO) ES 150 785 300 458 885 551 730 502 38 191
KSV 200 (DUO) ES 200 785 300 658 885 751 730 702 62 391
R6
12
L2
L1
L
B
K K1
H
B2 B1
D
H
L2 R6
12
L
L1
D
B B2 B1
K K1
H
L2 R6
12
L
L1
D
B B2
B1
KK1
The unit is designed for indoor application with the ambient temperature ranging from -25 °C to +40 °C and relative humidity up to 80 %.
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
TECHNICAL DATA

6
KSV(1)
www.ventilation-system.com
TECHNICAL DATA OF THE KSV1 UNIT
Parameters
KSV1 100 KSV1 150 Q KSV1 150 KSV1 200
Voltage [V/Hz] 1 ~ 230/50
Power [W] 61 75 103 130
Current [A] 0.27 0.33 0.48 0.58
Maximum air flow [m3/h] 180 300 450 600
RPM [min-1] 1200 1200 1200 1200
Sound pressure level at 3 m distance [dBA] 23 25 27 38
Maximum transported air temperature [°C] -25...+40
Ingress protection rating of the casing IPX4
SEC class E D E D
TECHNICAL DATA OF THE KSV1 DUO UNIT
Parameters
KSV1 100 DUO KSV1 Q 150 DUO KSV1 150 DUO KSV1 200 DUO
Speed 1 2 1 2 1 2 1 2
Voltage [V/Hz] 1 ~ 230/50
Power [W] 36 43 46 54 92 119 107 137
Current [A] 0.15 0.2 0.2 0.25 0.4 0.55 0.47 0.62
Maximum air flow [m3/h] 170 200 220 360 350 450 370 600
RPM [min-1] 700 1200 700 1200 700 1200 700 1200
Sound pressure level at 3 m distance [dBA] 14 23 15 25 16 27 22 38
Maximum transported air temperature [°C] -25...+40
Ingress protection rating of the casing IPX4
SEC class C C C C

7
www.ventilation-system.com
TECHNICAL DATA OF THE KSV DUO UNIT
Parameters
KSV 100 DUO G4 KSV 100 DUO G4/F8 KSV 100 DUO G4/H13 KSV 150 DUO Q G4 KSV 150 DUO Q G4/F8 KSV 150 DUO Q G4/H13 KSV 150 DUO G4 KSV 150 DUO G4/F8 KSV 150 DUO G4/H13 KSV 200 DUO G4 KSV 200 DUO G4/F8 KSV 200 DUO G4/H13
Speed 121212121212121212121212
Voltage [V/Hz] 1 ~ 230/50
Power [W]
34 42 33 41 32 41 44 52 41 50 40 48 92 117 89 115 85 114 106 123 103 121 97 119
Current [A] 0.15 0.19 0.15 0.19 0.15 0.19 0.19 0.23 0.18 0.22 0.18 0.21 0.41 0.55 0.41 0.55 0.38 0.54 0.47 0.59 0.45 0.57 0.43 0.55
Maximum air flow [m3/h] 160 190 150 175 140 160 230 340 215 310 205 285 320 430 300 390 280 355 390 630 380 590 350 525
RPM [min-1] 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200
Sound pressure level at 3 m distance [dBA] 14 23 14 23 14 23 15 25 15 25 15 25 16 27 16 27 16 27 22 38 22 38 22 38
Maximum transported air temperature [°C] -25...+40
Ingress protection rating of the casing IPX4
PM 2.5 removal efficiency [%] 35 31 94 93 99 98 31 23 90 87 93 92 47 41 95 94 98 96 37 28 98 97 99 98
SEC class C C D C C C D D E C D D
TECHNICAL DATA OF THE KSV DUO ES UNIT
Parameters
KSV 100 DUO ES KSV 150 DUO Q ES KSV 150 DUO ES KSV 200 DUO ES
Speed 1 2 1 2 1 2 1 2
Voltage [V/Hz] 1 ~ 230/50
Power [W] 34 42 44 52 92 117 106 123
Current [A] 0.15 0.19 0.19 0.23 0.41 0.55 0.47 0.59
Maximum air flow [m3/h] 160 190 230 340 320 430 390 630
RPM [min-1] 700 1200 700 1200 700 1200 700 1200
Sound pressure level at 3 m distance [dBA] 14 23 15 25 16 27 22 38
Maximum transported air temperature [°C] -25...+40
Ingress protection rating of the casing IPX4
PM 2.5 removal efficiency [%] 98 97 98 97 97 96 98 97
SEC class C C D C
TECHNICAL DATA OF THE KSV UNIT
Parameters
KSV 100 KSV 100 G4 KSV 100 G4/F8 KSV 100 G4/H13 KSV 150 Q KSV 150 G4 Q KSV 150 G4/F8 Q KSV 150 G4/H13 Q KSV 150 KSV 150 G4 KSV 150 G4/F8 KSV 150 G4/H13 KSV 200 KSV 200 G4 KSV 200 G4/F8 KSV 200 G4/H13
Voltage [V/Hz] 1 ~ 230/50
Power [W] 53 53 53 52 63 63 61 59 107 107 104 102 123 123 120 115
Current [A] 0.27 0.27 0.27 0.27 0.29 0.29 0.25 0.28 0.49 0.49 0.48 0.48 0.56 0.56 0.56 0.52
Maximum air flow [m3/h] 190 190 180 170 360 360 330 310 440 440 400 360 580 580 570 490
RPM [min-1] 1300 1300 1300 1300 1300 1300 1300 1300 1250 1250 1250 1250 1250 1250 1250 1250
Sound pressure level at 3 m distance [dBA] 23 23 23 23 25 25 25 25 27 27 27 27 38 38 38 38
Maximum transported air temperature [°C] -25 ... +40
Ingress protection rating of the casing IPX4
PM 2.5 removal efficiency [%] 36 36 93 98 31 31 92 98 39 39 92 98 40 40 93 98
SEC class C C C C C C C C C C C D C C C C

8
KSV(1)
www.ventilation-system.com
The unit is a centrifugal inline fan in a sound-insulated casing. The fan casing is made of painted sheet steel using heat- and sound-
insulation material. The round connecting spigots are rubber sealed.
The fan is equipped with a two-pole AC motor with an external rotor and an impeller with backward curved blades. The motor has an
integrated overheating protection with an automatic restart. Use of the motor with ball bearings with specially selected grease ensures
low-noise, maintenance-free operation of the fan.
The KSV fans are equipped with filters of different filtering classes. Each fan enables installing up to three filters of different intake air
filtration classes (from rough to fine filtering).
The air flow direction is indicated by the arrow on the fan casing.
The Iso KSV ES fans are equipped with an electrostatic filter that provides cleaning of air from fine dust, aerosols, smoke, soot particles and
soot. Electrostatic filters rely on gravity of oppositely charged objects. Polluted air flows through the spray charging unit where particles
become ionized. Then ionized particles are moved by the air stream and settle on the collecting plates which are oppositely charged.

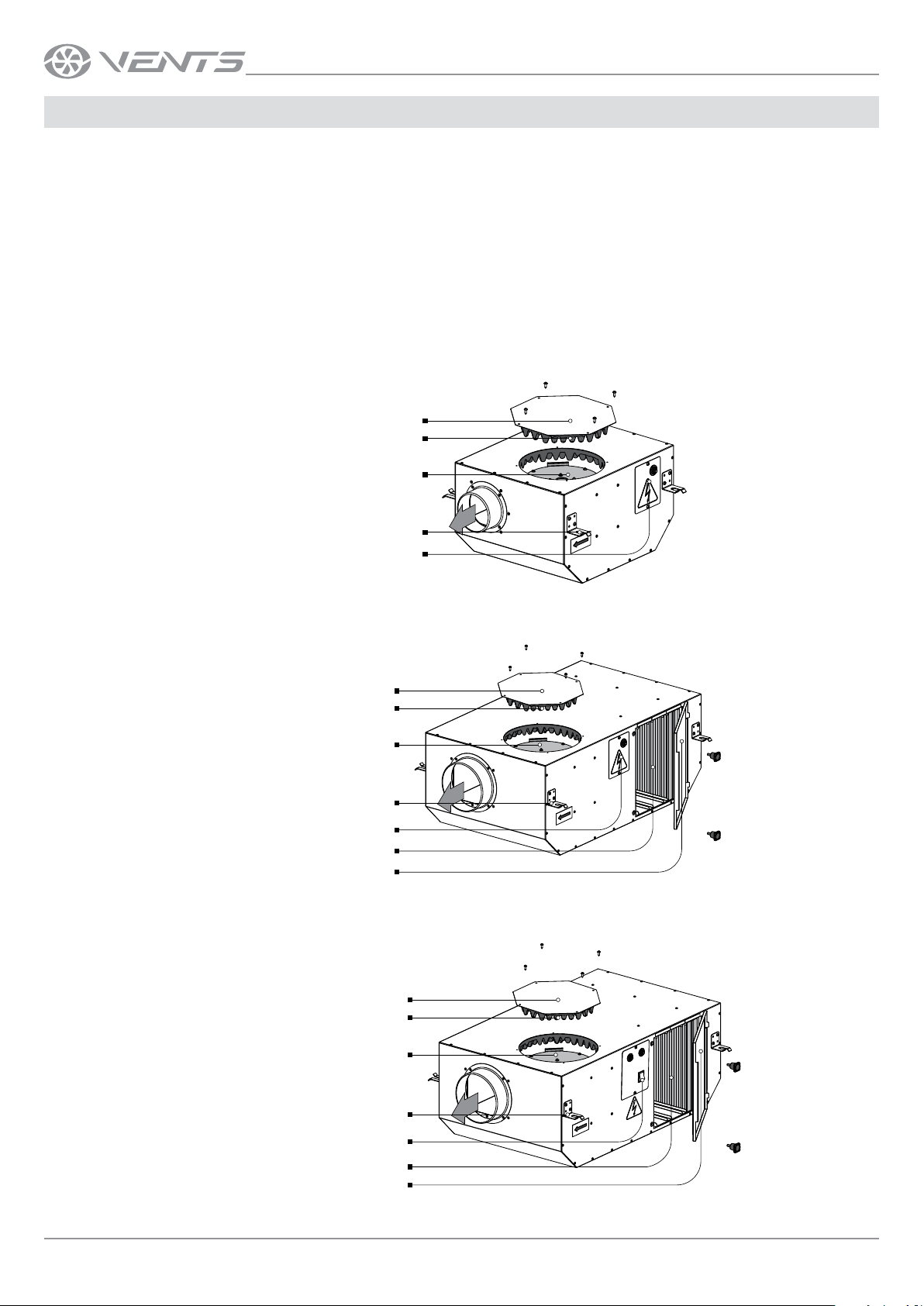

KSV1 (DUO)
Terminal box cover
Fan
Sound insulation material
Service cover
Mounting bracket
KSV (DUO)
Filter maintenance panel
Filter
Terminal box cover
Fan
Sound insulation material
Service cover
Mounting bracket
KSV (DUO) ES
Filter maintenance panel
Filter
Electrostatic filter ON/OFF
Fan
Mounting bracket
Sound insulation material
Service cover
UNIT DESIGN AND OPERATING PRINCIPLE

9
www.ventilation-system.com
The fan is suspended to the mounting surface through the threaded rod fixed inside the expansion anchor.
The fan is intended for mounting to round air ducts and is installed between them.
The casing is equipped with fixing brackets for easier installation of the fan. While installing the unit, ensure convenient access for
subsequent maintenance and repair. Fasteners for ceiling mounting are not included in the delivery set and should be ordered separately.
While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit (refer to the «Technical data»
section). Fasteners for unit mounting should be selected by the service technician.
FAN MOUNTING
min 800 mm
Nut
Washer
Vibration absorbing
rubber
Washer
Nut and lock nut
Access to filters
(only for models
with filters )
To get the best performance of the fan and to minimize turbulence-induced air pressure losses, connect the straight air duct section to
the spigots on both sides of the unit while installing.
Minimum straight air duct length:
• equal to 1 air duct diameter on the intake side
• equal to 3 air duct diameters on the outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects. To prevent uncontrollable access to
the fans, the spigots may be covered with a protecting grille or other protecting device with mesh width not more than 12.5 mm.
INSTALLATION AND SETUP

10
KSV(1)
www.ventilation-system.com
DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED
ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER
CAREFUL READING OF THE PRESENT USER’S MANUAL.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
• The unit is rated for connection to 1~230 V/50 Hz power mains.
• The unit must be connected to power mains using insulated electric conductors (cables, wires). The actual wire cross section selection
must be based on the maximum load current, maximum conductor temperature depending on the wire type, insulation, length and
installation method.
• The external power input must be equipped with an automatic circuit breaker built into the stationary wiring to open the electric circuit
in case of overload or short-circuit. The circuit breaker installation place must provide quick access for emergency shutdown of the unit.
The trip current of the automatic circuit breaker QF must exceed the maximum current consumption of the unit (refer to the technical
data table). The recommended trip current of the circuit breaker is the next current in the standard trip current row following the
maximum current of the connected unit. The automatic circuit breaker is not included in the delivery set.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
The recommended cross section of conductors (cables, wires) is 0.75 mm2.
The recommended circuit breaker nominal current should be not less than 1 A.

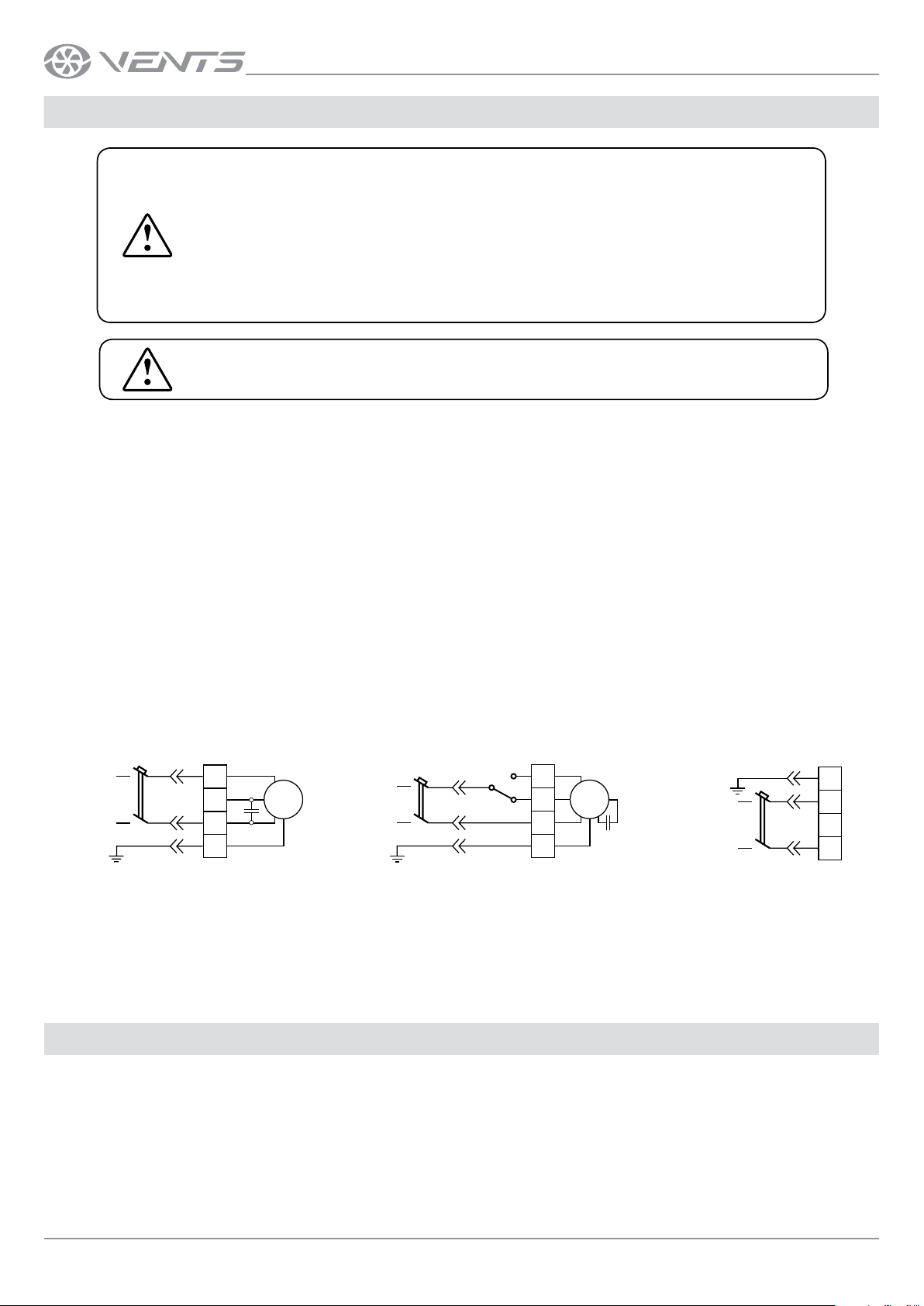

WIRING DIAGRAMS
KSV(1) single-speed fan KSV(1) Duo double-speed fan Electrostatic lter
X3
L
L
QF* XP*
PE
N
N
PE
C
M
~230 V
50 Hz
X3
L1
L2
L
QF* XP*
PE
N
PE
N
S1
C
M
Low
High
~230 V
50 Hz
X1
PE
N
PE
QF* XP*
L
LF
N
L
~230 V
50 Hz
*Purchased separately.
CONTROL
The speed of the double-speed fan is switched (Low/High) at the stage of its connection to power mains according to the wiring diagram.
The electrostatic filter is switched on/off by means of a switch on the fan casing.
CONNECTION TO POWER MAINS

11
www.ventilation-system.com
Maintenance operations of the unit are required 3-4 times per year. They include regular cleaning of the unit and periodic cleaning of filters.
1. Filter maintenance.
Dirty filters increase air resistance in the system and reduce supply air volume.
The filters require cleaning not less than 3-4 times per year.
Vacuum cleaning is allowed.
After two consecutive cleanings filters must be replaced.
For new filters, contact the Seller.
Filter cleaning periodicity for electrostatic filters is from 7 to 21 days, determined by the user based on the results of a visual check of the filter.
To replace/clean filters, follow these steps:
1. Unlatch the service panel.
2. Open the service panel.
3. Pull the filters to remove.
4. Clean the filters with a vacuum cleaner.
5. Assemble the unit in the reverse order.
2. Fan maintenance (once a year).
Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply
air flow. Clean the fans with a soft brush or cloth. Do not use water, aggressive solvents, or sharp objects as they may damage the impeller.
3. Supply air ow control (twice per year).
The supply duct grille may get clogged with leaves and other objects reducing the unit performance and supply air delivery.
Check the supply grille twice per year and clean it as required.
4. Technical maintenance of air duct system (every 5 years).
Even regular fulfilling of all the prescribed above maintenance operations may not completely prevent dirt accumulation in the air ducts
which reduces the unit capacity. Duct maintenance means regular cleaning or replacement.
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE
OPERATIONS!
MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE
PROTECTION
TECHNICAL MAINTENANCE

12
KSV(1)
www.ventilation-system.com
PROBLEM POSSIBLE REASONS TROUBLESHOOTING
The fan(s) do(es) not
get started.
No power supply. Make sure the power supply line is connected
correctly, otherwise troubleshoot a connection error.
Jammed motor. Turn off the fan. Troubleshoot the motor jamming.
Restart the fan.
Automatic circuit
breaker tripping
following the fan
turning on.
High current consumption due to short circuit in
power line. Turn off the fan. Contact the Seller.
Low air flow.
The filters and the fans are clogged, the heat
exchanger is clogged.
Clean or replace the filters, clean the fans, and the
heat exchanger.
The ventilation system components (air ducts,
diffusers, louvre shutters, grilles) are clogged or
damaged.
Clean or replace the ventilation system components
(air ducts, diffusers, louvre shutters, grilles).
Cold supply air. Extract filter clogging. Clean or replace the extract filter.
Noise, vibration.
The fan impeller is soiled. Clean the impellers.
The fan or casing screw connection is loose. Tighten the screw connection of the fans or the
casing all the way.
TROUBLESHOOTING

13
www.ventilation-system.com
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 ˚С to +40 ˚С and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least
3-4 hours.

14
KSV(1)
www.ventilation-system.com
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.

15
www.ventilation-system.com
CERTIFICATE OF ACCEPTANCE
Unit Type Centrifugal inline fan
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The unit _____________________________________ is installed pursuant to the requirements stated
in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Centrifugal inline fan
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

V163EN-03
