Blaupunkt Madrid RCM 105 User manual

Madrid RCM 105 (Inland) 3 D94 162 026 29. 08. 94
76 44 776 010
Operating instructions
Madrid RCM 105

Madrid RCM 105 (Inland) 3 D94 162 026 29. 08. 94
76 44 776 010
1
32 4
22
12
111096
21 18 15 14 13
875
16
19
24 23
20
17

19
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Contents
Short description.......................... 20
Important notes ............................ 23
What you must know!............................ 23
Traffic safety ......................................... 23
Installation/connection ....................... 23
Optical indication of theft protection .. 24
KeyCard ................................................ 24
Replacing a KeyCard......................... 24
Radio operation with RDS ........... 25
AF - alternative frequency..................... 25
REG - Regional..................................... 25
Automatic seek tuning........................... 25
Manual seek tuning............................... 25
Adjusting the seek tuning sensitivity ..... 26
Stereo - mono switch (FM).................... 26
Changing the memory bank (FM) ......... 26
Storing stations ..................................... 26
Storing the strongest stations auto-
matically with Travelstore...................... 26
Recalling stored stations....................... 26
Sampling stored stations briefly with
Preset Scan .......................................... 27
Sampling stations briefly with
Radio Scan ........................................... 27
Reception of traffic announcements
with RDS-EON............................... 28
Priority of traffic announcements
ON/OFF ................................................ 28
Warning beep........................................ 28
Switching the warning beep off.......... 28
Automatic seek tuning start................... 28
Adjusting the traffic message volume ... 28
Tape operation.............................. 29
Inserting a tape ..................................... 29
Ejecting a tape ...................................... 29
Fast winding.......................................... 29
Autoreverse........................................... 29
Listening to the radio during fast
winding with RM .................................... 29
Changing the audio source
with SRC ............................................... 30
Care of your audio equipment............... 30
DSC programming........................ 30
CD changer control (option)....... 32
Switching the CD mode on using SRC
of the car radio ...................................... 32
Selecting a CD/
track using the rocker switch................. 32
SCAN .................................................... 32
MIX........................................................ 32
Entering/displaying CD names.............. 33
Deleting CD names............................... 33
Survey of DSC default settings ............. 33
Appendix....................................... 34
Technical data....................................... 34

Madrid RCM 105 (Inland)
20
4TS - Travelstore
To store the six most powerful stations
automatically with Travelstore:
Store: press TS until seek tuning starts
in the display.
Recall: press TS, “T” is indicated in the
display. Then briefly press one of the
presets 1, 2, 3, 4, 5, 6.
5-dB
Press the -dB button to instantly mute
the audio source. The display will then
show “MUTE”. Return to normal volume
by pressing either the -dB button once
again or the VOL+ button.
When pressing VOL-, the normal volu-
me will be identical to the -dB (muted)
volume.
To program the mute volume, proceed
as follows:
Adjust the desired volume with the
VOL+ / VOL- button. Confirm your ent-
ry by pressing the -dB button for about
2 seconds (beep tone is released).
This volume will then be stored as the
mute volume.
Short description
1ON
Switching on:
Press ON (the KeyCard has to be in-
serted), the set plays with the pre-adju-
sted volume. You may also change this
setting (see chapter “DSC pro-
gramming - VOL FIX”).
Switching off:
Press ON for approximately 1 second.
If the set was turned on by pressing
ON, the KeyCard can be used for swit-
ching the system on and off (KeyCard =
passive anti-theft protection).
The set may also be turned off via the
vehicle’s ignition (provided that it was
connected correspondingly). After the
ignition was switched off, a double
beep tone reminds you that you should
remove the KeyCard before leaving
your vehicle.
To operate the set when the ignition is
switched off (KeyCard is inserted), pro-
ceed as follows:
Press ON approximately 8 seconds
after the ignition was switched off. The
set will be turned on.
To protect the battery, the system will
automatically shut off after a playing
time of one hour.
2VOL+ / VOL-
Adjust the desired volume with VOL+ /
VOL-.
Each time the set is switched on, it will
play with the pre-adjusted volume. You
may also change this setting (see chap-
ter “DSC programming - VOL FIX”).
3FM
To select one of the FM memory banks
I and II.
To change the memory bank:
Press button until the desired level is
indicated in the display.

21
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
9AF button (alternative frequency) du-
ring RDS operation
When “AF” lights up in the display, the
system will automatically seek a fre-
quency offering better reception of the
same RDS program.
“AF” on/off: press the AF button briefly.
When pressing the AF button for about
2 seconds, the display will show REG-
ON or REG-OFF (see REG - regional).
:PS
Radio functions:
PS (preset scan)
Press button shortly - the system will
briefly play all stations stored on the
preset buttons.
;TA
TA (Traffic Announcement)
If TA lights up in the display, the sy-
stem will only play traffic stations.
TA on/off: Press the TA button.
<1, 2, 3, 4, 5, 6 - preset buttons
You can store 6 stations on each me-
mory bank (I, II, and “T”).
To store a station: Press button du-
ring radio operation and hold down until
the radio resumes play.

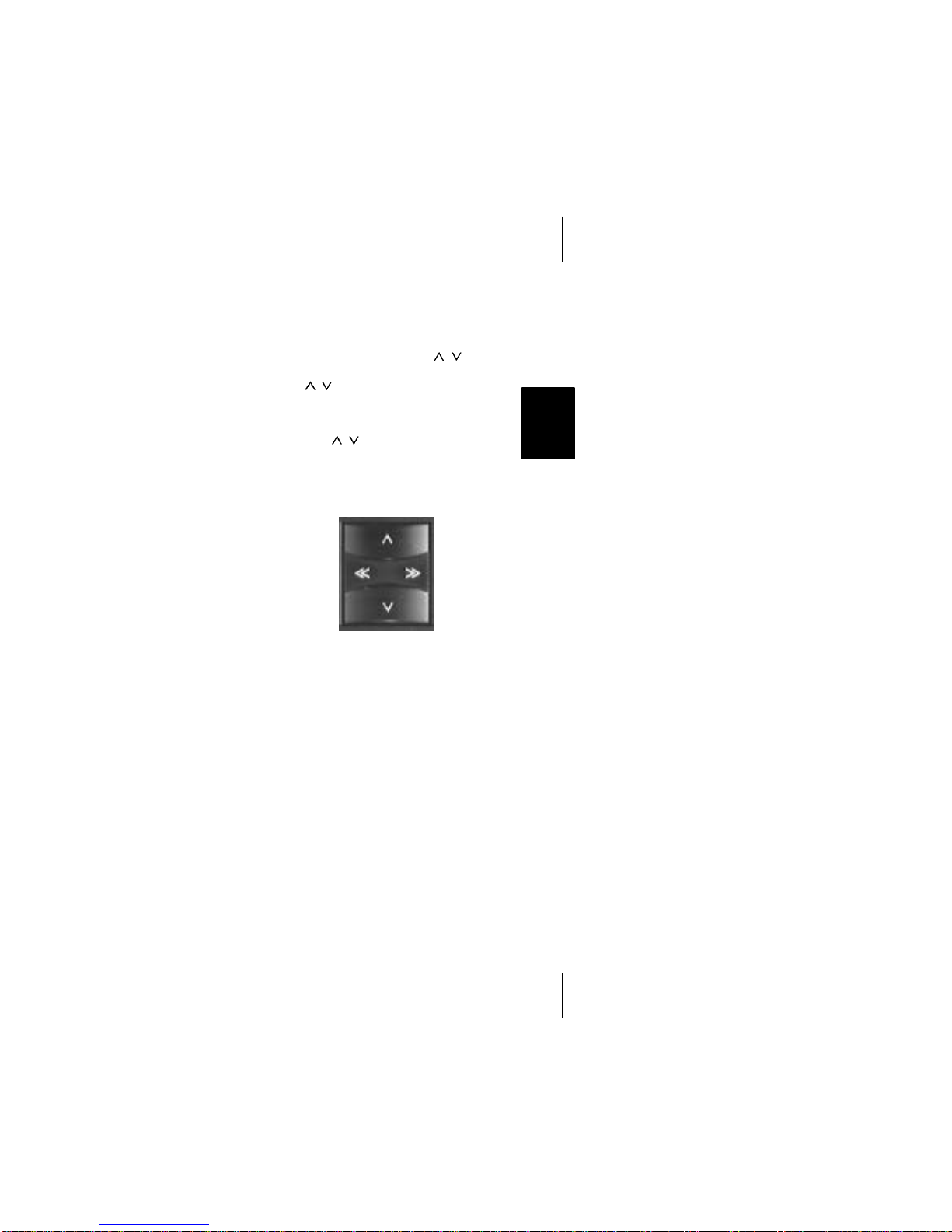

6Rocker switch
Station search
up
down in short
intervals
(when AF is off)
down
up in short
intervals
(when AF is off)
Extra functions:
In the DSC
mode Select function and
program parameter.
In the AF
mode (AF in the display)
Use the << >> button
to scroll through the
programs of a radio
network, e.g. from
NDR1 to NDR4 (North
German broadcaster).
Track /CD operation (option)
Press briefly:
to select the title.
Hold down:
CUE/REVIEW
CD << >> To select the disc.
7Display
TR 2 (Track 2)
Cassette mode
Disc number,
title number
CD-mode (option)
Radio mode Station name (RIAS / DSK)
Memory bank (FM
T )
Preset button (2)
8KeyCard
In order to operate the set, the KeyCard
has to be inserted.
For this purpose, introduce the Key-
Card (contact area showing up) into the
corresponding slot above the flashing
KeyCard tongue.
Read also the information given in the
“KeyCard” chapter.

Madrid RCM 105 (Inland)
22
To recall a station: Select the desired
memory bank and press the correspon-
ding preset button.
=SCA /SCAN)
Radio functions:
Press SCA - the system will briefly play
all stations stored on the preset but-
tons.
CD functions (option):
To sample the CD tracks.
To start or stop the scan function:
Press SCA briefly.
>RM (Radio Monitor)
Press this button to listen to the radio
while fastforwarding or rewinding the
tape.
During tape operation:
To switch RM on/off: Press button.
When this function is activated, the
display shows “RM”.

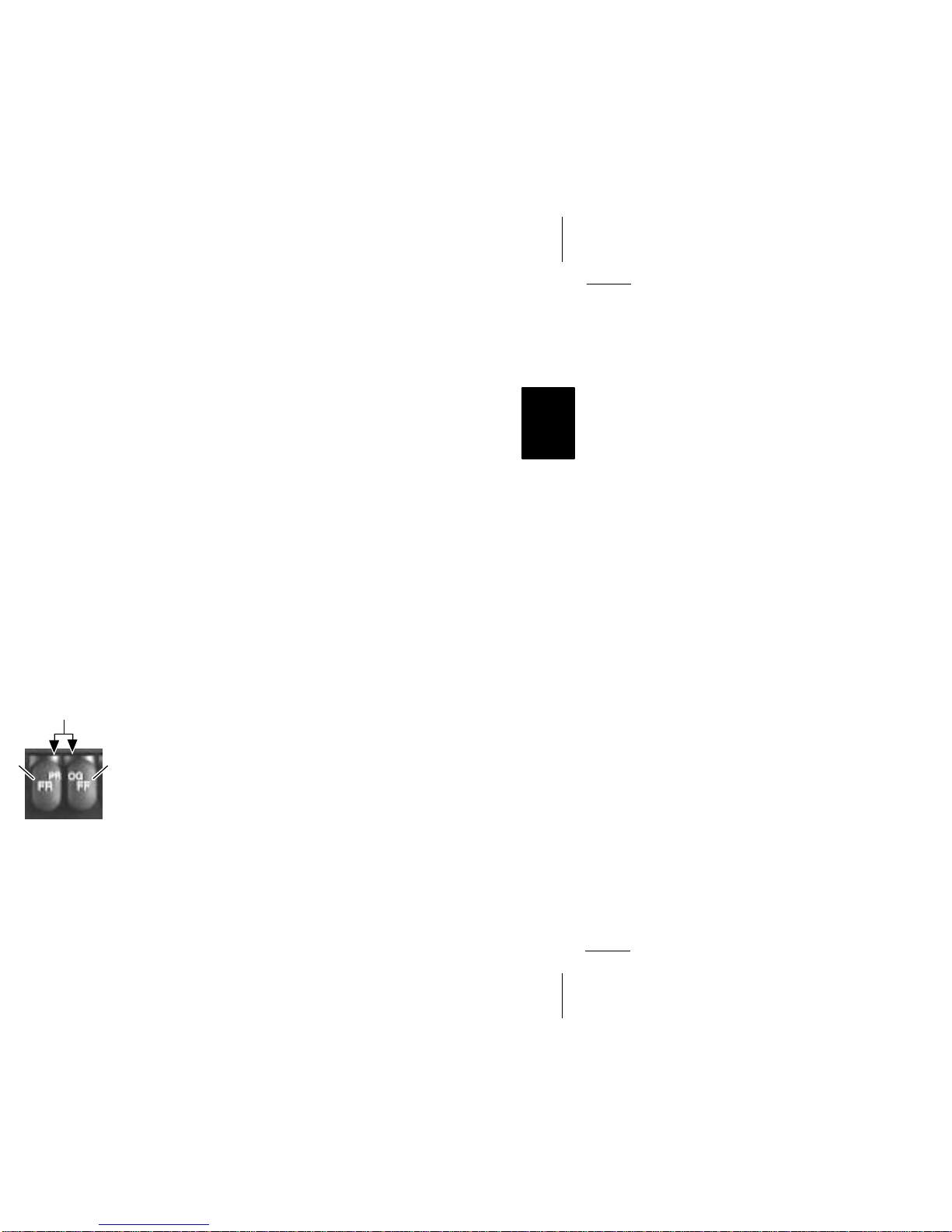

?Fast winding/Autoreverse
Switch-over to the other track
Press simultaneously
TR1-PLAY or TR2-PLAY on the display
Fast
forward;
To stop:
press FR
Fast
rewind;
To stop:
press FF
@Cassette slot
Insert tape (side A or 1 facing up, the
open side showing to the right).
AEject tape
Press .
BDSC (Direct Software Control)
Use the DSC function to adapt a num-
ber of programmable basic settings
according to your preference. For more
information, read through chapter “DSC
programming”.
Cdx/lo
To change the seek tuning sensitivity.
“lo” lit up in the display indicates nor-
mal seek tuning sensitivity (the system
will pick up all powerful, nearby stati-
ons).
“lo” does not lit up (dx) in the display
indicates high seek tuning sensitivity
(the system will also pick up weaker
stations).
To change the seek tuning sensitivity:
press dx or lo.
DMIX
See chapter CD changer control.
EAUD
To adjust the treble and bass frequen-
cies using the rocker button.
Treble
+
Bass Bass
Treble
+

23
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
The last setting will be automatically
stored.
If the setting remains unchanged within
8 seconds, the display will return to the
previous status.
FLD
Loudness - boosts bass at low volume.
Loudness on/off: Press LD.
For more information see chapter “DSC
programming”.
GGEO
To adjust the BALANCE (left/right) and
FADER (front/rear).
Balance
left
Fader rear
Fader front
Balance
right
The last setting will be stored automati-
cally.
If the setting remains unchanged within
8 seconds, the display will return to the
previous status.
HSRC (source)
To select between the connected audio
sources, e.g. cassette, radio, AUX or
CD changer (option).
Important notes
What you must know!
Beforestartingtouseyournewcarradio,you
should carefully read through the following
information.
Traffic safety
As the driver of a motor vehicle, it is your
responsibility to pay attention to the traffic
situationatalltimes.Neveruseyourcarradio
in a way that could distract you.
Please keep in mind that you travel a di-
stanceof14mpersecondataspeed of only
50 km/h.
Should the traffic situation become particu-
larly demanding, we would advise you not to
use the radio.
When adjusting the volume, make sure that
you are still able to hear all sounds coming
from outside of the vehicle, so that you are
always able to react to warning signals, for
example from the police or the fire brigade.
Installation/connection
If you like to install your new car radio by
yourself or add other audio components to
the existing ones, then please read carefully
the enclosed instructions on installation and
connection.

Madrid RCM 105 (Inland)
24
Theservicecentresaremarked( )inthecar
radio service centre list. In case of doubt,
please contact the central service centre in
your country for more information on the
KeyCard service centre closest to you.
Use either KeyCard (1 and 2) to individually
store the following functions as desired:
bass,treble,balanceandfadersettings,pre-
set stations, loudness, TA (traffic announce-
ment volume), SPEECH (tone control for
speech programs), BEEP volume, SCANTI-
ME, VOLFIX.
Moreover,theparametersadjustedlastsuch
asthe station,TApriority,loudness,AF,RM,
REG ON/OFF or seek tuning sensitivity
remain stored.
With this, you will always find your basic
settingsadjusted again after you have inser-
ted your KeyCard.
Replacing a KeyCard
Any KeyCard can only be replaced by a new
one with the same identification number
(1 or 2).
For example, to replace KeyCard 2,
•insert KeyCard 1 into the set and turn it
on.
•Slightly push in the card so that it is
released; the display will show
LEARNING.
Optical indication of theft protection
When the car is stationary, you can let the
KeyCard tongue flash in order to show that
the set is theft-protected. DSC allows you to
adjusttwodifferent settings:LEDONor LED
OFF.
For more information, please read through
chapter“DSCprogramming-LEDON/OFF”.
KeyCard
The car radio can only be operated using
eitherKeyCard1or2.Theircodesarestored
in the unit.
Turn on the set and introduce the KeyCard
completely. The car radio is now ready for
operation.WheninsertingawrongKeyCard,
the display will show “----”.
After approximately 10 seconds, “CARD
ERR” will appear in the display. In this case
do not make any further adjustments until
you have the corresponding KeyCard avail-
able.
Nevertrytopulloutthe KeyCardbyforce.
First,slightlypressthecardin.Thisreleases
the KeyCard; the display shows
“LEARNING”.Nowyou canpulloutthecard.
Should the KeyCard be lost or damaged,
then please contact one of our authorised
service partners to get a new card.
•Take out KeyCard 1 and insert the new
KeyCard 2 while the display is still
showing LEARNING.
You can now use the new KeyCard 2 to
operate the set.
To turn it on, you can only employ one Key-
Card 1 or 2.

25
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Automatic seek tuning /
• Press / . The radio will automatically
tune into the following station.
If you keep the upper or lower part of the
rocker switch / depressed, seek tuning
speeds up in upwards or downwards direc-
tion.
down in short
intervals up in short
intervals
down
up
Manual seek tuning << >>
(prerequisite: AF is switched off!)
•Press << or >> to change the frequency
in small steps in upwards/downwards
direction.
Hold down the right or left part of the rocker
switch to speed up this procedure.
Radio operation with RDS (Radio Data System)
If “SEARCH” appears in the display when
turning on the set or when calling up one of
the stored frequencies, the set is automati-
cally searching for an alternative frequency.
“SEARCH” goes out as soon as the system
has found an alternative frequency or after
the frequency band has been scanned com-
pletely.
Should the reception quality of the selected
program become too bad,
•tune into another program.
REG - Regional
At some times of the day, larger radio stati-
ons split up their main program into regional
program versions offering local information.
If you want the radio to lock onto a regional
program,
• hold down the AF button for about 2
seconds.
The display will show “REG ON”.
If you leave the service area of the regional
station tuned in, or if you wish to use the
normal RDS service again, switch to “REG
OFF”.
•Hold down the AF button for about 2
seconds until “REG OFF” is displayed.
The display will show “REG ON” or “REG
OFF” each time the radio is switched on.
The Radio Data System offers you more
convenience for listening to FM.
An ever increasing number of FM radio sta-
tionsbroadcastadditionalinformation inpar-
allel with their normal program.
Assoonasaradioprogramcanbeidentified,
thestationnameandpossiblyalsoaregional
identifier will appear in the display, e.g.
“NDR1 NDS” (local radio program in Lower
Saxony, Germany).
With RDS, the preset buttons turn into pro-
gram buttons. Now you know exactly to
whichprogramyoursetis tuned in, making it
absolutely easy to find the desired station
quickly.
But RDS even offers you more advantages:
AF - alternative frequency
The AF function makes sure that the stron-
gest frequency of the selected program is
always tuned in automatically.
This function is activated if “AF” lights up in
the display.
To switch AF on/off:
• Press AF briefly.
Duringseektuningforthefrequencyoffering
the best reception of the selected program,
the radio is muted for a moment.

Madrid RCM 105 (Inland)
26
Changing the memory bank
YoucanshiftbetweenthememorybanksI,II,
and T to store and recall preset stations.
Theselectedmemorybankisindicatedinthe
display.
• Press FM or TS until the desired me-
mory bank lights up in the display
(press repeatedly if necessary).
Storing stations
Using the preset buttons 1, 2, 3, 4, 5, 6 you
can store six stations on each FM memory
bank (I, II, T).
•Select the waveband.
•Use the rocker switch to tune to a stati-
on (either automatically /or manu-
ally << >>).
•Press the desired preset button and
hold it down. The radio will be muted
and will resume play after approximate-
ly 2 seconds.
Now the station is stored. The activated pre-
set button is indicated in the display.
Note:
Should you tune into a station which has
already been stored, the corresponding pre-
set button and the memory bank will start
flashinginthe display for a short while, if you
have selected another memory bank.
Adjusting the seek tuning sensi-
tivity
The set allows you to modify the seek tuning
sensitivity.
If “lo” is indicated, the radio will only pick up
strong stations (low sensitivity).
When switching on dx (“lo” goes out), the
system will also pick up less powerful stati-
ons (higher sensitivity).
To switch over:
• Press lo or dx.
The degree of sensitivity can be separately
adjusted for both levels (see chapter “DSC
programming”).
Stereo - mono switch
You can switch to mono when the reception
quality becomes poor.
During mono reception the stereo symbol
in the display will go out.
To switch over:
• Press lo for approximately 2 seconds.
Each time the car radio is switched on, the
radio will be automatically set to stereo re-
ception.
It will automatically switch to mono when the
reception quality becomes poor.
Storing the strongest stations
automatically with Travelstore
YoucanusetheTravelstorememorybankto
automatically store the six strongest FM sta-
tions sorted on the preset buttons according
to their signal strength. This feature is espe-
cially useful when travelling, because it will
alwaysgiveyouthemostpowerfulstationsat
a fingertip as you pass through the various
reception areas.
• Press TS for at least 2 seconds.
The radio will seek the six most powerful FM
stations and store them on the “T” memory
bank(Travelstore).Assoon as this procedu-
rehasfinished,thefirststationwillbeplayed.
FM stations can also be stored manually on
the Travelstore memory bank (see “Storing
stations”).
Recalling stored stations
Youcanrecallanystoredstationbypressing
the corresponding preset button.
•Select the waveband using FM or TS.
•Briefly press the corresponding preset
button.

27
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Sampling stations briefly with
Radio Scan
Startingwiththecurrentlyplayedstation,you
mayletthesystemsamplethefollowingones
one after another. Choose the desired
SCANTIME in the DSC menu.
To activate Scan:
• Press SCA.
The sampled frequency or the station
name starts flashing in the display. Du-
ring the actual search process, “SCAN”
is flashing.
To continue listening to a sampled sta-
tion or to switch Scan off:
• Press SCA.
If no station is selected during the search
operation, the scan function will be automa-
tically switched off after the entire frequency
band has been passed through. The radio
will then return to the initial station that was
being played when the scan function was
activated.
For more information, please also refer to
chapter “DSC programming - SCANTIME”.
Sampling stored stations briefly
with Preset Scan
With this function you can briefly sample all
preset stations. Choose the desired SCAN-
TIME in the DSC menu.
• Press PS.
The radio will briefly play all the stored
stations one after another.
Thesystemwillsamplethestationsofoneof
the memory banks I, II, or T, depending on
whichbankwasselectedbefore.Freepreset
buttons will be skipped.
To switch off Preset Scan:
• Press PS once again.
The radio will continue to play the cur-
rently sampled station.

Madrid RCM 105 (Inland)
28
Automatic seek tuning start
Prerequisite:
Priority for traffic announcements is activa-
ted.
If you leave the reception area of your traffic
program while listening to a tape or disc or
when having turned down the volume com-
pletely, the car radio will automatically tune
into another traffic program station.
If no such traffic program station is found
within approximately 30 seconds, tape or
disc reproduction will be interrupted and the
system will send out a warning beep. To
switch off the warning beep, proceed as
described above.
Adjusting the traffic message
volume
The volume of the warning beep and of the
currently played or stored traffic message
has been pre-adjusted at the factory. How-
ever, you can change this default setting
using the DSC function (see “DSC pro-
graming - TA LEVEL”).
Reception of traffic announcements with RDS-EON (Enhanced Other Networks)
Warning beep
Whenever you leave the reception area of
the traffic program station you have tuned
into,youwillhearawarningbeepafterappro-
ximately 30 seconds.
Thiswarningbeepwillalsobereleasedwhen
pressing a preset without a traffic program.
Switching the warning beep off
a) Tune to another traffic program station:
•Press the rocker switch, or
•press a preset button with a station
offering traffic information.
Alternative:
b) Switch off the priority for traffic an-
nouncements:
• Press TA.
In the display, the “TA” indication
goes out.
You can reduce the beep tone volume to
the pre-selected mute volume.
• For this purpose, press -dB.
Many FM broadcasters provide their service
area with traffic messages at regular inter-
vals.
All traffic program stations transmit a special
telegram signal in addition to the radio pro-
gram, which is recognised and decoded by
the car radio. As soon as such a signal is
received, the display shows “TP” (Traffic
Program).
Other radio stations do not air traffic an-
nouncements by themselves, but offer the
possibility to receive the traffic announce-
ments of another station within the same
radio network. In this case, “TP” will light up
inthedisplayassoonasthepriorityfortraffic
announcements is activated. The display
must then show “TA”.
If a traffic announcement comes in, your
radio will automatically switch to the traffic
programforthe durationofthemessage and
return to the previous station after the end of
the message.
Priority of traffic announcements
ON/OFF
If the priority of traffic announcements is
activated, “TA” lights up in the display. To
switch the function on/off:
•Press the TA button for approximately
2 seconds.

29
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Autoreverse
If, while a tape is playing, you wish to switch
to the other track of that tape:
• Press FR and FF simultaneously.
At the end of the tape, the set will automati-
callyswitchtotheothertrack.Thedisplaywill
show TR1-PLAY for track 1 or A and TR2-
PLAY for track 2 or B.
Note:
Ifthereistoomuchtensiononthetapeduring
playback, the set may switch to the other
trackbyitself.Inthiscasecheckthecondition
of the tape. Sometimes it helps to rewind the
cassette tape completely.
Listening to the radio during fast
winding
with RM (Radio Monitor)
When the tape is fastforwarded or rewound,
the radio is normally muted. To listen to the
radio during fast winding:
• Press RM. “RM” lights up on the dis-
play.
Tape operation
Inserting a tape
•Turn on the set.
•Insert a tape.
Insert cassette with side Aor 1
facing up, the open side facing
to the right
Eject
cassette
The tape will be played in the direction used
last.
If TR1-PLAY is displayed, this means that
track 1 or A of the tape is played.
Ejecting a tape
• Press .
The cassette will be ejected.
Fast winding
Fast forward
• Press FF (fast forward).
At the end of the tape, the set will
switch to the other track and start play-
ing it.
To stop fast forward:
• Press FR.
Fast rewind
• Press FR (fast rewind).
When the tape has been completely
rewound, the set will start playing the
same track again.
To stop fast rewind:
• Press FF.
Switch-over to the other track
Press simultaneously
TR1-PLAY or TR2-PLAY on the display
Fast
forward;
To stop:
press FR
Fast
rewind;
To stop:
press FF

Madrid RCM 105 (Inland)
30
Changing the audio source
with SRC
Usethisbuttontoselectbetweenradio,tape,
or CD (option) reproduction.
To switch over,
•Press the SRC button.
Care of your audio equipment
WerecommendthatyouuseonlyC-60/C-90
cassettetapesinyourcarradio.Protectyour
cassettes from dirt, dust and temperatures
exceeding50°C.Duringcoldweather, allow
cold cassettes to warm up somewhat before
playing them in order to avoid uneven tape
transport. Operating problems and sound
distortions may occur after approximately
100 hours of playing time and are caused by
dust particles which adhere to the rubber
roller and the audio head.
Useacleanercassettetoremovenormaldirt
build-up. For tougher cases, use a cotton
swab (Q-tip) soaked with alcohol. Never use
any hard tools to clean your unit!
DSC programming
This car radio offers direct software control
(DSC), which allows you to adapt a number
of default settings to your preference and to
store these values.
Inthefollowingyouwillfindanoverviewofall
the default settings adjusted at the factory.
To change a programmed parameter,
• press DSC.
Then use the rocker switch and the -dB
button to select and change the functions
described below. The display shows the ad-
justed status.
Select function
Select function
Change-
setting Change-
setting
CDC NAME (only, if changer is connec-
ted)
Use this function to name
your discs (see also CD
changer control, “Entering/
displaying CD names”)
ANGLE Select one of the values -1,
0, or +1 to adapt the indivi-
dual viewing angle.
Adjust the ANGLE so as to
provide the best view.
BEEP Acknowledgement tone for
all functions where the re-
spective button has to be
held down for more than 2
seconds to activate the
function.
Adjust volume between 0
and 9 (0 = OFF).
BRIGHT The display brightness can
be adjusted between 1 and
16. You may set one day
and one night adjust-
ment.Brightness of night
illumination:
Switch on the vehicle’s light-
ing system and program the
brightness value. For this,
the lighting connector has to
be connected to the electric
system of the car.

31
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
CD DISP (only, if changer is connec-
ted)
During CD operation, use <<
>> to select between the
following displays:
NAME –
the name specified with CD
NAME.
TIME –
the playback time of the title.
NUMBER –
disc and track number.
LED ON You can select between LED
ON and LED OFF. When
setting LED ON, the Key-
Card tongue will flash for
optical theft protection when
the set is switched off and
the KeyCard removed.
LOUDNESS When listening at a low level,
the loudness function will
create a more natural sound
by emphasizing the low fre-
quency range.
LOUD 1 - low boost
LOUD 6 - strong boost
SCANTIME Use this function to specify
the scan time in the radio
mode). Choose a value bet-
ween 5 and 30 seconds.
S-DX 1 Use this function to adjust
the seek tuning sensitivity for
distant reception.
DX. 1 - high sensitivity
DX. 3 - low sensitivity
S-LO 1 Use this function to adjust
the seek tuning sensitivity for
local reception.
LO1 - high sensitivity
LO3 - low sensitivity
The seek tuning sensitivity
values can be separately
adjusted for AM and FM.
SPEECH In future, the RDS broad-
casters will differentiate be-
tween music and speech
programs. Use the
“SPEECH” function to adjust
the sound settings for
speech programs separately.
TA LEVEL Use this function to adjust
the volume of the traffic an-
nouncements and the
warning beep between 1 and
9. It is also possible to adjust
the fader, balance, treble,
and bass settings. The last
adjustment will be stored.
The announcement will be
played in accordance with
the specified values.
CD UPD (only, if changer is connec-
ted)
Use this function to delete
named discs in order to get
new memory capacities for
new CD names (see also
“CD changer control, Dele-
ting CD names”)
VOL FIX Use this function to adjust
the initial volume when the
set is switched on.
Use << >> to adjust the desi-
red initial volume.
To quit the DSC mode and store the
setting:
• Press DSC

Madrid RCM 105 (Inland)
32
CD changer control (option)
Selecting a CD/track using the
rocker switch
Selecting
CDs
(downwards)
Repeating a track: press briefly
Selecting a track (downwards): briefly press
two or more times
REVIEW - fast reverse (audible):
press and hold down
Selecting
CDs
(upwards)
Selecting a track (upwards): press briefly
CUE - fast advance (audible):
press and hold down
The display shows which mode has been
selected.
SCAN
For briefly sampling the CD tracks.
Start SCAN:
• Press SCA on the car radio. The tracks
are briefly played in ascending order.
Stop SCAN:
• Press SCA briefly. The radio will keep
on playing the track scanned last.
MIX
For playing the CD tracks at random.
MIX CD –The tracks of the selected CD
are played at random. The fol-
lowing CDs are selected in nu-
meric order, their tracks are
played at random.
MIX MAG –All tracks of the CD magazine
are played at random.
MIX OFF –MIX is switched off. The tracks
are played in numeric order.
Selecting the MIX function:
• Press MIX until the desired function is
briefly shown in the display.
If MIX is on, “MIX” is shown in the lower right
corner of the display.
This car radio makes it possible to remote
control a Blaupunkt CD changer: CDC-A03,
-F03, -A05.
Switching the CD mode on using
SRC of the car radio
BesurethataCDmagazineisinsertedinthe
changer. Use the SRC button to change the
audio source (radio - changer - cassette)
Press SRC until the changer functions ap-
pearinthedisplay.First,“CDON”isdisplay-
ed briefly, then e.g.
CD1 -T1
CD = Disc, T= TRACK
CD no. Track no.

33
Madrid RCM 105 (Inland)
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Entering/displaying CD names
You can allocate names for up to 99 CDs.
WhenplayingaCD,thedisplaywillthengive
you the entered name, e.g. VIVALDI.
Precondition:NAMEmustbe set under DSC
- CD DISP.
Entering a name:
Besurethatatleastone CDisinsertedinthe
CD magazine.
• Press SRC to change to CDC.
• Press DSC.
• Press the rocker switch / until CD
NAME is displayed.
• Press -dB.
The first character position flashes.
•Select a character using the rocker
switch / .
The display will give you one after the other
the capital letters (A-Z), the special charac-
ters and the numbers 0-9.
• Use the rocker switch << >> to change
to the next character position and se-
lect a character.
Each name may have up to seven charac-
ters.
To complete the entry:
• Press -dB. The entry is stored and you
can now select another DSC function
using the rocker switch / .
Alternatively:
• Press DSC. The entry is stored and you
quit the DSC menu.
Storing the entry/selecting the next CD:
• Press -dB and select the next CD using
<< >>.
• Press -dB and enter a name.
Storing a new name deletes the previous
name (overwrite).
Deleting CD names
If you try to store more than 99 CD names,
“FULL” will be shown in the display. In the
DSC mode, you can delete the name of one
or more CDs to free memory space.
The function CDC-UPDATE can be used to
confirm all CDs, which names you wish to
maintain.Alltheothernameswillbedeleted.
• Press DSC.
•Insert a magazine with the CDs, which
names you wish to maintain.
• Press /until “CDC UPD” is display-
ed.
•Press << >> and “LOAD CD” is display-
ed.
After having confirmed all CDs of this maga-
zine, “NEXT MAG” appears in the display.
• Press EJECT on the CD changer and
insert the next magazine.
RepeatthesestepsforallCDs,whichnames
you wish to maintain.
•To finish your selection, press -dB for
about 2 sec. until “UP DATING” ap-
pears in the display. The updating pro-
cess is completed, when the display
shows “READY”.
The names of all CDs you have inserted
remainstoredinthememory.Foralltheother
CDs, the names are deleted.
You can interrupt this process by pressing
DSC.
Survey of DSC default settings
ANGLE 0
BEEP 4
BRIGHT 16
CD DISP NAME
LED ON
LOUDNESS 3
SCANTIME 10s
S - DX 2
S - LO 2
SPEECH 0
TA LEVEL 5
VOL FIX 20

Madrid RCM 105 (Inland)
34
Appendix
Technical data
Amplifier:
Output power: 4 x 20 watts RMS acc.
to DIN 45 324
4 x 25 watts max.
power acc. to
DIN 45 324
FM sensitivity: 0.9 µV at 26 dB
S/N ratio
Frequency response:
FM 35 - 16,000 Hz (-3 dB)
Cassette 30 - 16,000 Hz (-3 dB)
Subject to modifications!

19
Madrid RCM 105 (Inland)
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Blaupunkt-Werke GmbH
Bosch Gruppe
9/94 K7/VKD 3 D94 147 026 PM
