Blaupunkt Woodstock DAB54 User manual

Radio / DAB / CD / MMC / MP3
http://www.blaupunkt.com
Woodstock DAB54 7 644 708 310
Installation instructions
PocketDAB 2004

577
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Einbauanleitung • Installation instructions • Notice de
montage • Istruzioni di installazione • Inbowhandleiding •
Monteringsanvisning • Instrucciones de instalación •
Instruções de montagem • Monteringsvejledning
D
Sicherheitshinweise
Für die Dauer der Montage und des
Anschlusses beachten Sie bitte fol-
gende Sicherheitshinweise.
-Minuspol der Batterie abklemmen!
Dabei die Sicherheitshinweise des
Kfz- Herstellers beachten.
-Beim Bohren von Löchern darauf
achten, dass keine Fahrzeugteile
beschädigt werden.
-Der Querschnitt des Plus- und
Minuskabels darf 1,5 mm2nicht
unterschreiten.
-Fahrzeugseitige Stecker nicht an
das Radio anschließen!
-Die für Ihren Fahrzeugtyp erforder-
lichen Adapterkabel erhalten Sie im
BLAUPUNKT – Fachhandel.
-Je nach Bauart kann Ihr Fahrzeug
von dieser Beschreibung abwei-
chen. Für Schäden durch Einbau-
oder Anschlussfehler und für
Folgeschäden übernehmen wir
keine Haftung.
Sollten die hier aufgeführten
Hinweise für Ihren Einbau nicht
passen, so wenden Sie sich bitte
an Ihren Blaupunkt-Fachhändler,
Ihren Fahrzeughersteller oder
unsere Telefon-Hotline.
Bei Einbau eines Amplifier oder
Changersmüssenunbedingterstdie
Gerätemassen angeschlossen wer-
den, bevor die Stecker für die Line-
In oder Line-Out Buchse kontaktiert
werden.
GB
Safety instructions
When carrying out installation work
and making connections please ob-
serve the following safety instruc-
tions:

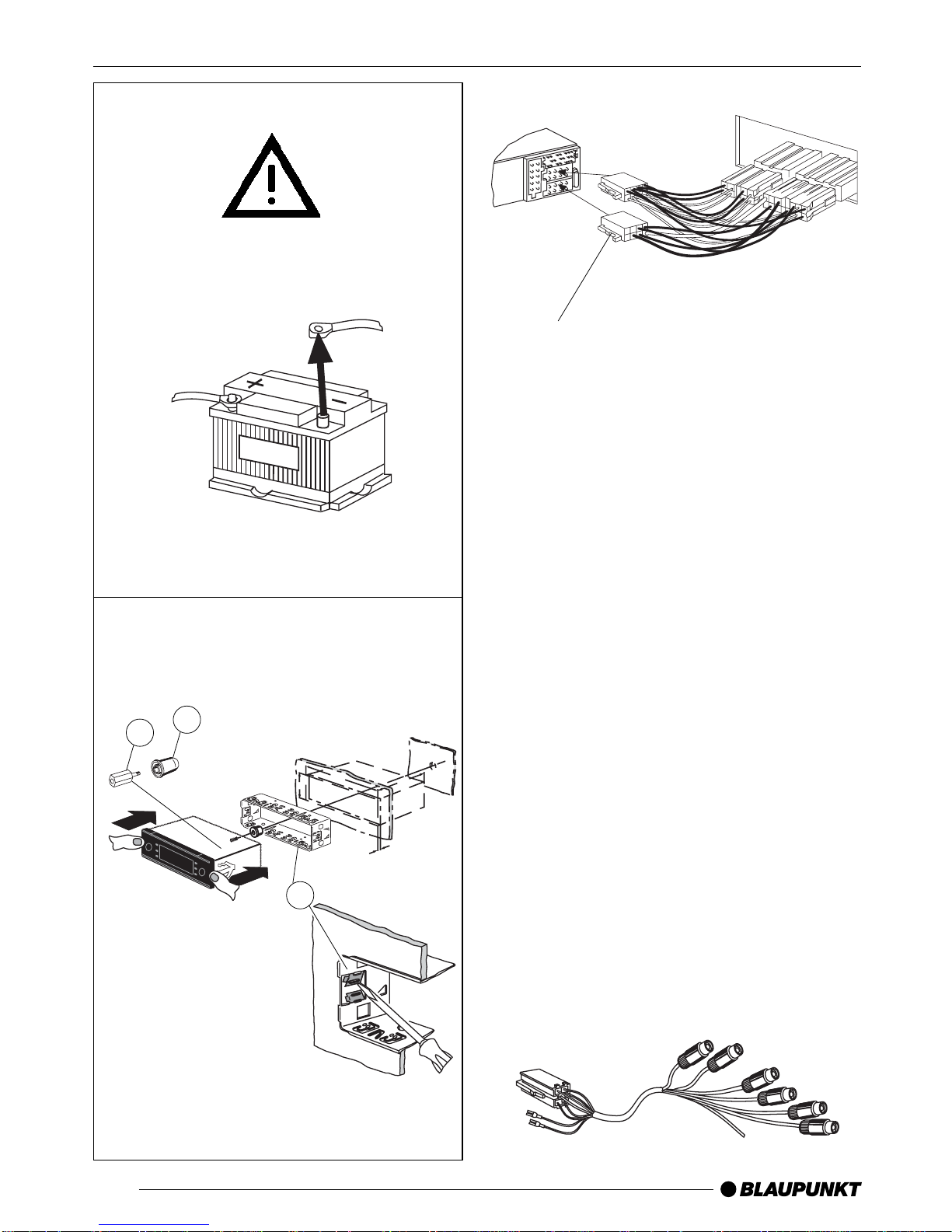

-Disconnect the negative terminal of
the battery! When doing so, please
observe the vehicle manufacturer’s
safety instructions.
-Make sure you do not damage
vehicle components when drilling
any holes.
-The cross sections of the positive
and negative cables must not be
less than 1.5 mm2.
-Do not connect the vehicle’s plug
connectors to the radio!
-You can obtain the adapter cable
required for your vehicle type from
any BLAUPUNKT dealer.
-Depending on the model, your
vehicle may differ from the descrip-
tion provided here. We accept no
responsibility for any damages due
to incorrect installation or connec-
tion or for any consequential
damages.
If the information provided here is
not suitable for your specific
installation requirements, please
contact your Blaupunkt dealer, your
vehicle manufacturer or our
telephone hotline.
When installing an amplifier or
changer, you must first connect the
deviceearthconnectionsbeforecon-
necting the plugs for the line-in or
line-out jacks.

578
F
Consignes de sécurité
Respecterles consignesdesécurité
suivantes pendant la durée du mon-
tage et du branchement.
-Débrancher le pôle (-) de la
batterie ! Respecter les consignes
de sécurité du constructeur
automobile !
-Veiller à n’endommager aucune
pièce du véhicule en perçant des
trous.
-La section du câble (+) et (-) ne
doit pas dépasser 1,5 mm2.
-Ne pas brancher les connecteurs
du véhicule sur la radio !
-Les câbles d’adaptation nécessai-
res pour le type de véhicule sont
disponibles auprès des revendeurs
BLAUPUNKT.
-En fonction du modèle, votre
véhicule peut différer de cette
description. Nous déclinerons
toute responsabilité en cas de
dommages causés par des erreurs
de montage ou de connexion et en
cas de dommages consécutifs.
Si les indications décrites ici ne
s’appliquent au montage que vous
voulez effectuer, adressez-vous à
votre revendeur Blaupunkt, votre
constructeur automobile ou notre
service d’assistance téléphonique.
Pour le montage d’un amplificateur
ou changeur, les masses d’appareil
doivent être d’abord connectées
avant de connecter les fiches pour
les connecteurs Line IN ou Line Out.
I
Note di sicurezza
Duranteilmontaggioel’allacciamen-
to osservate per favore le seguenti
istruzioni sulla sicurezza.
-Staccate il polo negativo della
batteria ! Nel fare ciò osservate le
istruzioni di sicurezza del fabbri-
cante d’auto.
-Quando praticate dei fori, fate
attenzione a non danneggiare
nessuna parte dell’autovettura.
-La sezione dei cavi positivi e
negativi non deve essere mai
inferiore a 1,5 mm2.
-Non collegate alla radio le spine in
dotazione di autovettura !
-Richiedete ad un negoziante
specializzato in articoli
BLAUPUNKT il cavo di adattamen-
to richiesto per il vostro modello di
autovettura.
-Aseconda del modello il Suo
veicolo può differire da questa
descrizione. Non forniamo garan-
zia per danni derivanti da errori di
montaggio o di collegamento e per
danni conseguenti.
Se le indicazioni qui elencate non
sono adatte al Suo montaggio, La
preghiamo di rivolgersi al Suo
rivenditore Blaupunkt, al fabbrican-
te dell’auto o alla nostra hotline
telefonica.
Quando vengono montati un ampli-
ficatore o un multilettore CD, biso-
gnainnanzi tuttoallacciare lemasse
degli apparecchi prima di eseguire
la connessione delle spine con le
prese line-in e line-out.

579
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
NL
Adviezen voor de
veiligheid
Wilt u dedurende het monteren en
aansluiten de volgende veiligheids-
adviezen in acht nemen.
-De minpool van de batterij
afklemmen! De veiligheidsadviezen
van de fabrikant in acht nemen.
-Bij het gaten boren erop letten dat
geen voertuigonderdelen worden
beschadigd.
-De dwarsdoorsnede van de plus-
en minkabel mag niet minder dan
1,5 mm2zijn.
-Stekker aan de voertuigkant niet
aan de radio aansluiten!
-de voor uw voertuig vereiste
adapterkabel is bij de
BLAUPUNKT-vakhandel verkrijg-
baar!
-Afhankelijk van de uitvoering kan
uw auto afwijken van deze be-
schrijving. Voor schade door fouten
in montage of aansluiting en
schade als gevolg daarvan
aanvaarden wij geen aansprakelijk-
heid. Mochten de hier vermelde
aanwijzingen voor de montage
voor u niet van toepassing zijn, dan
kunt u contact opnemen met uw
Blaupunkt-vakhandel, uw auto-
fabrikant of onze telefoon-hotline.
Bij inbouw van een versterker of cd-
wisselaar moeten eerst de massa-
contacten van de apparaten worden
verbondenvoordat destekkersvoor
deline-in-of line-out-bussen worden
aangesloten.
S
Skyddsanvisningar
Vänligen beakta följande skydds-
anvisningar under pågående
montage och anslutning.
-Lossa polskon från batteriets
minuspol! Följ därvid
fordonstillverkarens
skyddsanvisningar.
-Se till att inga av fordonets
komponenter skadas i samband
med borrning av hål.
-Plus- och minuskabelns
ledningsarea måste vara minst
1,5 mm2.
-Fordonets stickkontakt får inte
anslutas till radion!
-Din BLAUPUNKT fackhandel
tillhandahåller för resp fordonstyp
erforderlig adapterkabel.
-Beroende på konstruktionstyp kan
fordonet avvika från denna
beskrivning. Vi frånsäger oss allt
ansvar för skada eller följdskada
pga. felaktig montering eller
anslutning. Om här givna
monteringsanvisningar ej stämmer
överens med faktiska förhållanden,
vänligen kontakta Blaupunkt
fackhandel, representant för
fordonets tillverkare eller vår
telefonkundtjänst.
Vidmonteringavförstärkare eller cd-
växlaremåsteförstapparatstommen
jordas,innanstickpropparnaansluts
till in- eller utgångarna (hylstag line-
in resp line-out).

580
E
Normas de seguridad
Durante el montaje y la conexión es
imprescindibleobservar las siguien-
tes normas de seguridad.
-Desemborne el polo negativo de la
batería. Observe las normas de
seguridad dadas por el fabricante
del vehículo.
-Al perforar agujeros, asegúrese de
no dañar ninguna pieza del
vehículo.
-La sección transversal del cable
positivo y del cable negativo no
debe ser menor de 1,5 mm2.
-¡No conecte a la radio los conectores
ubicados en el vehículo!
-Los cables adaptadores necesa-
rios para su vehículo los encontra-
rá en el comercio especializado en
artículos de la marca BLAUPUNKT.
-Dependiendo del modelo, es
posible que su vehículo varíe un
poco con respecto a la descripción
aquí dada. Tenga en cuenta que
no asumimos ninguna responsabi-
lidad por los daños debidos a un
montaje o conexión incorrectos ni
por los daños resultantes.
Si las instrucciones aquí dadas no
son aptas para el montaje en su
vehículo, póngase en contacto con
su proveedor de artículos
Blaupunkt o con el fabricante del
vehículo, o llame a nuestro
teléfono de atención al cliente.
En caso de montar un amplificador
o un cambiadiscos, es necesario
conectarla puesta atierrade lasuni-
dadesantes deestablecerel contac-
to de los conectores para las
hembrillas Line-In y Line-Out.
P
Instruções de segurança
Durante a montagem e a ligação do
aparelho,queirarespeitar asseguin-
tes instruções de segurança.
-Separar o pólo negativo da bateria
! Respeitar ao mesmo tempo as
instruções de segurança do
fabricante do automóvel.
-Quando se procede à furagem de
buracos, prestar atenção para não
serem danificadas quaisquer
partes do veículo.
-As secções transversais dos cabos
positivo e negativo não devem ser
inferiores a 1,5 mm2.
-Não ligar as fichas existentes do
lado do automóvel ao auto-rádio!
-Os cabos adaptadores necessários
para o seu automóvel podem ser
adquiridos nos revendedores da
BLAUPUNKT.
-Oseu veículo pode divergir desta
descrição em função do modelo.
Não assumimos qualquer respon-
sabilidade por erros de montagem
ou de ligação nem por danos daí
decorrentes.
Caso as presentes instruções não
sejam adequadas para a monta-
gem no seu veículo, dirija-se ao
revendedor da Blaupunkt, ao
fabricante do seu veículo ou à
nossa linha verde.
No caso de montagem de um ampli-
ficador ou leitor multi-CD, é impres-
cindível ligar primeiro os aparelhos
àterraantesdese conectarasfichas
às tomadas Line In ou Line Out.

581
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
B
Key Kard
Mitgelieferte Montage- und
Anschlussteile
Supplied Mounting Hardware
Materiel de montage fourni
Ferretería de montaje
suministrada
Componenti di fissaggio
comprese nella fornitura
Meegeleverde
montagematerialen
Medföljande
monteringsdetaljer
Elementos de fixação
fornecidos.
Medleverede monterings- og
tilslutningsdele
F
E
DK
Sikkerhedshenvisninger
Under monteringen og tilslutningen
skal følgende sikkerheds-
henvisninger iagttages.
-Batteriets negative pol skal
afbrydes! Herved skal bil-
fabrikantens sikkerheds-
henvisninger iagttages.
-Vær opmærksom på, at ingen
bildele ødelægges under boringen
af huller.
-Tværsnittet af plus- og minuskablet
må ikke underskride 1,5 mm2.
-Bilens stik må ikke tilsluttes
radioen!
-De nødvendige adapterkabler til
din biltype kan købes hos
BLAUPUNKT-specialforretningen.
-Alt efter konstruktion kan bilen
afvige fra denne beskrivelse. For
skader på grund af monterings-
eller tilslutningsfejl og for følge-
skader overtager vi intet ansvar.
Hvis de her anførte henvisninger til
monteringen ikke skulle passe,
kontakt din Blaupunkt-specialforret-
ning, bilfabrikanten eller vor
telefon-hotline.
Ved montering af en forstærker eller
et Multi CD-apparat skal
apparaternes stel først tilsluttes, før
stikkene for tilslutningerne Line-In
eller Line-Out sættes i.
D
C
A

582
1.
2.
C
A
12V
53 182 165
1-20
D
A
7 607 621 . . .
3.
Kfz-spezifische Adapterkabel sind im
Fachhandel erhältlich.
Car-specific adapter cable which is
available at your dealer.
Câble adaptateur spécifique au
véhicule, disponible dans le commerce.
Adattamento specifico per il vostro
modello d’auto, che potrete trovare in
negozi specializzati.
Autospecifieke adapterkabel, die bij de
vakhandel te verkrijgen is.
Bilspecifik adapterkabel anskaffas hos
någon bilradiospecialistcable.
Adaptador específico del vehículo, el
cual se puede adquirir en el comercio
especializado.
Cabo de adaptação específico do
automóvel que pode ser adquirido no
comércio especializado.
Bilspecifikke adapterkabler kan købes i
specialforretninger.
Preamp,/Sub,/Center - out cable
7 607 001 512

583
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
4.
6.
12V
8 601 910 003
5.
1.
2.
3.
3.
2.
B
B
Ausbau/uninstalling,
DAB Antenne
+12V Output
F
DAB-Antenne
Radio Antenne
E

584

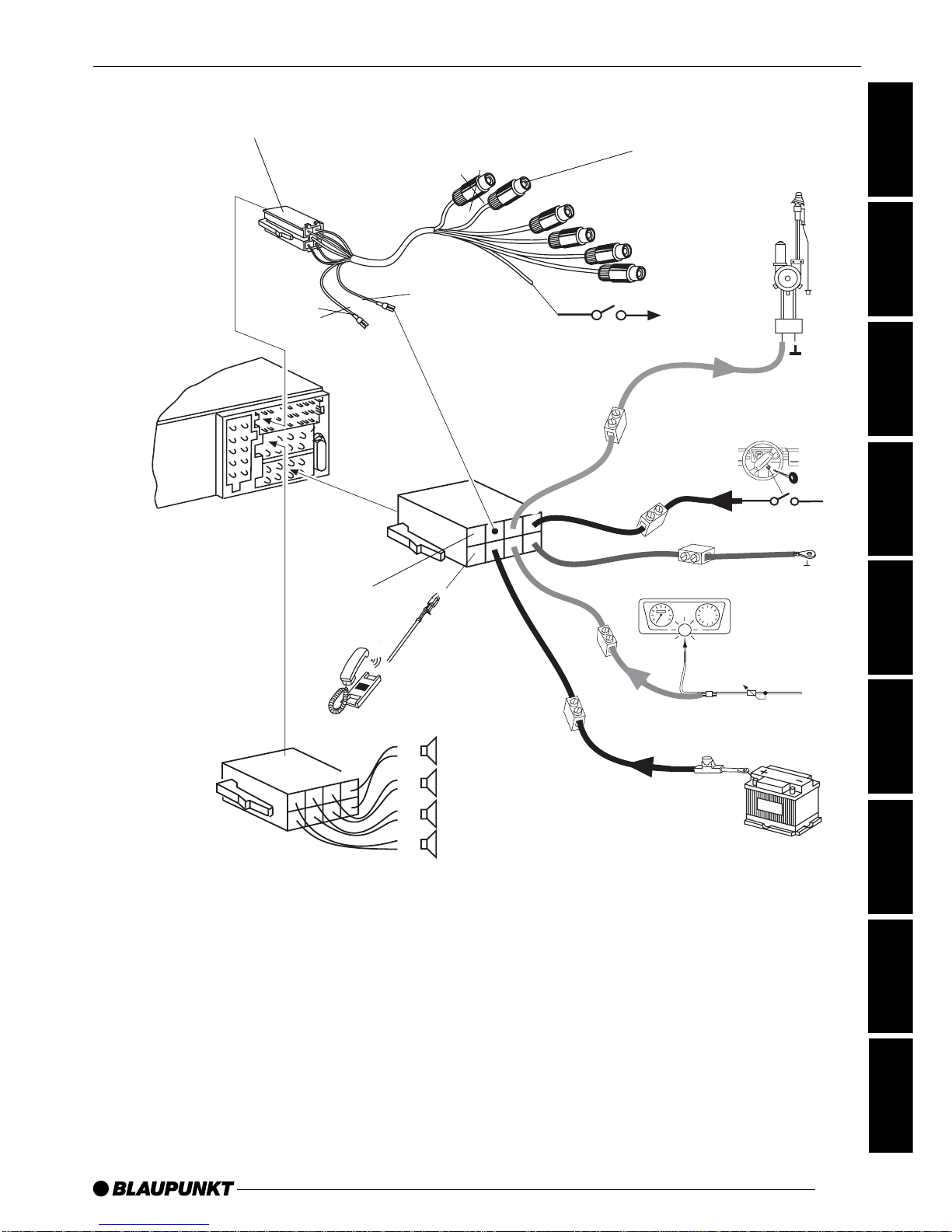

Equalizer Amplifier
CD-Changer
Remote
Control Telefon NF in
*
*
**
400 mA
*Summe
Sum
Somme
EI Zumbid
Zumbam
Sum
Aut. antenna
FB +12V / RC +12V
+12V Amplifier
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14710 13 16 19
36912 15 18
258
11 14 17 20
C-1 C-2 C-3
2
D
13
4
5
6
7
8
9
10
D
1AUX 2- NF L
2 AUX 2- NF R
3AUX 2- REF
4 GND
5 RTS
6 RXD
7 CTS
8 TXD
9MIC GND
10 MIC INPUT
RS232
AB
1Automatic Sound 1 Speaker out RR+
2 Radio Mute 2 Speaker out RR-
3Sub out 3 Speaker out RF+
4Permanent +12V 4 Speaker out RF-
5Aut. antenna 5 Speaker out LF+
6Illumination 6 Speaker out LF-
7Kl.15/Ignition 7 Speaker out LR+
8Ground 8 Speaker out LR-
C
C1 C2 C3
1 Line Out LR 7 Telefon NF in + 13 Bus (TMC) - In
2Line Out RR 8 Telefon NF in – 14 Bus (TMC) - Out
3Line Out Masse / Ground 9 Radio Mute 15 Permanent +12V
4 Line Out LF 10 FB +12V / RC +12V 16 +12V
5Line Out RF 11 Fernbedienung / Remote Control 17 Bus(TMC)-Masse/GND
6 +12V Amplifier 12 FB - Masse / RC - GND 18 AF -AUX 1 Masse/GND
19 CDC IN L (AUX 1NF L)
20 CDC IN R (AUX 1NF R)

585
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Änderungen vorbehalten!
This information is subject to change without notice!
Sous réserve de modifications!
Modifiche riservate!
Wijzigingen voorbehouden!
Ändringar förbehålles!
Modificaciones reservadas!
Sob reserva de alterações!
Ret til ændringer forbeholdes!
Preamp,/Sub,/Center - out cable
7 607 001 512
12V
12V
Kl. 15 +12V
Sub Out (color-BN)
Amplifier
12V
135
2468
A
Relais
7
RR RF LF LR
4 Ohm
4 Ohm
4 Ohm
4 Ohm
+
-
+
-
+
-
+
-
12V
Sub Out
BN
Automatic Sound
Radio Mute

http://www.blaupunkt.com
PocketDAB 2004
Operating and installation instructions

19
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
CONTENT
1. Introduction .................. 20
2. Abbreviations ................ 20
3. Important ...................... 21
4. Installation and Setup... 21
4.1 PocketPC Installation .......... 21
4.2 PocketDAB Installation........ 21
4.3 Bluetooth Setup .................. 21
5. PocketDAB Application. 23
6. Main Screen.................. 24
6.1 Status bar ........................... 24
6.2 Audio service list ................. 25
6.3 Data service list................... 26
6.4 DLS box.............................. 27
6.5 Menu bar ............................ 27
6.5.1 PocketDAB Menu ............... 27
6.5.2 Customize Menu ................. 27
6.5.3 View Menu .......................... 28
6.5.4 Help Menu .......................... 31
7. Known Issues ............... 32

20
2. Abbreviations
BT Bluetooth
BWS Broadcast Website
DAB Digital Audio Broadcasting
DLS Dynamic Label Service
PAD Program Associated Data
(channel)
PDA Personal Digital Assistance
SLS Slideshow Service
TMC Traffic Message Service
TN TopNews
INTRODUCTION
1. Introduction
Digital Audio Broadcasting (DAB) is
gaining popularity among listeners due
to the superior audio quality. However,
DAB is also multimedia enabled with a
variety of data being transmitted by the
service provider to the receiver. The
PocketDAB 2004 software combined
with the Woodstock DAB54 allows the
usertoaccessthesedataservices.This
software was developed in the Re-
searchandDevelopmentdepartmentof
Bosch in Hildesheim.
As of today, four data services have
been specified and standardised for
DAB - the Dynamic Label Service
(DLS),theSlideshowService(SLS),the
Broadcast Website (BWS) application
and theTrafficMessageService(TMC).
More data services are under develop-
ment and they promise to further en-
rich DAB in the future. The PocketDAB
software currently supports the DLS,
SLS and BWS services. Additional the
still experimental TopNews service is
supported.
This manual gives an overview of the
PocketDAB software from installation to
usage.Theinstallationiscoveredinsec-
tion 4. This section covers the instruc-
tions for the Bluetooth setup of the PDA
as well. The installation of the Wood-
stock, PDA and Bluetooth hardware is
notpartofthismanual.Theusageofthe
PocketDABsoftwareisexplainedinsec-
tion 5 and section 6. Finally all known
issues are summarised in section 7.
It is highly recommended that before
installation and usage of the software,
the user read section 3 carefully.
ABBREVIATIONS

21
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
3. Important
Warning:
The PDA should not be used by the
driver while driving! Using a PDA
while driving is even more danger-
ous than using a mobile phone.
Hardware:
•Do not connect anything other than
the provided data cable with the
Bluetooth adapter.
•Do not plug or unplug the connec-
tion between the Woodstock and
the data cable while the radio is
switched on.
•Do not plug or unplug the connec-
tion between the data cable and
the Bluetooth adapter while the ra-
dio is switched on.
4. Installation and Setup
4.1 PocketPC Installation
Refer to the manual provided with the
PDA before using the device. For the
PDA to communicate with the PC you
need to install ActiveSync software on
your PC. The ActiveSync software will
be provided with the start up kit of the
PDAbutitisrecommendedtoinstallthe
latest version of ActiveSync from the
Microsoftwebsite.ThePocketDABsoft-
ware has been tested with ActiveSync
3.7.
To enable multimedia content to be
downloaded and played / streamed in
webpages, an update of the windows
media player control of the PDA might
berequired.PleasechecktheMicrosoft
andyourPDAmanufacturerhomepage
for details.
4.2 PocketDAB Installation
Before installation of the PocketDAB
software, ensure that the PDA and the
PC are connected using ActiveSync.
Start the installation program and the
setup will guide you automatically
through the installation.
After the setup is completed, you can
start the program from the Program
Menu of the PDA.
4.3 Bluetooth Setup
Before setting up the Bluetooth (BT)
connection, switch on the Woodstock
and the BT adapter will be switched on
as well. Wait until the first light indicator
of the BT adapter stops flickering and
remains stable at the green colour.
IMPORTANT INSTALLATION AND SETUP

22
The following steps are for the HP
H2210 PDA with the PocketPC 2003
operating system.
Switch on the BT on your PDA. To do
this tap on the BT-symbol in the lower
right corner and then on the menu en-
try “Bluetooth ON” from the appearing
menu(seePicture1).Nowthebluelight
onthetoppartofthePDAwillstartflash-
ing.
Picture 2 Connect the PDA and the Wood-
stock using the Bluetooth connection
If you start the PocketDAB it will auto-
matically ask you to select the correct
BTdeviceiftheCOM portfromPocket-
DAB is set to BT (see 6.5.2.2 Options
Screen). The program will first search
for all available BT connections (see
Picture 2). Select the correct BT device
from the list by tapping on the name. If
no BT device appears please search
again (“white circle with two green ar-
rows” icon in the lower left of the win-
dow).
Enter if necessary the security PIN
code of the Woodstock BT adapter to
establish the connection and press the
return key on the soft keyboard or OK
in the upper right corner. For the PIN
Picture 1 PDA Bluetooth switch
INSTALLATION
AND SETUP

23
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
INSTALLATION
AND SETUP
number please see the manual provid-
ed with the BT adapter. The parame-
ters will be saved for all future connec-
tions.
Note:
To displaythesoftkeyboardinthePDA,
tap on the keyboard icon in the lower
right corner.
Now the BT connection between the
Woodstockradioandthe PDAisestab-
lished. The Woodstock BT adapter will
indicateanestablishedconnectionwith
the second light indicator in red colour.
If the BT connection is interrupted (no
red light at the adapter) you have to
close PocketDAB and start it again to
reestablish the connection. Please see
the BT part of 7 Known Issues as well.
5. PocketDAB Application
The PocketDAB program gives you
more access to the DAB part of the
Woodstockradio.Soallthefeaturesnot
availableintheWoodstockradiodueto
display and memory limitations can be
accessed using the PocketDAB appli-
cation.
Theapplicationshowsthecompletelist
of all audio programmes in a DAB en-
semble with their full names. Addition-
ally a list of data services is displayed.
From this list you can start the decod-
ing and presentation of the data servic-
es. All data services related to the au-
dioprogrammearestartedautomatical-
ly upon selection of the programme on
the Woodstock.A brief overview of the
services is as follows:
TheDLSiscomparabletotheradiotext
from the analogue radios. It is a short
text related to the current audio pro-
gramme such as news, artist informa-
tion and so on.
The SLS is composed of images that
areshownoneaftertheother.Thisserv-
ice is normally related to a programme
and shows images of CD-covers, mod-
erators and so on.
The BWS transfers HTML pages with
embedded content such as images to
thereceiver.Fordifferentreceivertypes
with e. g. different display capabilities
profiles are defined. The “Basic” profile
supports only limited receivers with
320x240 landscape. The “PC” profile
aims to a PC as target device.
POCKETDAB
APPLICATION

24
TheTopNewsiscomparabletothetele-
text from the televison. But instead of
text pages audio objects are transmit-
ted. This application is still experimen-
tal.
As a special feature, the automatic en-
ergysavingswitchoffofthePDA isdis-
abled while the program is running. If
you close the PocketDAB application it
is activated again. Please take care if
your battery is low and close the Pock-
etDABapplicationintime.Otherwiseall
data in you memory might be lost.
POCKETDAB
APPLICATION
Picture 3 PocketDAB main screen
6.1 Status bar
Picture4PocketDABmainscreenstatusbar
OntheleftsideofthestatusbartheDAB
logoisdisplayed.Ifyouclickonthelogo
6. Main Screen
ThemainscreenofthePocketDABsoft-
ware is divided in five parts. The status
baronthe top, theaudioand data serv-
ice list, the DLS box and the menu bar
on the bottom. These parts are de-
scribed in detail in the following
subchapters.
MAIN SCREEN

25
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
the PocketPC start menu appears and
you can start other applications on the
PDA.ThePocketDABsoftwarewillcon-
tinue to decode in the background.
In the centre of the status bar, the cur-
rently tuned ensemble name is dis-
played. For example in Picture 4 this is
the “DRN Nieders.” ensemble name.
On the extreme right side, the DAB sig-
nal strength icon is displayed. Depend-
ing on the icon, the user can find out
thecurrentstatusofconnectionandsig-
nal quality.
6.2 Audio service list
MAIN SCREEN
Picture 5 PocketDAB main screen audio
service list
This service list displays all the audio
services of the current ensemble. The
currently selected audio service is
marked as shown in Picture 5 with
“DeutschlandRadio”. Secondary audio
services of a primary audio service are
marked with a preceding the serv-
icelabel. Ithas tobe notedthat onlythe
Woodstock can change theaudioserv-
ice and tune to another ensemble. You
cannot do the same using this applica-
tion. If there are more then six audio
servicesyoucanusetheup/downscroll
buttons on the lower right to scroll to
the remaining services.
On the left side of every audio service
label, icons indicating the availability of
the data services in the audio service
are displayed. These include the data
serviceslinkedtotheaudioserviceand
transmitted in the Program Associated
Datachannel(PAD)orinPacketMode.
In the bottom of the status bar a
progress indicator is displayed. It indi-
cates if the PocketDAB software de-
codes a data service.
Icon Signal /
Connection Quality
Not connected with the
radio
0 - Very bad signal
(no sync)
1 - Bad signal
2 -Acceptable signal
3 - Good signal
4 - Very good signal

26
The displaying of the SLS data service
can be started and stopped in the
View
menu(seechapter6.5.3).Youcanview
the BWS pages by selecting
View ->
Websites
and following the instructions
from section 6.5.3.2.
6.3 Data service list
you can use the up/down scroll buttons
on the right to scroll to the remaining
services.
On the left side of every data service
label, icons indicating the type of the
data service are displayed.
MAIN SCREEN
Picture 6 PocketDAB main screen data
service list
This service list displays all the data
services of the current ensemble. The
currently selected data service is
markedasshowninPicture6with“DRN
Daten II”. Secondary data services of a
primary data service are marked with a
preceding the service label.To start
a data service, you can tap on it and to
stopit,youwillhave totapon itagain.If
there are more then two data services
Icon Data Service
No service available
SLS available
BWS available, but not the
home page
BWS and the home page
are available
The BWS decoding will be started by
activation of the data service and the
decoding will be done in the back-
ground. You can view the pages by se-
lecting
View -> Websites and following
the instructions from section 6.5.3.2. If
thehomepageisalready available you
can directly jump to this page if you tab
and hold on the lable. The PocketEx-
plorer will be started and automatically
display this page.
TheSLSdecodingandpresentationwill
be started by activation of the data
service.
Icon Data Service
No service available
SLS available
BWS available, but not the
home page
BWS and the home page
are available

27
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
6.5.2 Customize Menu
Customize -> Skins
On tapping this menu item, the Skins
screenisdisplayed.Pleaseseesection
6.5.2.1.
Customize -> Options
Ontappingthismenuitem,the Options
screenisdisplayed.Pleaseseesection
6.5.2.2.
6.5.2.1 Skins Screen
MAIN SCREEN
6.4 DLS box
Picture 7 PocketDAB main screen DLS box
In the DLS box, the text of the DLS is
displayed. It starts automatically if the
selected audio service provides this
service.
Youcanenable/disablethedecodingof
DLS by tapping and holding on the box
and selecting the appropriate option
from the displayed menu. Additionally
DLS can be started and stopped in the
View menu (see chapter 6.5.3).
6.5 Menu bar
Picture 9 PocketDAB skins screen
In the Skins screen you can select a
different skin to change the look in feel
ofthePocketDABapplication.Toselect
a skin and apply it, tap on the skin and
then tap on the “Apply” button. Tapping
on the “Restore” button will restore the
original Blaupunkt skin.
Picture8PocketDABmainscreenmenubar
Usingthemenubaryoucanaccessdif-
ferent options and possibilities of the
PocketDAB software. These are de-
scribed in the following sections.
6.5.1 PocketDAB Menu
PocketDab -> Exit
Ontappingthismenuitem,youcanexit
the PocketDAB application. The PDA
energy saving option will then be
switched on again. The energy saving
wasswitchedoffwhileusingthe Pocket
DAB application.
