CONTENTS
General .................................. 12
Road safety ................................... 12
Verification .................................... 12
Installation ..................................... 13
Accessories .................................. 13
Handling the MicrodriveTM ............. 13
Installation steps .................... 14
Write-/ read device ........................ 14
IBM MicrodriveTM ................... 15
Microdrive TM(hard disk) ................ 15
Storing MP3 files in a
directory on your hard disk ............ 15
Converting audio files
into MP3 files ................................ 15
Compatibility ..........................
15
Compatibility with
Blaupunkt car radios.. .................... 15
Update DX-R70 / RNS149/150.. ... 15
Display .......................................... 16
Changing the display ..................... 16
Display when changing directory ... 16
Display when changing tracks
within a directory ...m..,...m................ 17
Temperature monitoring ................. 17
MP3 mode ,,,..,.....,.......,.......=.. 17
Switching to MP3 mode ................ 17
Selecting directories ...................... 17
Selecting tracks ..**..,....,,.......,..*.... 17
Fast searching ,.,,,....,,..,,.........~...... 18
Repeating individual tracks or
whole directories (REPEAT) ........... 18
Random track play (MIX) ............... 18
Scanning all tracks in all
directories (SCAN) ........................ 18
Pausing playback (PAUSE) ............ 19
TPM .........................................~.... 19
Update ................................... 19
Update over the Internet ................ 19

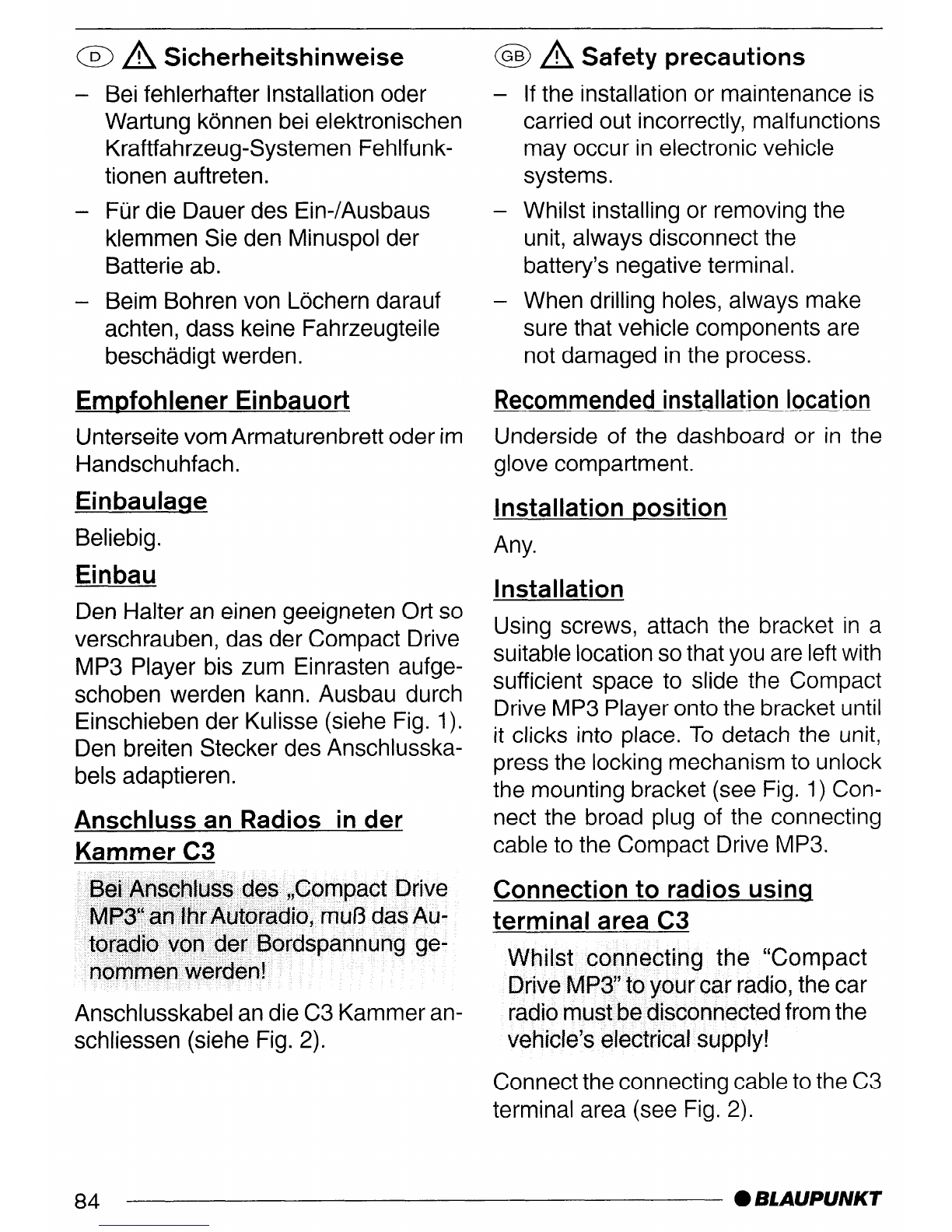

Installation instructions ..,..,.... 83
a BLAUPUNKT 11

GENERAL
Thank you for deciding to use a Blau-
punkt product. We hope you enjoy us-
ing this new piece of equipment.
Please read these operating instruc-
tions before using the equipment for
the first time.
The Blaupunkt editors are constantly
working on making the operating in-
structions clearer and easier to under-
stand. However, if you still have any
questions on how to operate the equip-
ment, please contact your dealer or the
telephone hotline for your country. You
will find the hotline telephone numbers
printed at the back of this booklet.
We provide a manufacturer guarantee
for our products bought within the Eu-
ropean Union. You can view the guar-
antee conditions at
www.blaupunkt.de or ask for them di-
rectly at:
Blaupunkt GmbH
Hotline CM/PSS 6
Robert Bosch Str. 200
D-31139 Hildesheim
Germany
Road safetv
A Roadsafetyhasabsoluteprior-
ity. Only operate your COMPACT
DRIVE MP3 Player if the road and
traffic conditions allow you to do so.
Familiarise yourself with the unit be-
fure setting off on your journey.
You should always be able to hear
police, fire and ambulance sirens
from afar. Fur this reason, set the
volume of whatever you are listen-
ing to to a reasonable level.
-in
IL
The COMPACT DRIVE MP3 is an MP3
player that plays MP3 music files stored
on the MicrodriveTM (hard disk).
CF cards (storage media) are not re-
cognized by the CQMPACT DRIVE
MP3. MP3 is a process developed by
the Fraunhofer Institute for compress-
ing CD audio data. Compression allows
data to be reduced to around 15% of
their original size without a noticeable
loss in quality (at a bit rate of 192 Kbit/
s). If a lower bit rate is used to convert
CD audio data to MP3, you can create
smaller files but there will be a loss of
quality. You can store MP3 files on the
Microdrive TM(hard disk) using the sup-
plied SCM (write-/ read device). For fur-
ther details, please read the chapter en-
titled “Write-/ read device”.
You can connect the COMPACT DRIVE
MP3 Player to many Blaupunkt car ra-
dios. For further details, please read the
chapter entitled “Compatibility with Blau-
punkt car radios”.
Verification
Microdrive are trademarks or registered
trademarks of International Business
Machines Corporation in the United
States other countries or both.
Microdrive is used under license by
Blaupunkt.
l BLAUPUNKT

GENERAL
Installation
A
!
If you want to install your COMPACT I,
DRIVE MP3 Player yourself, please -
read the installation and connection in-
structions that follow these operating
l
instructions.
Never press down on the out-
side cover of the MicrudriverMn
Always switch off the car radio
before removing the Micro- I!
a
Accessories 0
We recommend you use accessories
that have been approved by Blaupunkt.
driveTM.driveTM.
Always take care when remov-Always take care when remov-
11
ing it. The MicrodriveTM may being it. The MicrodriveTM may be EE
warm after use.warm after use.
m the Microdrive’”
Please observe the following details to Microdrive are trademarks or registered
trademarks of International Business
ensure trouble-free operation and to
make optimal use of all the MicrodriveTM Machines Corporation in the United
States other countries or both.
features. Microdrive is used under license by
Regularly create a backup of your Blaupunkt.
data. Blaupunkt does not accept
responsibility for any loss of data.
Always carry and keep your Micro-
driveTM in the supplied protective
transportation cover.
Never drop the MicrodriveTM.
Ensure that the MicrodriveTM does
not become wet.
Never expose the MicrodriveTM to
strong magnetic fields.
Never expose the MicrodriveTM to
extreme temperatures.
Never attach any additional stick-
ers.
Do not remove the sticker that is al-
ready attached.
Do not write anything on the sticker
that is already attached.
d) BLAUPUNKT -
13

INSTALLATION STEPS
Installation steps
Before starting the installation process,
please back up your personal data and
close any programs running on your PC.
Blaupunkt does not accept liability for
any deleted data.
Notes: The following driver installation
is only required for Windows 98 USB.
In the case of WIN ME f WIN 2000
and WIN XP, afl you need do is con-
nect the read/write device to the USB
port of your PC. After a few seconds,
the Windows hardware recognition
feature will make the read/write de-
vice accessible as an additional drive
in Explorer and My Computer.
Write-/ read device
Installation for Windows 98 USB
0 Connect the write-/ read device to
your computer using the USB con-
nection.
0 The Windows Installation Man-
ager starts automatically.
0 Please close it again.
0 Insert the CD-ROM into the CD-
ROM drive. If the CD-ROM does
not start automatically, open Win-
dow’s Desktop icon and then open
the CD-ROM drive. Run the
“Starthtml” file by double clicking
on it.
0 Select your language and then the
“Write-/ read device”, and start un-
packing the drivers by clicking on
“Driver installation”.
0 This Step 1 will be completed when
you close the “WinZip Self-Extrac-
tor”.
0 During Step 2 you will install the
driver on your PC.
After Step 2 is complete, the “Write-1
read device” will appear as a “Com-
pact Flash Drive” in Explorer or in
Desktop.
14
a BLAUPUNKT

IBM MICRODRIVETM COMPATIBILITY
IBM Microdrive’”
Microdrive’” (hard disk)
The hard disk can be inserted into
and removed from the write-/ read
device whilst the computer is
switched on.
3 Carefully hold and pull the hard
disk between your thumb and in-
dex finger out of the protective
transportation cover.
0 Insert the hard drive (with its con-
tact edge foremost) into the write-/
read device. Click it into place with
a light press.
The hard disk is visible, and data can
now be written onto it.
Storing MP3 files in a directory
on your hard disk
You can create up to 99 directories.
Each of these directories can contain
up to 99 music tracks.
The maximum number of characters for
directory names and track names is 90.
Note:
MP3 files that are stored in subdi-
rectories and not in directories are
not recognized by Compact Drive
lVlP3.
Converting audio files into MP3
files
r) Run the “MP3 Software” on the
CD-ROM and follow the program’s
instructions.
Tip: You can also use any other stand-
ard conversion program.
Compatibility
Compatibility with Blaupunkt car
radios
Our engineers have made it possible to
connect the COMPACT DRIVE MP3
Player to the following car radios:
Skyline 2 and future Skyline de-
vices
Dallas MD 70, Denver CD 70,
Frankfurt C 70, Hamburg CD 70,
London CD 70, Madrid C 70, New
Orleans CD 70, Orlando MD 70,
San Francisco CD 70
Funline 3 devices (only with CD-
Naming) and future Funline de-
vices
Acapulco CD 51, Casablanca CD
51, Heidelberg CD 51, Palm Beach
C 51, Verona C 51
Navigation devices
Update DX-R70 / RNS149/150
For the navigation devices DX-R70,
RNS 149 and RNS 150, you will need
to carry out the following update:
Note:Note:
The read/write device is installed andThe read/write device is installed and
the MicrudriveTM is visible as an ad-the MicrudriveTM is visible as an ad-
ditional drive (removabledisk) inditional drive (removabledisk) in
Explorer. Explorer.
Insert the CD-ROM into the CD-ROM
drive. If the CD-ROM does not start au-
tomatically, open the Windows ,,My
Computer” icon and then open the CD-
ROM drive. Run the “Starthtml” file by
double clicking on it.

COMPATIBILITY
0 Now select the language and then
select “Updates”.
0 Please follow the displayed
steps.
After copying has completed (approx.
15 seconds), you can remove the Micro-
driveTMfrom the read/write device.
Now all you need do is carry out the
following three steps on the DX-R70:
1. The DX-R70 and Compact Drive
MP 3 must be switched off!
2. Insert the MicrodriveTM. Switch on
the DX-R70 and wait for the device
to start playing.
3. Switch off the DX-R70. When you
switch on the device again, it will
be ready to operate.
You can now change MP3 directories
using the display buttons on the right
that are located next to the new “up /
down” display text.
The up/down rocker switch is used to
change tracks.
Note:
You should delete the Dxr70.fkp or RNS
149/l 50.fkp file from the MicrodriveTM.
Ifyou delete these files, you will be able
to restore the Compact Drive MP3 to its
original delivery condition by carrying
out the update again using the
CLEAR.FKP file.
Note:
Some devices cannot display the
whole character set.
16
The following characters are either in-
correctly displayed or not displayed at
all.
l Funline 3 series:
; : ! 0 5 % & =?(j~~#rr@
l Skyline 2 series:
$4P’
Disdav
In order to display directory names
and tracks (scrolling) in the display,
you have to switch to the “Track
number and CD name” display
mode.
y To switch between the track number
and playing time display / track
number and clock display / track
number and CD number display /
track number and CD name display,
press the 0 / DIS button 7 once or
several times for longer than two
seconds until the required display
appears.
If no information (track name) is con-
tained in the ID3 tag, the file name ap-
pears in the display instead.
Displav when chanqing directory
When a directory is selected, the first
7 characters of the directory name ap-
pear in the display. After approx. 1 sec-
ond, the remaining characters scroll
once across the display.
Afterwards, the name of a track appears
in the same fashion in the display.
The artist’s name then scrolls across
once.
0 BILAlJPUNK+

COMPATIBILITY
Finally, the first 7 characters of the track
name appear and remain visible in the
display until the next manual or auto-
matic change.
Display when changing tracks
within a directory
When a track is selected, the first 7
characters of the track name appear in
the display. After approx. 1 second, the
remaining characters scroll once across
the display.
The artist’s name then scrolls across
once.
Afterwards, the first 7 characters of the
track name appear and remain visible
in the display until the next manual or
automatic change.
1
Your device is fitted with a protection
system to deal with extreme tempera-
tures in the vehicle. The device will ei-
ther switch off or will not switch on if
extreme temperatures are detected.
Display if the temperature is too low:
ERROR TEMPERATURE TOO LOW
Display if the temperature is too high:
ERROR TEMPERATURE TOO HIGH.
MP3 mode
Switchins to MP3 mode
N ote:
The MicrodrivefM must only be in-
serted or removed from the Compact
Drive MP3 when the car radio is
switched off.
Info:
The control functions for MP3 mode
correspond to those described in
your car radio’s operating instruc-
tions for CDC mode.
The following description of functions is
taken from the Acapulco CD 51 car ra-
dio in the FunLine series. Other car ra-
dios are similar.
3 Keep pressing the CD*C button @:
until “CHANGER” appears in the
display.
Playback begins with the directory
containing MP3 files that was lis-
tened to last.
Selectins directories
0 To move up/down from one CD to
another, press the Y or 7i; button
/F:. once or several times.
Selecting tracks
0 To move up/down from one track to
another in the current directory,
press the < or > button @ once or
several times.
8 BLAUPCIMKT
17

MP3 MODE
Fast searching
To fast search backwards or forwards,
0 keep one of the < > buttons @
pressed until fast searching back-
wards / forwards begins.
ReDeatinq individual tracks or
whole directories (REPEAT)
0 If you wish to repeat the current
track, briefly press button 4 RPT
0
14 .
“REPEAT TRCK” appears briefly and
RPT lights up in the display.
3 If you wish to repeat the current di-
rectory, press button 4 RPT f@’
again.
“REPEAT DISC” appears briefly and
RPT lights up in the display.
Cancelling REPEAT
0 If you want to stop repeating the
current track or current directory,
press button 4 RPT @ until “RE-
PEAT OFF” appears briefly in the
display and RPT disappears.
Random track play (MIX)
Info:
Limited MIX function.
It is possible that a track is repeated.
0 To play all the tracks in the current
directory in random order, briefly
press button 5 MIX @.
“MIX CD” appears briefly and MIX lights
up in the display.
0 To play the tracks in all the directo-
ries in random order, press button
5 MIX @ again.
“MIX ALL” appears briefly and MIX lights
up in the display.
Cancelling MIX
0 Press button 5 MIX :F, until “MIX
OFF” appears briefly in the display
and MIX disappears.
Scanning all tracks in all directo-
ries (SCAN)
0 To briefly play all the tracks in all di-
rectories in ascending order, press
the OK button 1’71for longer than
two seconds.
“SCAN” appears in the display.
“CD 1” remains in the display during the
scanning process,
Cancelling SCAN
3 To cancel scanning, briefly press
the OK button 1j<,.
The currently scanned track will then
continue to be played normally.
Note:
You can set the scanning time (scan-
time). For further details on setting the
scantime, please read the section ent-
itled ‘Setting the scantime” in the “Ra-
dio mode” chapter of the radio’s ope-
rating instructions.
18 l
BLAUPUNKT

MP3 MODE UPDATE
Pausing plavback (PAUSE)
C, Press button 3 II) :@.
“PAUSE” appears in the display.
Cancelling pause
2 Press button 3 II) ‘14‘1while in
pause mode. -
Playback is resumed.
TPM
A TPM function (Track Program
Memory) is not available.
Update
Update over the Internet
Notes on the update facility
Your COMPACT DRIVE MP3 is
equipped with an update facility for new
functions.
An update can be downloaded free of I
charge over the Internet from
www.blaupunkt.de
The installation path is as follows: In-
ternet > PC > Write-/ read device >
MicrodriveTM> COMPACT DRIVE MP3.
l BLAUPUNKT
19

Einbauanleitung l Installation instructions l Notice de
montage l lstruzioni di installazione l lnbouwhandleiding l
Monteringsanvisning l Instrucciones de instalacibn l
Instruc$es de montagem l Monteringsvejledning
Mitgelieferte Montage- und
Anschlussteile
Supplied Mounting Hardware
Materiel de montage fourni
Componenti di fissaggio
compresi nella fornitura
Meegeleverde montagematerialen
Medfijljande monteringsdetaljer
Elementos de montaje
suministrados
Elementos de montagem e
ligacao fornecidos
Medleverede monterings- og
tilslutningsdele
Compact Drive MP3
MicrodriveTM
mit Transportschutz / with protective transpot-ta-
tion cover / avec Bat de transport / con custodia
per il transport0 / met Transportcassette / med
transportskydd / con estuche de transporte / corn
Estojo de transporte / med transportbeskyttelse
Anschlusskabel / Connecting cable / Cable de
branchement / Cavo di allacciamento / Aansluit-
kabel / Anslutningskabel / Cable de conexion /
Cabo de ligacao / Tilslutningskabel
Schreib-/Leseeinheit / Read/Write device / Lecteur-
enregistreur / Unita di scrittura/lettura / Schrijf-/
leeseenheid / Skriv-Msenhet / Unidad de escritu-
Wlectura / Unidade de leitura/escrita / Skrive-/
Iaeseenhed
Halter / Bracket / Support / Supporto / Houder /
Faste / Soporte / Suporte / Holder
l BLAUPUNKT 83

@I A Sicherheitshinweise @ /!/ Safety precautions
- Bei fehlerhafter installation oder - If the installation or maintenance is
Wartung konnen bei elektronischen carried out incorrectly, malfunctions
Kraftfahrzeug-Systemen Fehlfunk- may occur in electronic vehicle
tionen auftreten. systems.
- Fur die Dauer des Ein-/Ausbaus
klemmen Sie den Minuspol der
Batterie ab.
- Beim Bohren von Lochern darauf
achten, dass keine Fahrzeugteile
beschadigt werden.
- Whilst installing or removing the
unit, always disconnect the
battery’s negative terminal.
- When drilling holes, always make
sure that vehicle components are
not damaged in the process.
Empfohlener Einbauort
Unterseite vom Armaturenbrett oder im
Handschuhfach.
Einbaulage
Beliebig.
Einbau
Recommended installation location
Underside of the dashboard or in the
glove compartment.
Installation position
Any.
Installation
Den Halter an einen geeigneten Ort so
verschrauben, das der Compact Drive
MP3 Player bis zum Einrasten aufge-
schoben werden kann. Ausbau durch
Einschieben der Kulisse (siehe Fig. 1).
Den breiten Stecker des Anschlusska-
bels adaptieren.
Anschluss an Radios in der
Kammer C3
Using screws, attach the bracket in a
suitable location so that you are left with
sufficient space to slide the Compact
Drive MP3 Player onto the bracket until
it clicks into place. To detach the unit,
press the locking mechanism to unlock
the mounting bracket (see Fig. 1) Con-
nect the broad plug of the connecting
cable to the Compact Drive MP3.
Bei Anschluss des ,,Compact Drive
MP3” an lhr Autoradio, muR das Au-
toradio van der Bordspannungge-
nommen werden!
Anschlusskabel an die C3 Kammer an-
schliessen (siehe Fig. 2).
Connection to radios usinq
terminal area C3
Whilst connecting the “Compact
Drive fvlP3’ to your car radio, the car
radio must be disconnected from the
vehicle’s electrical supply!
Connect the connecting cable to the C3
terminal area (see Fig. 2).
84 l
BLAUPUNKT

@ A Sikkerhedshenvisninger Einbau / Installation / Montage /
Ved forkert installation eller vedli- Montaggio / lnbouw / Montering /
geholdelse kan der ske fejlfunktio- lnstalacibn / Instala@io /
ner hos elektroniske mo- Montering
torksretsjssystemer.
Mens monteringen/udbygningen
foretages, skal batteriets negative
pol afbrydes. , .
Vaer opmaerksom pa, at ingen
bildele odel=gges, nar der bores
A
I
huller. 0
Anbefalet monteringssted
Underside af instrumentbtxet eller i
handskerummet.
Monteringsposition
Vilkarlig.
Monterinq
Holderen skrues pa saledes fast et eg-
net sted, at Compact Drive MP3-afspil-
leren kan skubbes pa, indtil den kom-
mer i indgreb. Afmonteringen foretages
ved at skubbe glideklodsen indad (se
fig. 1). Tilslutningskablets brede stik til-
sluttes.
Tilslutninq til radioer i kammer
c3
Nar Compact Drive MP3” tilsluttes
bilradioen,skal bilradioenafbrydes
fra bilens forsyningsspaending.
Tilslutningskablet tilsluttes til C3-kam-
meret (se fig. 2). Fig. 1
88 l
BLAUPUNKP

\
Radio
c3
13 CDC Data-IN
14 CDC Data-OUT
15 +I 2V Permanent / 3A
16 +I 2V switch voltage (max. 300mA)
17 CDC Data-GND
18 CDC AF/AUX-GND
19 CDC AF/AUX-L
20 CDC AF/AUX-R
Compact Drive MP3
I
Fig. 2
4.
Anderungen vorbehalten! Wijzigingen voorbehouden!
This information is subject to change /%ndringar f6rbehAlles!
without notice! Modificaciones reservadas!
Sous r&serve de modifications! Sob reserva de altera@es!
Modifiche riservate! Ret til Endringer forbeholdes!
e BLAUPUNKT
89

Service-Nummern / Service numbers / Numkos du service apr&-
vente / Numeri del servizio di assistenza / Servicenummers / Tele-
fonnummer fiir service / Nlimeros de servicio / Ntimeros de
serviS0 / Servicenumre
Country: Phone: Fax: www:
Germany
Austria
(4
01-610390 01-61039391
Belgium
(W
025255454 02-5255263
Denmark
PK)
44898360 44-898644
Finland
(FIN)
09-435991 09-43599236
France
(F)
01-40107007 01-40107320
Great Britain
W)
01-895838880 01-895838394
Greece
Gw
0800-5506550 01-576 9473
Ireland
w-)
01-4149400 01-4598830
Italy
(1)
02-3696331 02-3696464
Luxembourg
U-J
404078 402085
Netherland
WL)
023-5656348 023-5656331
Norway
N
66-817000 66-817157
Portugal
(P>
01-218500144 01-2185 11111
Spain
03
902-120234 916-467952
Sweden
(s)
08-7501500 08-7501810
Switzerland
u-u
01-8471644 01-8471650
Czech. Rep.
Hungary
Poland
Turkey
USA
Brasil
(Mercosur)
Malaysia
(Asia Pacific)
PI
W)
02-61300441 02-61300514
0-u
01-3339575 01-3248756
w-1
0800-118922 022-8771260
F-R)
0212-3350677 0212-3460040
ww
800-2662528 708-6817188
(W
ww
0180-5000225 05121-494002 http://www.blaupunkt.com
[phone] [phone]
[phone] [phone]
Blaupunkt Gmbl-l
03102 CM/PSS2-St - 8 622 403 161
CC
