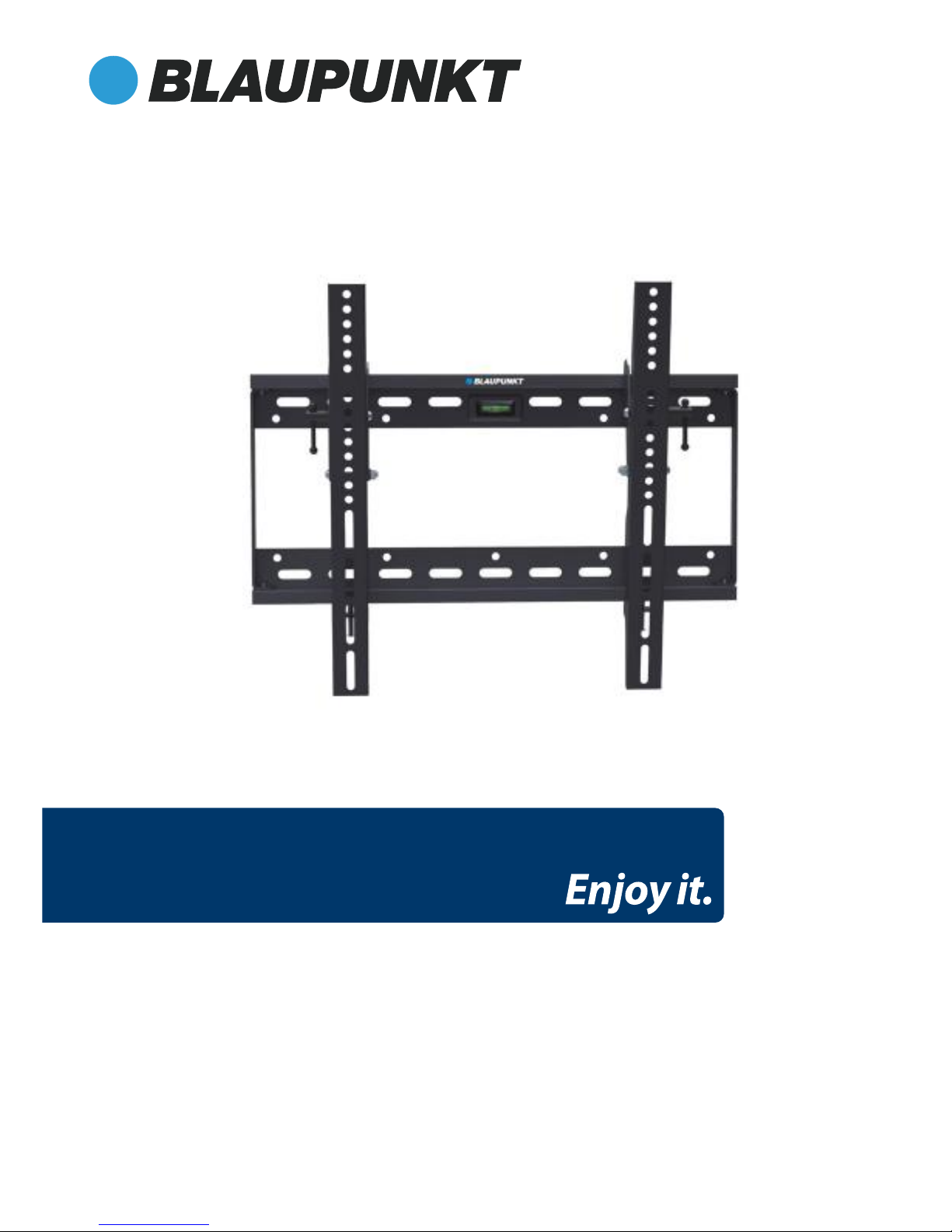

Blaupunkt 330319 User manual

Universal TV wall mount 22” - 40”
Owner's Manual
Model Number 330319

1
IMPORTANT SAFETY INSTRUCTIONS
To achieve the utmost in enjoyment and performance, and in order to
become familiar with its features, please read this manual carefully before
attempting to install this product. This will assure you years of trouble free
performance.
IMPORTANT NOTES
This safety and operating instruction should be retained for future
reference.
The apparatus should not be exposed to dripping or splashing or placed in
a humid atmosphere such as a bathroom.
Do not install the product in the following areas:
Places exposed to direct sunlight or close to radiators.
On top of other stereo equipment that radiate too much heat.
Blocking ventilation or in a dusty area.
Areas where there is constant vibration.
Humid or moist places.
Do not place near candles or other naked ames.
Operate the product only as instructed in this manual.
SAFETY INSTRUCTIONS
1. Read Instructions - All the safety and operating instructions must be read
before the product is installed.
2. Retain Instructions - The safety and operating instructions should be kept
with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating
instructions should be adhered to.
4. Follow instructions - All operating and users’ instructions should be
followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Attachments - Do not use attachments not recommended by the product
manufacturer, as they may cause hazards.

A B C D E F
G H I J K L
ø6 Dentiform Washerx4 ø8 Dentiform Washerx4 M5*30 x4 M5*15 x4 M6*30 x4 M6*15 x4
M N
M8*30 x4 M8*15 x4
2
IDENTIFYING THE PARTS
In the box

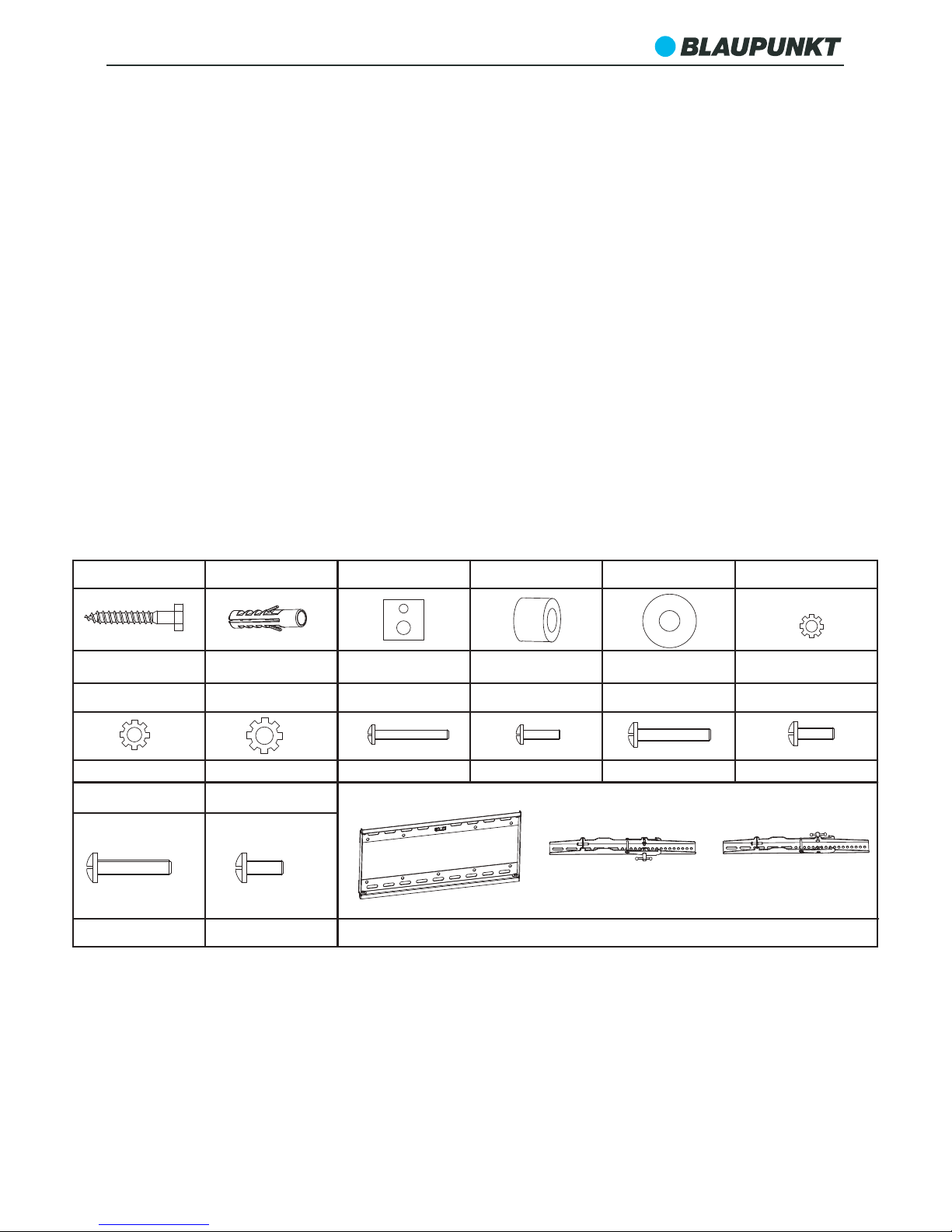

Please check the parts in the package with the following list. Make sure all
parts are in the package. Never use defective parts. Never replace a part with
dierent specications.
Note: Incorrect installation may cause injury – if in doubt please consult a
qualied professional.
Self-tap screws x6 Plastic anchors x6 25*25 Shim x4 Plastic sleeve x4 ø8 Metal Washer x4 ø5 Dentiform Washer x4
Wall Plate x1 Left bracket x1 Right bracket x1

3
Step 1:
Use the wall plate as a template to mark 6 drill
holes on the wall. Drill four holes on the top of
the plate and two holes on the bottom. Use a
spirit level to ensure the holes are level and in
the required position for your TV. Drill holes of
10mm diameter and 50mm depth and firmly
insert 6 plastic anchors.
Step 1:
Attach the left and right bracket to the TV.
Each bracket should be attached with two
screws matching the thread holes of your TV.
The screws should be equally spaced from the
top and bottom of the TV and as central as
possible.The tilt adjustment handles should
D
TV
F/G/H
I/J/K/L/M/N
C
Wall
STEP-1
B
STEP-1
Step 2:
Attach the wall plate to the wall by screwing
six self tap screws through the metal washers
and wall plate into the plastic anchors. The
bubble level should be at the top. Ensure all
screws are tight and the wall plate fits tightly
to the wall.
Wall
Bubble level
A
E
B
STEP-2
INSTALLATION
Installing a Blaupunkt TV Wall Mount is as easy as putting up a shelf. Easy to
follow installation instructions are included with each product.
As easy as 1-2-3
Most Blaupunkt TV brackets come pre-assembled so installation is simple.
1- Attaching the TV brackets to the TV
(Always start with the TV. If there is a compatibility issue at this point, you
have not drilled the wall.)
2 - Solid wall installation
face outwards.

4
Step 1:
Loosen the tilt adjustment handles.
Carefully hang the TV brackets onto the wall
plate. Do not loosen your handles until you are
sure the bracket is securely connected. You
may need the assistance of another person to
safely attach the TV. Adjust the TV to the
desired position and re-tighten the adjustment
handles.
Step 2:
There is a security bolt at the bottom of each
bracket. Fully loosen each bolt prior to
installation. Once the position of the TV is fixed
fully tighten the bolts to secure the TV
brackets to the wall plate.
Wall
Handle TV
0°
-10°
Wall
TV
Bolt
STEP-1
STEP-2
Step1:
Drill mounting holes for wall plate using an
electronic stud finder, identify and mark the
locations of 2 interior wall studs.
Using the wall plate as a template,mark and
then drill 4 holes with 3/16”diameter drill bit.
Note: We do not recommend installation in
hollow core concrete blocks,only solid blocks
using concrete anchors.
Step 2:
Install the wall plate. Put the wall plate on the
wall,and then screw four
self tap screws into
holes through metal washer to fix the
wall plate on the wall tightly.
Interior Wall Stud
Hard Wood Wall
STEP-1
STEP-2
EA
Stud wall installation
3 - Mounting the TV onto the wall plate
each

5
Wall Type
It is also important to consider the type of wall you are mounting your TV on.
Use a stud-nder to nd wooden battens/studs and to ensure there are no
hidden pipes or wires behind where you intend to drill.
Do not mount onto drywall/plasterboard or panelled walls unless all wall
plate screws are xed into a wooden batten/stud.
When xing to brickwork or solid masonry use suitable wall plugs and screws.
It is your responsibility to ensure the wall structure and xings are capable of
supporting the screen and mount in a normal working environment.
Check the strength of the installation before installing the screen and if you
have any doubts regarding installation please consult a qualied contractor.
WARNING
Correct installation is extremely essential, and falls outside the scope of responsibility of
Blaupunkt.
The fastening material provided is exclusively intended for installation on walls made of
solid wood, bricks, concrete or solid-wood columns with a maximum of 3 mm wall
nishing.
For walls made of other materials, for example hollow bricks, please consult your installer
and/or specialist supplier
ollow the instructions for
atus to be installed/xed (for example the LCD/LED/plasma screen).

6
SPECIFICATIONS
Maximum Load : 75kg
Size of at panel TV: 22”-40”
Weight of mount : 2.45kg
Distance from Wall: 50mm
Pitching angle: 0°~-10°
GUARANTEE
This product is guaranteed for twelve months from the date of original
purchase. If any defect should occur due to faulty materials or workmanship,
please return it to the store it was purchased from.
You will need to have your receipt of purchase to hand . The guarantee is
subject to the following provisions:
•It is only valid within the boundaries of the country of purchase.
• The product must be correctly installed and operated in accordance with
the instructions contained in the User Manual.
• The product must be used solely for domestic purposes.
•The guarantee will be rendered invalid if the product is re-sold or has been
damaged by inexpert repair.
• The manufacturer disclaims any liability for incidental or consequential
damages.
• The guarantee is in addition to, and does not diminish, your statutory or
legal rights.
