Blaze BLZ-26-PZOVN User manual

USE & CARE GUIDE
BLZ-26-PZOVN PIZZA OVEN (NG/LP)
ATTENTION:
INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND
BEFORE INSTALLING OR OPERATING.
-CONTACT INFORMATION -
Blaze Outdoor Products:
6620 Greenwell Springs Rd, Baton Rouge, LA70805
Phone: [phone]
[email protected]
BLAZEGRILLS.COM
DANGER - IF YOU SMELL GAS:
I) Shut off thegas supply to the appliance at its source.
2) Extinguish any open flames.
3) Openoven hood to release any accumulation of
gas vapor.
4) If a gas odor persists, keep away from your
appliance and contact your gas supplieror fire
department immediately.
I) Do not store or use gasoline or otherflammable
liquids or vapor in thevicinityof this or any other
appliance
2) A LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.
WARNING
Blaze Outdoor Products Instructional Book
Page | 1

Table of Contents
4-5
5
11 - 12
Blaze Outdoor Products Instructional Book
Page | 2
I. Oven Specifications
II. Unpacking Unit - Please read before unpacking
III. General Safety and Installation Warnings
i. Location of Appliance
IV. Electrical Safety andInstallation Warnings
V. Gas Safety andInstallation Warnings
i. Gas Leak Warnings
ii. Checking for Gas Leaks
VI. Gas Connections
i. Natural Gas Requirements
ii. Liquid Propane Gas and Tank Requirements
iii. Transporting and Storing LP Gas
VII.
6 - 12
12- 13
13- 16
15
15 - 16
17 - 19
17
18 - 19
17
22
23
20 - 23
21
24 - 29
26 - 27
27 - 28
24 - 25
25
28
VIII. First Time Operation
Installing the Appliance in a BBQ Island
i. Outdoor Kitchen Ventilation
ii. Building BBQ Specifications and Instruction
iii. Installation Diagrams
i. Powering the unit and using digital display
ii.Lighting the Appliance
iii. Manually Lighting the Main Burner
iv. Flame Adjustment
v. Pizza Stone Turnable and Rotisserie Instructions
vi. Using the Rotisserie
vii. Using the Rear Burner
29
29

Blaze Outdoor Products Instructional
BookPage | 3
30
31 - 33
34 - 35
IX. Cleaning your Appliance
X. Fuel Conversion
i. Convertible Gas Regulator (if applicable)
XI. Warranty Regestration
i. WARRANTY ON PARTS:
32
35

Blaze Outdoor Products Instructional
BookPage | 4
Model: BLZ-26-PZOVN
Cutout Dimensions 24 2/5” W x 241/5” Dx 8” H*
*These dimensions create the required air
gap underneath this appliance. This air gap
serves multiple purposes, such as
preventing a build-up of heat in the island
cavity and helping provide proper airflow
for combustion and/or cabinetry.
BTU Output 8,000 BTU per Burnerx 2
Back Burner 8,500 BTU
Total BTU 24,500 BTU
Primary Ignition Push N’ Turn Flame Thrower
Secondary Ignition Ignitor Rod
Cooking Grid
Dimensions 20 1/2" D x 16 4/5" W (2 grids)
Total Cooking Area 688 sq.in
Flame Tamer None
Zone Cooking None
Rotisserie Kit
(Tray & Forks) Included
Burner Stainless Steel Tube Burner
Gas Type Each oven contains an NG/
LP Orifice Kit
Warranty
*Limited Lifetime – Defects in
manufacturing and workmanship.
Cooking grids, Flame Tamers, Heat
Zone Separators, stainless housing
as well as the stainless burners
against rust- through.
*Limited Lifetime on valves
*1 Year – Ignition, electronics and
lighting systems
*Appliances must be registered
within 30 days of purchase to
validate this warranty.
*See warranty section for
details.
I. Oven Specifications

SPECIFICATIONS
NOTE: ALWAYS have equipment measured by Contractor before beginning
any project.
*These dimensions create the required air gap underneath this appliance. This air gap serves multiple purposes, such
aspreventing a build-up ofheat inthe island cavity and helping provide proper airflow for combustion
and/or cabinetry.
Blaze Outdoor Products Instructional
BookPage | 5
Product Inspection: A final inspection of your product occurs at the factory to ensure a quality product is
packaged. Please re-check for possible shipping damage immediately after unpacking your oven. If the
appliance is found to have some damage, contact your dealer immediately as often the shipping carrier will
have a timeframe to report damage. Please also save the packaging material the product came with as that is
at times inspected by the shipping carrier.
Caution: Do not leave the unit under the sun with the protective film on for a long period of time as it will make
the film difficult to remove and/or leave markings on the materials which are not covered by the warranty.
Your Blaze Series Appliance comes pre-assembled and requires very little setup. We do however; recommend
the use of professional help during the installation of your unit as improper installation may affect your
warranty. Remove the unit from the box along with all accessories and check that no damage has occurred to
the unit or any parts. Remove all packaging materials, labels and protective plastic film before you start
cooking.
Burners: Check the burner tubes and remove any obstructions that may be in the ports or holes. Using cold
water and a brush will be sufficient. Make sure all foreign particles are removed from the burner before use.
Make sure the air shutter on the burners is slightly opened (to about 1/8" for NG and 1/4" for LP). When
finished ensure that the burners are aligned with the valve orifice and seated in the bracket slot. This is
accomplished by first placing the burner tube shutter hole securely over the valve orifice and ensuring the
male post on the burner rests in the corresponding slot in the rear of the oven chassis.
II. Unpacking Unit
26.20
23.22
10.36
14.83

Please read this manual carefully and before using your BLAZE OVEN to ensure proper
operation, installation, servicing and to reduce the risk of fire, burn hazard and or other injury.
This manual should be retained for your information
NOTE:
Improper installation and service or maintenance may cause property damage, injury or death. Do
not operate this appliance without having read this manual.
All gas installations and gas conversions must be performed by a qualified technician or authorized
service agent.
NOTE: This appliance is not intended for commercial use.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call your gas supplier or your
fire department.
Blaze OutdoorProducts Instructional
Book Page | 6
III. General Safety and Installation Warnings
Safe operation of the BLAZE OVEN depends upon its proper installation. Only a qualified professional installer and
service technician must perform adjustments and service ofthe oven.Proper location and proper use are essential
to insure safe and continued trouble-free operation. Any non-approved alterations made to the appliance will
void the product’s warranty.
NOTE: The manufacturer cannot be held responsible for damage or injury caused by
improper use of this appliance.
When using your Blaze appliance, please read and follow these basic precautions:

To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before
installing/operating your appliance
Improper installation, adjustment, alteration, service or maintenance can cause injury orproperty
damage. Read the installation, operating and maintenance instructions thoroughly before
installing orservicing this equipment.
APPLIANCE INSTALLATION
This gas appliance must be installed in accordance with all local codes.
If installation is planned in an area with no local codes, the gas appliance must be
installed in accord with the National Fuel Gas Code ANSI Z223.1 and storage and
handling of liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas
and propane installation code.
Blaze OutdoorProducts Instructional
Book Page | 7
EXPLOSION HAZARD
Do not use the appliance as storage area for flammable materials. Keep area clear and free from
combustible materials, gasoline, and other flammable vapors and liquids. Failure todo socan result in
death, explosion, orinjury.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or gasfitter. A
“T” handle type manual gas valve mustbe installed in the gas supply line to this appliance. This applies to
permanently installed natural gas and propane installations. This does not apply to propane portable
installations using a 20-pound tank.
Have an ABC Fire Extinguisher accessible at all times.
Never attempt toextinguish a grease fire with water orother liquids.
IMPORTANT: Consult the AHJ (Authority Having Jurisdiction) or local contractor of any uncertainty.

This unit isfor outdoor useonly!
Do notoperate in a building, garage orany other enclosed areas. This could result in carbon monoxide buildup
which could result in injury ordeath. Ovens are not designed orintended for installation near a window orvent
that goes intothe house.
Blaze OutdoorProducts Instructional
Book Page | 8

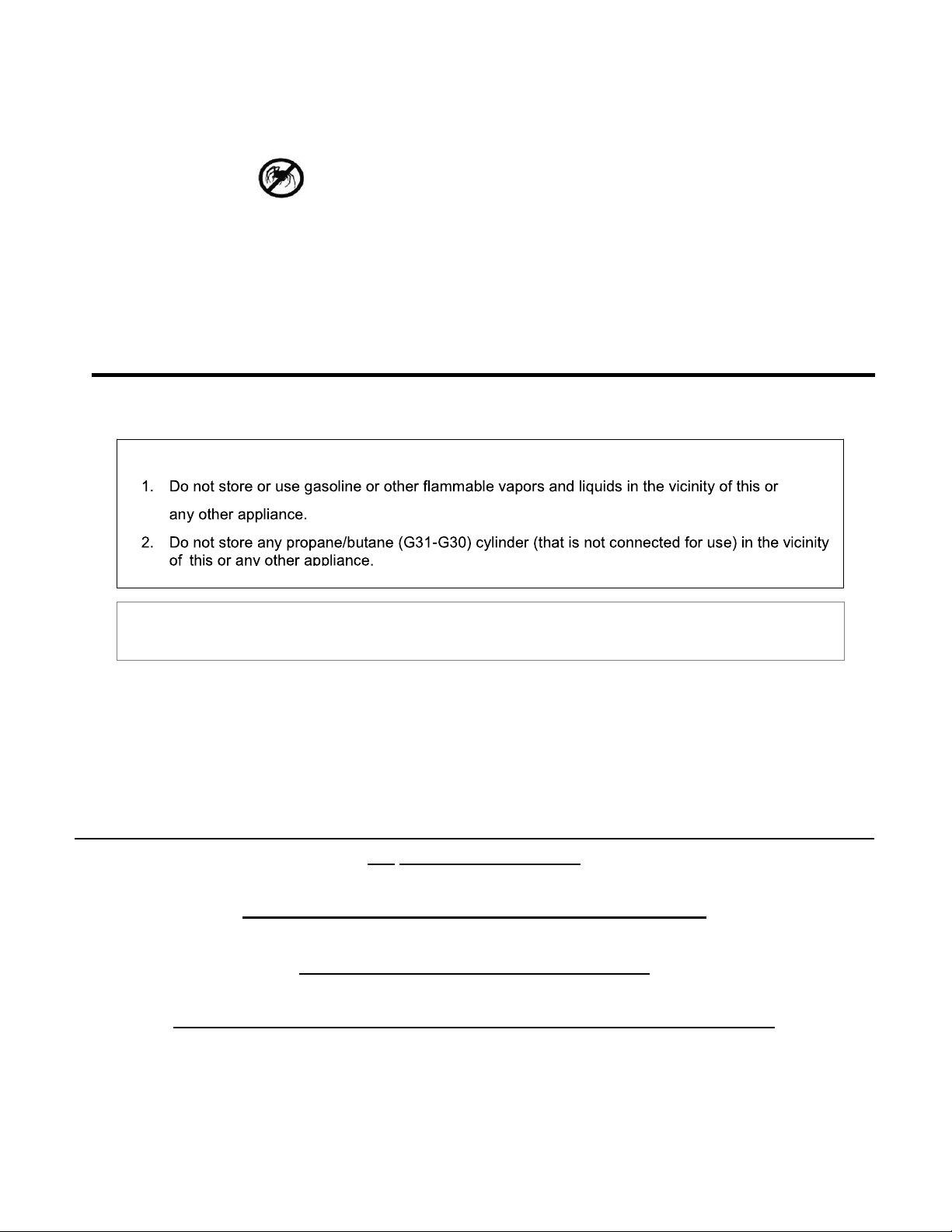

Ensure burners are properly seated on valve seat and burner mounting screws a securely mounted in place. For the
rear burner ensure the burner is properly seat on the male post and the cotter pin is securely fastened
Failure to do socould result ina fire and injury.
For proper operation, burners must be aligned with the valve orifice and seated in the bracket slot. This is
accomplished by first placing the burner tube shutter hole securely over the valve orifice and ensuring the
male post on the rear of the burner rests in the opening in the oven chassis. Failure to do so could result in a
fire and injury.
LOWER " U" burner tube shutter hole and on the rear of the burner inside view
BACK
burner tube shutter hole and male post on the rear of the burner inside view

Do not attempt toheat unopened containers onthe oven as pressure may build up and cause
the container toexplode.
Never use charcoal or any other solid fuel in the oven .
Never cook without the drip pan inplace.
Never operate this oven while under the influence ofalcohol or drugs.
CAUTION: BURNER TUBESMUST BE INSPECTED AND CLEANED BEFORE EACH USE.
Spiders and small insects occasionally spin webs or make nests in the burner tubes. These webs can
lead to a gas flow obstruction, which could result in a fire in and around the burner tubes. This type
of fire is known as “FLASH-BACK” and can cause serious damage to your appliance and create an
unsafe operating condition for the user. Although an obstructed burner tube is not the only cause of
“FLASH-BACK” it is the most common cause, and frequent inspection and cleaning of the burner
tubes is necessary.
NOTE: Checkwith City and Fire departmentfor Local Building Codes.
Permit may be required for outdoor kitchen
Blaze Outdoor Products Instructional
Book Page | 9
BEWARE OF SPIDERS
FOR YOUR SAFETY

Please read all instructions before installing oroperating your gas appliance to
prevent injury and appliance damage.
 All gas appliances will get hot during use.Use extreme caution when operating the appliance.
 Do nottouch hot surfaces. Always usethe handle toopenor close the appliance.
 Close supervision is necessary when this orany appliance isused near children. Keep children away from
the appliance during operation and until the appliance has cooled off.
 Do notstore any LPcylinder ortank notconnected for usewith the appliance, in the area ofthis
appliance or any other appliance. Never store an LP cylinder ortank indoors, orwithin the reach of
children
 Never test the appliance for gas leaks using a lighted match or any other openflame; see leak test
procedures using soap/water solutions – see section on Leak Testing
 The useofaccessories, regulators, orcomponents notrecommended bythe appliance manufacturer
may cause injuries and will void warranty.
 Never light the appliance with the door closed and be certain that the burners are positioned and seated
over the gas valves and on the burner support.
 Never lean over the cooking surface when lighting or operating the appliance.
 Use cooking utensils with wood handles and insulated oven mitts when operating the appliance.
 Do notstore anything in the appliance. Make sure food is notforgotten in the appliance; forgotten items
could melt orcatch fire when the appliance is turned on.
 To prevent injuries, donot use accessories that are not recommended by the manufacturer.
 Before cleaning the appliance, disconnect power cord.
 Never usethe appliance in windy conditions. Iflocated in a consistently windy area (oceanfront,
mountaintop, etc.) awind break will be required. Winds blowing into oracross the upper hood
vent or into door, can cause poor performance and / or cause the control panel and knobs toget
dangerously hot.
 Always open the appliance door carefully, using only the handle - the door may be hot.
 Children should not beleft alone orunattended in an area where any appliance is in use. They should
never be allowed totouch, sit orstand on any part ofthe appliance.
 Do notstore items ofinterest tochildren in cabinets above the appliance orin the appliance. Children
climbing on the appliance toreach these items could be seriously injured.
 Wear proper clothing when operating this appliance. Loose-fitting orhanging garments should never be
worn while using the appliance.
 Do notleave the appliance unattended while in use.
 Do not use water ongrease fires! A violent steam explosion may result. Instead, smother the fire with a
multipurpose ABC extinguisher.
Blaze Outdoor Products Instructional
Book Page | 10

i. Location of Appliance
Most importantly, this isanoutdoor appliance. Ensure your appliance is positioned
safely away from \ anything that can catch fire.
Under no circumstance is this appliance to be used indoors. This includes garages or any other enclosed
area.
This outdoor cooking gas appliance is not approved to be installed in or on any recreational vehicles and /
or boats. Blaze appliances are for single family/residential use only.
 When determining a suitable location take into account concerns such as exposure to wind, proximity to
traffic paths and keeping any gas supply lines as short as possible. Do notstore combustible materials,
gasoline or flammable liquids orvapors around the appliance.
 This Blaze oven must be located outdoors only. As with any gas appliance, harmful carbonmonoxide is
produced during the combustion process that should not be allowed to accumulate in a confined space.
Please note since hot air rises above the Blaze oven while in operation, covered locations should be
avoided. Do not locate the Blaze oven where an overhang or awning may cover it.
 DO NOT obstruct the flow of combustion and ventilation air to this appliance.
 Keep any electrical supply cords and fuel supply hoses away from any heated surfaces and/or sharp,
aggressive edges.
Non-Combustible Enclosure:
The Blaze oven must be installed in a NON-COMBUSTIBLE ENCLOSURE ONLY.The determination of
whether a location is combustible or non-combustible construction is made by the local fire marshal,
building inspector or the local safety authority having jurisdiction.
 Clearance from Combustibles: Ensure your appliance remains atadistance ofat least 14” from sides and
5” from back from any combustible material such as wood, gyprock, paper and plants. Donot store
combustible materials, gasoline orflammable liquids orvapors around the appliance. The outdoor
kitchen structure itself should be constructed completely out ofnon-combustible materials.
 Adequate Ventilation: Ensure there is adequate ventilation for both the appliance, oven cart and/or
island cavity. This is required notonly for proper combustion, but also toprevent gas build up. While the
amount of venting required varies on a case bycase basis, consult with your local licensed professional
and local code for adequate venting requirements. Keep the ventilation openings ofthe enclosure free
and clear from any debris.
 Firm Level Surface: Use your appliance only on a firm level surface. This appliance is not designed for
recreational vehicles, and should not be installed on a boat or marine craft.
 Protection from Weather: Keep the appliance protected from adverse weather, including rain and winds.
Wind, particularly coming into the rear of the oven, can affect the exhaust from escaping from the oven.
This can back up the heat behind the control panel potentially creating a gas leak, damage to the product,
and injury.
 Maintenance Access: When your appliance is installed, you should be able to access the gas supply line
including the gas piping or hose, gas regulator, gas cylinder and any shut off valves. Allow clear access to
the entire gas supply hose and regulator.
Blaze Outdoor Products Instructional
Book Page | 11

Blaze Outdoor Products Instructional
Book Page | 12
 The marked electrical rating of the cord set orextension cord should be at least as great asthe electrical
rating of the appliance.
 The cord should bearranged so that it will not touch hot surfaces, sharp edges or drape over the
countertop or tabletop (where it can be pulled ortripped over unintentionally).
 Outdoor extension cords should be used with products suited for outdoor use. They are surface marked
with suffix letters "W" or "W-A" and with a tag stating "Suitable for Use with Outdoor Appliances".
 To protect against electrical shock, the power cord and plug should be kept dry and off of the ground. Do
not clean this product with water spray; do not spray cleaners into the lamp socket area.
 Gasoline, lighter fluid or other flammable liquids and vapors should never be stored in the area of this
appliance or any other appliance.
 Before installation or service, disconnect the power supply to the work area by removing the fuse,
"tripping" the circuit breaker, or unplugging the unit.
 NOTE: Use a 15 AMP Breaker with GFI protection.
Extension cords may be used if care is exercised in their use. If an extension cord is used please follow
the below guidelines:
 Partial Enclosures: Many backyards have areas that arepartially closed off, such as balconies and
pergolas. In some cases, itishard to decide whether thesepartially enclosed areas should be
classified as indoor areas, particularly in terms ofpermanent (non-closable) ventilation. Consult the
AHJ (Authority Having Jurisdiction) or local contractor ofany uncertainty. This outdoor cooking gas
appliance shall not belocated in an indoor application.
 When installing a Blaze Appliance under anoverhead construction:
o A minimum 6 foot of clearance is required between the countertop and the overhead
construction.
o When installed under a combustible overhead construction, the area above the Blaze appliance
must be covered with a vent hood. The vent hood must provide protection for the combustible
overhead construction.
o It is imperative a Blaze appliance is not installed under unprotected combustible overhead
construction.
o When installed under overhead non-combustible construction, a vent hood is still
recommended. Gas appliances produce a large amount of smoke. The covered area should be
properly ventilated.
o When using a vent hood, the area above the cooking surface of the oven must be covered with
a vent hood larger than the cooking area of the oven, and with a minimum of 1000 CFM for
proper outdoor application.
 Electrical Safety and Installation Warnings
IV

NOTE: This oven uses a “Transformer” to provide power to the LED lights and internal lights. This
diagram shows the connection to the transformer.
• All gasconnections should be made by aProfessional qualified
technician and in accordance with local codes and ordinances. The
installation must conform with local codes or, in theabsence of local
codes, with either the national Fuel Gas Code, ANSI Z223.1/NFPA 54,
or CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-
B149.2, Propane Installation Code.
• Always check the Rating Plate to make sure the gas supply you are
hooking up to is the gas type the appliance is manufactured for.
• Check the rating label on the left hand outside of the unit.
Blaze Outdoor Products Instructional
Book Page | 13
15 AMP
OUTLLET
BLAZE
APPLIANCE
CORD
Keep any electrical supply cord and fuel supply hose away from any heated surfaces, sharp edges and
dripping grease.
Be certain your appliance is properly installed and grounded by a qualified technician in accordance with
applicable codes. To guarantee the electrical safety of this appliance, continuity must exist between the
appliance and an effective grounding system. It is imperative that this basic safety requirement be met.
The manufacturer cannot be held responsible for damages caused by the lack or inadequacy of an
effective grounding system.
Do not operate any appliance with a damaged power cord or power plug, and do not operate any
appliance after the appliance malfunctions or has been damaged in any manner. If this should occur,
return the appliance to the nearest authorized service facility for examination, repair or adjustment.
This appliance conforms to all uniform electrical safety codes and electrical
grounding regulations. Install unit according to I.A.W. local codes or with National
Electrical Code ANSI/NFPA 70 or CSA C22.1 in their absence.
RATING PLATE LOCATION
V. Gas Safety and Installation Warnings

• Do nottwist the gas supply hose.
• Before each use, visually inspect the gas supply hose for cracks, cutsorexcessive wear. Replace the
hose if necessary. Check for gas leaks before each use.
• Gas Specifications: Besure that the gas supplied tothe appliance conforms tothe model you
purchased. A Natural Gas appliance requires natural gas tooperate; an LP appliance requires liquid
propane gas tooperate.
• Never connect the appliance toan unregulated gas supply line.Appliances operated without a
regulator are unsafe and will not beserviced until installed properly and safely. Unsafe operation
without a gas regulator will void the warranty ofthe appliance.
• Appliances operated with NG (natural gas) gas must be installed with the NGregulator supplied with
the unit and set to4.0" water column pressure.
• Appliances operated with LP (liquid propane) gas must beinstalled with an LP regulator set to11"
water column pressure.
• Please contact your dealer and use a licensed contractor or installer to convert your appliance to the
different gas type.
Blaze Outdoor Products Instructional
Book Page | 14
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH ANY HOT SURFACE,
SHARP OR ROUGH EDGES OF THE OVEN OR OUTDOOR KITCHEN CONSTRUCTION. DO NOT KINK THE GAS
LINE WHEN INSTALLING.
The self-contained LPsystem appliance is design certified to be used with a standard 20 lb., 121/4" diameter;
18" high cylinder with right-handed connection threads and this is the maximum size LPtank tobe used. The
cylinder must be marked in accordance with the latest U.S. Department ofTransportation specifications for
LPgas cylinders. (DOT. CFR49 or National Standards ofCanada CAN/CSA-B359 Cylinders, Spheres and
Tubes for the Transportation of Dangerous Goods) aPropane Tank with an ODP) Overfill Prevention Device)
must be used at all times.
IMPORTANT: Never connect ovens, ovens or any appliance to anunregulated gas
supply.
If there are local codes that apply tooutdoor ovens and ovens,you will have toconfirm them with the local
authority.
Installation must conform with local codes orin the absence of local codes, tothe National Fuel Gas Code,
ANSI Z223.1/NFPA 54and Natural Gas Installation Code, CSA B149.1. All Natural Gas installations must
conform to local codes orin the absence oflocal codes the national fuel gas code, ANSIZ2223.1a-‐1998.
If there are local codes that apply to outdoor burners, you will have to conform to them. Installation must
conform with local codes or, in the absence of local codes, with Propane Installation Code, CSA B149.1,
or Propane storage and Handling Code, B149.2 as applicable.
Installation in Canada must bein accordance with the standard CAN/CGA- B149.2.
Alicensed contractor or local gas company representative must perform all gas connections.
Ensure that the service supplying the appliance is fitted with a shut off valve conveniently positioned near
the appliance and giving ease of access.
The appliance and itsindividual shutoff valve must bedisconnected from the gas supply piping system during
any pressure testing ofthat system.

 Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure – ONLY USE A PROFESSIONAL.
 NEVER USE THE OVEN WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS INCLUDING ALL OF
THE VALVES, FITTINGS, LINES ETC. (ALL GAS CONNECTIONS SHOULD BE CHECKED)
 WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME COULD
RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
 DO NOT SMOKE WHILE PERFORMING THE LEAK TEST. Any open flame will ignite the gas.
 To prevent fire or explosion hazard, Perform leaktest outdoors only.
 Check to ensure that flexible hoses do not have any cuts and wearthat may affect the safety before
each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator
and hoseassemblies specified by BLAZE OUTDOOR PRODUCTS.
Perform aleak test before each use. In addition, whenever the gas cylinder is connected tothe regulator or
whenever any part ofthe gas system isdisconnected or replaced, perform aleak test.
As a safety precaution, remember toalways leak test your appliance outdoors in a well-ventilated area. Never
smoke or permit sources of ignition in the area while doing a leak test. Do not use a flame, such as a lighted
match to test for leaks. Use a solution of soapy water.
 Prepare aleak testing solution ofsoapy water by mixing in a spray bottle one-part liquid soap to one part
water.
 Make sure all the control knobs are in the “OFF” position.
 Turn on the gas.
o On Natural Gas systems,turn the main feed valve tothe appliance.
o On LP systems,turn the cylinder valve knob counter clockwise one turn to open.
 Apply the leak-testing solution by spraying it on joints ofthe gas delivery system. This includes all valves,
pipe connections, joints, lines and every point from the gas source to the burners.
 Blowing bubbles in the soap solution and/or there is a faint gas smell (Typically Gas has an Egg Smell)
indicates that aleak is present. Do not attempt toignite the oven .
 Turn all control knobs back tothe full OFF position.
 Stop a leak bytightening the loose joint and/or resealing with thread sealant orTeflon tape, removing
sealant or tape in the event ofaflared connection or byreplacing the faulty part with a
replacement part recommended bythe manufacturer. Do notattempt torepair the cylinder valve if it is
damaged. The cylinder must be discarded toa proper LPtank location and then replaced.
 If you are unable tostop aleak turn all control knobs back tothe full OFF position, shut off the gas supply
to the appliance and releasepressure in the hose and manifold by pushing in and turning any of the
control valves one quarter turn counter-clockwise.
 On LP systems, remove the cylinder from the appliance.
 Call an authorized gas appliance service technician or an LP gas dealer.
Blaze Outdoor Products Instructional
Book Page | 15
i. Gas Leak Warnings
ii. Checking for Gas Leaks

 Do notusethe appliance until the leak is corrected.
 The adjacent diagram is intended toshow what a leaking
connection would look like. These two locations are not the
only points tocheck northe only potential areas for a gas
leak tobepresent.
Blaze Outdoor Products Instructional
Book Page | 16
EX: Leak testing solution of soapy water by mixing in a spray
bottle one-part liquid soap to one part water.
 All gas piping and connections must be tested for leaks after installation or service along with before each
use. This includes all valves, pipe connections, joints, lines and every point from the gas source to the
burners.
 The following diagram is for informational purposes only. These locations are not the only points to check
nor the only potential areas for a gas leak to be present. Ensure the leak test includes all valves, pipe
connections, joints, lines and every point from the gas source to the burners.
All leaks must be corrected immediately. Remember-before exchanging an empty bottle for a new
one; make sure all control valves are in the “off” position. This can create a low flow of gas through
the oven. This would require the tank to be disconnected from the regulator, and then reconnected
to reset the regulator.
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all
joints. Bubbles forming indicate gas leak.
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS

Blaze Outdoor Products Instructional
Book Page | 17
VI. Gas Connections
•If your BLAZE
Oven is for a Liquid Propane application, a L.P regulator set for 11” WC must be used
and is for use with LP gas only.
•The regulator and hose supplied must be used with a 20 lb. LP cylinder.
•A collar to protect the cylinder threads on the customer supplied tank.
•An arrangement for gas vapor withdrawal.
•A safety relief device having direct communication with the vapor space of the cylinder.
•A method of mounting.
•The gas supply must be turned off at the LP Gas supply cylinder and the LP Gas supply cylinder must
be disconnected from the regulator when this outdoor cooking gas appliance is not in use.
•Always sit the cylinder in an upright position so that the cylinder valve is at the top. This will ensure
proper vapor withdrawal.
•The cylinder should not be stored in a building, garage, or any other enclosed area. It should be
stored outdoors in a protected, cool, and dry location out of reach of children.
•Never store any spare or extra gas cylinder(s) around or in the outdoor kitchen containing the BLAZE
OVEN or any other open flame, heat-producing appliance(s) or heat source
 Connect asuitable natural gas flex connector tothe oven regulator located on the rear right
corner of the appliance. It is recommended touseaflex connector with a minimum ofa ½”
diameter or larger.
 Sealing all non-flared fittings with thread sealant or Teflon tape.
 Ensure the flex connector is protected from sharp edges, heat, aggressive surfaces, and kinking.
 Check the appliance controls to ensure all control valves are in the full OFF position.
 Turn on the main gas supply and check all connections for leaks using soapy water as described in
the leak testing procedure section.
 The regulator used must be set for 4” water column and is for use with Natural gas only. Note: Most
low-pressure regulators have a directional arrow indicating the direction in which the gas must
travel. Ensure the arrow is pointing in the direction of the oven.
 An installer supplied gas shutoff valve must be installed in an accessible place.
ii. Liquid Propane (LP) Gas and Tank Requirements
i. Natural Gas Requirements

 Turn control knobs and cylinder valve tothe OFF position. Unscrew valve.
 Remove cylinder and have it filled at your local qualified propane dealer.
 Once filled, carefully connect the valve and make sure it is secure and notleaking.
 With the control knobs in the OFF position, turn on the cylinder valve.
 If you smell gas or hear a hiss of gas escaping from the tank, get away from the tank and do not
attempt to correct the problem yourself. Call the Fire Department immediately.
 If your appliance has no leak at the cylinder, then re-check for loose connections and retest for leaks
using the method detailed in the following pages with soapy solution.
 Do not subject your LP gas cylinder to excessive heat, and always store the cylinder in an upright
position. Never store your LP cylinders indoors.
 Make sure that when attaching components, all connections are secured and fully tightened to prevent
leakage.
Filling and Refilling LP Gas Cylinders:
Blaze Outdoor Products Instructional
Book Page | 18
Always check for leaks before every use.
If one is notalready available, it is required that anON-OFFshutoff valve be installed at the gas supply
source, and that the gas supply be turned off when either Natural Gas orLP Gas appliances are notin use.in
Transport only one cylinder ata time. Ensure the cylinder is secured in an upright position with the control
valve turned off and the dust cap in place. Store cylinders outdoors and out ofthe reach of children. Do not
store cylinders in a building, garage, orany other enclosed area.
Procedure for LP Gas Cylinder Connection (20 Lbs.)
The LP Gas Cylinder must be in compliance with the specifications for LP‐Gas Cylinders of the US
Department of Transportation or the National Standard of Canada, CAN/CSA‐B339. The basic tank size is12”
in diameter and 18” High with a QCC‐1 cylinder valve.
All purging and refilling of LP gas cylinders must be performed by qualified personnel in the LP gas industry.
Never store a spare LP gas cylinder under or near this appliance.
Never fill the LP gas cylinder beyond 80 percent full.
Failure to follow these instructions may result in explosion, personal injury or death.
iii. Transporting and Storing LP Gas

1. Turn the “Hand Wheel” on cylinder clockwise until it stops to ensure the Cylinder Valve is fully closed.
2. Turn all of the burner knobs to the OFF position.
3. Connect the 3/8” Flare end of the hose to the 3/8” Flare end of the brass coupling on the unit using a
3/4” open wrench. Do not apply pipe sealant. (These are flared fittings).
Note: Remember the rubber line on the hose and regulator must be protected from sharp edges, hot
surfaces, aggressive building materials that could cut, melt, or damage the line. A separate approved gas
line might be needed to go between the hose and regulator and the oven to position the rubber line in a
safe location.
4. Connect the regulator to the LP cylinder. Only hand-tighten the regulator.
5. Check for leaks using a soapy water solution by spraying on all connections, including all of the valves,
fittings, lines etc. (any and all gas connections have the ability leak and therefore it is critical to check for
leaks before each use)
6. To disconnect after you have used the appliance, turn the burner knobs to the OFF position.
7. Close the Cylinder Valve by turning the Hand Wheel counter-clockwise until it stops.
8. Disconnect the regulator from the LP cylinder after use.
Blaze Outdoor Products Instructional
Book Page | 19

You will need a second person to help you avoid damaging the appliance or
your appliance island.
Ensure all clearances tocombustibles are maintained. (See page 11).
The island must be made out of non-combustible material. In the event it is
combustible, the use of an insulation jacket is REQUIRED.
NOTE: Check with City and Fire department for Local Building Codes. A Permit may be
required for outdoor kitchen construction.
Blaze Outdoor Products Instructional
Book Page | 20
•Slide the appliance intothe cut out and thenattach the gas line.
•Be very careful not tokink the gas line when lowering the appliance intothe cut out.
•Keep your fingers away from where the appliance will besupported on counter. Your fingers could
become trapped and serious injury could occur.
•Check tomake sure the appliance is level and is supported around the entire outside edge. If the appliance
is not level or is unstable, use non-combustible shims under the outside lip to stabilize it.
VII. Installing the Appliance in a BBQ Island
Install Steps:
