Blizzard Lighting N-Trance User manual

Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2018

Page 2
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
TABLE OF CONTENTS
N-Trance™ LED Moving Head 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet N-Trance™ 5
Main Features 5
DMX Quick Reference 5
The N-Trance™ Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of N-Trance™ Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Installation 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
DMX/Art-Net Modes 12
Set the Starting DMX Address 12
Select the DMX Channel Mode 12
Network Setup 12
Slave Mode 12
Auto Mode 12
Sound Active Mode 12
Static Mode 12
Display Reverse 13
Display OFF/ON 13
DMX Fail Settings 13
Dimming Mode Settings 13
Dimmer Response 13
Pan/Tilt Reverse 13
Pan Angle 13
Calibrate 13
Factory Reset 13
Fixture Test 13
DMX Values In-Depth 14
FX Channel Chart 18
5. Appendix 21
A Quick DMX Lesson 21
Keeping Your N-Trance™ As Good As New 22
Returns (Gasp!) 22
Shipping Issues 22
Tech Specs 23
Photometric Data 23
Dimensional Drawings 24
Gobo and Color Wheel 25

Page 3
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x N-Trance™ LED Moving Head Fixture
• 1 x Ever-So-Handy Power Cord
• 1 x Set of Mounting Brackets
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on your purchase of N-Trance™. It’s mesmerizing and bewitching, mood-
altering and mind-blowing. It may even take you to another plane of existence. Now that
you’ve got your N-Trance™ (or hopefully N-Trances) , you should carefully unpack the box
and check the contents to ensure that all parts are present and in good condition. If any-
thing looks as if it has been damaged in transit, notify the shipper immediately and keep
the packing material for inspection. Again, please save the carton and all packing materi-
als. If a xture must be returned to the factory, it is important that the xture be returned
in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run o a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardpro.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specications contained in this document are subject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any
errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the
right to update the existing document or to create a new document to correct any errors
or omissions at any time. You can download the latest version of this document from www.
blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 11/5/2018 J. Thomas 11/5/2018

Page 4
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.
SAFETY INSTRUCTIONS
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• This product is intended for indoor use only.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please open a support ticket at www.
blizzardpro.com/support.

Page 5
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
2. MEET N-TRANCE™
MAIN FEATURES
• 2° narrow beam eects via 90W LED
• LED ring with 86pcs RGB 3-in-1 SMD5050 LEDs
• Gobo wheel with 21 gobos + open
• Color wheel with 14 colors + open (split colors and bi-directional rotation)
• 6/8-facet bi-directional rotating prism
• Frost and color lter eects
• Independent DMX control of beam and LED ring eects
• Built-in auto/sound active programs
• Pan: 540/640°, Tilt: 270° (8-16 Bit Resolution)
• 1-25Hz fps strobe + variable/random eects
• 4 user-selectable dimming curves
• 2.4” TFT LCD display with 4 button control
• DMX512, Art-Net, RDM, M/S, sound active & auto mode
• 3/5-pin DMX In/Out + RJ45 etherCON In/Out (Art-NET)
• PowerCON™ compatible AC power In/Out
DMX Quick Reference (21/44/128-Channel Modes)
CH. Basic (21ch) CH. Standard (44ch) CH. Extended (128ch)
1Pan 1Pan 1Pan
2 Fine Pan (16-bit) 2 Fine Pan (16-bit) 2 Fine Pan (16-bit)
3 Tilt 3 Tilt 3 Tilt
4 Fine Tilt (16-bit) 4 Fine Tilt (16-bit) 4 Fine Tilt (16-bit)
5 Dimmer 5 Dimmer 5 Dimmer
6 Strobe 6 Dimmer Fine 6 Dimmer Fine
7 Color Wheel 7 Strobe 7 Strobe
8 Gobo Wheel 8 Color Wheel 8 Color Wheel
9 Prism 1 (8-facet circular) 9 Gobo Wheel 9 Gobo Wheel
10 Prism 1 Rotation 10 Prism 1 (8-facet circular) 10 Prism 1 (8-facet circular)
11 Prism 2 (6-facet linear) 11 Prism 1 Rotation 11 Prism 1 Rotation
12 Prism 2 Rotation 12 Prism 2 (6-facet linear) 12 Prism 2 (6-facet linear)
13 Focus 13 Prism 2 Rotation 13 Prism 2 Rotation
14 Colorizer / Frost 14 Focus 14 Focus
15 Pan/Tilt Speed 15 Focus Fine 15 Focus Fine
16 Reset 16 Colorizer / Frost 16 Colorizer / Frost
17 Ring Dimmer 17 Pan/Tilt Speed 17 Pan/Tilt Speed
18 Ring Strobe 18 Dimmer Curve 18 Dimmer Curve
19 Ring Red 19 Device Settings 19 Device Settings
20 Ring Green 20 Reset 20 Reset
21 Ring Blue 21 Ring Dimmer 1 21 Ring Dimmer 1
-- -- 22 Red 1 - Main FX Color 22 Red 1 - Main FX Color
-- -- 23 Green 1 - Main FX Color 23 Green 1 - Main FX Color
-- -- 24 Blue 1 - Main FX Color 24 Blue 1 - Main FX Color
-- -- 25 Red 1 - BG or 2nd FX 25 Red 1 - BG or 2nd FX
-- -- 26 Green 1 - BG or 2nd FX 26 Green 1 - BG or 2nd FX
-- -- 27 Blue 1 - BG or 2nd FX 27 Blue 1 - BG or 2nd FX
-- -- 28 FX Select 1 28 FX Select 1
-- -- 29 FX Rotation 1 29 FX Rotation 1
-- -- 30 FX Repeat 1 30 FX Repeat 1
-- -- 31 FX Direction 1 31 FX Direction 1
-- -- 32 FX Rotation Oset 1 32 FX Rotation Oset 1
-- -- 33 Ring Dimmer 2 33 Ring Dimmer 2
-- -- 34 Red 2 - Main FX Color 34 Red 2 - Main FX Color
-- -- 35 Green 2 - Main FX Color 35 Green 2 - Main FX Color
-- -- 36 Blue 2 - Main FX Color 36 Blue 2 - Main FX Color
-- -- 37 Red 2 - BG or 2nd FX 37 Red 2 - BG or 2nd FX
-- -- 38 Green 2 - BG or 2nd FX 38 Green 2 - BG or 2nd FX
-- -- 39 Blue 2 - BG or 2nd FX 39 Blue 2 - BG or 2nd FX
-- -- 40 FX Select 2 40 FX Select 2
-- -- 41 FX Rotation 2 41 FX Rotation 2
-- -- 42 FX Repeat 2 42 FX Repeat 2
-- -- 43 FX Direction 2 43 FX Direction 2
-- -- 44 FX Rotation Oset 2 44 FX Rotation Oset 2
-- -- -- -- 45-128 R/G/B Pixels 1 - 28

Page 6
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC

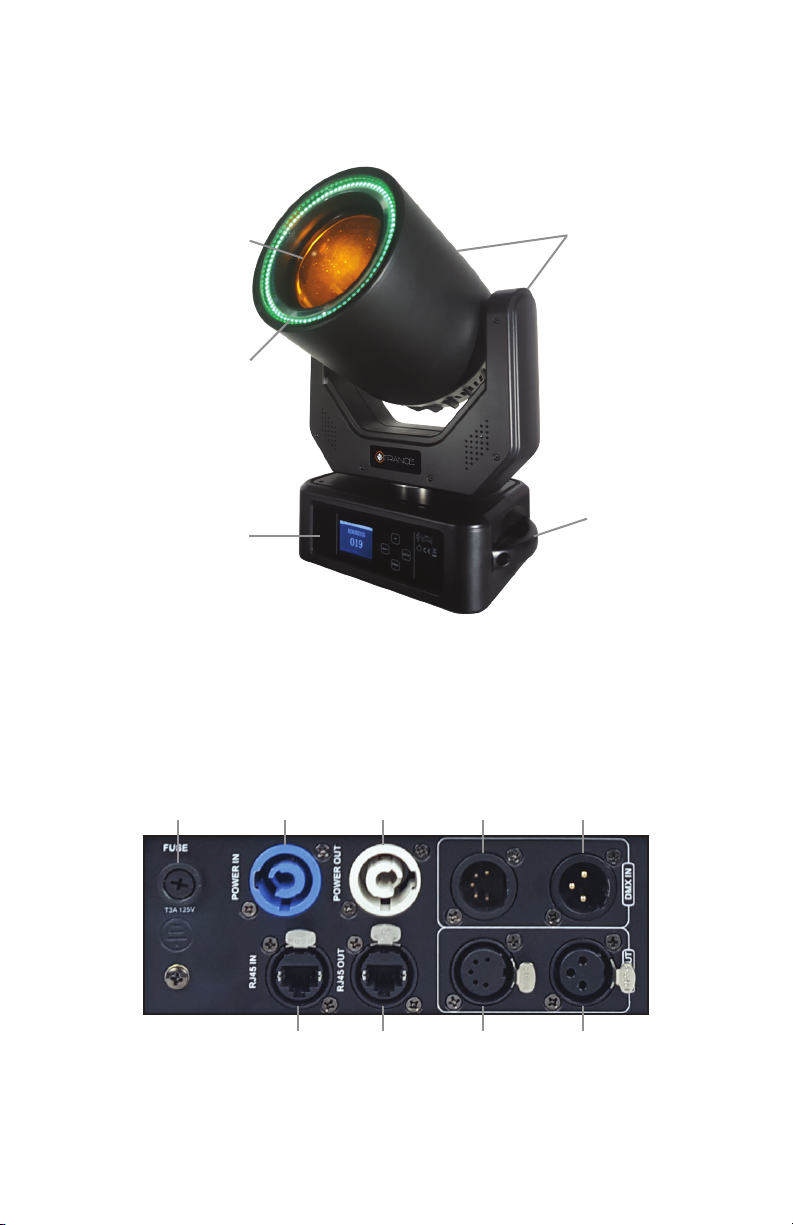

Figure 1: N-Trance™ Pin-Up Picture
Figure 2: The Rear Connections
3-Pin
DMX Out
Power
Output
Power
Input
5-Pin
DMX Out
3-Pin
DMX In
5-Pin
DMX In
RJ45
Out
RJ45
In
Fuse
Holder
Figure 1: N-Trance™ Pin-Up Picture
90W LED with
2° Beam Angle
Carry
Handle
4-Button Control
Panel with 2.4"
TFT Color Display
LED ring with
86pcs RGB 3-in-1
SMD5050 LEDs
Head/Arms

Page 7
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
Fuse Replacement
Remove the fuse holder from of its housing. Then take out the dam-
aged fuse from its holder and replace with exact same type of fuse.
Reattach the fuse holder, and then reconnect power.
Connecting A Bunch of N-Trance™ Fixtures
You will need a serial data link to run light shows using a DMX-512
controller or to run shows on two or more xtures set to sync in mas-
ter/slave operating mode. The combined number of channels required
by all the xtures on a serial data link determines the number of x-
tures the data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also, connecting more than 32 xtures on one serial data link without
the use of a DMX optically-isolated splitter may result in deterioration
of the digital DMX signal. The maximum recommended cable-run dis-
tance is 500 meters (1640 ft). The maximum recommended number
of xtures on a serial data link is 32 xtures.
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but
note that they cannot transmit DMX data as reliably over long distanc-
es. In any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms
Before replacing a fuse, disconnect the power cord.
ALWAYS replace with the same type and rating of fuse.
3. SETUP

Page 8
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
Cable Connectors

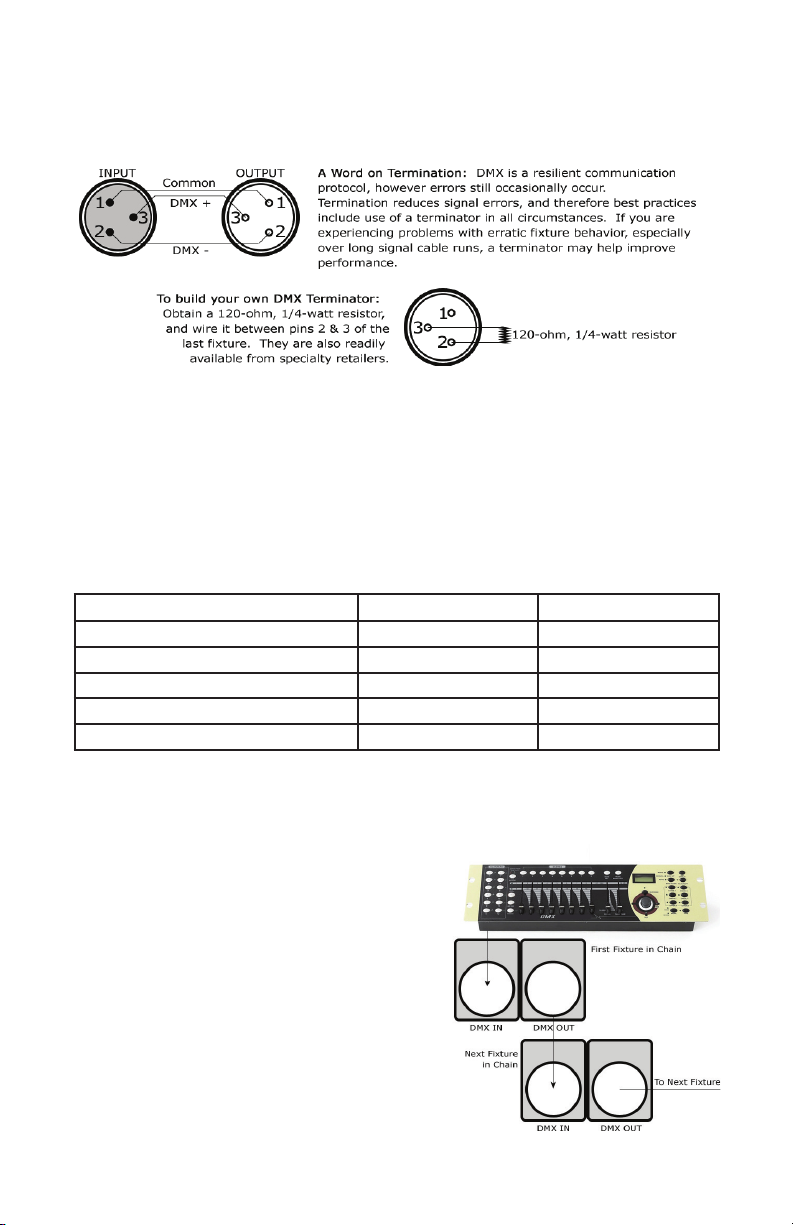

Cables must have a male XLR connector on one end and a female XLR connec-
tor on the other end. (Duh!)
CAUTION: Do not allow contact between the common and the
xture’s chassis ground. Grounding the common can cause a ground
loop, and your xture may perform erratically. Test cables with an
ohm meter to verify correct polarity and to make sure the pins are not
grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5-pin DMX output connector, it’s no problem! You can simply use the in-
stalled 5-pin DMX input and/or output connections found on the back of your xture(s).
Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data Link) Pin 2 Pin 2
Data 1+ (Primary Data Link) Pin 3 Pin 3
Data 2- (Optional Secondary Data Link) Pin 4 Pin 4
Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector (output) on
the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connector
(input). Note: It doesn’t matter which
xture address is the rst one connected. We
recommend connecting the xtures in terms
of their proximity to the controller, rather than
connecting the lowest xture number rst, and
so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture to
ensure best communication.

Page 9
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
Installation

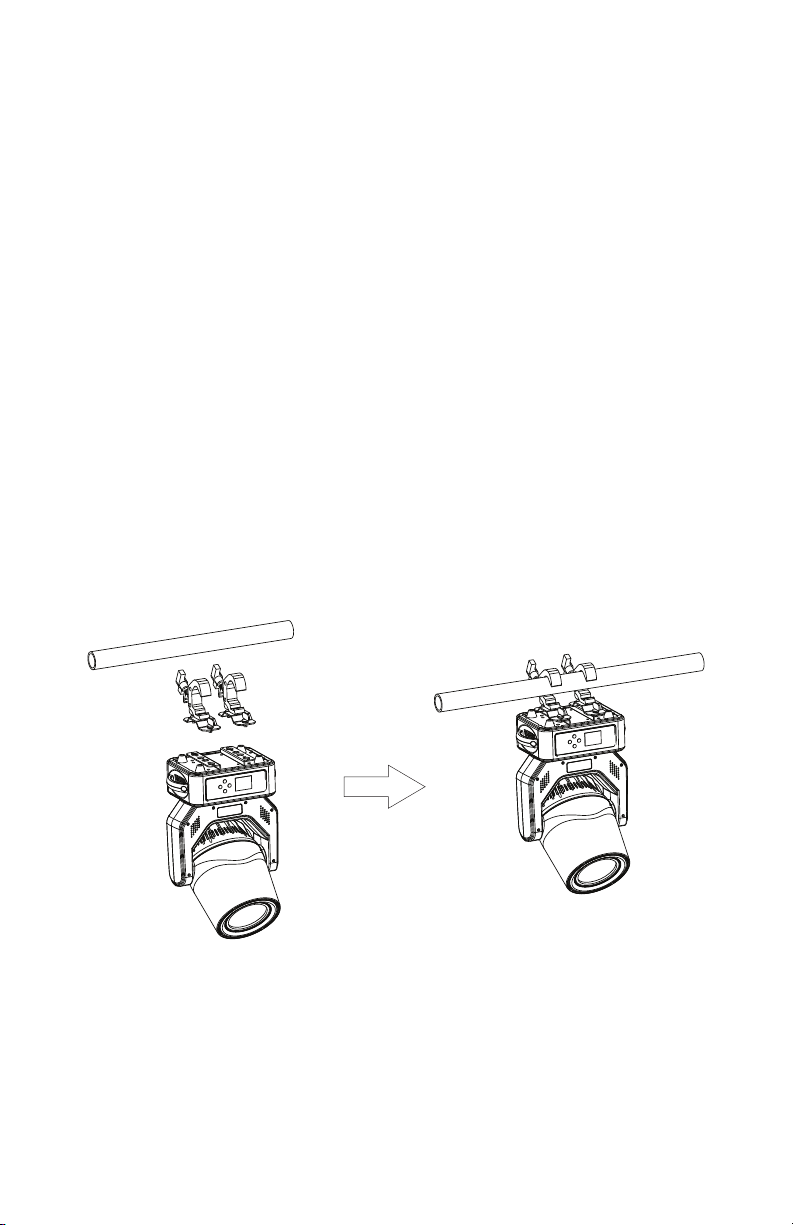

The xture can be installed on the oor resting on its rubber feet, or mounted
on truss.
● Choose a suitable place to put or hang the equipment when installing. When
hanging the xture, use the included clamp mounting brackets with suitable
clamps to properly support the weight of the xture.
● When installing the equipment, ensure that no ammable or explosive materi-
als are within 1/2 meter distance.
● Please ask professionals to install the equipment. Any improper installation
can cause personal injury or material damage.
● The equipment must be placed in a ventilated area, at least 50 cm from the
ground, and always ensure that the vents are not clogged.
● Mount the xture using suitable type clamps. The clamp should be rated
to hold at least 10x the xture’s weight to ensure structural stability. Do not
mount to surfaces with unknown strength, and ensure properly “rated” rigging
is used when mounting xtures overhead.
WARNING: With the exception of when the xture is positioned on
the oor, a safety cable must always be used. It must be securely xed
to the support structure of the projector and then connected to the x-
ing point at the center of the base.

Page 10
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and dierent modes possible with the N-Trance™ are
accessed by using the control panel on the front of the xture. There
are 4 control buttons to the right of the LCD display which allow you to
navigate through the various control panel menus.
<MODE>
Is used to navigate to the previous higher-level menu item.
<ENTER>
Is used to select and conrm/store the current selection.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
The control panel display shows the menu items you select from the
menu map on page #11. When a menu function is selected, the dis-
play will show immediately the rst available option for the selected
menu function. To select a menu item, press <ENTER>.
Use the <UP> and <DOWN> buttons to navigate the menu options.
Press the <ENTER> button to select the menu function currently dis-
played, or to enable a menu option. To return to the previous option or
menu without changing the value, press the <MODE> button.
Press <Mode> to Menu
ADDRESS
001
MODE

Page 11
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
Control Panel Menu Structure
DMX Address Set DMX Address 001-512
MODE DMX Signal
Select
DMX
Artnet
DMX Mode DMX 21Ch
DMX 44Ch
DMX 128Ch
Slave <ENTER>
Auto Auto Program
Auto Speed 000-255
Sound Sensitivity 000-255
Static Pan 000-255 Layer1 Green1 000-255
Pan Fine 000-255 Layer1 Blue1 000-255
Tilt 000-255 Layer1 Red2 000-255
Tilt Fine 000-255 Layer1 Green2 000-255
Dimmer 000-255 Layer1 Blue2 000-255
Dimmer Fine 000-255 Layer1 FX 000-255
Strobe 000-255 Layer1 Rotate 000-255
Color Wheel 000-255 Layer1 Repeat 000-255
Gobo Wheel 000-255 Layer1 Direction 000-255
Prism 000-255 Layer1 Rot Oest 000-255
Prism Rot 000-255 Layer2 Dimmer 000-255
6 Line Prism 000-255 Layer2 Red1 000-255
6 Line Prism Rot 000-255 Layer2 Green1 000-255
Focus 000-255 Layer2 Blue1 000-255
Focus Fine 000-255 Layer2 Red2 000-255
Frost 000-255 Layer2 Green2 000-255
Pan/Tilt Speed 000-255 Layer2 Blue2 000-255
Dimmer Curve 000-255 Layer2 FX 000-255
Device Settings 000-255 Layer2 Rotate 000-255
Reset 000-255 Layer2 Repeat 000-255
Layer1 Dimmer 000-255 Layer2 Direction 000-255
Layer1 Red1 000-255 Layer2 Rot Oest 000-255
Settings Display Rev OFF/ON
Display OFF/ON
DMX Fail Blackout
Hold
Dimmer Curve Linear
EXP
Log
S Curve
Dimmer
Response
Halogen
LED
Pan Rev OFF/ON
Tilt Rev OFF/ON
Pan Angle 540
630
Feedback OFF/ON (Automatic Pan/Tilt position correction)
Calibrate Pan 000-255 6 Line Prism 000-255
Tilt 000-255 6 Line Prism Rot 000-255
Color Wheel 000-255 Focus 000-255
Gobo Wheel 000-255 Frost 000-255
Prism 000-255
FanSet Regular/Silent
Mov Blackout OFF/ON (blackout while moving)
Test Function Test
Reset Pan& Tilt
Head
All
Factory Reset NO/YES
Network
Settings
IP Address xxx.xxx.xxx.xxx
Subnet Mask xxx.xxx.xxx.xxx
Universe 000-255
System Info Firmware Vx.xx
Time Info Power on
Last Run
Temp LED Temp
Temp Unit

Page 12
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
DMX / Art-Net Modes
Allows the unit to be controlled by any universal DMX controller.
Set the Starting DMX Address:
1.) Navigate the main menu to reach DMX Address, press <ENTER>.
2.) Use the <UP/DOWN> buttons to select a DMX channel from 001-512.
3.) Press the <ENTER> button to conrm.
DMX512 and Art-Net Modes:
1.) Navigate the main menu to reach MODE, press <ENTER>.
2.) Highlight DMX Signal Select, press <ENTER>.
3.) Highlight DMX or Artnet, press <ENTER>.
4.) When DMX is selected, signal can be sent/received through the 3-pin DMX connections, and
when Artnet is selected, signals can be sent/received through the RJ45 connections.
Select the DMX Channel Mode:
1.) Navigate the main menu to reach MODE, press <ENTER>.
2.) Highlight DMX Mode, and press <ENTER>.
3.) Use the <UP/DOWN> buttons to select DMX 21Ch, DMX 44Ch or DMX 128Ch, and press
the <ENTER> button to conrm.
Network Setup: (Artnet)
1.) Navigate the main menu to reach Network Settings, press <ENTER>.
2.) Use the <UP/DOWN> buttons to navigate through the network setup options.
IP Address = Set the IP address
xxx.xxx.xxx.xxx
Press the <ENTER> button repeatedly
to cycle through each set of 3 digits
1-4. Use the <UP/DOWN> buttons to
change the value of each from 000-255.
Subnet Mask = Set the subnet mask
xxx.xxx.xxx.xxx
Press the <ENTER> button repeatedly
to cycle through each set of 3 digits
1-4. Use the <UP/DOWN> buttons to
change the value of each from 000-255.
Universe = Set the universe Choose from 000-255.
Slave Mode:
1.) Navigate the main menu to reach DMX Address, press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight Slave, press <ENTER>.
3.) Press the <ENTER> button to conrm.
4.) If a control signal is not present the display will ash, otherwise it will not ash.
Auto, Sound Active, & Manual Adjustments:
Allows a single or Master/Slaved units to run factory installed programs.
Auto Mode:
1.) Navigate the main menu until you reach MODE, press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight Auto, then press <ENTER>.
3.) Choose Auto Program (to run) or Auto Speed, and press <ENTER>.
4.) You can adjust the Auto Speed anywhere ranging from 000-255 (slow <--> fast).
Sound Active Mode:
1.) Navigate the main menu until you reach MODE, press <ENTER>.
2.) Highlight Sound, then press <ENTER> to conrm.
3.) Adjust the mic sensitivity using the <UP/DOWN> buttons to adjust the mic Sensitivity
(0-255), and press <ENTER>.
Static Mode:
1.) Navigate the main menu until you reach MODE, press <ENTER>.
2.) Highlight Static, then press <ENTER> to conrm.
3.) Select and adjust any function from 000-255. Use the same DMX values that start on p.14.

Page 13
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
Display Reverse:
1.) Navigate the main menu to reach Settings, and then press the <ENTER> button.
2.) Highlight Display Rev. and then press <ENTER>.
3.) Choose from ON (inverted 180°) or OFF, and press <ENTER> to conrm.
Display OFF/OFF:
1.) Navigate the main menu to Settings, and then press <ENTER>.
2.) Highlight Display and then press <ENTER>.
3.) Choose from Hold (continuous), or OFF (after 1 minute of inactivity). Press <ENTER> to conrm.
DMX Fail Settings:
1.) Navigate the main menu to Settings, and then press <ENTER>.
2.) Highlight DMX Fail and then press <ENTER>.
3.) Choose either Hold (holds last received signal), or Blackout. Press <ENTER> to conrm.
Dimming Mode Settings:
Use any 1 of 4 dimming curve settings for smoother (and slower) dimming capabilities.
DMX% DMX% DMX% DMX%
Output Output Output Output
(Linear) (Exp) (Log) (S Curve)
Linear Curve Exponential Logarithmic S-Curve
1.) Navigate the main menu until you reach Settings, press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight Dimmer Curve, and press <ENTER>.
3.) Now you can use the <UP/DOWN> buttons to highlight Linear, Exp (exponential), Log
(logarithmic), or S Curve. Press the <ENTER> button to conrm your selection.
Dimmer Response:
1.) Navigate the main menu until you reach Settings, press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight Dimmer Response, and press <ENTER>.
3.) Now use the <UP/DOWN> buttons to highlight LED which the dimming responds abruptly to DMX
changes, or Halogen which is similar to that of a halogen lamp, with more gentle changes in brightness.
4.) Press <ENTER> to conrm your selection.
Pan/Tilt Reverse:
1.) Navigate the main menu until you reach Settings, press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight Pan Rev or Tilt Rev, and press <ENTER>.
3.) Now use the <UP/DOWN> buttons to highlight OFF or ON, and press <ENTER> to conrm.
Pan Angle:
1.) Navigate the main menu until you reach Settings, press <ENTER>. Then use the <UP/DOWN>
buttons to highlight Pan Angle > 540 or 630 degrees,and press <ENTER> to conrm.
Calibrate:
1.) For ne calibration adjustments, navigate the main menu until you reach Settings, then press
<ENTER>. Now use the <UP/DOWN> buttons to highlight Calibrate then <ENTER>, and choose an
eect to adjust anywhere ranging from 0-255. When nished press <ENTER> to conrm.
Factory Reset:
1.) Navigate the main menu until you reach Settings, press <ENTER>. Then use the <UP/DOWN>
buttons to highlight Factory Reset > YES or NO (to cancel),and press <ENTER>.

Page 14
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
DMX Values In-Depth (21/44/128-Channel Modes)
Basic Mode
21CH
Standard
44CH
Extended
128CH Value What it does
1 1 1 000 <-> 255 Pan
2 2 2 000 <-> 255 Fine Pan (16-bit)
3 3 3 000 <-> 255 Tilt
4 4 4 000 <-> 255 Fine Tilt (16-bit)
5 5 5 000 <-> 255 Dimmer (0% - 100%)
-- 6 6 000 <-> 255 Dimmer Fine (0% - 100%)
677
000 <-> 005
006 <-> 010
011 <-> 033
034 <-> 056
057 <-> 079
080 <-> 102
103 <-> 127
128 <-> 250
251 <-> 255
Strobe
Open
Closed
Pulse Random, (slow <-> fast)
Ramp Up Random(slow <-> fast)
Ramp Down Random (slow <-> fast)
Random (slow <-> fast)
Strobe Break Eect
Linear Strobe, Slow (1Hz) <-> Fast (20Hz)
Open
788
000 <-> 005
006 <-> 011
012 <-> 017
018 <-> 023
024 <-> 029
030 <-> 035
036 <-> 041
042 <-> 047
048 <-> 053
054 <-> 059
060 <-> 065
066 <-> 071
072 <-> 077
078 <-> 083
084 <-> 089
090 <-> 095
096 <-> 101
102 <-> 107
108 <-> 113
114 <-> 119
120 <-> 125
126 <-> 131
132 <-> 137
138 <-> 143
144 <-> 149
150 <-> 155
156 <-> 161
162 <-> 167
168 <-> 173
174 <-> 179
180 <-> 185
186 <-> 218
219 <-> 222
223 <-> 255
Color Wheel
Open
Open/Congo (Split)
Congo
Congo/Red (Split)
Red
Red/Fluorescent Green (Split)
Fluorescent Green
Fluorescent Green/Blue (Split)
Blue
Blue/Orange (Split)
Orange
Orange/Light Green (Split)
Light Green
Light Green/Pink (Split)
Pink
Pink/CTB (Split)
CTB
CTB/Lavender (Split)
Lavender
Lavender/Green (Split)
Green
Green/Purple (Split)
Purple
Purple/Cyan (Split)
Cyan
Cyan/Yellow (Split)
Yellow
Yellow/CTO (3000K) (Split)
CTO (3000K)
CTO (3000K)/Open (Split)
Open
Color Wheel Rotation CW (Fast <-> Slow)
Stop
Color Wheel Rotation CCW (Slow <-> Fast)
899
000 <-> 003
004 <-> 007
008 <-> 011
012 <-> 015
016 <-> 019
020 <-> 023
024 <-> 027
028 <-> 031
032 <-> 035
036 <-> 039
040 <-> 043
044 <-> 047
048 <-> 051
052 <-> 055
056 <-> 059
Gobo Wheel
Open
Reducer 1 (Smallest)
Reducer 2
Reducer 3
Reducer 4
Reducer 5
Reducer 6 (Biggest)
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8

Page 15
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
DMX Values In-Depth (21/44/128-Channel Modes)
Basic Mode
21CH
Standard
44CH
Extended
128CH Value What it does
899
060 <-> 063
064 <-> 067
068 <-> 071
072 <-> 075
076 <-> 079
080 <-> 083
084 <-> 087
088 <-> 091
092 <-> 095
096 <-> 099
100 <-> 103
104 <-> 107
108 <-> 111
112 <-> 115
116 <-> 119
120 <-> 123
124 <-> 127
128 <-> 131
132 <-> 135
136 <-> 139
140 <-> 143
144 <-> 147
148 <-> 151
152 <-> 155
156 <-> 159
160 <-> 163
164 <-> 167
168 <-> 171
172 <-> 175
176 <-> 187
188 <-> 199
200 <-> 211
212 <-> 223
224 <-> 239
240 <-> 255
Gobo Wheel
Gobo 9
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
Open Shake (slow <-> fast)
Reducer 1 Shake (slow <-> fast)
Reducer 2 Shake (slow <-> fast)
Reducer 3 Shake (slow <-> fast)
Reducer 4 Shake (slow <-> fast)
Reducer 5 Shake (slow <-> fast)
Reducer 6 Shake (slow <-> fast)
Gobo 1 Shake (slow <-> fast)
Gobo 2 Shake (slow <-> fast)
Gobo 3 Shake (slow <-> fast)
Gobo 4 Shake (slow <-> fast)
Gobo 5 Shake (slow <-> fast)
Gobo 6 Shake (slow <-> fast)
Gobo 7 Shake (slow <-> fast)
Gobo 8 Shake (slow <-> fast)
Gobo 9 Shake (slow <-> fast)
Gobo 10 Shake (slow <-> fast)
Gobo 11 Shake (slow <-> fast)
Gobo 12 Shake (slow <-> fast)
Gobo 13 Shake (slow <-> fast)
Gobo 14 Shake (slow <-> fast)
Gobo 15 Shake (slow <-> fast)
Eect Wheel #1 Manual Position
Eect Wheel #2 Manual Position
Eect Wheel #1 Oscillate (fast <-> slow <-> stop)
Eect Wheel #2 Oscillate (fast <-> slow <-> stop)
Gobo Wheel Spin CW (slow <-> fast)
Gobo Wheel Spin CCW (fast <-> slow)
9 10 10 000 <-> 127
128 <-> 255
Prism 1 (8-facet circular)
Prism 1 Out
Prism 1 In
10 11 11
000 <-> 127
128 <-> 128
129 <-> 191
192 <-> 254
255 <-> 255
Prism 1 Rotation
Prism Indexing
Prism Stop
Prism Rotation CW (slow <-> fast)
Prism Rotation CCW (fast <-> slow)
Prism Stop
11 12 12 000 <-> 127
128 <-> 255
Prism 2 (6-facet linear)
Prism 1 Out
Prism 1 In
12 13 13
000 <-> 127
128 <-> 128
129 <-> 191
192 <-> 254
255 <-> 255
Prism 2 Rotation
Prism Indexing
Prism Stop
Prism Rotation CW (slow <-> fast)
Prism Rotation CCW (fast <-> slow)
Prism Stop
13 14 14 000 <-> 255 Focus (0 <-> 100%)
-- 15 15 000 <-> 255 Focus Fine (0 <-> 100%)
14 16 16 000 <-> 005
006 <-> 130
131 <-> 255
Colorizer / Frost
Colorizer & Frost Out
Colorizer In
Frost In
15 17 17 000 <-> 255 Pan/Tilt Speed (fast <-> slow)
-- 18 18
000 <-> 005
006 <-> 063
064 <-> 127
128 <-> 191
192 <-> 255
Dimmer Curve
No Function
Linear Curve
Exponential Curve
Logarithmic Curve
S-Curve

Page 16
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
DMX Values In-Depth (21/44/128-Channel Modes)
Basic Mode
21CH
Standard
44CH
Extended
128CH Value What it does
-- 19 19
000 <-> 005
006 <-> 030
031 <-> 055
056 <-> 080
081 <-> 105
106 <-> 130
131 <-> 155
156 <-> 180
181 <-> 205
206 <-> 230
231 <-> 255
Device Settings (hold for 5 seconds)
No Function
Move-In-Black On
Move-In-Black O
Invert Pan
Normal Pan
Invert Tilt
Normal Tilt
Dimmer Response: LED
Dimmer Response: Mimic Halogen
Fan Speed Max
Fan Speed Auto
16 20 20
000 <-> 005
006 <-> 127
128 <-> 191
192 <-> 255
Reset (hold for 5 seconds)
No Function
Reset Pan/Tilt
Reset Eects (Prism, Colors, Gobos, Etc.)
Reset All
Ring Layer 1
17 -- -- 000 <-> 255 Ring Dimmer (0 <-> 100%)
18 -- -- 000 <-> 005
006 <-> 255
Ring Strobe
Open
Strobe Slow (1Hz) <--> Fast (20Hz)
19 -- -- 000 <-> 255 Ring Red (0 <-> 100%)
20 -- -- 000 <-> 255 Ring Green (0 <-> 100%)
21 -- -- 000 <-> 255 Ring Blue (0 <-> 100%)
-- 21 21 000 <-> 255
Ring Dimmer 1
Layer 1 Ring Dimmer (0 <-> 100%)
-- 22 22 000 <-> 255
Red - Main FX Color
Layer 1 Main FX Color (0 <-> 100%)
-- 23 23 000 <-> 255
Green - Main FX Color
Layer 1 Main FX Color (0 <-> 100%)
-- 24 24 000 <-> 255
Blue - Main FX Color
Layer 1 Main FX Color (0 <-> 100%)
-- 25 25 000 <-> 255
Red - BG or 2nd FX Color
Layer 1 Background/2nd FX Color (0 <-> 100%)
-- 26 26 000 <-> 255
Green - BG or 2nd FX Color
Layer 1 Background/2nd FX Color (0 <-> 100%)
-- 27 27 000 <-> 255
Blue - BG or 2nd FX Color
Layer 1 Background/2nd FX Color (0 <-> 100%)
-- 28 28 000 <-> 255
FX Select
See FX table on pages 18-20
-- 29 29 000 <-> 127
128 <-> 128
129 <-> 255
FX Rotation
Forward FX Rotation (fast <-> slow)
FX Rotation stop
Reverse FX Rotation (slow <-> fast)
-- 30 30
000 <-> 063
064 <-> 127
128 <-> 191
192 <-> 255
FX Repeat
x2
x4
x8
Full
-- 31 31
000 <-> 063
064 <-> 127
128 <-> 191
192 <-> 255
FX Direction
Forward FX
Reverse FX
Mirror Out
Mirror In
-- 32 32 000 <-> 255
FX Rotation Oset
FX start point adjustment

Page 17
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
DMX Values In-Depth (21/44/128-Channel Modes)
Ring Layer 2
Basic Mode
21CH
Standard
44CH
Extended
128CH Value What it does
-- 33 33 000 <-> 255
Ring Dimmer 2
Layer 2 Ring Dimmer (0 <-> 100%)
-- 34 34 000 <-> 255
Red - Main FX Color
Layer 2 Main FX Color (0 <-> 100%)
-- 35 35 000 <-> 255
Green - Main FX Color
Layer 2 Main FX Color (0 <-> 100%)
-- 36 36 000 <-> 255
Blue - Main FX Color
Layer 2 Main FX Color (0 <-> 100%)
-- 37 37 000 <-> 255
Red - BG or 2nd FX Color
Layer 2 Background/2nd FX Color (0 <-> 100%)
-- 38 38 000 <-> 255
Green - BG or 2nd FX Color
Layer 2 Background/2nd FX Color (0 <-> 100%)
-- 39 39 000 <-> 255
Blue - BG or 2nd FX Color
Layer 2 Background/2nd FX Color (0 <-> 100%)
-- 40 40 000 <-> 255
FX Select
See FX table on pages 18-20
-- 41 41 000 <-> 127
128 <-> 128
129 <-> 255
FX Rotation
Forward FX Rotation (fast <-> slow)
FX Rotation stop
Reverse FX Rotation (slow <-> fast)
-- 42 42
000 <-> 063
064 <-> 127
128 <-> 191
192 <-> 255
FX Repeat
x2
x4
x8
Full
-- 43 43
000 <-> 063
064 <-> 127
128 <-> 191
192 <-> 255
FX Rotation Oset
Forward FX
Reverse FX
Mirror Out
Mirror In
-- 44 44 000 <-> 255
FX Rotation Oset
FX start point adjustment
128 Channel Mode, continued
45 R1 59 B5 73 G10 87 R15 101 B19 115 G24
46 G1 60 R6 74 B10 88 G15 102 R20 116 B24
47 B1 61 G6 75 R11 89 B15 103 G20 117 R25
48 R2 62 B6 76 G11 90 R16 104 B20 118 G25
49 G2 63 R7 77 B11 91 G16 105 R21 119 B25
50 B2 64 G7 78 R12 92 B16 106 G21 120 R26
51 R3 65 B7 79 G12 93 R17 107 B21 121 G26
52 G3 66 R8 80 B12 94 G17 108 R22 122 B26
53 B3 67 G8 81 R13 95 B17 109 G22 123 R27
54 R4 68 B8 82 G13 96 R18 110 B22 124 G27
55 G4 69 R9 83 B13 97 G18 111 R23 125 B27
56 B4 70 G9 84 R14 98 B18 112 G23 126 R28
57 R5 71 B9 85 G14 99 R19 113 B23 127 G28
58 G5 72 R10 86 B14 100 G19 114 R24 128 B28
Note:
*For 128 channels, to use the pixel mapping function you must select the DMX value 241-
255 on the FX Select channel to enable it.

Page 18
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
FX Channel Chart
DMX Function Type
0 No Function --
One Color "Paparazzi" Snap
1 Preprogrammed FX Step
2 Slow/Low Density Step
3 Slow/Medium Density Step
4 Slow/High Density Step
5 Slow/Linear Step
6 Medium/Low Density Step
7 Medium/Medium Density Step
8 Medium/High Density Step
9 Medium/Linear Step
10 Fast/Low Density Step
11 Fast/Medium Density Step
12 Fast/High Density Step
13 Fast/Linear Step
One Color "Paparazzi" Fade
14 Preprogrammed FX Step
15 Slow/Low Density Step
16 Slow/Medium Density Step
17 Slow/High Density Step
18 Slow/Linear Step
19 Medium/Low Density Step
20 Medium/Medium Density Step
21 Medium/High Density Step
22 Medium/Linear Step
23 Fast/Low Density Step
24 Fast/Medium Density Step
25 Fast/High Density Step
26 Fast/Linear Step
Two Color "Paparazzi" Snap
27 Preprogrammed FX Step
28 Slow/Low Density Step
29 Slow/Medium Density Step
30 Slow/High Density Step
31 Slow/Linear Step
32 Medium/Low Density Step
33 Medium/Medium Density Step
34 Medium/High Density Step
35 Medium/Linear Step
36 Fast/Low Density Step
37 Fast/Medium Density Step
38 Fast/High Density Step
39 Fast/Linear Step
Two Color "Paparazzi" Fade
40 Preprogrammed FX Step
41 Slow/Low Density Step
42 Slow/Medium Density Step
43 Slow/High Density Step
44 Slow/Linear Step
45 Medium/Low Density Step
46 Medium/Medium Density Step
47 Medium/High Density Step
48 Medium/Linear Step
49 Fast/Low Density Step
50 Fast/Medium Density Step
51 Fast/High Density Step
52 Fast/Linear Step

Page 19
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
FX Channel Chart
Trace #1 - Uniform Decay
53 Preprogrammed FX Step
54 Slow/Short Tail Step
55 Slow/Medium Tail Step
56 Slow/Long Tail Step
57 Medium/Short Tail Step
58 Medium/Medium Tail Step
59 Medium/Long Tail Step
60 Fast/Short Tail Step
61 Fast/Medium Tail Step
62 Fast/Long Tail Step
Trace #2 - Uniform Decay, Color Mix
63 Preprogrammed FX Step
64 Slow/Short Tail Step
65 Slow/Medium Tail Step
66 Slow/Long Tail Step
67 Medium/Short Tail Step
68 Medium/Medium Tail Step
69 Medium/Long Tail Step
70 Fast/Short Tail Step
71 Fast/Medium Tail Step
72 Fast/Long Tail Step
Trace #3 - Uniform Color
73 Preprogrammed FX Step
74 Slow/Short Tail Step
75 Slow/Medium Tail Step
76 Slow/Long Tail Step
77 Medium/Short Tail Step
78 Medium/Medium Tail Step
79 Medium/Long Tail Step
80 Fast/Short Tail Step
81 Fast/Medium Tail Step
82 Fast/Long Tail Step
Trace #4 - Uniform Color, Color Mix w/Base Color
83 Preprogrammed FX Step
84 Slow/Short Tail Step
85 Slow/Medium Tail Step
86 Slow/Long Tail Step
87 Medium/Short Tail Step
88 Medium/Medium Tail Step
89 Medium/Long Tail Step
90 Fast/Short Tail Step
91 Fast/Medium Tail Step
92 Fast/Long Tail Step
Jockey Chase
93 Preprogrammed FX Step
94 Smallest Step
95 … Step
96 … Step
97 … Step
98 … Step
99 … Step
100 … Step
101 … Step
102 Biggest Step

Page 20
N-Trance™ User Manual - Rev. A (c) 2018 Blizzard Lighting, LLC
FX Channel Chart
Pie Piece Chase
103 Preprogrammed FX Step
104 1/2 Ring Step
105 1/4 Ring Step
106 1/8 Ring Step
107 1/16 Ring Step
108 1/32 Ring Step
109 1/64 Ring Step
110 Rotating 1/4 Ring Step
111 Rotating 1/16 Ring Step
112 Rotating 1/32 Ring Step
Color Merge
113 Preprogrammed FX Step
114 Full Ring Step
115 3/4 Ring Step
116 1/2 Ring Step
117 1/4 Ring Step
Color Wave
118 Preprogrammed FX Step
119 Small Step
120 Medium Step
121 Large Step
122 XL Step
Color Wave w/Color Mix
123 Preprogrammed FX Step
124 Small Step
125 Medium Step
126 Large Step
127 XL Step
Sweep
128 Preprogrammed FX Step
129 Slow Step
130 Medium Step
131 Fast Step
132 Soopafast Step
137 <--> 240 No Function Step
Random Sweep
133 Slow Step
134 Medium Step
135 Fast Step
136 Soopafast Step
137 <--> 240 No Function Step
Enable Pixel Mapping
241 <--> 245 Mix Layers Proportional
246 <--> 250 Below Other Layer Proportional
251 <--> 255 Above Other Layer Proportional
