Blizzard Lighting SwitchBlade Micro User manual

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014
MICRO

Page 2
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
TABLE OF CONTENTS
SwitchBlade™ Micro Moving Head Fixture 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The SwitchBlade™ Micro 5
Main Features 5
Control 5
DMX Quick Reference 5
The SwitchBlade™ Micro Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of SwitchBlade™ Micro Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
Lighting Stand Mounting 9
4. Operating Adjustments 10
Navigating The Control Panel 10
Control Panel Menu Structure 11
DMX Mode 12
Set The DMX Starting Address 12
Select the DMX Channel Mode 12
Auto, Stand-Alone, & Built-in Program Modes 12
Auto Mode 12
Sound Active Mode 12
Manual Adjustments 12
Reverse Pan 12
Reverse Tilt 12
Reverse (Flip) the Menu Display 12
Restore Default Settings 13
Pan/Tilt Motor Reset 13
DMX Channel Values In-Depth 13
Troubleshooting 13
5. Appendix 15
A Quick DMX Lesson 15
Keeping Your SwitchBlade™ Micro As Good As New 16
Returns (Gasp!) 16
Shipping Issues 16
Tech Specs 17
Luminous Intensity 18
Dimensional Drawings 18

Page 3
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x SwitchBlade™ Micro Moving Head Fixture
• 1 x Mounting Bracket
• An Ever-So-Handy Power Cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations! You have just purchased one totally tiny, totally cool quad-color mini
moving head xture that is sure to make a giant impression anywhere it goes! So now
that you’re the proud owner of a SwitchBlade™ Micro (or hopefully, MICROS!), you should
carefully unpack the box and check the contents to ensure that all parts are present and
in good condition. If anything looks as if it has been damaged in transit, notify the shipper
immediately and keep the packing material for inspection. Again, please save the carton
and all packing materials. If a xture must be returned to the factory, it is important that
the xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly off a switched circuit and cannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll be happy to
help, honest.
Blizzard Lighting
N16 W23390 Stoneridge Dr. Ste E
Waukesha, WI 53118 USA
www.blizzardlighting.com
414-395-8365
Email: [email protected]
Disclaimer: The information and specications contained in this document are subject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any
errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the
right to update the existing document or to create a new document to correct any errors
or omissions at any time. You can download the latest version of this document from www.
blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 5/30/2014 J. Thomas 5/30/2014

Page 4
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the
decal or rear panel of the xture.
• This product is intended for indoor use only.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
cord. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please contact Blizzard Lighting at
[email protected].

Page 5
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
2. MEET THE SWITCHBLADE™ MICRO
MAIN FEATURES:
• Mini moving head tted with 1x CREE® 15w R/G/B/W 4-in-1 LED
• Blazing fast 540° pan and 270° tilt
• User selectable 11 or 13 DMX channels
• Full RGBW color in standalone & DMX mode
• Sharp 8 degree beam angle
• Outstanding quad beam effects
• Built-in sound active programs
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• 3-pin male input and 3-pin female output
• wiCICLE®Enabled functionality allows plug-and-play operation with
our wiCICLE®Brand Wireless DMX system
CONTROL:
• USITT DMX-512 (11/13 Channels)
• 3-pin Input/Output
• 4-button menu with LED display
DMX Quick Reference (11/13-Channel Modes)
Channel 11-Channel Mode 13-Channel Mode
1 Pan (0-540°) Pan (0-540°)
2 Tilt (0-270°) Tilt (0-270°)
3 Fine Pan (fast <--> slow) Fine Pan (fast <--> slow)
4 Fine Tilt (fast <--> slow) Fine Tilt (fast <--> slow)
5 Pan/Tilt Speed (slow <--> fast) Pan/Tilt Speed (slow <--> fast)
6 Dimmer (0% <--> 100%) Dimmer (0% <--> 100%)
7 Strobe (slow <--> fast) Strobe (slow <--> fast)
8 Red Intensity (0% <--> 100%) Red Intensity (0% <--> 100%)
9 Green Intensity (0% <--> 100%) Green Intensity (0% <--> 100%)
10 Blue Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%)
11 White Intensity (0% <--> 100%) White Intensity (0% <--> 100%)
12 --- Built-in Programs, Sound Active
13 --- Motor Reset (150-200)

Page 6
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC

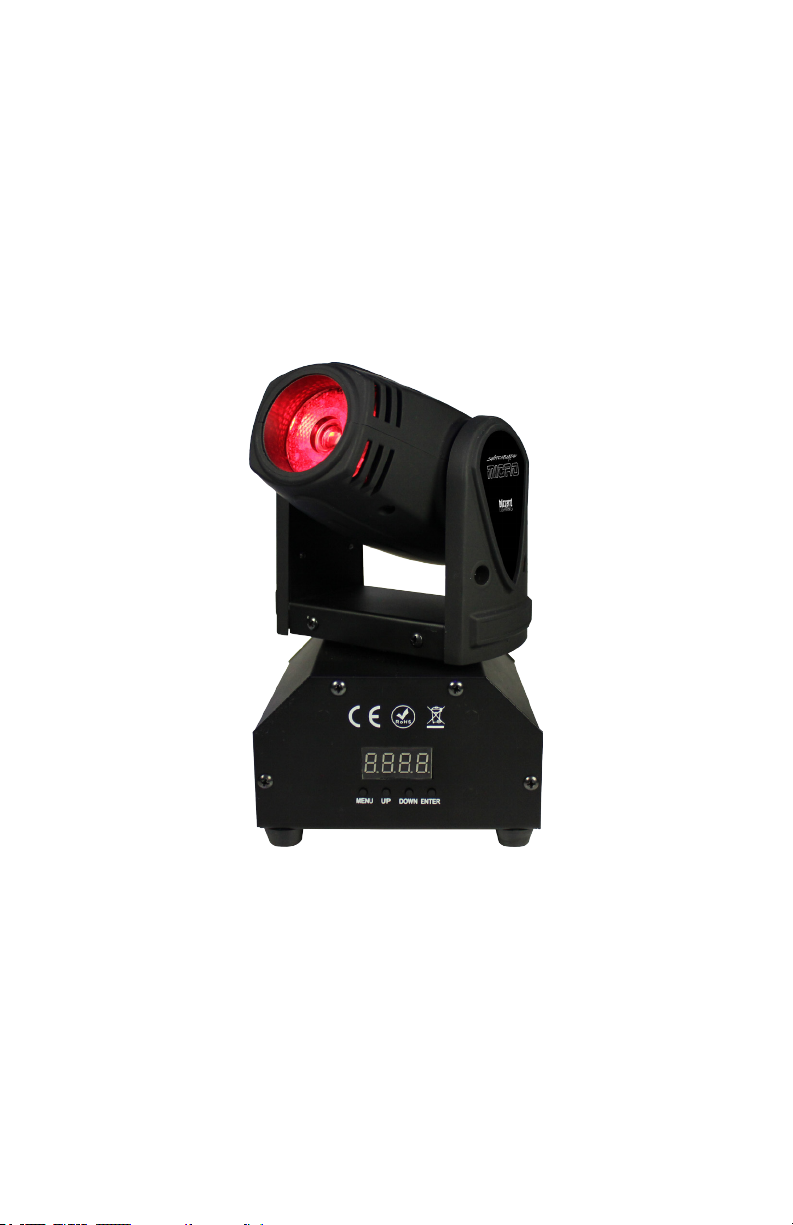

Figure 1: The SwitchBlade™ Micro Pin-Up Picture
High Power 4-in-1
RGBW LED
Head / Arms
4-Button LED
Control Panel
Figure 2: The Rear Connections
DMX In
DMX Out
On/Off
Switch
AC
Power In
Cooling
Vents
Heavy-Duty Cast
Aluminum Enclosure

Page 7
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
3. SETUP
Fuse Replacement
With a at head screwdriver, wedge the fuse
holder out of its housing. Remove the dam-
aged fuse from its holder and replace with
exact same type fuse. Insert the fuse holder
back in its place and reconnect power.
Connecting A Bunch of SwitchBlade™
Micro Fixtures
You will need a serial data link to run light shows using a DMX-512
controller or to run shows on two or more xtures set to sync in master/
slave operating mode. The combined number of channels required by all
the xtures on a serial data link determines the number of xtures the
data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also, connecting more than 32 xtures on one serial data link without the
use of a DMX optically-isolated splitter may result in deterioration of the
digital DMX signal.
The maximum recommended cable-run distance is 500 meters (1640 ft).
The maximum recommended number of xtures on a serial data link is
32 xtures.
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but note
that they cannot transmit DMX data as reliably over long distances. In
any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page 8
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR
connector on the other end. (Duh!)
CAUTION: Do not allow contact between the common and the
xture’s chassis ground. Grounding the common can cause a ground
loop, and your xture may perform erratically. Test cables with an
ohm meter to verify correct polarity and to make sure the pins are not
grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.
They are widely available over the internet and from specialty retailers. If you’d like to build your own,
the chart below details a proper cable conversion:
Conductor 3-Pin Female
(Output)
5-Pin Male
(Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMX Data (+) Pin 3 Pin 3
Not Used. No Connection. No Connection.
Not Used. No Connection. No Connection.

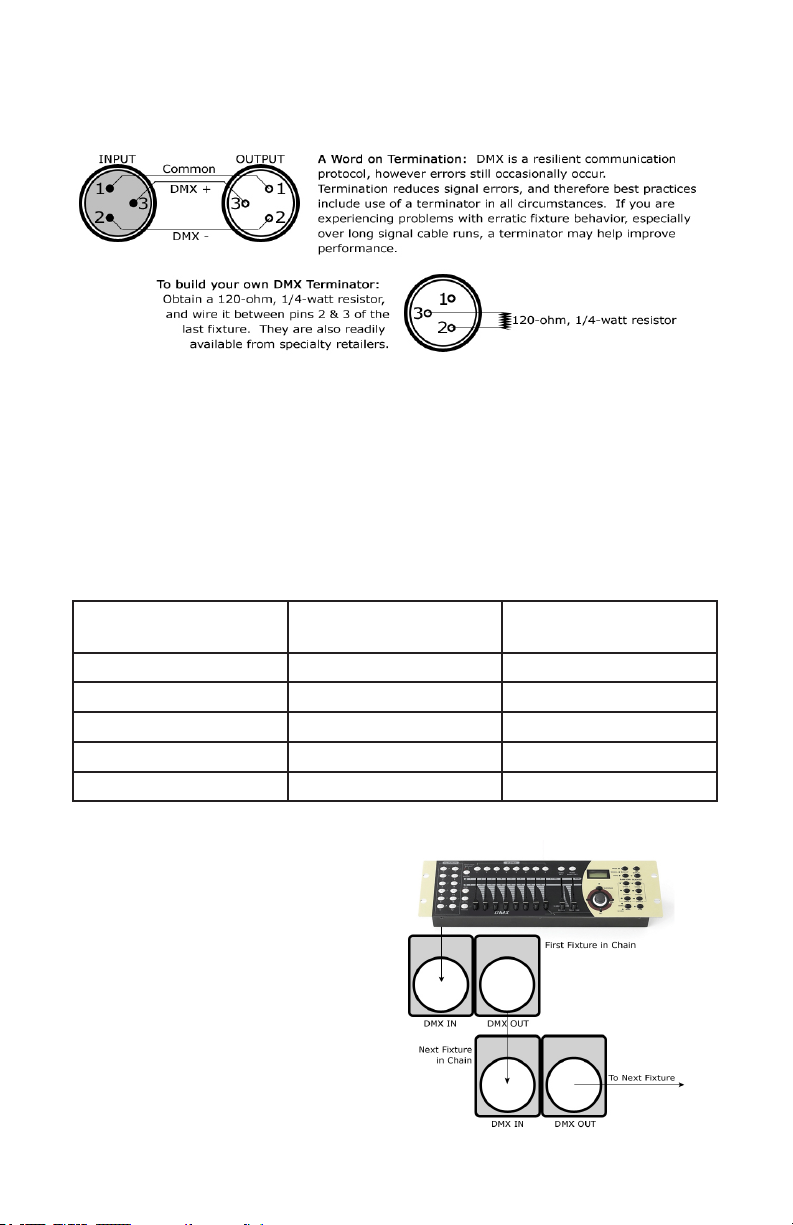

Take It To The Next Level: Setting Up DMX Control

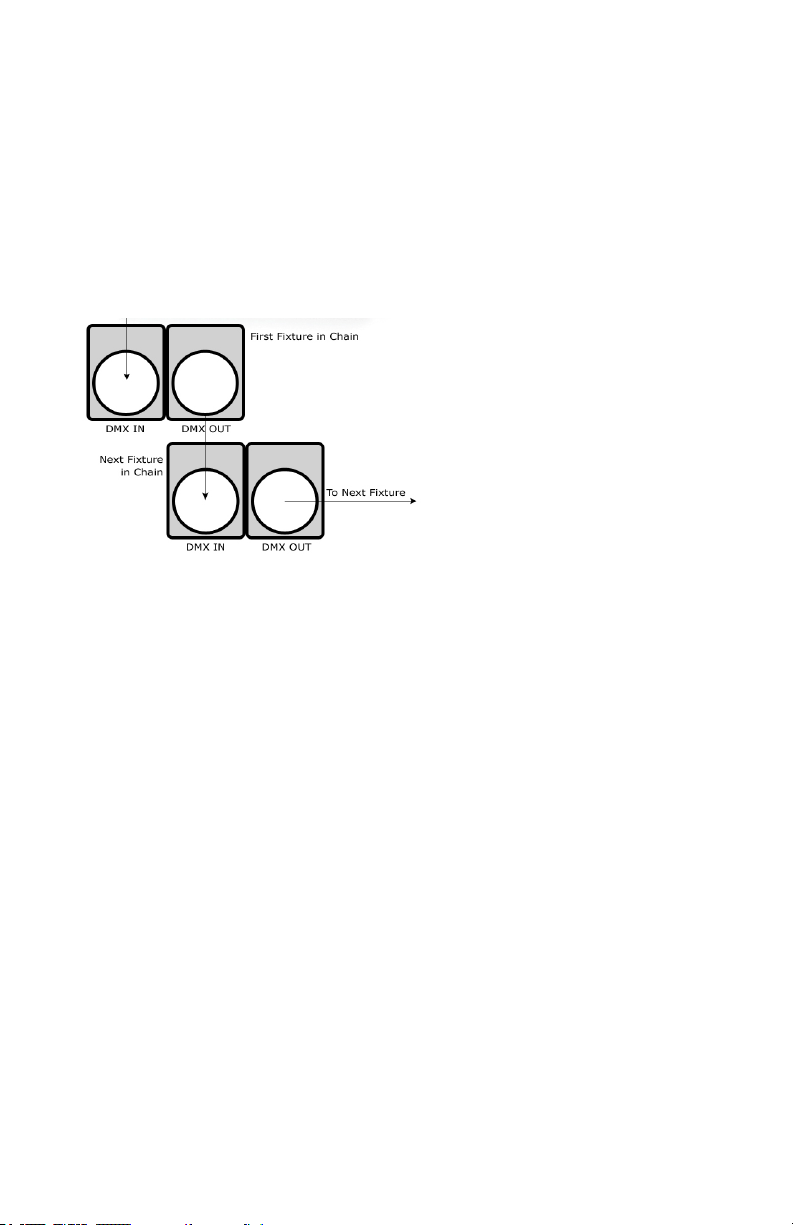

Step 1: Connect the male connector of the
DMX cable to the female connector (output)
on the controller.
Step 2: Connect the female connector of
the DMX cable to the rst xture’s male
connector (input). Note: It doesn’t matter
which xture address is the rst one
connected. We recommend connecting the
xtures in terms of their proximity to the
controller, rather than connecting the lowest
xture number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture
to ensure best communication.

Page 9
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3 pin connector side of the DMX cable to the output
(female) 3 pin connector of the rst xture.
2. Connect the end of the cable coming from the rst xture which will have a
(female) 3 pin connector to the input connector of the next xture consisting of
a (male) 3 pin connector. Then, proceed to connect from the output as stated
above to the input of the following xture and so on.
A quick note: Often, the setup for Master-Slave and Standalone operation
requires that the rst xture in the
chain be initialized for this purpose
via either settings in the control
panel or DIP-switches. Secondarily,
the xtures that follow may also
require a slave setting.
Check the “Operating
Adjustments” section in this
manual for complete instructions
for this type of setup and
conguration.
Mounting & Rigging
This xture may be mounted in any SAFE position provided there is enough
room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the xture
using a suitable “C” or “O” type clamp. The clamp should be rated to hold at
least 10x the xture’s weight to ensure structural stability. Do not mount to
surfaces with unknown strength, and ensure properly “rated” rigging is used
when mounting xtures overhead.
Adjust the angle of the xture by loosening both knobs and tilting the xture.
After nding the desired position, retighten both knobs.
• When selecting installation location, take into consideration lamp
replacement access (if applicable) and routine maintenance.
• Safety cables MUST ALWAYS be used.
• Never mount in places where the xture will be exposed to rain, high
humidity, extreme temperature changes or restricted ventilation.
Lighting Stand Mounting
This xture comes with an easy to use stand mounting bracket. Please make
sure the lighting stand you use is rated to safely hold the weight of this unit and
do not over-extend the lighting stand. For the safety of yourself, your audience,
and the xture... always take advantage of the use of the stand’s safety pins!

Page 10
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
USING THIS FIXTURE WITH THE wiCICLE® WIRELESS
DMX SYSTEM
In addition to the unbridled thrill you already
received the rst time you plugged in your
xture, you’ll be delighted to know that
This xture also works seamlessly with our
wiCICLE®Wireless DMX system, without additional power.
• ONLY xtures bearing this logo are certied for use with the wiCICLE®
without external power.
• Unauthorized modication and/or using the wiCICLE®with un-
approved xtures may cause damage to the wiCICLE® or xture.
UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPONSI-
BLE FOR ANY DAMAGE FROM SUCH OPERATION.
• Fixtures bearing the above logo MUST only use cable and connectors
which separate chassis/case ground from cable shielding. Cabling with
the shield connected to the connector’s case/chassis may cause malfunc-
tion and damage to the wiCICLE® or xture.
• wiCICLE®transmitters have additional power requirements and
therefore cannot be powered directly from the xture. You will
need to utilize the supplied AC/DC adaptor to drive wiCICLE®
transmitters in your system.
WE HAD THIS SPACE, SO WE FIGURED WE’D DRAW
YOU A PICTURE:
Antenna Housing & 1/2-wave
Antenna
Antenna ferrule & articulation
joint
Stainless Steel Housing
Recessed Selector Button
Status LED
3-Pin XLR Connector
(Male on transmitter, Female
on receiver model)

Page 11
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
Each wiCICLE®acts as both a transmitter and a receiver, depending on whether a
DMX source is applied to the integral XLR connector. This is an extremely powerful
feature of the system, however, it also requires 1 piece of due diligence, and that
is the removal of extraneous DMX signals from your lighting rig BEFORE proceed-
ing.
SO: BEFORE DOING ANYTHING ELSE, YOU SHOULD DISABLE ANY BUILT-
IN PROGRAMS IN THE FIXTURES YOU WISH TO CONNECT AND/OR SET
THEM AS SLAVES PRIOR TO RETURNING THEM TO DMX MODE (IF APPLI-
CABLE). Most xtures contain a built-in automatic, sound active or cus-
tom program which is designed to operate with the xture NOT connected
to a DMX chain.
Some of these programs will automatically run unless the xture is set to slave
mode. These xtures typically sense DMX automatically and switch to DMX mode
upon receiving DMX signal (our Pucks do that!)
If you plug a wiCICLE® “receiver” into an autosensing xture set as a “master,
“chances are good that the wiCICLE®“receiver” will begin transmitting the master
program. Most times, this is undesirable, and taking the two seconds to switch
these programs off will solve a lot of ails.
Got that done? Good! Then let’s proceed!
1. Plug the wiCICLE® Receiver into the “DMX IN” connector of the xture and verify
it is receiving power (the STATUS LED should illuminate.)
2. Connect the AC/DC adaptor to the wiCICLE®Transmitter and verify it is receiv-
ing power (the STATUS LED should illuminate.)
3. Press the RECESSED SELECTOR BUTTON on the Transmitter to select the
operating channel group. (The system will store this setting for future use)
The 7-Color Status LED will change color to indicate the current channel group:
· GROUP 1: RED
· GROUP 2: GREEN
· GROUP 3: YELLOW
· GROUP 4: BLUE
· GROUP 5: VIOLET
· GROUP 6: CYAN
· GROUP 7: WHITE
4. Follow the same procedure on the Receiver to select the channel group.
5. Once both the transmitter and receiver(s) are both set to the same channel
group, connect the transmitter to the DMX controller or the DMX out of a xture
on your DMX chain.
6. Once a DMX signal is provided to the transmitter, the status LED will blink RED
slowly until communication is established with the receiver. The status LED on
the receiver(s) will ash GREEN slowly until communication is established.
7. Once the clearest channel is auto-selected, the status LEDs will blink quickly on
both the transmitter and receiver. NOTE: The color of the LED DURING opera-
tion does not indicate channel group, instead it indicates whether the unit is
transmitting or receiving. That’s It!
NOTE: “GROUP” number
also corresponds to the
“GROUP” setting on our
LightCaster™wireless DMX
Transceiver.

Page 12
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and different modes possible with the SwitchBlade™
Micro are accessed by using the control panel on the rear of the x-
ture. There are 4 control buttons below the LED display which allow
you to navigate through the various control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.
The Control Panel LED Display shows the menu items you select from
the menu map on page #11. When a menu function is selected, the
display will show immediately the rst available option for the selected
menu function. To select a menu item, press <ENTER>.
Use the <MENU> button to navigate the main menu options. Press
the <ENTER> button to select the menu function currently displayed.
Then use the <UP/DOWN> buttons to scroll through any submenu
options, and press <ENTER> to save. To return to the previous option
or menu, press the <MENU> button.

Page 13
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
A001 A001 - A512 To choose the DMX address
CH --
CH13 13-channel DMX mode
CH11 11-channel DMX mode
Au -- Au01 - Au02 Auto mode (1=fast, 2=slow)
Sond
SO.ON Sound Active = On
SO.OF Sound Active = Off
nAnu
H000 - H255 Pan (0° <--> 540°)
Y000 - Y255 Tilt (0° <--> 270°)
r000 - r255 Red dimmer (0% <--> 100%)
G000 - G255 Green dimmer (0% <--> 100%)
b000 - b255 Blue dimmer (0% <--> 100%)
U000 - U255 White dimmer (0% <--> 100%)
rP --
rPoF Reverse Pan = Off
rPon Reverse Pan = On
rt --
rtoF Reverse Tilt = Off
rton Reverse Tilt = On
rd --
rdoF Reverse Display = Off
rdon Reverse Display = On
dF --
dFoF Restore default settings = No
dFon Restore default settings = Yes
rSt <ENTER> Motor Reset
Control Panel Menu Structure

Page 14
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Set the Starting DMX Address:
The default mode for the xture is DMX, so the rst menu item that you can edit is the
starting DMX address.
1.) Navigate the menu using the <MENU> button until you reach A001.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select a DMX channel from 001-512.
4.) Press the <ENTER> button to conrm.
Select the DMX Channel Mode:
1.) Navigate the menu using the <MENU> button until you reach CH--.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either CH11 or 13CH mode.
4.) Press the <ENTER> button to conrm.
Auto, Stand-Alone, & Built-in Program Modes:
Allows a single or Master/Slaved units to run factory installed programs at user selectable speeds.
Auto Mode:
1.) Navigate the menu using the <MENU> button until you reach Au--.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either Au01 (fast) or Au02 (slow).
4.) Press the <ENTER> button to conrm.
Sound Active Mode:
1.) Navigate the menu using the <MENU> button until you reach Sond.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either So.on (On) or So.of (Off).
4.) Press the <ENTER> button to conrm.
Manual Adjustments:
1.) Navigate the menu using the <MENU> button until you reach nAnu.
2.) Navigate the submenu using the <UP/DOWN> buttons until you reach H--- (Pan), Y---
(Tilt), r--- (Red). 9--- (Green), b--- (Blue), or u--- (White) then hit <ENTER>.
3.) Using the <UP/DOWN> buttons, select your desired value for each between
x000-x255, then hit <ENTER> to conrm.
Reverse Pan
1.) Navigate the menu using the <MENU> button until you reach rPoF.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either rPoF (Off) or rPon (On).
4.) Press the <ENTER> button to conrm.
Reverse Tilt
1.) Navigate the menu using the <MENU> button until you reach rtoF.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either rtoF (Off) or rton (On).
4.) Press the <ENTER> button to conrm.
Reverse (Flip) the Menu Display
1.) Navigate the menu using the <MENU> button until you reach rdoF.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either rdoF (No) or rdon (Yes).
4.) Press the <ENTER> button to conrm.

Page 15
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
Restore Default Settings
This will restore all of the default settings including pan/tilt reversal and the starting DMX address.
1.) Navigate the menu using the <MENU> button until you reach dF0F.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select either dF0F (No) or dF0n (Yes).
4.) Press the <ENTER> button to conrm.
Pan/Tilt Motor Reset
1.) Navigate the menu using the <MENU> button until you reach rSt.
2.) Press the <ENTER> button to conrm.
DMX Values In-Depth (13-Channel Mode)
Channel Value What It Does
1000 <--> 255 Pan (0-540°)
2000 <--> 255 Tilt (0-270°)
3000 <--> 255 Fine Pan (fast <--> slow)
4000 <--> 255 Fine Tilt (fast <--> slow)
5000 <--> 255 Pan/Tilt Speed (slow <--> fast)
6000 <--> 255 Dimmer (0% <--> 100%)
7000 <--> 255 Strobe (slow <--> fast)
8000 <--> 255 Red Intensity (0% <--> 100%)
9000 <--> 255 Green Intensity (0% <--> 100%)
10 000 <--> 255 Blue Intensity (0% <--> 100%)
11 000 <--> 255 White Intensity (0% <--> 100%)
12
000 <--> 010
011 <--> 020
021 <--> 030
031 <--> 040
041 <--> 050
051 <--> 060
061 <--> 070
071 <--> 080
081 <--> 090
091 <--> 100
101 <--> 110
111 <--> 120
121 <--> 130
131 <--> 140
141 <--> 150
151 <--> 160
161 <--> 200
201 <--> 240
241 <--> 255
Built-in Programs, Sound Active
No Function
Red
Green
Blue
White
Red+Green
Green+Blue
Blue+White
Red+White
Red+Blue
Green+White
Red+Green+Blue
Green+Blue+White
Red+Blue+White
Red+Green+White
Red+Green+Blue+White
Color Snap (Slow <--> Fast)
Color Fade (Slow <--> Fast)
Sound Active Mode
13
000 <--> 149
150 <--> 200
201 <--> 255
No Function
Motor Reset
No Function

Page 16
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
DMX Values In-Depth (11-Channel Mode)
Channel Value What It Does
1 000 <--> 255 Pan (0-540°)
2 000 <--> 255 Tilt (0-270°)
3 000 <--> 255 Fine Pan (fast <--> slow)
4 000 <--> 255 Fine Tilt (fast <--> slow)
5 000 <--> 255 Pan/Tilt Speed (slow <--> fast)
6 000 <--> 255 Dimmer (0% <--> 100%)
7 000 <--> 255 Strobe (slow <--> fast)
8 000 <--> 255 Red Intensity (0% <--> 100%)
9 000 <--> 255 Green Intensity (0% <--> 100%)
10 000 <--> 255 Blue Intensity (0% <--> 100%)
11 000 <--> 255 White Intensity (0% <--> 100%)
Troubleshooting
Symptom Solution
Fixture Auto-
Shut Off
Check the fan in the xture. If it is stopped or moving
slower than normal, the unit may have shut itself off due to
high heat. This is to protect the xture from overheating.
Clear the fan of obstructions, or return the unit for service.
Beam is Dim Check optical system and clean excess dust/grime. Also
ensure that the 220V/110V switch is in the correct position,
if applicable.
No Light Out-
put
Check to ensure xture is operating under correct mode, IE
sound active/auto/DMX/Etc., if applicable. Contact service
for more information.
Chase Speed
Too Fast/Slow
Check to ensure proper setup of speed adjustment.
No Power Check fuse, AC cord and circuit for malfunction.
No Response
to Audio
Verify that the xture is in “Sound Active” mode.
Adjust Audio Sensitivity, If Applicable.
Fixture Not
Responding /
Responding
Erratically
Make sure all connectors are seated properly and securely.
Use Only DMX Cables.
Install a Terminator.
Check all cables for defects.
Reset xture(s).
If your problem isn’t listed, or if problems persist,
please contact support: [email protected].

Page 17
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
5. APPENDIX
A Quick Lesson On DMX
DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common
communications standard used by lighting and related stage equipment.
DMX provides up to 512 control “channels” per data link. Each of these channels was
originally intended to control lamp dimmer levels. You can think of it as 512 faders on a
lighting console, connected to 512 light bulbs. Each slider’s position is sent over the data
link as an 8-bit number having a value between 0 and 255. The value 0 corresponds to the
light bulb being completely off while 255 corresponds to the light bulb being fully on.
DMX data is transmitted at 250,000 bits per second using the RS-485 transmission
standard over two wires. As with microphone cables, a grounded cable shield is used to
prevent interference with other signals.
There are ve pins on a DMX connector: a wire for ground (cable shield), two wires for
“Primary” communication which goes from a DMX source to a DMX receiver, and two
wires for a “Secondary” communication which goes from a DMX receiver back to a DMX
source. Generally, the “Secondary” channel is not used so data ows only from sources
to receivers. Hence, most of us are most familiar with DMX-512 as being employer over
typical 3-pin “mic cables,” although this does not conform to the dened standard.
DMX is connected using a daisy-chain conguration where the source connects to the input
of the rst device, the output of the rst device connects to the input of the next device,
and so on. The standard allows for up to 32 devices on a single DMX link.
Each receiving device typically has a means for setting the “starting channel number” that
it will respond to. For example, if two 6-channel xtures are used, the rst xture might
be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next
xture would be set to start at channel 7 so it would respond to channels 7 through 12.

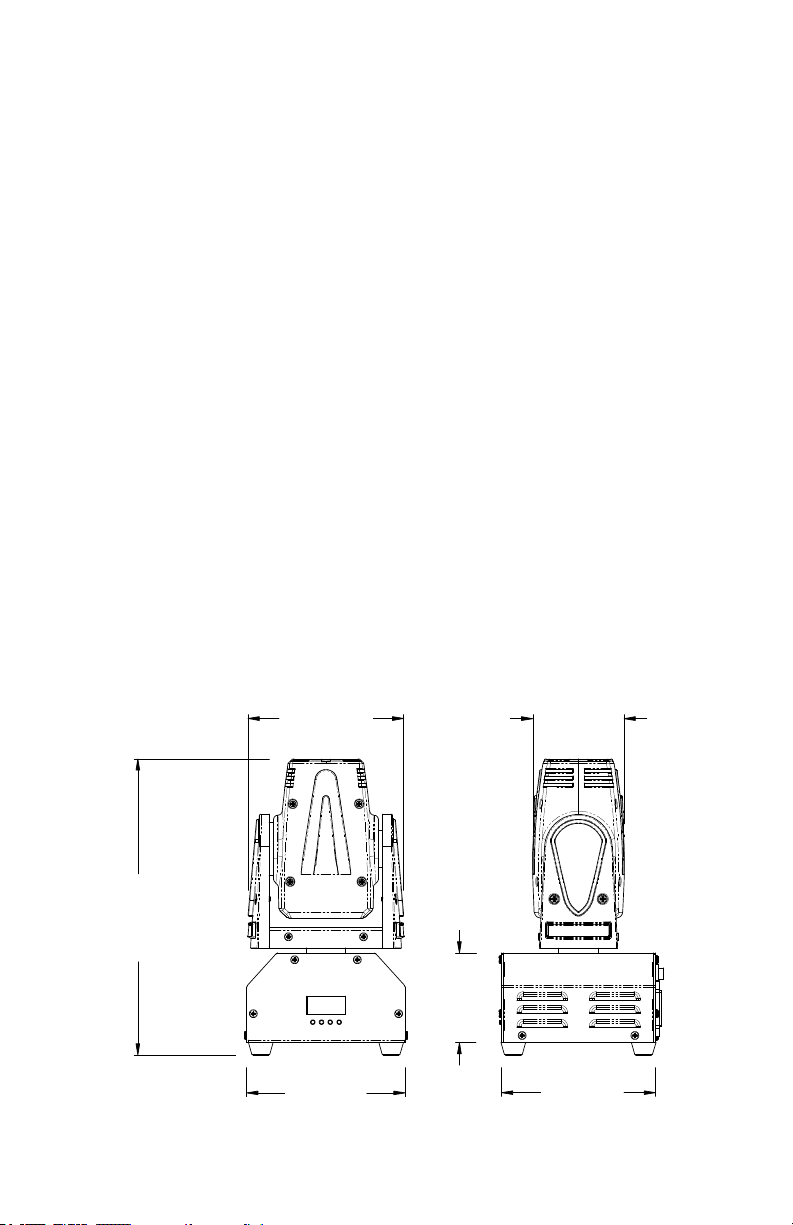

Dimensional Drawings
4.9 in
(12.4 cm)
9.4 in
(23.7 cm)
5 in
(12.7 cm)
2.4 in
(7.2 cm)
2.9 in
(7.3 cm)
4.9 in
(12.3 cm)

Page 18
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
Keeping Your SwitchBlade™ Micro As Good As New
The xture you’ve received is a rugged, tough piece of pro lighting equipment,
and as long as you take care of it, it will take care of you. That said, like
anything, you’ll need to take care of it if you want it to operate as designed.
You should absolutely keep the xture clean, especially if you are using it in an
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
the quality of light output. Keeping the fans free of dust and debris will keep
the xture running cool and prevent damage from overheating.
In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
xtures.
Common sense and taking care of your xtures will be the single biggest thing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your
client’s satisfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But,
like any complex piece of equipment designed and built by humans, once in a
while, something doesn’t go as planned. If you nd yourself with a xture that
isn’t behaving like a good little xture should, you’ll need to obtain a Return
Authorization (RA).
Don’t worry, this is easy. Just send an email to [email protected],
and we’ll issue you an RA. Then, you’ll need to send the unit to us using a
trackable, pre-paid freight method. We suggest using USPS Priority or UPS.
Make sure you carefully pack the xture for transit, and whenever possible, use
the original box & packing for shipping.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember
that any shipping damage which occurs in transit to us is the customer’s
responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

Page 19
SwitchBlade™ Micro User Manual Rev. A (c) Copyright 2014 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Length 4.9 inches (12.3 cm)
Width 5 inches (12.4 mm)
Height 9.4 inches (23.7 mm)
Weight 4.41 lbs (2 kg)
Power
Operating Voltage AC 100-240VAC, 47-63 Hertz
Power Consumption 35w
Light Source
LED 1* 15-watt R/G/B/W CREE® LED
Optical
Beam Angle 8 degree
Luminous Intensity Lux/m Red Green Blue White All
1m 3,760 3,397 5,690 6,780 16,890
2m 985 961 1,457 1,872 6,710
Thermal
Max. Operating
Temp.
104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 11 or 13 Channels
Input 3-pin XLR Male
Output 3-pin XLR Female
Other Operating
Modes Standalone, Master/Slave, Auto, Sound Active
Other Information
I just wanted to waste a little more time. Okay, that should do it.
Warranty
2-year limited warranty, does not cover mal-
function caused by damage to LED’s.

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
