Blodgett ZEPHAIRE-G Owner's manual

ZEPHAIRE-G AND ZEPHAIRE-G PLUS
CONVECTION OVENS
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: [phone] Fax: [phone]
PN 90139 Rev R (11/12)
© 2012 - G.S. Blodgett Corporation

Your Service Agency’s Address:
Model
Serial number
Oven installed by
Installation checked by

TABLE OF CONTENTS
INSTALLATION
Oven Description and Specications ....................................... 2
Delivery and Location .................................................... 3
Oven Assembly .......................................................... 4
NSF Bolts ........................................................... 4
Leg Attachment ...................................................... 5
Caster Assembly ..................................................... 5
Double Section Assembly ............................................. 6
Oven Leveling ....................................................... 6
Ventilation ............................................................... 7
Utility Connections - Standards and Codes ................................. 9

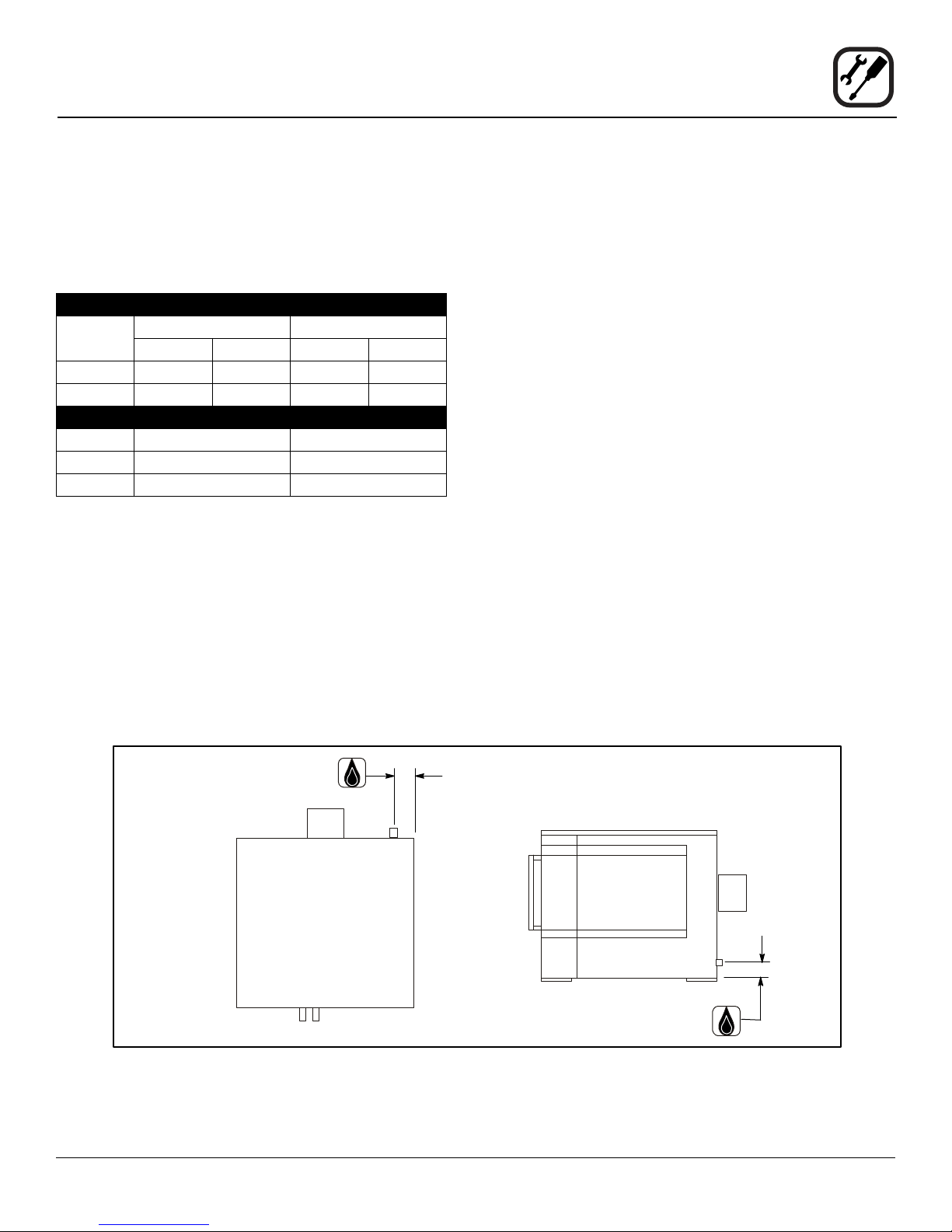

Gas Connection......................................................... 10

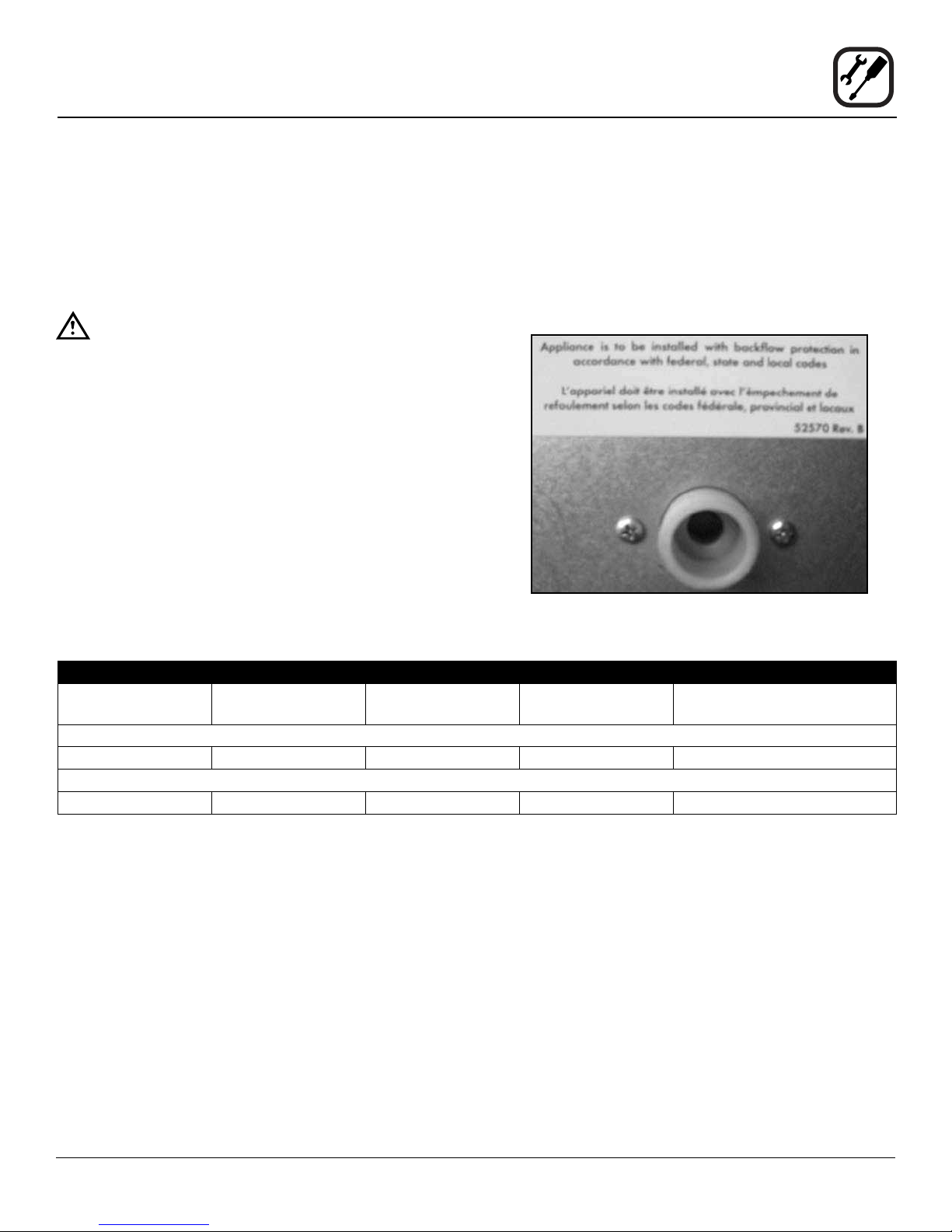

Electrical & Water Connection ............................................ 13
Initial Startup ........................................................... 14
OPERATION
Safety Information....................................................... 15
Zephaire G Standard Control............................................. 16
Zephaire G Plus Standard Control ........................................ 17
Zephaire G Plus Manual Control with Water Spritzer ....................... 18
Zephaire G Plus Solid State Digital ....................................... 19
General Guidelines for Operating Personnel ............................... 21
Suggested Times and Temperatures ...................................... 22
MAINTENANCE
Cleaning and Preventative Maintenance .................................. 23
Troubleshooting Guide .................................................. 24
IMPORTANT
WARNING: Improper installa-
tion, adjustment, alternation,
service or maintenance can
cause property damage, in-
jury or death. Read the instl-
lation, operation and mainte-
nance instructions thoroughly
before installing or servicing
this equipment.
INSTRUCTIONS TO BE FOL-
LOWED IN THE EVENT THE
USER SMELLS GAS MUST BE
POSTED IN A PROMINENT LO-
CATION. This information may
be obtained by contacting your
local gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other ammable vapors or liq-
uids in the vicinity of this or any
other appliance.
The information contained in this
manual is important for the prop-
er installation, use, and mainte-
nance of this oven. Adherence
to these procedures and instruc-
tions will result in satisfactory
baking results and long, trou-
ble free service. Please read
this manual carefully and retain
it for future reference.
ERRORS: Descriptive, typo-
graphic or pictorial errors are
subject to correction. Speci-
cations are subject to change
without notice.

2
Installation
Oven Description and Specications
GAS RATINGS
Natural Gas Propane
US Units SI Units US Units SI Units
Heating Value 1000 BTU/cu. ft. 37.3 MJ/m3 2550 BTU/cu. ft. 95.0 MJ/m3
Specic Gravity (air=1.0) 0.63 0.63 1.53 1.53
Oven Input 60,000 BTU/hr 17.6 kW 60,000 BTU/hr 17.6 kW
Manifold Pressure 3.5” W.C. .87 kPa 10” W.C. 2.49 kPa
Main Burner Orice Size 38 MTD* 2.6 mm .061” dia. 1.55 mm
Pilot Burner Orice Size .021” dia. .021” dia. .014” dia. .36 mm
GAS SPECIFICATIONS - Zephaire G-L for Australia
Oven Input — 63 MJ/h — 63 MJ/h
Main Burner Orice Size .1065” dia. 2.7 mm .0635” dia. 1.6 mm
NOTE: * - Multiple Twist Drill
Cooking in a convection oven differs from cooking in a
conventional deck or range oven since heated air is con-
stantly recirculated over the product by a fan in an en-
closed chamber. The moving air continually strips away
the layer of cool air surrounding the product, quickly al-
lowing the heat to penetrate. The result is a high qual-
ity product, cooked at a lower temperature in a shorter
amount of time.
Blodgett convection ovens represent the latest advance-
ment in energy efciency, reliability, and ease of opera-
tion. Heat normally lost, is recirculated within the cooking
chamber before being vented from the oven: resulting in
substantial reductions in energy consumption and en-
hanced oven performance.

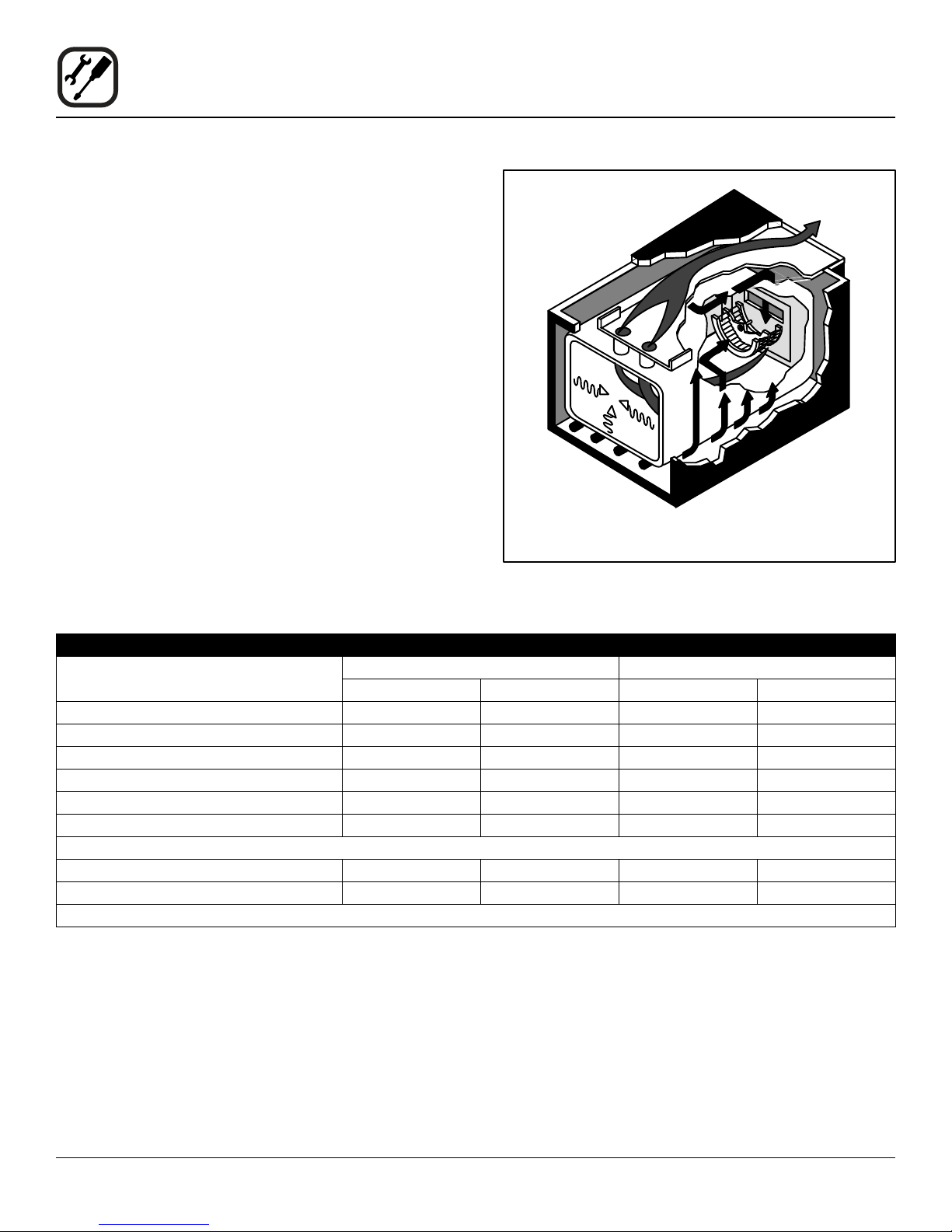

Air Flow Pattern for Blodgett Convection Ovens
Figure 1

3
Installation
Delivery and Location
DELIVERY AND INSPECTION
All Blodgett ovens are shipped in containers to prevent
damage. Upon delivery of your new oven:
• Inspect the shipping container for external damage.
Any evidence of damage should be noted on the
delivery receipt which must be signed by the driver.
• Uncrate the oven and check for internal damage.
Carriers will accept claims for concealed damage if
notied within fteen days of delivery and the ship-
ping container is retained for inspection.
The Blodgett Oven Company cannot assume responsibil-
ity for loss or damage suffered in transit. The carrier as-
sumed full responsibility for delivery in good order when
the shipment was accepted. We are, however, prepared
to assist you if ling a claim is necessary.
OVEN LOCATION
The well planned and proper placement of your oven will
result in long term operator convenience and satisfactory
performance.
The following clearances must be maintained between
the oven and any combustible or non-combustible con-
struction.
• Oven body right side - 6” (15 cm)
• Oven body left side - 6” (15 cm)
• Oven body back - 6” (15 cm)
• Oven body bottom - 4.5” (11.4 cm)
The following clearances must be available for servicing.
• Oven body sides - 12” (30 cm)
• Oven body back - 12” (30 cm)
NOTE: On gas models, routine servicing can usually
be accomplished within the limited movement
provided by the gas hose restraint. If the oven
needs to be moved further from the wall, the
gas must rst be turned off and disconnected
from the oven before removing the restraint.
Reconnect the restraint after the oven has been
returned to its normal position.
It is essential that an adequate air supply to the oven be
maintained to provide a sufcient ow of combustion and
ventilation air.
• Place the oven in an area that is free of drafts.
• Keep the oven area free and clear of all combus-
tibles such as paper, cardboard, and ammable
liquids and solvents.
• Do not place the oven on a curb base or seal to
a wall. This will restrict the ow of air and prevent
proper ventilation. Tripping of the blower motor’s
thermal overload device is caused by an excessive
ambient temperature on the right side of the oven.
This condition must be corrected to prevent perma-
nent damage to the oven.
• The location must provide adequate clearance for
the air opening into the combustion chamber.
Before making any utility connections to this oven, check
the rating plate to be sure the oven specications are
compatible with the gas and electrical services supplied
for the oven.
1. Remove the combustion compartment cover. The rat-
ing plate is attached to the frame on the left side of
the combustion compartment.

4
Installation
Oven Assembly
NSF BOLTS
These bolts are required by NSF to block any exposed
hole on the back of an oven. This includes:
• any unit, single or stacked, without a back panel.
• any holes in stacked units not used for mounting
stacking brackets.
1. Locate the 5/16” bolts that were shipped with the
oven.
2. Install the bolts as shown
Double Stacked Units Units without back panels
Figure 2

5
Installation
Oven Assembly

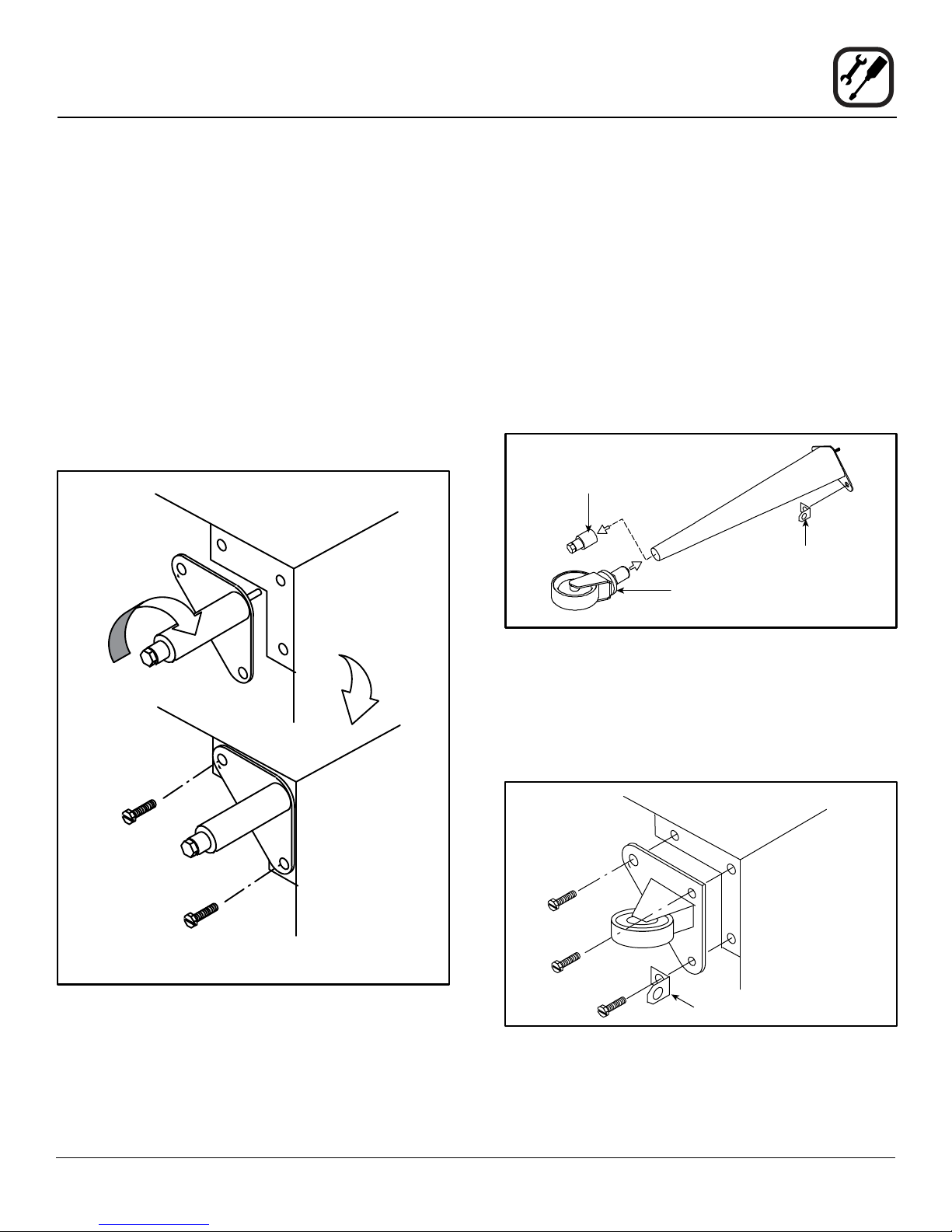

LEG ATTACHMENT
1. Push the oven onto a lift with the bottom of the oven
down.
2. Align the threaded stud in each leg with the nut locat-
ed inside each bottom corner of the oven frame. Turn
the legs clockwise and tighten to the nearest full turn.
3. Align the two leg plate holes in each leg with those
in the oven bottom. Secure each leg using two 1/2”
bolts.
NOTE: If using casters see CASTER ASSEMBLY
before proceeding.
4. Level the oven by screwing the adjustable leg feet in
or out as necessary.
6” (15 cm) Legs Shown
Figure 3
CASTER ASSEMBLY
NOTE: Install the locking casters on the front of the
oven. Install the non-locking casters on the back
of the oven.
NOTE: Use a gas hose restraint on all units with cast-
ers.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown. Tighten the
large hex nut to secure the casters.
Gas Hose
Restraint Bracket
Adjustable
Leg Foot
Caster Assembly
Figure 4

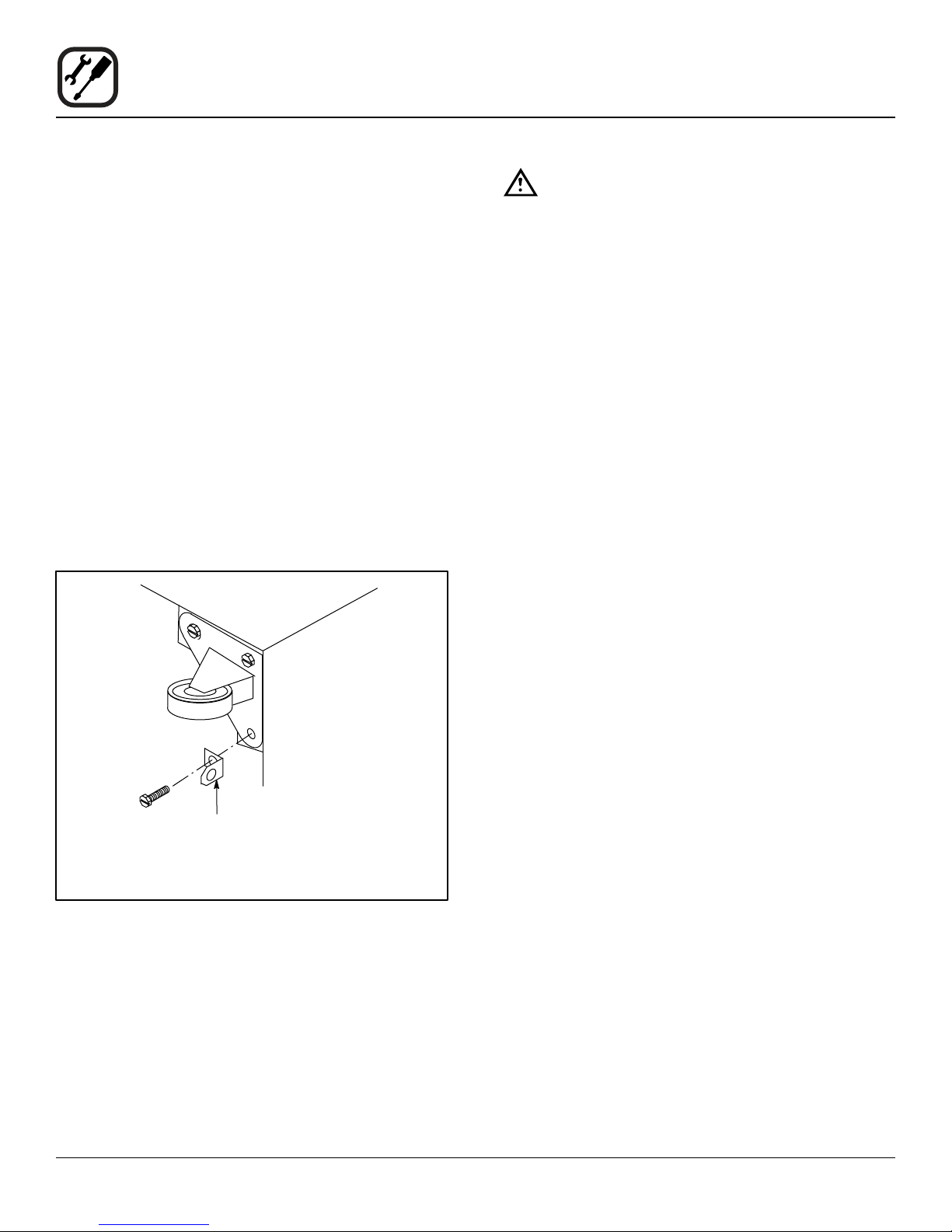

Low Prole Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly plate
with those in the oven bottom. Secure each caster
using three 1/2” bolts.
Gas Hose Restraint Bracket
Figure 5

6
Installation

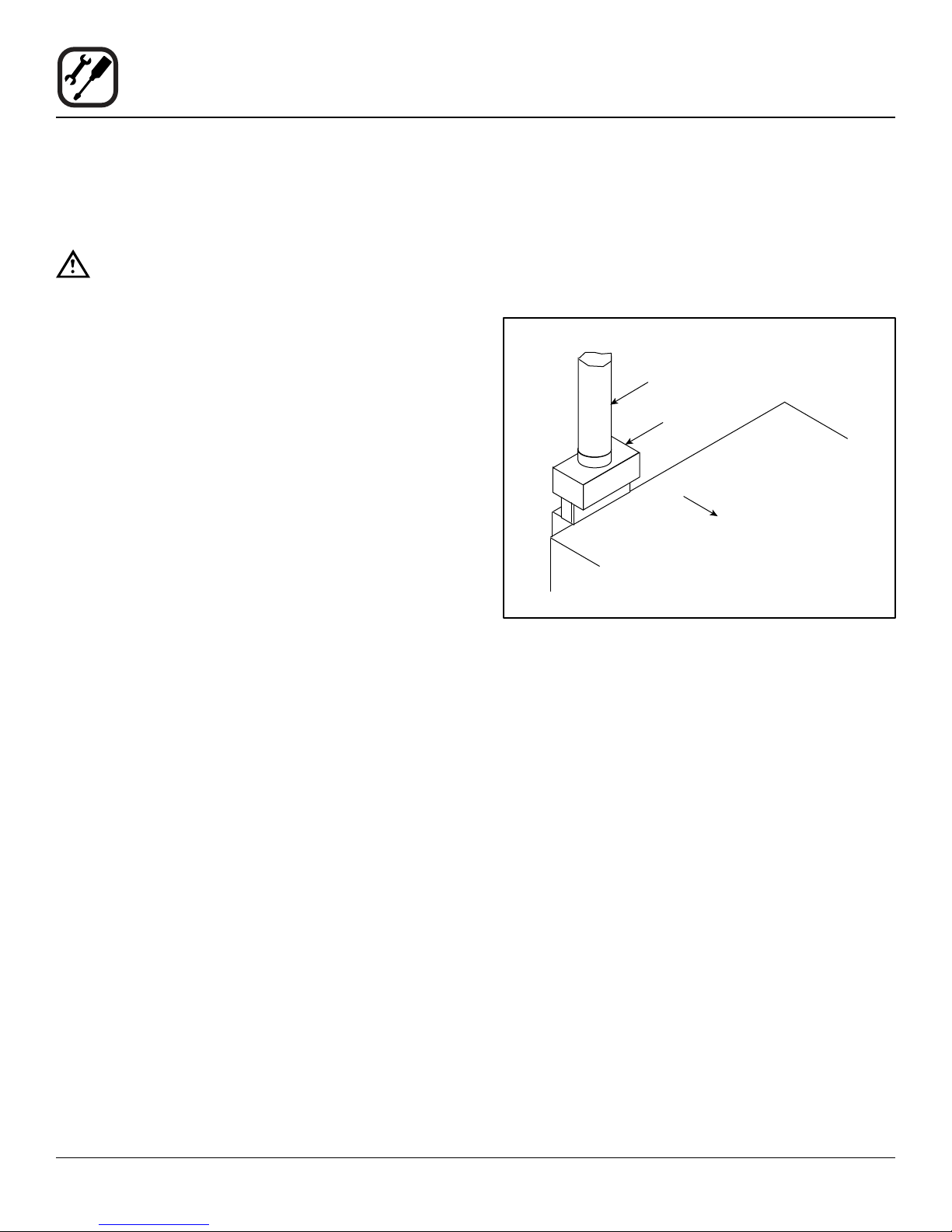

DOUBLE SECTION ASSEMBLY
NOTE: Old style ovens refer to units with painted ex-
posed rear angle. New style ovens refer to units
with rear angle iron enclosed in steel.
The following instructions apply to stacking two new style
ovens.
1. Secure the short legs to the bottom sections as de-
scribed.
2. Place the upper section in position on top of the lower
oven.
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
4. Attach the ue connector.

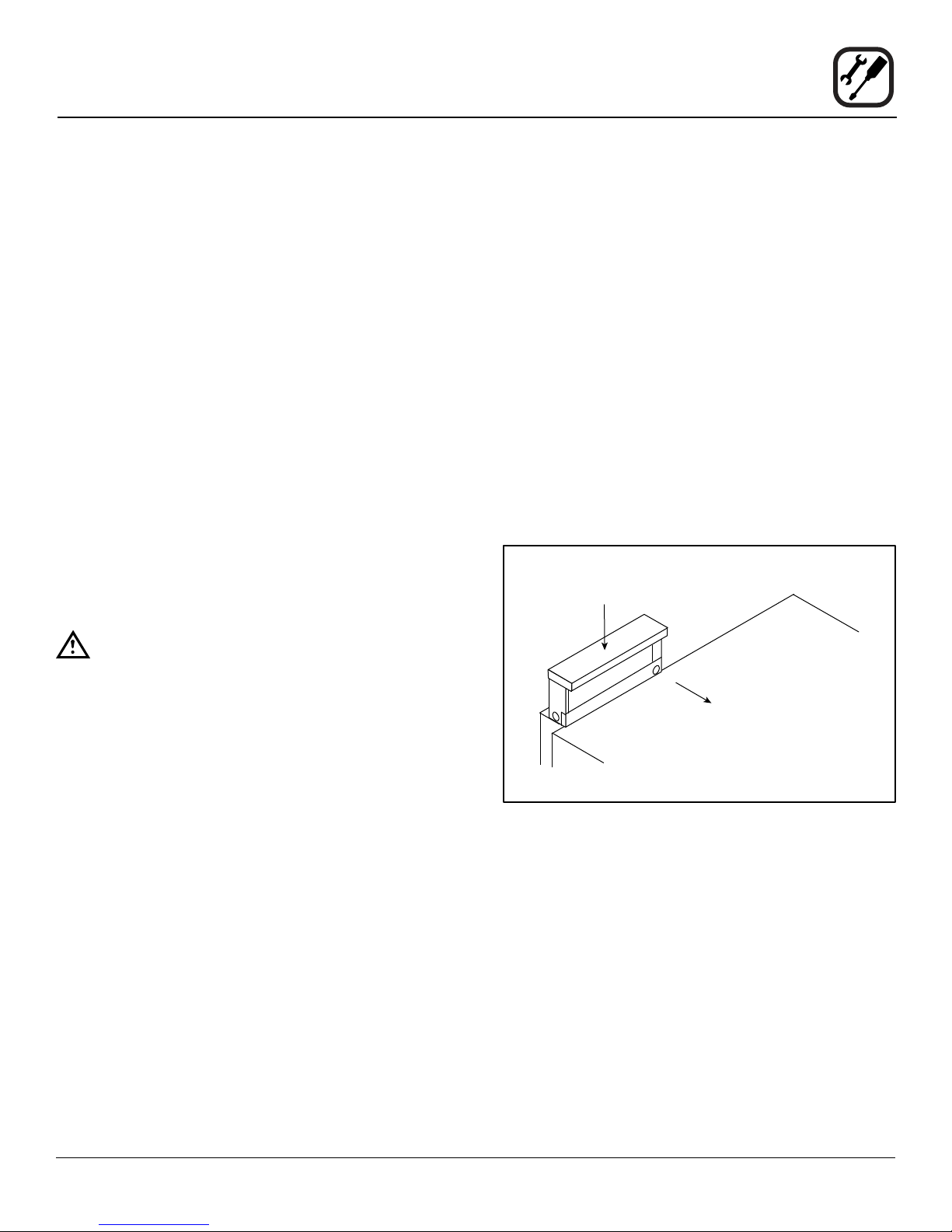

The following instructions apply to stacking a new style
oven on an old style oven.
1. Secure the short legs to the bottom sections as de-
scribed.
2. Place the upper section in position on top of the lower
oven.
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
4. Drill a clearance hole for a 5/16” bolt in the angle iron
of the old style oven. Use the holes in the stacking
brackets as a pilot.
5. Attach the stacking brackets to the old style oven with
the 5/16” bolts and nuts provided in the kit.
6. Attach the ue connector.
WARNING!!
When stacking ovens be sure to remove the
single oven ue boxes prior to attaching
three-piece connector.
OVEN LEVELING
After assembly, the oven should be leveled and moved to
the operating location.
1. The oven can be leveled by adjusting the feet or cast-
ers located on the bottom of each leg.
Figure 6
Flue Connector
Oven Assembly

7
Installation
Ventilation
On gas models the installation of a proper ventilation sys-
tem cannot be over emphasized. This system removes
unwanted vapors and products of combustion from the
operating area.
This oven may be vented using either:
• A mechanically driven, canopy type, exhaust hood,
or
• A direct ue arrangement.
U.S. and Canadian installations
Refer to your local ventilation codes. In the absence of
local codes, refer to the National ventilation code titled,
“Standard for the Installation of Equipment for the Remov-
al of Smoke and Grease Laden Vapors from Commercial
Cooking Equipment”, NFPA-96-Latest Edition.
Australia and general export installations
Installation must conform with Local and National instal-
lation standards. Local installation codes and/or require-
ments may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
WARNING:
Failure to properly vent the oven can be haz-
ardous to the health of the operator and may
result in operational problems, unsatisfactory
baking and possible damage to the equip-
ment.
Damage sustained as a direct result of im-
proper ventilation will not be covered by the
manufacturer’s warranty.
CANOPY TYPE EXHAUST HOOD
A mechanically driven, canopy type exhaust hood is the
preferred method of ventilation.
The hood should be sized to completely cover the equip-
ment plus an overhang of at least 6” (15 cm) on all sides
not adjacent to a wall. The distance from the oor to the
lower edge of the hood should not exceed 7’ (2.1m).
The total makeup and exhaust air requirements for hood
capacity should be approximately 30 CFM (.85 m3) for
each oven section.
Installing the canopy hood draft diverter
Ovens ordered for hood venting are supplied with a draft
diverter. Install the draft diverter as follows:
1. Place the diverter over the ue connector with the
open area facing the front of the oven.
2. Secure both ends with the sheet metal screws pro-
vided.
Draft Diverter
Front of Oven
Figure 7

8
Installation
Ventilation
DIRECT FLUE ARRANGEMENT
When the installation of a mechanically driven exhaust
hood is impractical the oven may be vented by a direct
ue arrangement.
WARNING!!
It is essential that the direct ue be installed
as follows. Incorrect installation will result in
unsatisfactory baking and oven damage.
The ue must be class B or better with a diameter of 6”
(15 cm). The height of the ue should rise 6-8 ft (2-2.5 m)
above the roof of the building or any proximate structure.
Never direct vent the oven into a hood. The ue should be
capped with a UL Listed type vent cap to isolate the unit
from external environmental conditions.
The direct vent cannot replace air consumed and vented
by the oven. Provisions must be made to supply the room
with sufcient make-up air. Total make-up air require-
ments for each oven section should be approximately 30
CFM (.85m3) per section. To increase the supply air en-
tering the room, a ventilation expert should be consulted.
Installing the draft hood
Ovens ordered for direct venting are supplied with a draft
hood. Install the draft hood as follows:
1. Place the draft hood over the ue connector.
2. Secure both ends with the sheet metal screws pro-
vided.
Flue
Draft Hood
Front of Oven
Figure 8

9
Installation
Utility Connections - Standards and Codes
THE INSTALLATION INSTRUCTIONS CONTAINED
HEREIN ARE FOR THE USE OF QUALIFIED INSTAL-
LATION AND SERVICE PERSONNEL ONLY. INSTAL-
LATION OR SERVICE BY OTHER THAN QUALIFIED
PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN
AND/OR INJURY TO THE OPERATOR.
Qualied installation personnel are individuals, a rm,
a corporation, or a company which either in person or
through a representative are engaged in, and responsible
for:
• the installation or replacement of gas piping and the
connection, installation, repair or servicing of equip-
ment.
• the installation of electrical wiring from the electric
meter, main control box or service outlet to the elec-
tric appliance.
Qualied installation personnel must be experienced in
such work, familiar with all precautions required, and have
complied with all requirements of state or local authorities
having jurisdiction.
U.S. and Canadian installations
Installation must conform with local codes, or in the ab-
sence of local codes, with the National Fuel Gas Code,
NFPA54/ANSI Z223.1-Latest Edition, the Natural Gas In-
stallation Code CAN/CGA-B149.1 or the Propane Instal-
lation Code, CAN/CGA-B149.2 as applicable.
Installation must conform with local codes, or in the ab-
sence of local codes, with the National Electrical Code,
ANSI/NFPA 70-Latest Edition and/or Canadian National
Electric Code C22.2 as applicable.
Appliance is to be installed with backow prevention in
accordance with applicable federal, province and local
codes.
Australia and general export installations
Installation must conform with Local and National instal-
lation standards. Local installation codes and/or require-
ments may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.

10
Installation
Gas Connection
GAS PIPING
A properly sized gas supply system is essential for maxi-
mum oven performance. Piping should be sized to pro-
vide a supply of gas sufcient to meet the maximum de-
mand of all appliances on the line without loss of pressure
at the equipment.
Example:
NOTE: BTU values in the following example are for
natural gas.
You purchase a Zephaire-G to add to your existing cook
line.
1. Add the BTU rating of your current appliances.
Pitco Fryer 120,000 BTU
6 Burner Range 60,000 BTU
Deck Oven 50,000 BTU
Total 230,000 BTU
2. Add the BTU rating of the new oven to the total.
Previous Total 230,000 BTU
Zephaire-G 60,000 BTU
New Total 290,000 BTU
3. Measure the distance from the gas meter to the cook
line. This is the pipe length. Let’s say the pipe length
is 40’ (12.2 m) and the pipe size is 1” (2.54 cm).
4. Use the appropriate table to determine the total ca-
pacity of your current gas piping.
The total capacity for this example is 320,000 BTU. Since
the total required gas pressure, 290,000 BTU is less than
320,000 BTU, the current gas piping will not have to be
increased.
NOTE: The BTU capacities given in the tables are for
straight pipe lengths only. Any elbows or other
ttings will decrease pipe capacities. Contact
your local gas supplier if you have any ques-
tions.
Maximum Capacity of Iron Pipe in Cubic Feet of
Natural Gas Per Hour
(Pressure drop of 0.5 Inch W.C.)
PIPE
LENGTH (FT)
NOMINAL SIZE, INCHES
3/4” 1” 1-1/4” 1-1/2” 2”
10 360 680 1400 2100 3950
20 250 465 950 1460 2750
30 200 375 770 1180 2200
40 170 320 660 990 1900
50 151 285 580 900 1680
60 138 260 530 810 1520
70 125 240 490 750 1400
80 118 220 460 690 1300
90 110 205 430 650 1220
100 103 195 400 620 1150
From the National Fuel Gas Code Part 10 Table 10-2
Maximum Capacity of Pipe in Thousands of
BTU/hr of Undiluted L.P. Gas at 11” W.C.
(Pressure drop of 0.5 Inch W.C.)
PIPE
LENGTH (FT)
OUTSIDE DIAMETER, INCHES
3/4” 1” 1-1/2”
10 608 1146 3525
20 418 788 2423
30 336 632 1946
40 287 541 1665
50 255 480 1476
60 231 435 1337
70 215 404 1241
80 198 372 1144
90 187 351 1079
100 175 330 1014
From the National Fuel Gas Code Part 10 Table 10-15

11
Installation
Gas Connection
PRESSURE REGULATION AND TESTING
Zephaire-G ovens are rated at 60,000 BTU/Hr. (17.6 kW)
(63 MJ) per section. Each oven has been adjusted at the
factory to operate with the type of gas specied on the
rating plate.
INLET PRESSURE
Natural Propane
Min Max Min Max
W.C. 7.0 10.5 11.0 13.0
kPa 1.43 2.61 2.74 3.23
MANIFOLD PRESSURE
Natural Propane
W.C. 3.5 10.0
kPa .87 2.49
• Inlet Pressure - the pressure of the gas before it
reaches the oven.
• Manifold Pressure - the pressure of the gas as it
enters the main burner(s).
• Min - the minimum pressure recommended to oper-
ate the oven.
• Max - the maximum pressure at which the manufac-
turer warrants the oven’s operation.
Each oven is supplied with a regulator to maintain the
proper gas pressure. The regulator is essential to the
proper operation of the oven and should not be re-
moved. It is preset to provide the oven with 3.5” W.C.
(0.87 kPa) for natural gas and 10.5” W.C. (2.50 kPa) for
Propane at the manifold.
DO NOT INSTALL AN ADDITIONAL REGULATOR
WHERE THE OVEN CONNECTS TO THE GAS SUPPLY
UNLESS THE INLET PRESSURE IS ABOVE MAXIMUM.
Prior to connecting the oven, gas lines should be thor-
oughly purged of all metal lings, shavings, pipe dope,
and other debris. After connection, the oven should be
checked for correct gas pressure.
The oven and its individual shutoff valve must be discon-
nected from the gas supply piping system during any
pressure testing of that system at test pressures in ex-
cess of 1/2 psig (3.45kPa).
The oven must be isolated from the gas supply piping
system by closing its individual manual shutoff valve dur-
ing any pressure testing of the gas piping system at test
pressures equal or less than 1/2 psig (3.45kPa).
Figure 9
Gas Connection 2.5” (64 mm)
Gas Connection 3.75” (86 mm)

12
Installation
Gas Connection
GAS HOSE RESTRAINT
If the oven is mounted on casters, a commercial exible
connector with a minimum of 3/4” (1.9 cm) inside diam-
eter must be used along with a quick connect device.
The restraint, supplied with the oven, must be used to limit
the movement of the unit so that no strain is placed upon
the exible connector. With the restraint fully stretched the
connector should be easy to install and quick connect.
The restraint (ie: heavy gauge cable) should be 1,000 lb.
(453 kg) test load and should be attached without damag-
ing the building. DO NOT use the gas piping or electrical
conduit for the attachment of the permanent end of the
restraint! Use anchor bolts in concrete or cement block.
On wooden walls, drive hi test wood lag screws into the
studs of the wall.
1. Mount the supplied bracket to the leg bolt just below
the gas inlet.
2. Attach the clip on restraining cable to the mounting
bracket.
Back of Oven
Restraint Cable Bracket
Double stacked unit shown. Use the same procedure for
single units with 25” (64 cm) legs.
Figure 10
WARNING!!
If the restraint is disconnected for any rea-
son it must be reconnected when the oven is
returned to its original position.
U.S. and Canadian installations
The connector must comply with the Standard for Connec-
tors for Movable Gas Appliances, ANSI Z21.69 or Con-
nectors For Moveable Gas Appliances CAN/CGA-6.16-
M87 and a quick disconnect device that complies with the
Standard for Quick-Disconnect Devices for Use With Gas
Fuel, ANSI Z21.41 or Quick Disconnect For Use With Gas
Fuel CAN 1-6.9. Adequate means must be provided to
limit the movement of the appliance without depending
on the connection and the quick disconnect device or its
associated piping.
Australia and general export installations
The restraint and quick connect must conform with Lo-
cal and National installation standards. Local installation
codes and/or requirements may vary. If you have any
questions regarding the proper installation and/or opera-
tion of your Blodgett oven, please contact your local dis-
tributor. If you do not have a local distributor, please call
the Blodgett Oven Company at 0011-802-658-6600.

13
Installation
Electrical & Water Connection
ELECTRICAL CONNECTION
Wiring diagrams are located in the control compartment
and on the back of the oven.
This oven is supplied for connection to 115 volt grounded
circuits. The electric motor, indicator lights and related
switches are connected through the 6’ electric supply cord
found at the rear of the oven.
WARNING!!
This appliance is equipped with three prong
grounding type plug for your protection
against shock hazard and should be plugged
directly into a properly grounded three prong
receptacle. DO NOT cut or remove the ground-
ing prong from this plug.
The Blodgett Oven Company cannot assume responsibil-
ity for loss or damage suffered as a result oF improper
installation.
WATER CONNECTION FOR OPTIONAL SPRITZER
The optional water spritzer is available on Zephaire G
Plus standard controls only.
1. Connect the water source to the 3/4” femail garden
hose connection on the back of the oven.
2. The oven should be installed with backow protection
in accordance with federal, state and local codes.
Figure 11
ELECTRICAL SPECIFICATIONS
Hz Volts Phase Amps Electrical Connection
(minimum size)
U.S. and Canadian Installations
60 115 1 6 Cord set provided
Australia and General Export Installations
50 220-240 1 3 Size per local code

14
Installation
Initial Startup
The following is a check-list to be completed by qualied
personnel prior to turning on the appliance for the rst
time.
1. Open the manual shut-off valve at the rear of the
oven.
2. Remove the control panel and combustion covers.
3. Turn the combination valve’s manual shut-off to the
on position.
4. Turn the selector switch to Cook, and the thermostat
to 500ºF (260ºC).
The oven main burner lights, and the Oven Ready Light
comes on. With the main burner on, check the following.
1. Verify there are no gas leaks, by checking all gas con-
nections with a soapy water solution.
2. Verify that the inlet pressure is correct. The inlet pres-
sure can be checked at the pressure tap located on
the combination valve’s inlet side.
3. Verify that the manifold pressure is correct. The mani-
fold pressure can be checked at the pressure tap lo-
cated on the combination valve’s outlet side.
4. If the above pressure readings are set to the recom-
mended pressure requirements, allow the oven to
burn-off for 2 hours. If the pressure readings are not
set correctly, turn off the oven and readjust accord-
ingly.
WARNING
The break in procedure burns off excess
oils present in the metals during fabrication.
Smoke may be produced. Proper ventilation is
required.
ADJUSTMENTS ASSOCIATED WITH INITIAL
INSTALLATION
Each oven, and its component parts, have been thorough-
ly tested and inspected prior to shipment. However, it is
often necessary to further test or adjust the oven as part
of a normal and proper installation. These adjustments
are the responsibility of the installer, or dealer. Since
these adjustments are not considered defects in mate-
rial or workmanship, they are not covered by the Original
Equipment Warranty. They include, but are not limited to:
• calibration of the thermostat
• adjustment of the doors
• burner adjustments
• leveling
• testing of gas pressure
• tightening of fasteners.
No installation should be considered complete without
proper inspection, and if necessary, adjustment by quali-
ed installation or service personnel.

15
Operation
Safety Information
The information contained in this section is provided for
the use of qualied operating personnel. Qualied operat-
ing personnel are those who have carefully read the in-
formation contained in this manual, are familiar with the
functions of the oven and/or have had previous experi-
ence with the operation of the equipment described. Ad-
herence to the procedures recommended herein will as-
sure the achievement of optimum performance and long,
trouble-free service.
Please take the time to read the following safety and op-
erating instructions. They are the key to the successful
operation of your Blodgett oven.
SAFETY TIPS
For your safety read before operating
What to do if you smell gas:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switches.
• Use an exterior phone to call your gas supplier im-
mediately.
• If you cannot reach your gas supplier, call the re
department.
What to do in the event of a power failure:
• Turn all switches to off.
• DO NOT attempt to operate the oven until the power
is restored.
NOTE: In the event of a shut-down of any kind, allow a
ve (5) minute shut off period before attempting
to restart the oven.
General safety tips:
• DO NOT use tools to turn off the gas control. If the
gas cannot be turned off manually do not try to re-
pair it. Call a qualied service technician.
• If the oven needs to be moved for any reason, the
gas must be turned off and disconnected from the
unit before removing the restraint cable. Reconnect
the restraint after the oven has been returned to its
original location.
• DO NOT remove the control panel cover unless the
oven is unplugged.

16
Operation
Zephaire G Standard Control
LIGHT OFF OVEN READY
BLOWER COOL
DOWN
OFF
ON MAN
AUTO
GAS ON
GAS OFF
1
3
4
5
2
6
Figure 12
CONTROL DESCRIPTION
1. BLOWER HI/LO/OFF SWITCH - Controls the opera-
tion of the blower. If the blower switch is in the OFF
position the oven will be turned off.
2. COOL DOWN SWITCH - When the switch is in the
AUTO position, the oven can be used to cook. When
the switch is in the MAN position, the oven is cooling
down for the next bake.
3. OVEN READY LIGHT - When lit indicates burners
are operating. When the light goes out the oven has
reached operating temperature.
4. THERMOSTAT - Controls the temperature at which
the oven will operate. Temperatures can range from
200-500ºF (93-260ºC).
5. COOK TIMER - Used to time the length of the cook-
ing operation. When the set time expires, a buzzer
will sound.
6. HEAT CUTOFF - used to turn gas on or off
OPERATION
1. Set the COOL DOWN switch (2) to the AUTO posi-
tion. Turn the THERMOSTAT (4) to the desired oper-
ating temperature.
2. Set the BLOWER switch (1) to the HI position. When
the OVEN READY light (3) goes out, load the product
and set the COOK TIMER (5).
3. When the timer sounds, remove the product. If the next
product requires a lower operating temperature, then
the cool down mode can be used. Set the BLOWER
switch (1) to the LO position. Turn the COOL DOWN
SWITCH (2) to the MAN position. Make sure that the
door is open.
4. Turn the oven off by setting the BLOWER switch (1)
to the OFF position.
WARNING!!
A complete ve minute shutdown must be
observed before the oven is relighted.

17
Operation
LIGHT OFF OVEN READY
LIGHTS COOL
DOWN
BLOWER
HI
LOW
OFF
OFF
ON MAN
AUTO
GAS ON
GAS OFF
1
4
5
6
3
2
7
Figure 13
CONTROL DESCRIPTION
1. CAVITY LIGHTS ON/OFF - Operates the oven cavity
lights.
2. BLOWER HI/LO/OFF SWITCH - Controls the opera-
tion of the blower. If the blower switch is in the OFF
position the oven will be turned off.
3. COOL DOWN SWITCH - When the switch is in the
AUTO position, the oven can be used to cook. When
the switch is in the MAN position, the oven is cooling
down for the next bake.
4. OVEN READY LIGHT - When lit indicates burners
are operating. When the light goes out the oven has
reached operating temperature.
5. THERMOSTAT - Controls the temperature at which
the oven will operate. Temperatures can range from
200-500ºF (93-260ºC).
6. COOK TIMER - Used to time the length of the cook-
ing operation. When the set time expires, a buzzer
will sound.
7. HEAT CUTOFF - used to turn gas on or off
OPERATION
1. Set the COOL DOWN switch (3) to the AUTO posi-
tion. Turn the THERMOSTAT (5) to the desired oper-
ating temperature.
2. Set the BLOWER switch (2) to the HI position. When
the OVEN READY light (4) goes out, load the product
and set the COOK TIMER (6).
3. When the timer sounds, remove the product. If the next
product requires a lower operating temperature, then
the cool down mode can be used. Set the BLOWER
switch (2) to the LO position. Turn the COOL DOWN
SWITCH (3) to the MAN position. Make sure that the
door is open.
4. Turn the oven off by setting the BLOWER switch (2)
to the OFF position.
WARNING!!
A complete ve minute shutdown must be
observed before the oven is relighted.
Zephaire G Plus Standard Control

18
Operation
Zephaire G Plus Manual Control with Water Spritzer
LIGHT OFF OVEN READY
LIGHTS COOL
DOWN
BLOWER
HI
LOW
OFF
OFF
ON MAN
AUTO
PRESS FOR STEAM
GAS ON
GAS OFF
1
4
5
6
7
3
2
8
Figure 14
CONTROL DESCRIPTION
1. CAVITY LIGHTS ON/OFF - Operates the oven cavity
lights.
2. BLOWER HI/LO/OFF SWITCH - Controls the opera-
tion of the blower. If the blower switch is in the OFF
position the oven will be turned off.
3. COOL DOWN SWITCH - When the switch is in the
AUTO position, the oven can be used to cook. When
the switch is in the MAN position, the oven is cooling
down for the next bake.
4. OVEN READY LIGHT - When lit indicates burners
are operating. When the light goes out the oven has
reached operating temperature.
5. THERMOSTAT - Controls the temperature at which
the oven will operate. Temperatures can range from
200-500ºF (93-260ºC).
6. COOK TIMER - Used to time the length of the cook-
ing operation. When the set time expires, a buzzer
will sound.
7. WATER SPRITZER - Press to inject steam in the
oven cavity. The water indicator light illuminates when
steam is being produced.
8. HEAT CUTOFF - used to turn gas on or off
OPERATION
1. Set the COOL DOWN switch (3) to the AUTO posi-
tion. Turn the THERMOSTAT (5) to the desired oper-
ating temperature.
2. Set the BLOWER switch (2) to the HI position. When
the OVEN READY light (4) goes out, load the product
and set the COOK TIMER (6).
3. When the timer sounds, remove the product. If the next
product requires a lower operating temperature, then
the cool down mode can be used. Set the BLOWER
switch (2) to the LO position. Turn the COOL DOWN
SWITCH (3) to the MAN position. Make sure that the
door is open.
4. Turn the oven off by setting the BLOWER switch (2)
to the OFF position.
WARNING!!
A complete ve minute shutdown must be
observed before the oven is relighted.
