Blodgett DFG-100 Series Owner's manual

BLODGETT OVEN COMPANY
www.blodgettcorp.com
50 Lakeside Avenue, Box 586, Burlington, Vermont 05402 USA Telephone [phone] Fax: [phone]
PN 90055 Rev N (6/01)
E2001 --- G.S. Blodgett Corporation
DFG-100 AND DFG-200 SERIES
CONVECTION OVEN
INSTALLATION -- OPERATION -- MAINTENANCE
LA SÉRIE DFG-100 ET DFG-200
FOURS À CONVECTION
MANUEL D’INSTALLATION -- FONCTIONNEMENT -- ENTRETIEN

IMPORTANT
FORYOURSAFETY
Do not store or use gasoline or other flammable vapors or liquids in the vicinity
of this or any other appliance.
AVERTISSEMENT
Ne pas entreposer ni utiliser de l’essence ni d’autres vapeurs ou liquides inflam-
mables dans le voisinage de cet appariel, ni de tout autre appareil.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS
MUST BE POSTED IN A PROMINENT LOCATION. THIS INFORMATION MAY BE
OBTAINED BY CONTACTING YOUR LOCAL GAS SUPPLIER.
LES INSTRUCTIONS À RESPECTER AU CAS OÙ L’UTILISATEUR PERÇOIT UNE
ODEUR DE GAZ DOIVENT ÊTRE AFFICHÉES DANS UN ENDROIT BIEN VISIBLE.
VOUS POUVEZ VOUS LES PROCURER AUPRÈS DE VOTRE FOURNISSEUR DE
GAZ LOCAL.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS EQUIPMENT
AVERTISSEMENT: UNE INSTALLATION, UN AJUSTEMENT, UNE ALTÉRATION, UN
SERVICE OU UN ENTRETIEN NON CONFORME AUX NORMES PEUT CAUSER DES
DOMMAGES À LA PROPRIÉTE, DES BLESSURES OU LA MORT. LISEZ ATTENTIVE-
MENT LES DIRECTIVESD’INSTALLATION, D’OPÉRATION ET D’ENTRETIEN AVANT
DE FAIRE L’INSTALLATION OU L’ENTRETIEN DE CET ÉQUIPEMENT.
The information contained in this manual is important for the proper installation,
use, and maintenance of this oven. Adherence to these procedures and instruc-
tions will result in satisfactory baking results and long, trouble free service.
Please read this manual carefully and retain it for future reference.
Les informations données dans le présent manuel sont importantes pour installer,
utiliser et entretenir correctement ce four. Le respect de ces instructions et procé-
dures permettra d’obtenir de bons résultats de cuisson et une longue durée de ser-
vice sans problèmes. Veuillez lire le présent manuel et le conserver pour pouvoir
vous y reporter à l’avenir.
Errors: Descriptive, typographic or pictorial errors are subject to correction. Specifica-
tions are subject to change without notice.
Erreurs:Les erreurs de description, de typographie ou d’illustration font l’objet de
corrections. Les caractéristiques sont sujettes à modifications sans préavis.

THE REPUTATION YOU CAN COUNT ON
UNE RÉPUTATION SUR LAQUELLE VOUS POUVEZ COMPTER
For over a century and a half, The Blodgett Oven Company has been building
ovens and nothing but ovens. We’ve set the industry’s quality standard for all
kinds of ovens for every foodservice operation regardless of size, application
or budget. In fact, no one offers more models, sizes, and oven applications
than Blodgett; gas and electric, full-size, half-size, countertop and deck, con-
vection, Cook’n Hold, Combi-Ovens and the industry’s highest quality Pizza
Oven line. For more information on the full line of Blodgett ovens contact your
Blodgett representative.
Cela fait maintenant dessus un siècle et demi que Blodgett se spécialise dans
la fabrication de fours. Nous avons établi les normes de qualité qui s’appli-
quent dans l’industrie à tous les types de fours utilisés dans les services ali-
mentaires, quel qu’en soit la taille, l’exploitation ou le budget. En fait, ni n’offre
plus de modèles, de tailles et d’applications de fours que Blodgett. À gaz et
électriques. De tailles différentes, sur plan de travail et superposables. Qu’il
s’agisse de fours à convection, des modèles Cook’n Hold et Combi-Oven, ou
de la gamme de fours à pizzas de la plus haute qualité offerte sur le marché.
Pour de plus amples informations sur la gamme complète de fours Blodgett,
veuillez contacter votre représentant Blodgett.

Your Service Agency’s Address:
Adressedevotreagencedeservice:
Model/Modèl:
Serial Number/Numéro de série:
Your oven was installed by/
Installateur de votre four:
Your oven’s installation was checked by/
Contrôleur de l’installation de votre four:

Table of Contents/Table des Matières
Introduction
Oven Description and Specifications 2....
Oven Components 3....................
Installation
Delivery and Location 4.................
Oven Assembly 5......................
NSF Bolts 5..........................
Leg Attachment 6.....................
Caster Assembly 6....................
Double Section Assembly 7............
Oven Leveling 7......................
Ventilation 8...........................
Canopy Type Exhaust Hood 8..........
Direct Flue Arrangement 9.............
Utility Connections ---
Standards and Codes 10.................
Gas Connection 11......................
Electrical Connection 14.................
Initial Startup 15.........................
Operation
Safety Information 16....................
CH-Pro3 17.............................
Solid State Digital Control 20..............
Solid State Manual Control 22.............
Cook and Hold Control 23................
Pulse Plus 25...........................
Humidaire 26...........................
Intelliplus with Chain Event Control 27.....
Intellitouch II Control 30..................
How Cook and Hold Works 33............
General Guidelines for
Operating Personnel 34..................
Suggested Times and Temperatures 35....
Maintenance
Cleaning and Preventative Maintenance 36.
Troubleshooting Guide 37................
Introduction
Description et Spécifications du Four 38....
Éléments du Four 39.....................
Installation
Livraison et Implantation 40...............
Montage du Four 41.....................
Boulons NSF 41.......................
Assemblage des Pieds 42...............
Montage des Roulettes 42..............
MontagedelaSectionDouble 43........
MiseàNiveauduFour 43...............
Ventilation 44...........................
Hotte D’évacuation Type Voûte 44.......
En Prise Directe 45.....................
Branchements de Service ---
Normes et Codes 46.....................
Branchement de Gaz 47.................
Raccordement Électrique 50..............
Mise en Marche Initiale 51................
Utilisation
Informations de Sécurité 52...............
CH-Pro3 53.............................
Commandes Numériques à
Semi-Conducteurs 57....................
Commandes à Semi-Conducteurs 60......
Commande Cuisson et Maintien 61........
Pulse Plus 63...........................
Humidaire 64...........................
Intelliplus avec Commandes à
Enchaînement 65........................
Intellitouch II 68.........................
Principe de la Fonction de Cuisson et
Maintien 71.............................
Consignes Générales à l’Intention des
Utilasateurs 72..........................
Durées et Températures Suggérées 73.....
Entretien
Nettoyage et Entretien Préventif 74........
GuidedeDétectiondesPannes 75........

Introduction
2
Oven Description and Specifications
Cooking in a convection oven differs from cooking
in a conventional deck or range oven since heated
air is constantly recirculated over the product by
a fan in an enclosed chamber. The moving air con-
tinually strips away the layer of cool air surround-
ing the product, quickly allowing the heat to pene-
trate. The result is a high quality product, cooked
at a lower temperature in a shorter amount of time.
Blodgett convectionovens represent the latest ad-
vancement in energy efficiency, reliability, and
ease of operation. Heat normally lost, is recircu-
lated within the cooking chamber before being
vented from the oven: resulting in substantial re-
ductions in energy consumption and enhanced
oven performance.
Air Flow Pattern for Blodgett DFG Convection Ovens
Figure 1
GAS SPECIFICATIONS -- U.S., Canada and General Export
Natural Gas Propane Gas
US Units SI Units US Units SI Units
Heating Value 1000 BTU/cu.ft. 37.3 MJ/m
3
2550 BTU/cu. ft. 95.0 MJ/m
3
Specific Gravity (air=1.0) 0.63 0.63 1.53 1.53
Oven Input
DFG-100-3
DFG-200-L
55,000 BTU/hr
60,000 BTU/hr
16.2 kW
17.6 kW
55,000 BTU/hr
60,000 BTU/hr
16.2 kW
17.6 kW
Main Burner Orifice Size
DFG-100-3
DFG-200-L
38 MTD*
36 MTD*
2.6 mm
2.7 mm
1/16” dia.
52 MTD*
1.6 mm
1.6 mm
GAS SPECIFICATIONS -- DFG-100-3 for Australia
Oven Input --- 58 MJ/h --- 58 MJ/h
Main Burner Orifice Size 38 MTD* 2.58 mm 1/16” dia. 1.6 mm
NOTE: * --- Multiple Twist Drill

Introduction
3

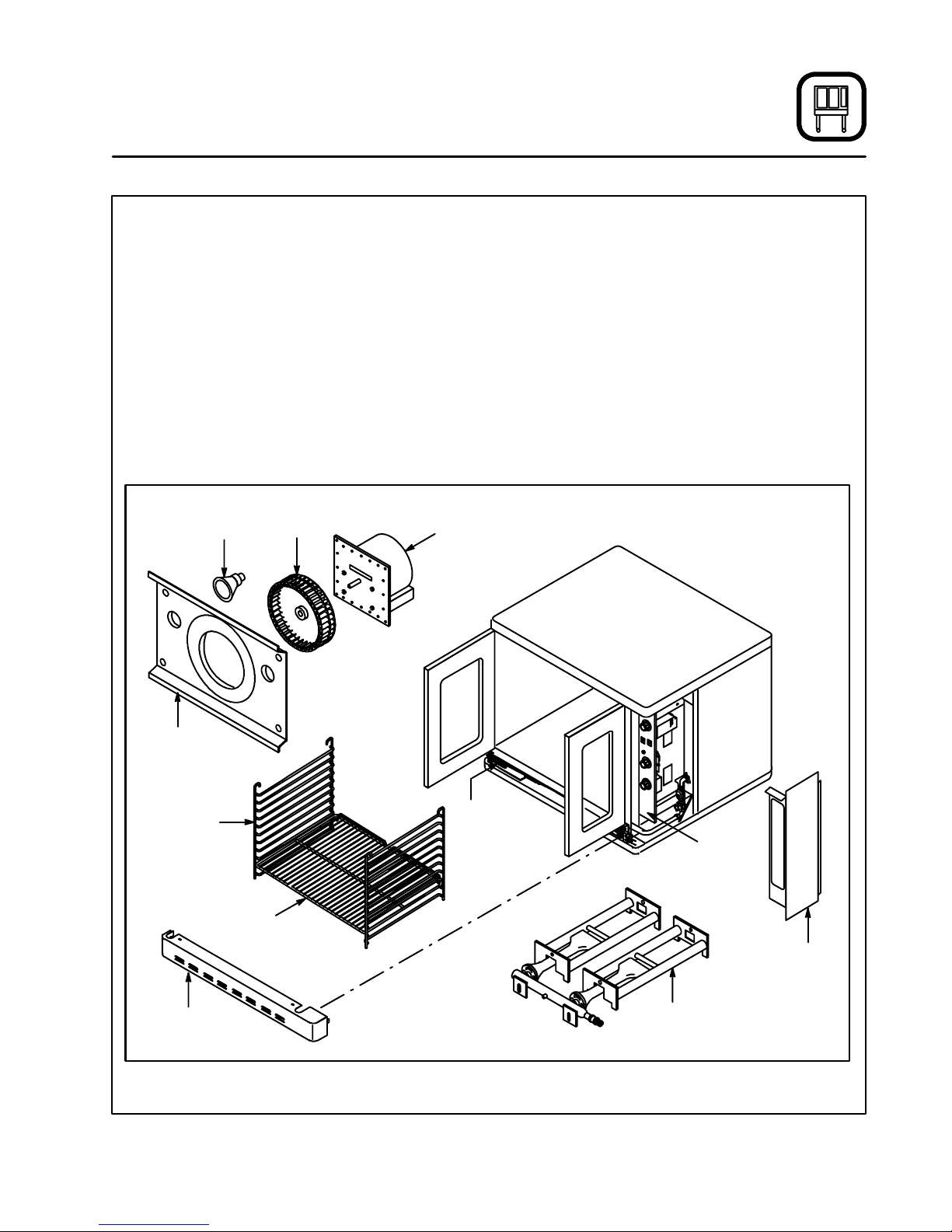

Oven Components
Combustion Cover --- provides access to the
combustion compartment on gas ovens.
Combustion Compartment --- contains combus-
tion burners on gas ovens.
Combustion Burners --- provide heat to the bak-
ing chamber on gas ovens.
Chain & Turnbuckle --- controls operation of the
oven doors.
Control Panel --- contains wiring andcomponents
to control the oven operation.
Oven Racks --- five racks are provided standard.
Additional racks are available.
Rack Supports --- h o l d o v e n r a c k s .
Blower Wheel Cover --- located on the back interi-
or wall of the oven. Protects the blower wheel.
Blower Wheel --- spins to circulate hot air in the
baking chamber.
Convection Motor --- provides power to turn the
blower wheel.
Oven Lights --- provide lighting inside the baking
compartment.
Combustion
Cover
Combustion
Burners
Control
Panel Cover
Control
Panel
Convection
Motor
Blower
Wheel
Blower
Wheel Cover
Rack Support
Oven Rack
Chain &
Turnbuckle
Oven
Lights
Figure 2

Installation
4
Delivery and Location
DELIVERY AND INSPECTION
All Blodgett ovens are shipped in containers to
prevent damage. Upon delivery of your new oven:
D Inspect the shipping container for externaldam-
age. Any evidence of damage should be noted
on the delivery receipt which must be signed by
the driver.
D Uncrate the oven and check for internal dam-
age. Carriers will accept claims for concealed
damage if notified within fifteen days of delivery
and the shipping container is retained for in-
spection.
The Blodgett Oven Company cannot assume
responsibility for loss or damage suffered in
transit. The carrier assumed full responsibility
for delivery in good order when the shipment
was accepted. We are, however, prepared to
assist you if filing a claim is necessary.
OVEN LOCATION
The well planned and proper placement of your
oven will result in long term operator convenience
and satisfactory performance.
The following clearances must be maintained be-
tween the oven and any combustible or non-com-
bustible construction.
DFG100
D Oven body right side --- 2” (5cm)
D Oven body left side --- 2” (5cm)
D Oven body back --- 0” (0cm)
D Oven body bottom --- 6” (15cm)
DFG200
D Oven body right side --- 6” (15cm)
D Oven body left side --- 6” 6” (15cm)
D Oven body back --- 6” (15cm)
D Oven body bottom --- 6” (15cm)
The following clearances must be available for ser-
vicing.
D Oven body sides --- 12” (30cm)
D Oven body back --- 12” (30cm)
NOTE: On gas models, routine servicing can usu-
ally be accomplished within the limited
movement provided by the gas hose re-
straint. If the oven needs to be moved fur-
ther from the wall, the gas must first be
turned off and disconnected from the oven
before removing the restraint. Reconnect
the restraint after the oven has been re-
turned to its normal position.
It is essential that an adequate air supply to the
oven be maintained to provide a sufficient flow of
combustion and ventilation air.
D Place the oven in an area that is free of drafts.
D Keep the oven area free and clear of all combus-
tibles such as paper, cardboard, and flammable
liquids and solvents.
D NSF requires 6” of clearance on the bottom and
sides of the unit for cleaning. Do not place the
oven on a curb base or seal to a wall.
D The location must provide adequate clearance
for the air opening into the combustion cham-
ber.
Before making any utility connections to this oven,
check the rating plate to be sure the oven specifi-
cations are compatible with the gas and electrical
services supplied for the oven.
1. Remove the combustion compartment cover.
The rating plate is attached to the frame on the
left side of the combustion compartment.

Installation
5
Oven Assembly
NSF BOLTS
These bolts are required by NSF to block any ex-
posed hole on the back of an oven. This includes:
D any unit, single or stacked, without a back panel.
D any holes in stacked units not used for mount-
ing stacking brackets.
1. Locate the 5/16” bolts that were shipped with
the oven.
2. InstalltheboltsasshowninFigure3.
Double Stacked Units Units without Back Panels
Figure 3

Installation
6
Oven Assembly
LEG ATTACHMENT
1. Push the oven onto a lift with the bottom of the
oven down.
2. Align the threaded stud in each leg with the
nut located inside each bottom corner of the
oven frame. Turn the legs clockwise and tight-
en to the nearest full turn.
3. Align the two leg plate holes in each leg with
those in the oven bottom. Secure each leg us-
ing two 1/2” bolts.
NOTE: If using casters see CASTER AS-
SEMBLY before proceeding.
4. Level the oven by screwing the adjustable leg
feet in or out as necessary.
6” (15 cm) Legs Shown
Figure 4

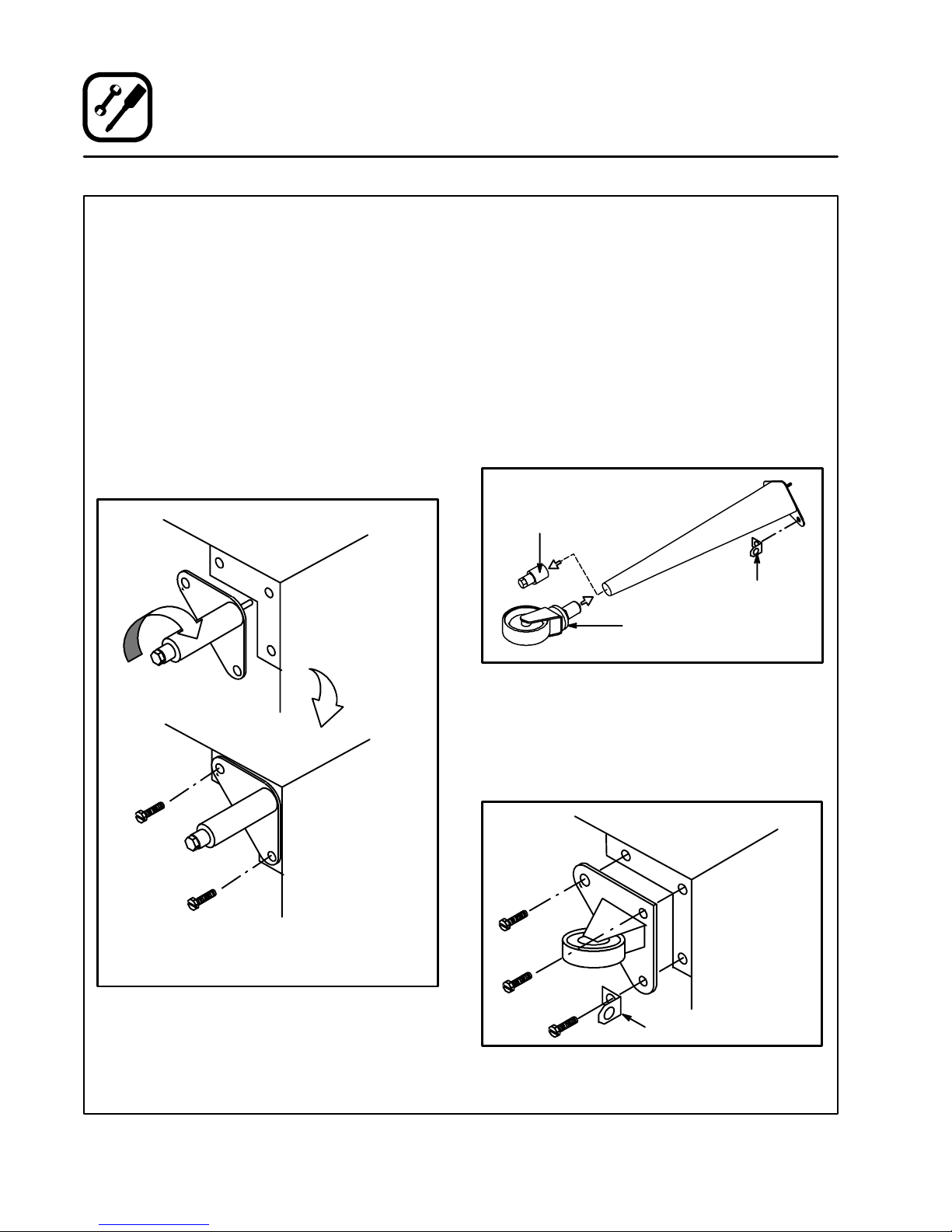

CASTER ASSEMBLY
NOTE: Install the locking casters on the front of
the oven. Install the non-locking casters on
the back of the oven.
NOTE: Use a gas hose restraint on all units with
casters. See page 13.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown.
Tighten the lock nuts to secure the casters.
Adjustable
Leg Foot
Caster Assembly
Gas Hose
Restraint Bracket
Figure 5
Low Profile Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly
plate with those in the oven bottom. Secure
each caster using three 1/2” bolts.
Gas Hose Restraint Bracket
Figure 6

Installation
7
Oven Assembly

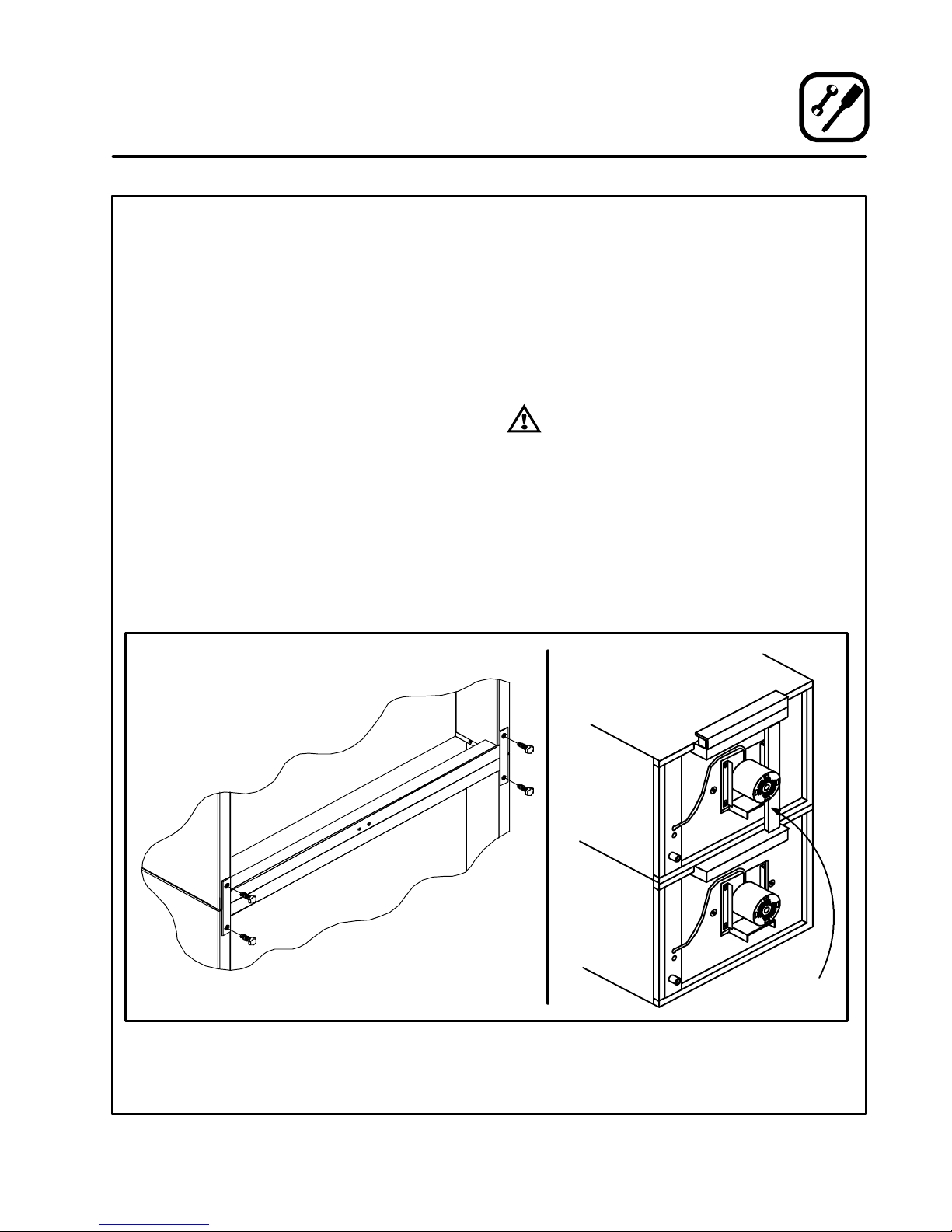

DOUBLE SECTION ASSEMBLY
NOTE: Old style ovens refer to units with painted ex-
posed rear angle. New style ovens refer to
units with rear angle iron enclosed in steel.
The following instructions apply to stacking two
new style ovens.
1. Secure the short legs to the bottom sections
as described.
2. Place the upper section in position on top of
the lower oven.
3. Attach the stacking brackets using the re-
maining 5/16” bolts shipped with the ovens.
4. Attach the flue connector.
The following instructions apply to stacking a new
styleovenonanoldstyleoven.
1. Secure the short legs to the bottom sections
as described.
2. Place the upper section in position on top of
the lower oven.
3. Attach the stacking brackets using the re-
maining 5/16” bolts shipped with the ovens.
4. Drill a clearance hole for a 5/16” bolt in the
angle iron of the old style oven. Use the holes
in the stacking brackets as a pilot.
5. Attach the stacking brackets to the old style
oven with the 5/16” bolts and nuts provided in
the kit.
6. Attach the flue connector.
WARNING!!
When stacking ovens be sure to remove
thesingleovenflueboxespriortoattach-
ing three-piece connector.
OVEN LEVELING
After assembly, the oven should be leveled and
moved to the operating location.
1. The oven can be leveled by adjusting the feet
or casters located on the bottom of each leg.
Flue
Connector
Figure 7

Installation
8
Ventilation
On gas models the installation of a proper ventila-
tion system cannot be over emphasized. This sys-
tem removes unwanted vapors and products of
combustion from the operating area.
This oven may be vented using either:
D A mechanically driven, canopy type, exhaust
hood, or
D A direct flue arrangement.
U.S. and Canadian installations
Refer to your local ventilation codes. In the ab-
sence of local codes, refer to the National ventila-
tion code titled, “Standard for the Installation of
Equipment for the Removal of Smoke and Grease
Laden Vapors from Commercial Cooking Equip-
ment”, NFPA-96-Latest Edition.
Australia and general export installations
Installation must conform with Local and National
installation standards. Local installation codes
and/or requirements may vary. If you have any
questions regarding the proper installation and/or
operation of your Blodgett oven, please contact
your local distributor. If you do not have a local dis-
tributor, please callthe Blodgett Oven Company at
0011-802-860-3700.
WARNING:
Failure to properly vent the oven can be
hazardous to the health of the operator
and may result in operational problems,
unsatisfactory baking and possible dam-
age to the equipment.
Damage sustained as a directresult of im-
proper ventilation will not be covered by
the manufacturer’s warranty.
CANOPY TYPE EXHAUST HOOD
A mechanically driven, canopy type exhaust hood
is the preferred method of ventilation.
The hood should be sized to completely cover the
equipment plus an overhang of at least 6” (15 cm)
on all sides not adjacent to a wall. The distance
from the floor to the lower edge of the hood should
not exceed 7’ (2.1m).
The total makeup and exhaust air requirements for
hood capacity should be approximately 30 CFM
(.85 m
3
) for each oven section.

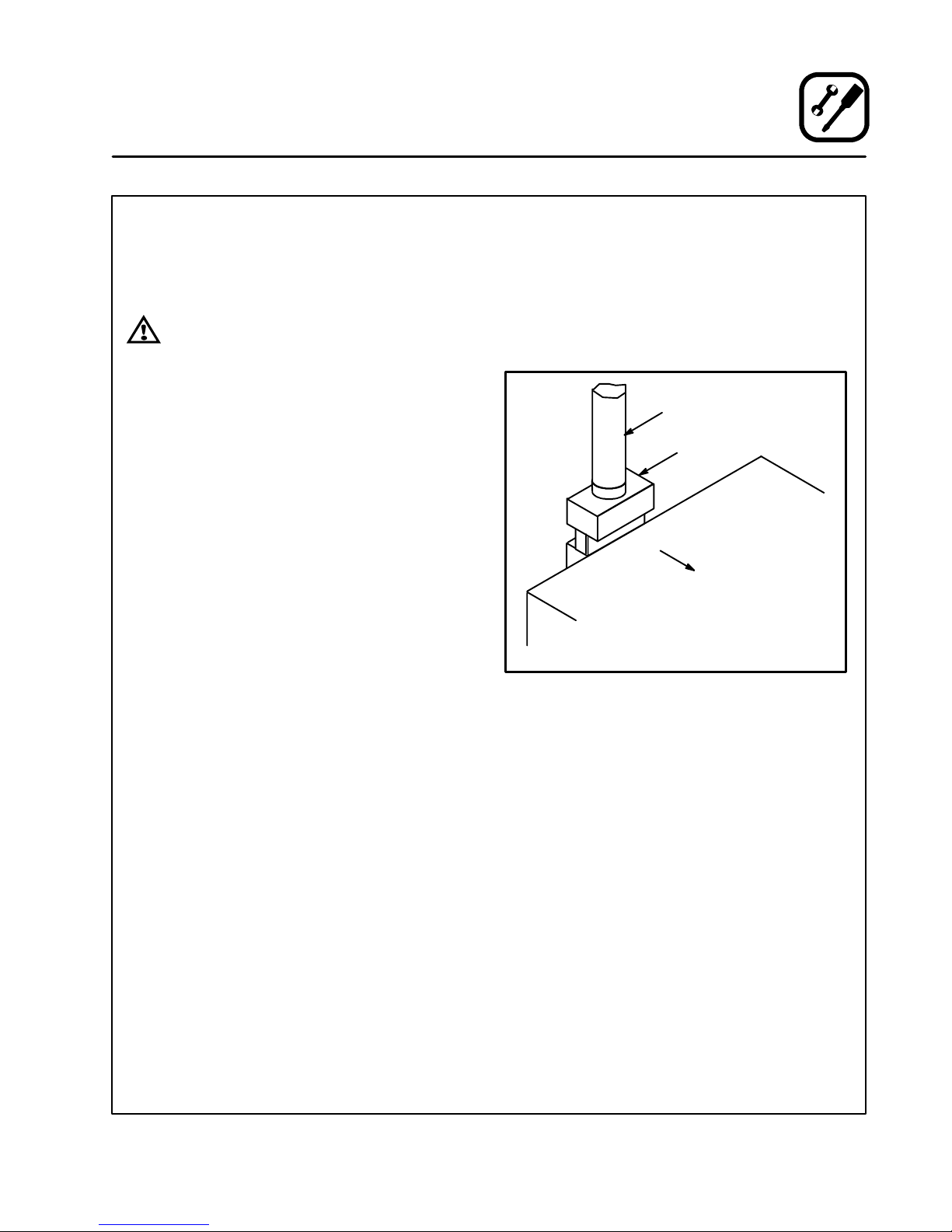

Installing the canopy hood draft diverter
Ovens ordered for hood venting are supplied with
a draft diverter. Install the draft diverter as follows:
1. Place the diverter over the flue connector with
the open area facing the front of the oven. See
Figure 8.
2. Secure both ends with the sheet metal screws
provided.
Front of
Oven
Draft Diverter
Figure 8

Installation
9
Ventilation
DIRECT FLUE ARRANGEMENT
When the installation of a mechanically driven ex-
haust hood is impractical the oven may be vented
by a direct flue arrangement.
WARNING!!
It is essential that the direct flue be
installed as follows. Incorrect installation
will result in unsatisfactory baking and
oven damage.
ThefluemustbeclassBorbetterwithadiameter
of 6” (15 cm). The height of the flue should rise 6-8
ft (2-2.5 m) above the roof of the building or any
proximate structure. Never direct vent the oven
into a hood. The flue should be capped with a UL
Listed type vent cap to isolate the unit from exter-
nal environmental conditions.
Thedirectventcannotreplaceairconsumedand
vented by the oven. Provisions must be made to
supply the room with sufficient make-up air. Total
make-up air requirements for each oven section
should be approximately 30 CFM (.85 m
3
)persec-
tion. To increase the supply air entering the room,
a ventilation expert should be consulted.
Installing the draft hood
Ovens ordered for direct venting are supplied with
a draft hood. Install the draft hood as follows:
1. Place the draft hood over the flue connector.
SeeFigure9.
2. Secure both ends with the sheet metal screws
provided.
Front of
Oven
Draft Hood
Flue
Figure 9

Installation
10
Utility Connections --- Standards and Codes
THE INSTALLATION INSTRUCTIONS CON-
TAINED HEREIN ARE FOR THE USE OF QUALI-
FIED INSTALLATION AND SERVICE PERSONNEL
ONLY. INSTALLATION OR SERVICE BY OTHER
THAN QUALIFIED PERSONNEL MAY RESULT IN
DAMAGE TO THE OVEN AND/OR INJURY TO
THE OPERATOR.
Qualified installation personnel are individuals, a
firm, a corporation, or a company which either in
person or through a representative are engaged
in, and responsible for:
D the installation or replacement of gas piping
and the connection, installation, repair or serv-
icing of equipment.
D the installation of electrical wiring from the elec-
tric meter, main control box or service outlet to
the electric appliance.
Qualified installation personnel must be experi-
enced in such work, familiar with all precautions
required, and have complied with all requirements
of state or local authorities having jurisdiction.
U.S. and Canadian installations
Installation must conform with local codes, or in
the absence of local codes, with the National Fuel
Gas Code, NFPA54/ANSI Z223.1---Latest Edition,
the Natural Gas Installation Code CAN/CGA-
B149.1 or the Propane Installation Code, CAN/
CGA-B149.2 as applicable.
Installation must conform with local codes, or in
the absence of local codes, with the National Elec-
trical Code, ANSI/NFPA 70---Latest Edition and/or
Canadian National Electric Code C22.2 as applica-
ble.
Australia and general export installations
Installation must conform with Local and National
installation standards. Local installation codes
and/or requirements may vary. If you have any
questions regarding the proper installation and/or
operation of your Blodgett oven, please contact
your local distributor. If you do not have a local dis-
tributor, please callthe Blodgett Oven Company at
0011-802-860-3700.

Installation
11
Gas Connection
GAS PIPING
A properly sized gas supply system is essentialfor
maximum oven performance. Piping should be
sized to provide a supply of gas sufficient to meet
the maximum demand of all appliances on the line
without loss of pressure at the equipment.
Example:
NOTE: BTU values in the following example are
for natural gas.
You purchase a DFG-100 convection oven to add
to your existing cook line.
1. Add the BTU rating of your current appliances.
Pitco Fryer 120,000 BTU
6 Burner Range 60,000 BTU
Deck Oven 50,000 BTU
Total 230,000 BTU
2. Add the BTU rating of the new oven to the to-
tal.
Previous Total 230,000 BTU
DFG-100 55,000 BTU
New Total 285,000 BTU
3. Measure the distance from the gas meter to
the cook line. This is the pipe length. Let’s say
the pipe length is 40’ (12.2 m) and the pipe
size is 1” (2.54 cm).
4. Use the appropriate table to determine the to-
tal capacity of your current gas piping.
The total capacity for this example is 320,000
BTU. Since the total required gas pressure,
285,000 BTU is less than 320,000 BTU, the
current gas piping will not have to be in-
creased.
NOTE: The BTU capacities given in the tables are
for straight pipe lengths only. Any elbows
or other fittings will decrease pipe capaci-
ties. Contact your local gas supplier if you
have any questions.
Maximum Capacity of Iron Pipe in Cubic Feet
of Natural Gas Per Hour
(Pressure drop of 0.5 Inch W.C.)
Pipe
L
h
(
f
)
Nominal Size, Inches
p
Length (ft)
3/4” 1” 1-1/4” 1-1/2” 2”
10 360 680 1400 2100 3950
20 250 465 950 1460 2750
30 200 375 770 1180 2200
40 170 320 660 990 1900
50 151 285 580 900 1680
60 138 260 530 810 1520
70 125 240 490 750 1400
80 118 220 460 690 1300
90 110 205 430 650 1220
100 103 195 400 620 1150
From the National Fuel Gas Code Part 10 Table 10-2
Maximum Capacity of Pipe in Thousands of
BTU/hr of Undiluted L.P. Gas at 11” W.C.
(Pressure drop of 0.5 Inch W.C.)
Pipe Length
(
f
)
Outside Diameter, Inches
p
g
(ft) 3/4” 1” 1-1/2”
10 608 1146 3525
20 418 788 2423
30 336 632 1946
40 287 541 1665
50 255 480 1476
60 231 435 1337
70 215 404 1241
80 198 372 1144
90 187 351 1079
100 175 330 1014
From the National Fuel Gas Code Part 10 Table 10-15

Installation
12
Gas Connection
PRESSURE REGULATION AND TESTING
DFG-100-3 ovens are rated at 55,000 BTU/Hr.
(16.2 kW) (58 MJ) per section. DFG-200-L ovens
are rated at 60,000 BTU/Hr. (17.6 kW) (63 MJ) per
section. Each oven has been adjusted at the facto-
ry to operate with the type of gas specified on the
rating plate.
Inlet Pressure
Natural Propane
Min Max Min Max
W.C. 7.0 10.5 11.0 13.0
kPa 1.742 2.61 2.74 3.23
Manifold Pressure
Natural Propane
W.C. 3.5 10.0
kPa .87 2.49
D Inlet Pressure --- the pressure of the gas before
it reaches the oven.
D Manifold Pressure --- the pressure of the gas
as it enters the main burner(s).
D Min --- the minimum pressure recommended to
operate the oven.
D Max --- the maximum pressure at which the
manufacturer warrants the oven’s operation.
Each oven is supplied with a regulator to maintain
thepropergaspressure.The regulator is essen-
tial to the proper operation of the oven and
should not be removed. It is preset to provide the
oven with 3.5” W.C. (0.87 kPa) for natural gas and
10.0” W.C. (2.50 kPa) for Propane at the manifold.
DO NOT INSTALL AN ADDITIONAL REGULATOR
WHERE THE OVEN CONNECTS TO THE GAS
SUPPLY UNLESS THE INLET PRESSURE IS
ABOVE MAXIMUM.
Prior to connecting the oven, gas lines should be
thoroughly purged of all metal filings, shavings,
pipe dope, and other debris. After connection, the
oven should be checked for correct gas pressure.
The oven and its individual shutoff valve must be
disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1/2 psig (13.85” W.C., 3.45
kPa).
The oven must be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure testing of the
gas piping system at test pressures equal or less
than 1/2 psig (13.85” W.C., 3.45 kPa).

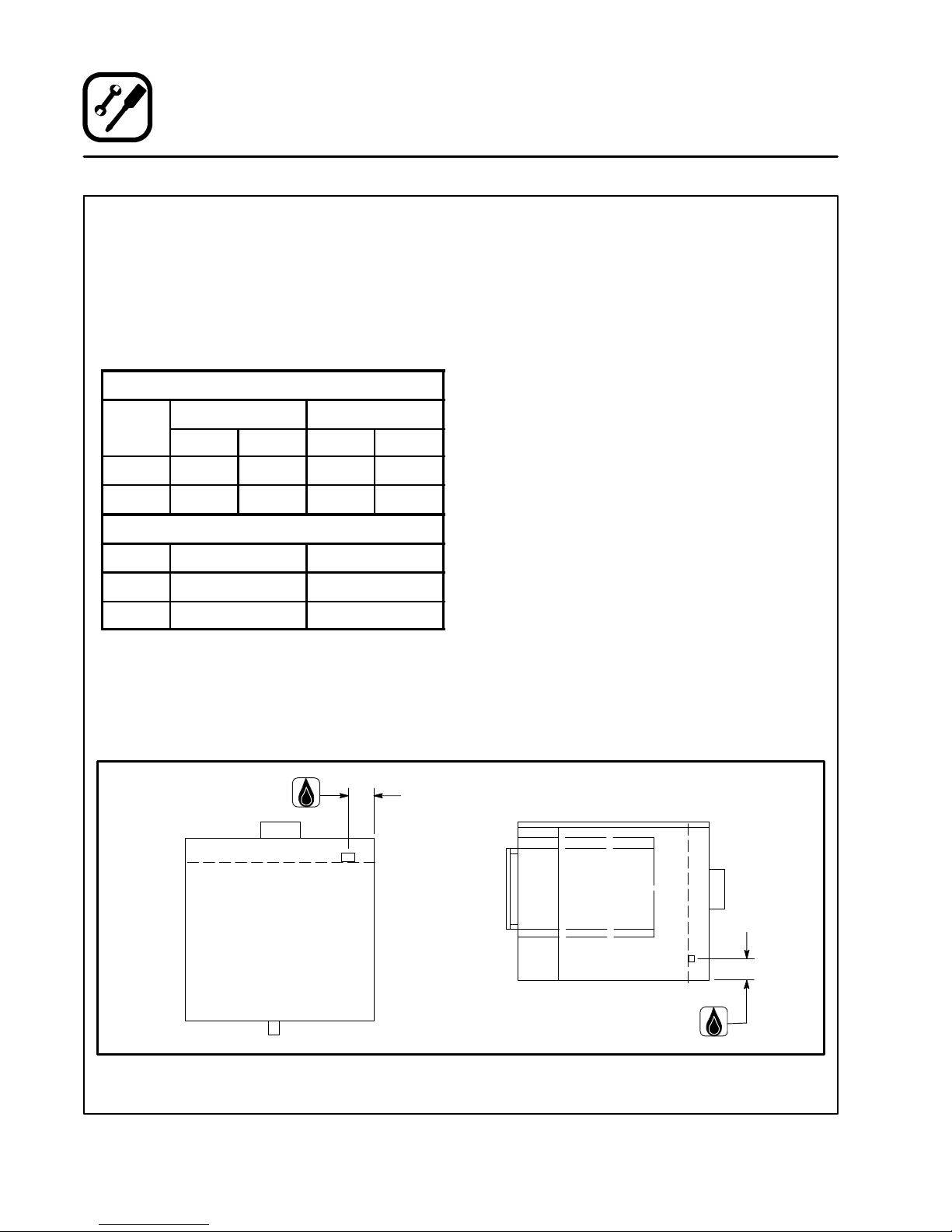

Gas Connection 2.5” (64 mm)
Gas Connection 3.75” (85.7 mm)
Figure 10

Installation
13
Gas Connection
GAS HOSE RESTRAINT
If the oven is mounted on casters, a commercial
flexible connector with a minimum of 3/4” (1.9 cm)
inside diameter must be used along with a quick
connect device.
The restraint, supplied with the oven, must be
used to limit the movement of the unit so that no
strain is placed upon the flexible connector. With
the restraint fully stretched the connector should
be easy to install and quick connect.
The restraint (ie: heavy gauge cable) should be
1,000 lb. (453 kg) test load and should be attached
without damaging the building. DO NOT use the
gas piping or electrical conduit for the attachment
of the permanent end of the restraint! Use anchor
bolts in concrete or cement block. On wooden
walls, drive hi test wood lag screws into the studs
of the wall.
1. Mount the supplied bracket to the leg bolt just
below the gas inlet. See Figure 11.
2. Attach the clip on restraining cable to the
mounting bracket.
Restraint Cable
Bracket
Back of Oven
Double stacked unit shown. Use the same procedure for
single units.
Figure 11
WARNING!!
If the restraint is disconnected for any
reason it must be reconnected when the
oven is returned to its original position.
U.S. and Canadian installations
The connector must comply with the Standard for
Connectors for Movable Gas Appliances, ANSI
Z21.69 or Connectors For Moveable Gas Ap-
pliances CAN/CGA-6.16 and a quick disconnect
device that complies with the Standard for Quick-
Disconnect Devices for Use With Gas Fuel, ANSI
Z21.41 or Quick Disconnect For Use With Gas Fuel
CAN 1-6.9. Adequate means must be provided to
limit the movement of the appliance without de-
pending on the connection and the quick discon-
nect device or its associated piping.
Australie and general export installations
The restraint and quick connect must conform
with Local and National installation standards. Lo-
cal installation codes and/or requirements may
vary. If you have any questionsregarding the prop-
er installation and/or operation of your Blodgett
oven, please contact your local distributor. If you
do not have a local distributor, please call the
Blodgett Oven Company at 0011-802-860-3700.

Installation
14
Electrical Connection
Wiring diagrams are located in the control
compartment and on the back of the oven.
This oven is supplied for connection to 115 volt
grounded circuits. The electric motor, indicator
lights and related switches are connected through
the 6’ electric supply cord found at the rear of the
oven.
WARNING!!
This appliance is equipped with three
pronggroundingtypeplugforyour
protection against shock hazard and
should be plugged directly into a properly
grounded three prong receptacle. DO
NOT cut or remove the grounding prong
from this plug.
THE BLODGETT OVEN COMPANY CANNOT AS-
SUME RESPONSIBILITY FOR LOSS OR DAMAGE
SUFFERED AS A RESULT OF IMPROPER INSTAL-
LATION.
ELECTRICAL SPECIFICATIONS
Model Hz Volts Phase Amps Electrical Connection
(minimum size)
U.S. and Canadian Installations
DFG-100-3 60 115 1 6 Cord set provided
DFG-200-L 60 115 1 6 Cord set provided
Australia and General Export Installations
DFG-100-3 50 220-240 1 3 Size per local code
DFG-200-L 50 220-240 1 3 Size per local code

Installation
15
Initial Startup
The following is a check-list to be completed by
qualified personnel prior to turning on the
applianceforthefirsttime.
j Open the manual shut-off valve at the rear of
the oven.
j Remove the control panel and combustion
covers.
j Turn the combination valve’s manual shut-off
to the on position.
j Turn the selector switch to Cook, and the ther-
mostat to 500_F (260_C).
The oven main burner lights, and the Oven Ready
Light comes on. With the main burner on, check
the following.
j Verify there are no gas leaks, by checking all
gas connections with a soapy water solution.
j Verify that the inlet pressure is correct. The in-
let pressure can be checked at the pressure
tap located on the combination valve’s inlet
side.
j Verify that the manifold pressure is correct.
The manifold pressure can be checked at the
pressure tap located on the manifold.
j If the above pressure readings are set to the
recommended pressure requirements, allow
the oven to burn-off for 2 hours. If the pressure
readings are not set correctly, turn off the oven
and readjust accordingly.
WARNING
The break in procedure burns off excess
oils present in the metals during fabrica-
tion. Smoke may be produced. Proper
ventilation is required.
ADJUSTMENTS ASSOCIATED WITH INITIAL
INSTALLATION
Each oven, and its component parts, have been
thoroughly tested and inspected prior to ship-
ment. However, it is often necessary to further
test or adjust the oven as part of a normal and
proper installation. These adjustments are the
responsibility of the installer, or dealer. Since
these adjustments are not considered defects
in material or workmanship, they are not cov-
ered by the Original Equipment Warranty. They
include, but are not limited to:
D
DD
D calibration of the thermostat
D
DD
D adjustment of the doors
D
DD
D burner adjustments
D
DD
D leveling
D
DD
D testing of gas pressure
D
DD
D tightening of fasteners.
No installation should be considered complete
without proper inspection, and if necessary,
adjustment by qualified installation or service
personnel.

Operation
16
Safety Information
THE INFORMATION CONTAINED IN THIS SEC-
TION IS PROVIDED FOR THE USE OF QUALIFIED
OPERATING PERSONNEL. QUALIFIED OPERAT-
ING PERSONNEL ARE THOSE WHO HAVE
CAREFULLY READ THE INFORMATION CON-
TAINED IN THIS MANUAL, ARE FAMILIAR WITH
THE FUNCTIONS OF THE OVEN AND/OR HAVE
HAD PREVIOUS EXPERIENCE WITH THE OP-
ERATION OF THE EQUIPMENT DESCRIBED. AD-
HERENCE TO THE PROCEDURES RECOM-
MENDED HEREIN WILL ASSURE THE
ACHIEVEMENT OF OPTIMUM PERFORMANCE
AND LONG, TROUBLE-FREE SERVICE.
Please take the time to read the following safety
and operating instructions. They are the key to the
successful operation of your Blodgett conveyor
oven.
SAFETY TIPS
For your safety read before operating
What to do if you smell gas:
D DO NOT try to light any appliance.
D DO NOT touch any electrical switches.
D Use an exterior phone to call your gas supplier
immediately.
D If you cannot reach your gas supplier, call the
fire department.
What to do in the event of a power failure:
D Turn all switches to off.
D DO NOT attempt to operate the oven until the
power is restored.
NOTE: In the event of a shut-down of any kind, al-
low a five (5) minute shut off period before
attempting to restart the oven.
General safety tips:
D DO NOT use tools to turn off the gas control. If
the gas cannot be turned off manually do not try
to repair it. Call a qualified service technician.
D If the oven needs to be moved for any reason,
the gas must be turned off and disconnected
from the unit before removing the restraint
cable. Reconnect the restraint after the oven
has been returned to its original location.
D DO NOT remove the control panel cover unless
the oven is unplugged.
