Blue Diamond Mini Series User manual

Operation and Maintenance Manual
Mini Series
Root Grapple
888-376-7027 | BlueDiamondAttachments.com
Register your
WARRANTY
within 30 days
of purchase

Blue Diamond® Attachments2
Thank you for your decision to purchase a Blue Dia-
mond® Mini Root Grapple. To ensure maximum per-
formance of your equipment, it is mandatory that you
thoroughly study the Operator’s manual and follow the
recommendations. Proper operation and maintenance
are essential to maximize equipment life and prevent
personal injury.
Operate and maintain this equipment in a safe man-
ner and in accordance with all applicable local, state,
and federal codes, regulations and /or laws. Follow all
on-product labeling and instructions.
Make sure that all personnel have read this Operator’s
Manual and thoroughly understand safe and correct
operating, installation and maintenance procedures.
Blue Diamond is continually working to improve its
products. Blue Diamond reserves the right to make any
improvements or changes as deemed practical and pos-
sible without incurring any responsibility or obligation
to make any changes or additions to equipment sold
previously.
Although great care has been taken to ensure the
accuracy of this publication, Blue Diamond makes no
warranty or guarantee of any kind, written or expressed,
implied or otherwise with regard to the information
contained within this manual. Blue Diamond assumes
no responsibility for any errors that may appear in this
manual and shall not be liable under any circumstances
for incidental, consequential or punitive damages in con-
nection with, or arising from the use of this manual.
Keep this manual available for frequent reference. All
new operators or owners must review the manual before
using the equipment and annually thereafter. Contact
your Blue Diamond Attachments Dealer for assistance,
information, or additional copies of the manual. Contact
www.bluediamondattachments.com or call 888-376-
7027 for a complete list of dealers in your area.
Serial Number Location:
Please record attachment information in the space pro-
vided for future reference.
Model Number:_____________________________
Serial Number: _____________________________
Dealer Name: ______________________________
Dealer Number:_____________________________
Date of Purchase:___________________________

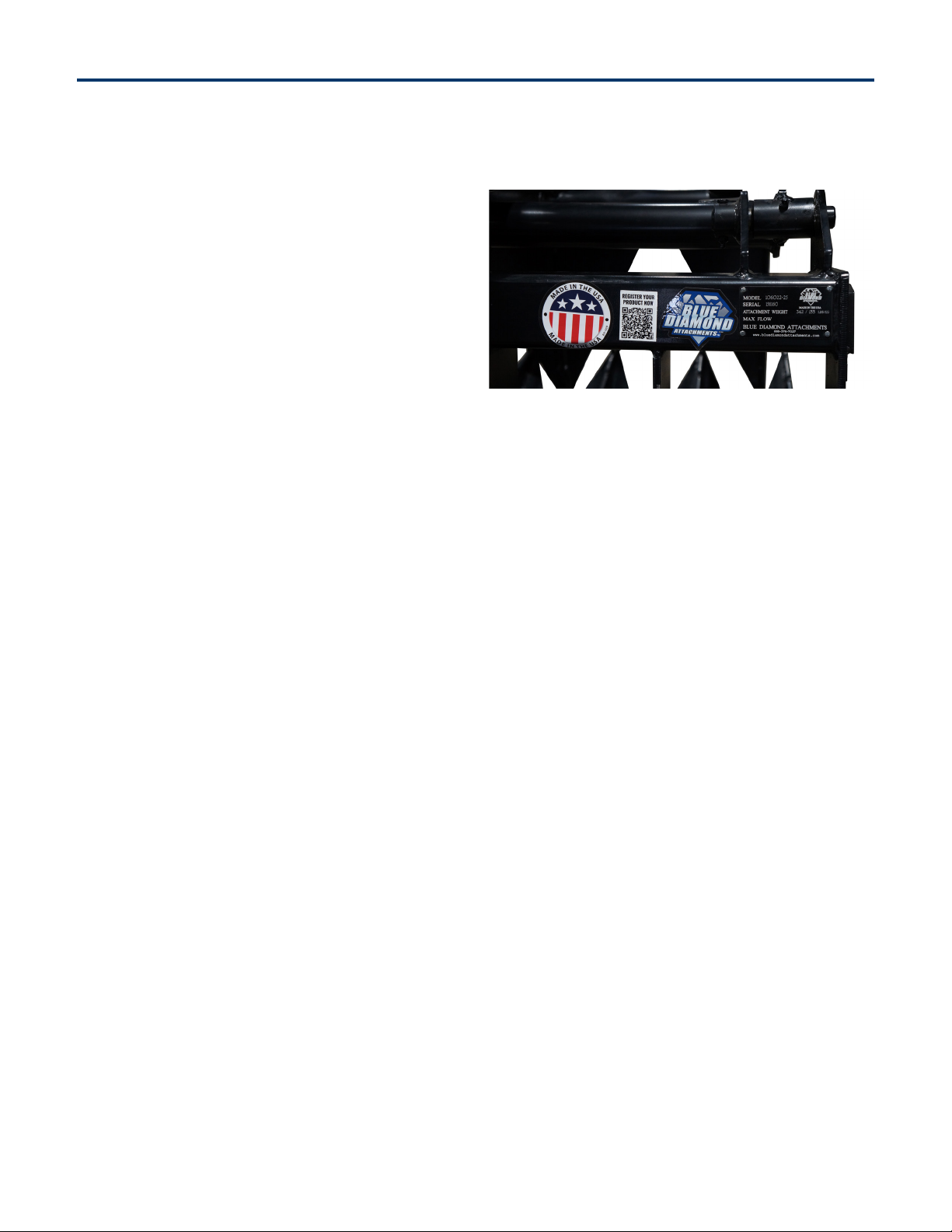

The serial number plate is located on the right side, just
forward of the attachment mounting plate.
Always use your serial number when requesting infor-
mation or when ordering parts.
NOTE: The directions left, right, front and rear, as
mentioned throughout this manual, are as viewed from
the operator’s position.
Introduction: Owner Information
Revision Date: 02.02.2023

3Blue Diamond® Attachments
Table of Contents
1. Safety ............................................................................................4-9
1.1 General Safety Information......................................................4
1.2 Importance of Safety................................................................4
1.3 Operator Safety Training Tips............................................... 5
1.4 Skid Steer Requirements ....................................................... 5
1.5 Unpacking Your Shipment ..................................................... 6
1.6 Using Your Implement ............................................................ 6
2. Maintenance.............................................................................10-11
2.1 Maintaining Your Attachment...............................................10
3. Parts............................................................................................11-14
3.1 Single Clamp Parts Breakdown.............................................11
3.2 Double Clamp Parts Breakdown ........................................13
4. Troubleshooting...........................................................................15
5. Specifications ...............................................................................16
5.1 Torque Specifications.............................................................16
6. Warranty ........................................................................................ 17

Blue Diamond® Attachments4
1.1 General Safety Information 1.2 Importance of Safety
Accidents can be very costly to human life and
property. As the operator is the #1 safety device on
all types of vehicles or equipment, it is important
that the operator read, learn, and know all safety
recommendations for this product. The user is
responsible to his family, friends, and co-workers
to operate any equipment in a safe manner.
Ensure that everyone who operates or assists in
the operation or maintenance of this product read
and understand all the elements required to safely
operate this piece of equipment.
This attachment has moving parts that include
additional dangers.
Throughout this manual you will find safety notes
which are very important to read and understand
before operating this piece of equipment. These
classifications alert you to situations that could be
harmful to you or bystanders. When you see these
alerts in the manual, carefully read and follow all
instructions and also protect other workers from
the same danger.
1. Safety
CAUTION
The signal word CAUTION on the machine and
in the manuals indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert
against unsafe practices.
WARNING
The signal word WARNING on the machine and
in the manuals indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
DANGER
The signal word DANGER on the machine and in
the manuals indicates a hazardous situation which,
if not avoided, will result in death or serious injury.
IMPORTANT
The signal word IMPORTANT identifies procedures
which must be followed to avoid damage to the
machine.
DANGER
It is the responsibility of the operator using
this attachment to be acquainted with the safe
operation. In addition to reading this manual, it is
important that the operator read the skid steer’s
operation manual and follow its manufacturer’s
recommendations!
Failure to follow all recommendations in this
manual may result in injury or death. This manual
is not all inclusive of all scenarios that may cause
injury or death or require high levels of caution.

5Blue Diamond® Attachments
1.3 Operator Safety Training
Tips
• Before digging into any surface, always contact
the “Digger’s Hotline” to identify underground
utilities to avoid an accident that could result in
death or serious injury to the operator or fellow
workers.
• Before lifting, lowering, or tilting the blade,
make sure the area is clear of bystanders or
objects.
• Machinery parts sometimes have sharp edges.
Wear work gloves when handling moving parts.
Always use caution around attachment parts as
they often are very sharp.
• Never use drugs or alcoholic drinks when
operating or servicing this piece of equipment.
• Always wear the proper personal protection
equipment (PPE) when servicing or operating
this piece of equipment. Never service or
operate this attachment with bare feet,
sandals, or other light footwear.
• Always use eye protection during operation.
• Speed Kills! Operate this implement at a
safe working speed. When transporting the
implement, keep a safe speed to avoid losing
control of the attachment or prime mover.
• Keep proper clearance between the implement
and objects (utilities, tree stumps, large rocks,
buildings, etc.). Contacting these objects with
the implement or prime mover could cause a
loss of control or damage to the implement or
property.
• Before each operation of this implement, check
all hardware (bolts, nuts, pins, etc.) for their
proper location and tightness.
• Stop the engine on the skid steer and set the
brake to avoid the implement rolling forward
or backwards while you are exiting the prime
mover.
• Store this implement in an area not frequented
by children.
• Allow NO riders on this attachment. Keep
all bystanders clear of attachment during
operation.
• Always replace worn, torn, or missing safety
decals before operating.
• Never operate the attachment when
bystanders are within 10 feet (3 m) of the work
area.
• Operate only during daylight or well-lit artificial
light.
1.4 Skid Steer Requirements
Your grapple attachment must be connected to a
skid steer with adequate horsepower and weight
to provide satisfactory results. Tracked loaders
will provide superior traction in ground engaging
applications and wheeled loaders may provide the
best option for above ground material handling
applications.
The attachment plate on your grapple attachment
will connect to the couplers on most major
brand skid steer loaders. Do not modify the
attachment plate on this attachment to fit older
styles of attachment couplers on older machines.
Contact your skid steer loader dealer to supply an
undated coupler on an older skid steer to fit this
attachment.
Your skid steer must also be equipped with an
auxiliary circuit that is available on the loader arms
and is controlled by a switch, pedal or handle at
the operator position.
1. Safety
CAUTION
Make sure your skid steer is in good working
condition. Follow the operating instructions in the
manual that accompanied your skid steer. Failure
to do so could result in Minor or Serious Injury.

Blue Diamond® Attachments6
1.5 Unpacking Your Shipment
Your attachment arrives from the factory banded
to a wooden pallet, and requires no final assembly
before use.
1.6 Using Your Implement
Connecting Attachment to Skid Steer
Verify that the hydraulic hoses are clear from the
front of the attaching plate on the attachment and
that the mounting plate is free from dirt and debris.
When clear, move the skid steer to proximity of
attachment plate. Tilt skid steer coupler forward
to align coupling point with the upper part on the
attachment plate and raise the coupler slightly.
When the top edge of the coupler is seated in the
top part of the coupler plate, roll the skid steer
tilt function back until the attaching plate is flat
against the skid steer coupler. Lock down the
coupler levers.
NOTE: If your skid steer is equipped with a
hydraulically operated coupler, activate the coupler
lock at this time.
Connect the attachment hydraulic hoses to the
auxiliary supply couplers located on your skid steer
loader lift arm.
Check the surrounding area for bystanders and clear
them before starting the skid steer or attachment.
Before operating the attachment, ALWAYS visually
inspect and verify that the coupler lock pins are fully
engaged through the latch slots on the attachment
plate.
1. Safety
CAUTION
Careless removal of the shipping bands that
secure the implement to the pallet could result
in Minor or Serious Injury. Clear the area of all
bystanders and stand to the side when cutting the
bands with a pair of sheet metal shears.
DANGER
Never enter the area underneath the coupler or
any part of the attachment when it is in the raised
position to avoid an accident that will result in
Death or Serious Injury.
IMPORTANT
Wipe o any dirt or dust from the male or female
hydraulic flat-face couplers with a clean rag before
attaching hoses, to keep contaminants from
entering the hydraulic system.
PLEASE NOTE:
Attachment and Machine-side
Couplings must be
FREE OF DEBRIS
BEFORE INSTALLING.
Failure to comply will void warranty.

7Blue Diamond® Attachments
WARNING
Moving the attachment with bystanders in the
area could result in Death or Serious Injury. Before
moving the attachment or machine, always make
sure the area is clear of bystanders.
Pre-Operation Walkaround Inspection
Before every use, it is important to perform a
short inspection and certain maintenance on your
grapple attachment.
Grapple Attachment Controls
Your grapple attachment is designed to run o the
skid steer loader auxiliary hydraulic system, with
the additional grapple open and close function
activated by a control switch, pedal or handle
in the operator’s cab. Consult your skid steer
operator’s manual for precise instructions on how
to activate, reverse, and neutralize the auxiliary
circuit.
Height and tilt functions of the attachment are
operated with the control handles or pedals in the
cab. Consult your skid steer operator’s manual for
precise instructions regarding these functions.
Your skid steer may have a “float” function on the
lowering circuit. When placed in the float position,
the attachment will follow the contour of the
ground being worked. This is especially helpful
when back-dragging a new cut. See your skid
steer’s Operator’s Manual for instructions about
how to use the float on your skid steer.
If during your initial startup you realize the grapple
function operates in the opposite direction that
you prefer, you can change positions of the quick
disconnect couplers on the attachment hoses to
remedy your problem.
Before Using Your Grapple for the First
Time
After starting the skid steer, lift the attachment 10”
(254 mm) o the ground surface:
1. With the skid steer engine RPMs just above
idle, slowly engage the auxiliary hydraulic flow
to the grapple arm until the grapple arm(s) are
fully open. Reverse the direction of the grapple
arms until the grapple arm(s) are fully closed.
Repeat this two more times to purge any air
from the system.
2. Lower the attachment to the ground and
shut o the skid steer’s engine and exit the
operator’s compartment.
3. Check the skid steer’s hydraulic oil level, and
add oil if necessary.
4. Inspect the grapple attachment’s hydraulic
plumbing for any noticeable leaks. Correct
these leaks before continuing.
1. Safety
ITEMS
PCheck that all shields and guards are in
place.
PLook for loose bolts and tighten them if
necessary.
P
Check that all safety decals are in
place and can be read. Replace them if
necessary.
PTake care of our environment. Repair any
hydraulic leaks.
IMPORTANT
If this is your initial startup with this attachment
on this machine, check the skid steer’s hydraulic
oil level and add oil, if necessary, before and after
doing steps 1 & 2 below.

Blue Diamond® Attachments8
Getting Familiar with the Attachment
Before starting the engine with this grapple
attachment connected to the skid steer, make
sure you are knowledgeable and comfortable with
the operation of the auxiliary hydraulic control as
outlined in the previous sections of this manual
and that in the skid steer loader Owner’s Manual.
When operating the grapple attachment, set the skid
steer throttle at a speed that will produce the required
flow, to the attachment and the other loader functions.
If the skid steer is equipped with a foot throttle, use it
to control engine speed and power being delivered
to the attachment. Refer to your skid steer manual or
call your local skid steer dealer for additional help, if
necessary.
To begin with, learn what the attachment looks like in
a level position when you are seated in the skid steer.
Knowing what a level implement looks like will help
you with your attachment operation.
The correct ground speed for using this attachment
will depend on the application and conditions and
usually can be monitored by sound and feel and
depends on the material density. If the skid steer
engine is bogging down because of taking too big of
a “bite” with the attachment, it will be necessary to
raise or decrease the load a little until the machine’s
power can overcome the material load on the
attachment.
Before Starting
Inspect the area to be worked and make sure it is
free of any utilities, rocks, fence posts, or any other
objects that you do not want to move.
Determine a safe and ecient duty cycle pattern
before the start of the job.
Grapple Attachment Tips
1. Always inspect the work area before starting
the job. Locate and mark any utilities, steel
posts, rocks, or any other objects that could
be damaged or would damage the attachment
during operation. Never assume the work
area is safe and never skip the inspection part
before start of operation.
1. Safety
CAUTION
Be cautious when operating on uneven ground
surfaces. A machine roll over could result in Minor
or Serious Injury. Always wear your seat belt when
operating this type of machinery.
WARNING
Exposure to crystalline silica dust along with
other hazardous dusts may cause serious or fatal
respiratory disease. It is recommended to use
dust suppression, dust collection, and if necessary
personal protective equipment during the
operation of any attachment that may cause a high
level of dust.
DANGER
Never operate the grapple arms when bystanders
are within 10’ (3 m) of your work area.
WARNING
Before digging into any surface, always contact the
“Digger’s Hotline” to identify underground utilities
to avoid an accident that could result in Death or
Serious Injury to the operator or fellow workers.
CAUTION
Be cautious when operating on un-level ground
surfaces. A machine roll over could result in Minor
or Serious Injury. Always wear your seat belt when
operating this type of machinery.

9Blue Diamond® Attachments
2. Operate at a safe slow-paced speed that will
allow you to watch the area ahead and behind
the attachment and loader. Since about half
of your duty cycle may be in reverse, look
behind you and/or utilize your mirrors when
backing up. Verify that your backup alarm is
working properly to warn others when you
are in reverse, but never think that the alarm
replaces your responsibility to visually check
what’s behind you.
3. Overloading the attachment will only result
in spinning the tracks or tires and will make
unwanted ruts.
Overloading the attachment will also
necessitate raising the implement to o
load some of the resistance occuring by the
material. When you raise the attachment,
you will create an unleveled surface that will
increase as the front of the prime mover drives
over the rise of the ground surface.
4. If you lift too heavy a load with your
attachment, you may raise the rear of your skid
steer and further reduce your tractive power
available to move the load.
5. Before beginning your forward motion with the
attachment, stop the skid steer and make any
final adjustments to the attachment in terms of
height & tilt.
6. Center your load on the attachment. Estimate
the load center and pick it accordingly. If
the load feels unbalanced when you lift it,
reposition your grab and retry the lift. An
unbalanced load could overturn your skid
steer.
7. After loading your attachment and clamping
the arms over the load, roll the attachment
back and retighten the clamp arm pressure.
When rolling back the attachment, the load will
settle and require some additional clamping
pressure to secure the load.
8. The grapple clamp should not be used for
pushing or pulling down trees or any type of
structure. The clamp’s purpose is to clamp the
load so it can be moved to a dierent spot on
the job site.
9. To save some service work and down time,
always pay attention that tree branches or
roots do not poke through past the attachment
arms and damage any hydraulic parts or even
enter the cab area.
10. Be careful that a branch or root doesn’t “whip”
back at the skid steer. Wear safety glasses to
prevent dirt getting your eyes.
11. Keep your distance from any type of utility,
whether underground or in the air.
12. Always clean the quick-disconnect couplers
before connecting them to the skid steer.
Utilize plastic or metal caps to protect
the ends when not being used. Tuck the
quick disconnect hoses somewhere in the
attachment where they will be out of the dirt
and will not be driven over.
1. Safety
WARNING
When lifting a load of brush or trees, make sure all
ends are not tangled with standing trees that could
cause the center of gravity to be compromised,
resulting in a rollover that could cause Death or
Serious Injury.
WARNING
Use extreme caution when working around
low hanging electrical lines. Do not raise the
attachment in an area where there are low
electrical lines to prevent an accident that could
result in Death or Serious Injury.

Blue Diamond® Attachments10
2.1 Maintaining Your Attach-
ment
Before Every Use
Check that all fasteners (nuts, bolts, pins, keepers)
are in their right place and are tight.
Inspect and replace any worn, torn, or missing safety
decals.
Investigate the location of any oil leaks and repair.
Lubricate all pivot joints with #2 lithium grease
Every Week
Check the condition of the grapple frame. Repair if
necessary.
After Every Season
Inspect the implement for any loose or worn parts
that may need to be replaced prior to the next
season.
Clean and repaint any area that looks worn or
scratched to prevent further rusting. Use an
equipment paint found at your local hardware store or
building center.
Replace any warning decals that have been lost or
damaged.
Store your implement in a shed or cover with a water-
proof tarp to protect it from the weather. Store in an
area not frequented by children.
Hydraulic System
2. Maintenance
WARNING
A small stream of oil from a pinhole leak could
penetrate your skin if contacted. To avoid an
accident that could result in Death or Serious
Injury, never use your hand or other body parts in
an attempt to locate a hydraulic leak.
IMPORTANT
Always release the hydraulic system pressure
from the hydraulic circuits prior to removing the
attachment or any hydraulic system service work.

11Blue Diamond® Attachments
3. Parts
3.1 Single Clamp Parts Breakdown
1
10
7
6
5
3
4
2
98
98 8 9

Blue Diamond® Attachments12
3. Parts
3.1 Single Clamp Parts Breakdown
ITEM DESCRIPTION PART NUMBER QTY
1
Main Frame 36" 206038 1
Main Frame 42" 206040 1
Main Frame 44" 206041 1
Main Frame 50" 206042 1
2 Clamp 206044 1
3 Clamp Pivot Pin 206046 2
4 Cylinder 207002 1
5 Cylinder Cover 206036 1
NS Cylinder Fitting 295030-M06ORB-M06JIC 2
NS Cylinder Restrictor Fitting 206052 1
6 Rear Cylinder Pin 206046 1
7 Front Cylinder Pin 206051 1
8 Pin Retaining Bolt 299415 4
9 Pin Retaining Nut 299653 4
10 Hose Set 206096 1
NS Female Coupler 224009 1
NS Male Coupler 224010 1
NS Coupler Fitting 295010-M06JIC-M08ORB 2

13Blue Diamond® Attachments
3. Parts
3.2 Double Clamp Parts Breakdown
1
3
13
12 11
10
6
15
4
7
2
98
98
8 9

Blue Diamond® Attachments14
3. Parts
3.2 Double Clamp Parts Breakdown
ITEM DESCRIPTION PART NUMBER QTY
1 Main Frame 50" 206043 1
2 Clamp 206139-2 2
3 Clamp Pivot Pin 206046 5
4 Cylinder 207002 2
5 Cylinder Cover 206036 2
NS Cylinder Fitting 295030-M06ORB-M06JIC 4
6 Rear Cylinder Pin 206046 2
7 Front Cylinder Pin 206051 2
8 Pin Retaining Bolt 299415 8
9 Pin Retaining Nut 299653 8
10 Machine Hose Set 206096 1
11 Hose Cover Bulkhead 206054 1
NS Bulkhead Stover Nut 208550 2
NS Bulkhead Washer 299725 2
NS Bulkhead Tee 206355 2
12 Long Cylinder Hose 206055 2
13 Short Cylinder Hose 206056 2
NS Female Coupler 224017 1
NS Male Coupler 224018 1
NS Coupler Fitting 295010-M06JIC-M08ORB 2

15Blue Diamond® Attachments
4. Troubleshooting
PROBLEM CAUSE SOLUTION
Hydraulic oil level goes
down during operation
Leak at hoses on attachment Investiage and repair
Leak in skid steer hydraulic system Investigage and repair
Grapple does not open or
close
Quick disconnects not connected Check and recouple quick disconnects
Hose damaged Check for smashed or kinked hose and replace if found
Skid steer auxiliary circuit inoperative Investigate and have them repaired
Grapple moves very slow
Restricted hose Check for damaged hose between skid steer and grap-
ple cylinders. If damaged, replace the hose.
Circuit relief on skid steer bad Investigate and have repaired
Auxiliary valve spool on skid steer not
shifting properly Investigate and have repaired
Grapple cylinder seals bypassing Have cylinder(s) repacked or replaced

Blue Diamond® Attachments16
5. Specifications
5.1 Torque Specifications
BOLT
TYPE SAE GRADE 5 SAE GRADE 8 LOCK NUTS
Nominal
Size
Plated or
Unplated
Silver
Plated
W/ ZnCr
Gold
Plated or
Unplated
Silver
Plated
W/ ZnCr
Gold
Plated or
Unplated
Silver
Plated W/
ZnCr
Gold
W/ Grade
5 Bolt
W/ Grade
8 Bolt
1/4 55 in / lb
(6.2 N•m)
72 in / lb
(8.1 N•m)
86 in / lb
(9.7 N•m)
112 in / lb
(12.6 N•m)
121 in / lb
(13.6 N•m)
157 in / lb
(17.7 N•m)
61 in / lb
(6.9 N•m)
86 in / lb
(9.8 N•m)
5/16 115 in / lb
(13 N•m)
149 in / lb
(17 N•m)
178 in / lb
(20 N•m)
229 in / lb
(26 N•m)
250 in / lb
(28 N•m)
325 in / lb
(37 N•m)
125 in / lb
(14 N•m)
176 in / lb
(20 N•m)
3/8 17 ft / lb
(23 N•m)
22 ft / lb
(30 N•m)
26 ft / lb
(35 N•m)
34 ft / lb
(46 N•m)
37 ft / lb
(50 N•m)
48 ft / lb
(65 N•m)
19 ft / lb
(26 N•m)
26 ft / lb
(35 N•m)
7/16 27 ft / lb
(37 N•m)
35 ft / lb
(47 N•m)
42 ft / lb
(57 N•m)
54 ft / lb
(73 N•m)
59 ft / lb
(80 N•m)
77 ft / lb
(104 N•m
30 ft / lb
(41 N•m)
42 ft / lb
(57 N•m)
1/2 42 ft / lb
(57 N•m)
54 ft / lb
(73 N•m)
64 ft / lb
(87 N•m)
83 ft / lb
(113 N•m)
91 ft / lb
(123 N•m)
117 ft / lb
(159 N•m)
45 ft / lb
(61 N•m)
64 ft / lb
(88 N•m)
9/16 60 ft / lb
(81 N•m)
77 ft / lb
(104 N•m)
92 ft / lb
(125 N•m)
120 ft / lb
(163 N•m)
130 ft / lb
(176 N•m)
169 ft / lb
(229 N•m)
65 ft / lb
(88 N•m)
92 ft / lb
(125 N•m)
5/8 83 ft / lb
(112 N•m)
107 ft / lb
(145 N•m)
128 ft / lb
(174 N•m)
165 ft / lb
(224 N•m)
180 ft / lb
(244 N•m)
233 ft / lb
(316 N•m)
90 ft / lb
(122 N•m)
127 ft / lb
(172 N•m)
3/4 146 ft / lb
(198 N•m)
189 ft / lb
(256 N•m)
226 ft / lb
(306 N•m)
293 ft / lb
(397 N•m)
319 ft / lb
(432 N•m)
413 ft / lb
(560 N•m)
160 ft / lb
(217 N•m)
226 ft / lb
(306 N•m)
7/8 142 ft / lb
(193 N•m)
183 ft / lb
(248 N•m)
365 ft / lb
(495 N•m)
473 ft / lb
(641 N•m)
515 ft / lb
(698 N•m)
667 ft / lb
(904 N•m)
258 ft / lb
(350 N•m)
364 ft / lb
(494 N•m)
1213 ft / lb
(289 N•m)
275 ft / lb
(373 N•m)
547 ft / lb
(742 N•m)
708 ft / lb
(960 N•m)
773 ft / lb
(1048 N•m)
1000 ft / lb
(1356 N•m)
386 ft / lb
(523 N•m)
545 ft / lb
(739 N•m)
Standard Hardware and Lock Nuts

MANUFACTURER’S LIMITED WARRANTY
BLUE DIAMOND®ATTACHMENTS, a manufacturer of quality attachments, warrants new BLUE DIAMOND®
ATTACHMENTS products and/or attachments at the time of delivery to the original purchaser, to be free
from defects in material and workmanship when properly set up and operated in accordance with the
recommendations set forth by BLUE DIAMOND®ATTACHMENTS, LLC.
BLUE DIAMOND®ATTACHMENTS liability for any defect with respect to accepted goods shall be limited to
repairing the goods at a BLUE DIAMOND®ATTACHMENTS designated location or at an authorized dealer
location, or replacing them, as BLUE DIAMOND®ATTACHMENTS shall elect. The above shall be in accordance
with BLUE DIAMOND®ATTACHMENTS warranty adjustment policies. BLUE DIAMOND®ATTACHMENTS obligation
shall terminate twelve (12) months for the Mini Root Grapple after the delivery of the goods to original purchaser.
This warranty shall not apply to any machine or attachment which shall have been repaired or altered
outside the BLUE DIAMOND®ATTACHMENTS factory or authorized BLUE DIAMOND®ATTACHMENTS dealership
or in any way so as in BLUE DIAMOND®ATTACHMENTS judgment, to aect its stability or reliability, nor which has
been subject to misuse, negligence or accident beyond the company recommended machine rated capacity.
WARRANTY CLAIM
To submit a warranty claim, a claim must be filed with BLUE DIAMOND®ATTACHMENTS before work is performed.
The BLUE DIAMOND® PRODUCT SUPPORT TEAM will advise repairs and applicable parts exchanges. Tampering
with the failed part may void the warranty. This warranty does not include freight or delivery charges incurred
when returning machinery for servicing. Dealer mileage, service calls, and pickup/delivery charges are the
customers’ responsibility.
EXCLUSIONS OF WARRANTY
Except as otherwise expressly stated herein, BLUE DIAMOND®ATTACHMENTS makes no representation or
warranty of any kind, expressed or implied, AND MAKES NO WARRANTY OF MERCHANTABILITY IN RESPECT
TO ITS MACHINERY AND/OR ATTACHMENTS ARE FIT FOR ANY PARTICULAR PURPOSE. BLUE DIAMOND®
ATTACHMENTS shall not be liable for incidental or consequential damages for any breach or warranty, including
but not limited to inconvenience, rental of replacement equipment, loss of profits or other commercial loss.
Upon purchase, the buyer assumes all liability for all personal injury and property resulting from the handling,
possession, or use of the goods by the buyer.
No agent, employee, or representative of BLUE DIAMOND®ATTACHMENTS has any authority to bind BLUE
DIAMOND®ATTACHMENTS to any armation, representation, or warranty concerning its machinery and/or
attachments except as specifically set forth herein.
This warranty policy supersedes any previous documents.
NOTE: Blue Diamond®Attachments is a trademark of BLUE DIAMOND®ATTACHMENTS
Warranty

QUALITY | DEPENDABILITY | INTEGRITY
Blue Diamond® Attachments
4512 Anderson Road, Knoxville, TN 37918
888-376-7027
