Blue Diamond Mini Series User manual

Publication Date: October 1, 2020
Mini Series Log Grapple
(Hydraulic and Manual rotation models)
Operation and Maintenance Manual
MAKE SURE TO REGISTER YOUR WARRANTY WITHIN 30 DAYS OF
PURCHASE.
Visit www.bluediamondattachments.com to register.

Mini Series Log Grapple
Blue Diamond Attachments 2
Document History
The table below lists all revisions of the Root Grapple Operation and Maintenance Manual.
Document Revision
Summary of Changes
Publication Date
First publication
First revision
10/1/2020
Blue Diamond Attachments
4512 Anderson Road
Knoxville, TN 37918
888-376-7027
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning
any equipment, equipment feature, or service offered or to be offered by Blue Diamond. Blue Diamond reserves the right to make
changes to this document at any time, without notice, and assumes no responsibility for its use. This informational document
describes features that may not be currently available. Contact a Blue Diamond sales office for information on feature and
product availability.

Mini Series Log Grapple
Blue Diamond Attachments 3
Table of Contents
Document History............................................................................................................2
About this Manual ...........................................................................................................4
Hazard Notices Used in this Manual............................................................................4
Terminology.................................................................................................................4
Safety..............................................................................................................................4
Safety Notices .............................................................................................................4
Modifications to Equipment..........................................................................................4
About the Log Grapple Attachment.................................................................................5
Attaching the Log Grapple to the Prime Mover ...............................................................5
Removing the Log Grapple from the Prime Mover..........................................................5
Operation and Maintenance............................................................................................6
Equipment Inspection..................................................................................................6
Usage Guidelines ........................................................................................................6
Inspection Checklist.....................................................................................................6
Detailed Parts List...........................................................................................................7
Manufacturer’s Warranty...............................................................................................10
One-Year Limited Warranty.......................................................................................10
Warranty Claim..........................................................................................................10
Exclusions of Warranty..............................................................................................10

Mini Series Log Grapple
Blue Diamond Attachments 4
About this Manual
This manual contains information about the usage and maintenance required for the equipment. This
document must be available for review by the operator before using the attachment to ensure proper
safety, maintenance, and usage.
Hazard Notices Used in this Manual
The following hazard notices are used in this document:
NOTE –Notes are used to indicate important information. This information may be repeated in
other areas of the manual.
CAUTION –Cautions are used to indicate a potentially hazardous situation which, if not avoided,
may result in damage to the equipment or other property.
WARNING –Warnings are used to indicate a potentially hazardous situation which, if not
avoided, could result in serious injury or death.
DANGER –Danger is used to indicate a potentially hazardous situation which, if not avoided, will
result in serious injury or death.
Terminology
Prime Mover: The root grapple can be attached to many different pieces of equipment; therefore
the term “prime mover” will be used. A prime mover is any equipment, tractor, or skid steer
providing power to the attachment.
Safety
Safety Notices
Before operating or conducting maintenance on this equipment, it is important to wear proper protection.
Recommended safety equipment when operating and maintaining this equipment includes earplugs, eye
protection, and a hard hat.
NOTE: Additional safety equipment may be required depending on the operating environment and
worksite conditions.
Only qualified and trained personnel should operate, maintain, and service this attachment. It is
recommended that this equipment be inspected regularly for leaks, cracks, or other conditions that may
impair proper usage of the equipment. Verify that all repairs have been completed and inspected prior to
using the attachment under load.
It is the responsibility of the user to follow all local, state, and federal safety regulations. Improper use of
this equipment may result in personal injury, property damage, and/or damage to the equipment.
Modifications to Equipment
Any modifications made to this equipment may void any warranty and relieve the manufacturer of liability
of any resulting injury or damage.

Mini Series Log Grapple
Blue Diamond Attachments 5
About the Log Grapple Attachment
The log grapple attachment is intended for use in materials handling. The primary use of the log grapple
attachment is moving or skidding logs. Use of this equipment in any other manner is considered to be
contrary to the intended use of the attachment.
The load weight should never exceed 2,000 lbs. Damage to the attachment, prime mover, or operator
could occur if this is ignored.
Attaching the Log Grapple to the Prime Mover
NOTE: Before attempting to attach the log grapple to the prime mover, verify that all hydraulic couplings
are compatible.
WARNING –Improper attachment to the prime mover may cause personal injury.
CAUTION –All hydraulic connections must be clean and free of debris before making any connection.
1. Place the root grapple attachment on a level surface.
2. Position and align the prime mover to the rear of the attachment, within proximity of the front of
prime mover.
3. Insert and connect the prime mover into the attachment.
4. Connect the hydraulic lines from the attachment to the prime mover.
5. Close latches (or other locking mechanism) to secure the attachment to the prime mover.
6. Using the prime mover, raise the attachment and move the attachment to ensure hydraulic lines
are clear of air and operate properly.
CAUTION –Hydraulics should operate in an even and smooth manner. Hydraulic movement that is
not even and smooth may indicate that air is in the hydraulic lines.
7. Lower the attachment to ground level.
8. Inspect that the attachment is mounted properly and securely. If the attachment does not meet
this requirement, follow the instructions to remove the Root Grapple and re-attach using the
instructions above.
Removing the Log Grapple from the Prime Mover
WARNING –Improper disconnection may result person injury or damage to the attachment and prime
mover.
CAUTION –All hydraulic connections must be clean and free of debris before disconnection.
1. Using the prime mover, lower the attachment to the ground.
2. To prevent contamination, remove any dirt and debris from the couplings. Disconnect the
hydraulic connection between the attachment and the prime mover.
NOTE: Hydraulic connections must be disconnected before disengaging latches to prevent damage to
the prime mover or the attachment.
3. Disengage the prime mover latches (or other locking mechanism) from the attachment.
4. Move the prime mover from the attachment.

Mini Series Log Grapple
Blue Diamond Attachments 6
Operation and Maintenance
Equipment Inspection
It is recommended to inspect the equipment for damage and wear before use. Use the following list as a
guideline during equipment inspection.
•Check all hardware connections to the prime mover for damage or fatigue such as cracks
or other structural flaws.
•Check that all latches or locks are closed.
•Check that all hydraulic fittings are tight and free of leaks
•Check that all hydraulic lines are free of leaks, holes, or cracks.
WARNING –Do not use hands to check for hydraulic leaks. Keep body parts away from leaking
hydraulic lines and couplings that are under pressure.
•Check that the tires on the prime mover are in good condition and have proper load
ratings.
NOTE: Replace any damaged hardware, hoses, and fitting before using the equipment.
Usage Guidelines
Before each use do the following:
•Perform daily maintenance as indicated in the Daily Maintenance Schedule.
•Inspect the attachment by performing a walk around
•Use the root grapple for materials handling only.
DANGER –Keep all body parts away from the root grapple when in use. The upper tines may
open or close unexpectedly causing serious bodily injury or death.
Inspect the root grapple daily before use. It is also recommended to inspect the root grapple after Severe
use or damage. Use the following inspection checklist as a guideline.
Inspection Checklist
Are all safety notices and warning decals in proper locations and visible?
Are there any visible hydraulic leaks?
Are any cracks visible in log grapple structure?
Are the tines worn or bent?
Have all grease fittings (zerk fittings) have been greased every 8 hours?
Are the bolts holding pins secure and tight?
Has the prime mover been properly inspected for hydraulic leaks and proper tire inflation?
Has the prime mover been properly maintained?

Mini Series Log Grapple
Blue Diamond Attachments 7

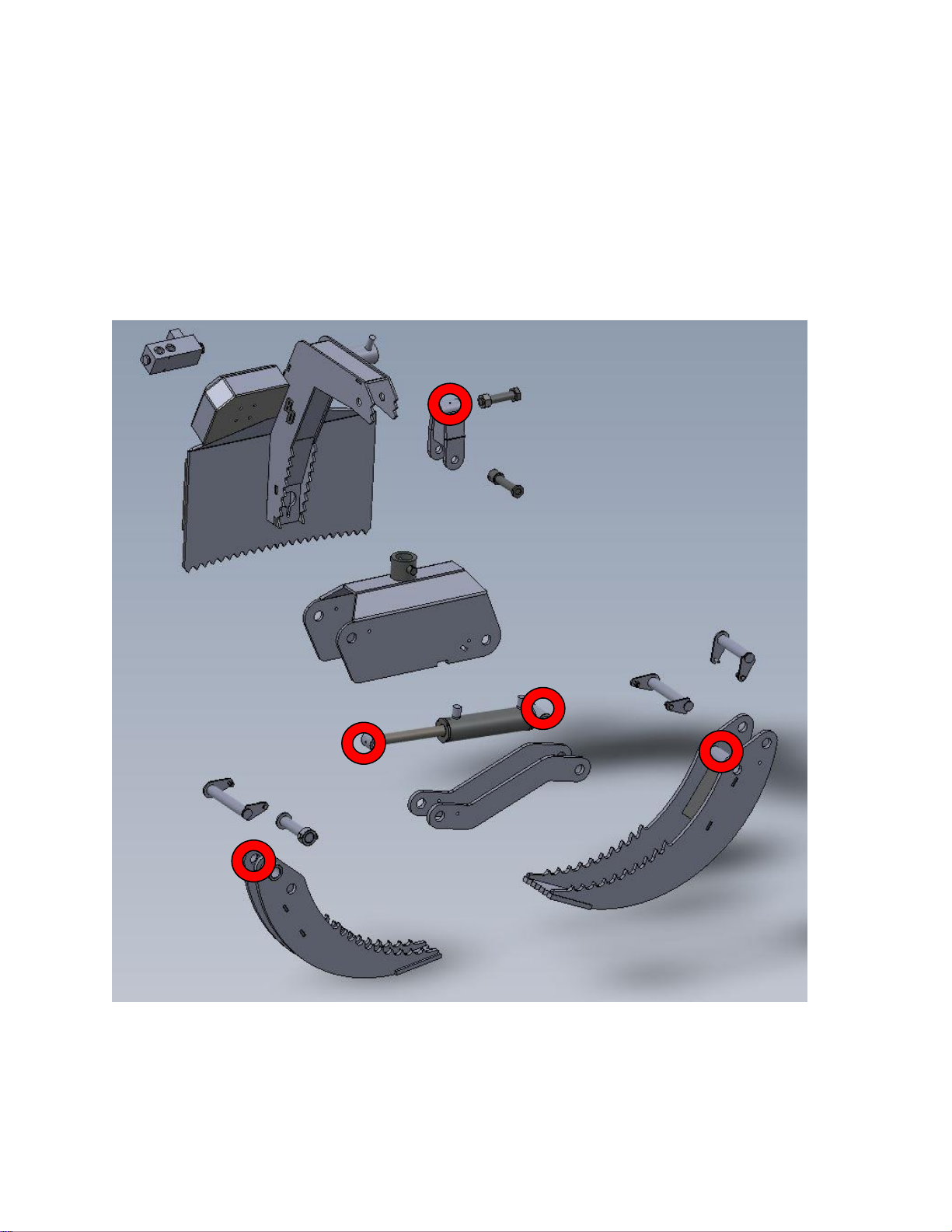

There are 5 grease points on the log grapples. See exploded parts view below for each
location. The attachment does not need disassembled for greasing. However, you may
need to open or close the claws to allow for your grease gun to reach the zerk. Ensure
that the machine is turned off during service and that you support the lift arms with
lockout braces if the machine’s arms are lifted. Grease every 8 hours of use.
Grease points:

Mini Series Log Grapple
Blue Diamond Attachments 8
Detailed Parts List
Figure 1 –Log Grapple –Parts List
Table 1 –Main boom parts List
#
Part Name
Description
Size
Part No.
Qty.
1
Diverter manifold
Diverter Manifold
1
2
Main frame
Main boom/mount weldment for Hydraulic
rotation model
1
2
Main frame
Main boom/mount weldment for Manual
rotation model
1
3
Knuckle
4-way swing knuckle
1
4
Bolt/Nut
Main swing bolt and nut
1
5
Main pin
Main pin for claw or hydraulic rotator
1
NOT SHOWN
n/a
Hose
Hydraulic rotation-Machine to manifold
hose (no couplers)
78”
1
n/a
Hose
Hydraulic rotation-Manifold to rotator hose
38”
4
n/a
Hose
Hydraulic rotation-rotator to cylinder hose
22”
2
n/a
Hose
Manual rotation-Hose set (no couplers)
1

Mini Series Log Grapple
Blue Diamond Attachments 9

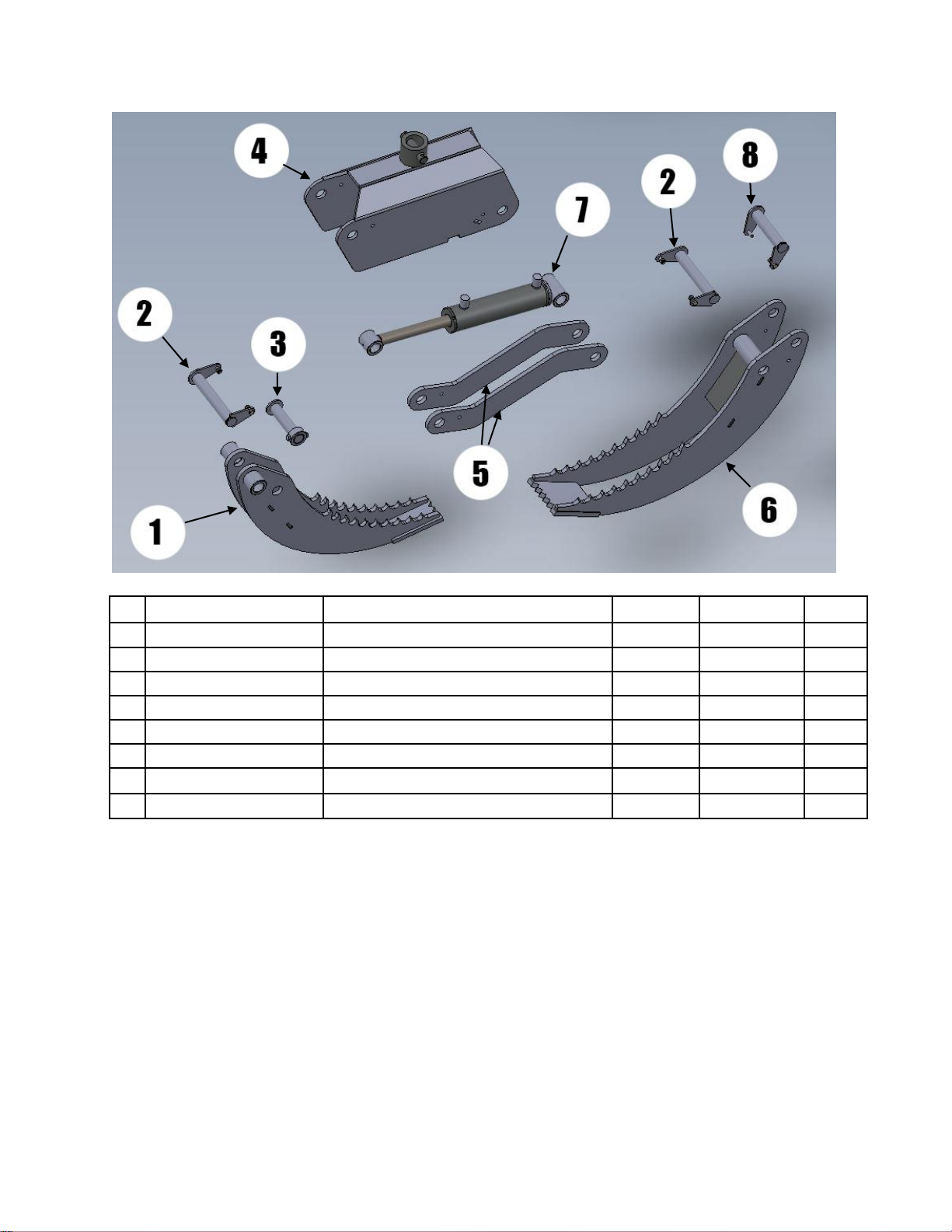

Table 2 –Claw assembly parts List
#
Part Name
Description
Size
Part No.
Qty.
1
Inner claw
1
2
Pin
Pivot Pin
2
3
Pin
Pivot Pin
1
4
Claw housing
1
5
Linkage
2
6
Outer claw
1
7
Cylinder
Max pressure: 3,000 psi
1
8
Pin
Pivot pin
1

Mini Series Log Grapple
Blue Diamond Attachments 10
Manufacturer’s Warranty
One-Year Limited Warranty
Blue Diamond Attachments, LLC, hereinafter referred to as BLUE DIAMOND ATTACHMENTS, a
manufacturer of quality machinery since 1996, warrants new BLUE DIAMOND ATTACHMENTS
machinery and/or attachments at the time of delivery to the original purchaser, to be free from defects in
material and workmanship when properly set up and operated in accordance with the recommendations
set forth by BLUE DIAMOND ATTACHMENTS.
BLUE DIAMOND ATTACHMENTS’ liability for any defect with respect to accepted goods shall be limited
to repairing the goods at a BLUE DIAMOND ATTACHMENTS designated location or at an authorized
dealer location, or replacing them as BLUE DIAMOND ATTACHMENTS shall elect. The above shall be
in accordance with BLUE DIAMOND ATTACHMENTS warranty adjustment policies. BLUE DIAMOND
ATTACHMENTS’S obligation shall terminate twelve (12) months after the delivery of the goods to original
purchaser. This warranty shall not apply to any machine or attachment which shall have been repaired or
altered outside the BLUE DIAMOND ATTACHMENTS factory or authorized BLUE DIAMOND
ATTACHMENTS dealership or in any way so as in BLUE DIAMOND ATTACHMENTS’S judgment, to
affect its stability or reliability, nor which has been subject to misuse, negligence or accident beyond the
Company recommended machine rated capacity.
Warranty Claim
To submit a warranty claim, a return authorization from BLUE DIAMOND ATTACHMENTS must be
obtained. The failed part may then be returned. Tampering with the failed part may void the warranty.
This warranty does not include freight or delivery charges incurred when returning machinery for
servicing. Dealer mileage, service calls, and pickup/delivery charges are the customers' responsibility.
Exclusions of Warranty
Except as otherwise expressly stated herein, BLUE DIAMOND ATTACHMENTS makes no representation
or warranty of any kind, expressed or implied, AND MAKES NO WARRANTY OF MERCHANTABILITY IN
RESPECT TO ITS MACHINERY AND/OR ATTACHMENTS ARE FIT FOR ANY PARTICULAR
PURPOSE. BLUE DIAMOND ATTACHMENTS shall not be liable for incidental or consequential
damages for any breach or warranty, including but not limited to inconvenience, rental of replacement
equipment, loss of profits or other commercial loss. Upon purchase, the buyer assumes all liability for all
personal injury and property resulting from the handling, possession, or use of the goods by the buyer.
No agent, employee, or representative of BLUE DIAMOND ATTACHMENTS has any authority to bind
BLUE DIAMOND ATTACHMENTS to any affirmation, representation or warranty concerning its
machinery and/or attachments except as specifically set forth herein.
This warranty policy supersedes any previous documents.

Mini Series Log Grapple
Blue Diamond Attachments 11
Warranty Registration:
Please fill out this warranty registration within 30 days of the purchase of your attachment.
It can be faxed to 865-246-2007 or emailed to: [email protected]
Name and address _______________________________________________________
Phone #___________________________________
Attachment part #__________________________
Attachment serial #_________________________
Date purchased ____________________________
Name of dealer attachment was purchased from:
Comments:____________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
__________________________________________________
Blue Diamond Attachments, Knoxville TN
888-376-7027
