Blue Ribbon Birdcage BC001 User manual

Pressure, Level & Temperature Transmitters &
Transducers
User’s Guide
Submersible Level Transmitter
TABLE OF CONTENTS
1. Introduction
1.1 Product overview
1.2 Using this Guide
2. Features
3. Installation and Maintenance
3.1 Wiring
3.2 Anchoring
3.3 Submersion
3.4 Water Intrusion
3.5 Cable Care
3.6 Position Sensitivity
3.7 Sensing Diaphragm
4. Troubleshooting & Return Information
5. Warranty

Pressure, Level & Temperature Transmitters &
Transducers
2770 Long Rd, Grand Island, NY 14702 USA
Phone: [phone] Fax: [phone] Email: [email protected] www.blueribboncorp.com
1. Introduction
1.1 Product Overview
The following User’s Guide is for use with Blue Ribbon Birdcage BC001 along with
models 313L, 313S,1103 and any of the other submersible transmitters available.
1.2 Using this Guide
This manual is intended to help the end user install, maintain, and provide general
service of all Blue Ribbon Submersible Level Transducers.
The user should have a general understanding of current loops & general instrument
control. All Blue Ribbon Submersible Level Transducers are precision instruments
and should be given the same care as any other precision instrument during
installation and operation.
2. Features
 Available ranges of 0-20” WC thru 300 PSI
 316L Stainless Steel housing rated to 900 FTWC
 Up to +-0.10% FSO accuracy
 Chemical resistant Hytrel cable
 Vented cable with Hydrophobic filter
 Lightning surge suppression
 4-20mA, 0-5Vdc, and 0-10Vdc output
3. Installation and Maintenance
3.1 Wiring
Consult wiring listed under Electrical Connections on the Calibration Record
provided with each serialized individual unit. Do not run wires next to power lines,
electrical systems, motors, generators, or any other equipment which may generate
a significant amount of electrical noise or magnetic fields.

Pressure, Level & Temperature Transmitters &
Transducers
2770 Long Rd, Grand Island, NY 14702 USA
Phone: [phone] Fax: [phone] Email: [email protected] www.blueribboncorp.com
 A 4-20mA transmitter requires a DC power supply (typically 9-32 VDC)
and mA meter wired in a current loop. Connect the red wire of the
transducer to the + terminal of the power supply and the black wire of
the transducer to the + input terminal of the meter. Connect the – input
terminal of the meter to the – terminal of the power supply.
 A VDC transducer requires a DC power supply (9-32 VDC) and voltmeter.
Connect the Red wire from the transducer to + on the power supply, the
green wire to the +signal of the VDC meter and the Black wire from the
transducer to both the –Power on the power supply and –signal on the
VDC meter.
 A mV/V transducer requires a regulated 5-15 VDC power supply and
voltmeter.
Connect the Red wire from the transducer to + on the power supply, the
green wire to the +signal of the VDC meter the Black wire from the
transducer to the –Power on the power supply and white wire to –signal
on the VDC meter.

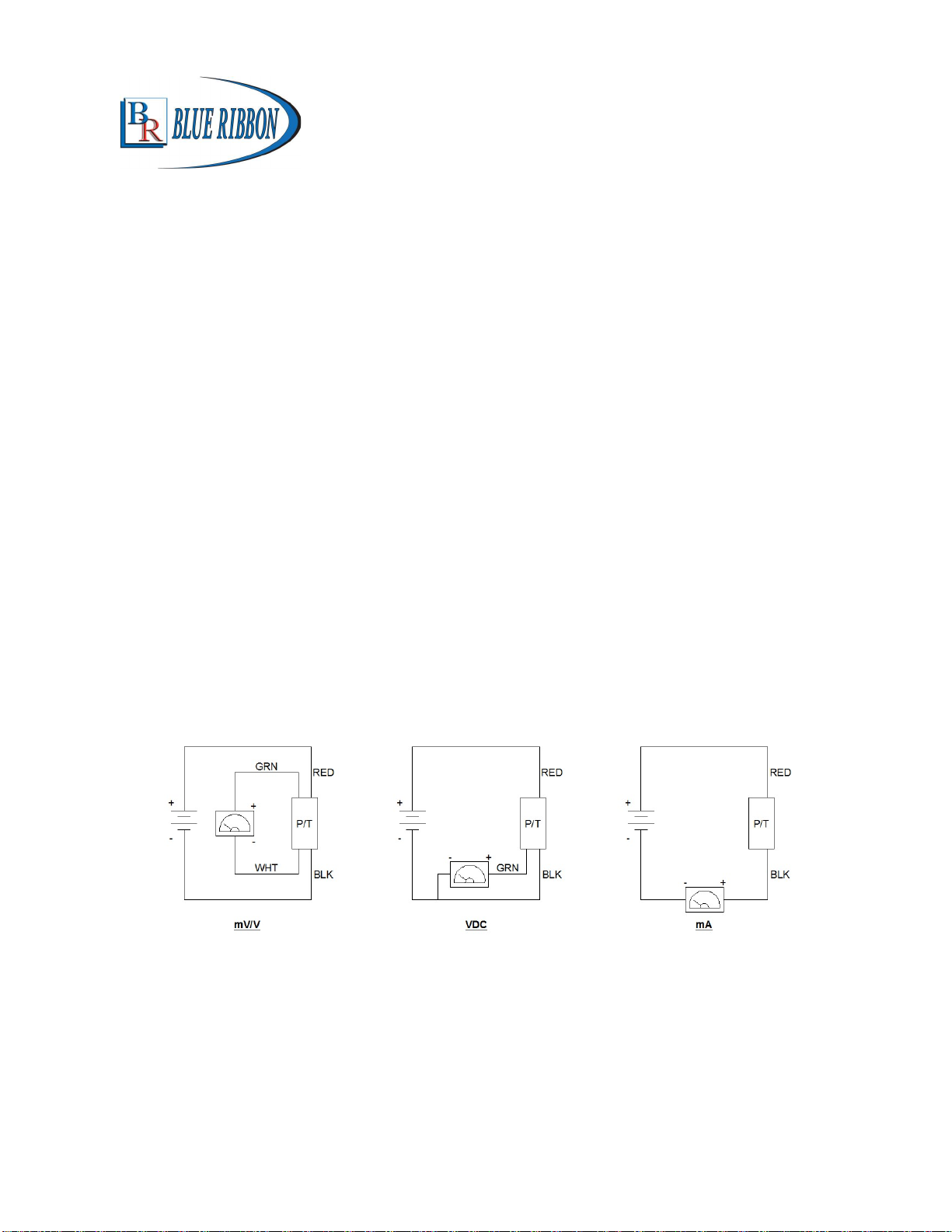

See the wiring guide below

Pressure, Level & Temperature Transmitters &
Transducers
2770 Long Rd, Grand Island, NY 14702 USA
Phone: [phone] Fax: [phone] Email: [email protected] www.blueribboncorp.com
3.2 Anchoring
It is recommended that submersible transmitters be installed in a stilling well or
attached to rigid conduit using the integrated conduit fitting to prevent possible
damage to the transmitter from impact with immovable objects.
Some applications require the transmitter to be suspended without a protective
stilling well or conduit attachment. In all installations, care should be taken to
prevent damage to the submersible cable. Do not secure transmitter to
submerged objects such as a pump that will caused difficulty with transmitter
removal.
3.3 Submersion
Blue Ribbon submersible transmitters come standard with Hytrel jacketed cable
to minimize the risk of damage from cuts or abrasions.
Use care when lowering the transmitter into the well making sure the cable does
not drag over sharp edges. Avoid dropping the transmitter from the surface.
Damage to submersible cable can lead to failure of the transmitter.
3.4 Water Intrusion
Although Blue Ribbon employs an integrated hydrophobic filter to minimize
water intrusion to the vent tube, care should be taken when terminating the
device in a dry, safe location to avoid possible water damage.
3.5 Cable Care
The Hytrel cable can support the full weight of the transmitter. Do not bend the
cable more than the suggested bend radius of 2” to ensure the vent tube does
not crimp. This can obstruct the vent tube to atmospheric pressure causing
improper functionality.
If using a junction box care must be taken that the fitting is not over tightened
causing damage to the cable and or crimping to the vent tube.
3.6 Position Sensitivity
The transmitter should be installed in a vertical position otherwise it may read an
offset. If the transmitter must be installed in a position other than vertical,
measure the output with no pressure applied prior to connection to your display,
PLC, or controller Using the value for your zero reading.

Pressure, Level & Temperature Transmitters &
Transducers
2770 Long Rd, Grand Island, NY 14702 USA
Phone: [phone] Fax: [phone] Email: [email protected] www.blueribboncorp.com
3.7 Sensing Diaphragm
Refrain from pushing, indenting, or probing the pressure port or diaphragm seal.
This will likely cause permanent damage to the unit and will not be covered
under warranty.
3. Troubleshooting and Return information
 Verify power supply voltage meets transducer requirements
 Check wiring connections and inspect cable for possible damage
 Ensure the pressure port/diaphragm is not obstructed
 Verify output load is not shorted
If the problem persists, please call the factory or email Contact:
[e-mail] for assistance. Please have the following information
ready:
 Serial number
 Model number
Repairs should only be done by Blue Ribbon Corp. Repairs done by customer will void any warranties
and may cause permanent damage to unit. Repairs done by customer on Intrinsically Safe units will void
the approvals and are a potential explosion hazard.
Returned products that have been exposed to hazardous substances should be
cleaned prior to return and should include the Material Safety Data Sheet for all
substances.

Pressure, Level & Temperature Transmitters &
Transducers
2770 Long Rd, Grand Island, NY 14702 USA
Phone: [phone] Fax: [phone] Email: [email protected] www.blueribboncorp.com
4. Warranty
Blue Ribbon Corp warranties its products to the original customer/purchaser against defects in
material and workmanship for a period of one (1) year from the date of delivery by Blue Ribbon
Corp, as shown in its shipping documents, subject to the following terms and conditions:
Without charge Blue Ribbon Corp will repair or replace products found to be defective in materials
or workmanship within the warranty period provided that:
1. The product has not been subjected to abuse, neglect, accident, incorrect wiring (not
provided by Blue Ribbon Corp), improper installation or servicing, or use in violation of
instructions furnished by Blue Ribbon Corp.
2. As to any prior defect in materials or workmanship covered by this warranty, the product has
not been repaired or altered by anyone except Blue Ribbon Corp or its authorized service
agencies.
3. The serial number has not been removed, defaced or otherwise changed.
4. Examination discloses, in the judgment of Blue Ribbon Corp, a defect in materials or
workmanship which developed under normal installation, use and service.
5. Blue Ribbon Corp is notified in advance of, and approves, the return by issuing a Return
Material Authorization Number; and the products are returned to Blue Ribbon Corp
transportation prepaid. Products returned without an RMA number will not be accepted and
be returned to sender at sender’s expense.
THIS WARRANTY IS THE ONLY WARRANTY AND IS IN LIEU OF ANY OTHER WARRANTY EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OR MERCHANTABILITY OR FITNESS. NO REPRESENTATIVE OR PERSONS ARE
AUTHORIZED TO GIVE ANY OTHER WARRANTY OR TO ASSUME FOR BLUE RIBBON CORP ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE OF ITS PRODUCTS. BLUE RIBBON CORP DOES NOT ASSUME THE COSTS OF REMOVAL
AND/OR INSTALLATION OF THE PRODUCT OR ANY OTHER WORKMANSHIP, OR WILL BLUE RIBBON CORP BE LIABLE
FOR ANY CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OR INSALLATION OF ITS PRODUCT.
Contact our website https://www.blueribboncorp.com for a copy of our repair policy or
call our repair dept.
Copyright© 2008 Blue Ribbon Corp
