1Unboxing
1.1 In the box
Argos3D–P33X
CAT5/7 Ethernet Cable
Quick Start Guide
Power Supply *
* Note
The power supply’s operating temperature is specified from 0 to +40°C. This represents not
the effective working temperature of the Argos3D–P33X sensor!
1.2 Opening your Argos3D–P33X
To access the connector compartment unscrew the two screws on the Argos3D-P33X front and take
off the connector compartment lid.
Figure 1-1: Argos3D–P33X connector compartment screw positions

Quick Start Guide - Argos 3D - P33X Last change: 22 June 2017
Version 1
© BECOM BLUETECHNIX 2017 Page 6 | 13
1.3 Connecting your Argos3D–P33X
1.4 Connector Overview
a. Power Connector
b. Ethernet
c. General purpose input 1 & 2
d. General purpose output 1 & 2
e. Modulation Light Interface
f. Trigger
g. RS232 / RS485
h. DIP-Switch
i. Reset-Button
j. Debug-UART
k. Status LED
Marks Pin #1
b a c f
ed g i
h j
k

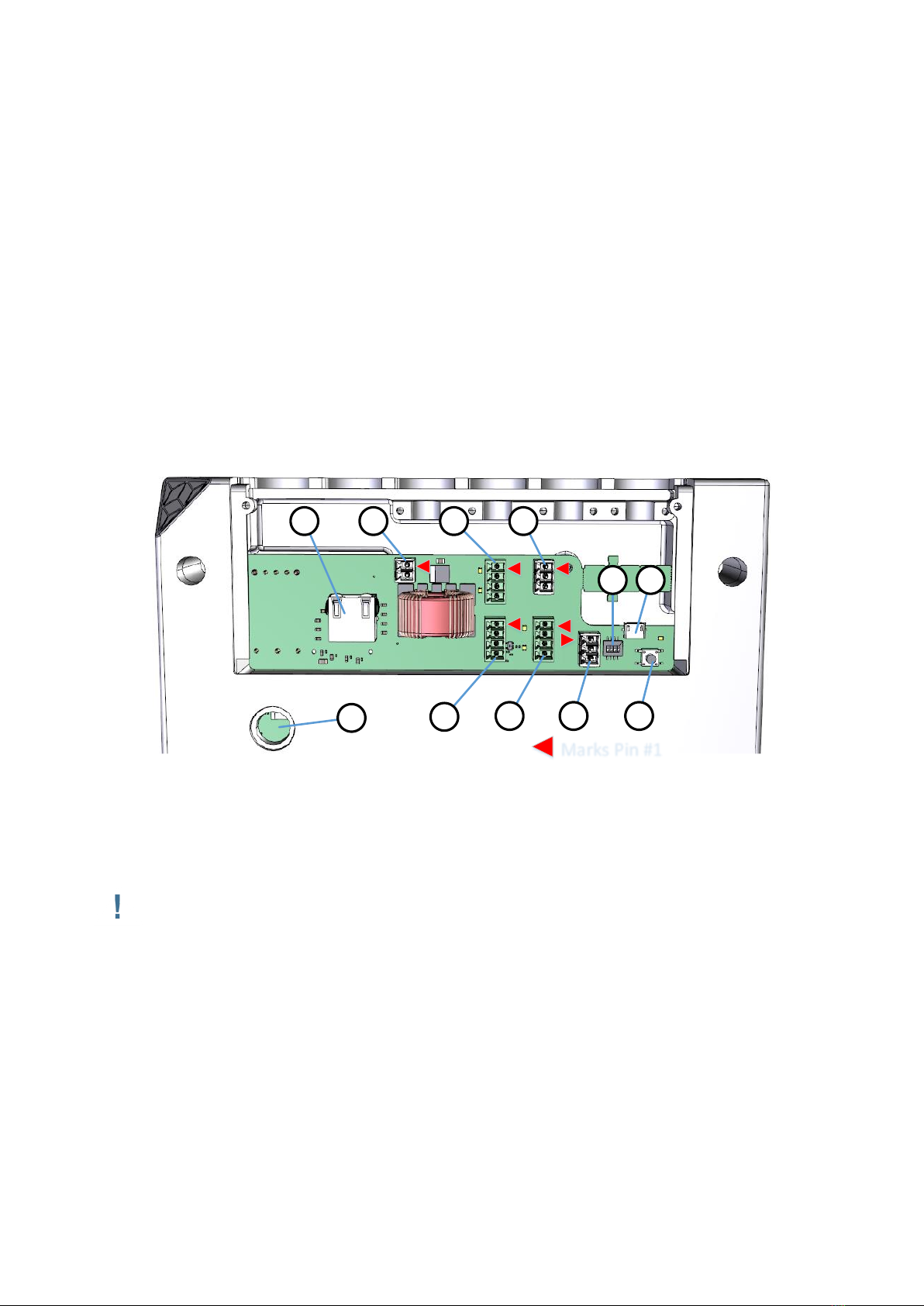

Figure 1-2: Argos3D–P33X connectors and interfaces
Note
Please follow the next steps in the right order to get your ‘Argos3D-P33X’ up and running
correctly.

Quick Start Guide - Argos 3D - P33X Last change: 22 June 2017
Version 1
© BECOM BLUETECHNIX 2017 Page 7 | 13
1.4.1 Connecting the power supply
To ensure, that your Argos3D–P33X works correctly, connect the ‘Argos3D’to a 12-30V DC power supply
using connector (a) and wait for approximately 20 seconds until the camera boots up.
Pin assignment on the power connector (a): Pin #1: +12V to +30V, Pin#2: GND
Note
The power supply connector is protected against wrong polarity but the ‘Argos3D’ will not
work in case you don’t use the correct polarity! If the Argos3D–P33X doesn’t work please
check the power supply polarity first!
1.4.2 Connecting the Ethernet Cable
Plug in the Ethernet cable (b) and connect your Argos3D–P33X to your PC.
Figure 1-3: Argos3D–P33X with connected power supply and Ethernet cable

Quick Start Guide - Argos 3D - P33X Last change: 22 June 2017
Version 1
© BECOM BLUETECHNIX 2017 Page 8 | 13
2Downloading the Evaluation Software
Please log in to our support website at https://support.bluetechnix.com/ and download the Argos-P33X
customer software package. This package also includes the Bluetechnix ToF-Suite.
2.1 Support website
Select ‚free access‘
Figure 2-1: Download Evaluation Package

Quick Start Guide - Argos 3D - P33X Last change: 22 June 2017
Version 1
© BECOM BLUETECHNIX 2017 Page 9 | 13
2.2 Start-up screen
Figure 2-2: Start-up screen
Please select your product: Argos3D –P33X
Please follow the instructions on the WEB-Site

Quick Start Guide - Argos 3D - P33X Last change: 22 June 2017
Version 1
© BECOM BLUETECHNIX 2017 Page 10 | 13
2.3 Prepare your Network Interface Card (NIC)
Once you have connected your Argos3D–P33X to a Network Interface Card (NIC) of your PC give this NIC
the IP-Address 192.168.0.1 with a subnet mask of 255.255.255.0.
No driver must be installed on your PC!
The Argos3D–P33X uses IP-Address 192.168.0.10 with subnet mask 255.255.255.0.

Quick Start Guide - Argos 3D - P33X Last change: 22 June 2017
Version 1
© BECOM BLUETECHNIX 2017 Page 11 | 13
3Start using your Argos3D–P33X with ‘BltTofSuite’
Browse to the directory where you previously saved the BltTofSuite software zip file. Unzip the software.
Using this software you can simply display the depth image and the amplitude image of the Argos3D–P33X.
For a detailed introduction to the software, please read the ‘Bluetechnix ToF Suite - Quick Start Guide’
Place the Argos3D–P33X on your desk approximately 50 cm in front of you.
Figure 3-1: Sample scenario with Argos3D–P33X
Go to the directory where you unzipped the software and start the “BltTofSuite.exe”. On how to use the
Bluetechnix ToF Suite, please refer to the user manual included in the software support package.
