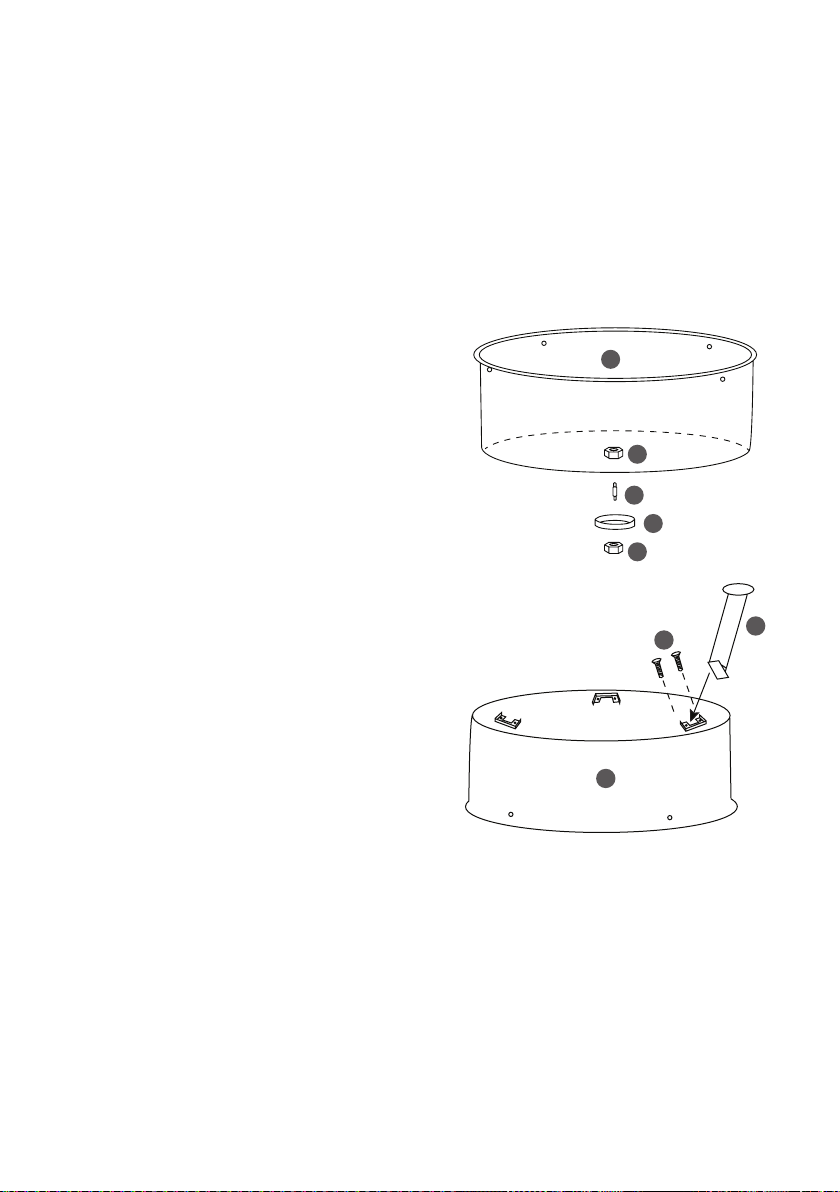

9
Make sure not to fully tighten bolts
until all four sections of the top ring
are assembled.

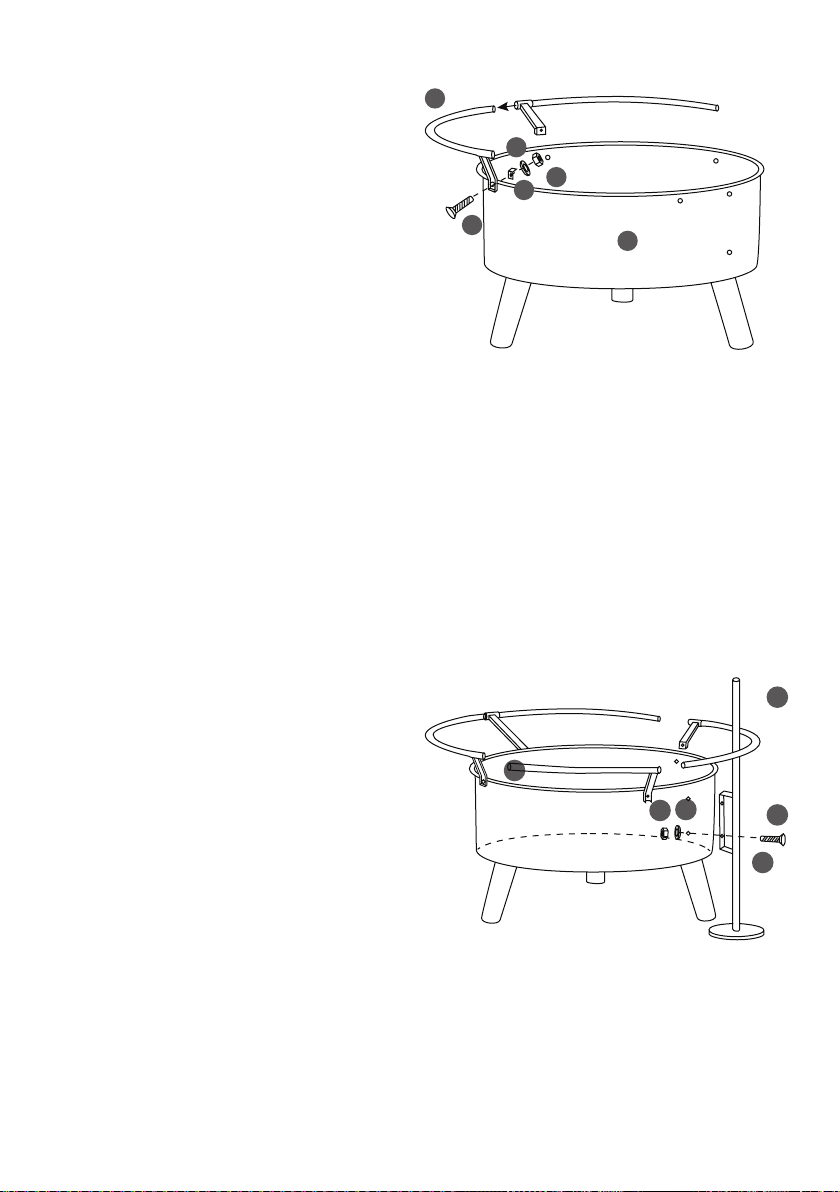

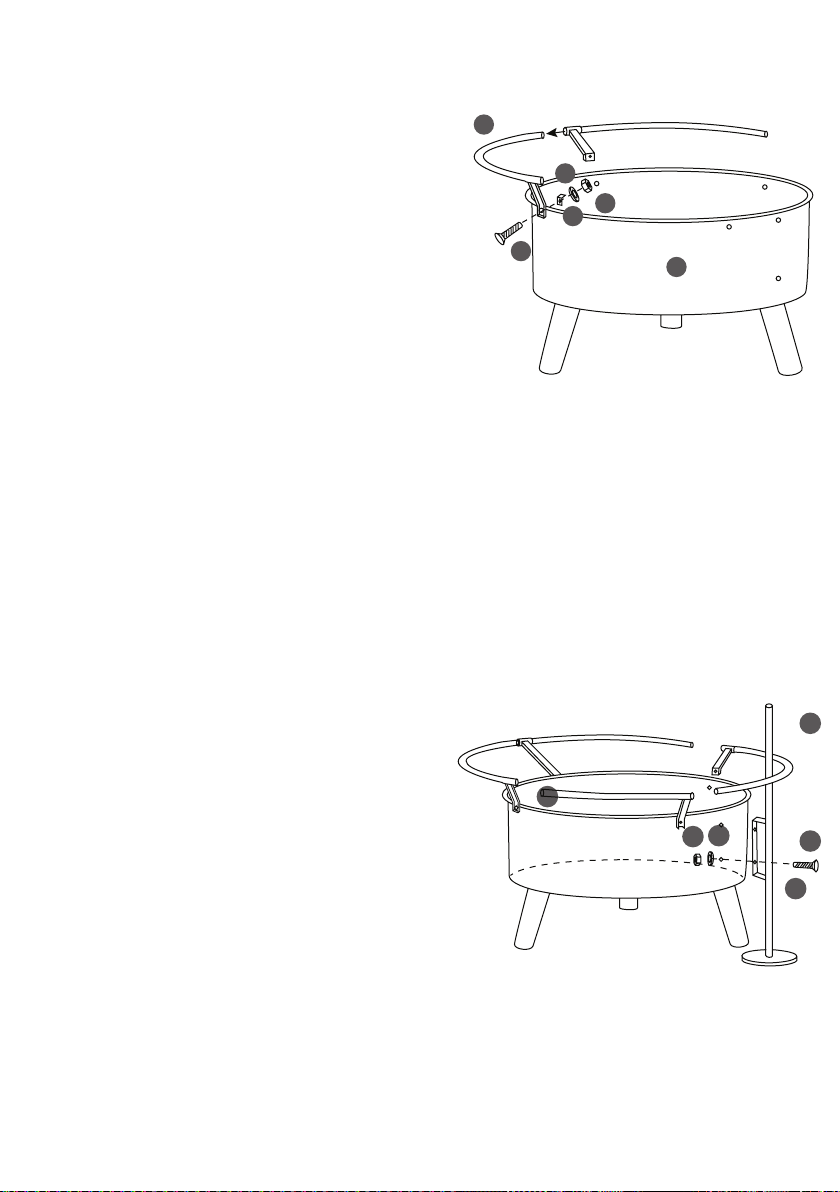

Attach one top ring section [C] to
the fire bowl [D] by inserting one
M6 x 15 mm bolt [N] into the top
ring's support arm from the outside,
then through one of the holes in the
top edge of the fire bowl. On the
inside of the fire bowl, insert one
bracket [E] and secure in place with
one washer [O] and nut [P].
Insert a second top ring section into
the end of the first top ring section and
attach to the fire bowl as described
above.
STEP 4

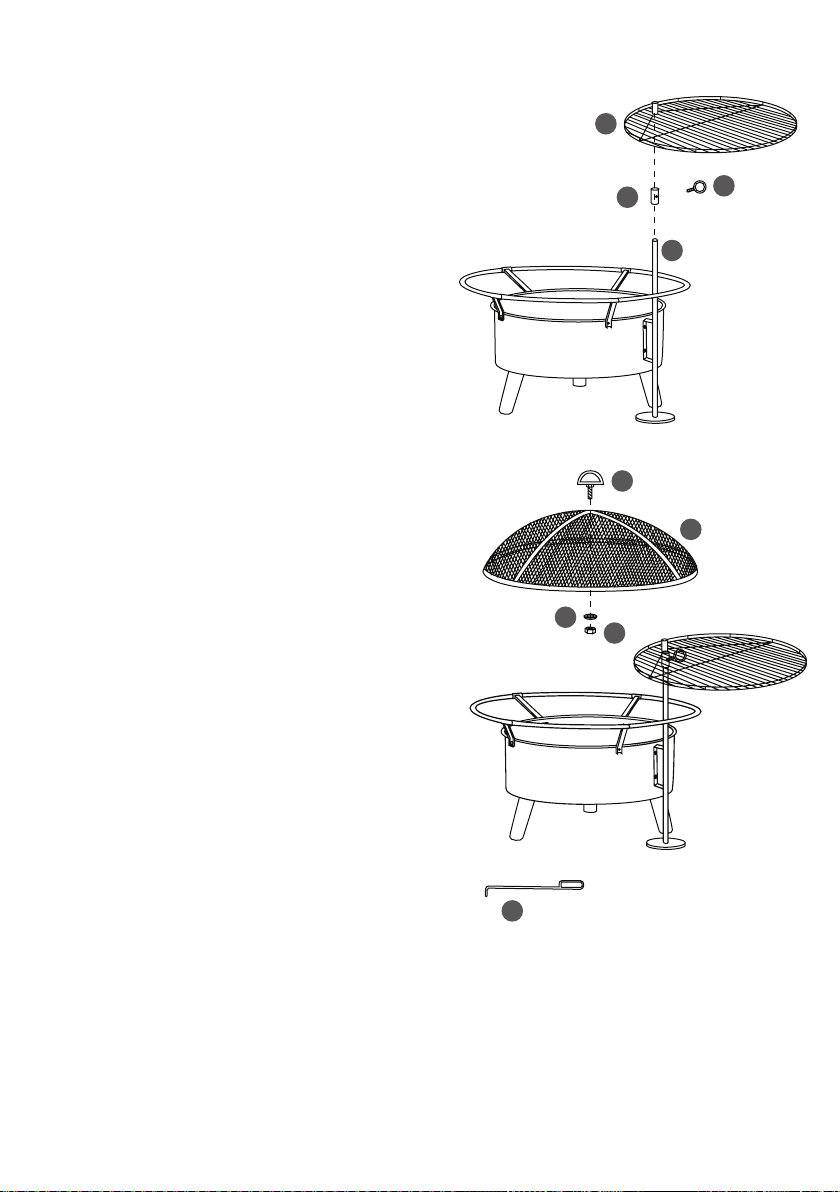

Before connecting the last two top
ring sections, attach the swing grill
stand [K] to the fire bowl [D]. Insert
two M6 x 15 mm bolts [O] into the
stand from the outside and through
the two holes located vertically on
the fire bowl. Secure each bolt on
the inside of the fire bowl with one
washer [P] and nut [Q].
Attach the remaining two top ring
sections [C] as described in step 3.
Make sure all of the top ring sections
are joined together and that all the
brackets [E] are at a right angle with
the tab positioned close to the top
edge of the fire bowl and facing
towards the center of the fire bowl.
Securely tighten all bolts.
D
C
P
O
E
N
Q
P
C
O
D
K
