Our DA11ADE has been designed to decode a Dante® digital signal to unbalanced
or balanced 2ch analogue audio. The DA11ADE is a plug & play device that is
powered using either PoE (Power Over Ethernet) from any PoE network switch or
via local 12v power supply input. The DA11ADE also supports AES67 RTP audio
transport.
Introduction
DA11ADE
Quick Reference Guide
• Decodes a Dante® digital signal to unbalanced or balanced 2ch analogue audio
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 1 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
FEATURES:
Connections:
1Dante® Audio Input - RJ45 socket connets Dante® network.
2DC Input - Connect to +12VDC power supply (not supplied) if
device is not powered via a PoE switch
3Audio Output - Phoenix Connector accepts balanced or
unbalanced 2 channel audio output.
Front Panel
1
Rear Panel
3
Wiring Configuration
Balanced - XLR Unbalanced - RCA
+
-
-
+
2

DA11ADE QUICK REFERENCE GUIDE
02 www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
Dante Controller
Dante Controller soware is required in order to setup and configure the DA11ADE as well as control your Dante
network. Audinate provide extensive training videos and documentation on their website. This can be found here:
http://www.audinate.com/products/soware/dante-controller
Upon connecting your DA11ADE to a compatible network, the Dante Controller soware should automatically
discover the device. The DA11ADE will appear in the Dante Controller with a name denoted with “BLS”. On the
“Routing” screen you can create audio routing between Dante transmitters and receivers in your system.
Please ensure your PC is on the same network as your Dante devices. Dante is not able to transmit over WiFi and it
is recommended to hardwire into the Dante network. Having multiple network devices enabled can also confuse
the Dante Controller soware so it is recommended to disable WiFi during configuration.
By default the DA11ADE is shipped with its network settings set to obtain an IP Address automatically. This means
that if a DHCP server is present on your network, it will provide the DA11ADE with an IP Address. If no DHCP server
is present then the DA11ADE will receive a default IP Address in the 169.254.xxx.xxx range. To change the IP Address
of the DA11ADE, you must enter the “Network Config” menu in the “Device Info” screen of the Dante Controller
soware.

DA11ADE QUICK REFERENCE GUIDE
03
Contact: [e-mail] |[e-mail] |[e-mail]
RevA3_QRG_DA11ADE_211126
Advanced Dante Settings
It is also possible to change the settings of the DA11ADE under the “Device Info” screen in the Dante Controller
soware. To do so, select the “Device Config” menu.
Here we can adjust the sample rate of the DA11ADE. Please note that Dante products can only transmit or receive
audio from other Dante products that are set up with the same sample rate. A mismatch in sample rate may stop
audio from transmitting.
Under the “Device Config” screen we can also adjust the latency of the DA11ADE from 1, 2 or 5 milliseconds.
SWITCH POSITION OUTPUT SENSITIVITY
1 +18dBu
2 +4dBu
3 +0dBu
4 0dBV
5 -10dBV
Depending on the connected audio device, it may be necessary to adjust the gain or output sensitivity.
The DA11ADE features a 5 pin switch on the side of the device to adjust the output gain of each channel from
various settings between +24dBu to -10dBV.
Gain Adjustment

DA11ADE QUICK REFERENCE GUIDE
04 www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
Specifications
Audio Input Connectors: 1 x RJ45, female (100 Mbps Dante® network)
Audio Output Connectors: 6-PIN Phoenix connector (2ch balanced/un-
balanced analogue audio)
Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
Shipping Weight: 0.3 Kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Power Supply: Class 1 IEEE 802.3af POE PD or 12V/1A DC 2-PIN Phoenix connector
Package Contents
• 1 x DA11ADE
• 1 x Quick Reference Guide
Acknowledgements
Dante® is a registered trademark of
Audinate Pty Ltd.
DA11ADE

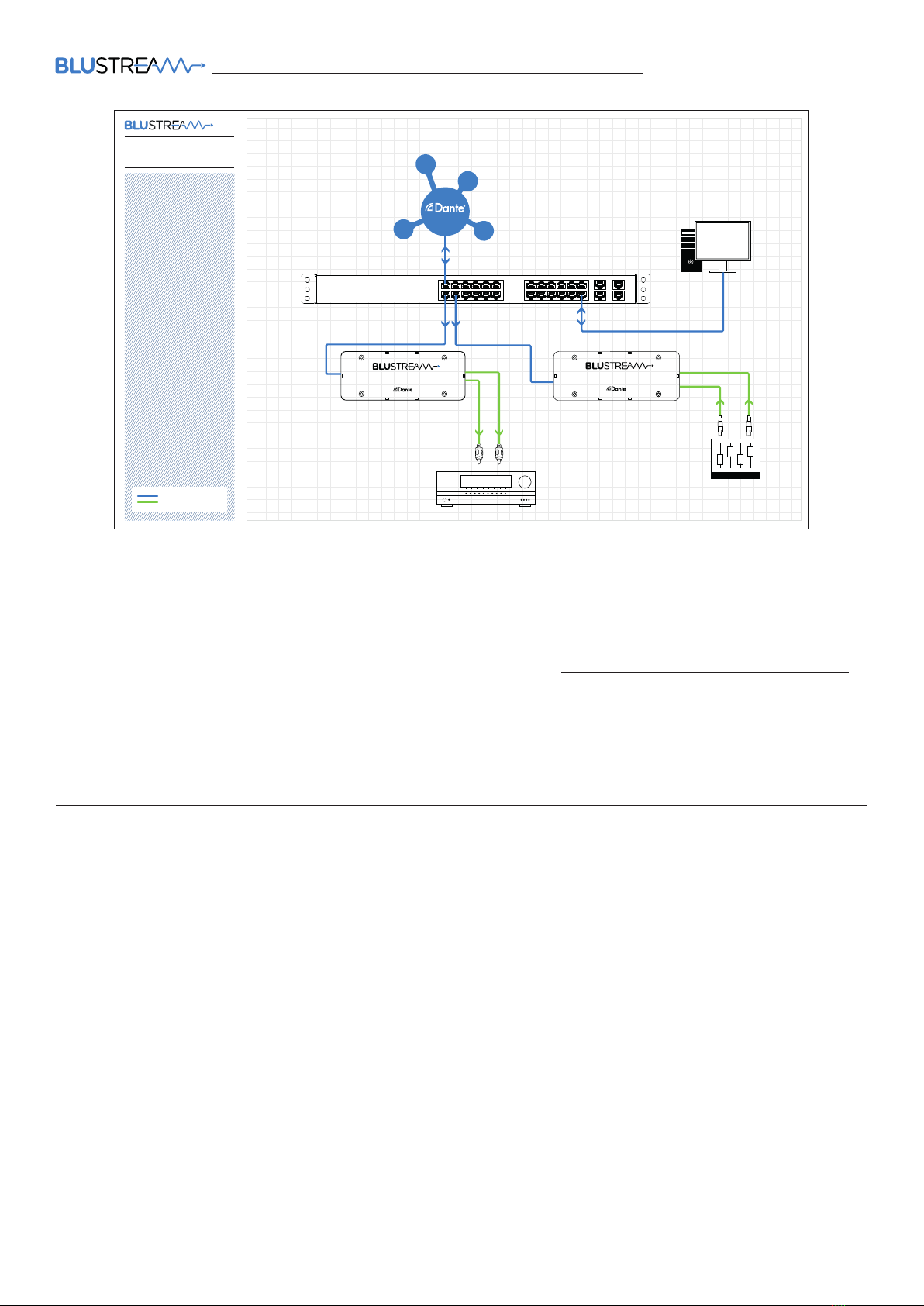

Example Schematic
CAT Cable
Analogue Audio
DA11ADE
Dante®Audio Analogue Decoder
DA11AEN
Dante®Audio Analogue Encoder

Analogue
Audio Output
(2 x channels)
DA11ADE DA11AEN Analogue
Audio Input
(2 x channels)
1G Network Switch
Dante®
Controller
