Bluetti AC200MAX User manual

AC200MAX
Portable Power Station
User Manual V2.0
Please Read This Manual Before Use And Follow Its Guidance.
Keep This Manual For Future Reference.

AC200MAX

Franch
Germany
Netherlands
Thank You!
Thank you for making BLUETTI a part of your family.
From the very beginning, BLUETTI has tried to stay true to a sustainable future
through green energy storage solutions for both indoor and outdoor use while
delivering an exceptional eco-friendly experience for our homes and our world.
That's why BLUETTI makes its presence in 70+ countries and is trusted by
millions of customers across the globe.

CONTENTS
1. Before You Begin
2. Safety Instructions
2.1 General Safety
2.2 Maintenance
2.3 Handling & Storage
3. What’ s In The Box
3.1 Standard Packaging
4.Product Overview
4.1 Diagram
4.2 Specifications
5. Operation
5.1 Powering On/Off
5.2 LCD Screen
5.3 Charging
5.4 Discharging
5.5 Capacity expansion
5.6 BLUETTI APP
6. Appendix
6.1 FAQs (Frequently Asked Questions)
6.2 Technical Support
05
06
06
07
07
08
08
10
10
11
13
13
14
16
18
19
20
21
21
22

1. Before You Begin
The information contained herein is subject to change without notice.
For the latest version, please visit https://www.bluettipower.com/pages/user-guides
• The user manual contains instructions and notes on the operation and use of
this unit.
• BLUETTI recommends that you use genuine accessories from BLUETTI whenever
possible for your safety and for optimum compatibility.
• BLUETTI shall not be responsible for any damage or expense that might result from
the use of parts other than genuine parts from the BLUETTI.
• For your safety and benefit, please read carefully before using and keep it handy for
future reference.
05
JUST POWER ON

2. Safety Instructions
2.1 General Safety
BLUETTI products are developed to be safe and reliable. Please read this guide for
important safety information about your device. The guide is intended to help you be
more comfortable and productive while using this device. Failure to follow these
guidelines for proper setup, use, and care for your device may cause damage to this
unit and injury to yourself or others.
SAVE THESE INSTRUCTIONS!
• Always operate or store the unit in accordance with specified temperature range.
• DO NOT expose the unit to fire, liquids, sweat, dirt or other contaminants, as these
may cause the battery to explode or leak flammable liquid or gas.
• DONOT place the uniton an unstable or tilted surface.
• Make sure the place where you are using the unitis well ventilated and spacious.
• DO NOT touch the unit, cord, plug or other electrical components with wet hands.
• Keep away from children and pets.
• DO NOTmodify, attempt to insert foreign objects into the battery, or immerse or
expose it to water or other liquids. Batteries may explode if damaged.
• Battery fluid is corrosive and may be toxic. If a battery leaks, keep the leaked fluid
away from touching your skin, eyes, clothes, or other surfaces. Immediately flush
the affected areas with water, and seek medical help.
• DO NOT ignore those warning indicatorson components or products made
by manufacturers.
• DO NOTdismantle, cut, crush, puncture, or otherwise damage the unit in any way.
• DO NOT insert foreign objects into the fan, vents, ports, or other openings.
• NEVER use a damaged batteryor component. Improper use or misuse of damaged
batteries or components may cause damage to your device or injury to yourself as a
result of battery fluid leakage, fire, overheating, or explosion.
• Use approved battery and accessories ONLY. Improper use, or use of unapproved or
incompatible batteries or components may result in a risk of fire, explosion, or other
hazards, and may invalidate the unit’ s official regional or regulatory approvals and
your product warranty.
06 JUST POWER ON

• Turn off the unit IMMEDIATELY in case of malfunction, and contact BLUETTI
support if this manual cannot explain the malfunction adequately to you.
• Use ONLY a dry powder fire extinguisher in case of fire.
• DO NOT attempt to modify, replace the internal battery or any other components
of the unit by anyone other than qualified personnel. If necessary, take it to an
authorized service center as incorrect reassembly may result in a risk of fire or
electric shock.
SAVE THESE INSTRUCTIONS!
2.2 Maintenance
• When not using the unit for extended periods of time, power it off and remove all
electrical connections.
• Charge the unit to 80% SOC every 3 months for best battery life.
• Clean the unit with a dry cloth gently and carefully.
2.3 Handling and Storage
• Use mechanical assistance as needed (e.g. trolleys and adjustable
height workbenches).
• Keep the unit in a dry and cool place.
• DO NOT place the unit on its side or upside down.
• DO NOT stack anything on top of the unit either in storage or in use.
• Recommended storage temperature: 00C-400C/320F-1040F.
• BLUETTI Power Stations are NOT permitted to be carried on board as checked
or carry-on baggage.
• Dispose of the unit and related accessories in accordance with local laws,
regulations and other provisions.
Travel Notice:
Do Not bring this product on flights. It is forbidden to carry lithium batteries and
equipment with a capacity more than 160Wh on airplane due to the regulation.
07
JUST POWER ON

AC200MAX
Portable Power Station
User Manual V2.0
Please Read This Manual BeforeUse And Follow Its Guidance.
Keep This Manual ForFuture Reference.

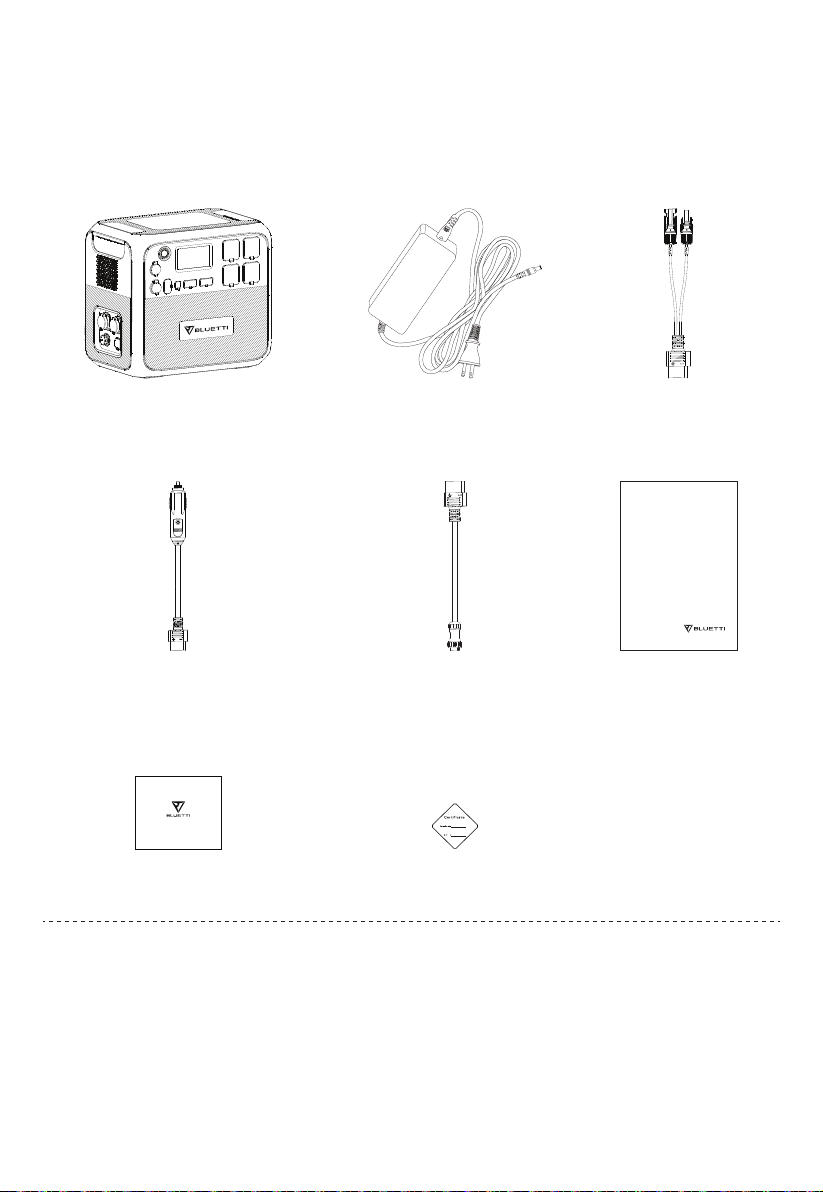

① AC200MAX Power Station
④ Car Charging Cable
⑦ Warranty Card ⑧ Certificate
⑤ Multifunctional DC Charging Cable ⑥ User Manual
② AC Adapter ③ Solar Charging Cable
3. What’s In The Box
3.1 Standard Packaging
08 JUST POWER ON

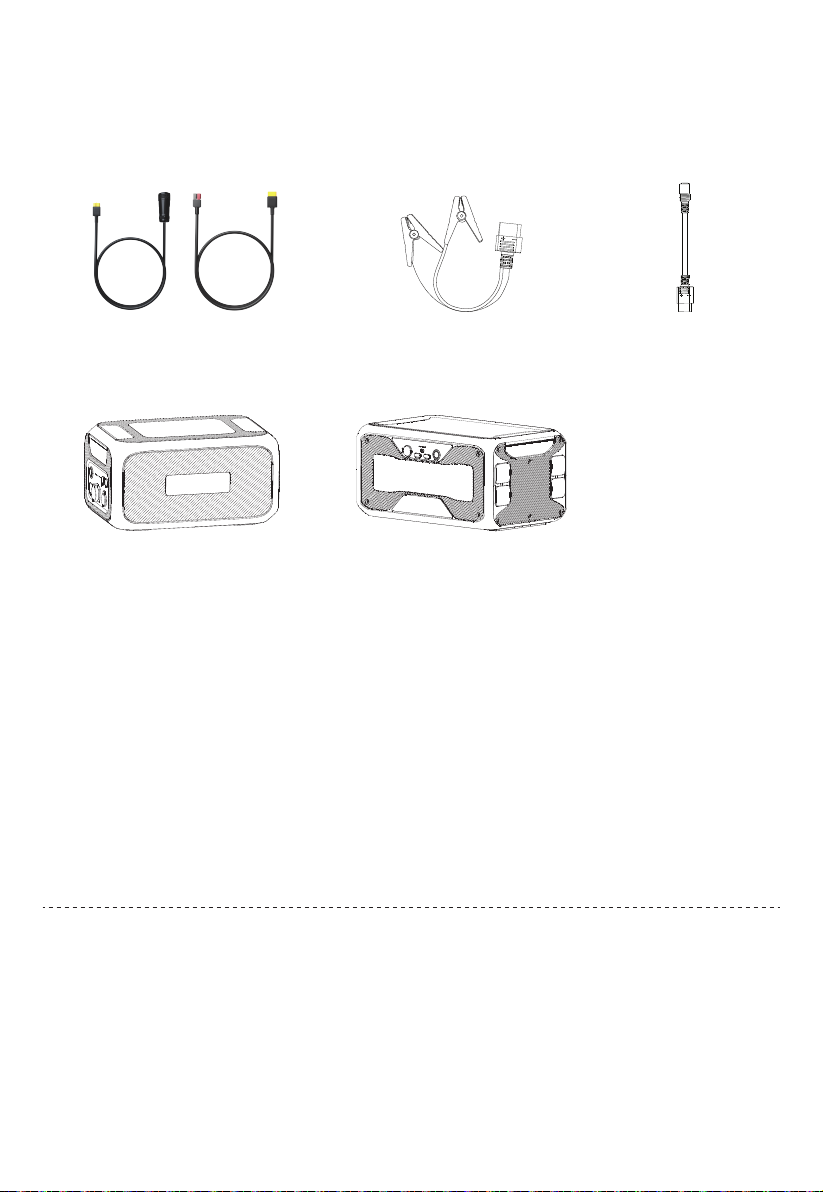

⑫ B230 Expansion Battery
⑨ 12V/30A RV Cable ⑩ Lead-acid Battery Charging Cable ⑪ DC7909 F-XT90 Cable
⑬ B300 Expansion Battery
Below accessories are not included in standard packaging and can be purchased
separately at https://www.bluettipower.com/
* AC Adapter: 70.9in/180cm (EU); 59.1in/150cm(UK).
Solar Charging Cable: 19.7in/50cm. MC4-XT90.
Car Charging Cable: 19.7in/50cm. Cigarette Lighter Port-XT90.
Multifunctional DC Charging Cable: 39.4in/100cm. XT90-Aviation.
12V/30A RV Cable: Aviation-XT60, 59.1in/150cm; XT60-SPC45, 19.7in/50cm.
Lead-acid Battery Charging Cable: 19.7in/50cm. XT90-Clamp.
DC7909 F-XT90 Cable: 5.5in/14cm.
B230 Expansion Battery: 2,048Wh, LiFePO4 battery cells.
B300 Expansion Battery: 3,072Wh, LiFePO4 battery cells
Note: All measurements are for reference only.
Package details are subject to change without prior notice.
09
JUST POWER ON

① Power Button
② Cigarette Lighter Port
③ 12V/30A RV Port
④ 12V/10A DC Port
⑤ USB-C 100W Port
⑥ Battery Extension port
⑦ PV/Car Input
⑧ Adapter Input
⑨ Wireless Charging Pad
⑩ LCD Screen
⑪ AC Output
⑫ USB-A Port
01
02
03
04
05
06
07
08
09
10
11
12
4. Product Overview
4.1 Diagram
10 JUST POWER ON

Battery Capacity 2048Wh/40Ah
Cell Type LiFePO4
Dimensions (L*W*H) 16.5*11*15.2in/420*280*386mm
Weight 61.9lbs/28.1kg
Discharging Temperature -4°F-104°F/-20°C-40°C
Charging Temperature 32°F-104°F/0°C-40°C
Storage Temperature 32°F-104°F/0°C-40°C
Working Humidity 10%-90%
Power 2200W
Surge Power 4800W
Voltage 220V-240VAC
Frequency 50Hz-60Hz
Overload 2200W-2750W, 2min
＞2750W, 8 ～10s
Short Circuit Protection Yes
Over Temperature Protection Yes
Cigarette Lighter Port *1
12V/30A RV Port *1
12V/10A DC5521 Port *2
USB-A *2
Voltage 12VDC
Current 10A(Cigarette Lighter and DC5521 10A total)
Overload ＞145W, 2s
Voltage 12VDC
Current 30A
Overload ＞400W, 2s
Voltage 12VDC
Current 10A (Cigarette Lighter and DC5521 10A total)
Overload ＞145W, 2s
Voltage 5VDC
Current 3A
General
AC Output
DC Output
AC200MAX
4.2 Specifications
11
JUST POWER ON

Adapter Input
PV Input
Car Charging
USB-A QC3.0 *2
USB-C PD3.0 *1
Wireless Charging *2
Power 18W Max.
Voltage 5V-12VDC
Current 3A
Power 100W Max. (5/9/12/15/20VDC, 3A; 20VDC, 5A)
Power 5/7.5/10/15W
Power 400W Max.
Voltage 100V-240VDC
Current 7A Max.
Power 900W Max.
Voltage 10V-145VDC
Current 15A Max.
Voltage 11.5V-14.5VDC/23V-29VDC
Current
Note: When connected with solar panels, AC200MAX turns on automatically whenever there is
sunlight. AC200MAX supports pass-through charging but doesn’t support UPS function.
When the battery level drops to 5%, charge AC200MAX to extend the battery lifespan.
8A Max.
12 JUST POWER ON

5. Operation

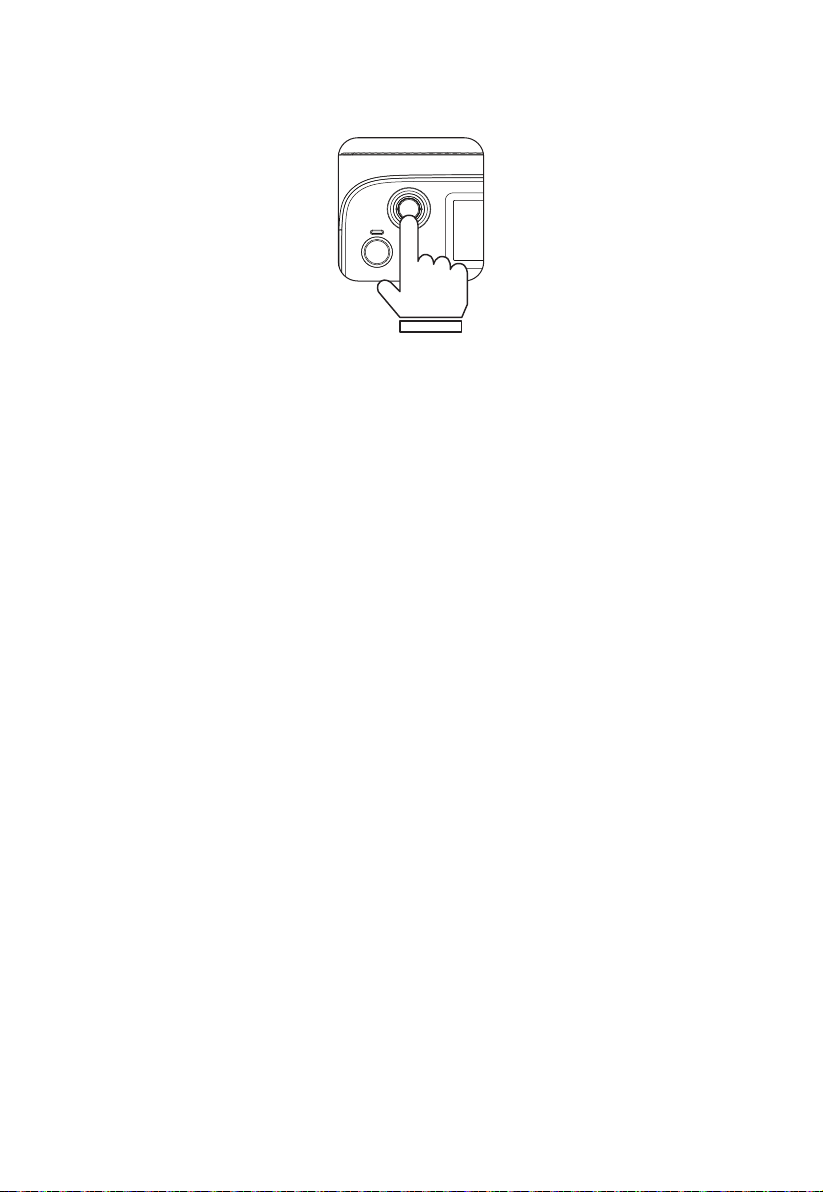

5.1 Powering On/Off
Start up: Press the power button and hold for 3 seconds to start up this unit.
AC/DC Output: Tap the ‘AC ON/OFF’ or ‘DC ON/OFF’ on the screen to enable
and disable.
Shut down: Press the power button to shutdown this unit. The LCD screen will shut
down after several seconds.
Note: Please turn on the DC power to enable wireless charging.
13
JUST POWER ON

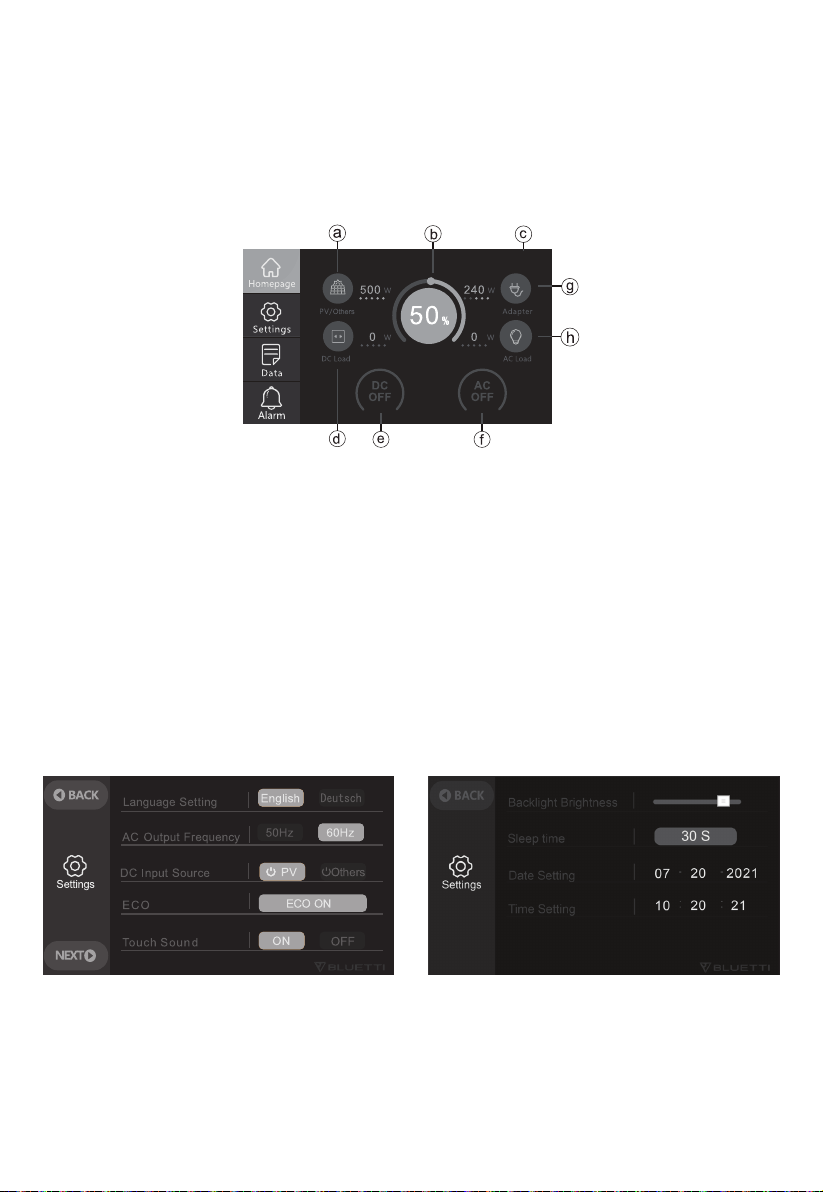

2021-07-20 10 : 20 : 21
a: PV/Car Input
b: Battery Capacity
c: Date/Time
d: DC Load
e: DC ON/OFF
f: AC ON/OFF
g: Adapter Input
h: AC Load
5.2 LCD Screen
Homepage
This section displays the charge/discharge status and navigates to detailed
product information.
Settings
This section provides general setting configurations, including AC output, DC input,
ECO Mode*, language, buzzer, and system date/time.
Note: Check all settings before first use.
Voltage and frequency for reference: EU: 230V/50Hz UK: 230V/50Hz
14 JUST POWER ON

Data
This section provides all basic information including product, inverter and charger,
BMS maintenance, and fault history.
Note: ‘Inverter&Charger Info.’ indicates the output and input status of this unit;
‘BMS Maintenance’ indicates the connection status of battery pack(s);
‘Alarm History’ records all the error codes. When the error occurs, its indicator
will turn orange.
* When in ECO mode, the AC output will automatically turn off after 4-hour low
(≤50W) or no load to save power.
15
JUST POWER ON

2
3 5
5.3 Charging
Adapter Charging
Plug the AC200MAX into a standard wall outlet, and press the power button to
start charging.
PV Charging
Connect the solar panels (in series or parallel) to AC200MAX via the multifunctional
DC charging cable and solar charging cable.
Note: Please make sure your solar panels comply with:
Voc*: 10-145V Current : 15A Max. Power: 900W Max.
E.g. Connect two BLUETTI PV350 solar panels in series to the PV/Car input port.
BLUETTI PV350: Voc=46.5V Current=9.2A Max.
Total: Voc=46.5×2=93 V Current=9.2A Max.<15A It is OK!
AC200MAX supports up to 900W solar input. In other words, if you’ re using solar
panels with a total power of 1000W to charge AC200MAX, the extra 100W will not be
needed for charging but squander away directly.
* Voc: Open circuit voltage. The maximum voltage that the solar panel can produce
with no load on it.
16 JUST POWER ON

5
4
2
5
10
Car Charging
Connect AC200MAX to the vehicle plug-in cigarette lighter port via multifunctional
DC charging cable and car charging cable.
Note: Set the ‘Others’ as DC input source to enable car charging.
The vehicle cigarette lighter port at least can support 8A.
Generator Charging
Connect AC200MAX to the generator’ s AC outlet via AC adapter, and press the
power button to start charging.
12V/24V Lead-acid Battery Charging
Connect AC200MAX to the battery via multifunctional DC charging cable and
lead-acid battery charging cable*. Clamp the positive connector (red) to the positive
battery terminal and negative (black) to the other.
Note: Set the ‘Others’ as DC input source to enable lead-acid battery charging.
17
JUST POWER ON

Smartphone
175-200Times
10W
LED Light
75-85hrs
20W
Television
20-22hrs
75W
Power Tools
19-20hrs
80W
Refrigerator
17-19hrs
90W
Slow Cooker
8-9hrs
200W
5.4 Discharging
2000Wh × DoD × η÷ (load power) = charging time (estimated)
Note: DoD refers to the Depth of Discharge, ηis the local inverter efficiency. DoD=90%,
η=90%.
DoD may vary depending on ambient-operating temperature and
discharge rate.
Load power and charging time are measured in Watt and Hour.
* The lead-acid charging cable is for recharging AC200MAX ONLY. Please contact
BLUETTI customer service for details and get it directly from
http://www.amazon.de/dp/B09X33TGHK?ref=myi_title_dp
18 JUST POWER ON

a
b
(P090D Battery Expansion Cable)
a: Enable/disable the battery expansion function.
b: Press to lock/unlock.
①②
Barb down
Lock
①②
Barb down
Lock
AC200MAX
B230
AC200MAX
B230
5.5 Capacity expansion
With the P090D battery expansion cable, AC200MAX supports up to 2 B230 or B300
expansion batteries for a total capacity of 6,144Wh and 8,192Wh, respectively.
19
JUST POWER ON

5.6 BLUETTI APP
Download the app from App Store or Google Play and follow the BLUETTI APP
INSTRUCTIONS to better control and monitor the AC200MAX.
20 JUST POWER ON
