Index
• BEFORE INSTALLING THE WATER COOLER 4
• RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT 5
• DECLARATION OF CONFORMITY 6
• ASSOCIATIONS 7
• INTERNATIONAL AWARDS 7
• PRECAUTIONS AND GENERAL RECOMMENDATIONS 8
• DESCRIPTION OF THE UNIT 9
• DESCRIPTION OF THE KEYPAD 12
• TECHNICAL FEATURES 13
• INSTALLATION 16
• OPERATION 20
• INSTALLATION OF THE CO2CYLINDER (FIZZ MODEL) 28
• HANDLING THE GAS CYLINDERS 29
• FILTRATION (OPTIONAL) 30
• SANITIZATION – NOTES 32
• MANAGEMENT OF ALARMS AND MALFUNCTIONS 33
• ORDINARY MAINTENANCE 34
• SERVICE HISTORY 35
• WARRANTY CONDITIONS 36

4
Before installing the water cooler
Congratulations for choosing a BLUPURA product.
We have designed and manufactured this product with great care to ensure that
it will dispense water of the highest quality.
In order to get the most out of your water cooler, please read the instructions in
this manual and retain the manual for future reference.

5
Recommendations for safeguarding the environment
Packaging materials
The packaging materials are 100% recyclable.
Please follow the local guidelines on waste
disposal. For safety reasons keep the packaging
material out of the reach and sight of children.
Scrappage
The water cooler is made using recyclable material.
This unit is marked in compliance with European Directive 2002/96/EC
on Waste Electrical and Electronic Equipment (WEEE). By ensuring that
the product is scrapped correctly, you are helping to prevent potential
negative consequences for the environment and for health. The symbol
on the unit indicates that the product should not be treated as domestic waste
but should be taken to a dedicated recycling centre for electrical and electronic
equipment. Immediately prior to scrapping, cut off the power cable.
For more information on the treatment, recovery and recycling of this product,
please contact the appropriate local office, the waste disposal service or the
reseller from which the product was purchased.
Information on the natural, eco-friendly refrigerant gas used in
this cooler
This product contains no CFCs or HFCs, which contribute to global warming.
Indeed, it is the first water cooler on the market to use natural refrigerant.
The refrigerating system is filled with HC R290 – Propane: a natural gas that does
not contribute to global warming and that, thanks to its specific characteristics,
allows for substantial energy savings to be made.

6
D.M. 174
1
0
0
%
M
A
D
E
I
N
I
T
A
L
Y
C
E
R
T
I
F
I
C
A
T
E
I
T
P
I
rosso032 c
UNI EN ISO 9001:2015
UNI EN ISO 14001:2015
Declaration of conformity
Materials compliant for contact with drinking water
This unit is intended for the dispensing of drinking water, and so the materials
that enter into direct contact with water meet the criteria for food-grade
components pursuant to the current legislation. In addition, the unit is
manufactured in compliance with Italian Ministerial Decrees 174 of 06/04/2004
and 25 of 07/02/2012.
Electrical safety
This water cooler is designed, manufactured and marketed in compliance with:
• the safety objectives of the Low Voltage Directive 2006/95/EC;
• the protection requirements of the Electromagnetic Compatibility Directive
2004/108/EC.
The electrical safety of the product is ensured only when it is properly connected
to an efficient, legally compliant grounding circuit.

7
Associations
International Awards
2015 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2015, ROME
2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE
EUROPEAN AQUA AWARDS 2015, ROME
2014 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2014, BUDAPEST
2013 - BEST PRODUCT INNOVATION
EUROPEAN AQUA AWARDS 2013, BERLIN
2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARDS 2012, ISTANBUL
2011 - BEST PRODUCT DESIGN/INNOVATION
EUROPEAN AQUA AWARDS 2011, ODESSA
2010 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARD 2010, PRAGUE

8
Precautions and general recommendations
Always connect the water cooler to a water main that supplies
drinking water only.
Before each installation, the unit must be sanitized by an
authorized technician.
After installation, ensure that the unit is not resting on the
power cable.
Check that the unit is level and that it is resting on a floor with
sufficient load-bearing capacity, in an environment that is
suitable for its dimensions and its use.
Before any maintenance or cleaning operation is carried out, remove the plug from the
socket or disconnect the power supply.
Ensure that the product is not sited close to sources of heat.
To guarantee adequate ventilation, leave at least 10 cm of space around the unit.
Install the product in a clean, dry, well-ventilated environment. The water cooler is designed
to function in environments with a temperature range of between 5°C and 32°C - Climate
Class N.
Take care not to damage the cooling fluid circuit: it is filled with HC R290 Propane, which
is a highly flammable natural gas. It is essential to ensure that the tubes of the refrigerant
circuit are not damaged.
The unit is not intended for use by children.
If the power cable is damaged, it must be replaced by the manufacturer, by its technical
support service or by a qualified technician. Do not use extension cables or multi-plugs.
Ensure that it is possible to disconnect the power supply either by removing the plug or via
a two-pole circuit-breaker placed upstream of the plug.
Check that the voltage shown on the serial number plate corresponds to the voltage being
supplied at the installation site.
The unit must not be cleaned with a water jet. Do not position other electrical equipment in
the immediate vicinity of the water cooler.
Turn off the main water inlet tap if the unit is not to be used for a long period.
Keep the areas surrounding the unit dry to avoid the risk of people slipping.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance .
The Appliance shall be protected by a ground-fault circuit interrupter.

9
Description of the unit
A new, high-quality product with state-of-the-art technology and cutting-
edge design. The main features of the unit are as follows:
• Refrigerant system with natural gas, the first water
cooler to use a gas with a global-warming potential of
almost zero..
• Modern design and natural materials including glass,
stainless steel, aluminium and wood.
• High-insulation ice bank, with a high output of cold,
still and sparkling water.
• 150 lt/hours (28 lt continuous) to fill bottles, carafes,
sport bottles, etc.
• Dual cooling coil – one for cold water and one
for sparkling water, with the option for simultaneous
dispensing.
• 2 dispensing options: cold water + cold sparkling
water.
• Dispensing of pre-set quantities of water; the
quantities are easily programmable thanks to the volumetric control
• Professional stainless-steel carbonator.
• Self-diagnosis and alarm system in the event of little or no water flow or the
requirement to replace the CO2cylinder.
• Main body and internal parts made entirely from stainless steel.
• Vandal proof dispensing buttons.
• Highly secure RFID payment system with customizable card.

10
Front View
1
4
3
2
1
8
7
6
5
2
3
4
5
6
7
8
Payment display
Dispensing nozzle
Drip tray
Payment reader
Keypad
Front panel security lock
Adjustable front feet
Rear wheels

11
Rear view
1
2
3
4
56
8
7
7
6
5
Ice bank overflow outlet pipe
OD17xID12 mm
Power cable
Drinking water inlet pipe Ø3/8”
(Ø9,5 mm) for mod. 150 or
Ø5/16’’ (Ø8 mm) for mod. 80
8
Drip tray waste pipe Ø40 mm
4
3
2
1Top section
Top section screws
Rear panel
Hinges

12
Description of the keypad
P. 1
P. 2
P. 3
P. 4
P.1/P.2 Cold sparkling water dispensing buttons
P.3/P.4 Cold still water dispensing buttons
The water cooler is equipped with a VOLUMETRIC dispensing system. The
dispensing quantities are easily PROGRAMMABLE during installation. On turning
on the unit, the default settings are as follows: the upper buttons dispense 50 cl
of water (a cupful), whereas the lower buttons dispense 100 cl.
To customize the dispensing quantities for each button, read the section
“Operation”, page 20.
To dispense water, insert the card in the reader and push the button.

13
Technical Features – Technical Data Plate
16 Year of manufacture
03 Month of manufacture
00700 Serial number
[mod. Fontemagna
Vending]

14

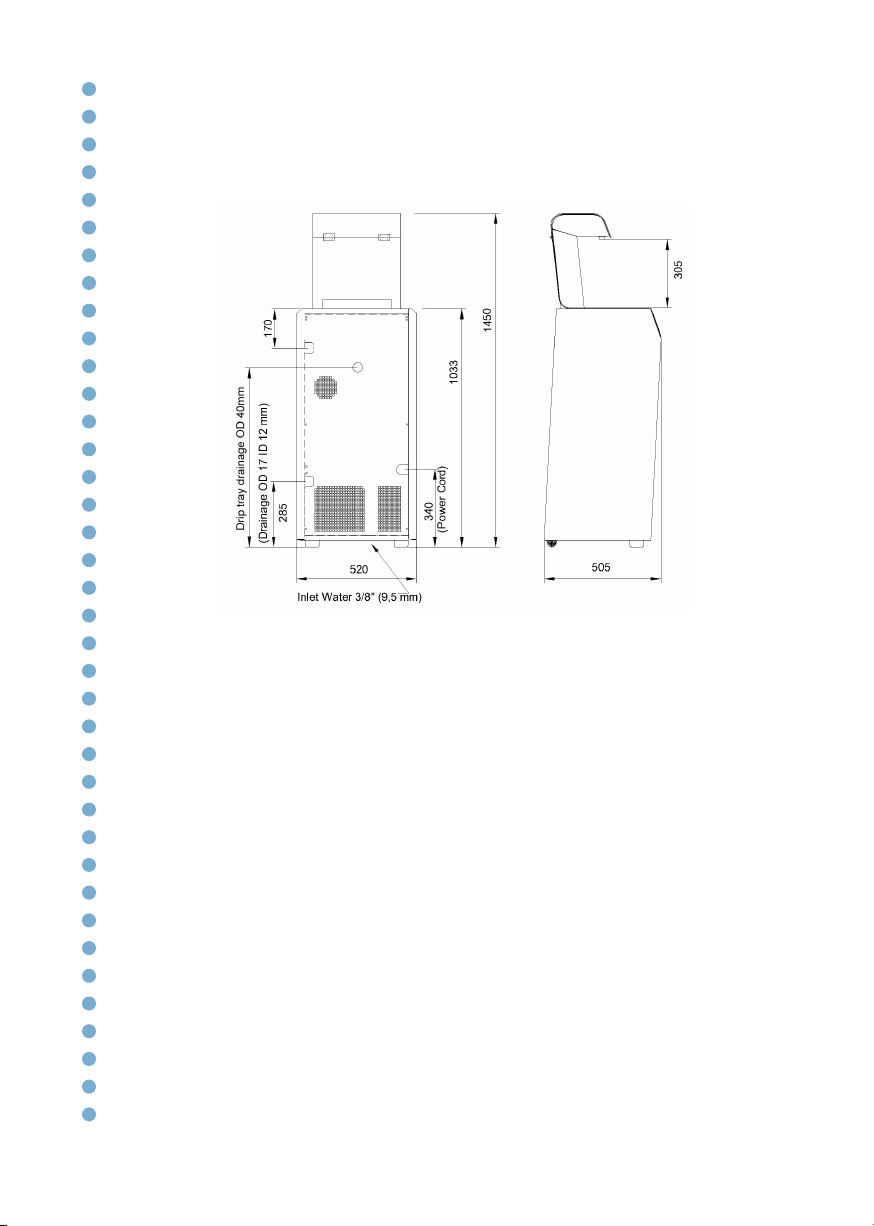

Technical Features - dimensions (mm)
[mod. Fontemagna Vending]

15
Technical data
sheet
Fontemagna
Vending
150 lt
Fontemagna
Vending
80 lt
Cooling capacity 150 lt/h 80 lt/h
Max continuous
dispensing 80 lt 45 lt
Water temperature 5°-12°C *
Cooling system Dual-coil ice bank Single-coil ice bank
Tank capacity 18 lt 14 lt
Ice bank 8 kg 5 kg
Power supply Single-phase 230V-50Hz
Power consumption 650W-2,6 A 520W-2,3 A
Compressor output
(kcal/h) 700 360
Cooling Forced ventilation
Refrigerant gas Natural gas HC R290
Ambient cooling
temperature Min 5°C - Max 35°C
Sound pressure level < 70dB
Dimensions LxDxH (mm) 520x505x1450 520x505x1450
Packaging dimensions (mm) 600x600x1630 600x600x1630
Net weight (kg) 50 45
Gross weight (kg) 55 50
* rated at a room temp. of 25°C and inlet water temp. of 20°C

16
Installation
Unpacking
Remove the front part (where it states
FRONT) and the cover of the wooden
cage.
Remove the cardboard box and the
internal protective packaging by sliding
them up and over the top.
Once you have unpacked the unit, ensure
that it is not damaged. You must inform
the reseller about any damages as soon
as possible after delivery.
If the unit has been shipped horizontally
or at an angle, it will be necessary to wait
at least 8 hours before setting it up, in
order to allow the cooling circuit to reset
itself.
Ensure that the unit is installed and
connected to the main supply by a
qualified technician in compliance with
the manufacturer’s instructions and the
local safety guidelines.
The end user is not permitted to access
the internal service parts of the unit. Only
technical personnel should carry out
operations of this nature.

17
Fig. 17.1 - Mod. 150
Fig. 17.2 - Mod. 80
1
Siting the unit
Wear safety gloves when handling the unit.
Take care when touching the metal parts,
which could be sharp.
Site the unit away from sources of heat.
The floor model has two rear wheels and
two adjustable front feet.
Leave at least 4 inch around the unit to
allow for aeration.
Filling the Ice Bank
Open the service panel using the supplied
key.
Gently pour drinking water into the tank
through the hole (1).
The ice bank is completely full only when
water starts to come out of waste water
tube on the back of the machine (1, Fig.
18.1).
Once you have filled the ice bank, avoid
moving the unit.
If you have to move the unit, remember to
empty the ice bank first.

18
Fig. 18.2
Fig. 18.1
1
2
3
7
8
6
4
5
Connection to the mains water
supply
Check that the mains pressure is between
1 bar and 3,5 bar. To enhance the qual-
ity of the sparkling water dispensed, an
incoming flow rate in excess of 3,5 lt/min is
recommended.
Connect incoming water tube (2, Ø3/8” =
9,5 mm for mod. 150 or Ø5/16’’ = 8 mm
for mod. 80) to the drinking-water main,
ideally with a tap upstream of the unit.
The unit is equipped with a tap (4, left in
the on position), a mechanical filter (5), a
water pressure reducer (6, not included
in version 80 lt/h), a safety valve (7) and a
non-return valve (8).
Connect waste pipes (3) and (1) to a
waste water manifold. Once the pipes are
attached, turn on the tap. Ensure there are
no leaks.
Caution!
To connect the water cooler to the mains
water supply, you will need to use a new set
of connectors (joints, gaskets and pipes).
Do not use a set of connectors that has
already been used elsewhere.
The water pressure entering the unit must
be between a minimum of 1,0 bar (0.10
MPa) and a maximum of 3,5 bar (0.35 MPa)

19
Fig. 19.2
Fig. 19.1
1
2
3
Electrical connection
The connections must comply with local
regulations. The grounding of the unit is
a legal requirement.
Connect the power cable (1) to a socket.
Turn the unit on by selecting the “I”
position on the main on/off rocker switch
(2). The dispensing keypad, ice-bank
pump, compressor and fan are now
activated. On the FIZZ models, the pump
for filling the carbonator with water is
also activated.
If the payment is disabled (read section
“4. Enabling/disabling payment”, page
24), press the “Sparkling Water”
button in order to release any air in the
circuit and to allow the pump to fill the
carbonator with water. Otherwise, insert
the card in the reader (Fig.19.3) and
press the button.
After around 1-2 minutes, the sparkling
water pump stops.
Thermostat
The thermostat (3) is set in the maximum
position to control the ice bank.
If you want to avoid the formation of ice
in the bank, turn the thermostat screw at
least 1/4” anti-clockwise.
Fig. 19.3

20
Operation
With the unit in stand-by mode, the payment display located above the
dispensing zone will show the following message:
READY <TIME>
If payment has been enabled (see section “4. Enabling/disabling payment”, page
24), the lower line on the display will show the following scrolling message:
INSERT CARD
With this status, the unit is ready to dispense water.
Position the receptacle under the nozzle, using the square target on the drip tray
as a guide.
Check that the receptacle to be used to collect the water is suitable, hygienically
clean (ideally sterilised), that it has not previously come into contact with liquids
or other noxious or toxic substances, that it does not emit any odour and that it
does not contain other liquids or substances.
If payment has been enabled, insert the card into the reader.
On the display, check the amount of credit on the card:
READY <TIME>
<CARD CREDIT>
If there is insufficient credit, on pressing the button for the required quantity the
following message will be shown on the display:
INSUFF. CREDIT
COST <COST PRODUCT>
If there is sufficient credit, press the dispensing button for the desired product
(STILL or SPARKLING) and the desired quantity.
The display will show the following text:
DISPENSING
<PRODUCT NAME>
If you want to pause the dispensing operation, press the same button again (if
Dispensing Pause is enabled, see page 26).
The display will show the following message:
PAUSE
Press the button again to dispense the residual quantity of the requested
product.
If no button is pressed after the set time is over (see page 26) while the
dispensing operation is paused, the unit will return to stand-by mode, and so the
residual quantity of the requested product will not be dispensed.
Table of contents
Other blupura Water System manuals
Popular Water System manuals by other brands

Gude
Gude INOX 100/24 manual

SpectraPure
SpectraPure Drinking Water Kit instructions

Schenker
Schenker MODULAR 500 Installation, use and maintenance manual

TMC Aquarium
TMC Aquarium V2Skim 200 Compact Instructions for installation and use

Katadyn
Katadyn EK-4 instruction manual

WaterLogic
WaterLogic WL800 - MAX II manual

Reo-Pure
Reo-Pure 90403 Installation, operation & maintenance manual

Tollco
Tollco WaterFuse Apartment User's manual & installation instructions

Grundfos
Grundfos Comfort 595916 Installation and operating instructions

Watts
Watts LF919 installation instructions

Viqua
Viqua Hi-Flo instruction sheet

POBEL
POBEL 710 instruction manual
