LB-20,000 Containerized Watermakers
with Spectra Connect
InstallaƟon and OperaƟng Manual

2
Page Intentionally blank………………………………………………

3
Table of Contents
Installation
Operation
Quick Start…………………………………….…………… 5
Getting Started …………………………………………….. 6
Introduction to the System………………………………… 7
Installation…………………………………………………… 13
Tank Switch Installation …………………………………… 16
Tank Level Sensor Installation…………………………… 17
Networking…………………………………….…………… 18
Page Number
New Systems Start Up and Testing………………………. 20
Sensor Calibration………………………………………… 26
Normal Operation…………………………………………….30
Manual operation……………………………………………..33
Other Operating Modes……………………………………. 37
Auto Store……………………………………………………..38
Spectra Connect Settings……………………………………54
Long Term Storage Procedures ………………………….. 39
Maintenance………………………………………………….41
Membrane Cleaning Procedures………………………….. 46
Oil Changes…………………………………………………..47
Tube fitting information………………………………………48
Troubleshooting Procedures………………………………. 50
Bulletins……………………………………………………….60
Wiring Schematics………………………………………….. 61
Service & Maintenance
Calibration …………………….…………………………….. 26
Spectra Connect Settings…………………………………. 50
User Settings………………………………………………… 51
Fault Explanations…………………….…………………… 59
Dealer Access Settings…………………………………… 56
Manual is current from serial number 4790
Spectra Connect Controls

4
Page Intentionally blank………………………………………………

5
Fresh Water Flush
Pressing the ‘Fresh Water Flush’ button
flushes the watermaker with fresh water
from the vessel’s domestic water tanks.
After completing the flush, Spectra Con-
nect will automatically enter the Auto Store
mode.
Stop
Pressing the ‘Stop’ button from the Home
Screen will end the Auto Store mode
countdown timer and leave your watermak-
er in Standby mode.
When you first power up the system, you will get a warning message, asking if the sys-
tem has been stored with chemicals.If the system has been pickled, winterized,
this is the first startup, or the condition of the system is unknown, go to COMMIS-
SIONING or serious damage may occur.
Start
Pressing the ‘Start’ button once advances
to the Run Mode selection screen.
Spectra Connect Quick Start Guide
Run Mode
Select your desired Run Mode to start mak-
ing water and filling your tanks. See details
on Run Mode options on p. 37
Spectra Connect Modes and Definitions
Auto Store: After the watermaker fresh water flushes, it will start a countdown timer that
can be seen on the Home screen. The timer indicates the next programmed fresh water
flush if the watermaker is not started again, or the ‘Stop’ button is not pressed.
Fill Tank: The watermaker will automatically run until the Tank Full switch in the water
storage tanks closes. Once the Tank Full switch closes, the watermaker automatically
fresh water flushes, then reverts to the Auto Store mode.
Auto Run: The watermaker can be set to run for a number of hours, or for a quantity of
water to be produced. When the desired quantity of water is produced or the run timer
expires, the watermaker will Fresh Water Flush and enter the Auto Store mode.

6
Please read through the complete manual before starting your installation. The system is easy
to operate and maintain as long as it is installed and calibrated correctly.
Spectra Watermakers Land Based Desalination Systems are shipped pre-tested and pickled
with propylene glycol for shipment. The system is ready for installation with the options speci-
fied with your order. Please unpack the system and inspect it to make sure that it has not
been damaged in shipment.
Refer to the shipping list for your system to make sure you have received all of the compo-
nents listed.
We will not be held responsible for shortages that are not reported within thirty days of
the ship date. Shipping damage must be reported to the carrier within 24 hours of re-
ceiving goods.
LB-20k system shipping list:
This system is two independent LB-10000 units built into a custom fiberglass stand and
installed into a 20ft. ISO Shipping Container, each unit includes:
Feed/Boost Pump with VFD speed control
Pre-filtration assembly with two Media filters
LB-10000 desalination unit
Inlet and Brine Discharge Service Connections
Spectra Connect Control Box with Main Circuit Breaker
Feed Valve (to isolate system from feed water)
Accessory kit;
Service hoses and filter wrench
Hand held TDS meter
User’s Manual
Log Book
Optional items;
UV filter for product water
Pressure Regulator for feed
Feed water chemical injection (anti-scalant)
Chlorine injection for permeate
Remineralization filters for permeate
Wireless router for access and control
Up to two tank level sensors for permeate tank
Tank low and tank full switches for permeate tank
Getting Started

7

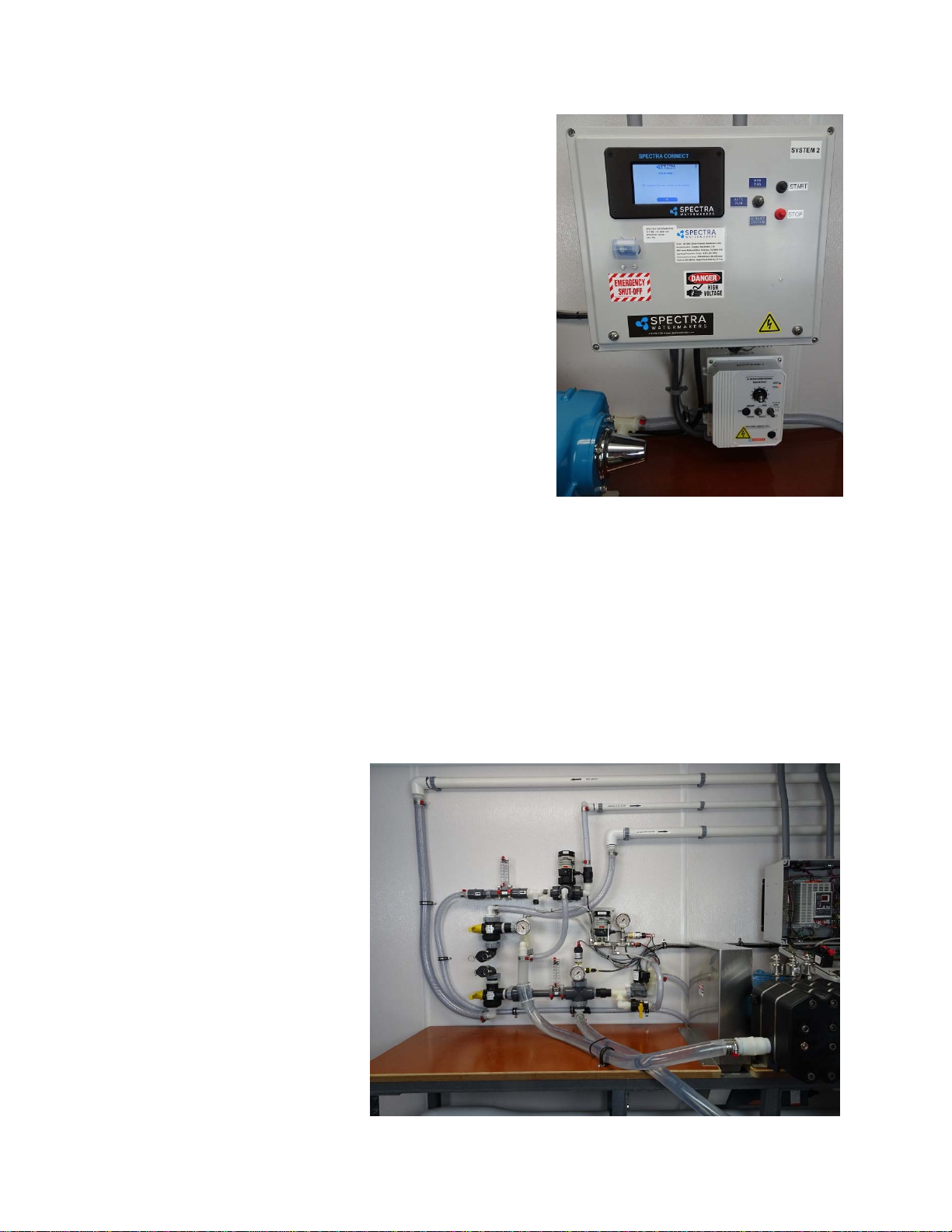

Introduction to the system
The large control box contains the:
 Spectra Connect control panel
 Main circuit breaker for the system
 The Run Manual, Run Auto and Service
switch.
 Start and stop buttons for manual operation
The small control box is for the feed/boost pump
and includes;
 Auto (run) and Manual switch
 Off (down), Auto run (middle), Manual start is
up (spring loaded)
 See the speed control manual (from the man-
ufacturer) for more detailed instructions
The main valve panel for each LB-10,000 watermaker is identical and all the valves
and gauges are clearly labeled.
The system contains both pressure transducers (for the Spectra Connect controller)
and pressure switches for operation in manual mode.
Note that all the valves in this picture are in the off position. There is an arrow on the
yellow handle that shows the direction of flow. To open the valve turn the arrow in the
direction you want the water to flow to (or from).
For example the inlet/
service valve needs to
point down to run the sys-
tem so water will flow from
the pre-filters.

8

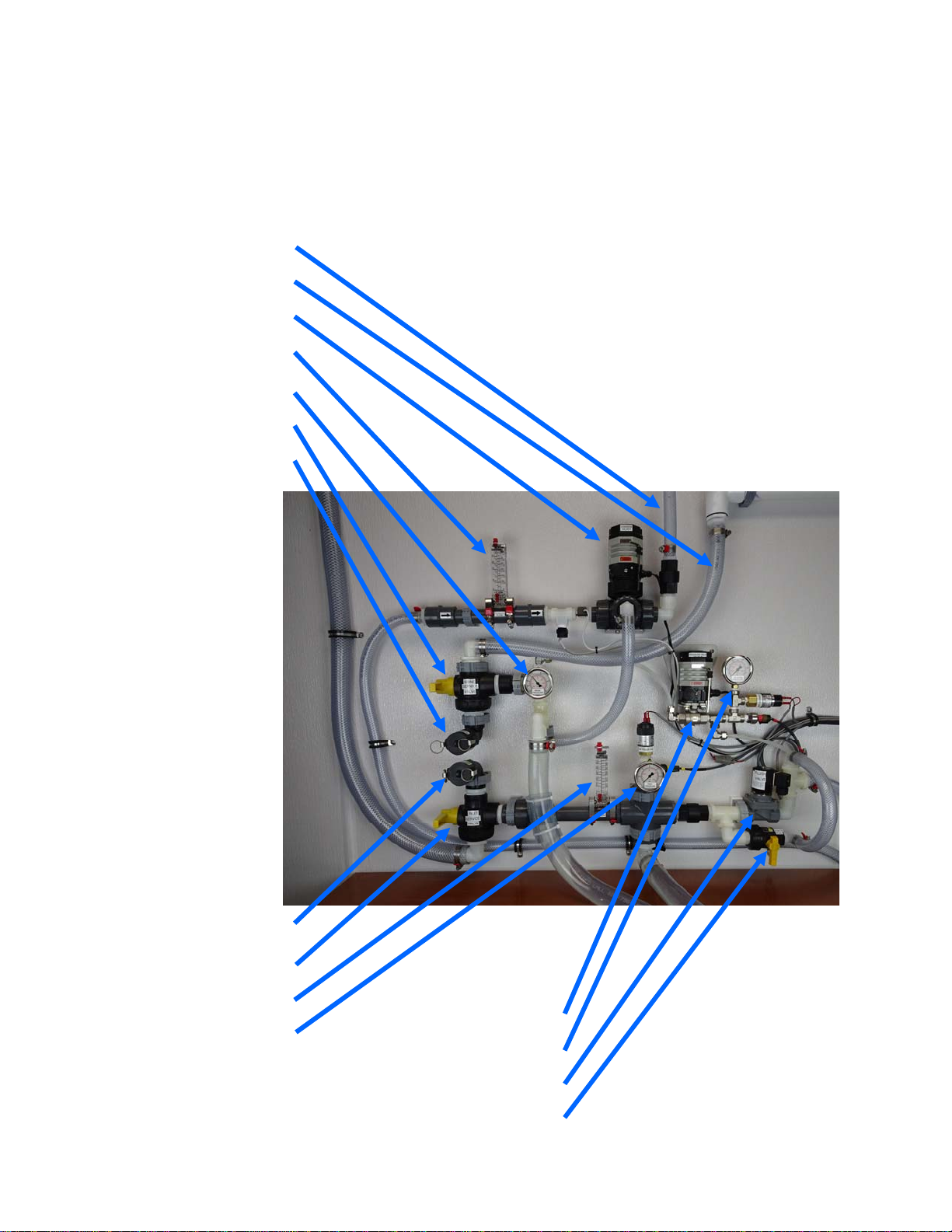

Feed Service Port
Feed/Service Valve
Feed Flow Gauge
Feed Pressure
Product water to tank
Brine discharge to drain
Electric Diversion valve
Product Flow Meter
Brine discharge pressure
Brine discharge/Service Valve
Brine Service port
Electric Pressure Relief Valve
Membrane pressure Gauge
Electric Fresh water flush valve
Manual fresh water flush valve
The Valve and Gauge panel
Both of the watermakers are identical and are capable of fully automatic operation or can be
run manually. In manual mode the system is still protected from loss of feed pressure and ex-
cess membrane pressure, which are the two main things that can cause a fault.
Note that the valves (yellow handles) are shown in the off position.

9
Introduction to the system

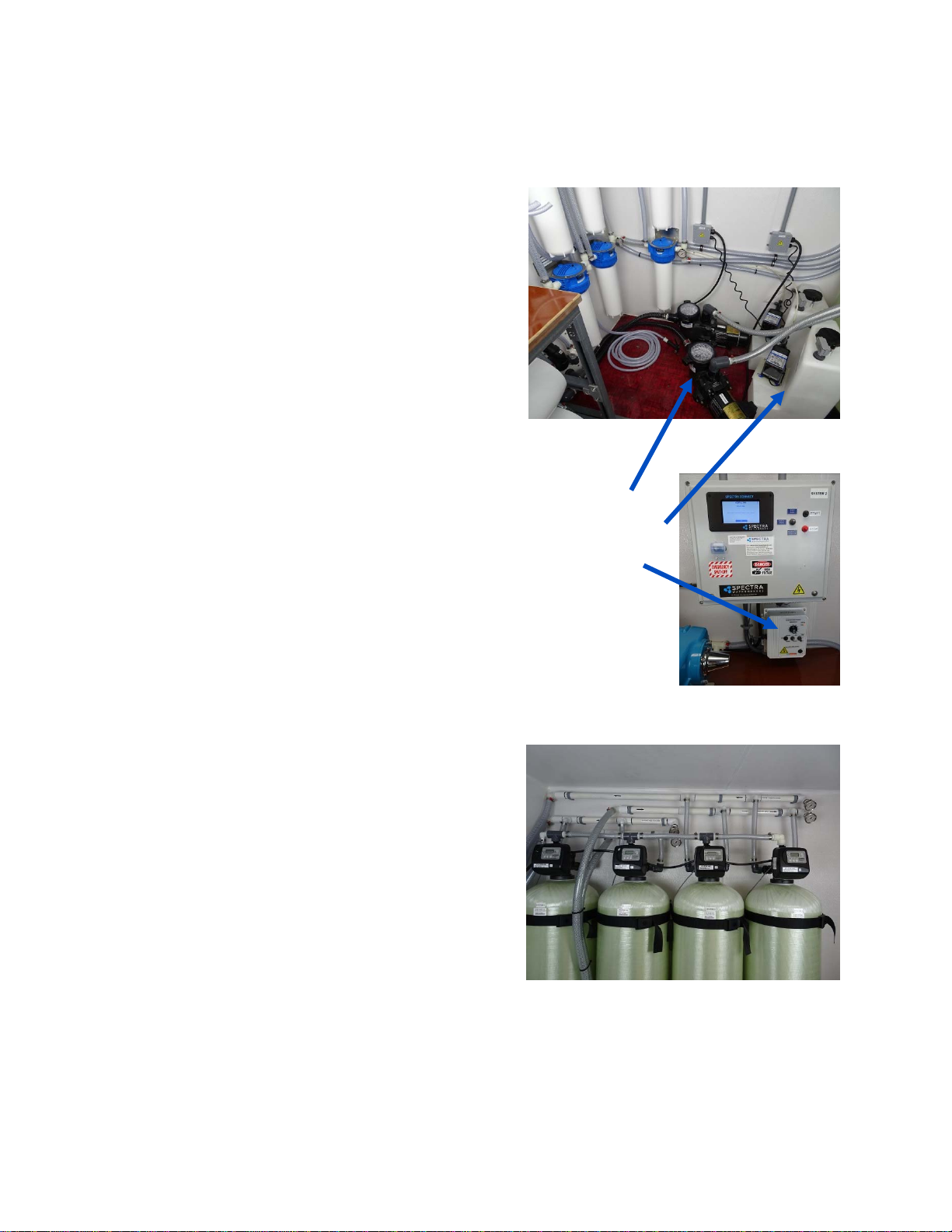

Feed/boost pumps
The two Boost pumps pressurize water from
the feed tank connected to the container.
There is a basket strainer on each pump that
can be checked through the clear window on
the top of the unit.
Note that these pumps must be full of water
before starting. Running these pumps dry will
damage the unit very quickly. The pump
speed is controlled by the small control box
below the main control.
See the boost pump manufacturers manual in
the binder for more detail.
Chlorine Injection
There are two Chlorine Injectors (one for each
system) that add chlorine when the unit is mak-
ing product water (the injection pump is powered
when the diversion valve is open. The manufac-
turers operation manual is in the binder.
Media filters
Each system has two media filters connected
in parallel. Pressurized water from the Boost
Pump is pushed into the media filters and
then on to the cartridge filters.
The pressure gauges on the end of the mani-
folds show the pressure in and out of each
media filter pair. Note what the normal pres-
sure drop is after the filters are back-flushed
and monitor the pressure difference (pressure
drop) across the filters. Back flush the filters
when the pressure drop is 3-5psi.
See the media filter manufacturers manual in the binder for more detailed instructions.
Boost Pump
Chlorine Injector
Boost Pump
speed control

10
Introduction to the system

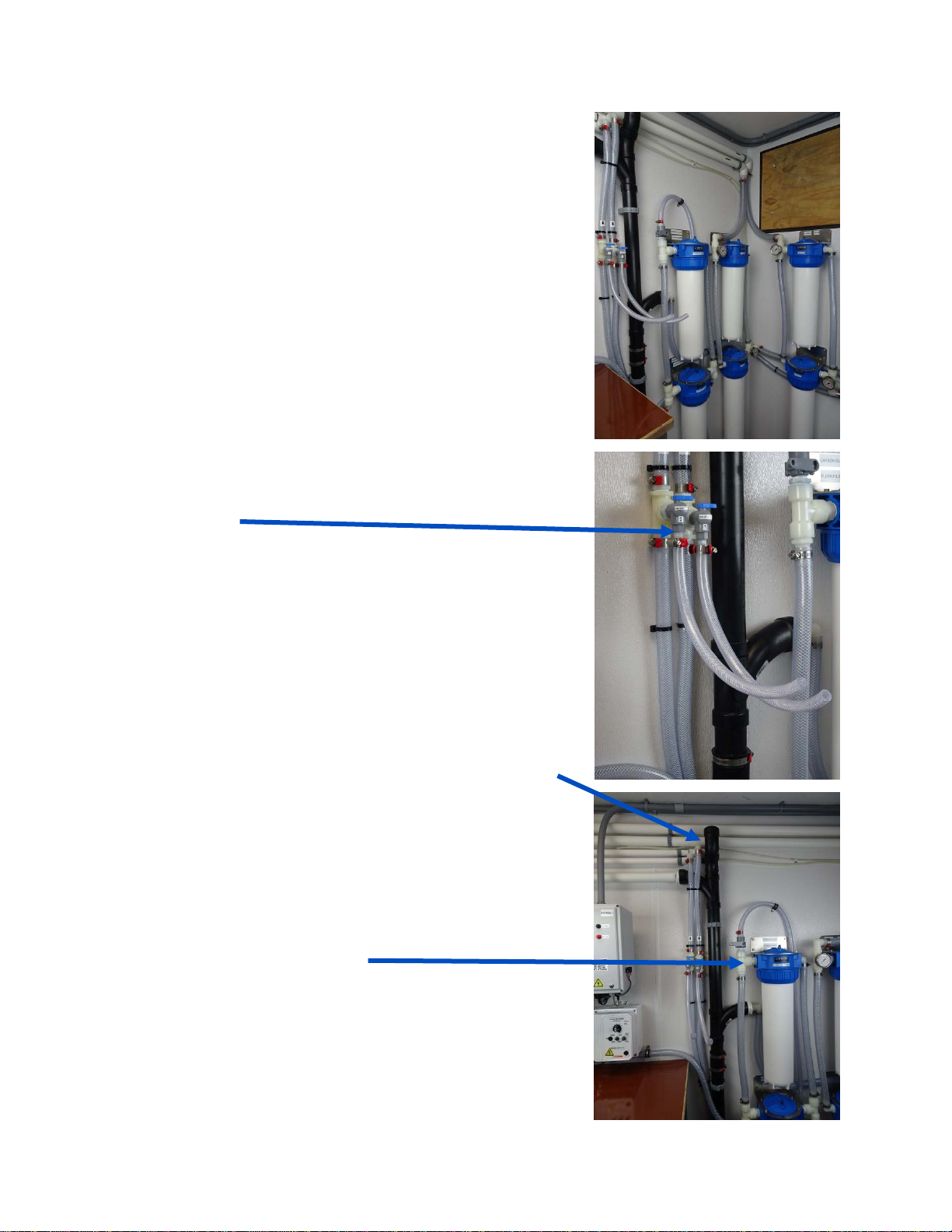

Cartridge Pre-Filters
Each system uses two 4x20” 5 micron filters as the final
stage of filtration before going to the Pearson Pump and
the seawater membranes.
There is a button on top of each housing to bleed air out
of the housing after changing filters. There are pressure
gauges on both the inlet and outlet to monitor pressure
drop across the filters. When the pressure drop across
the filters is 5 to 10psi (maximum) the filters should be
replaced.
Test Ports
There are product water test ports for each system so
the operator can confirm the produce quality. Note
that measuring the chlorine concentration should be
measured from the product tank as the chlorine injec-
tion point is too close to the sampling valve for ade-
quate mixing.
The black ABS Drain Manifold is the drain for the
brine discharge and the back-wash from media filters.
This manifold is open (vented) at the top and it should
be noted that if the drain line outside the watermaker
is too small or is not graded properly that this vent pipe
may need to be extended through the top of the con-
tainer.
Carbon Block Filters
Product water from the storage tank needs to be pres-
surized and connects to the “Flush Water” port on the
outside of the container. The flush water goes through
Carbon block filters for removing chlorine from the
flush water to protect the membranes.

11
Introduction to the system

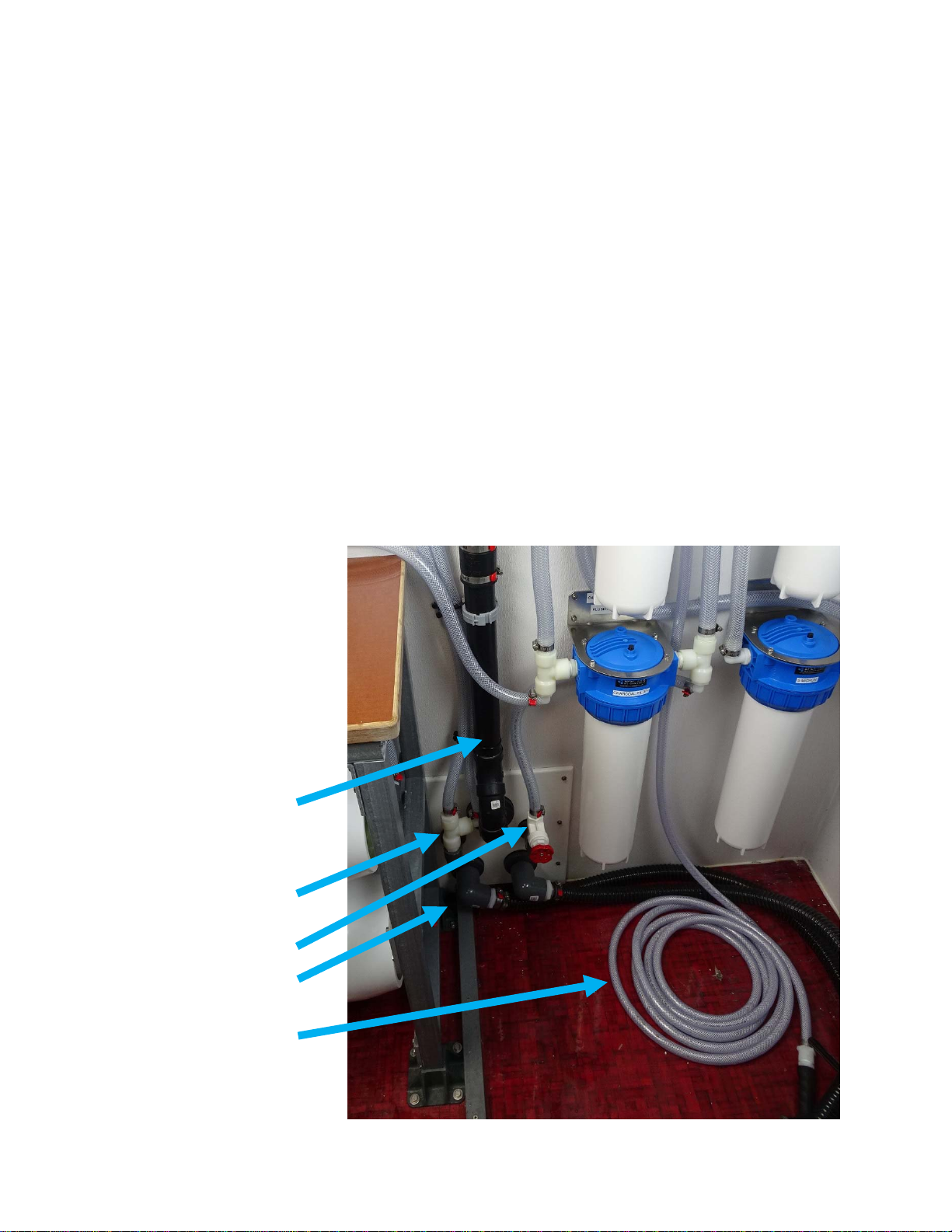

Input / Output Manifold

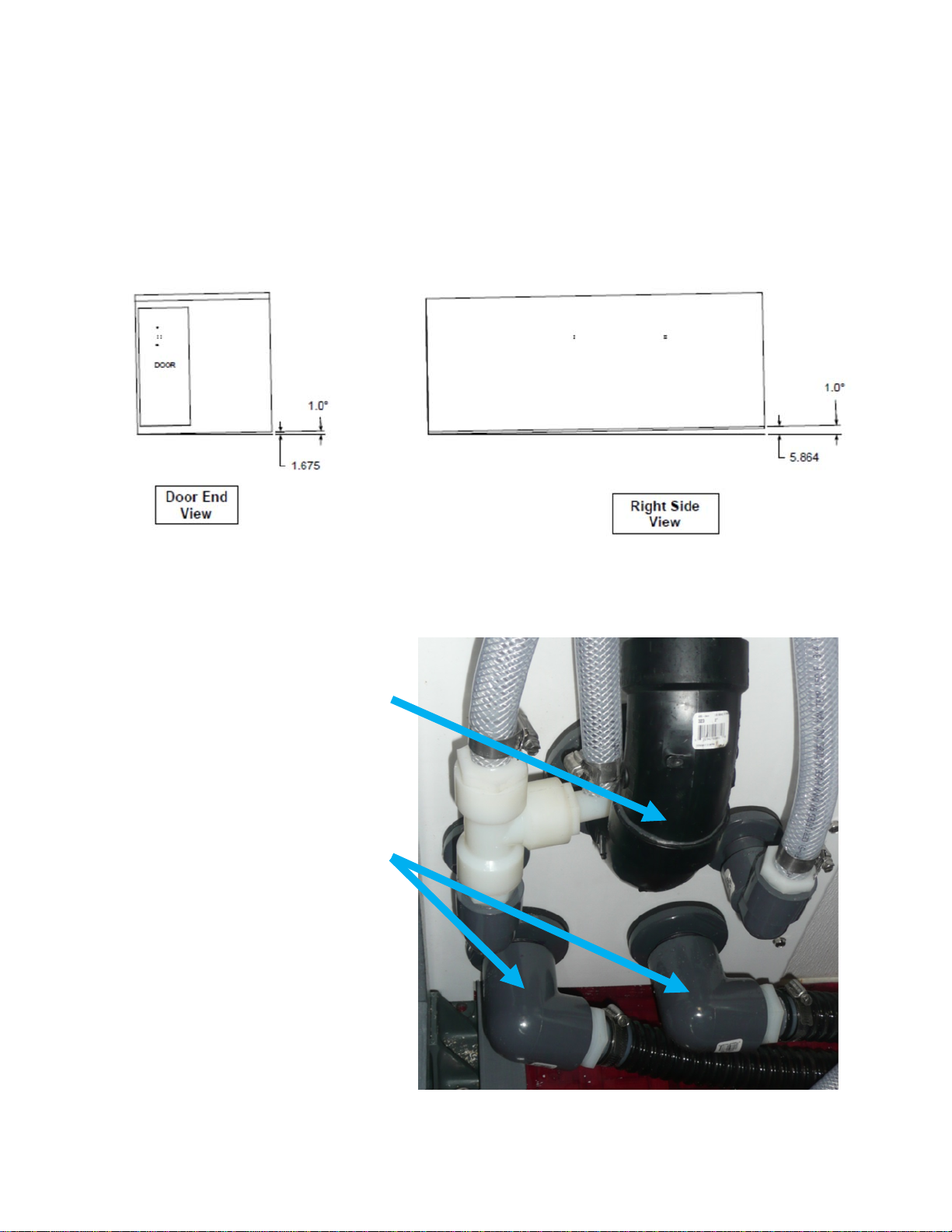

The ports that allow the plumbing connections to go in and out of the container are lo-
cated at the floor level.
The bottom two ports are feed water to the boost pumps.
The next two are chlorinated product water out to the storage tank (on the left) and
pressurized chlorinated water back from the storage tank.
The top connection is the drain that is connected to the brine discharge from both wa-
termakers and the back-flush drain from all four media filters.
A wash down hose is connected to unchlorinated product water (after the charcoal fil-
ter to use for rinsing after filter changes and filling the chlorine injectors with water.
Drain (brine discharge)
Permeate to tank
Chlorinated product water
Feed water in, two places
Wash down hose

12
Simplified Plumbing Layout
Feed
Water
Inlet
High Pressure to
Membranes High Pressure Return
Membrane Array
Boost
Pump Media
filter Feed
Water
Flow
Gauge
Cartridge
Filter
Array Flush
Valve
SP-20 Energy
Recovery Pump
Pressurized Fresh
water from tank
Fresh water Storage tank
(by others)
Product
water
Charcoal
filter
Fresh Wa-
ter Pump
(by others)
Chlorine
injection
Drain
Pressure
Relief
Valve
Product water
Diversion
valve
Drain manifold
Inside Container
Outside Container

13
INSTALLATION
Recommended Site Layout
It is always preferable to draw feed water from a Borehole or Beach Well. Drawing
water directly from the open ocean creates additional maintenance requirements, as
pipes, pumps and the filtration system are exposed to sea life. All of this is avoided by
using the local geology as a barrier to sea life. The feed water from a Borehole or
Beach Well will typically run quite clear after the system has been running for a few
days.

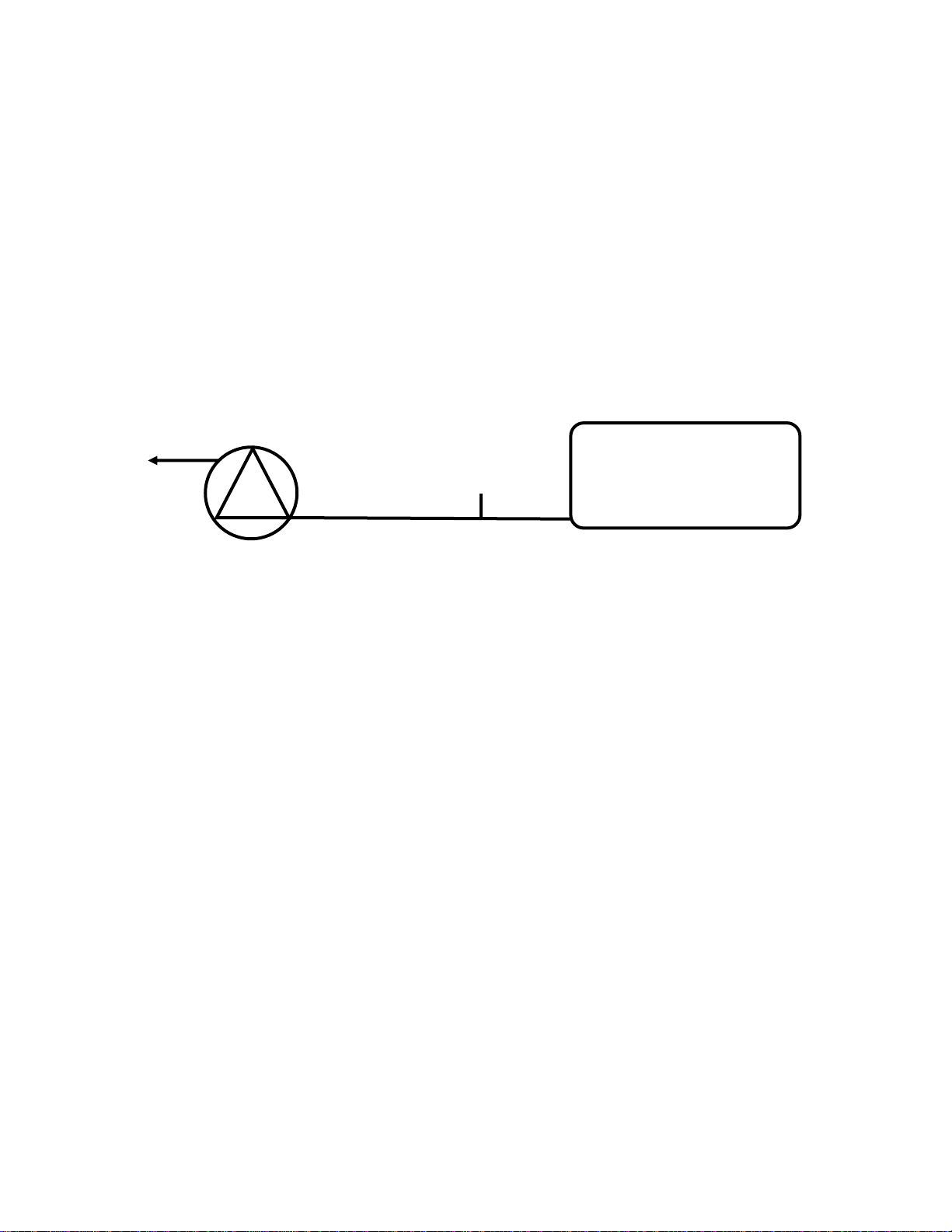

Feed water is moved and pressurized by either a Jet Pump or a Well Pump depend-
ing on site specific conditions. If the system cannot be installed close to the feed water
source, the Jet Pumps provided with the system can be relocated closer to the water
source. Jet Pumps are more efficient when placed close to the feed water source and
will self-prime up to 10ft. (3m). The pipe runs for each of the two systems should be at
least 1-1/2” up to 50 ft. (15m) and be increased to 2” (or more) f it needs to be longer.
Please consult our application engineers to select the correct pump and pipe diame-
ters for your installation.
If the feed water has high turbidity (cloudy water) a Settling Tank may be a good addi-
tion to the installation. A Settling tank is also useful if the feed water intake varies due
to tides or other site specific constraints.
The input and output connections to the Container are outlined on the next page.
The Product Water Tank should ideally be sized to so there is enough storage to sup-
ply water for at least 24 hours to allow for service and maintenance. Water going to
the product tank will be chlorinated by the chlorine injection system in the Container.
The Potable Water Delivery System (by others) needs to provide pressurized water
20-50 psi (1.5 to 3.5 bar) to the Fresh Water Flush Connection on the container.

14
Site requirements for container
The container weighs a little under 20,000 lbs (9090 kg.) and should be mounted on a concrete pad in accord-
ance with local regulations.
The ideal installation has a gentle slope that allows water drain out the door and drain holes. The far end of
the container needs to be elevated 5-6” (130-155mm) from flat. With the container sloped toward the door
from the far end, the right side (when standing at the door end) of the container needs to be 1-1/2 to 2” higher
than the left side.
Note that there is also a catch basin on the container floor around the feed pumps and the cartridge filters so
that water will drain out under the input/output manifold plate built into the left side of the container. Allow for
drainage at the door and under the input/output manifold with a gravel catch basin.
Pipe connections:
The drain for the brine discharge is 2”
NPT (pipe thread) and should be sloping
away from the container if at all possible.
With both units running the flow through
the drain will be 28 gpm (106 lpm), so if
the drain is not sloped correctly the vent
pipe inside the container may need to be
extended.
Feed water from settling tank is 1-1/2”
NPT (pipe thread) and it is recommended
that this connection is made with flexible
hose. If relying on the feed pumps in the
unit be sure the lowest level in the feed
tank is no more than 10ft (3m) below the
floor of the container.
INSTALLATION, continued...

15
The Fresh Water Flush is a 1” NPT (pipe thread) fitting.
Connect the pressurized fresh water supply from the
potable water delivery system to this connection. The
potable water system must supply 5 gpm (20lpm) of po-
table water at 30psi (2 Bar) to fresh water flush the sys-
tems.
The Product Water Outlet is a 1” NPT (pipe thread).
Route the product water pipe from the container to the
top of the storage tank. Ideally the product water
should fall into the tank so there is no back pressure on
the product line. Do not feed the water into a manifold
or bottom of the tank and make sure there is no re-
striction in this plumbing. Backpressure on the prod-
uct water line can cause membrane damage.
The top of the water tank must be no more than 10
feet (3M) above the top of the desalinators frame
and if you need the unit to pump water over 10 ft.
install a transfer tank and a delivery pump.
It is not recommended to use the desalinator as a prod-
uct water delivery pump. If the product water must be delivered up hill or to a tank more than 50
feet/15M away and/or more than 10feet/3m up run it to a transfer tank and use a separate pump to
move water to the desired location.
Electrical
Connect the main in-
coming power feed to
the AC main discon-
nect panel.
Connect all wires in
accordance with local
regulations.
Wire should be sized
for 30Amp max current
draw at 220VAC.
Note: The photo above shows the temporary wiring we used for testing the unit. Follow all local codes
and best practices when making the connections to the power source on site.
All internal wiring is complete to the main distribution panel, with separate circuits that are clearly la-
beled. All equipment should be in the off position when applying power for the first time.
INSTALLATION, continued...

16
Optional Tank Switches
There are two types of tank float switches available depending on your installation re-
quirements. Often making an assembly as pictured below (right) is a good solution as
there is only a single penetration and it can be above the high water level.
Top mounted float switch EL-SWT-LV
Side mounted float switch EL-SWT-SMLV
The Terminal Block for the tank level switches is on the
right side of the control box .
The control system is designed to shut down when the
tank switches close. When tank is full, both switches
must be closed.
Note: If tank switches are not used you must disable the
tank switches in the system settings.
Tank Level Sensor
Installing a tank level sensor (KIT-SC-TNKSS) in the discharge line from your storage
tank will allow the Spectra Connect to track the tank level. Once the sensor is installed
connect to the Terminal Block above referring to the wiring diagram for terminal loca-
tion.
Tank Switch Installation
Typical float valve tree that is
attached to the inside of the
tank with a bulkhead fitting

17
The optional Tank Level sensor allows even greater control of your fresh water storage
systems. This unique level monitoring system requires no holes to be drilled into your
tank while measuring tank volume with greater accuracy than a standard resistive float.
Turn off the freshwater supply pump, close the fresh water supply valve at the water
tank, then bleed off the pressure by opening a tap in the galley or head sink.
Install a tee in the water supply hose at the bottom of the tank, or at the inlet to
the domestic water pump. Connect open leg of the tee to the Tank Level Sensor.
Note: The tank level sensor requires a 1/4” npt connection. We recommend installing
a minimum 1/2” tee, and using a reducing bushing to connect the sensor.
Tank Level
Sensor Fresh Water
Tank
Product Water
Pump
Route the 3 conductor cable back to the Spectra Connect control box and extend the
wires as necessary. If you must extend the wires beyond 50’ contact the factory to en-
sure proper operation.
Connect the Tank Level Sensor cables to the appropriate terminals in the control board
inside the main Control Box (pg. 14) and refer to the wiring diagram on pg.54 to identi-
fy the correct terminals . Polarity must be maintained!
If a 2nd Tank Level Sensor is going to be installed, it should be installed at the base of
the second tank. If monitoring 2 connected water tanks, they must be isolated
from each other with a valve to read properly.
The wiring connections for the second Tank Level Sensor are located inside the Spec-
tra Connect control box. See System Settings section of this manual for instruc-
tions on enabling the second Tank Level Sensor.
See the Tank Level Calibration (pg. 22) in the “New System Start-Up” section of
this manual.
Optional Tank Level Sensor Installation
Note: Be sure the pipe between the tank and the tank lev-
el sensor is large enough to eliminate pressure drop when
the product pump is running. Any pressure drop will ef-
fect the tank level sensor accuracy.

18
Networking
Your Spectra Connect is equipped with state of the art networking options to allow the
maximum user control in a wide variety of installations. The instructions below will
help you get the most out of your Spectra Connect.
Connecting to the existing Network
1. Turn power to the system off.
2. Connect a standard Cat5e or Cat6 ethernet cable from the control board located
inside the feed pump module to your router or networking switch.
3. Turn power to the system back on.
4. Follow the screen prompts below:
5. Note the ‘Device IP’ address shown in and record the 10 digit numerical address on
the front of this manual for future reference.
Note: Your Spectra Connect is only available when your device is connected to the
same local network as the Spectra Connect control board. If you have difficulty con-
necting to your watermaker control application, double check the that your device net-
work is the same as your Spectra Connect
Ethernet Jack Note: If you are connecting directly
into a wireless router, DO NOT CON-
NECT TO THE WLAN (Wireless Lo-
cal Area Network) ethernet port.
You must connect to one of the LAN
ports typically labeled 1, 2, 3, 4, etc.

19
8. Your computer should now show the same image as shown on your local Spectra
Connect
7. On the computer, tablet or smartphone, open a web browser such as Firefox,
Chrome, or Safari. In the web address bar at the top, type the ‘Device IP’ address
previously recorded. Press ‘Enter’.
Note: Internet Explorer may not be compatible with your Spectra Connect web
app. If formatting issues occur, use another browser such as Firefox, Safari, or
Chrome.
Ex: Address Bar—Firefox
9. Your web browser is now synced with your Spectra Connect. Any buttons you
press on your web browser will be controlling your watermaker.
Caution! If operating your watermaker from a computer, phone, or tablet, you
must keep the tab open while the system is in operation and the volume turned
up on your device in order to hear any audible alarm faults.
Connecting to an existing Network, continued…
Router or Switch
6. Connect your computer, tablet or smart phone to the local network your Spectra
Connect is plugged into;
Wired Connection: simply plug your computer’s ethernet port directly into the router
or switch where you connected the watermaker.
Wireless Connection: make sure your device is connected to the same local wireless
network as the Spectra Connect (LAN).
Wired Connection Wireless Connections

20
New System Start-Up and Testing
1. First Check that:
 Brine discharge is directed to a suitable location.
The brine discharge will contain a small amount of
propylene glycol (non-toxic potable anti-freeze)
during the purge cycle.
 Confirm there is oil in the crankcase
(check the dip-stick)
 Pressure Relief Valve is OPEN one full turn
Use this procedure when the system contains preservative or cleaning chemi-
cals.
Warning! Damage will occur if the system is not purged of the storage chemicals
before pressurizing the system.
Maintenance note; Get into the habit of recording the pressures and
flow rates of the system in the Log Book. Knowing what is normal
for this installation is one of the best tools you will have to keep the
system running properly.

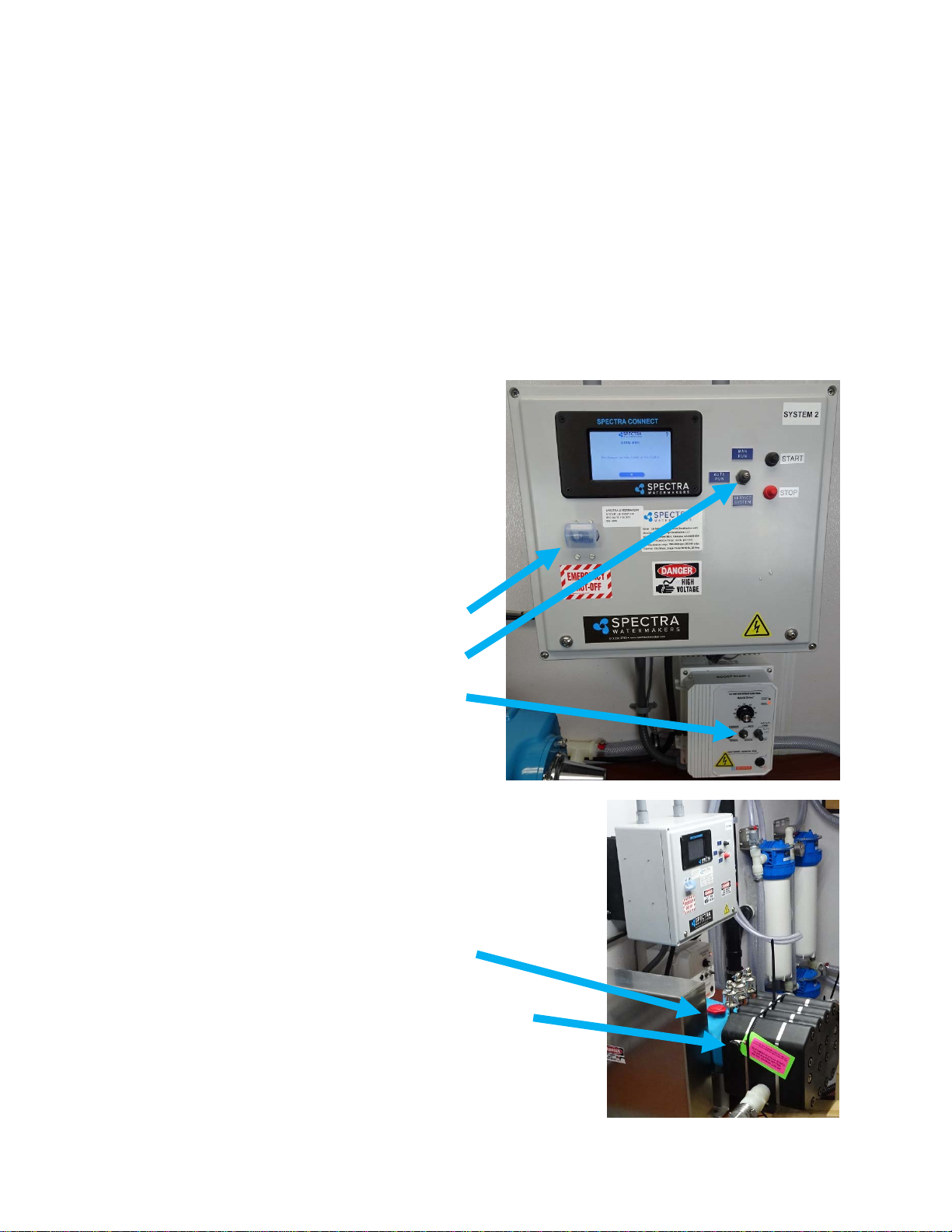

Initial power-up
When power is first applied to the unit the
main breaker (Emergency Shut-Off)
should be in the off position. The Run
toggle switch should be in the AUTO po-
sition.
Main Breaker
Run Switch (Run Auto)
Boost pump Run Switch (Run Auto)
