BM FITNESS IMPULSE 2 IT8026 Glute Master User manual

I Glute Master
Assembly Instructions
T8026

Table of contents
Important Safety Instructions--------------------------------- 1
Exploded View Diagram------------------------------------------ 2
Hardware List-------------------------------------------------- 3
Parts List----------------------------------------------------- 4
Assembly instructions------------------------------------------ 5
------
----------
--

Important Safety Instructions
1
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equip-
ment, basic precautions should always be taken, including the following:
* Read all instructions before using the .
arewrittentoensureyoursafetyandtoprotect
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended
by the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout---no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout imme-
diately and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that
all fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later
that you have to disassemble compontents and that you may have
damaged the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate
the unit a few feet from walls or furniture to provide easy access.
The is designed for your enjoyment. By
precautions and using common sense, you will have
pleasurable hours of healthfull exercise with the
Glute Master These instructions
the unit.
Glute Master following these
many safe and
equipment.
Personal Safety During Assembly

2
I Glute Master

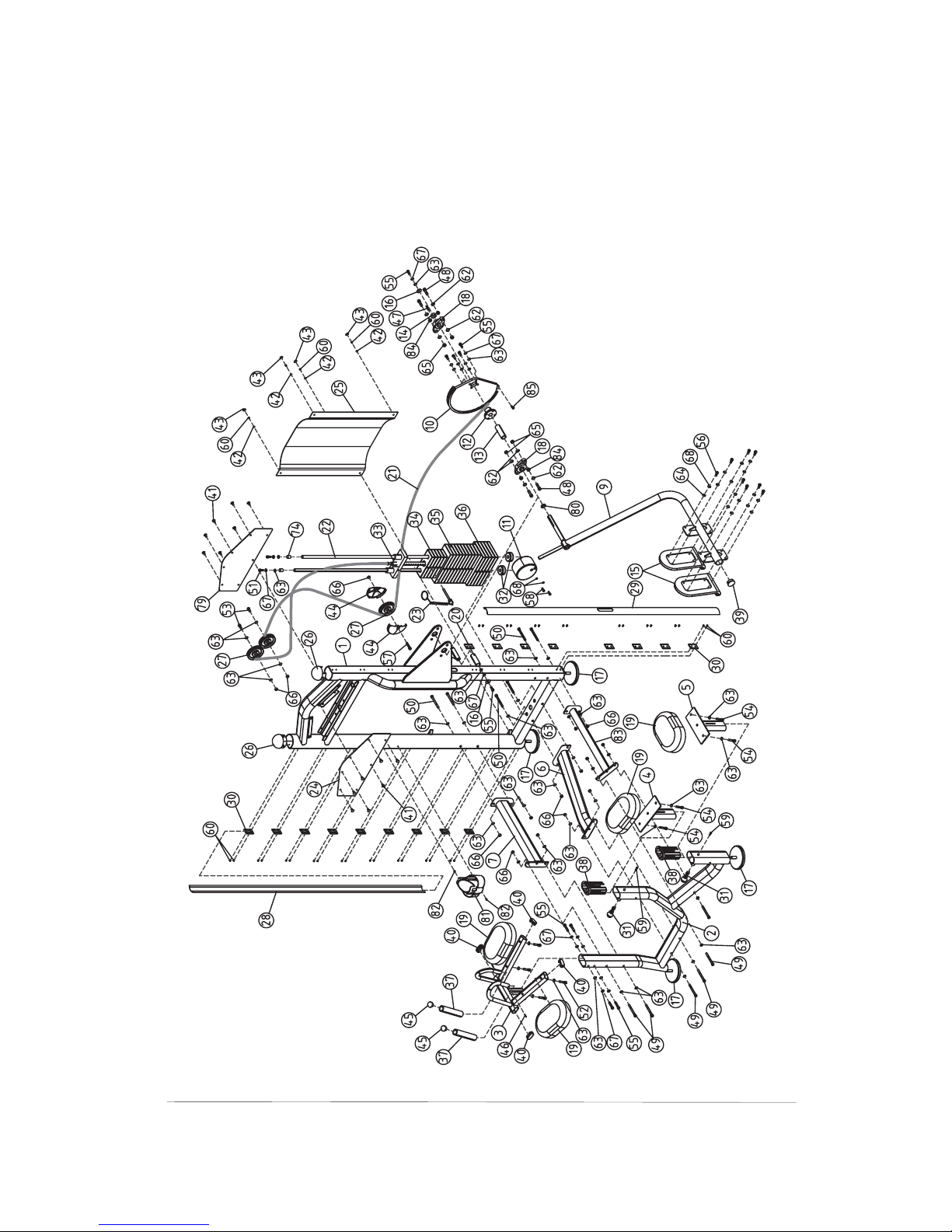

Exploded View Diagram
T8026

3

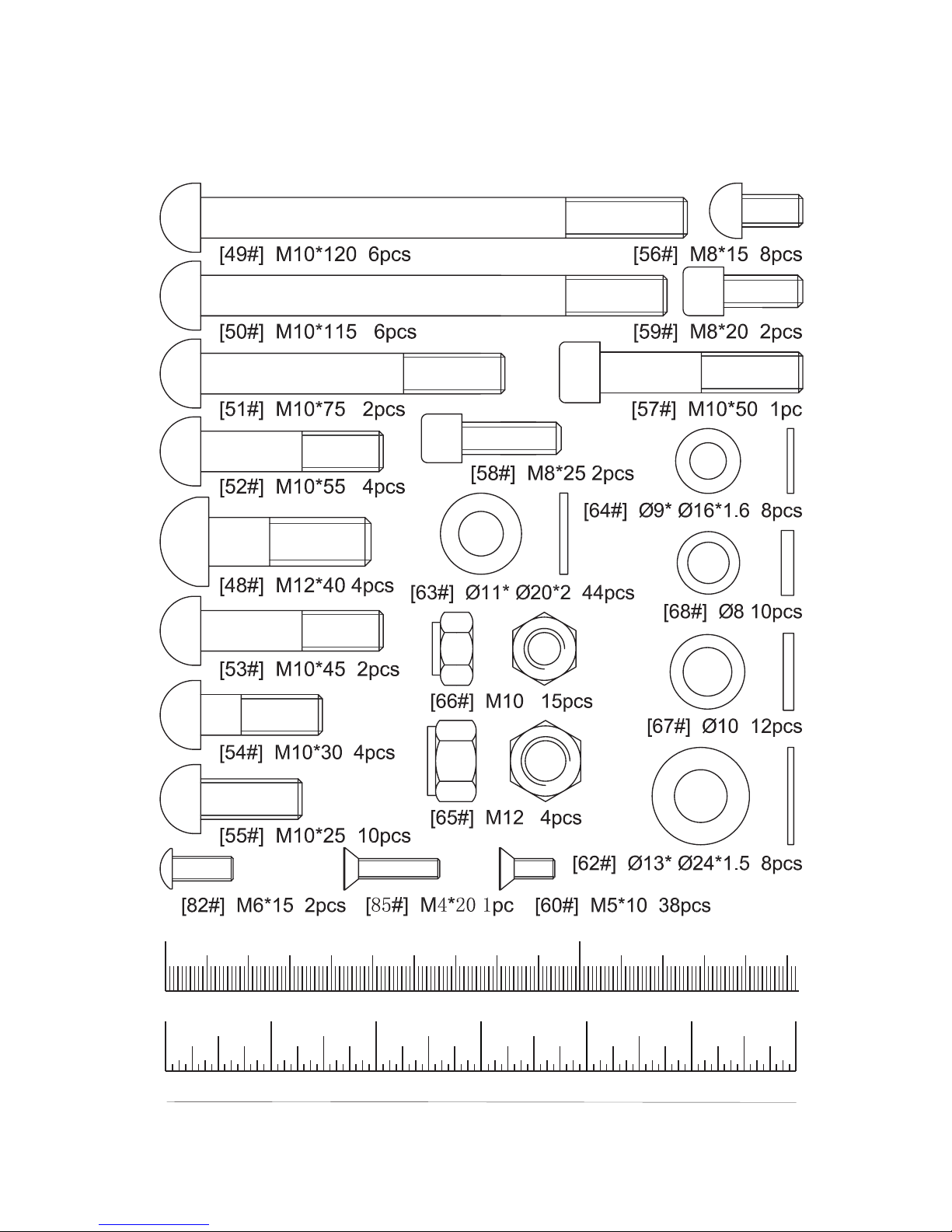

Hardware List
0 100
10 20 30 40 50 60 70 80 90 110 120 130 140 150
Inches
0123456
/
12
/
14 /
34 / 34 / 34 / 34 / 34 / 34
/
14 / 14 / 14 / 14 / 14
/
12 / 12 / 12 / 12 / 12
Millimeters

4
Parts List
Item No. Description QTY Item No. Description QTY
Main Upright
Main Support
Handle
Chest Pad Support
Knee Pad Support
Low Cross Brace
Upper Cross Brace
Leg
Cam
Counter Poise Block
flange
Long Spacer
Short Spacer
Foot Plate
Big Washer
Adj.Foot Plate
Pillow Block
Pad
Rubber Sleeve
Cable
Guide Rod
Weight Pin
Front Decal Plate
Weight Shroud
“D”End Cap
4.5"Pulley
Front Side Cover
Rear Side Cover
Plastic Block
Pop Pin
Weight Rubber Bumper
Top Plate
5LBS Weight
10LBS Weight
15LBS Weight
grip
Slide Sleeve
Plug 50
PlugRT 51
Button
Plastic Warher
Bolt Cover
Φ
Φ
4.5"Pulley Cover
Aluminium Plug
Slip Tension Pin
Key
Allen bolt M12×40
Allen boltM10×120
Allen boltM10×115
Allen boltM10×75
Allen boltM10×55
Allen boltM10×45
Allen boltM10×30
Allen boltM10×25
Allen boltM8×15
Should boltM10×50
Should boltM8×25
Should boltM8×20
Screw M5×10
Washer 13× 24×1.5
Washer 11× 20×2
Washer 9× 16×1.6
Nylon Lock nutM12
Nylon Lock nutM10
Spring Warher 10
Spring Warher 8
Allen Wrench S=6
Allen Wrench S=3
Decal Weight Numbers
Grease
Allen Wrench S=8
Plastic Cap
Decal warnning
D
Decal Pinch Points
Decal Tightenting
Rear Decal Plate
Spacer Washer
Plastic Cap
Screw M6×15
Back Cross Brace
Spacer
Screw M4×20
ΦΦ
ΦΦ
ΦΦ
Φ
Φ
ecal Maintenance Routine
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
4
2
4
1
1
2
1
1
1
2
3
1
1
17
2
2
1
5
9
5
2
2
1
4
14
4
4
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
2
2
2
1
4
6
6
2
4
2
4
10
8
1
2
2
38
8
44
8
4
15
12
10
1
1
1
1
1
2
1
1
1
1
1
1
1
2
1
4
1

5
Assembly instructions
Assembly of the takes professional installers
about 2 hours. If this is the first time you have assembled this
type of equipment, plan to spend more time. It is strongly recom
mended to assemble the equipment by professional installers.
You may find it quicker, safer, easier to assemble this equipment
with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you asse-
mble your product in a clean, clear, uncluttered area. This will
enable you to move around the product while you are fitting com-
onents and reduce the possibility of injury during assembly.
As with any assembled part, proper alignment and adjustment
is critical. While tightening the fasteners, be sure to leave room
for adjustments. Do not fully tighten the fasteners until instructed
to do so. Be careful to assemble the components in the sequence
presented in this guide.
Glute Master
p
Note

6

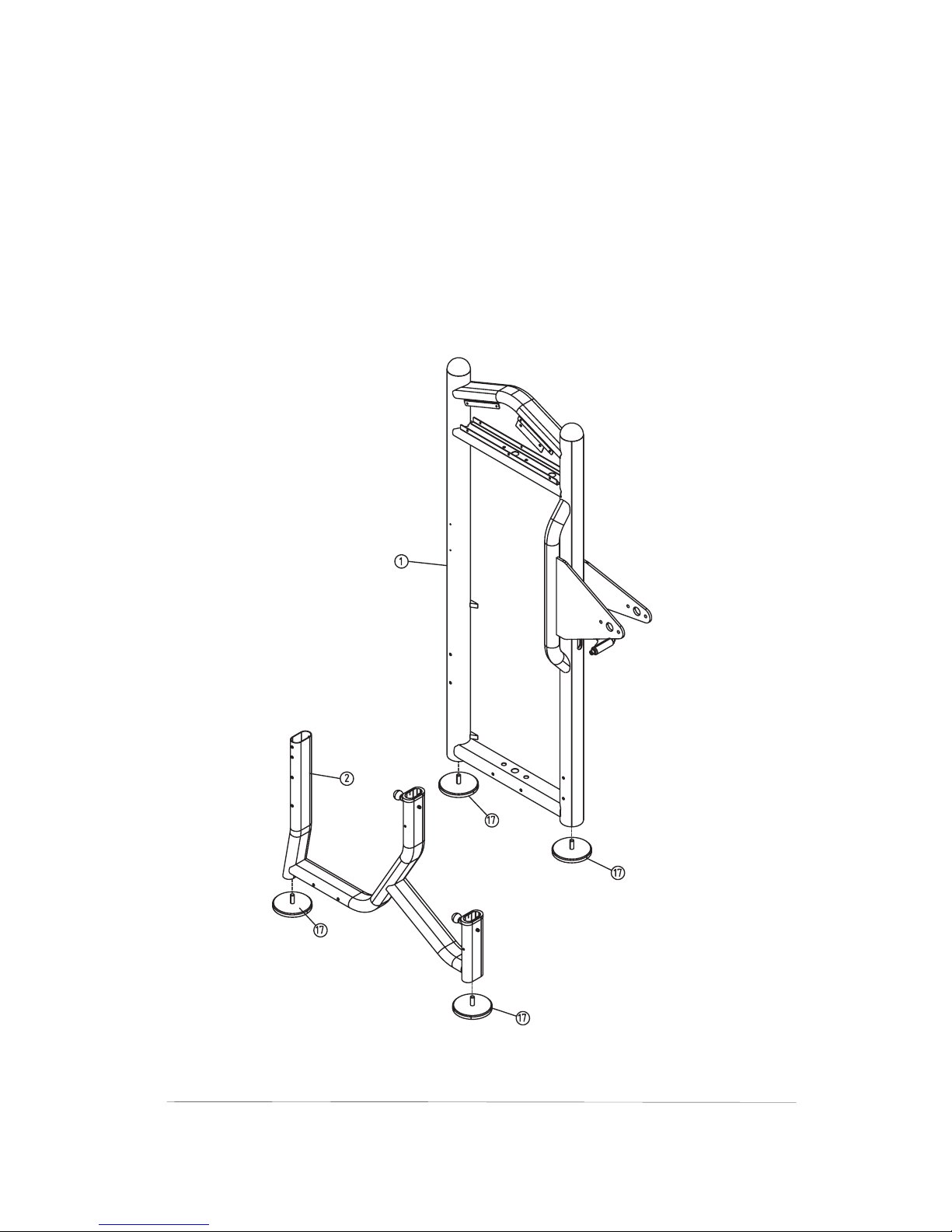

Step1 Install The Adj. Foot Plates
Align the Adj. Foot Plates(#17) to the Main Upright(#1)
and the Main Support(#2),then secure them by hands.

7

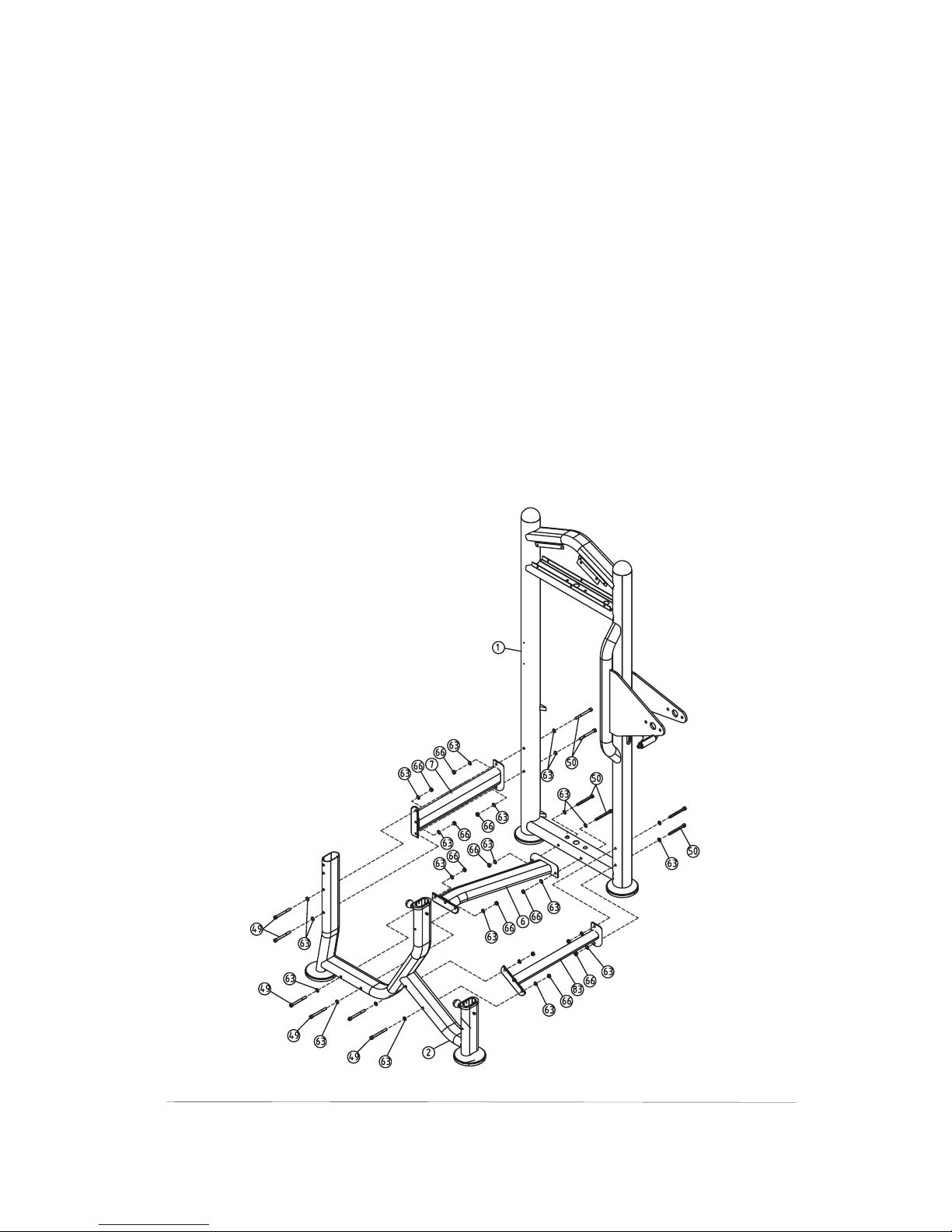

Step2 Assemble The Frame
1)Attach the Upper Cross Brace(#7) and the Low Cross
Brace(#6) Back Cross Brace(#83) to the Main Upright
(#1) using:
2)Attach the Main Support(#2) to the Upper Cross Brace
(#7) and the low Cross Brace(#6) Back Cross Brace
(#83) using:
six Allen Bolts(#50) M10×115
six Nylon Locknuts(#66) M10
twelve Washers(#63)
six Allen Bolts(#49) M10×120
twelve Washers(#63)
six Nylon Locknuts(#66) M10
ΦΦ
ΦΦ
11× 20×2
11× 20×2

8

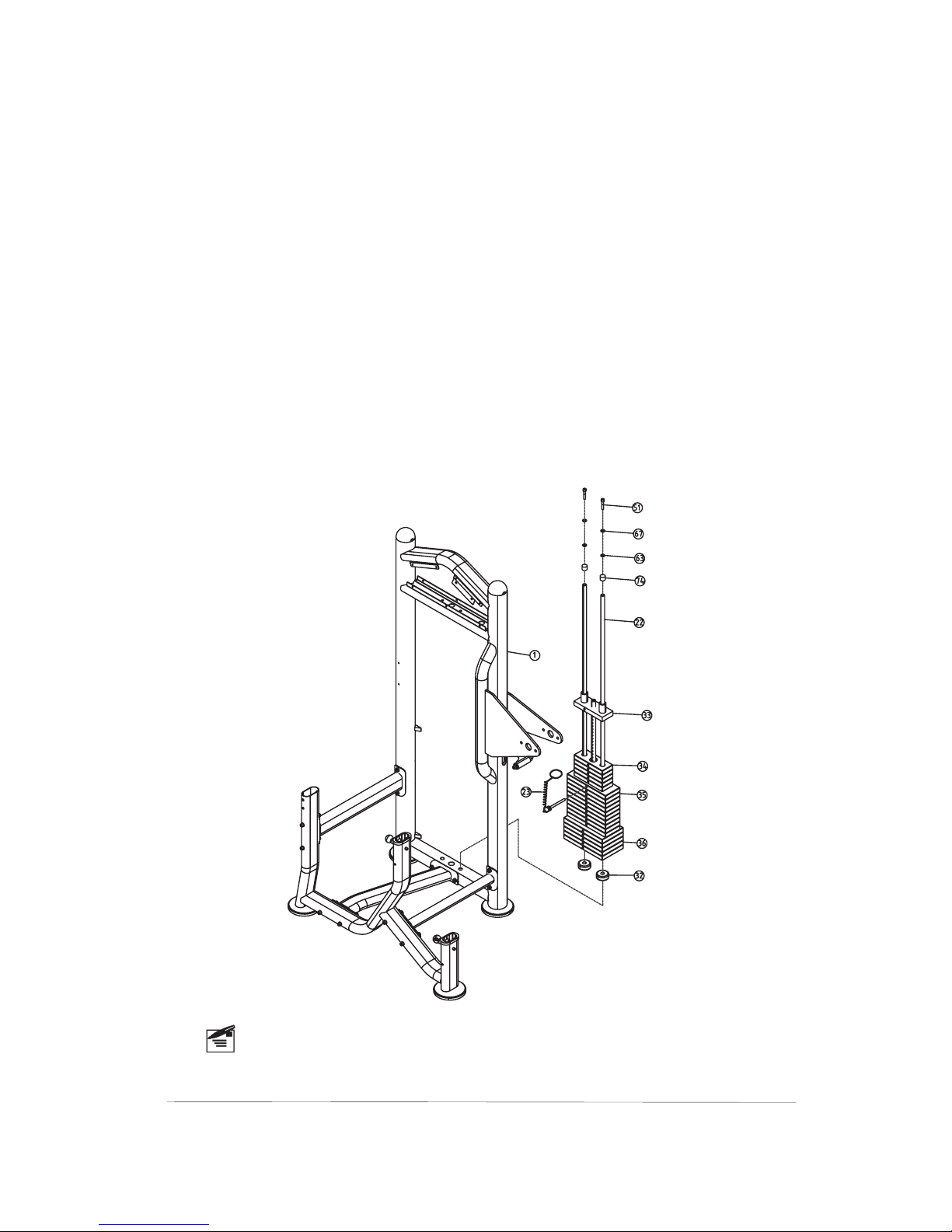

Step3 Assemble The Weight Plates
1)Insert both Guide Rods(#22) into the Main Upright(#1).
2)Slide the Weight Rubber Bumper(#32) down onto each
Guide Rod(#22).
3)Carefully begin sliding the Weight Plate one by one in
sequence:#36,#35,#34,#33
4)Align both top ends of the Guide Rods(#22) to the Main
Upright(#1) and secure them using:
two Allen Bolts(#51) M10×75
two Washers(#63)
two Spring Washers(#67) 10
two Rubber Caps(74)
ΦΦ
Φ
11× 20×2
Note
Make sure that Washers(#63)and Spring Washers
(#67) are on the top side.

9

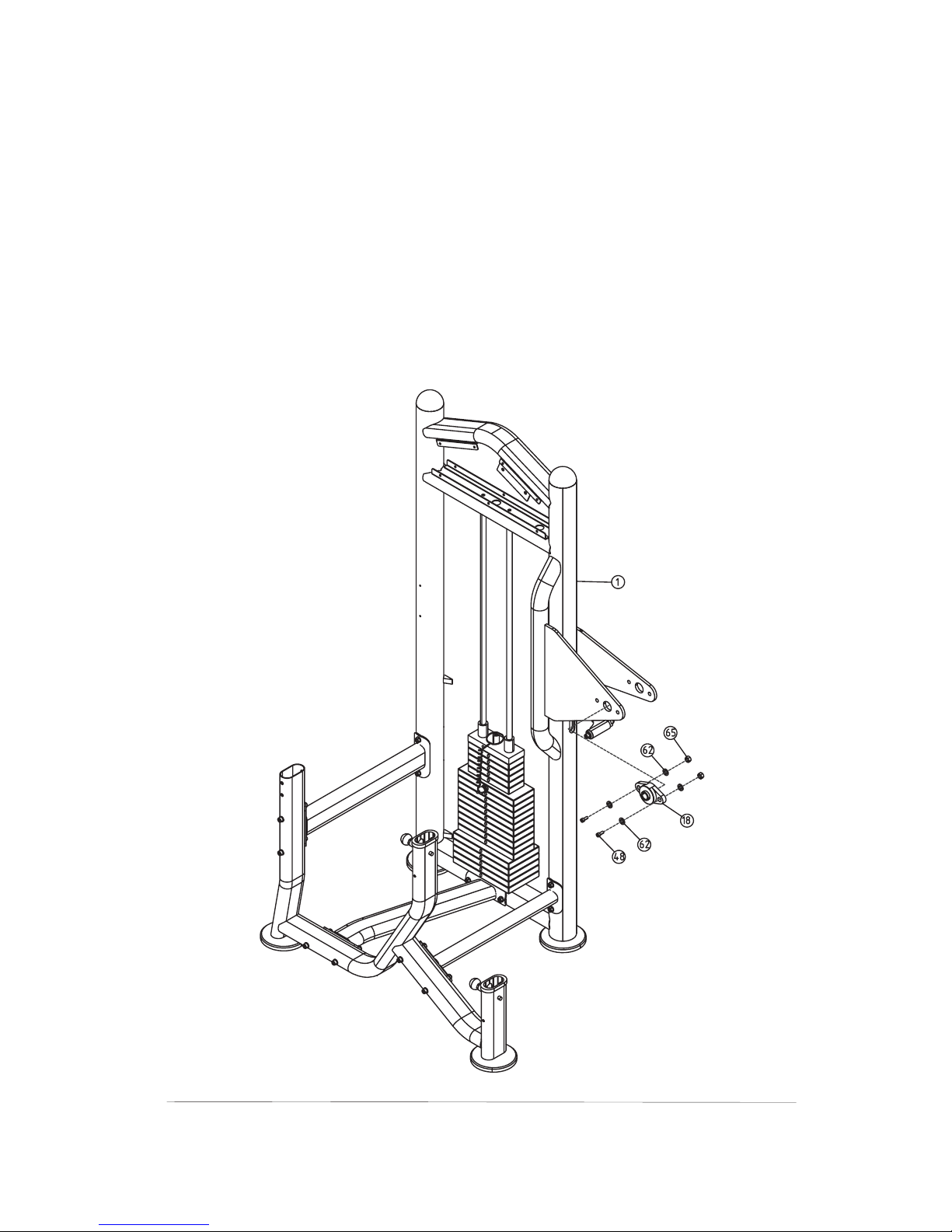

Step4 Assemble The Pillow Block
Attach the Pillow Block(#18) to the Main Upright(#1)
using:
two Allen Bolts(#48) M12×40
four Washers(#62) 13× 24×1.5
two Nylon Locknuts(#65) M12
ΦΦ

10
Step5 Assemble The Leg
Insert the Leg(#9) through the Spacer Washer(#80) and
the Pillow Block(#18) and into the Main Upright(#1) as
shown .

11

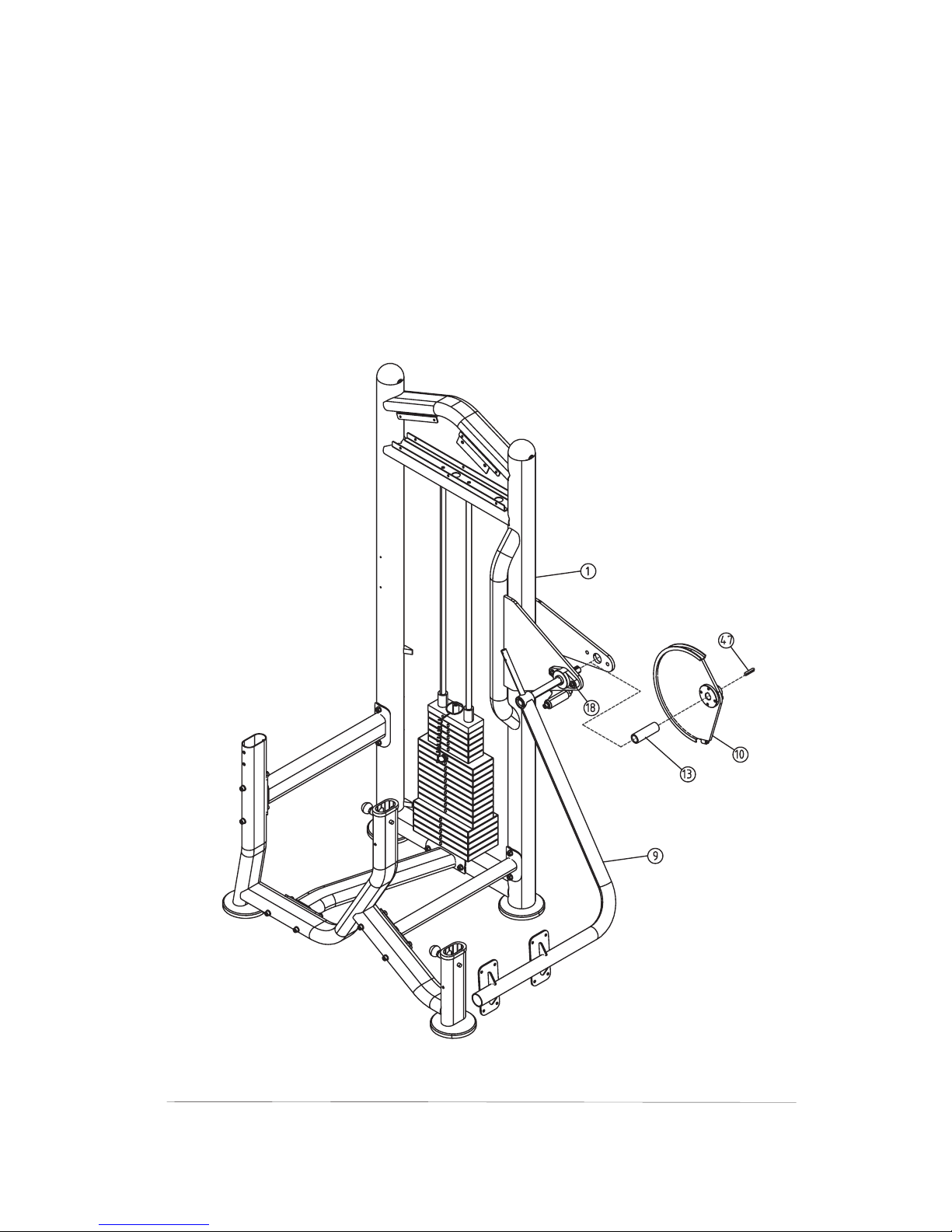

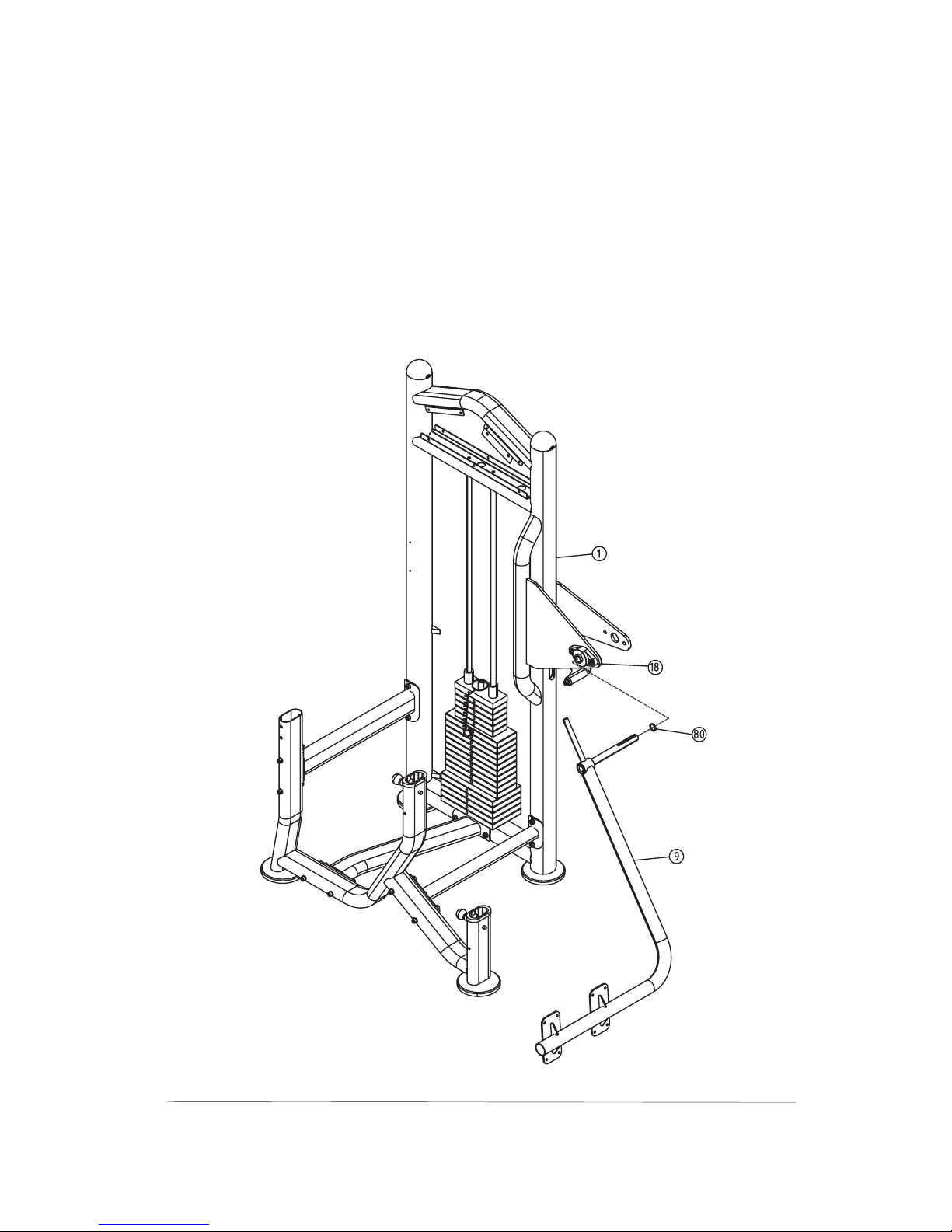

Step6 Assemble The Cam
Insert the Leg(#9) through the Main Upright(#1),the Sp-
acer(#13) and the Cam(#10),next secure the Cam(#10)
to the Leg(#9) using the Key (#47).

12
Step7 Assemble The Pillow Block
1)Insert the Short Spacer(#14) onto the Leg(#9) as sh-
own below.
2)Attach the Pillow Block(#18) to the Main Upright(#1)
using:
3)Secure the Leg(#9) to the Pillow Block(#18) using:
two Allen Bolt(#48) M12×40
two Nylon Locknuts(#65) M12
four Washers(#62) 13× 24×1.5
one Allen Bolt(#55) M10×25
one Spring Washer(#67) 10
one Washer(#63)
one Big Washer(#16)
ΦΦ
Φ
ΦΦ11× 20×2

13

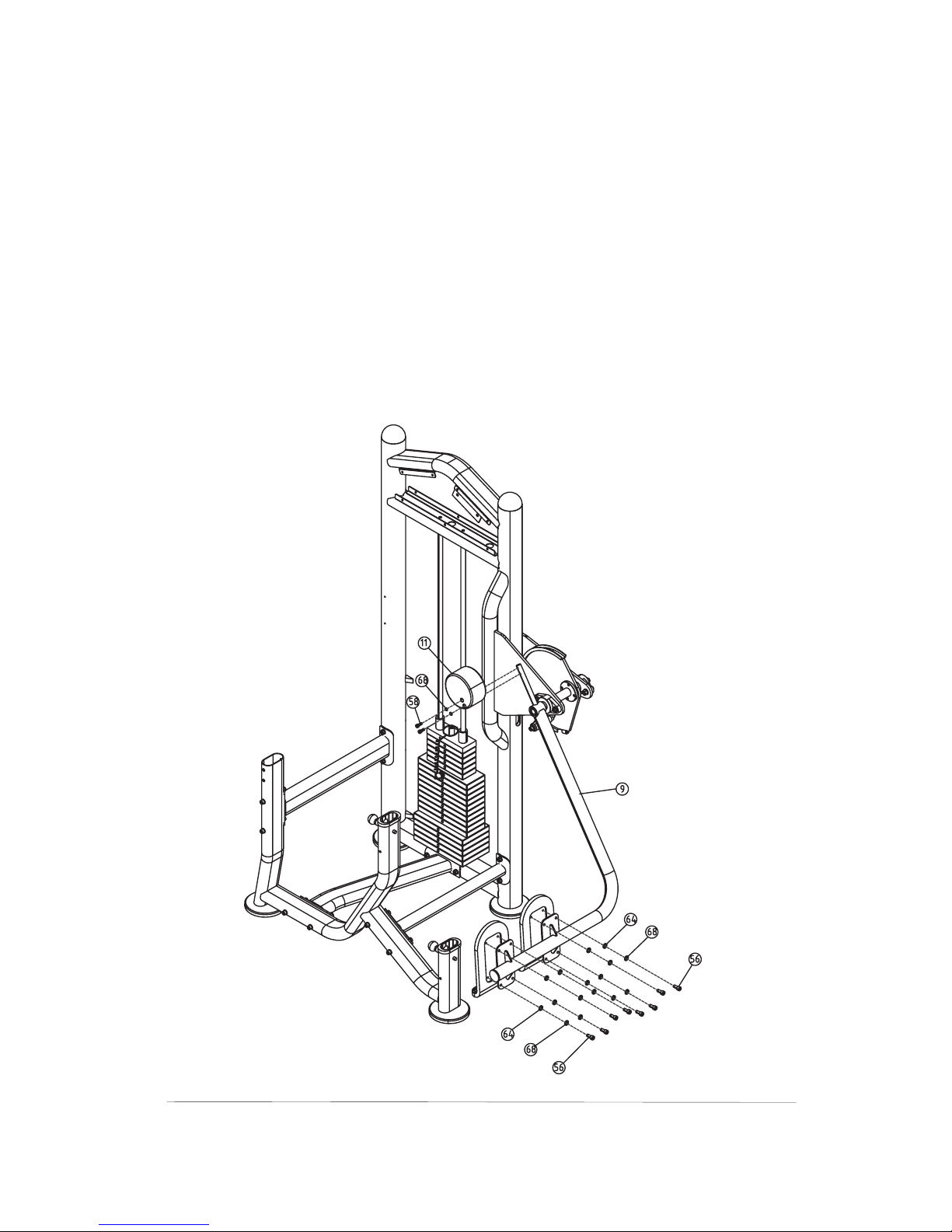

Step8 Assemble The Poise Block
and the Foot Plates
1)Attach the Counter Poise Block(#11) to the Leg(#9)
using:
2)Attach the two Foot Plates(#15) to the Leg(#9) using:
two Shoulder Bolts(#58) M8×25
two Spring Washers(#68) 8
eight Allen Bolts(#56) M8×15
eight Spring Washers(#68) 8
eight Washers(#64) 9× 16×1.6
Φ
Φ
ΦΦ

14

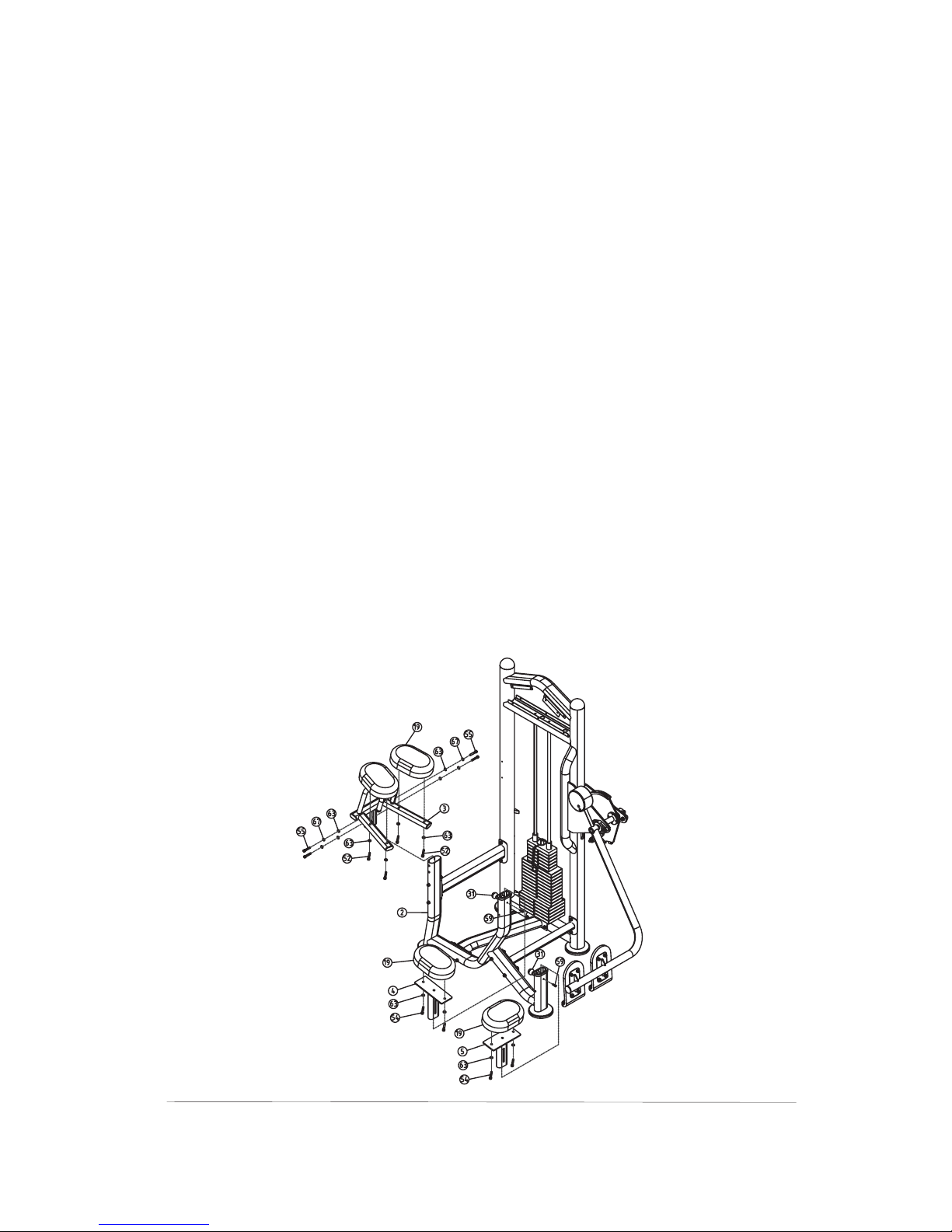

Step9 Assemble the Pads
1)Attach two Pads(#19) to the Handle(#3) using:
2)Secure the handle(#3) to the Main Support(#2) using
3)As shown below, attach the Pad(#19) to Chest
port(#4) using:
4)Insert the Chest Pad Supports(#4) into the Main Sup
ort(#2),then secure it into place with the Pop Pin(#31)
and the Should Bolt(#59).
5)As shown below, attach the Pad(#19) to knee Pad Su-
port(#5) using:
6)Insert the knee Pad Support(#5) into the Main Support
(#2), the Secure it into Place with the Pop Pin (#31)
and the should Bolt(59).
four Allen Bolts(#52) M10×55
four Washers(#63)
two Allen Bolts(#55) M10×25
four Washers(#63)
four Spring Washer 10
two Allen Bolts(#54) M10×30
two Washers(#63)
two Allen Bolt(#54) M10×30
two Washers(#63) 11× 20×2
ΦΦ
ΦΦ
Φ
ΦΦ
ΦΦ
11× 20×2
11× 20×2
11× 20×2
-
Pad Su-
p
p
p

Clip
Top plate
Jam Nut
1
2
15

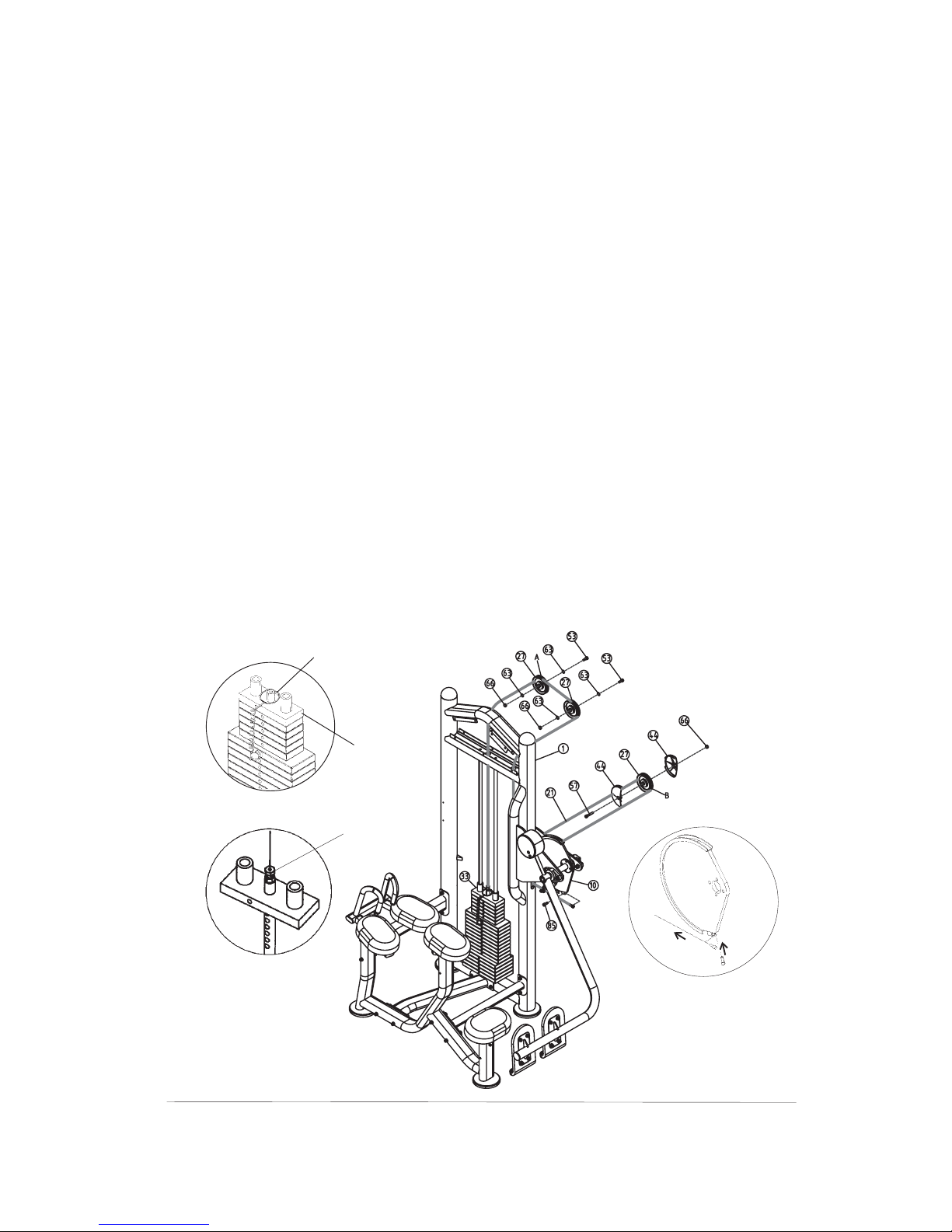

Step10 Route The Cable
1)Put the clip tied on the weight pin leash onto the Top
Plate(#33) as shown, next connect the Cable(#21) to
the Top Plate(#33).
2)Route the Cable(#21) up and over the two Pulleies A
(#27).then secure them to the Main Upright(#1) using
3)Route the Cable(#21) down and under the Pulley B
(#27),then secure them to the Main Upright(#1) using
4)Connect the looped end of the Cable(#21) to the Cam
(#10), secure it using one Screw(#85) as shown below.
5)Adjust the tension of the Cable (#21) using the Jam
Nut as shown below.
6)Make sure that the cable is in the grooves of all pull
eies then fully tighten all bolts and nuts .
7)Select an approprate weight with the weight pin.
ΦΦ11× 20×2two Allen Bolts(#53) M10×45 four Washers(#63)
two Nylon Locknuts(#66) M10
one Shoulder Bolt(#57) M10×50 two Half-pulley Covers(#44)
one Nylon Locknut(#66) M10
-

16

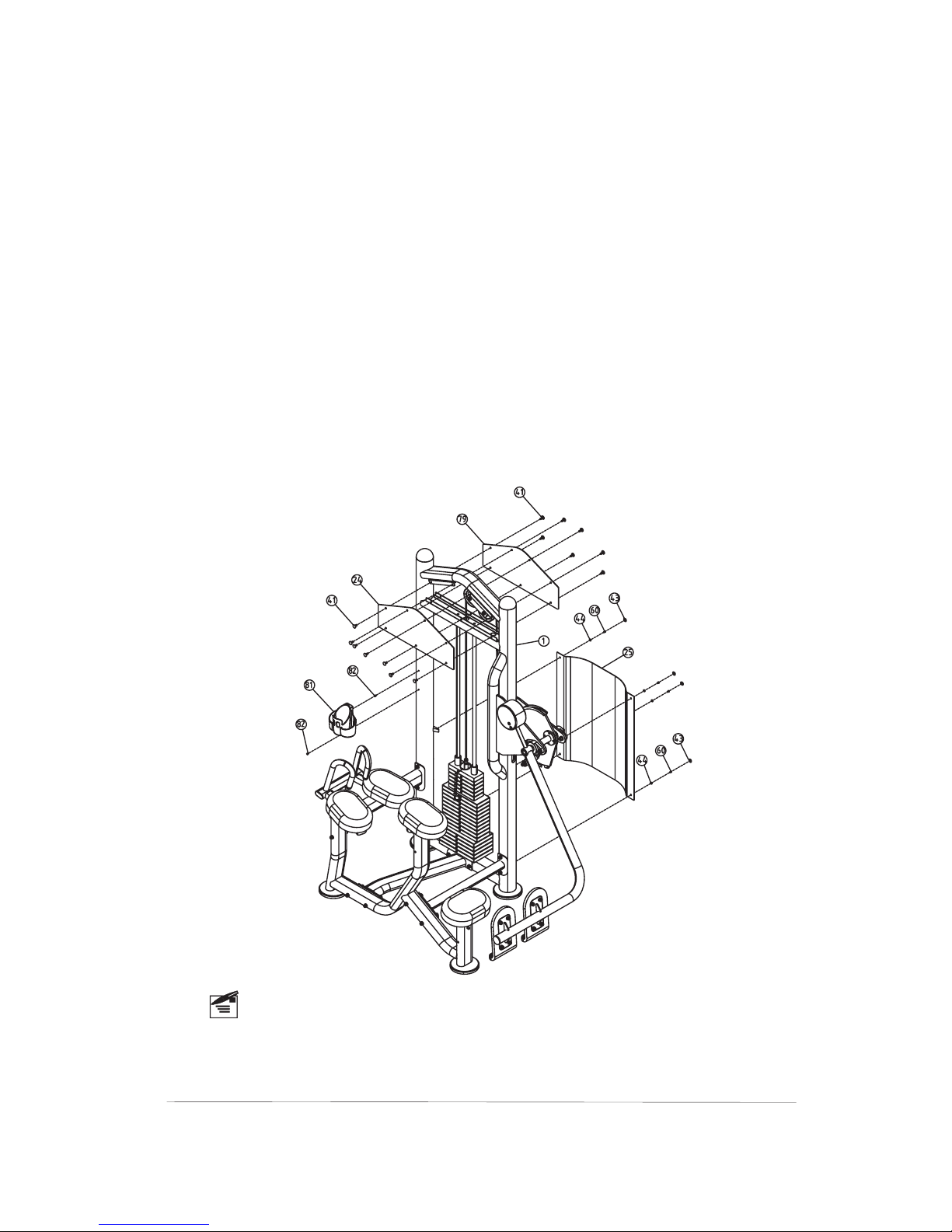

Step11 Assemble The Decal Plates
Note
The Front Decal Plate(#24) with the exercise instr
ctions printed on it should be attached in the front
of the Main Upright(#1).
For a safe exercise,you need make the unit steady
by adjusting the Adj.foot plates.
u-
1)Attach the two Decal Plates(#24,#79) to the Main Up-
right(#1) using:
2)Attach the Weight Shroud (#25) to the Main Upright
(#1) using:
fourteen Butttons(#41)
four Bolt Covers(#43)
four Plastic Washers(#42)
four Chamfer Bolts(#60) M5×10
3)Attach the Plastic Cap(#81) to the Main Upright(#1)
using:
two Screws(#82) M6×15
