BM PRO THOR RVMASTER User manual

RVMaster
POWERED BY
OWNER’S MANUAL
TEAMBMPRO.COM

2
SAFETY PRECAUTIONS
Please read the Safety Precautions before installing or using the RVMaster.
Be sure to observe all precautions without fail. Failure to observe these
instructions properly may result in personal damage, or personal injury which
depending on the circumstances may be serious and cause loss of life.
Correct installation is the most critical factor in ensuring the safe use of the RVMaster. If
every consideration of these instructions has been satisfied, the RVMaster will be safe to
operate.
Do not drop or vigorously shake the product as this may cause damage. Do not shock the
product or its accessories as this may cause the product to fail, catch fire or explode.
Stay away from magnetic equipment. Radiation may erase the information stored on this
product causing it to become inoperative.
Electricity and water do not mix. Keep this product and your battery dry and do not expose it
to water or water vapor. Do not operate this product or battery near any sort of liquid. Do not
operate this product with wet hands.
Do not use this product in environments that are excessively hot, cold, dusty or humid or
where it will be exposed to magnetic fields or long periods of sunshine. Such exposure may
cause the product or your battery to fail, catch fire or explode.
Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol,
thinners, benzene or any other chemical cleaner.
The RVMaster is a high precision electronic product. It contains no user-serviceable parts
inside. Do not try to dismantle, modify or repair it yourself. Disassembly, service or repair by
an unauthorized person will void the warranty.
Before using this product, check that the cable connections to the battery are of the correct
polarity.
Do not install this product in the same compartment where flammable materials such as
petrol are stored.
Product specifications are subject to change and improve without notice.
WARNING

3

4
INFORMATION FOR THE USER
This device complies with Part 15 of the FCC Rules, and Innovation, Science and
Economic Development Canada’s licence-except RSS(S). Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including that may cause
undesired operation.
Le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement
WARNING
Any changes or modification not expressly approved by BMPRO could void compliance
of the product and the user’s authority to operate this equipment.
AVERTISSEMENT
Tout changement ou modification non expressément approuvé par BMPRO pourrait
annuler la conformité du produit et le pouvoir de l’utilisateur d’utiliser cet équipement.

5
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
and energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
not guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception can
be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

6
CONTENTS
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . 2
INFORMATION FOR THE USER . . . . . . . . . . . . . . . . . . . . 4
ABOUT THE RVMASTER . . . . . . . . . . . . . . . . . . . . . . 8
NODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DISPLAY/CONTROLLER (MODEL DEPENDENT) . . . . . . . . . . . . . 8
SWITCH (MODEL DEPENDENT) . . . . . . . . . . . . . . . . . . . 8
SMARTCONNECT . . . . . . . . . . . . . . . . . . . . . . . . . 8
RVMASTER SYSTEM DIAGRAM. . . . . . . . . . . . . . . . . . . . 9
DESCRIPTION OF PARTS. . . . . . . . . . . . . . . . . . . . . .10
DISPLAY (MODEL DEPENDENT) . . . . . . . . . . . . . . . . . . 10
DISPLAY NAVIGATION (MODEL DEPENDENT). . . . . . . . . . . . . 11
CONTROLLER (MODEL DEPENDENT) . . . . . . . . . . . . . . . . 13
MENU FUNCTIONS (MODEL DEPENDENT) . . . . . . . . . . . . . . 15
PAIRING TO THE NODE . . . . . . . . . . . . . . . . . . . . . .16
PAIRING TO THE NODE WITH A DISPLAY (MODEL DEPENDENT) . . . . . 16
PAIRING TO THE NODE WITH A CONTROLLER (MODEL DEPENDENT) . . . 17
BMPRO CLOUD . . . . . . . . . . . . . . . . . . . . . . . . .19

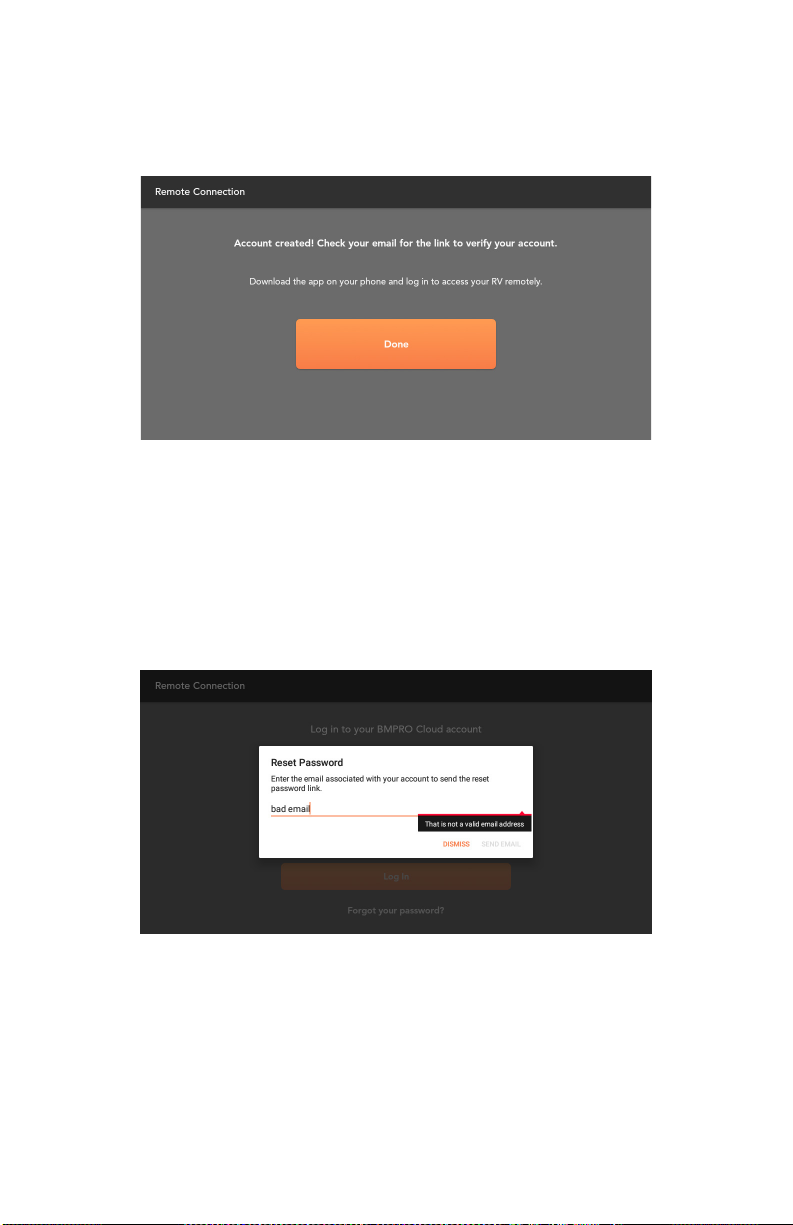

CONNECTING TO THE BMPRO CLOUD . . . . . . . . . . . . . . . . 19
CLOUD CONTROL . . . . . . . . . . . . . . . . . . . . . . . . 21
WINEGARD . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Designed by BMPRO, one of Australia’s leading power solution experts, the BMPRO product
range is proudly designed and manufactured in Melbourne, Australia, and represent a high-
quality product that will provide years of service.
DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the
improper or unsafe use of its products. Warranty is only valid if the unit has not been modified
or misused by the customer.
MANUAL PART 039162
REV 9.0
Copyright © 2023

7
THE RVMASTER APP . . . . . . . . . . . . . . . . . . . . . . .24
SIDEBAR . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
RVMASTER APP HOME SCREEN . . . . . . . . . . . . . . . . . . 25
TANKS SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . 25
MOTORS SCREEN . . . . . . . . . . . . . . . . . . . . . . . . 26
CLIMATE SCREEN (MODEL DEPENDENT) . . . . . . . . . . . . . . 27
LIGHTS SCREEN . . . . . . . . . . . . . . . . . . . . . . . . 28
ENERGY CENTER . . . . . . . . . . . . . . . . . . . . . . . . 29
ENERGY SETTINGS . . . . . . . . . . . . . . . . . . . . . . . 30
SOLAR CONTROLLER . . . . . . . . . . . . . . . . . . . . . . 31
FANS AND VENTS SCREEN . . . . . . . . . . . . . . . . . . . . 32
GENERAL SETTINGS . . . . . . . . . . . . . . . . . . . . . . .33
SENSOR SETTINGS . . . . . . . . . . . . . . . . . . . . . . . 35
SOLAR CONTROLLER SETTINGS . . . . . . . . . . . . . . . . . . 36
UNIT PREFERENCES. . . . . . . . . . . . . . . . . . . . . . . 38
DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . 38
UPDATING FIRMWARE . . . . . . . . . . . . . . . . . . . . . .41
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
REPLACING THE BATTERY IN YOUR SWITCH . . . . . . . . . . . . . 42
FAQS AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . .43
CONTROLLER AND APP . . . . . . . . . . . . . . . . . . . . . 43
PAIRING WITH THE NODE . . . . . . . . . . . . . . . . . . . . . 47
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . .50
LIMITED WARRANTY TERMS AND CONDITIONS . . . . . . . . . . . .52

8
ABOUT THE RVMASTER
The RVMaster brings smart home technology to your RV, taking control and
management of your RV to new horizons!
SMARTCONNECT
RVMaster models built in 2021 or later are SmartConnect ready!
With SmartConnect, you can remotely control various aspects of your caravan,
such as tire pressure, propane tank levels and RV temperatures through the
Controller or RVMaster App by using a range of Bluetooth sensors connected to
RVMaster.
For more details, refer to teambmpro.com/products/smartconnect
SWITCH (MODEL DEPENDENT)
Available in three types of configurations, the Switch provides additional control
of RV features and accessories.
NODE
The heart of the RVMaster, the Node, is an RV management system that powers
and monitors your RV features and accessories.
The Node communicates via RV-C to the Display or Controller (depending on
your model) and Bluetooth Low Energy with your smartphone, to receive the
commands to control power to all your RV features and accessories.
DISPLAY/CONTROLLER (MODEL DEPENDENT)
The sleek, wall-mounted Display or Controller gives you the freedom to monitor
and control multiple RV functions, all from one convenient location in your RV.
With a user-friendly, easy to understand app for Android and iOS, the RVMaster
App brings information to your fingertips and allows monitor and control of your
RV from up to 3 personal devices.
Monitor: Water Tanks, Temperature, Tire Pressure, Battery and LPG.
Control: Lighting, Slide-outs, Awnings, Climate (model dependent), Generators
plus Auto Generator Start and more.

9
RVMASTER SYSTEM DIAGRAM

10
DESCRIPTION OF PARTS
DISPLAY (MODEL DEPENDENT)
1 3
2 4
5
LIVING ROOM LIGHTS KITCHEN LIGHTS BEDROOM CEILING WATER PUMP CLIMATE
1. Page Navigation Button
Move between function screens, eg. From Tanks to Water screen.
2. Menu Navigation Button
Navigate between items within a page, e.g. in the Water page move from
Pump to Elec Heater.
3-4. Action Buttons
The function for each of the action buttons changes depending on the
selected menu item. These functions will be displayed on the screen, eg.
OK, EXT, RET, On, Off.
5. Redundancy Buttons
Turn lights and water pump on or off. The climate button takes you to the
main climate page.
Adjusting the Lights
QUICK press toggles between off and the previous stored brightness.
LONG press sets the light brightness to 100%.

11
DISPLAY NAVIGATION (MODEL DEPENDENT)
Use the Page Navigation Button to move from page to page.
Use the Menu Navigation Button to move between menu items within a page.
Climate
Room: The ambient room temperature.
Set: User-controlled temperature setting.
Range: 33ºF – 90ºF (1ºC to 32ºC)
Modes: Off / Fan / Cool / Auto-Cool / heat PUMP /
FURNACE / HEAT-BOTH
Fan: Settings: HIGH / LOW
AC Controls are RV model dependent.
NOTE: This indicates a fault with one of the
climate outputs or the temperature sensor.
A sensor fault is also indicated by no room
temperature value being shown, eg. -- F
Motor
Press the EXT or RET Action buttons to control
the motors.
This menu list is RV model dependent.
Water
From the Water screen, the Pump, the Electric
and Gas Heaters can be switched on and off.
NOTE: A warning will appear if the Gas Heater
fails to ignite after three attempts.
Tanks
The Tanks display shows the levels of fresh, gray
and black water tanks. Levels are displayed as:
FULL
2/3 FULL
1/3 FULL
EMPTY

12

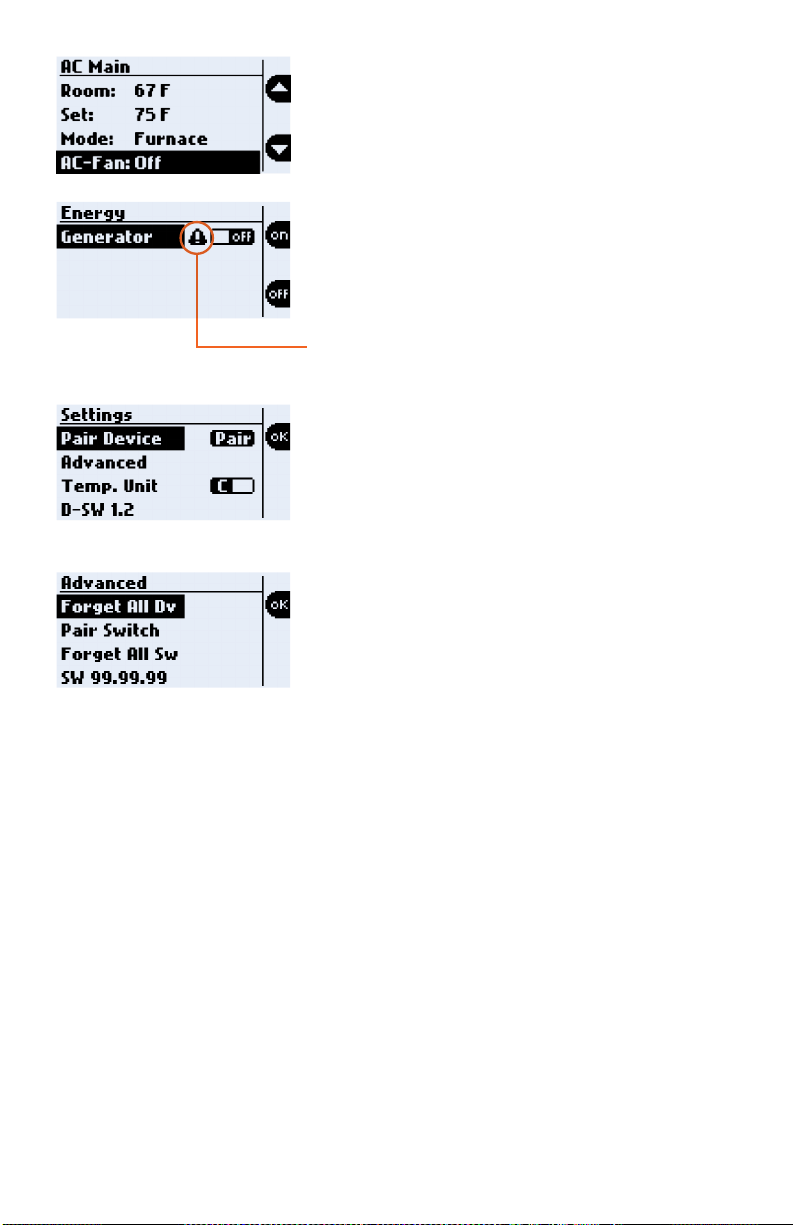

Advanced
Forget All Dv: Forget ALL Bluetooth Devices.
Pair Switch: Pair BLE Switches.
Forget All Sw: Forget all BLE Switches.
SW: Node software version.
Settings
Pair Device: Press OK to pair to a device.
Advanced: Press OK to go to the Advanced menu.
Temp. Unit: Toggle between Fahrenheit & Celsius.
D-SW: Indicates the software version on the
Display.
Energy
ON: Press and hold the ON action button, until the
generator turns on.
OFF: Press and hold the OFF action button, until
the generator turns off.
NOTE: A generator warning will appear if the
generator fault LED is actively blinking.
If Furnace Mode is selected, the AC-Fan option
displays.
AC-Fan: Settings: OFF / LOW

13
1. Controller Home Screen Button
2. Connection Bar
When connected to Bluetooth, the icon will appear on screen.
When connected to the cloud, the icon will appear on screen.
Both icons will appear when both services are available.
3. Warning Icon
Appears if the power cord has been connected to a faulty power source. Tap
the icon for more information.
4. Settings Icon
Access to the RVMaster App General Settings.
This button is only available on the Home screen.
5. Return Button
Navigate to the previous page.
6. Main Screen Button
Navigate to the Controller’s tablet Android screen.
7. Recent Applications Button
Display a list of recently used/background applications on the Controller.
10
14
6
5
7
8
9
11 12 13 12
32
CONTROLLER (MODEL DEPENDENT)

14
8. Reset Pin Hole
To reset the Controller, vertically insert an item (eg. a paper clip) into the reset
pinhole.
The item must be inserted vertically as the reset hole is in a plastic housing.
The EXT and RET buttons are also used during the pairing process between the Node
and devices such as the Controller and smartphone.
9. Control Panel (Model Dependent)
To provide quick access to lights and motor operation while the Controller is in
use.
Any button press on the Control Panel will turn the tablet on if it has turned
off.
10.Lights (Model Dependent)
Turn lights on and off for your:
Living Room Kitchen Bath Ceiling Bed Ceiling
11.Motor Operation (Model Dependent)
To extend (EXT) and retract (RET) any motors installed in the RV.
As a safety precaution, motor control in 2022 model year RVMaster units will
only operate if the engine is running and the park brake is set.
12.Navigation Buttons (Model Dependent)
Press either key to gain access and navigate through menu functions available
from the Control Panel.
Press > to navigate forward and < to navigate back through the menu
functions.
For more information on available functions, see Menu Functions.
13.Menu Display (Model Dependent)

15
Off
Navigate to OF, then press EXT to turn power off to all
loads connected to the Node.
The Controller will also turn off. The OF function does
not shut down generators connected to the Node.
The Controller can be turned back on by pressing any of
the Light buttons on the Control Panel.
Pairing
To pair the Node with the Controller or your own smart
phone, or to clear the Node of any pairings.
For more information, see Pairing to the Node and
Clearing the Node.
Slide-outs
Navigate to the desired slide-out, then press EXT or RET
to operate.
As a safety precaution, slide-out control will be disabled
if the vehicle’s ignition is running and the park break is
not in use.
For more information, see the Motors Screen section.
MENU FUNCTIONS (MODEL DEPENDENT)
The menu functions on the Controlelr’s Control Panel allow you to operate
various motors, quickly switch off loads and pair to or clear the Node.
Awnings
Navigate to the desired awning, then press EXT or RET
to operate.
Bunk-Lifts
Navigate to the desired bunk-lift, then press EXT or RET
to operate.
Jacks
Navigate to the desired jack, then press EXT or RET to
operate.

16
For additional support, refer to the FAQs and Troubleshooting section.
When your smartphone is paired with the Node, the Bluetooth icon is displayed on
the App home screen.
PAIRING TO THE NODE WITH A DISPLAY (MODEL DEPENDENT)
Pairing your smartphone to the Node is simple. The App will guide you through
the process.
The Node can be paired to a total of four devices.
1. Launch the App on your phone and choose the device installed in your RV
2. Press the Page Navigation Button to navigate to the Settings page.
3. When “Pair Device” is highlighted, press the OK function button and your
smartphone will begin pairing to the Node.
2 3
1
CONGRATULATIONS,
YOU’RE CONNECTED!
PAIRING TO THE NODE

17
PAIRING TO THE NODE WITH A CONTROLLER (MODEL DEPENDENT)
Pairing your Controller or your own smartphone or tablet to the Node is done in
two easy steps. The RVMaster App will guide you through the pairing process.
While the Node can be paired to a total of four devices (including the Controller),
you can only pair one device at a time to the Node.
1. Using the <or >buttons on the Controller, navigate to the ‘PA’ menu item.
2. When ‘PA’ appears on the display, press the EXT button to start the pairing
process to the Node. ‘PA’ will blink during the pairing process.
The Controller will have been paired to your Node at the factory. You should only need
to pair your own device or smartphone to the Node.

18
Congratulations, you are now connected!
Once connected the RVMaster App will return to the Home Screen.
For additional support, refer to the FAQs and Troubleshooting section.
Cannot Pair to the Node
If you are pairing a mobile device to the Node and pairing fails, or "--" appears
on screen, it is mostly likely that four devices are connected to the Node
simultaneously. To resolve this, either:
9Close the app on one of the devices that are connected to the Node and try
again, or
9Clear the memory of the Node of all the previously paired devices.

19
CONNECTING TO THE BMPRO CLOUD
To connect to the BMPRO Cloud for the first time:
1. Connect your Controller to the Internet via Wi-Fi.
2. Launch the RVMaster App.
3. From the App Home Screen, press the Settings icon.
4. Press Remote Connection.
5. Press Create account.
6. Enter your full name, email address and a password of your choice.
BMPRO CLOUD
Cloud control allows you to remotely connect, monitor and control your RV from
your smart device.
7. Press Create account.
WARNING
Keep your password in a safe place and only share details with others if you want them
to access and control your RV!

20
8. An email will be sent to your account to verify your email address. Click on the
link provided in the email to complete verification.
9. Now connect your smart device using your BMPRO account details to get
started.
Account Not Verified
If the email address was not verified, a message will appear.
Press RESEND VERIFICATION EMAIL to complete the email verification process.
Forgot Your Password
If you have forgotten your Cloud account password, press Forgot your password
in the login page, enter your email address and press SEND EMAIL.
