JBA-CB301 INSTRUCTIONS 200S TANK V1.0 www.jbaf.com.au 1
PRODUCT- TJM 5L AIR TANK MOUNTING BRACKET
VEHCILE- 200 SERIES LANDCRUISER 2007-2021
PART NUMBER-JBA-CB301
ESTIMATED FIT TIME
-PREPERATION AND MOUNTING OF COMPRESSOR AND BRACKET 30 MINS
IMPORTANT NOTES
-READ INSTRUCTIONS CAREFULLY PRIOR TO FITMENT
-ENSURE 567 THREAD SEALANT IS APPLIED TO ALL AIR THREADS INSTALLED
KIT CONTENTS
ITEM
DESCRIPTION
PART NO.
QTY
1
JBA 200 SERIES 5L TANK BRACKET
JBA-CB301A
1
2
M8 X 20MM BUTTON HD SOCKET SCR GR 304 S/S
X72 08020304
4
3
5/16 X 3/4 X 18G FLAT WASHER GR 304 S/S
X79 082018G304
4
4
M8 NYLON INSERT LOCK NUT GR 304S/S
X53 8304
4
5
M6 X 20MM SEMS ASSMEMBLY Z/Y
B48 0620ZY
3
6
M6 HEX SERR FLANGE NUT ZY
N24 06ZY
1
1.

JBA-CB301 INSTRUCTIONS 200S TANK V1.0 www.jbaf.com.au 2
1. PREPARING THE TANK AND BRACKET
STEP 1.1 USING A 5MM ALLEN KEY, LOOSEN
OFF THE GRUB SCREW ON EACH TANK FOOT
AND SLIDE OFF THE TANK.
STEP 1.2ROTATE THE TANK SO THAT THE
DRAIN SCREW IS 90 DEGREES FACING YOU AS
SHOWN. SLIDE THE TANK FEET BACK ON TOP
FACE (ALONG TJM STICKER)
STEP 1.3 ALIGN THE RIGHT SIDE FEET LEVEL
WITH THE END OF THE TANK AS SHOWN AND
TIGHTEN.
STEP 1.4 POSITION THE LEFT SIDE FEET 280MM
(CENTRE TO CENTRE) FROM THE RIGHT FEET
AND TIGHTEN.
STEP 1.5 INSTALL JBA-CB106 90 DEGREE ELBOW
ON THE END OF THE TANK AS SHOWN FACING
TOWARDS THE TANK FEET.
STEP 1.6 INSTALL SECOND JBA-CB106 90
DEGREE ELBOW IN THE LHS ¼” BSP OUTLET ON
THE TANK AS SHOWN FACING TOWARDS THE
RHS.
280MM

JBA-CB301 INSTRUCTIONS 200S TANK V1.0 www.jbaf.com.au 3

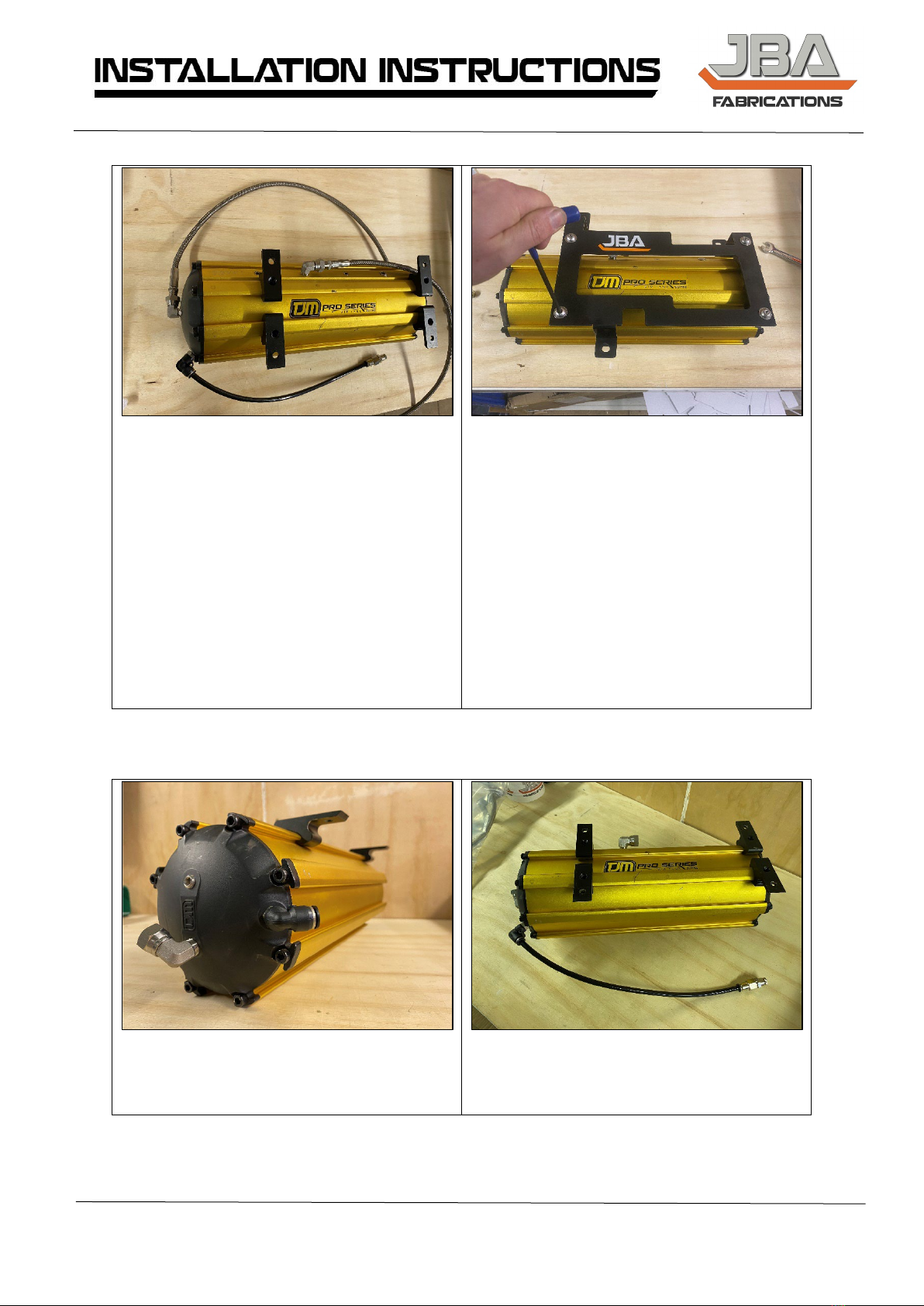

STEP 1.7 ATTACH JBA STAINLESS HOSES TO
ELBOWS PREVIOUSLY INSTALLED IN STEPS 1.5-
1.6.
-INSTALL 800MM HOSE TO ELBOW ON
LHS END WHICH WILL CONNECT TO
THE COMPRESSOR.
-IF INSTALLING JBA-CB201QAS QUARTER
PANEL MOUNT BRACKET, INSTALL
800MM HOSE TO ELBOW ON TOP OF
TANK
-IF INSTALLING JBA-CB101 DRAWER
FRONT MOUNT, INSTALL 1200MM
HOSE TO ELBOW ON TOP OF TANK.
STEP 1.8 ATTACH THE TANK TO THE JBA
BRACKET USING M8 X 20 PAN HEAD WITH A
WASHER UNDER THE HEAD AS SHOWN. FASTEN
FROM UNDERNEATH USING M8 NYLOC AND
WASHER.
OPTIONAL STEPS- FITTING TANK DRAIN KIT
STEP 1.9 INSTALL JBA 90 DEGREE QUICK FIT
ELBOW TO 1/8” PORT AT THE BOOTOM OF THE
TANK AS SHOWN.
STEP 1.10 INSTALL 8MM HOSE AND DRAIN
VALVE.

JBA-CB301 INSTRUCTIONS 200S TANK V1.0 www.jbaf.com.au 4
2. INSTALLING IN TO THE VEHCILE
STEP 2.1POSITION BRACKET INTO VEHICLE
LINING UP THE FACTORY BODY POINTS.
INSTALL TOP LEFT AND BOTTOM POSITIONS
USING M6 X 20 SEMS SCREW AND TOP RIGHT
POINT USING M6 X 20 SEMS WITH M6 FLANGE
NUT FROM BEHIND.
STEP 2.2 CONTINUE INSTALLATION AS PER JBA-
CB201 SINGLE OR JBA-CB211 TWIN
COMPRESSOR INSTRUCTIONS AND RELEVANT
AIR OUTLET LOCATION SPECIFICATIONS.
